Sayfa 0-12 - Isuzu EPC

0-12 — CYLINDER BLOCK (#54342) — 287 parça

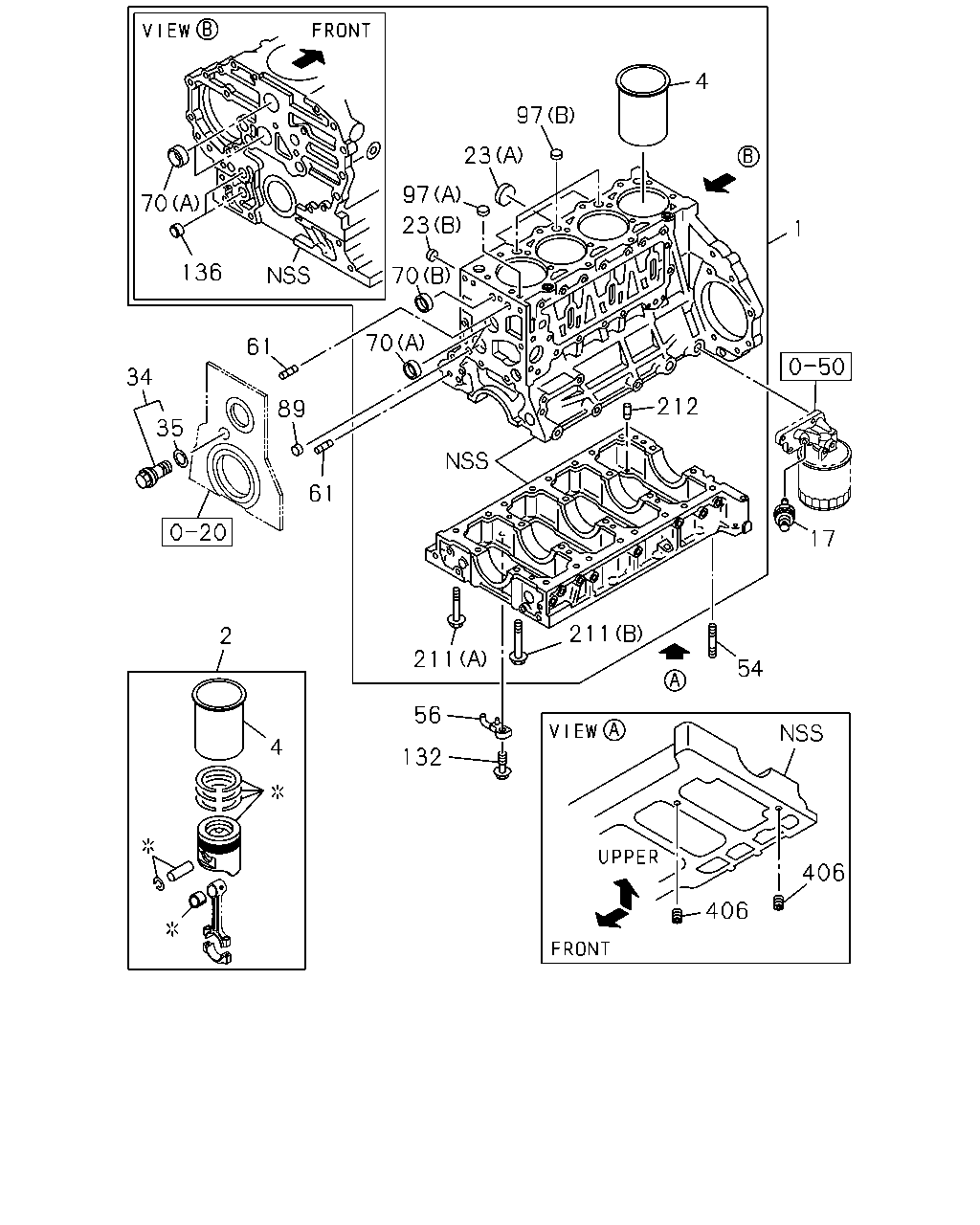

70 136 34 35 61 89 61 2 4 97 4 23 97 23 70 70 1 212 17 54 211 211 56 132 406 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL	8-98046-721-3	01	1	0803-1209	●	●
1	00.033 BLOCK ASM; CYL	8-98204-529-0	01	1	1210-1405	●	●
1	00.033 BLOCK ASM; CYL	8-98204-528-0	01	1	1406-	●	●
1	00.033 BLOCK ASM; CYL	8-97386-617-5	01	1	0804-0808			●
1	00.033 BLOCK ASM; CYL	8-97386-617-5	01	1	0809-1104			●	●
1	00.033 BLOCK ASM; CYL EXC. VIETNAM EQUIPMENT(CL0)	8-97386-617-5	01	1	1105-1209			●
1	00.033 BLOCK ASM; CYL	8-97386-617-5	01	1	1105-1209				●
1	00.033 BLOCK ASM; CYL EXC. VIETNAM EQUIPMENT(CL0)	8-98240-635-1	01	1	1210-1210			●
1	00.033 BLOCK ASM; CYL	8-98240-635-1	01	1	1210-1210				●
1	00.033 BLOCK ASM; CYL	8-98240-635-1	01	1	1210-			●	●
1	00.033 BLOCK ASM; CYL VIETNAM EQUIPMENT(CL0)	8-98240-635-1	01	1	1210-1210			●	●
2	00.030 LINER SET; ENG CYL GRADE=1X	1-87813-119-6	04	1	0803-1405	●	●
2	00.030 LINER SET; ENG CYL GRADE=1X	1-87814-726-0	04	1	1406-	●	●
2	00.030 LINER SET; ENG CYL GRADE=3X	1-87813-120-6	04	1	0803-1405	●	●
2	00.030 LINER SET; ENG CYL GRADE=3X	1-87814-727-0	04	1	1406-	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	04	1	0803-1405	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	04	1	1406-	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	04	1	0803-1405	●	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	04	1	1406-	●	●
17	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	0803-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR VIETNAM EQUIPMENT(CL0) 00.253 (C) OD=18	5-11219-008-0	02	1	1406-1510			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR VIETNAM EQUIPMENT(CL0) (A) OD=45	8-98258-386-0	03	1	1511-			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR VIETNAM EQUIPMENT(CL0) (D) OD=32	5-11219-015-0	04	1	1406-1510			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (C) OD=18	5-11219-008-0	02	1	1511-			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1406-1510	●	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR EXC. VIETNAM EQUIPMENT(CL0) (A) OD=45	8-97036-550-1	03	1	1406-1510			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (B) OD=25	1-09600-016-0	01	1	0803-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0803-0803	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0804-0808	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0809-1105	●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR VIETNAM EQUIPMENT(CL0) (A) OD=45	8-97036-550-1	03	1	1406-1510			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1511-	●	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR VIETNAM EQUIPMENT(CL0) (A) OD=45	8-97036-550-1	03	1	1511-			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (C) OD=18	5-11219-008-0	02	1	0804-0808			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (C) OD=18	5-11219-008-0	02	1	0809-1104			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR EXC. VIETNAM EQUIPMENT(CL0) 00.253 (C) OD=18	5-11219-008-0	02	1	1406-1510			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (C) OD=18	5-11219-008-0	02	1	1406-1510				●
23	00.034 CUP; SEALING,C/BL FRT & RR EXC. VIETNAM EQUIPMENT(CL0) (C) OD=45	8-97036-550-1	03	1	1511-			●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=45	8-97036-550-1	03	1	1511-				●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	04	1	0804-0808			●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	04	1	0809-1104			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR EXC. VIETNAM EQUIPMENT(CL0) (D) OD=32	5-11219-015-0	04	1	1406-1510			●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	04	1	1406-1510				●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	04	1	1511-			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (E) OD=36	5-11219-018-0	02	1	0804-0808			●
23	00.034 CUP; SEALING,C/BL FRT & RR (E) OD=36	5-11219-018-0	02	1	0809-			●	●
34	01.609 VALVE; OIL RELIEF EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) 00.213	8-97328-859-0	01	1	1201-	●	●
34	01.609 VALVE; OIL RELIEF EURO4 SPECIFICATION(NT4) 00.213	8-97328-859-0	01	1	1201-	●	●
34	01.609 VALVE; OIL RELIEF 00.213	8-97328-859-0	01	1	0803-1112	●	●
34	01.609 VALVE; OIL RELIEF EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAU DI ARABIA EQUIPMENT(GH3),UZBEKISTAN EQUIPMENT(JCW),CHILE EQUIPMENT(KE1) 00.213	8-97328-859-0	01	1	1201-1501	●	●
34	01.609 VALVE; OIL RELIEF EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAU DI ARABIA EQUIPMENT(GH3),UZBEKISTAN EQUIPMENT(JCW),CHILE EQUIPMENT(KE1) 00.213	8-97328-859-0	02	1	1502-	●	●
35	01.609 GASKET; RELIEF VLV EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAUDI ARABIA EQUIPMENT(GH3),CHILE EQUIPMENT(KE1) ID=23.3	8-94173-412-0	01	1	1201-	●	●
35	01.609 GASKET; RELIEF VLV EURO4 SPECIFICATION(NT4) ID=23.3	8-94173-412-0	01	1	1201-	●	●
35	01.609 GASKET; RELIEF VLV ID=23.3	8-94173-412-0	01	1	0803-1112	●	●
35	01.609 GASKET; RELIEF VLV EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. EGYPT EQUIPMENT(B09),COLOMBIA EQUIPMENT(CB7),VENEZUELA EQUIPMENT(E14),SAU DI ARABIA EQUIPMENT(GH3),UZBEKISTAN EQUIPMENT(JCW),CHILE EQUIPMENT(KE1) ID=23.3	8-94173-412-0	02	1	1201-	●	●
54	01.428 STUD; OIL PAN TO BLOCK EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M8X20 L=38	8-97021-431-0	03	1	1101-	●	●
56	01.519 JET; OIL,PISTON COOLING	8-98020-649-0	04	1	0803-1007	●	●
56	01.519 JET; OIL,PISTON COOLING	8-98173-342-0	04	1	1008-	●	●
61	00.206 PIN; STRAIGHT VIETNAM EQUIPMENT(CL0) 01.453 L=31	8-97920-964-1	02	1	1105-			●	●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	0803-	●	●
61	00.206 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	0804-0808			●
61	00.206 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	0809-1104			●	●
61	00.206 PIN; STRAIGHT EXC. VIETNAM EQUIPMENT(CL0) 01.428 L=31	9-09878-597-0	02	1	1105-			●
61	00.206 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	1105-				●
70	00.034 CUP; SEALING,FRT & RR 00.293 (B) OD=25	1-09600-016-0	01	1	0803-	●	●
70	00.034 CUP; SEALING,FRT & RR (A) OD=40	8-97096-824-0	04	1	0803-	●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 (C) OD=16	5-11129-006-0	06	1	0804-0808			●
70	00.034 CUP; SEALING,FRT & RR 00.253 (C) OD=16	5-11129-006-0	06	1	0809-			●	●
89	00.034 CUP; SEALING,OIL GALLERY 00.253 OD=20	9-11129-128-0	03	1	0803-	●	●
97	00.034 CUP; SEALING 00.253 (A) OD=16	5-11129-006-0	01	1	0803-	●	●
97	00.034 CUP; SEALING 00.253 (C) OD=12	8-97036-335-1	01	1	0803-	●	●
97	00.034 CUP; SEALING 00.253 (B) OD=22	8-97209-609-0	03	1	0803-	●	●
132	01.519 VALVE; CHECK,OIL M10X18.5	8-97329-618-0	04	1	0803-	●	●
136	01.639 BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	0803-0812	●	●
136	01.639 BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	0901-	●	●
211	01.428 BOLT; CRANKCASE (A) M10X82	8-94399-553-2	17	1	0803-	●	●
211	01.428 BOLT; CRANKCASE 00.293 (B) M14X115 W/FLANGE	8-97077-638-0	10	1	0803-	●	●
211	01.428 BOLT; CRANKCASE 06.216 (C) M8X25 FLANGE	0-28650-825-0	19	1	0804-0808			●
211	01.428 BOLT; CRANKCASE 06.216 (C) M8X25 FLANGE	0-28650-825-0	19	1	0809-			●	●
211	01.428 BOLT; CRANKCASE 00.685 (D) M8X40 FLANGE	0-28650-840-0	01	1	0804-0808			●
211	01.428 BOLT; CRANKCASE 00.685 (D) M8X40 FLANGE	0-28650-840-0	01	1	0809-			●	●
212	01.428 PIN; CRANKCASE 04.510 OD=10 L=20	8-97135-423-0	02	1	0803-	●	●
406	01.531 PLUG; CRANK CASE 01.073 PT3/8	5-09605-005-0	02	1	0803-	●	●

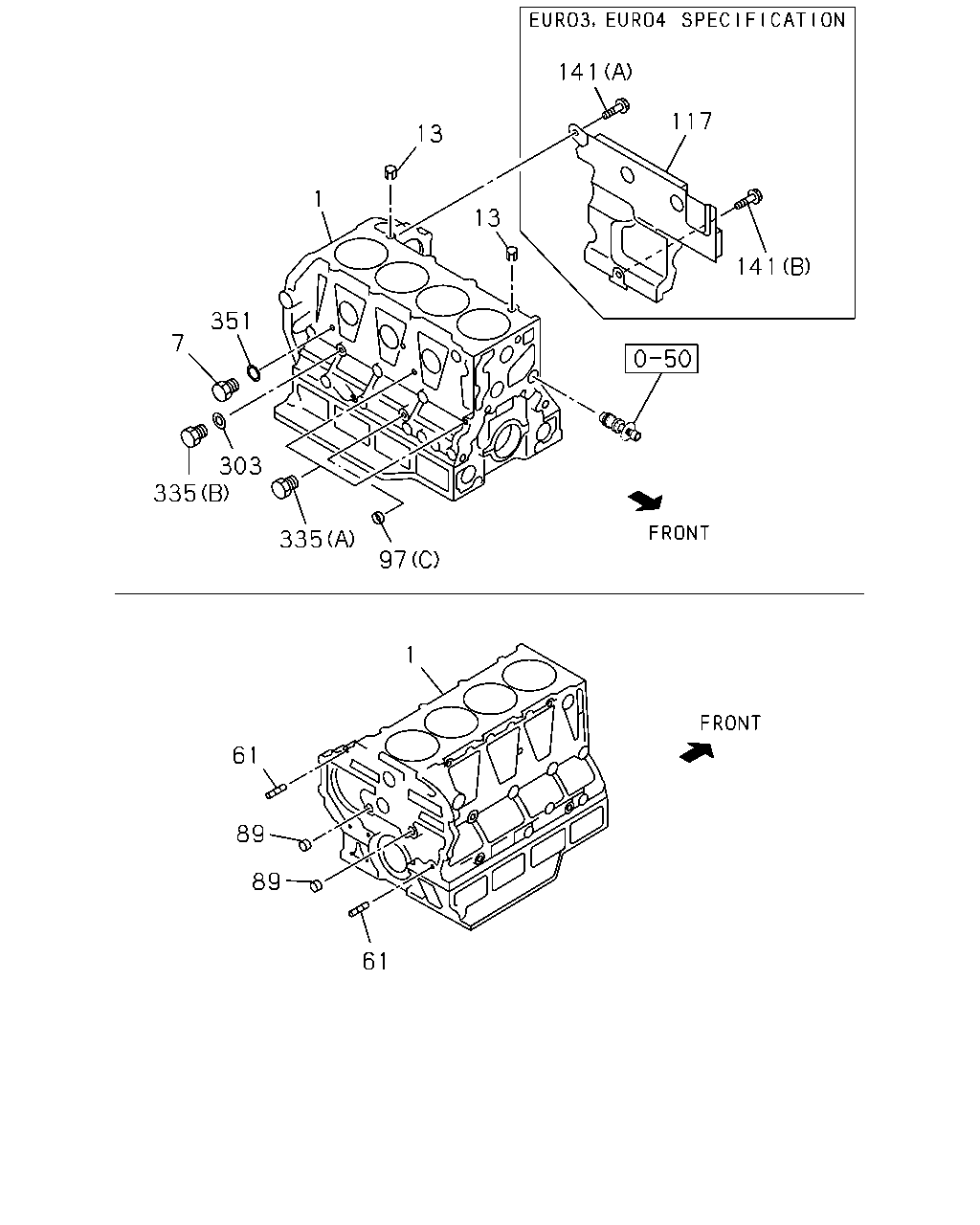

141 117 141 13 13 1 351 7 303 335 335 1 97 61 89 89 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL	8-98046-721-3	01	1	0803-1209	●	●
1	00.033 BLOCK ASM; CYL	8-98204-529-0	01	1	1210-1405	●	●
1	00.033 BLOCK ASM; CYL	8-98204-528-0	01	1	1406-	●	●
1	00.033 BLOCK ASM; CYL	8-97386-617-5	01	1	0804-0808			●
1	00.033 BLOCK ASM; CYL	8-97386-617-5	01	1	0809-1104			●	●
1	00.033 BLOCK ASM; CYL EXC. VIETNAM EQUIPMENT(CL0)	8-97386-617-5	01	1	1105-1209			●
1	00.033 BLOCK ASM; CYL	8-97386-617-5	01	1	1105-1209				●
1	00.033 BLOCK ASM; CYL EXC. VIETNAM EQUIPMENT(CL0)	8-98240-635-1	01	1	1210-1210			●
1	00.033 BLOCK ASM; CYL	8-98240-635-1	01	1	1210-1210				●
1	00.033 BLOCK ASM; CYL	8-98240-635-1	01	1	1210-			●	●
1	00.033 BLOCK ASM; CYL VIETNAM EQUIPMENT(CL0)	8-98240-635-1	01	1	1210-1210			●	●
7	00.034 PLUG; WATER DRAIN VIETNAM EQUIPMENT(CL0) PT1/4	9-09664-001-0	01	1	1406-1510			●	●
7	00.034 PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	0803-	●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0804-0808			●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0809-1104			●	●
7	00.034 PLUG; WATER DRAIN EXC. VIETNAM EQUIPMENT(CL0) PT1/4	9-09664-001-0	01	1	1406-1510			●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1406-1510				●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1511-			●	●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	0803-	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0804-0808			●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0809-			●	●
61	00.206 PIN; STRAIGHT VIETNAM EQUIPMENT(CL0) 01.453 L=31	8-97920-964-1	02	1	1105-			●	●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	0803-	●	●
61	00.206 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	0804-0808			●
61	00.206 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	0809-1104			●	●
61	00.206 PIN; STRAIGHT EXC. VIETNAM EQUIPMENT(CL0) 01.428 L=31	9-09878-597-0	02	1	1105-			●
61	00.206 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	1105-				●
89	00.034 CUP; SEALING,OIL GALLERY 00.253 OD=20	9-11129-128-0	03	1	0803-	●	●
97	00.034 CUP; SEALING 00.253 (A) OD=16	5-11129-006-0	01	1	0803-	●	●
97	00.034 CUP; SEALING 00.253 (C) OD=12	8-97036-335-1	01	1	0803-	●	●
97	00.034 CUP; SEALING 00.253 (B) OD=22	8-97209-609-0	03	1	0803-	●	●
117	00.030 COVER ASM; C/BL	8-98039-564-0	01	1	0803-0803	●	●
117	00.030 COVER ASM; C/BL EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4)	8-98039-564-0	01	1	0804-	●	●
141	01.531 BOLT; COVER 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0803-0803	●	●
141	01.531 BOLT; COVER EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-	●	●
141	01.531 BOLT; COVER 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	0803-0803	●	●
141	01.531 BOLT; COVER EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	0804-	●	●
303	01.531 GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2	1-09630-085-0	01	1	0803-1312	●	●
303	01.531 GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-	●	●
335	01.531 PLUG; C/BL,SIDE (B) M14X18	0-20801-418-0	01	1	0803-0805	●	●
335	01.531 PLUG; C/BL,SIDE 04.866 (B) M14X18	8-98038-403-0	01	1	0806-	●	●
335	01.531 PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	0803-	●	●
351	01.531 GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0803-	●	●

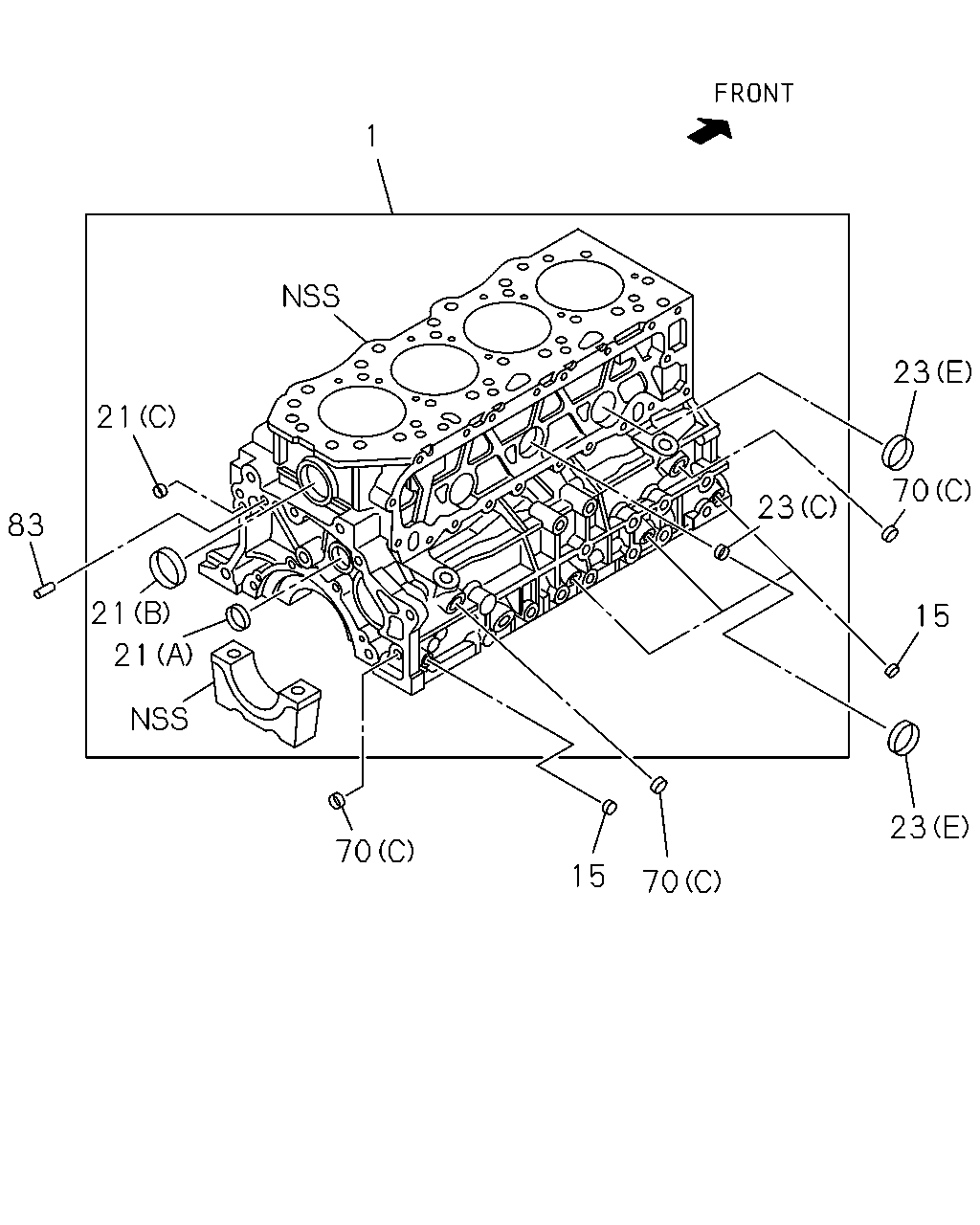

1 23 21 70 23 83 21 15 21 23 70 15 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL	8-98046-721-3	01	1	0803-1209	●	●
1	00.033 BLOCK ASM; CYL	8-98204-529-0	01	1	1210-1405	●	●
1	00.033 BLOCK ASM; CYL	8-98204-528-0	01	1	1406-	●	●
1	00.033 BLOCK ASM; CYL	8-97386-617-5	01	1	0804-0808			●
1	00.033 BLOCK ASM; CYL	8-97386-617-5	01	1	0809-1104			●	●
1	00.033 BLOCK ASM; CYL EXC. VIETNAM EQUIPMENT(CL0)	8-97386-617-5	01	1	1105-1209			●
1	00.033 BLOCK ASM; CYL	8-97386-617-5	01	1	1105-1209				●
1	00.033 BLOCK ASM; CYL EXC. VIETNAM EQUIPMENT(CL0)	8-98240-635-1	01	1	1210-1210			●
1	00.033 BLOCK ASM; CYL	8-98240-635-1	01	1	1210-1210				●
1	00.033 BLOCK ASM; CYL	8-98240-635-1	01	1	1210-			●	●
1	00.033 BLOCK ASM; CYL VIETNAM EQUIPMENT(CL0)	8-98240-635-1	01	1	1210-1210			●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	0804-0808			●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	0809-			●	●
21	00.034 CUP; SEALING,RR VIETNAM EQUIPMENT(CL0) 00.253 (C) OD=12.3	5-09600-013-0	01	1	1406-1510			●	●
21	00.034 CUP; SEALING,RR VIETNAM EQUIPMENT(CL0) (A) OD=38	5-11219-017-0	01	1	1406-1510			●	●
21	00.034 CUP; SEALING,RR VIETNAM EQUIPMENT(CL0) (B) OD=36	5-11219-018-0	01	1	1406-1510			●	●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	0804-0808			●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	0809-1104			●	●
21	00.034 CUP; SEALING,RR EXC. VIETNAM EQUIPMENT(CL0) 00.253 (C) OD=12.3	5-09600-013-0	01	1	1406-1510			●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	1406-1510				●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	1511-			●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0804-0808			●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0809-1104			●	●
21	00.034 CUP; SEALING,RR EXC. VIETNAM EQUIPMENT(CL0) (A) OD=38	5-11219-017-0	01	1	1406-1510			●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1406-1510				●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1511-			●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0804-0808			●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0809-1104			●	●
21	00.034 CUP; SEALING,RR EXC. VIETNAM EQUIPMENT(CL0) (B) OD=36	5-11219-018-0	01	1	1406-1510			●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1406-1510				●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1511-			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR VIETNAM EQUIPMENT(CL0) 00.253 (C) OD=18	5-11219-008-0	02	1	1406-1510			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR VIETNAM EQUIPMENT(CL0) (A) OD=45	8-98258-386-0	03	1	1511-			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR VIETNAM EQUIPMENT(CL0) (D) OD=32	5-11219-015-0	04	1	1406-1510			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (C) OD=18	5-11219-008-0	02	1	1511-			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1406-1510	●	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR EXC. VIETNAM EQUIPMENT(CL0) (A) OD=45	8-97036-550-1	03	1	1406-1510			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (B) OD=25	1-09600-016-0	01	1	0803-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0803-0803	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0804-0808	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0809-1105	●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR VIETNAM EQUIPMENT(CL0) (A) OD=45	8-97036-550-1	03	1	1406-1510			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1511-	●	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR VIETNAM EQUIPMENT(CL0) (A) OD=45	8-97036-550-1	03	1	1511-			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (C) OD=18	5-11219-008-0	02	1	0804-0808			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (C) OD=18	5-11219-008-0	02	1	0809-1104			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR EXC. VIETNAM EQUIPMENT(CL0) 00.253 (C) OD=18	5-11219-008-0	02	1	1406-1510			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (C) OD=18	5-11219-008-0	02	1	1406-1510				●
23	00.034 CUP; SEALING,C/BL FRT & RR EXC. VIETNAM EQUIPMENT(CL0) (C) OD=45	8-97036-550-1	03	1	1511-			●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=45	8-97036-550-1	03	1	1511-				●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	04	1	0804-0808			●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	04	1	0809-1104			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR EXC. VIETNAM EQUIPMENT(CL0) (D) OD=32	5-11219-015-0	04	1	1406-1510			●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	04	1	1406-1510				●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	04	1	1511-			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (E) OD=36	5-11219-018-0	02	1	0804-0808			●
23	00.034 CUP; SEALING,C/BL FRT & RR (E) OD=36	5-11219-018-0	02	1	0809-			●	●
70	00.034 CUP; SEALING,FRT & RR 00.293 (B) OD=25	1-09600-016-0	01	1	0803-	●	●
70	00.034 CUP; SEALING,FRT & RR (A) OD=40	8-97096-824-0	04	1	0803-	●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 (C) OD=16	5-11129-006-0	06	1	0804-0808			●
70	00.034 CUP; SEALING,FRT & RR 00.253 (C) OD=16	5-11129-006-0	06	1	0809-			●	●
83	00.685 PIN; FLYWHEEL HSG 08.939 OD=10 L=32	9-08161-032-0	01	1	0804-0808			●
83	00.685 PIN; FLYWHEEL HSG 08.939 OD=10 L=32	9-08161-032-0	01	1	0809-			●	●

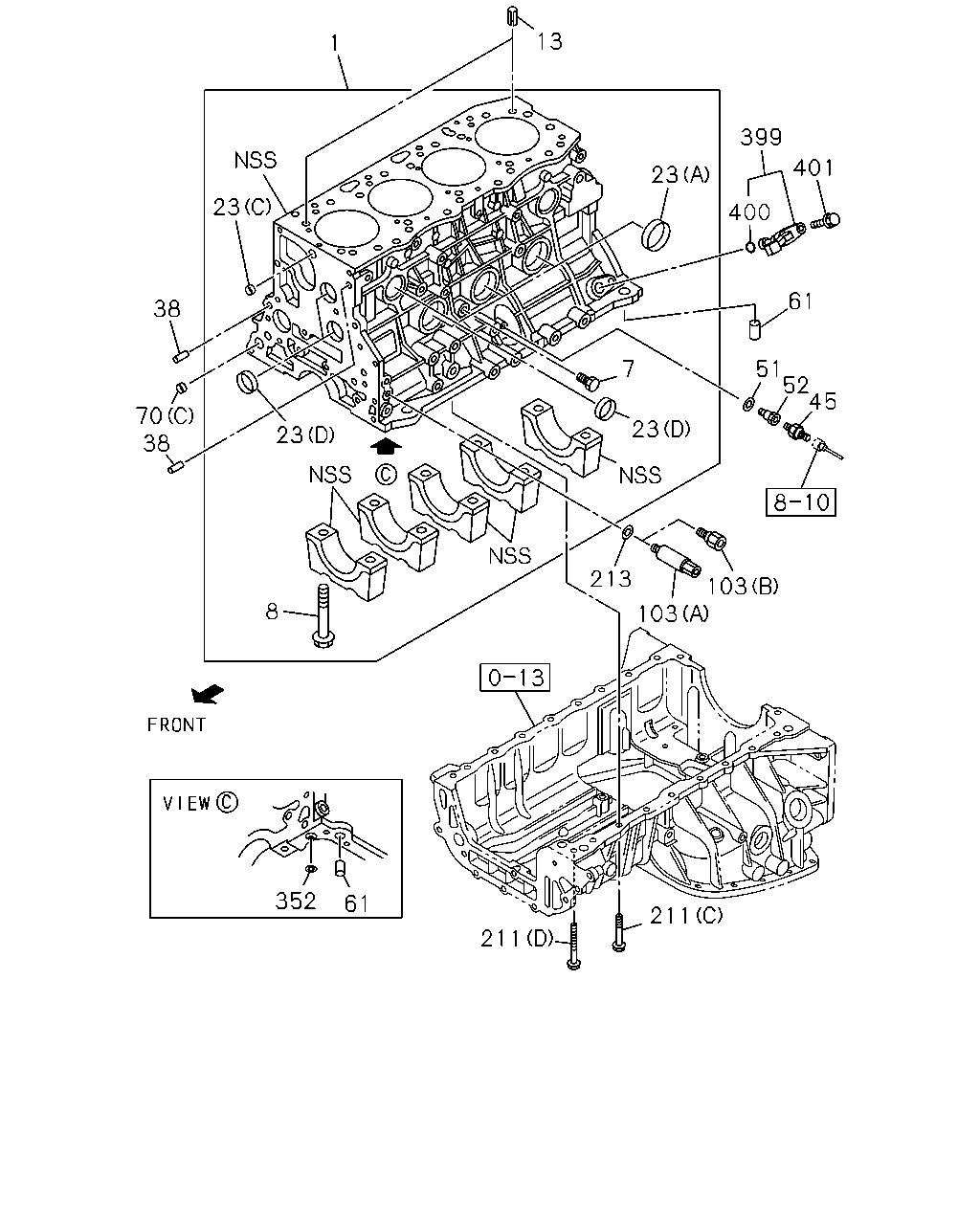

1 13 23 399 400 401 61 51 52 45 7 23 103 103 213 8 23 38 70 38 23 352 61 211 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL	8-98046-721-3	01	1	0803-1209	●	●
1	00.033 BLOCK ASM; CYL	8-98204-529-0	01	1	1210-1405	●	●
1	00.033 BLOCK ASM; CYL	8-98204-528-0	01	1	1406-	●	●
1	00.033 BLOCK ASM; CYL	8-97386-617-5	01	1	0804-0808			●
1	00.033 BLOCK ASM; CYL	8-97386-617-5	01	1	0809-1104			●	●
1	00.033 BLOCK ASM; CYL EXC. VIETNAM EQUIPMENT(CL0)	8-97386-617-5	01	1	1105-1209			●
1	00.033 BLOCK ASM; CYL	8-97386-617-5	01	1	1105-1209				●
1	00.033 BLOCK ASM; CYL EXC. VIETNAM EQUIPMENT(CL0)	8-98240-635-1	01	1	1210-1210			●
1	00.033 BLOCK ASM; CYL	8-98240-635-1	01	1	1210-1210				●
1	00.033 BLOCK ASM; CYL	8-98240-635-1	01	1	1210-			●	●
1	00.033 BLOCK ASM; CYL VIETNAM EQUIPMENT(CL0)	8-98240-635-1	01	1	1210-1210			●	●
7	00.034 PLUG; WATER DRAIN VIETNAM EQUIPMENT(CL0) PT1/4	9-09664-001-0	01	1	1406-1510			●	●
7	00.034 PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	0803-	●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0804-0808			●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0809-1104			●	●
7	00.034 PLUG; WATER DRAIN EXC. VIETNAM EQUIPMENT(CL0) PT1/4	9-09664-001-0	01	1	1406-1510			●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1406-1510				●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1511-			●	●
8	00.056 BOLT; BRG CAP VIETNAM EQUIPMENT(CL0) M14X89 FLANGE	8-94432-642-0	10	1	1511-			●	●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0804-0808			●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0809-1510			●	●
8	00.056 BOLT; BRG CAP EXC. VIETNAM EQUIPMENT(CL0) M14X89 FLANGE	8-94432-642-0	10	1	1511-			●
8	00.056 BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	1511-				●
13	00.293 DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	0803-	●	●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0804-0808			●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0809-			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR VIETNAM EQUIPMENT(CL0) 00.253 (C) OD=18	5-11219-008-0	02	1	1406-1510			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR VIETNAM EQUIPMENT(CL0) (A) OD=45	8-98258-386-0	03	1	1511-			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR VIETNAM EQUIPMENT(CL0) (D) OD=32	5-11219-015-0	04	1	1406-1510			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (C) OD=18	5-11219-008-0	02	1	1511-			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1406-1510	●	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR EXC. VIETNAM EQUIPMENT(CL0) (A) OD=45	8-97036-550-1	03	1	1406-1510			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.293 (B) OD=25	1-09600-016-0	01	1	0803-	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0803-0803	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0804-0808	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0809-1105	●	●	●	●
23	00.034 CUP; SEALING,C/BL FRT & RR VIETNAM EQUIPMENT(CL0) (A) OD=45	8-97036-550-1	03	1	1406-1510			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1511-	●	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR VIETNAM EQUIPMENT(CL0) (A) OD=45	8-97036-550-1	03	1	1511-			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (C) OD=18	5-11219-008-0	02	1	0804-0808			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (C) OD=18	5-11219-008-0	02	1	0809-1104			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR EXC. VIETNAM EQUIPMENT(CL0) 00.253 (C) OD=18	5-11219-008-0	02	1	1406-1510			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (C) OD=18	5-11219-008-0	02	1	1406-1510				●
23	00.034 CUP; SEALING,C/BL FRT & RR EXC. VIETNAM EQUIPMENT(CL0) (C) OD=45	8-97036-550-1	03	1	1511-			●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=45	8-97036-550-1	03	1	1511-				●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	04	1	0804-0808			●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	04	1	0809-1104			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR EXC. VIETNAM EQUIPMENT(CL0) (D) OD=32	5-11219-015-0	04	1	1406-1510			●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	04	1	1406-1510				●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	04	1	1511-			●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (E) OD=36	5-11219-018-0	02	1	0804-0808			●
23	00.034 CUP; SEALING,C/BL FRT & RR (E) OD=36	5-11219-018-0	02	1	0809-			●	●
38	00.206 PIN; TIMING GEAR CASE VIETNAM EQUIPMENT(CL0) 00.669 OD=10 L=20	9-08151-020-0	02	1	1105-			●	●
38	00.206 PIN; TIMING GEAR CASE 04.510 OD=10 L=20	8-97135-423-0	02	1	0804-0808			●
38	00.206 PIN; TIMING GEAR CASE 04.510 OD=10 L=20	8-97135-423-0	02	1	0809-1104			●	●
38	00.206 PIN; TIMING GEAR CASE EXC. VIETNAM EQUIPMENT(CL0) 04.510 OD=10 L=20	8-97135-423-0	02	1	1105-			●
38	00.206 PIN; TIMING GEAR CASE 04.510 OD=10 L=20	8-97135-423-0	02	1	1105-				●
45	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	0804-0808			●
45	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	0809-			●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT(CL0)	8-97912-498-0	01	1	1105-			●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	0804-0808			●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	0809-1104			●	●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT(CL0).	8-94336-292-0	01	1	1105-			●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	1105-				●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98089-872-0	01	1	0804-0808			●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98089-872-0	01	1	0809-1501			●	●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	1502-			●	●
61	00.206 PIN; STRAIGHT VIETNAM EQUIPMENT(CL0) 01.453 L=31	8-97920-964-1	02	1	1105-			●	●
61	00.206 PIN; STRAIGHT L=22	8-94483-674-0	04	1	0803-	●	●
61	00.206 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	0804-0808			●
61	00.206 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	0809-1104			●	●
61	00.206 PIN; STRAIGHT EXC. VIETNAM EQUIPMENT(CL0) 01.428 L=31	9-09878-597-0	02	1	1105-			●
61	00.206 PIN; STRAIGHT 01.428 L=31	9-09878-597-0	02	1	1105-				●
70	00.034 CUP; SEALING,FRT & RR 00.293 (B) OD=25	1-09600-016-0	01	1	0803-	●	●
70	00.034 CUP; SEALING,FRT & RR (A) OD=40	8-97096-824-0	04	1	0803-	●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 (C) OD=16	5-11129-006-0	06	1	0804-0808			●
70	00.034 CUP; SEALING,FRT & RR 00.253 (C) OD=16	5-11129-006-0	06	1	0809-			●	●
103	01.531 NIPPLE; OIL FEED EXC. VIETNAM EQUIPMENT(CL0) 00.293 (B)	8-94469-596-0	01	1	1301-			●
103	01.531 NIPPLE; OIL FEED 00.293 (B)	8-94469-596-0	01	1	1301-				●
103	01.531 NIPPLE; OIL FEED (A)	8-97316-983-4	01	1	0804-0808			●
103	01.531 NIPPLE; OIL FEED (A)	8-97316-983-4	01	1	0809-1212			●	●
103	01.531 NIPPLE; OIL FEED VIETNAM EQUIPMENT(CL0) (A)	8-97316-983-4	01	1	1301-			●	●
211	01.428 BOLT; CRANKCASE (A) M10X82	8-94399-553-2	17	1	0803-	●	●
211	01.428 BOLT; CRANKCASE 00.293 (B) M14X115 W/FLANGE	8-97077-638-0	10	1	0803-	●	●
211	01.428 BOLT; CRANKCASE 06.216 (C) M8X25 FLANGE	0-28650-825-0	19	1	0804-0808			●
211	01.428 BOLT; CRANKCASE 06.216 (C) M8X25 FLANGE	0-28650-825-0	19	1	0809-			●	●
211	01.428 BOLT; CRANKCASE 00.685 (D) M8X40 FLANGE	0-28650-840-0	01	1	0804-0808			●
211	01.428 BOLT; CRANKCASE 00.685 (D) M8X40 FLANGE	0-28650-840-0	01	1	0809-			●	●
213	01.531 GASKET; NIPPLE,OIL FEED 08.955 ID=10.2 OD=16.0	9-09571-410-0	01	1	0804-0808			●
213	01.531 GASKET; NIPPLE,OIL FEED 08.955 ID=10.2 OD=16.0	9-09571-410-0	01	1	0809-			●	●
352	01.429 GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09566-116-0	01	1	0804-0808			●
352	01.429 GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09566-116-0	01	1	0809-			●	●
399	00.724 SENSOR; CRANKSHAFT POSITION 02.361	8-97312-108-1	01	1	0804-0808			●
399	00.724 SENSOR; CRANKSHAFT POSITION 02.361	8-97312-108-1	01	1	0809-			●	●
400	00.724 GASKET; CRANKSHAFT POSITION SENS ID=14.2 OD=18.8	8-97369-404-0	01	1	0804-0808			●
400	00.724 GASKET; CRANKSHAFT POSITION SENS ID=14.2 OD=18.8	8-97369-404-0	01	1	0809-			●	●
401	00.724 BOLT; SENSOR 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0804-0808			●
401	00.724 BOLT; SENSOR 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0809-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
