Sayfa 0-11 - Isuzu EPC

0-11 — CYLINDER HEAD (#54341) — 256 parça

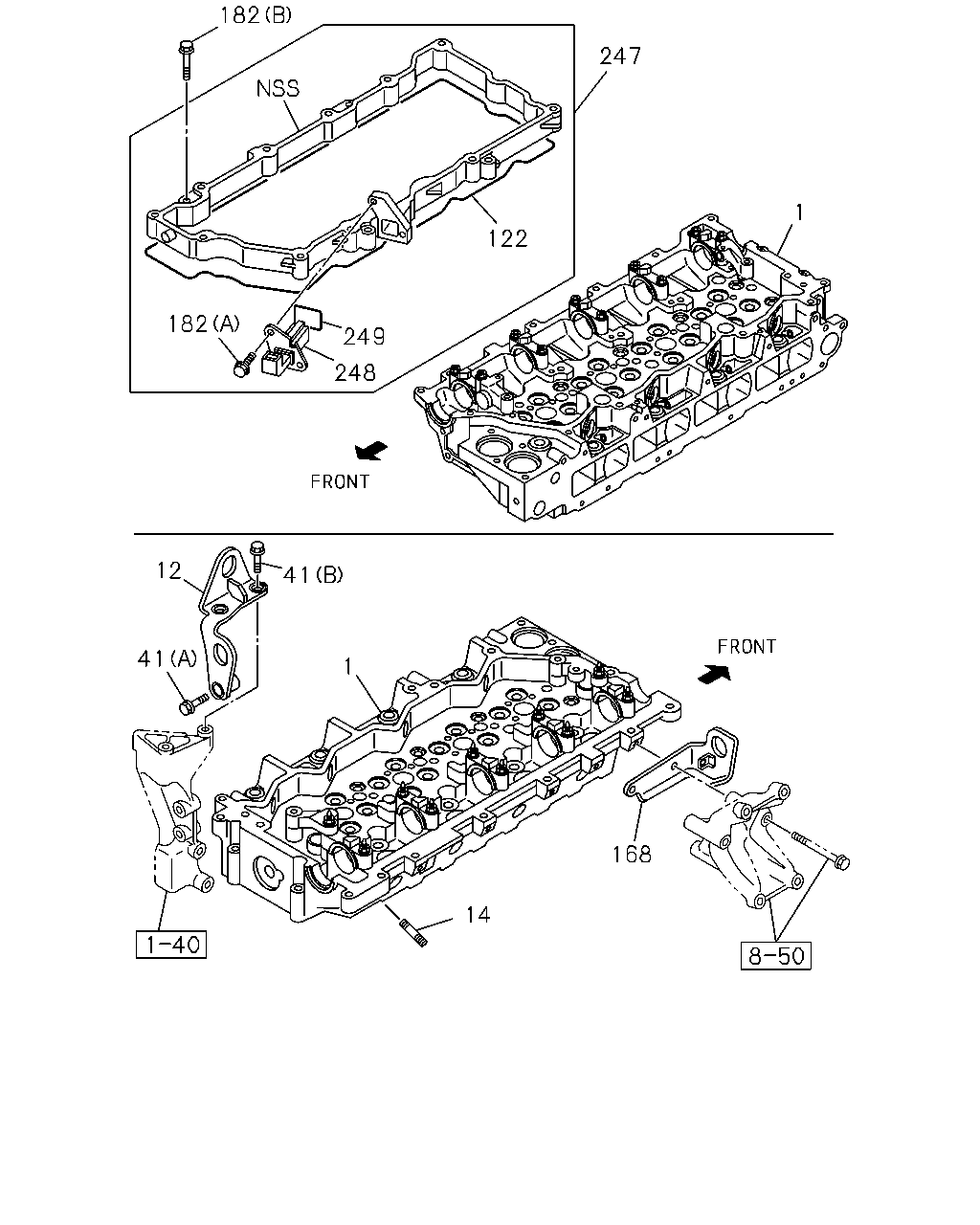

182 247 1 122 182 249 248 12 41 41 1 168 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.269 HEAD ASM; CYL VIETNAM EQUIPMENT(CL0)	8-98182-900-0	01	1	1105-1303	●	●
1	00.269 HEAD ASM; CYL VIETNAM EQUIPMENT(CL0)	8-98223-017-0	01	1	1304-	●	●
1	00.269 HEAD ASM; CYL	8-98018-454-6	01	1	0803-1005			●	●
1	00.269 HEAD ASM; CYL	8-98170-619-0	01	1	1006-			●	●
1	00.269 HEAD ASM; CYL	8-97355-970-8	01	1	0804-0808		●
1	00.269 HEAD ASM; CYL	8-97355-970-9	01	1	0809-1012	●	●
1	00.269 HEAD ASM; CYL	8-98175-606-1	01	1	1101-1104	●	●
1	00.269 HEAD ASM; CYL EXC. VIETNAM EQUIPMENT(CL0)	8-98175-606-1	01	1	1105-1301		●
1	00.269 HEAD ASM; CYL	8-98175-606-1	01	1	1105-1301	●
1	00.269 HEAD ASM; CYL EXC. VIETNAM EQUIPMENT(CL0)	8-98223-019-2	01	1	1302-		●
1	00.269 HEAD ASM; CYL	8-98223-019-2	01	1	1302-	●
12	00.004 HANGER; ENG,RR	8-98074-691-1	01	1	0803-			●	●
14	03.275 STUD; EXH MANIF M10X60 L=75	8-94397-286-0	02	1	0803-			●	●
41	09.181 BOLT; ENG HANGER 03.162 (B) M12X20 FLANGE	0-28151-220-0	02	1	0803-			●	●
41	09.181 BOLT; ENG HANGER (A) M12X80	0-28151-280-0	01	1	0803-			●	●
122	00.206 GASKET; COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97331-360-1	01	1	0803-			●	●
168	00.004 HANGER; ENG,FRT	8-98032-250-1	01	1	0803-			●	●
182	00.206 BOLT; CASE 02.343 (A) M8X12 FLANGE	0-28050-812-0	02	1	0803-			●	●
182	00.206 BOLT; CASE 09.173 (B) M8X45 FLANGE	0-28050-845-0	04	1	0803-			●	●
247	00.269 CASE; CYL HEAD,C/H COVER	8-97331-362-1	01	1	0803-			●	●
248	02.251 CONNECTOR 01.150	8-94390-858-1	01	1	0803-			●	●
249	03.300 GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENGINE). 01.152	8-94391-310-0	01	1	0803-			●	●

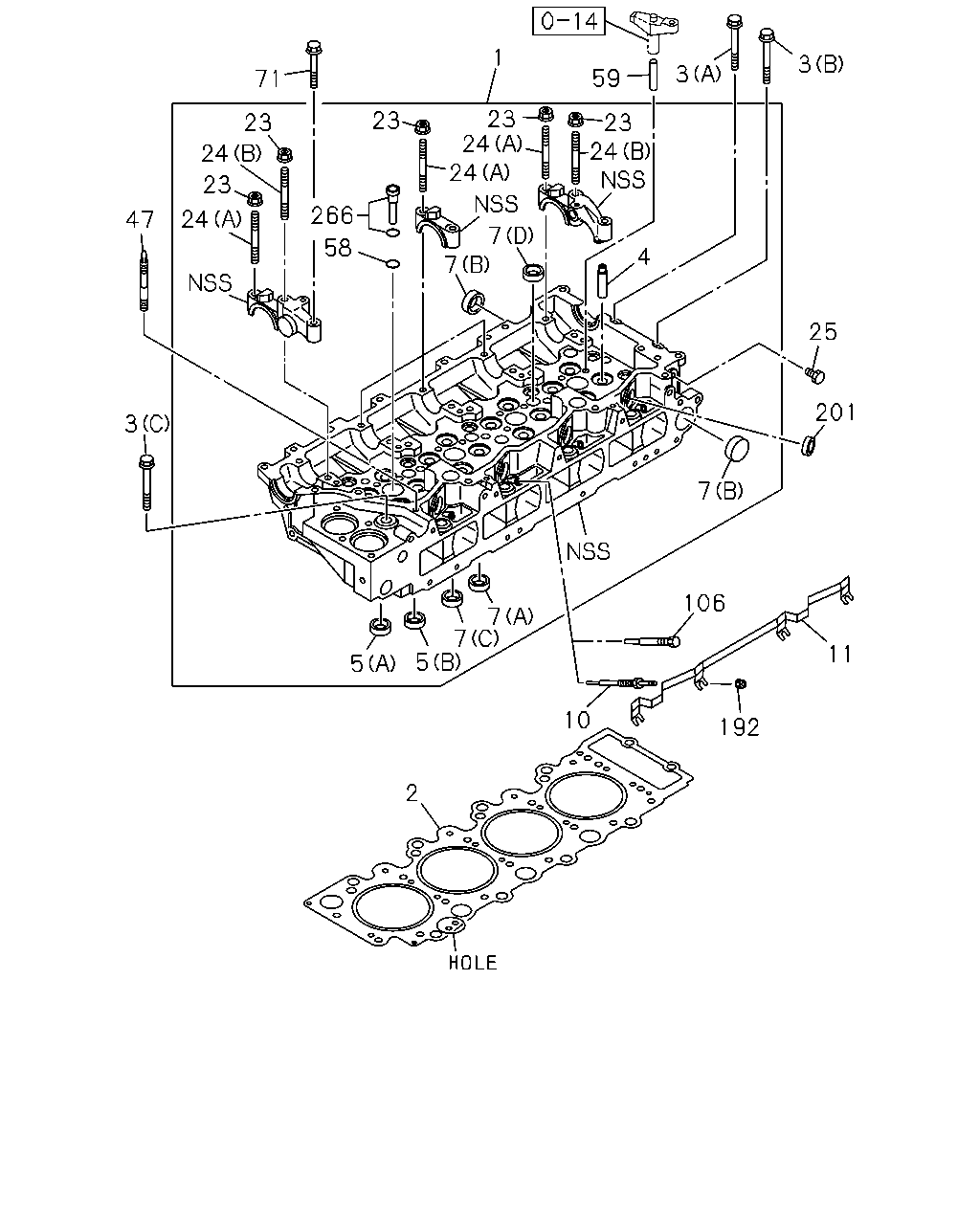

59 23 24 3 3 25 201 7 106 11 192 10 2 5 5 7 7 71 23 24 23 24 47 3 266 58 23 1 23 24 24 7 7 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.269 HEAD ASM; CYL VIETNAM EQUIPMENT(CL0)	8-98182-900-0	01	1	1105-1303	●	●
1	00.269 HEAD ASM; CYL VIETNAM EQUIPMENT(CL0)	8-98223-017-0	01	1	1304-	●	●
1	00.269 HEAD ASM; CYL	8-98018-454-6	01	1	0803-1005			●	●
1	00.269 HEAD ASM; CYL	8-98170-619-0	01	1	1006-			●	●
1	00.269 HEAD ASM; CYL	8-97355-970-8	01	1	0804-0808		●
1	00.269 HEAD ASM; CYL	8-97355-970-9	01	1	0809-1012	●	●
1	00.269 HEAD ASM; CYL	8-98175-606-1	01	1	1101-1104	●	●
1	00.269 HEAD ASM; CYL EXC. VIETNAM EQUIPMENT(CL0)	8-98175-606-1	01	1	1105-1301		●
1	00.269 HEAD ASM; CYL	8-98175-606-1	01	1	1105-1301	●
1	00.269 HEAD ASM; CYL EXC. VIETNAM EQUIPMENT(CL0)	8-98223-019-2	01	1	1302-		●
1	00.269 HEAD ASM; CYL	8-98223-019-2	01	1	1302-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) VIETNAM EQUIPMENT(CL0) T=1.05 1-NOTCH	8-97328-866-2	01	1	1105-1108	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.05 1-NOTCH	8-97328-866-2	01	1	1109-1304	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.05 1-NOTCH	8-98241-037-0	01	1	1305-1411	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.14 1-NOTCH	8-98291-683-0	01	1	1412-	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) VIETNAM EQUIPMENT(CL0) T=1.10 2-NOTCH	8-97328-867-2	01	1	1105-1108	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.10 2-NOTCH	8-97328-867-2	01	1	1109-1304	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.10 2-NOTCH	8-98241-038-0	01	1	1305-1411	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.19 2-NOTCH	8-98291-684-0	01	1	1412-	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) VIETNAM EQUIPMENT(CL0) T=1.15 3-NOTCH	8-97328-868-2	01	1	1105-1108	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.15 3-NOTCH	8-97328-868-2	01	1	1109-1304	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.15 3-NOTCH	8-98241-039-0	01	1	1305-1411	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.24 3-NOTCH	8-98291-685-0	01	1	1412-	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.475 NON-HOLE	8-98055-540-0	01	1	0803-1505			●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.475 NON-HOLE	8-98288-501-0	01	1	1506-			●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.525 1-HOLE	8-98055-541-0	01	1	0803-1505			●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.525 1-HOLE	8-98288-502-0	01	1	1506-			●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.575 2-HOLE	8-98055-542-0	01	1	0803-1505			●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.575 2-HOLE	8-98288-503-0	01	1	1506-			●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.05 1-NOTCH	8-97328-866-2	01	1	0804-0808		●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.05 1-NOTCH	8-97328-866-2	01	1	0809-0901	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.05 1-NOTCH	8-98135-953-0	01	1	0902-1104	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. VIETNAM EQUIPMENT(CL0) ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.05 1-NOTCH	8-98135-953-0	01	1	1105-1108		●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.05 1-NOTCH	8-98135-953-0	01	1	1105-1108	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.10 2-NOTCH	8-97328-867-2	01	1	0804-0808		●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.10 2-NOTCH	8-97328-867-2	01	1	0809-0901	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.10 2-NOTCH	8-98135-954-0	01	1	0902-1104	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. VIETNAM EQUIPMENT(CL0) ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.10 2-NOTCH	8-98135-954-0	01	1	1105-1108		●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.10 2-NOTCH	8-98135-954-0	01	1	1105-1108	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.15 3-NOTCH	8-97328-868-2	01	1	0804-0808		●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.15 3-NOTCH	8-97328-868-2	01	1	0809-0901	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.15 3-NOTCH	8-98135-955-0	01	1	0902-1104	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. VIETNAM EQUIPMENT(CL0) ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.15 3-NOTCH	8-98135-955-0	01	1	1105-1108		●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.15 3-NOTCH	8-98135-955-0	01	1	1105-1108	●
3	00.293 BOLT; CYL HD TO BLOCK VIETNAM EQUIPMENT(CL0) (D) M11X114 W/WASHER	8-98201-019-0	18	1	1108-1108	●	●
3	00.293 BOLT; CYL HD TO BLOCK (D) M11X114 W/WASHER	8-98201-019-0	18	1	1109-	●	●
3	00.293 BOLT; CYL HD TO BLOCK (A) M10X73	8-94399-554-0	01	1	0803-			●	●
3	00.293 BOLT; CYL HD TO BLOCK (B) M10X43	8-94399-555-0	01	1	0803-			●	●
3	00.293 BOLT; CYL HD TO BLOCK (C) M14X115 W/FLANGE	8-97077-638-0	18	1	0803-1503			●	●
3	00.293 BOLT; CYL HD TO BLOCK (C) M14X115 W/FLANGE	8-98260-005-0	18	1	1504-			●	●
3	00.293 BOLT; CYL HD TO BLOCK (D) M11X114	8-97144-583-1	18	1	0804-0808		●
3	00.293 BOLT; CYL HD TO BLOCK (D) M11X114	8-97144-583-2	18	1	0809-1107	●	●
3	00.293 BOLT; CYL HD TO BLOCK EXC. VIETNAM EQUIPMENT(CL0) (D) M11X114	8-97144-583-2	18	1	1108-1108		●
3	00.293 BOLT; CYL HD TO BLOCK (D) M11X114	8-97144-583-2	18	1	1108-1108	●
4	00.283 GUIDE; VLV L=57	8-97376-719-2	16	1	0803-			●	●
4	00.283 GUIDE; VLV L=42	8-94239-423-0	16	1	0804-0808		●
4	00.283 GUIDE; VLV L=42	8-94239-423-0	16	1	0809-	●	●
5	00.253 SEAT; VLV INSERT (A) INLET ID=32 OD=38	8-98028-874-0	08	1	0803-			●	●
5	00.253 SEAT; VLV INSERT (B) EXHAUST ID=31 OD=38	8-98028-875-0	08	1	0803-			●	●
5	00.253 SEAT; VLV INSERT (C) INLET ID=29 OD=35	8-97311-378-0	08	1	0804-0808		●
5	00.253 SEAT; VLV INSERT (C) INLET ID=29 OD=35	8-97311-378-0	08	1	0809-1104	●	●
5	00.253 SEAT; VLV INSERT EXC. VIETNAM EQUIPMENT(CL0) (C) INLET ID=29 OD=35	8-97311-378-0	08	1	1105-		●
5	00.253 SEAT; VLV INSERT (C) INLET ID=29 OD=35	8-97311-378-0	08	1	1105-	●
5	00.253 SEAT; VLV INSERT (D) EXHAUST ID=26 OD=32	8-97311-379-0	08	1	0804-0808		●
5	00.253 SEAT; VLV INSERT (D) EXHAUST ID=26 OD=32	8-97311-379-0	08	1	0809-1104	●	●
5	00.253 SEAT; VLV INSERT EXC. VIETNAM EQUIPMENT(CL0) (D) EXHAUST ID=26 OD=32	8-97311-379-0	08	1	1105-		●
5	00.253 SEAT; VLV INSERT (D) EXHAUST ID=26 OD=32	8-97311-379-0	08	1	1105-	●
7	00.253 CUP; SEALING,CYL HEAD 00.293 (D) OD=25	1-09600-016-0	04	1	0803-			●	●
7	00.253 CUP; SEALING,CYL HEAD (A) OD=16	5-11129-006-0	05	1	0803-			●	●
7	00.253 CUP; SEALING,CYL HEAD (B) OD=32	8-97096-821-0	05	1	0803-			●	●
7	00.253 CUP; SEALING,CYL HEAD (C) OD=20	9-11129-128-0	07	1	0803-			●	●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (E) OD=32	1-09600-012-2	02	1	0804-0808		●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (E) OD=32	1-09600-012-2	02	1	0809-	●	●
7	00.253 CUP; SEALING,CYL HEAD (F) OD=18	5-11219-008-0	13	1	0804-0808		●
7	00.253 CUP; SEALING,CYL HEAD (F) OD=18	5-11219-008-0	13	1	0809-	●	●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (G) OD=14	5-11219-011-0	07	1	0804-0808		●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (G) OD=14	5-11219-011-0	07	1	0809-	●	●
10	02.270 PLUG; GLOW NGK	8-94390-777-5	04	1	0803-0803			●	●
10	02.270 PLUG; GLOW NGK	8-94390-777-5	04	1	0804-0808		●	●	●
10	02.270 PLUG; GLOW NGK	8-94390-777-6	04	1	0809-1501	●	●	●	●
10	02.270 PLUG; GLOW EXC. GLOW SYSTEM DELETE<7RK> NGK	8-94390-777-6	04	1	1502-			●	●
10	02.270 PLUG; GLOW NGK	8-94390-777-6	04	1	1502-	●	●
11	02.251 CONNECTOR; GLOW PLUG	8-97332-358-2	01	1	0803-1501			●	●
11	02.251 CONNECTOR; GLOW PLUG EXC. GLOW SYSTEM DELETE<7RK>	8-97332-358-2	01	1	1502-			●	●
11	02.251 CONNECTOR; GLOW PLUG	8-98014-335-0	01	1	0804-0808		●
11	02.251 CONNECTOR; GLOW PLUG	8-98014-335-0	01	1	0809-	●	●
23	00.349 NUT; CAM BRKT 01.540 M8 FLANGE	0-91180-208-0	10	1	0803-			●	●
24	00.413 STUD; CM/SHF BRKT (B) M8X54 L=79	8-94322-512-2	02	1	0803-			●	●
24	00.413 STUD; CM/SHF BRKT (A) M8X41 L=66	8-94322-513-2	08	1	0803-			●	●
25	00.293 PLUG; CYL HD 00.309 M8X10	8-98003-416-0	01	1	0803-			●	●
47	00.413 STUD; CYL HD 01.073 M8X60 L=72	0-49140-860-0	02	1	0803-			●	●
58	00.289 GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=26.4	8-97604-916-0	04	1	0803-			●	●
59	00.283 GUIDE; BRIDGE	8-97381-603-1	08	1	0803-			●	●
71	00.413 BOLT; CAM BRKT 03.162 M8X35 FLANGE	0-28050-835-0	02	1	0803-			●	●
106	00.293 PLUG; GLOW PLUG HOLE GLOW SYSTEM DELETE<7RK>	8-94392-236-0	04	1	1502-			●	●
192	00.349 NUT; GLOW PLUG 02.559 M4 FLANGE	8-97368-853-0	04	1	0803-0803			●	●
192	00.349 NUT; GLOW PLUG 02.559 M4 FLANGE	8-97368-853-0	04	1	0804-0808		●	●	●
192	00.349 NUT; GLOW PLUG 02.559 M4 FLANGE	8-97368-853-0	04	1	0809-1501	●	●	●	●
192	00.349 NUT; GLOW PLUG EXC. GLOW SYSTEM DELETE<7RK> 02.559 M4 FLANGE	8-97368-853-0	04	1	1502-			●	●
192	00.349 NUT; GLOW PLUG 02.559 M4 FLANGE	8-97368-853-0	04	1	1502-	●	●
201	03.306 GASKET; SLEEVE,INJ PUMP ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) OD=30	1-09639-034-0	04	1	0803-			●	●
266	00.293 SLEEVE ASM; NOZZLE HOLDER	8-98018-462-0	04	1	0803-			●	●

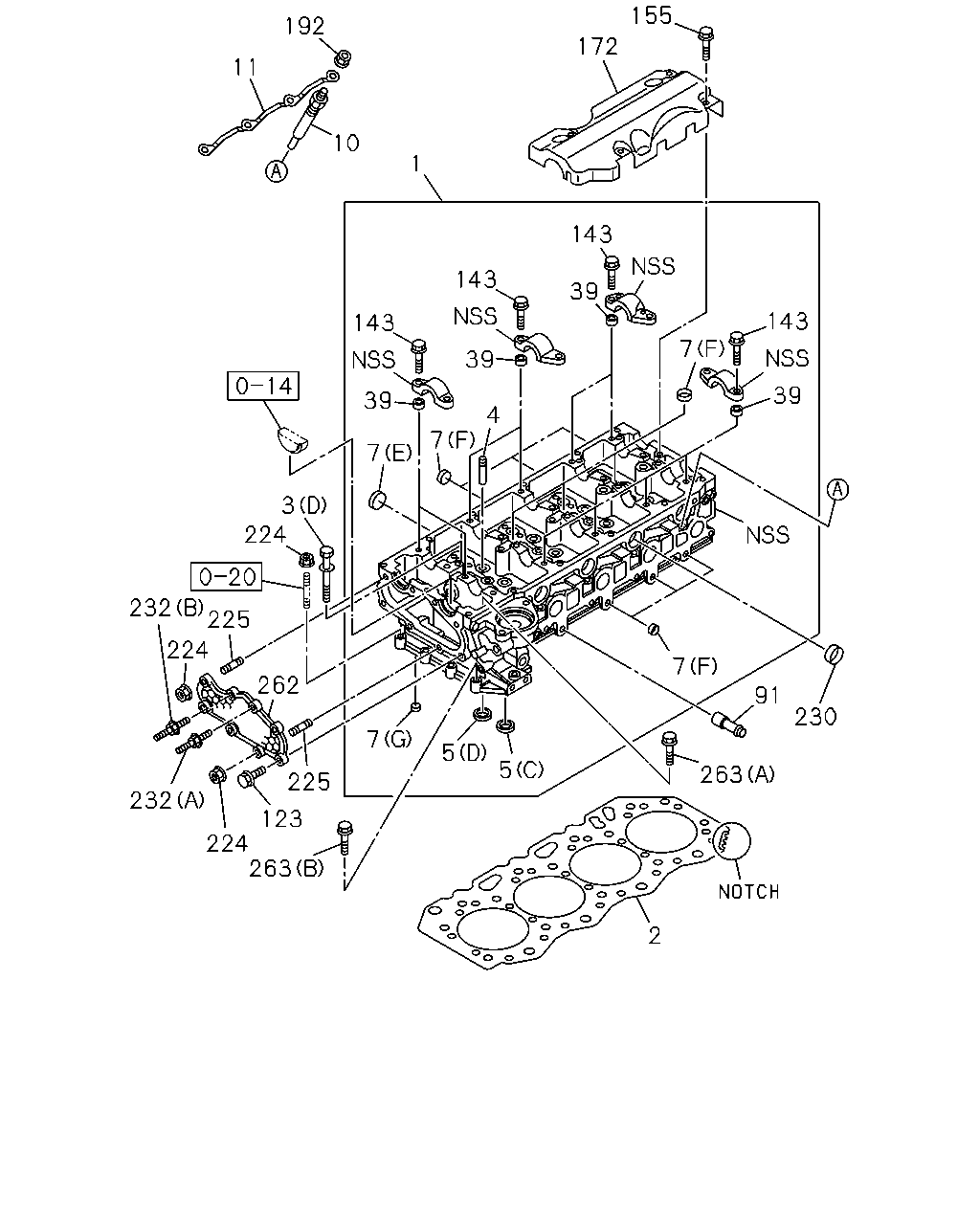

155 192 172 11 10 1 143 143 39 143 143 7 39 39 39 4 7 7 3 224 232 225 224 7 262 91 7 230 5 225 5 263 232 123 224 263 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.269 HEAD ASM; CYL VIETNAM EQUIPMENT(CL0)	8-98182-900-0	01	1	1105-1303	●	●
1	00.269 HEAD ASM; CYL VIETNAM EQUIPMENT(CL0)	8-98223-017-0	01	1	1304-	●	●
1	00.269 HEAD ASM; CYL	8-98018-454-6	01	1	0803-1005			●	●
1	00.269 HEAD ASM; CYL	8-98170-619-0	01	1	1006-			●	●
1	00.269 HEAD ASM; CYL	8-97355-970-8	01	1	0804-0808		●
1	00.269 HEAD ASM; CYL	8-97355-970-9	01	1	0809-1012	●	●
1	00.269 HEAD ASM; CYL	8-98175-606-1	01	1	1101-1104	●	●
1	00.269 HEAD ASM; CYL EXC. VIETNAM EQUIPMENT(CL0)	8-98175-606-1	01	1	1105-1301		●
1	00.269 HEAD ASM; CYL	8-98175-606-1	01	1	1105-1301	●
1	00.269 HEAD ASM; CYL EXC. VIETNAM EQUIPMENT(CL0)	8-98223-019-2	01	1	1302-		●
1	00.269 HEAD ASM; CYL	8-98223-019-2	01	1	1302-	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) VIETNAM EQUIPMENT(CL0) T=1.05 1-NOTCH	8-97328-866-2	01	1	1105-1108	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.05 1-NOTCH	8-97328-866-2	01	1	1109-1304	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.05 1-NOTCH	8-98241-037-0	01	1	1305-1411	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.14 1-NOTCH	8-98291-683-0	01	1	1412-	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) VIETNAM EQUIPMENT(CL0) T=1.10 2-NOTCH	8-97328-867-2	01	1	1105-1108	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.10 2-NOTCH	8-97328-867-2	01	1	1109-1304	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.10 2-NOTCH	8-98241-038-0	01	1	1305-1411	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.19 2-NOTCH	8-98291-684-0	01	1	1412-	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) VIETNAM EQUIPMENT(CL0) T=1.15 3-NOTCH	8-97328-868-2	01	1	1105-1108	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.15 3-NOTCH	8-97328-868-2	01	1	1109-1304	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.15 3-NOTCH	8-98241-039-0	01	1	1305-1411	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.24 3-NOTCH	8-98291-685-0	01	1	1412-	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.475 NON-HOLE	8-98055-540-0	01	1	0803-1505			●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.475 NON-HOLE	8-98288-501-0	01	1	1506-			●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.525 1-HOLE	8-98055-541-0	01	1	0803-1505			●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.525 1-HOLE	8-98288-502-0	01	1	1506-			●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.575 2-HOLE	8-98055-542-0	01	1	0803-1505			●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.575 2-HOLE	8-98288-503-0	01	1	1506-			●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.05 1-NOTCH	8-97328-866-2	01	1	0804-0808		●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.05 1-NOTCH	8-97328-866-2	01	1	0809-0901	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.05 1-NOTCH	8-98135-953-0	01	1	0902-1104	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. VIETNAM EQUIPMENT(CL0) ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.05 1-NOTCH	8-98135-953-0	01	1	1105-1108		●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.05 1-NOTCH	8-98135-953-0	01	1	1105-1108	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.10 2-NOTCH	8-97328-867-2	01	1	0804-0808		●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.10 2-NOTCH	8-97328-867-2	01	1	0809-0901	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.10 2-NOTCH	8-98135-954-0	01	1	0902-1104	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. VIETNAM EQUIPMENT(CL0) ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.10 2-NOTCH	8-98135-954-0	01	1	1105-1108		●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.10 2-NOTCH	8-98135-954-0	01	1	1105-1108	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.15 3-NOTCH	8-97328-868-2	01	1	0804-0808		●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.15 3-NOTCH	8-97328-868-2	01	1	0809-0901	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.15 3-NOTCH	8-98135-955-0	01	1	0902-1104	●	●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. VIETNAM EQUIPMENT(CL0) ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.15 3-NOTCH	8-98135-955-0	01	1	1105-1108		●
2	00.289 GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.15 3-NOTCH	8-98135-955-0	01	1	1105-1108	●
3	00.293 BOLT; CYL HD TO BLOCK VIETNAM EQUIPMENT(CL0) (D) M11X114 W/WASHER	8-98201-019-0	18	1	1108-1108	●	●
3	00.293 BOLT; CYL HD TO BLOCK (D) M11X114 W/WASHER	8-98201-019-0	18	1	1109-	●	●
3	00.293 BOLT; CYL HD TO BLOCK (A) M10X73	8-94399-554-0	01	1	0803-			●	●
3	00.293 BOLT; CYL HD TO BLOCK (B) M10X43	8-94399-555-0	01	1	0803-			●	●
3	00.293 BOLT; CYL HD TO BLOCK (C) M14X115 W/FLANGE	8-97077-638-0	18	1	0803-1503			●	●
3	00.293 BOLT; CYL HD TO BLOCK (C) M14X115 W/FLANGE	8-98260-005-0	18	1	1504-			●	●
3	00.293 BOLT; CYL HD TO BLOCK (D) M11X114	8-97144-583-1	18	1	0804-0808		●
3	00.293 BOLT; CYL HD TO BLOCK (D) M11X114	8-97144-583-2	18	1	0809-1107	●	●
3	00.293 BOLT; CYL HD TO BLOCK EXC. VIETNAM EQUIPMENT(CL0) (D) M11X114	8-97144-583-2	18	1	1108-1108		●
3	00.293 BOLT; CYL HD TO BLOCK (D) M11X114	8-97144-583-2	18	1	1108-1108	●
4	00.283 GUIDE; VLV L=57	8-97376-719-2	16	1	0803-			●	●
4	00.283 GUIDE; VLV L=42	8-94239-423-0	16	1	0804-0808		●
4	00.283 GUIDE; VLV L=42	8-94239-423-0	16	1	0809-	●	●
5	00.253 SEAT; VLV INSERT (A) INLET ID=32 OD=38	8-98028-874-0	08	1	0803-			●	●
5	00.253 SEAT; VLV INSERT (B) EXHAUST ID=31 OD=38	8-98028-875-0	08	1	0803-			●	●
5	00.253 SEAT; VLV INSERT (C) INLET ID=29 OD=35	8-97311-378-0	08	1	0804-0808		●
5	00.253 SEAT; VLV INSERT (C) INLET ID=29 OD=35	8-97311-378-0	08	1	0809-1104	●	●
5	00.253 SEAT; VLV INSERT EXC. VIETNAM EQUIPMENT(CL0) (C) INLET ID=29 OD=35	8-97311-378-0	08	1	1105-		●
5	00.253 SEAT; VLV INSERT (C) INLET ID=29 OD=35	8-97311-378-0	08	1	1105-	●
5	00.253 SEAT; VLV INSERT (D) EXHAUST ID=26 OD=32	8-97311-379-0	08	1	0804-0808		●
5	00.253 SEAT; VLV INSERT (D) EXHAUST ID=26 OD=32	8-97311-379-0	08	1	0809-1104	●	●
5	00.253 SEAT; VLV INSERT EXC. VIETNAM EQUIPMENT(CL0) (D) EXHAUST ID=26 OD=32	8-97311-379-0	08	1	1105-		●
5	00.253 SEAT; VLV INSERT (D) EXHAUST ID=26 OD=32	8-97311-379-0	08	1	1105-	●
7	00.253 CUP; SEALING,CYL HEAD 00.293 (D) OD=25	1-09600-016-0	04	1	0803-			●	●
7	00.253 CUP; SEALING,CYL HEAD (A) OD=16	5-11129-006-0	05	1	0803-			●	●
7	00.253 CUP; SEALING,CYL HEAD (B) OD=32	8-97096-821-0	05	1	0803-			●	●
7	00.253 CUP; SEALING,CYL HEAD (C) OD=20	9-11129-128-0	07	1	0803-			●	●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (E) OD=32	1-09600-012-2	02	1	0804-0808		●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (E) OD=32	1-09600-012-2	02	1	0809-	●	●
7	00.253 CUP; SEALING,CYL HEAD (F) OD=18	5-11219-008-0	13	1	0804-0808		●
7	00.253 CUP; SEALING,CYL HEAD (F) OD=18	5-11219-008-0	13	1	0809-	●	●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (G) OD=14	5-11219-011-0	07	1	0804-0808		●
7	00.253 CUP; SEALING,CYL HEAD 00.034 (G) OD=14	5-11219-011-0	07	1	0809-	●	●
10	02.270 PLUG; GLOW NGK	8-94390-777-5	04	1	0803-0803			●	●
10	02.270 PLUG; GLOW NGK	8-94390-777-5	04	1	0804-0808		●	●	●
10	02.270 PLUG; GLOW NGK	8-94390-777-6	04	1	0809-1501	●	●	●	●
10	02.270 PLUG; GLOW EXC. GLOW SYSTEM DELETE<7RK> NGK	8-94390-777-6	04	1	1502-			●	●
10	02.270 PLUG; GLOW NGK	8-94390-777-6	04	1	1502-	●	●
11	02.251 CONNECTOR; GLOW PLUG	8-97332-358-2	01	1	0803-1501			●	●
11	02.251 CONNECTOR; GLOW PLUG EXC. GLOW SYSTEM DELETE<7RK>	8-97332-358-2	01	1	1502-			●	●
11	02.251 CONNECTOR; GLOW PLUG	8-98014-335-0	01	1	0804-0808		●
11	02.251 CONNECTOR; GLOW PLUG	8-98014-335-0	01	1	0809-	●	●
39	00.413 DOWEL; CAP,CM/SHF	8-97329-129-1	20	1	0804-0808		●
39	00.413 DOWEL; CAP,CM/SHF	8-97329-129-1	20	1	0809-	●	●
91	08.846 PIPE; HTR 01.251	8-94343-211-1	01	1	0804-0808		●
91	08.846 PIPE; HTR 01.251	8-94343-211-1	01	1	0809-	●	●
123	00.206 BOLT; COVER VIETNAM EQUIPMENT(CL0) 04.338 M8X20 FLANGE	0-28050-820-0	04	1	1105-	●	●
123	00.206 BOLT; COVER M8X20 FLANGE	8-97366-632-0	04	1	0804-0808		●
123	00.206 BOLT; COVER M8X20 FLANGE	8-97366-632-0	04	1	0809-1104	●	●
123	00.206 BOLT; COVER EXC. VIETNAM EQUIPMENT(CL0) M8X20 FLANGE	8-97366-632-0	04	1	1105-		●
123	00.206 BOLT; COVER M8X20 FLANGE	8-97366-632-0	04	1	1105-	●
143	02.251 BOLT; FIX 00.685 M8X40 FLANGE	0-28650-840-0	20	1	0804-0808		●
143	02.251 BOLT; FIX 00.685 M8X40 FLANGE	0-28650-840-0	20	1	0809-	●	●
155	00.349 BOLT; BAFFLE PLATE M6X10 HEX SOCKET	0-58330-610-0	04	1	0804-0808		●
155	00.349 BOLT; BAFFLE PLATE M6X10 HEX SOCKET	0-58330-610-0	04	1	0809-	●	●
172	00.207 PLATE; BAFFLE,CYL HD VIETNAM EQUIPMENT(CL0)	8-98049-103-0	01	1	1105-	●	●
172	00.207 PLATE; BAFFLE,CYL HD	8-98016-865-0	01	1	0804-0808		●
172	00.207 PLATE; BAFFLE,CYL HD	8-98016-865-0	01	1	0809-1104	●	●
172	00.207 PLATE; BAFFLE,CYL HD EXC. VIETNAM EQUIPMENT(CL0)	8-98016-865-0	01	1	1105-		●
172	00.207 PLATE; BAFFLE,CYL HD	8-98016-865-0	01	1	1105-	●
192	00.349 NUT; GLOW PLUG 02.559 M4 FLANGE	8-97368-853-0	04	1	0803-0803			●	●
192	00.349 NUT; GLOW PLUG 02.559 M4 FLANGE	8-97368-853-0	04	1	0804-0808		●	●	●
192	00.349 NUT; GLOW PLUG 02.559 M4 FLANGE	8-97368-853-0	04	1	0809-1501	●	●	●	●
192	00.349 NUT; GLOW PLUG EXC. GLOW SYSTEM DELETE<7RK> 02.559 M4 FLANGE	8-97368-853-0	04	1	1502-			●	●
192	00.349 NUT; GLOW PLUG 02.559 M4 FLANGE	8-97368-853-0	04	1	1502-	●	●
224	00.349 NUT; COVER 01.540 M8 FLANGE	0-91180-208-0	04	1	0804-0808		●
224	00.349 NUT; COVER 01.540 M8 FLANGE	0-91180-208-0	04	1	0809-	●	●
225	00.349 STUD; COVER VIETNAM EQUIPMENT(CL0) M8X20 L=31	8-97945-022-0	02	1	1105-	●	●
225	00.349 STUD; COVER M8X15.5 L=33.5	8-98017-062-0	02	1	0804-0808		●
225	00.349 STUD; COVER M8X15.5 L=33.5	8-98017-062-0	02	1	0809-1104	●	●
225	00.349 STUD; COVER EXC. VIETNAM EQUIPMENT(CL0) M8X15.5 L=33.5	8-98017-062-0	02	1	1105-		●
225	00.349 STUD; COVER M8X15.5 L=33.5	8-98017-062-0	02	1	1105-	●
230	03.300 GASKET; SLEEVE,INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) VIETNAM EQUIPMENT(CL0)	8-97943-955-0	04	1	1105-	●	●
230	03.300 GASKET; SLEEVE,INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.306 OD=30	1-09639-034-0	04	1	0804-0808		●
230	03.300 GASKET; SLEEVE,INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.306 OD=30	1-09639-034-0	04	1	0809-1104	●	●
230	03.300 GASKET; SLEEVE,INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXC. VIETNAM EQUIPMENT(CL0) ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.306 OD=30	1-09639-034-0	04	1	1105-		●
230	03.300 GASKET; SLEEVE,INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.306 OD=30	1-09639-034-0	04	1	1105-	●
232	00.413 STUD; CAM,CARRIER (A) M8X15 M8X17 L=40	8-97366-633-0	01	1	0804-0808		●
232	00.413 STUD; CAM,CARRIER (A) M8X15 M8X17 L=40	8-97366-633-0	01	1	0809-1006	●	●
232	00.413 STUD; CAM,CARRIER (A) M8X15 M8X17 L=40	8-98166-373-0	01	1	1007-	●	●
232	00.413 STUD; CAM,CARRIER (B) M6X12 M8X17 L=37	8-97375-460-0	01	1	0804-0808		●
232	00.413 STUD; CAM,CARRIER (B) M6X12 M8X17 L=37	8-97375-460-0	01	1	0809-	●	●
262	00.206 COVER; CYL HEAD	8-97355-516-4	01	1	0804-0808		●
262	00.206 COVER; CYL HEAD	8-97355-516-4	01	1	0809-	●	●
263	00.293 BOLT; CYL HD 04.686 (A) M8X60 FLANGE	0-28050-860-0	01	1	0804-0808		●
263	00.293 BOLT; CYL HD 04.686 (A) M8X60 FLANGE	0-28050-860-0	01	1	0809-	●	●
263	00.293 BOLT; CYL HD 01.060 (B) M8X35 FLANGE	0-28650-835-0	03	1	0804-0808		●
263	00.293 BOLT; CYL HD 01.060 (B) M8X35 FLANGE	0-28650-835-0	03	1	0809-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
