◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10724 - EXR RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#5434) — 73 parça

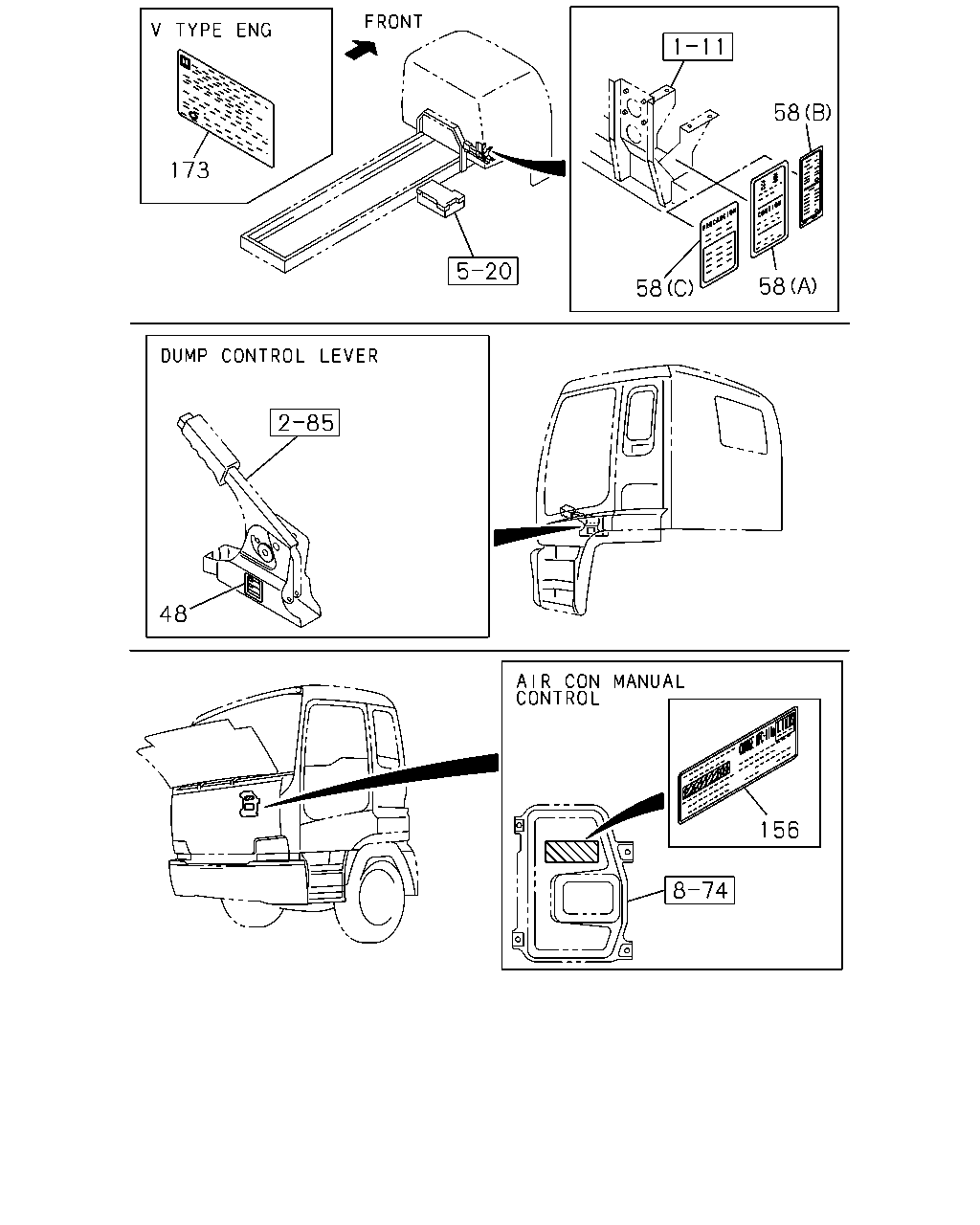

çizim 8107
58 173 58 58 48 156
BalonParca AdiParca NoAdetTipApplied Date
48 PLATE; CAUTION,PTO
DUMP CONTROL LEVER<RC4> 		1-85881-254-0 01 1 9601-
58 PLATE; CAUTION,ENG START
CAUTIONS ARABIAN<WJ7> (B) 		1-85887-537-0 01 1 9905-
58 PLATE; CAUTION,ENG START
CAUTIONS CHINESE<SL7> (B) 		1-85887-536-0 01 1 9905-
58 PLATE; CAUTION,ENG START
CAUTIONS FRENCH<WJ8> (B) 		1-85887-535-0 01 1 9601-
58 PLATE; CAUTION,ENG START
EXC. CAUTIONS FRENCH<WJ8> (A) 		1-85887-457-0 01 1 9601-9904
58 PLATE; CAUTION,ENG START
EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> (A) 		1-85887-457-0 01 1 9905-
58 PLATE; CAUTION,ENG START
CAUTIONS SPANISH<YN1> (C) 		9-83999-419-0 01 1 9905-
156 PLATE; CAUTION,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97105-399-0 01 1 9611-9904
156 PLATE; CAUTION,A/C
AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAUTIONS ARABIAN<WJ7> 		8-97105-399-0 01 1 9905-
156 PLATE; CAUTION,A/C
AIR CONDITIONER MANUAL CONTROL(C60) CAUTIONS ARABIAN<WJ7> 		1-85877-872-0 01 1 9905-
173 PLATE; CAUTION,FUEL FILTER
V TYPE ENG<91L> 		1-85886-176-0 01 1 9601-

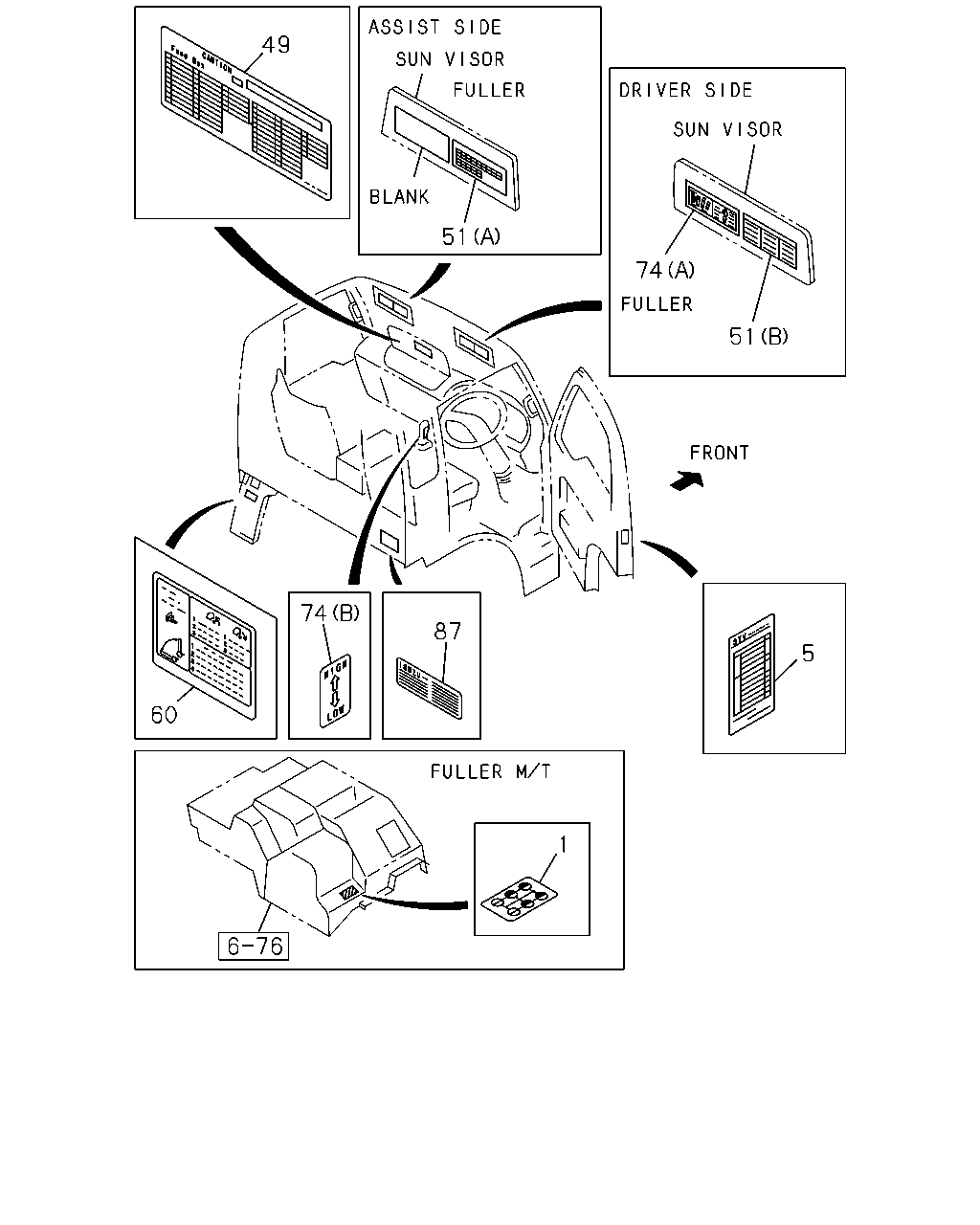

çizim 39100
49 51 74 51 74 87 5 60 1
BalonParca AdiParca NoAdetTipApplied Date
1 PLATE; CAUTION,SHIFT PATTERN
TRANSMISSION-FULLER RTL0147 13 OD(Y2P) 		1-85881-519-0 01 1 9611-9904
1 PLATE; CAUTION,SHIFT PATTERN
TRANSMISSION-FULLER RTLO149 13 OD(Y3Q) 		1-85881-519-0 01 1 9905-
5 LABEL; TIRE AIR PRESSURE 1-85880-724-2 01 1 9601-0009
5 LABEL; TIRE AIR PRESSURE 1-85880-763-0 01 1 0010-0104
5 LABEL; TIRE AIR PRESSURE 1-85880-764-0 01 1 0105-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ARABIAN<WJ7> 		1-85878-071-2 01 1 9905-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS CHINESE<SL7> 		1-85878-069-2 01 1 9905-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS FRENCH<WJ8> 		1-85888-691-2 01 1 9601-9904
49 PLATE; CAUTION,FUSE BOX
CAUTIONS FRENCH<WJ8> 		1-85878-070-2 01 1 9905-
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS FRENCH<WJ8> 		1-85888-685-3 01 1 9601-9904
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> 		1-85878-067-2 02 1 9905-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS SPANISH<YN1> 		1-85878-068-2 01 1 9905-
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (A) 		1-85878-075-0 01 1 9905-
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (B) 		1-85880-758-0 01 1 9905-
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> (B) 		1-85880-727-0 01 1 9905-
51 PLATE; CAUTION,WARNING
CAUTIONS FRENCH<WJ8> (B) 		1-85880-726-0 01 1 9601-
51 PLATE; CAUTION,WARNING
CAUTIONS FRENCH<WJ8> (A) 		1-85888-689-2 01 1 9601-9904
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8> (A) 		1-85878-074-0 01 1 9905-
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS FRENCH<WJ8> (B) 		1-85880-725-0 01 1 9601-9904
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> (B) 		1-85880-725-0 01 1 9905-
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS FRENCH<WJ8> (A) 		1-85888-688-2 01 1 9601-9904
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> (A) 		1-85878-073-0 01 1 9905-
60 PLATE; CAUTION,CAB TILT
CAUTIONS ARABIAN<WJ7> 		1-85883-181-0 01 1 9905-
60 PLATE; CAUTION,CAB TILT
CAUTIONS CHINESE<SL7> 		1-85883-175-0 01 1 9905-
60 PLATE; CAUTION,CAB TILT
CAUTIONS FRENCH<WJ8> 		1-85883-176-0 01 1 9601-
60 PLATE; CAUTION,CAB TILT
EXC. CAUTIONS FRENCH<WJ8> 		1-85883-174-0 01 1 9601-9904
60 PLATE; CAUTION,CAB TILT
EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> 		1-85883-174-0 01 1 9905-
60 PLATE; CAUTION,CAB TILT
CAUTIONS SPANISH<YN1> 		1-85883-177-0 01 1 9905-
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTL0147 13 OD(Y2P) (A) 		1-85881-617-0 01 1 9611-9904
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTLO149 13 OD(Y3Q) (A) 		1-85881-617-0 01 1 9905-
74 PLATE; CAUTION,CHANGE LEV
ZF M/T<X9E> (B) 		1-85881-736-1 01 1 9601-9904
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-ZF 16S151 OD(Y2N) (B) 		1-85881-736-1 01 1 9905-
87 PLATE; CAUTION,A/C FILTER
L TYPE ENG<90L> 		1-85886-796-0 01 1 9601-9904
87 PLATE; CAUTION,A/C FILTER
L TYPE ENG<90L> 		1-85886-796-0 01 1 9905-
çizim 42576
4 6 144 228 7 1 135
BalonParca AdiParca NoAdetTipApplied Date
1 PLATE; CAUTION,SHIFT PATTERN
TRANSMISSION-FULLER RTL0147 13 OD(Y2P) 		1-85881-519-0 01 1 9611-9904
1 PLATE; CAUTION,SHIFT PATTERN
TRANSMISSION-FULLER RTLO149 13 OD(Y3Q) 		1-85881-519-0 01 1 9905-
4 LABEL; ENG MAINTENANCE
L TYPE ENG<90L> 		1-85886-801-1 01 1 9601-9607
4 LABEL; ENG MAINTENANCE
6WA1 TC-S(56L) HONG KONG EQUIPMENT(PQ1) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-85886-801-1 01 1 9608-9904
4 LABEL; ENG MAINTENANCE
6WA1 TC-R(93L) 		1-85886-827-0 01 1 9905-
4 LABEL; ENG MAINTENANCE
6WA1 TC-S(56L) EMISSION SYSTEM ECE REQUIREMENTS<SFV> BTDC 14 		1-85886-802-0 01 1 9603-9610
4 LABEL; ENG MAINTENANCE
6WA1 TC-S(56L) EMISSION SYSTEM ECE REQUIREMENTS<SFV> BTDC 14 		1-85886-802-0 01 1 9611-9702
4 LABEL; ENG MAINTENANCE
6WA1 TC-C(55L) BTDC 14 		1-85886-802-0 01 1 9611-9702
4 LABEL; ENG MAINTENANCE
6WA1 TC-C(55L) BTDC 14 		1-85886-802-0 01 1 9703-9904
4 LABEL; ENG MAINTENANCE
6WA1 TC-N(54L) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> BTDC 14 		1-85886-802-0 01 1 9905-
4 LABEL; ENG MAINTENANCE
6WA1 TC-S(56L) EMISSION SYSTEM ECE REQUIREMENTS<SFV> BTDC 10 		1-85886-828-0 01 1 9603-9904
4 LABEL; ENG MAINTENANCE
6WA1 TC-N(54L) EMISSION SYSTEM ECE REQUIREMENTS<SFV> BTDC 10 		1-85886-828-0 01 1 9905-
4 LABEL; ENG MAINTENANCE
6WA1 TC-S(56L) HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<THN> 		1-85886-840-0 01 1 9610-9904
4 LABEL; ENG MAINTENANCE
6WA1 TC-C(55L) 		1-85886-840-0 01 1 9905-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ARABIAN<WJ7> 		1-85883-114-0 01 1 9905-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> 		1-85883-113-0 01 1 9905-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8> 		1-85883-108-0 01 1 9601-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS FRENCH<WJ8> 		1-53639-004-0 01 1 9601-9904
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8>,CAUTIONS SPANISH<YN1> 		1-53639-004-0 01 1 9905-
7 LABEL; EMISSION
6WA1 TC-N(54L) EMISSION SYSTEM ECE REQUIREMENTS<SFV> INJ PUMP Q SET STD(T1B) 		8-94391-418-0 01 1 9905-
7 LABEL; EMISSION
10PE1N(61L) 		8-94391-418-0 01 1 9905-
135 PLATE; CAUTION,ENGINE
V TYPE ENG<91L> 		1-85886-804-0 01 1 9601-9603
135 PLATE; CAUTION,ENGINE
10PE1S(60L) 		1-85886-804-0 01 1 9604-
135 PLATE; CAUTION,ENGINE
10PE1N(61L) 		1-85886-826-0 01 1 9604-
144 PLATE; CAUTION,CLU
ZF M/T<X9E> 		1-85888-690-0 01 1 9601-
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> CAUTIONS CHINESE<SL7> 		1-85887-934-0 01 1 9905-
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> EXC. CAUTIONS FRENCH<WJ8> 		1-85887-935-0 01 1 9601-9904
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7>, CAUTIONS FRENCH<WJ8> 		1-85887-935-0 01 1 9905-
