◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51150 - NLR/NMR(EU)-RHD EU4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#54328) — 17 parça

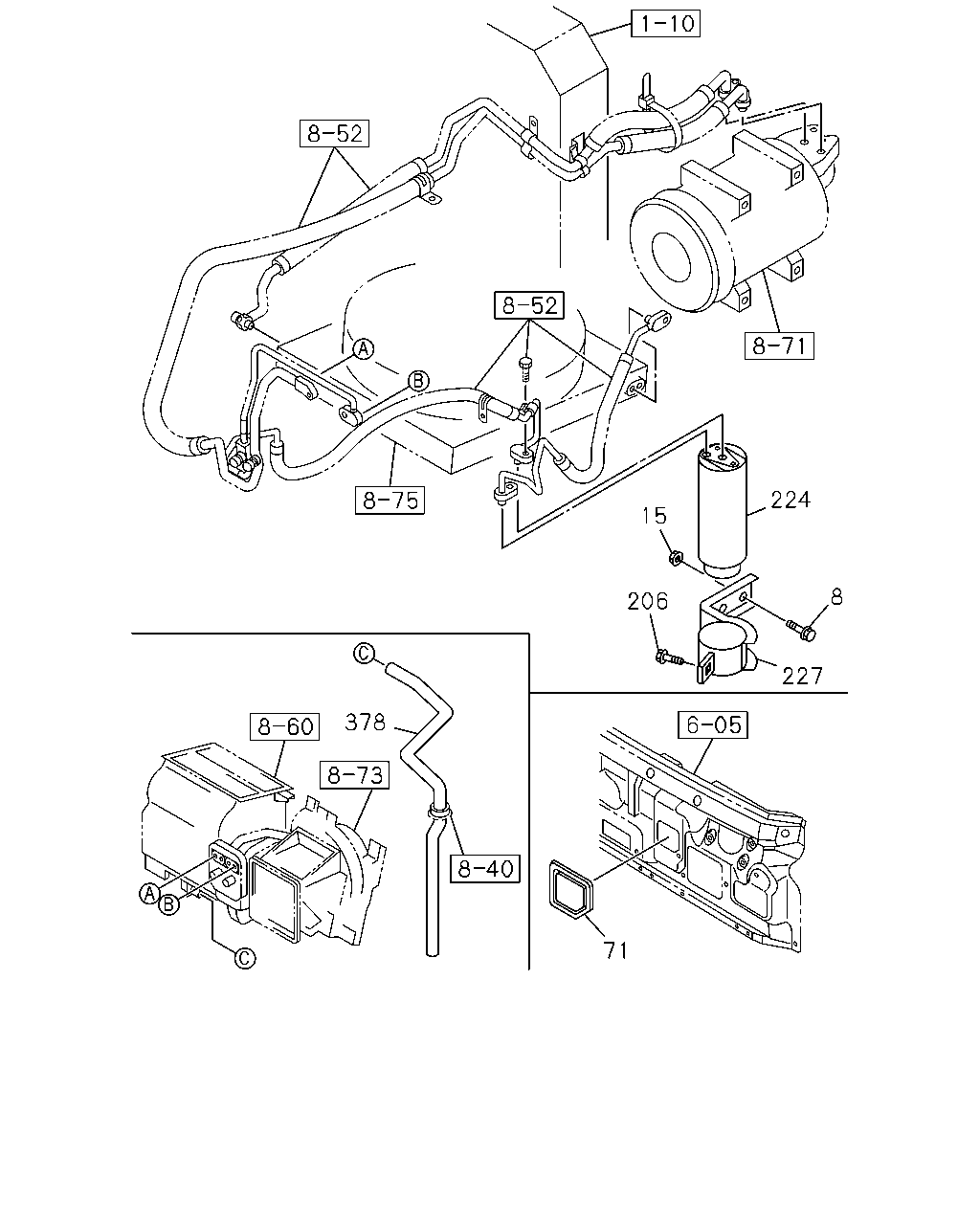

çizim 155230
224 15 8 206 227 378 71
BalonParca AdiParca NoAdetTipApplied Date A B C
8 09.171 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0712- ● ● ●
15 09.173 NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0712- ● ● ●
71 09.190 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98017-234-1 01 1 0712- ● ● ●
206 09.242 BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) M6X16 		8-97096-525-0 01 1 0712- ● ● ●
224 09.195 TANK ASM; RECEIVER
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-97096-593-0 01 1 0712- ● ● ●
227 09.196 BRACKET; RECEIVER TANK
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98042-566-0 01 1 0712- ● ● ●
378 09.211 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98001-241-2 01 1 0712- ● ● ●
çizim 155249
17 25 387 32 47 46 14 47
BalonParca AdiParca NoAdetTipApplied Date A B C
14 09.171 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 00.386 M8X100 FLANGE 		0-28050-800-0 04 1 0712- ● ● ●
17 09.171 NUT; CMPR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.540 M8 FLANGE 		0-91180-208-0 01 1 0712- ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 1-GROOVE 		8-98051-011-0 01 1 0712-1006 ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 1-GROOVE 		8-98114-437-0 01 1 1007- ● ● ●
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) L=1369 MITSUBOSHI 		8-94252-342-0 01 1 0712-0804 ● ● ●
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) L=1355 MITSUBOSHI 		8-98088-385-0 01 1 0805- ● ● ●
46 09.171 BRACKET; CMPR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.242 		8-98037-322-0 01 1 0712- ● ● ●
47 09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A) M8X45 FLANGE 		0-28050-845-0 01 1 0712- ● ● ●
47 09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ● ● ●
387 09.190 BOLT; TENSIONER FIX
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0712- ● ● ●
