1 |

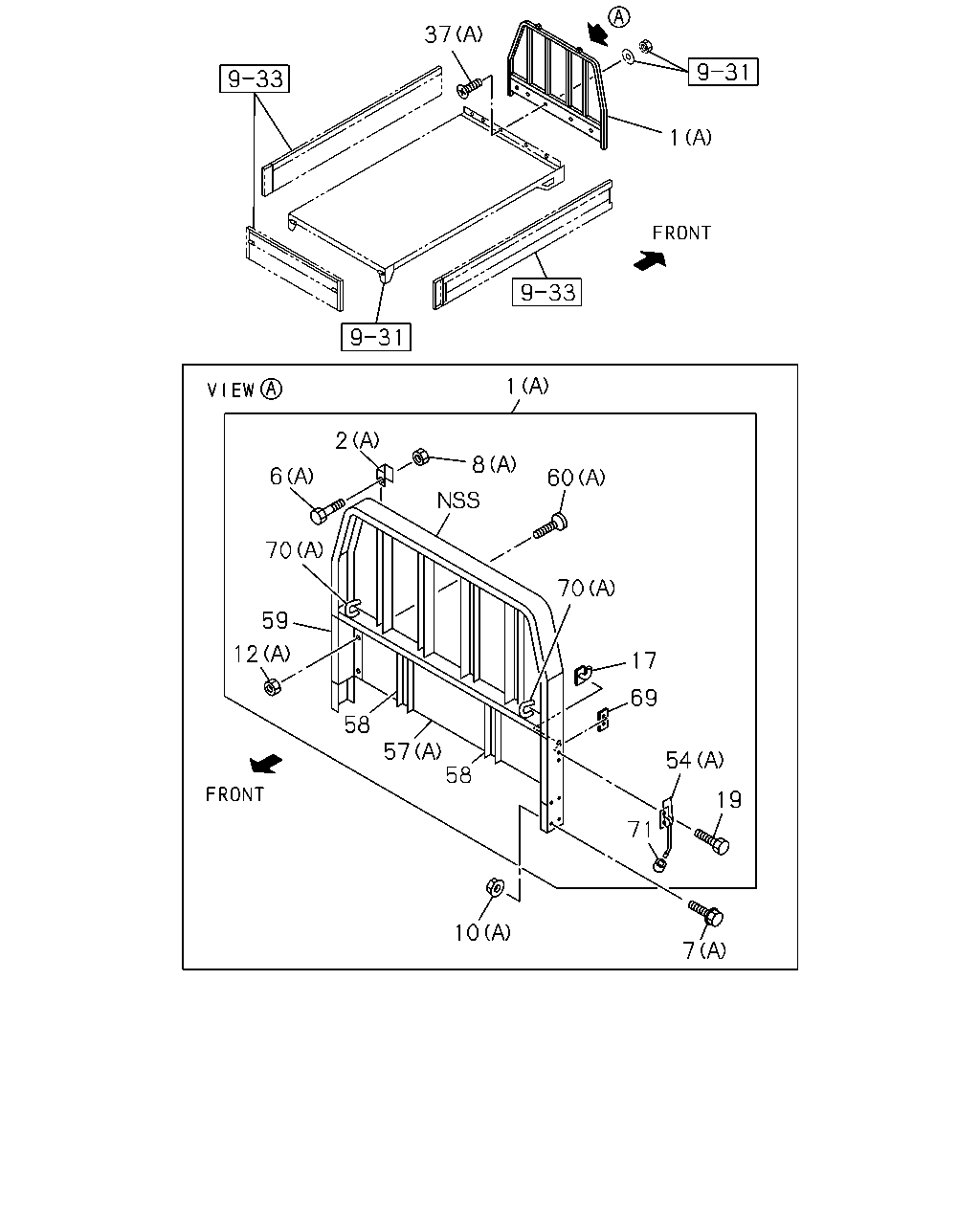

17.455 FRAME; GUARD,RR BODY
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
(A)
TAKADA
|
8-98071-453-1 |
01 |
1 |
0804-0903 |
● |
|
| |
1 |
17.455 FRAME; GUARD,RR BODY
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SMALL DOUBLE RR
TIRE(6YE)
(A)
TAKADA
|
8-98071-453-1 |
01 |
1 |
0804-0903 |
● |
|
| |
1 |
17.455 FRAME; GUARD,RR BODY
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
(A)
TAKADA
|
8-98071-453-1 |
01 |
1 |
0904-0908 |
● |
|
| |
1 |
17.455 FRAME; GUARD,RR BODY
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SMALL DOUBLE RR
TIRE(6YE)
(A)
TAKADA
|
8-98071-453-1 |
01 |
1 |
0904-0908 |
● |
|
| |
1 |
17.455 FRAME; GUARD,RR BODY
WHEEL BASE 2400MM(24W),WHEEL BASE
2800MM(28W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
(A)
TAKADA
|
8-98071-453-2 |
01 |
1 |
0909- |
● |
|
| |
1 |
17.455 FRAME; GUARD,RR BODY
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SMALL DOUBLE RR
TIRE(6YE)
(A)
TAKADA
|
8-98071-453-2 |
01 |
1 |
0909- |
● |
|
| |
1 |
17.455 FRAME; GUARD,RR BODY
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
SMALL DOUBLE RR TIRE(6YE)
EXC. FULL FLATLOW<6GL>
(A)
TAKADA
|
8-98079-283-1 |
01 |
1 |
0804-0903 |
● |
|
| |
1 |
17.455 FRAME; GUARD,RR BODY
WHEEL BASE 3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
(A)
TAKADA
|
8-98079-283-1 |
01 |
1 |
0804-0903 |
● |
|
| |
1 |
17.455 FRAME; GUARD,RR BODY
BODY COLOR ARC WHITE(729),BODY COLOR
TRANS BLUE(999)
RR BODY FLAT BED(RS6)
(A)
TAKADA
|
8-98079-283-1 |
01 |
1 |
0804-0903 |
|
● |
| |
1 |
17.455 FRAME; GUARD,RR BODY
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
SMALL DOUBLE RR TIRE(6YE)
EXC. FULL FLATLOW<6GL>
(A)
TAKADA
|
8-98079-283-1 |
01 |
1 |
0904-0908 |
● |
|
| |
1 |
17.455 FRAME; GUARD,RR BODY
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
(A)
TAKADA
|
8-98079-283-1 |
01 |
1 |
0904-0908 |
● |
|
| |
1 |
17.455 FRAME; GUARD,RR BODY
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR TRANS
BLUE(999)
RR BODY FLAT BED(RS6)
(A)
TAKADA
|
8-98079-283-1 |
01 |
1 |
0904-0908 |
|
● |
| |
1 |
17.455 FRAME; GUARD,RR BODY
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
SMALL DOUBLE RR TIRE(6YE)
EXC. FULL FLATLOW<6GL>
(A)
TAKADA
|
8-98079-283-2 |
01 |
1 |
0909- |
● |
|
| |
1 |
17.455 FRAME; GUARD,RR BODY
WHEEL BASE 3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
(A)
TAKADA
|
8-98079-283-2 |
01 |
1 |
0909- |
● |
|
| |
1 |
17.455 FRAME; GUARD,RR BODY
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR TRANS
BLUE(999)
RR BODY FLAT BED(RS6)
(A)
TAKADA
|
8-98079-283-2 |
01 |
1 |
0909- |
|
● |
| |
1 |

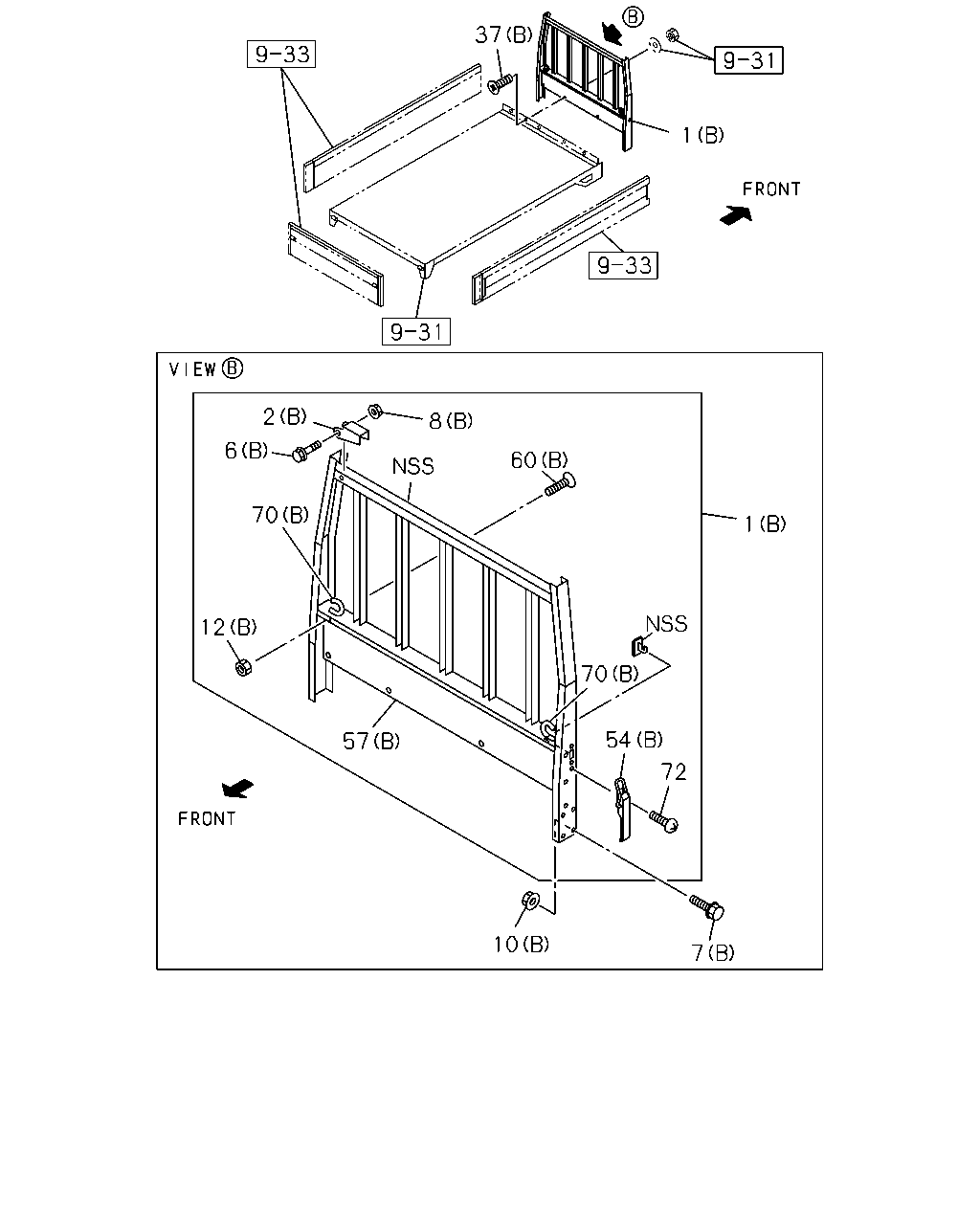

17.455 FRAME; GUARD,RR BODY
WHEEL BASE 3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SINGLE RR
TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)
(B)
PABCO
|
8-98071-456-1 |
01 |
1 |
0804-0903 |
● |
|
| |
1 |
17.455 FRAME; GUARD,RR BODY
WHEEL BASE 3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SINGLE RR
TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)
(B)
PABCO
|
8-98071-456-2 |
01 |
1 |
0904- |
● |
|
| |
2 |
17.447 STOPPER; GUARD FRAME
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
(A)
|
8-97590-396-0 |
02 |
1 |
0804-0903 |
● |
|
| |
2 |
17.447 STOPPER; GUARD FRAME
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
(A)
|
8-97590-396-0 |
02 |
1 |
0804-0903 |
● |
|
| |
2 |
17.447 STOPPER; GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR
TRANS BLUE(999)
RR BODY FLAT BED(RS6)
(A)
|
8-97590-396-0 |
02 |
1 |
0804-0903 |
|
● |
| |
2 |
17.447 STOPPER; GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
(A)
|
8-97590-396-0 |
02 |
1 |
0904- |
● |
|
| |
2 |
17.447 STOPPER; GUARD FRAME
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
(A)
|
8-97590-396-0 |
02 |
1 |
0904- |
● |
|
| |
2 |
17.447 STOPPER; GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR TRANS
BLUE(999)
RR BODY FLAT BED(RS6)
(A)
|
8-97590-396-0 |
02 |
1 |
0904- |
|
● |
| |
2 |
17.447 STOPPER; GUARD FRAME
WHEEL BASE 3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SINGLE RR
TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)
(B)
|
8-98045-225-0 |
02 |
1 |
0804-0903 |
● |
|
| |
2 |
17.447 STOPPER; GUARD FRAME
WHEEL BASE 3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SINGLE RR
TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)
(B)
|
8-98045-225-0 |
02 |
1 |
0904- |
● |
|
| |
6 |
17.447 BOLT; STOPPER TO GUARD FRAME
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
(A)
|
8-97590-488-0 |
02 |
1 |
0804-0903 |
● |
|
| |
6 |
17.447 BOLT; STOPPER TO GUARD FRAME
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
(A)
|
8-97590-488-0 |
02 |
1 |
0804-0903 |
● |
|
| |
6 |
17.447 BOLT; STOPPER TO GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR
TRANS BLUE(999)
RR BODY FLAT BED(RS6)
(A)
|
8-97590-488-0 |
02 |
1 |
0804-0903 |
|
● |
| |
6 |
17.447 BOLT; STOPPER TO GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
(A)
|
8-97590-488-0 |
02 |
1 |
0904- |
● |
|
| |
6 |
17.447 BOLT; STOPPER TO GUARD FRAME
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
(A)
|
8-97590-488-0 |
02 |
1 |
0904- |
● |
|
| |
6 |
17.447 BOLT; STOPPER TO GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR TRANS
BLUE(999)
RR BODY FLAT BED(RS6)
(A)
|
8-97590-488-0 |
02 |
1 |
0904- |
|
● |
| |
6 |
17.447 BOLT; STOPPER TO GUARD FRAME
WHEEL BASE 3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SINGLE RR
TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)
(B)
|
8-98045-226-0 |
02 |
1 |
0804-0903 |
● |
|
| |
6 |
17.447 BOLT; STOPPER TO GUARD FRAME
WHEEL BASE 3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SINGLE RR
TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)
(B)
|
8-98045-226-0 |
02 |
1 |
0904- |
● |
|
| |
7 |
17.447 BOLT; GUARD FRAME STOPPER,RR BOD
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
17.455
(A)
M10X22
|
8-97233-077-0 |
08 |
1 |
0804-0903 |
● |
|
| |
7 |
17.447 BOLT; GUARD FRAME STOPPER,RR BOD
RR BODY FLAT BED(RS6)
17.455
(A)
M10X22
|
8-97233-077-0 |
08 |
1 |
0804-0903 |
|
● |
| |
7 |
17.447 BOLT; GUARD FRAME STOPPER,RR BOD
WHEEL BASE 2400MM(24W),WHEEL BASE
2800MM(28W)
RR BODY FLAT BED(RS6)
17.455
(A)
M10X22
|
8-97233-077-0 |
08 |
1 |
0904-0912 |
● |
|
| |
7 |
17.447 BOLT; GUARD FRAME STOPPER,RR BOD
RR BODY FLAT BED(RS6)
17.455
(A)
M10X22
|
8-97233-077-0 |
08 |
1 |
0904-0912 |
|
● |
| |
7 |
17.447 BOLT; GUARD FRAME STOPPER,RR BOD
WHEEL BASE 2400MM(24W),WHEEL BASE
2800MM(28W)
RR BODY FLAT BED(RS6)
07.833
(A)
M10X25 FLANGE
|
0-28661-025-0 |
08 |
1 |
1001- |
● |
|
| |
7 |
17.447 BOLT; GUARD FRAME STOPPER,RR BOD
RR BODY FLAT BED(RS6)
07.833
(A)
M10X25 FLANGE
|
0-28661-025-0 |
08 |
1 |
1001- |
|
● |
| |
7 |
17.447 BOLT; GUARD FRAME STOPPER,RR BOD
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED(RS6)
(B)
M12X25 FLANGE
|
0-28661-225-0 |
08 |
1 |
0804- |
● |
|
| |
8 |
17.447 NUT; STOPPER BOLT
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
(A)
M10
|
8-97590-493-0 |
02 |
1 |
0804-0903 |
● |
|
| |
8 |
17.447 NUT; STOPPER BOLT
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
(A)
M10
|
8-97590-493-0 |
02 |
1 |
0804-0903 |
● |
|
| |
8 |
17.447 NUT; STOPPER BOLT
BODY COLOR ARC WHITE(729),BODY COLOR
TRANS BLUE(999)
RR BODY FLAT BED(RS6)
(A)
M10
|
8-97590-493-0 |
02 |
1 |
0804-0903 |
|
● |
| |
8 |
17.447 NUT; STOPPER BOLT
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
(A)
M10
|
8-97590-493-0 |
02 |
1 |
0904- |
● |
|
| |
8 |
17.447 NUT; STOPPER BOLT
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
(A)
M10
|
8-97590-493-0 |
02 |
1 |
0904- |
● |
|
| |
8 |
17.447 NUT; STOPPER BOLT
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR TRANS
BLUE(999)
RR BODY FLAT BED(RS6)
(A)
M10
|
8-97590-493-0 |
02 |
1 |
0904- |
|
● |
| |
8 |
17.447 NUT; STOPPER BOLT
WHEEL BASE 3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SINGLE RR
TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)
(B)
M10
|
8-98045-227-0 |
02 |
1 |
0804-0903 |
● |
|
| |
8 |
17.447 NUT; STOPPER BOLT
WHEEL BASE 3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SINGLE RR
TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)
(B)
M10
|
8-98045-227-0 |
02 |
1 |
0904- |
● |
|
| |
10 |
17.447 NUT; GUARD FRAME STOPPER
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
17.455
(A)
M10 FLANGE
|
8-97065-439-0 |
08 |
1 |
0804-0903 |
● |
|
| |
10 |
17.447 NUT; GUARD FRAME STOPPER
RR BODY FLAT BED(RS6)
17.455
(A)
M10 FLANGE
|
8-97065-439-0 |
08 |
1 |
0804-0903 |
|
● |
| |
10 |
17.447 NUT; GUARD FRAME STOPPER
WHEEL BASE 2400MM(24W),WHEEL BASE
2800MM(28W)
RR BODY FLAT BED(RS6)
17.455
(A)
M10 FLANGE
|
8-97065-439-0 |
08 |
1 |
0904-0912 |
● |
|
| |
10 |
17.447 NUT; GUARD FRAME STOPPER
RR BODY FLAT BED(RS6)
17.455
(A)
M10 FLANGE
|
8-97065-439-0 |
08 |
1 |
0904-0912 |
|
● |
| |
10 |
17.447 NUT; GUARD FRAME STOPPER
WHEEL BASE 2400MM(24W),WHEEL BASE
2800MM(28W)
RR BODY FLAT BED(RS6)
04.085
(A)
M10 FLANGE
|
0-91180-210-0 |
08 |
1 |
1001- |
● |
|
| |
10 |
17.447 NUT; GUARD FRAME STOPPER
RR BODY FLAT BED(RS6)
04.085
(A)
M10 FLANGE
|
0-91180-210-0 |
08 |
1 |
1001- |
|
● |
| |
10 |
17.447 NUT; GUARD FRAME STOPPER
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED(RS6)
05.816
(B)
M12 FLANGE
|
0-91180-212-0 |
08 |
1 |
0804- |
● |
|
| |
12 |
17.455 NUT; GUARD FRAME
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
17.447
(A)
M8 FLANGE
|
8-94193-939-2 |
04 |
1 |
0804-0903 |
● |
|
| |
12 |
17.455 NUT; GUARD FRAME
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
17.447
(A)
M8 FLANGE
|
8-94193-939-2 |
04 |
1 |
0804-0903 |
● |
|
| |
12 |
17.455 NUT; GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR
TRANS BLUE(999)
RR BODY FLAT BED(RS6)
17.447
(A)
M8 FLANGE
|
8-94193-939-2 |
04 |
1 |
0804-0903 |
|
● |
| |
12 |
17.455 NUT; GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
17.447
(A)
M8 FLANGE
|
8-94193-939-2 |
04 |
1 |
0904- |
● |
|
| |
12 |
17.455 NUT; GUARD FRAME
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
17.447
(A)
M8 FLANGE
|
8-94193-939-2 |
04 |
1 |
0904- |
● |
|
| |
12 |
17.455 NUT; GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR TRANS
BLUE(999)
RR BODY FLAT BED(RS6)
17.447
(A)
M8 FLANGE
|
8-94193-939-2 |
04 |
1 |
0904- |
|
● |
| |
12 |
17.455 NUT; GUARD FRAME
WHEEL BASE 3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SINGLE RR
TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)
16.682
(B)
M8 LOCK NUT FLANGE
|
0-91380-008-0 |
04 |
1 |
0804-0903 |
● |
|
| |
12 |
17.455 NUT; GUARD FRAME
WHEEL BASE 3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SINGLE RR
TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)
16.682
(B)
M8 LOCK NUT FLANGE
|
0-91380-008-0 |
04 |
1 |
0904- |
● |
|
| |
17 |
17.455 HOOK; GUARD FRAME
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
TAKADA
|
8-97593-683-0 |
02 |
1 |
0804-0903 |
● |
|
| |
17 |
17.455 HOOK; GUARD FRAME
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
TAKADA
|
8-97593-683-0 |
02 |
1 |
0804-0903 |
● |
|
| |
17 |
17.455 HOOK; GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR
TRANS BLUE(999)
RR BODY FLAT BED(RS6)
TAKADA
|
8-97593-683-0 |
02 |
1 |
0804-0903 |
|
● |
| |
17 |
17.455 HOOK; GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
TAKADA
|
8-97593-683-0 |
02 |
1 |
0904- |
● |
|
| |
17 |
17.455 HOOK; GUARD FRAME
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
TAKADA
|
8-97593-683-0 |
02 |
1 |
0904- |
● |
|
| |
17 |
17.455 HOOK; GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR TRANS
BLUE(999)
RR BODY FLAT BED(RS6)
TAKADA
|
8-97593-683-0 |
02 |
1 |
0904- |
|
● |
| |
19 |
17.455 BOLT; HANDLE TO GUARD FRAME
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
M8X20
|
8-94193-942-2 |
04 |
1 |
0804-0903 |
● |
|
| |
19 |
17.455 BOLT; HANDLE TO GUARD FRAME
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
M8X20
|
8-94193-942-2 |
04 |
1 |
0804-0903 |
● |
|
| |
19 |
17.455 BOLT; HANDLE TO GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR
TRANS BLUE(999)
RR BODY FLAT BED(RS6)
M8X20
|
8-94193-942-2 |
04 |
1 |
0804-0903 |
|
● |
| |
19 |
17.455 BOLT; HANDLE TO GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
M8X20
|
8-94193-942-2 |
04 |
1 |
0904- |
● |
|
| |
19 |
17.455 BOLT; HANDLE TO GUARD FRAME
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
M8X20
|
8-94193-942-2 |
04 |
1 |
0904- |
● |
|
| |
19 |
17.455 BOLT; HANDLE TO GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR TRANS
BLUE(999)
RR BODY FLAT BED(RS6)
M8X20
|
8-94193-942-2 |
04 |
1 |
0904- |
|
● |
| |
37 |
17.455 BOLT; GUARD FRAME
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
(A) SCREW
M8X26
|
8-97065-436-0 |
05 |
1 |
0804-0903 |
● |
|
| |
37 |
17.455 BOLT; GUARD FRAME
RR BODY FLAT BED(RS6)
(A) SCREW
M8X26
|
8-97065-436-0 |
05 |
1 |
0804-0903 |
|
● |
| |
37 |
17.455 BOLT; GUARD FRAME
WHEEL BASE 2400MM(24W),WHEEL BASE
2800MM(28W)
RR BODY FLAT BED(RS6)
(A) SCREW
M8X26
|
8-97065-436-0 |
05 |
1 |
0904- |
● |
|
| |
37 |
17.455 BOLT; GUARD FRAME
RR BODY FLAT BED(RS6)
(A) SCREW
M8X26
|
8-97065-436-0 |
05 |
1 |
0904- |
|
● |
| |
37 |
17.455 BOLT; GUARD FRAME
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED(RS6)
(B) SCREW
M8X25 PABCO
|
8-98030-412-0 |
04 |
1 |
0804- |
● |
|
| |
54 |
17.455 HANDLE; LOCK,GATE,FRT
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
(A)
TAKADA
|
8-97593-639-1 |
02 |
1 |
0804-0903 |
● |
|
| |
54 |
17.455 HANDLE; LOCK,GATE,FRT
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
(A)
TAKADA
|
8-97593-639-1 |
02 |
1 |
0804-0903 |
● |
|
| |
54 |
17.455 HANDLE; LOCK,GATE,FRT
BODY COLOR ARC WHITE(729),BODY COLOR
TRANS BLUE(999)
RR BODY FLAT BED(RS6)
(A)
TAKADA
|
8-97593-639-1 |
02 |
1 |
0804-0903 |
|
● |
| |
54 |
17.455 HANDLE; LOCK,GATE,FRT
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
(A)
TAKADA
|
8-97593-639-1 |
02 |
1 |
0904- |
● |
|
| |
54 |
17.455 HANDLE; LOCK,GATE,FRT
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
(A)
TAKADA
|
8-97593-639-1 |
02 |
1 |
0904- |
● |
|
| |
54 |
17.455 HANDLE; LOCK,GATE,FRT
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR TRANS
BLUE(999)
RR BODY FLAT BED(RS6)
(A)
TAKADA
|
8-97593-639-1 |
02 |
1 |
0904- |
|
● |
| |
54 |
17.455 HANDLE; LOCK,GATE,FRT
WHEEL BASE 3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SINGLE RR
TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)
(B)
PABCO
|
8-98045-206-0 |
02 |
1 |
0804-0903 |
● |
|
| |
54 |
17.455 HANDLE; LOCK,GATE,FRT
WHEEL BASE 3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SINGLE RR
TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)
(B)
PABCO
|
8-98045-206-0 |
02 |
1 |
0904- |
● |
|
| |
57 |
17.400 BOARD; HEADER
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
(A)
TAKADA
|
8-97594-738-0 |
01 |
1 |
0804-0903 |
● |
|
| |
57 |
17.400 BOARD; HEADER
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
(A)
TAKADA
|
8-97594-738-0 |
01 |
1 |
0804-0903 |
● |
|
| |
57 |
17.400 BOARD; HEADER
BODY COLOR ARC WHITE(729),BODY COLOR
TRANS BLUE(999)
RR BODY FLAT BED(RS6)
(A)
TAKADA
|
8-97594-738-0 |
01 |
1 |
0804-0903 |
|
● |
| |
57 |
17.400 BOARD; HEADER
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
(A)
TAKADA
|
8-97594-738-1 |
01 |
1 |
0904- |
● |
|
| |
57 |
17.400 BOARD; HEADER
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
(A)
TAKADA
|
8-97594-738-1 |
01 |
1 |
0904- |
● |
|
| |
57 |
17.400 BOARD; HEADER
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR TRANS
BLUE(999)
RR BODY FLAT BED(RS6)
(A)
TAKADA
|
8-97594-738-1 |
01 |
1 |
0904- |
|
● |
| |
57 |
17.400 BOARD; HEADER
WHEEL BASE 3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SINGLE RR
TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)
(B)
PABCO
|
8-98045-106-2 |
01 |
1 |
0804-0903 |
● |
|
| |
57 |
17.400 BOARD; HEADER
WHEEL BASE 3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SINGLE RR
TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)
(B)
PABCO
|
8-98045-106-2 |
01 |
1 |
0904- |
● |
|
| |
58 |
17.505 MEMBER; HEADER BOARD
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
TAKADA
|
8-94194-452-0 |
02 |
1 |
0804-0903 |
● |
|
| |
58 |
17.505 MEMBER; HEADER BOARD
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
TAKADA
|
8-94194-452-0 |
02 |
1 |
0804-0903 |
● |
|
| |
58 |
17.505 MEMBER; HEADER BOARD
BODY COLOR ARC WHITE(729),BODY COLOR
TRANS BLUE(999)
RR BODY FLAT BED(RS6)
TAKADA
|
8-94194-452-0 |
02 |
1 |
0804-0903 |
|
● |
| |
58 |
17.505 MEMBER; HEADER BOARD
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
TAKADA
|
8-94194-452-0 |
02 |
1 |
0904- |
● |
|
| |
58 |
17.505 MEMBER; HEADER BOARD
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
TAKADA
|
8-94194-452-0 |
02 |
1 |
0904- |
● |
|
| |
58 |
17.505 MEMBER; HEADER BOARD
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR TRANS
BLUE(999)
RR BODY FLAT BED(RS6)
TAKADA
|
8-94194-452-0 |
02 |
1 |
0904- |
|
● |
| |
59 |
17.455 REINFORCEMENT; HEADER BOARD
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
TAKADA
|
8-94194-454-0 |
01 |
1 |
0804-0903 |
● |
|
| |
59 |
17.455 REINFORCEMENT; HEADER BOARD
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
TAKADA
|
8-94194-454-0 |
01 |
1 |
0804-0903 |
● |
|
| |
59 |
17.455 REINFORCEMENT; HEADER BOARD
BODY COLOR ARC WHITE(729),BODY COLOR
TRANS BLUE(999)
RR BODY FLAT BED(RS6)
TAKADA
|
8-94194-454-0 |
01 |
1 |
0804-0903 |
|
● |
| |
59 |
17.455 REINFORCEMENT; HEADER BOARD
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
TAKADA
|
8-94194-454-0 |
01 |
1 |
0904- |
● |
|
| |
59 |
17.455 REINFORCEMENT; HEADER BOARD
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
TAKADA
|
8-94194-454-0 |
01 |
1 |
0904- |
● |
|
| |
59 |
17.455 REINFORCEMENT; HEADER BOARD
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR TRANS
BLUE(999)
RR BODY FLAT BED(RS6)
TAKADA
|
8-94194-454-0 |
01 |
1 |
0904- |
|
● |
| |
59 |
17.455 REINFORCEMENT; HEADER BOARD
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
TAKADA
|
8-94194-453-0 |
01 |
1 |
0804-0903 |
● |
|
| |
59 |
17.455 REINFORCEMENT; HEADER BOARD
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
TAKADA
|
8-94194-453-0 |
01 |
1 |
0804-0903 |
● |
|
| |
59 |
17.455 REINFORCEMENT; HEADER BOARD
BODY COLOR ARC WHITE(729),BODY COLOR
TRANS BLUE(999)
RR BODY FLAT BED(RS6)
TAKADA
|
8-94194-453-0 |
01 |
1 |
0804-0903 |
|
● |
| |
59 |
17.455 REINFORCEMENT; HEADER BOARD
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
TAKADA
|
8-94194-453-0 |
01 |
1 |
0904- |
● |
|
| |
59 |
17.455 REINFORCEMENT; HEADER BOARD
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
TAKADA
|
8-94194-453-0 |
01 |
1 |
0904- |
● |
|
| |
59 |
17.455 REINFORCEMENT; HEADER BOARD
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR TRANS
BLUE(999)
RR BODY FLAT BED(RS6)
TAKADA
|
8-94194-453-0 |
01 |
1 |
0904- |
|
● |
| |
60 |
17.455 SCREW; BOARD
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
(A)
M8X30 TAKADA
|
8-94193-938-3 |
04 |
1 |
0804-0903 |
● |
|
| |
60 |
17.455 SCREW; BOARD
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
(A)
M8X30 TAKADA
|
8-94193-938-3 |
04 |
1 |
0804-0903 |
● |
|
| |
60 |
17.455 SCREW; BOARD
BODY COLOR ARC WHITE(729),BODY COLOR
TRANS BLUE(999)
RR BODY FLAT BED(RS6)
(A)
M8X30 TAKADA
|
8-94193-938-3 |
04 |
1 |
0804-0903 |
|
● |
| |
60 |
17.455 SCREW; BOARD
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
(A)
M8X30 TAKADA
|
8-94193-938-3 |
04 |
1 |
0904- |
● |
|
| |
60 |
17.455 SCREW; BOARD
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
(A)
M8X30 TAKADA
|
8-94193-938-3 |
04 |
1 |
0904- |
● |
|
| |
60 |
17.455 SCREW; BOARD
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR TRANS
BLUE(999)
RR BODY FLAT BED(RS6)
(A)
M8X30 TAKADA
|
8-94193-938-3 |
04 |
1 |
0904- |
|
● |
| |
60 |
17.455 SCREW; BOARD
WHEEL BASE 3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SINGLE RR
TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)
(B)
M8X25 PABCO
|
8-98030-412-0 |
04 |
1 |
0804-0903 |
● |
|
| |
60 |
17.455 SCREW; BOARD
WHEEL BASE 3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SINGLE RR
TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)
(B)
M8X25 PABCO
|
8-98030-412-0 |
04 |
1 |
0904- |
● |
|
| |
69 |
17.455 SETTING PLATE; LOCK HANDLE
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
TAKADA
|
8-97591-976-0 |
02 |
1 |
0804-0903 |
● |
|
| |
69 |
17.455 SETTING PLATE; LOCK HANDLE
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
TAKADA
|
8-97591-976-0 |
02 |
1 |
0804-0903 |
● |
|
| |
69 |
17.455 SETTING PLATE; LOCK HANDLE
BODY COLOR ARC WHITE(729),BODY COLOR
TRANS BLUE(999)
RR BODY FLAT BED(RS6)
TAKADA
|
8-97591-976-0 |
02 |
1 |
0804-0903 |
|
● |
| |
69 |
17.455 SETTING PLATE; LOCK HANDLE
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
TAKADA
|
8-97591-976-0 |
02 |
1 |
0904- |
● |
|
| |
69 |
17.455 SETTING PLATE; LOCK HANDLE
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
TAKADA
|
8-97591-976-0 |
02 |
1 |
0904- |
● |
|
| |
69 |
17.455 SETTING PLATE; LOCK HANDLE
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR TRANS
BLUE(999)
RR BODY FLAT BED(RS6)
TAKADA
|
8-97591-976-0 |
02 |
1 |
0904- |
|
● |
| |
70 |
17.455 HOOK; ROPE,GUARD FRAME
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
(A)
TAKADA
|
8-97592-598-0 |
02 |
1 |
0804-0903 |
● |
|
| |
70 |
17.455 HOOK; ROPE,GUARD FRAME
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
(A)
TAKADA
|
8-97592-598-0 |
02 |
1 |
0804-0903 |
● |
|
| |
70 |
17.455 HOOK; ROPE,GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR
TRANS BLUE(999)
RR BODY FLAT BED(RS6)
(A)
TAKADA
|
8-97592-598-0 |
02 |
1 |
0804-0903 |
|
● |
| |
70 |
17.455 HOOK; ROPE,GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
(A)
TAKADA
|
8-97592-598-0 |
02 |
1 |
0904- |
● |
|
| |
70 |
17.455 HOOK; ROPE,GUARD FRAME
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
(A)
TAKADA
|
8-97592-598-0 |
02 |
1 |
0904- |
● |
|
| |
70 |
17.455 HOOK; ROPE,GUARD FRAME
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR TRANS
BLUE(999)
RR BODY FLAT BED(RS6)
(A)
TAKADA
|
8-97592-598-0 |
02 |
1 |
0904- |
|
● |
| |
70 |
17.455 HOOK; ROPE,GUARD FRAME
WHEEL BASE 3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SINGLE RR
TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)
(B)
PABCO
|
5-87580-001-0 |
02 |
1 |
0804-0903 |
● |
|
| |
70 |
17.455 HOOK; ROPE,GUARD FRAME
WHEEL BASE 3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SINGLE RR
TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)
(B)
PABCO
|
5-87580-001-0 |
02 |
1 |
0904- |
● |
|
| |
71 |
17.204 PIECE; END,FRT HANDLE
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
17.615
ID=12
|
9-61203-650-0 |
02 |
1 |
0804-0903 |
● |
|
| |
71 |
17.204 PIECE; END,FRT HANDLE
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
QUICK SILVER MET(998),BODY COLOR TRANS BL
UE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
17.615
ID=12
|
9-61203-650-0 |
02 |
1 |
0804-0903 |
● |
|
| |
71 |
17.204 PIECE; END,FRT HANDLE
BODY COLOR ARC WHITE(729),BODY COLOR
TRANS BLUE(999)
RR BODY FLAT BED(RS6)
17.615
ID=12
|
9-61203-650-0 |
02 |
1 |
0804-0903 |
|
● |
| |
71 |
17.204 PIECE; END,FRT HANDLE
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
17.615
ID=12
|
9-61203-650-0 |
02 |
1 |
0904- |
● |
|
| |
71 |
17.204 PIECE; END,FRT HANDLE
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR QUICK SILVER
MET(998),BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
17.615
ID=12
|
9-61203-650-0 |
02 |
1 |
0904- |
● |
|
| |
71 |
17.204 PIECE; END,FRT HANDLE
BODY COLOR ARC WHITE(729),BODY COLOR
MARINE BLUE(890),BODY COLOR TRANS
BLUE(999)
RR BODY FLAT BED(RS6)
17.615
ID=12
|
9-61203-650-0 |
02 |
1 |
0904- |
|
● |
