1 |

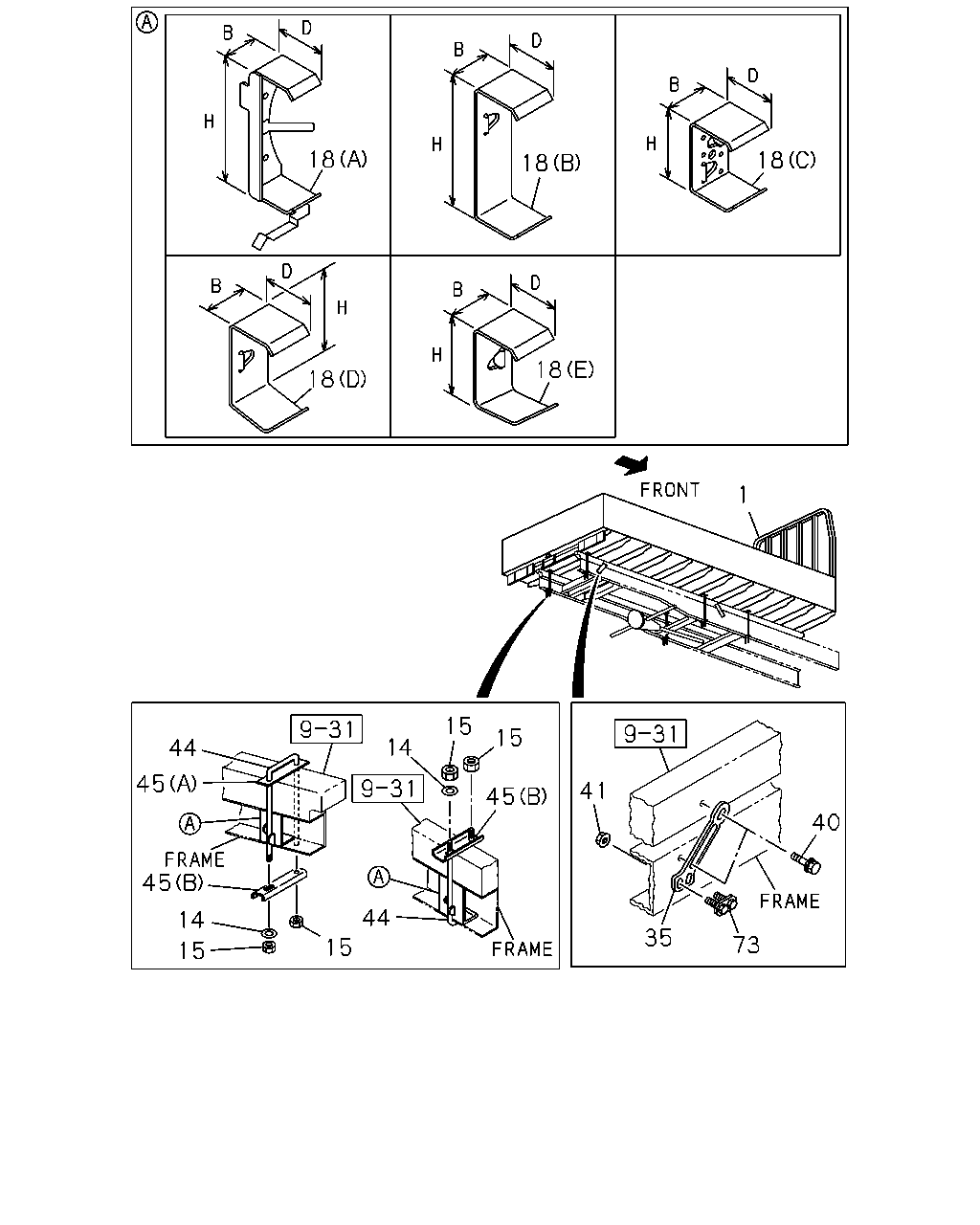

17.090 BODY ASM; REAR
WHEEL BASE 2400MM(24W)
BODY COLOR MARINE BLUE(890)
RR BODY FLAT BED(RS6)
SINGLE RR TIRE(6TD)
BLUE
|
8-97417-387-2 |
01 |
1 |
0904- |
● |
|
| |
1 |
17.090 BODY ASM; REAR
WHEEL BASE 2400MM(24W)
BODY COLOR MARINE BLUE(890)
RR BODY FLAT BED(RS6)
SMALL DOUBLE RR TIRE(6YE)
BLUE
|
8-97417-389-1 |
01 |
1 |
0904- |
● |
|
| |
1 |
17.090 BODY ASM; REAR
WHEEL BASE 3300MM(33W)
BODY COLOR MARINE BLUE(890)
RR BODY FLAT BED(RS6)
BLUE
|
8-97417-298-0 |
01 |
1 |
0904- |
● |
|
| |
1 |
17.090 BODY ASM; REAR
WHEEL BASE 2400MM(24W)
BODY COLOR MARINE BLUE(890)
RR BODY FLAT BED(RS6)
SINGLE RR TIRE(6TD)
BLUE
|
8-97417-388-2 |
01 |
1 |
0904- |
|
● |
| |
1 |
17.090 BODY ASM; REAR
WHEEL BASE 3300MM(33W)
BODY COLOR MARINE BLUE(890)
RR BODY FLAT BED(RS6)
BLUE
|
8-97417-390-2 |
01 |
1 |
0904- |
|
● |
| |
1 |
17.090 BODY ASM; REAR
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729)
RR BODY FLAT BED(RS6)
SINGLE RR TIRE(6TD)
WHITE
|
8-97411-612-2 |
01 |
1 |
0804- |
● |
|
| |
1 |
17.090 BODY ASM; REAR
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729)
RR BODY FLAT BED(RS6)
SMALL DOUBLE RR TIRE(6YE)
WHITE
|
8-97411-616-1 |
01 |
1 |
0804- |
● |
|
| |
1 |
17.090 BODY ASM; REAR
WHEEL BASE 2400MM(24W)
BODY COLOR QUICK SILVER MET(998)
RR BODY FLAT BED(RS6)
SINGLE RR TIRE(6TD)
LIGHT GRAY
|
8-97414-627-2 |
01 |
1 |
0804- |
● |
|
| |
1 |
17.090 BODY ASM; REAR
WHEEL BASE 2400MM(24W)
BODY COLOR QUICK SILVER MET(998)
RR BODY FLAT BED(RS6)
SMALL DOUBLE RR TIRE(6YE)
LIGHT GRAY
|
8-97414-628-1 |
01 |
1 |
0804- |
● |
|
| |
1 |
17.090 BODY ASM; REAR
WHEEL BASE 2400MM(24W)
BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
SINGLE RR TIRE(6TD)
BLUE
|
8-97411-613-2 |
01 |
1 |
0804- |
● |
|
| |
1 |
17.090 BODY ASM; REAR
WHEEL BASE 2400MM(24W)
BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
SMALL DOUBLE RR TIRE(6YE)
BLUE
|
8-97411-617-1 |
01 |
1 |
0804- |
● |
|
| |
1 |
17.090 BODY ASM; REAR
WHEEL BASE 3300MM(33W)
BODY COLOR ARC WHITE(729)
RR BODY FLAT BED(RS6)
WHITE
|
8-97411-624-0 |
01 |
1 |
0804- |
● |
|
| |
1 |
17.090 BODY ASM; REAR
WHEEL BASE 3300MM(33W)
BODY COLOR QUICK SILVER MET(998)
RR BODY FLAT BED(RS6)
LIGHT GRAY
|
8-97414-629-0 |
01 |
1 |
0804- |
● |
|
| |
1 |
17.090 BODY ASM; REAR
WHEEL BASE 3300MM(33W)
BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
BLUE
|
8-97411-625-0 |
01 |
1 |
0804- |
● |
|
| |
1 |
17.090 BODY ASM; REAR
WHEEL BASE 2400MM(24W)
BODY COLOR ARC WHITE(729)
RR BODY FLAT BED(RS6)
SINGLE RR TIRE(6TD)
WHITE
|
8-97411-614-2 |
01 |
1 |
0804- |
|
● |
| |
1 |
17.090 BODY ASM; REAR
WHEEL BASE 2400MM(24W)
BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
SINGLE RR TIRE(6TD)
BLUE
|
8-97411-615-2 |
01 |
1 |
0804- |
|
● |
| |
1 |
17.090 BODY ASM; REAR
WHEEL BASE 3300MM(33W)
BODY COLOR ARC WHITE(729)
RR BODY FLAT BED(RS6)
WHITE
|
8-97411-618-2 |
01 |
1 |
0804- |
|
● |
| |
1 |
17.090 BODY ASM; REAR
WHEEL BASE 3300MM(33W)
BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED(RS6)
BLUE
|
8-97411-619-2 |
01 |
1 |
0804- |
|
● |
| |
14 |
09.011 WASHER; PL,RR BODY MTG
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
00.029
ID=15 OD=26
|
9-09164-514-0 |
04 |
1 |
0804-1010 |
● |
● |
| |
14 |
09.011 WASHER; PL,RR BODY MTG
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
ID=15 OD=26
|
0-91614-514-0 |
04 |
1 |
1011- |
● |
● |
| |
14 |
09.011 WASHER; PL,RR BODY MTG
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED(RS6)
00.029
ID=15 OD=26
|
9-09164-514-0 |
06 |
1 |
0804-0903 |
● |
● |
| |
14 |
09.011 WASHER; PL,RR BODY MTG
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
RR BODY FLAT BED(RS6)
00.029
ID=15 OD=26
|
9-09164-514-0 |
06 |
1 |
0904-1010 |
● |
● |
| |
14 |
09.011 WASHER; PL,RR BODY MTG
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
RR BODY FLAT BED(RS6)
ID=15 OD=26
|
0-91614-514-0 |
06 |
1 |
1011- |
● |
● |
| |
15 |
09.011 NUT; RR BODY MTG
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
06.008
M14
|
9-09130-414-0 |
08 |
1 |
0804- |
● |
● |
| |
15 |
09.011 NUT; RR BODY MTG
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED(RS6)
06.008
M14
|
9-09130-414-0 |
12 |
1 |
0804-0903 |
● |
● |
| |
15 |
09.011 NUT; RR BODY MTG
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
RR BODY FLAT BED(RS6)
06.008
M14
|
9-09130-414-0 |
12 |
1 |
0904- |
● |
● |
| |
18 |
17.447 REINFORCEMENT; U-BOLT
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SINGLE RR
TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)
(A)
H=172 B=40 D=65
|
8-98058-167-0 |
01 |
1 |
0804- |
● |
|
| |
18 |
17.447 REINFORCEMENT; U-BOLT
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(A)
H=172 B=40 D=65
|
8-98058-167-0 |
01 |
1 |
0804- |
● |
|
| |
18 |
17.447 REINFORCEMENT; U-BOLT
RR BODY FLAT BED(RS6)
EXC. SINGLE RR TIRE(6TD)
(A)
H=172 B=40 D=65
|
8-98058-167-0 |
01 |
1 |
0804- |
|
● |
| |
18 |
17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(B)
H=172 B=50 D=65
|
8-98037-580-0 |
02 |
1 |
0804- |
● |
|
| |
18 |
17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
SINGLE RR TIRE(6TD),SMALL DOUBLE RR
TIRE(6YE)
EXC. FULL FLATLOW<6GL>
(B)
H=172 B=50 D=65
|
8-98037-580-0 |
02 |
1 |
0804- |
● |
|
| |
18 |
17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
(D)
H=111 B=50 D=65
|
8-98041-877-0 |
01 |
1 |
0804- |
● |
|
| |
18 |
17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
SINGLE RR TIRE(6TD),SMALL DOUBLE RR
TIRE(6YE)
EXC. FULL FLATLOW<6GL>
(D)
H=111 B=50 D=65
|
8-98041-877-0 |
01 |
1 |
0804- |
● |
|
| |
18 |
17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
SINGLE RR TIRE(6TD)
(D)
H=111 B=50 D=65
|
8-98041-877-0 |
01 |
1 |
0804- |
|
● |
| |
18 |
17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
(E)
H=111 B=50 D=65
|
8-98041-878-0 |
01 |
1 |
0804- |
● |
|
| |
18 |
17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
SINGLE RR TIRE(6TD),SMALL DOUBLE RR
TIRE(6YE)
EXC. FULL FLATLOW<6GL>
(E)
H=111 B=50 D=65
|
8-98041-878-0 |
01 |
1 |
0804- |
● |
|
| |
18 |
17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
SINGLE RR TIRE(6TD)
(E)
H=111 B=50 D=65
|
8-98041-878-0 |
01 |
1 |
0804- |
|
● |
| |
18 |
17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SINGLE RR
TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)
(B)
H=172 B=50 D=65
|
8-98037-580-0 |
01 |
1 |
0804- |
● |
|
| |
18 |
17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
H=172 B=50 D=65
|
8-98037-580-0 |
01 |
1 |
0804- |
● |
|
| |
18 |
17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SINGLE RR
TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)
(D)
H=102 B=50 D=65
|
8-98041-880-0 |
01 |
1 |
0804- |
● |
|
| |
18 |
17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SINGLE RR
TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)
(E)
H=102 B=50 D=65
|
8-98041-881-0 |
01 |
1 |
0804- |
● |
|
| |
18 |
17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(B)
H=172 B=50 D=65
|
8-98037-580-0 |
04 |
1 |
0804-0903 |
● |
|
| |
18 |
17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(B)
H=172 B=50 D=65
|
8-98037-580-0 |
04 |
1 |
0904- |
● |
|
| |
18 |
17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
(B)
H=172 B=50 D=65
|
8-98037-580-0 |
03 |
1 |
0804-0903 |
● |
|
| |
18 |
17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
H=172 B=50 D=65
|
8-98037-580-0 |
03 |
1 |
0804-0903 |
● |
|
| |
18 |
17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED(RS6)
(B)
H=172 B=50 D=65
|
8-98037-580-0 |
03 |
1 |
0804-0903 |
|
● |
| |
18 |
17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
H=172 B=50 D=65
|
8-98037-580-0 |
03 |
1 |
0904- |
● |
|
| |
18 |
17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
(B)
H=172 B=50 D=65
|
8-98037-580-0 |
03 |
1 |
0904- |
● |
|
| |
18 |
17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED(RS6)
(B)
H=172 B=50 D=65
|
8-98037-580-0 |
03 |
1 |
0904- |
|
● |
| |
18 |
17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED(RS6)
(C)
H=91 B=50 D=65
|
8-94132-123-1 |
02 |
1 |
0804-0903 |
● |
● |
| |
18 |
17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
RR BODY FLAT BED(RS6)
(C)
H=91 B=50 D=65
|
8-94132-123-1 |
02 |
1 |
0904- |
● |
● |
| |
18 |
17.447 REINFORCEMENT; U-BOLT
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
SINGLE RR TIRE(6TD)
(B)
H=172 B=50 D=65
|
8-98094-110-0 |
02 |
1 |
0804- |
|
● |
| |
35 |
17.447 STOPPER; RR BODY
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SMALL DOUBLE RR
TIRE(6YE)
|
8-98030-398-2 |
04 |
1 |
0804- |
● |
|
| |
35 |
17.447 STOPPER; RR BODY
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
RR BODY FLAT BED(RS6)
|
8-98030-398-2 |
04 |
1 |
0804- |
|
● |
| |
35 |
17.447 STOPPER; RR BODY
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
SMALL DOUBLE RR TIRE(6YE)
|
8-98033-524-1 |
04 |
1 |
0804- |
● |
|
| |
40 |
17.447 BOLT; STOPPER TO RR BODY
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
RR BODY FLAT BED(RS6)
|
8-97189-615-0 |
04 |
1 |
0804-0903 |
● |
● |
| |
40 |
17.447 BOLT; STOPPER TO RR BODY
RR BODY FLAT BED(RS6)
|
8-97189-615-0 |
04 |
1 |
0904- |
● |
● |
| |
41 |
17.447 NUT; STOPPER TO RR BODY
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
RR BODY FLAT BED(RS6)
03.162
M10 FLANGE
|
0-91180-110-0 |
08 |
1 |
0804-0903 |
● |
● |
| |
41 |
17.447 NUT; STOPPER TO RR BODY
RR BODY FLAT BED(RS6)
03.162
M10 FLANGE
|
0-91180-110-0 |
08 |
1 |
0904- |
● |
● |
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 2800MM(28W)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
TRANSMISSION CONTROL-SMOOTHER(8GF)
L=365
|
1-66900-460-0 |
01 |
1 |
0909- |
● |
|
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 2800MM(28W)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
L=367
|
5-51171-008-1 |
04 |
1 |
0909- |
● |
|
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
TRANSMISSION CONTROL-SMOOTHER(8GF)
L=272
|
5-51171-007-1 |
01 |
1 |
0804-0908 |
● |
|
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 2800MM(28W)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
L=272
|
5-51171-007-1 |
02 |
1 |
0909- |
● |
|
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
L=272
|
5-51171-007-1 |
02 |
1 |
0909- |
● |
|
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
L=272
|
5-51171-007-1 |
02 |
1 |
0909- |
● |
|
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
SMALL DOUBLE RR TIRE(6YE)
EXC. FULL FLATLOW<6GL>
L=272
|
5-51171-007-1 |
02 |
1 |
0909- |
● |
|
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
TRANSMISSION CONTROL-SMOOTHER(8GF)
L=280
|
1-66900-075-0 |
01 |
1 |
0804-0908 |
● |
|
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
TRANSMISSION CONTROL-SMOOTHER(8GF)
L=280
|
1-66900-075-0 |
01 |
1 |
0909- |
● |
|
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SINGLE RR
TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)
L=367
|
5-51171-008-1 |
01 |
1 |
0804- |
● |
|
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SINGLE RR
TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)
L=367
|
5-51171-008-1 |
01 |
1 |
0804- |
● |
|
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
RR BODY FLAT BED(RS6)
EXC. SINGLE RR TIRE(6TD)
L=367
|
5-51171-008-1 |
01 |
1 |
0804- |
|
● |
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
L=225
|
8-94361-603-0 |
02 |
1 |
0804- |
● |
|
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
SMALL DOUBLE RR TIRE(6YE)
EXC. FULL FLATLOW<6GL>
L=225
|
8-94361-603-0 |
02 |
1 |
0804- |
● |
|
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
L=297
|
5-51171-009-1 |
02 |
1 |
0804-0903 |
● |
|
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SMALL DOUBLE RR
TIRE(6YE)
L=297
|
5-51171-009-1 |
02 |
1 |
0804-0903 |
● |
|
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
RR BODY FLAT BED(RS6)
L=297
|
5-51171-009-1 |
02 |
1 |
0804-0903 |
|
● |
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SMALL DOUBLE RR
TIRE(6YE)
L=297
|
5-51171-009-1 |
02 |
1 |
0904-0908 |
● |
|
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
L=297
|
5-51171-009-1 |
02 |
1 |
0904-0908 |
● |
|
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
RR BODY FLAT BED(RS6)
L=297
|
5-51171-009-1 |
02 |
1 |
0904-0908 |
|
● |
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
L=297
|
5-51171-009-1 |
02 |
1 |
0909- |
● |
|
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SMALL DOUBLE RR
TIRE(6YE)
L=297
|
5-51171-009-1 |
02 |
1 |
0909- |
● |
|
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
RR BODY FLAT BED(RS6)
L=297
|
5-51171-009-1 |
02 |
1 |
0909- |
|
● |
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
L=205
|
8-98091-887-0 |
02 |
1 |
0804-0903 |
● |
|
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
L=205
|
8-98091-887-0 |
02 |
1 |
0904-0908 |
● |
|
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
L=205
|
8-98091-887-0 |
02 |
1 |
0909- |
● |
|
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
L=272
|
5-51171-007-1 |
02 |
1 |
0804-0908 |
● |
|
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
SMALL DOUBLE RR TIRE(6YE)
EXC. FULL FLATLOW<6GL>
L=272
|
5-51171-007-1 |
02 |
1 |
0804-0908 |
● |
|
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
L=272
|
5-51171-007-1 |
02 |
1 |
0804-0908 |
● |
|
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
TRANSMISSION CONTROL-SMOOTHER(8GF)
L=272
|
5-51171-007-1 |
01 |
1 |
0909- |
● |
|
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SMALL DOUBLE RR
TIRE(6YE)
L=367
|
5-51171-008-1 |
03 |
1 |
0804-0908 |
● |
|
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED(RS6)
L=367
|
5-51171-008-1 |
03 |
1 |
0804-0908 |
|
● |
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 2800MM(28W)
RR BODY FLAT BED(RS6)
FULL FLATLOW<6GL>
TRANSMISSION CONTROL-SMOOTHER(8GF)
L=367
|
5-51171-008-1 |
03 |
1 |
0909- |
● |
|
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SMALL DOUBLE RR
TIRE(6YE)
L=367
|
5-51171-008-1 |
03 |
1 |
0909- |
● |
|
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED(RS6)
L=367
|
5-51171-008-1 |
03 |
1 |
0909- |
|
● |
| |
44 |
17.447 U-BOLT; FRAME TO RR BODY
RR BODY FLAT BED(RS6)
SINGLE RR TIRE(6TD)
L=367
|
5-51171-008-1 |
02 |
1 |
0804- |
● |
● |
| |
45 |
17.447 PLATE; U-BOLT
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SINGLE RR
TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)
(A)
L=116 B=35
|
5-66900-203-0 |
02 |
1 |
0804-0901 |
● |
|
| |
45 |
17.447 PLATE; U-BOLT
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
SINGLE RR TIRE(6TD)
(A)
L=116 B=35
|
5-66900-203-0 |
01 |
1 |
0902- |
● |
|
| |
45 |
17.447 PLATE; U-BOLT
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>
(A)
L=116 B=35
|
5-66900-203-0 |
01 |
1 |
0902- |
● |
|
| |
45 |
17.447 PLATE; U-BOLT
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED(RS6)
(A)
L=116 B=35
|
5-66900-203-0 |
01 |
1 |
0902- |
|
● |
| |
45 |
17.447 PLATE; U-BOLT
RR BODY FLAT BED(RS6)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
L=120 B=86
|
8-98090-847-0 |
01 |
1 |
0804- |
● |
|
| |
45 |
17.447 PLATE; U-BOLT
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
SINGLE RR TIRE(6TD)
(A)
L=116 B=35
|
5-66900-203-0 |
01 |
1 |
0804-0901 |
● |
|
| |
45 |
17.447 PLATE; U-BOLT
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED(RS6)
(A)
L=116 B=35
|
5-66900-203-0 |
01 |
1 |
0804-0901 |
|
● |
| |
45 |
17.447 PLATE; U-BOLT
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
EXC. FULL FLATLOW<6GL>,SINGLE RR
TIRE(6TD),SMALL DOUBLE RR TIRE(6YE)
(A)
L=116 B=35
|
5-66900-203-0 |
02 |
1 |
0902- |
● |
|
| |
45 |
17.447 PLATE; U-BOLT
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(B)
L=120 B=45
|
5-66900-204-3 |
04 |
1 |
0804- |
● |
|
| |
45 |
17.447 PLATE; U-BOLT
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
(B)
L=120 B=45
|
5-66900-204-3 |
04 |
1 |
0804- |
|
● |
| |
45 |
17.447 PLATE; U-BOLT
WHEEL BASE 2400MM(24W)
RR BODY FLAT BED(RS6)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
L=120 B=45
|
5-66900-204-3 |
03 |
1 |
0804- |
● |
|
| |
45 |
17.447 PLATE; U-BOLT
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED(RS6)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(B)
L=120 B=45
|
5-66900-204-3 |
06 |
1 |
0804-0903 |
● |
|
| |
45 |
17.447 PLATE; U-BOLT
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED(RS6)
(B)
L=120 B=45
|
5-66900-204-3 |
06 |
1 |
0804-0903 |
|
● |
| |
45 |
17.447 PLATE; U-BOLT
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
RR BODY FLAT BED(RS6)
TRANSMISSION CONTROL-SMOOTHER
DELETE(8GJ)
(B)
L=120 B=45
|
5-66900-204-3 |
06 |
1 |
0904- |
● |
|
| |
45 |
17.447 PLATE; U-BOLT
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
RR BODY FLAT BED(RS6)
(B)
L=120 B=45
|
5-66900-204-3 |
06 |
1 |
0904- |
|
● |
| |
45 |
17.447 PLATE; U-BOLT
WHEEL BASE 3300MM(33W)
RR BODY FLAT BED(RS6)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
L=120 B=45
|
5-66900-204-3 |
05 |
1 |
0804-0903 |
● |
|
| |
45 |
17.447 PLATE; U-BOLT
WHEEL BASE 2800MM(28W),WHEEL BASE
3300MM(33W)
RR BODY FLAT BED(RS6)
TRANSMISSION CONTROL-SMOOTHER(8GF)
(B)
L=120 B=45
|
5-66900-204-3 |
05 |
1 |
0904- |
● |
|
| |
73 |
03.690 PLATE; STUD BOLT
WHEEL BASE 2400MM(24W),WHEEL BASE
3300MM(33W)
RR BODY FLAT BED(RS6)
|
8-98047-322-0 |
04 |
1 |
0804-0903 |
● |
● |
| |
73 |
03.690 PLATE; STUD BOLT
RR BODY FLAT BED(RS6)
|
8-98047-322-0 |
04 |
1 |
0904- |
● |
● |
