Sayfa 9-01 - Isuzu EPC

9-01 — TOOLS (#54308) — 160 parça

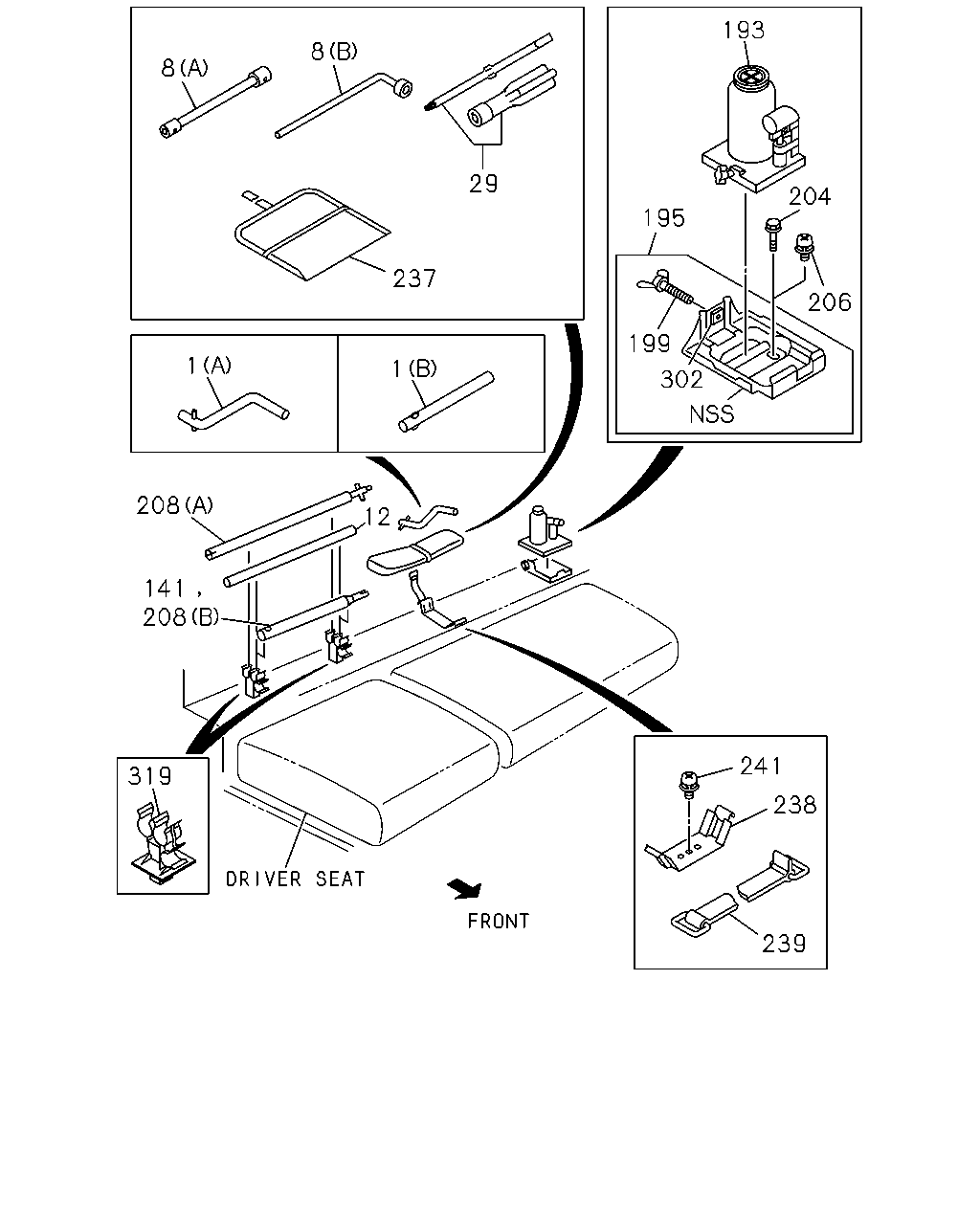

193 8 8 29 204 195 237 206 199 1 1 302 208 12 141 208 241 319 238 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2400MM(24W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> 08.821 (B) L=280	1-85515-007-0	01	1	0710-0803	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W) 08.821 (B) L=280	1-85515-007-0	01	1	0710-0803	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2400MM(24W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> 08.821 (B) L=280	1-85515-007-0	01	1	0804-0812	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W) 08.821 (B) L=280	1-85515-007-0	01	1	0804-0812	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER 08.821 (B) L=280	1-85515-007-0	01	1	0804-0812				●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 08.821 (B) L=280	1-85515-007-0	01	1	0901-1108	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 08.821 (B) L=280	1-85515-007-0	01	1	0901-1108	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> 08.821 (B) L=280	1-85515-007-0	01	1	0901-1108		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> 08.821 (B) L=280	1-85515-007-0	01	1	0901-1108		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> EXC. SINGLE RR TIRE(6TD) 08.821 (B) L=280	1-85515-007-0	01	1	0901-1108			●
1	07.629 HANDLE; SPARE TIRE CARRIER 08.821 (B) L=280	1-85515-007-0	01	1	0901-1108				●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) L=280	8-98181-251-0	01	1	1109-	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) L=280	8-98181-251-0	01	1	1109-	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) L=280	8-98181-251-0	01	1	1109-		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=280	8-98181-251-0	01	1	1109-		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> EXC. SINGLE RR TIRE(6TD) (B) L=280	8-98181-251-0	01	1	1109-			●
1	07.629 HANDLE; SPARE TIRE CARRIER (B) L=280	8-98181-251-0	01	1	1109-				●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2400MM(24W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A)	8-97218-985-0	01	1	0710-0803	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2400MM(24W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A)	8-97218-985-0	01	1	0804-0812	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> (A)	8-97218-985-0	01	1	0901-	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> SINGLE RR TIRE(6TD) (A)	8-97218-985-0	01	1	0901-			●
8	08.821 WRENCH; WHEEL F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL) (A) B=35X17 L=300	8-94341-283-1	01	1	0804-	●
8	08.821 WRENCH; WHEEL (A) B=41X19 L=330	8-94386-490-1	01	1	0710-0803	●	●
8	08.821 WRENCH; WHEEL FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR TIRE 195/85R16 D ISC 16-5.5J-116.5(CSA),FRT&RR 185/85R1616X5.5J-116.5 SILVER(CSZ),FRT&RR 7R-16 -10 16X5.5F-115(07H),FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115 (47H),FRT&RR 7-15-10 5.5FX15-115(49H), FRT&RR 7-15-10L 5.5FX15-115(50H), FRT&RR7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-1 0 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T /VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) (A) B=41X19 L=330	8-94386-490-1	01	1	0804-0809	●	●	●	●
8	08.821 WRENCH; WHEEL FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR TIRE 195/85R16 D ISC 16-5.5J-116.5(CSA),FRT&RR 185/85R1616X5.5J-116.5 SILVER(CSZ),FRT&RR 7.00R -16-10 R/L DISC 5.50FX16-115(CUW), FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-1 5-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) B=41X19 L=330	8-94386-490-1	01	1	0810-0906	●	●	●	●
8	08.821 WRENCH; WHEEL FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR TIRE 195/85R16 D ISC 16-5.5J-116.5(CSA),FRT&RR 185/85R1616X5.5J-116.5 SILVER(CSZ),FRT&RR 7.00R -16-10 R/L DISC 5.50FX16-115(CUW), FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-1 5-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) B=41X19 L=330	8-94386-490-1	01	1	0907-1005	●	●		●
8	08.821 WRENCH; WHEEL FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC(BQU),FRT&RR TIRE 195/85R16 D ISC 16-5.5J-116.5(CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 RIB(CVT),F RT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) B=41X19 L=330	8-94386-490-1	01	1	1006-	●	●		●
8	08.821 WRENCH; WHEEL FRT&RR 7-15-8 5.5FX25-170(CTK),FRT&RR 7-15-10 5.5FX25-170(CTL),FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R- 15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT6.5R-15-10 RR7R-15-10 F&R/DISC5.5F-25-170(CUP),FRT 7R-15-8 RR 7.5R-15 -12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-10 5.5F X15-25 RR 7.5-15-12 6GSX15-25(25H), FRT&RR 7-16-10 5.5FX16-25(89C) (B) B=23 L=300	9-85113-935-0	01	1	0804-0809	●		●
8	08.821 WRENCH; WHEEL FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F-25-170(CUP),FRT 7R- 15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU),FRT&RR 7.5-15-10 5.5FX15-25(09V) (B) B=23 L=300	9-85113-935-0	01	1	0810-	●		●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 2400MM(24W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> OD=25 L=590	8-97332-988-0	01	1	0710-0803	●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 2400MM(24W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15>,SINGLE RR TIRE(6TD) OD=25 L=590	8-97332-988-0	01	1	0804-1001	●		●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 2400MM(24W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> OD=25 L=590	8-97332-988-0	01	1	0804-1001		●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 2400MM(24W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15>,SINGLE RR TIRE(6TD) 08.820 OD=25 L=480	1-85116-011-0	01	1	1002-1002	●		●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 2400MM(24W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 08.820 OD=25 L=480	1-85116-011-0	01	1	1002-1002		●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> EXC. SINGLE RR TIRE(6TD) 08.820 OD=25 L=480	1-85116-011-0	01	1	1003-1407	●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> 08.820 OD=25 L=480	1-85116-011-0	01	1	1003-1407		●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 2400MM(24W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15>,SINGLE RR TIRE(6TD) 08.820 OD=25 L=480	1-85116-011-0	01	1	1003-1407			●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> EXC. SINGLE RR TIRE(6TD) OD=25 L=480	8-98257-407-0	01	1	1408-	●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> OD=25 L=480	8-98257-407-0	01	1	1408-		●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 2400MM(24W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15>,SINGLE RR TIRE(6TD) OD=25 L=480	8-98257-407-0	01	1	1408-			●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	0710-0803	●	●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	0804-	●	●	●	●
141	08.821 HANDLE; WRENCH WHEEL BASE 2400MM(24W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> 08.820 L=580	1-85515-005-1	01	1	0804-0812			●
141	08.821 HANDLE; WRENCH WHEEL BASE 3300MM(33W) 08.820 L=580	1-85515-005-1	01	1	0804-0812			●
141	08.821 HANDLE; WRENCH 08.820 L=580	1-85515-005-1	01	1	0804-0812				●
141	08.821 HANDLE; WRENCH WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> EXC. SINGLE RR TIRE(6TD) 08.820 L=580	1-85515-005-1	01	1	0901-1108			●
141	08.821 HANDLE; WRENCH 08.820 L=580	1-85515-005-1	01	1	0901-1108				●
141	08.821 HANDLE; WRENCH WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> EXC. SINGLE RR TIRE(6TD) 08.820 L=580	8-98181-249-0	01	1	1109-			●
141	08.821 HANDLE; WRENCH 08.820 L=580	8-98181-249-0	01	1	1109-				●
193	08.820 JACK ASM 4TON	8-94438-020-3	01	1	0710-0803	●
193	08.820 JACK ASM AUSTRALIA EQUIPMENT(B13) FRT INDEPENDENT SUSPENSION(FF0) EXC. SINGLE RR TIRE(6TD) 4TON	8-94438-020-3	01	1	0804-	●
193	08.820 JACK ASM AUSTRALIA EQUIPMENT(B13) EXC. FRT INDEPENDENT SUSPENSION(FF0), SINGLE RR TIRE(6TD) 4TON	8-94438-019-2	01	1	0804-	●
193	08.820 JACK ASM FRT INDEPENDENT SUSPENSION(FF0) EXC. AUSTRALIA EQUIPMENT(B13), SUSPENSION - RR UNDER SLUNG<V4U> 4TON	8-98090-823-0	01	1	0804-1311	●
193	08.820 JACK ASM SUSPENSION - RR UNDER SLUNG<V4U> EXC. AUSTRALIA EQUIPMENT(B13) 4TON	8-98090-823-0	01	1	0804-1311	●
193	08.820 JACK ASM FRT INDEPENDENT SUSPENSION(FF0) EXC. AUSTRALIA EQUIPMENT(B13), SUSPENSION - RR UNDER SLUNG<V4U> 4TON	8-98239-828-0	01	1	1312-	●
193	08.820 JACK ASM SUSPENSION - RR UNDER SLUNG<V4U> EXC. AUSTRALIA EQUIPMENT(B13) 4TON	8-98239-828-0	01	1	1312-	●
193	08.820 JACK ASM SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0) 5TON	8-97371-124-0	01	1	0804-0805	●
193	08.820 JACK ASM SINGLE RR TIRE(6TD) 5TON	8-97371-124-0	01	1	0804-0805			●
193	08.820 JACK ASM SINGLE RR TIRE(6TD) EXC. FRT INDEPENDENT SUSPENSION(FF0) 5TON	8-98114-047-0	01	1	0806-	●
193	08.820 JACK ASM SINGLE RR TIRE(6TD) 5TON	8-98114-047-0	01	1	0806-			●
193	08.820 JACK ASM 4TON	8-98012-285-0	01	1	0710-0803		●
193	08.820 JACK ASM EXC. AUSTRALIA EQUIPMENT(B13),FRT INDEPENDENT SUSPENSION(FF0),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 4TON	8-98012-285-0	01	1	0804-	●
193	08.820 JACK ASM 4TON	8-98012-285-0	01	1	0804-		●		●
193	08.820 JACK ASM EXC. SINGLE RR TIRE(6TD) 4TON	8-98012-285-0	01	1	0804-			●
195	08.820 BRACKET; JACK SINGLE RR TIRE(6TD)	8-94273-287-7	01	1	0806-			●
195	08.820 BRACKET; JACK	8-98034-916-0	01	1	0710-0803	●
195	08.820 BRACKET; JACK AUSTRALIA EQUIPMENT(B13) FRT INDEPENDENT SUSPENSION(FF0)	8-98034-916-0	01	1	0804-	●
195	08.820 BRACKET; JACK AUSTRALIA EQUIPMENT(B13) EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98034-917-0	01	1	0804-	●
195	08.820 BRACKET; JACK FRT INDEPENDENT SUSPENSION(FF0) EXC. AUSTRALIA EQUIPMENT(B13)	8-97589-376-1	01	1	0804-0805	●
195	08.820 BRACKET; JACK FRT INDEPENDENT SUSPENSION(FF0) EXC. AUSTRALIA EQUIPMENT(B13)	8-97589-376-1	01	1	0806-0808	●
195	08.820 BRACKET; JACK SINGLE RR TIRE(6TD) EXC. AUSTRALIA EQUIPMENT(B13),FRT INDEPENDENT SUSPENSION(FF0)	8-97589-376-1	01	1	0806-0808	●
195	08.820 BRACKET; JACK FRT INDEPENDENT SUSPENSION(FF0) EXC. AUSTRALIA EQUIPMENT(B13), SUSPENSION - RR UNDER SLUNG<V4U>	8-97589-376-2	01	1	0809-	●
195	08.820 BRACKET; JACK SUSPENSION - RR UNDER SLUNG<V4U> EXC. AUSTRALIA EQUIPMENT(B13)	8-97589-376-2	01	1	0809-	●
195	08.820 BRACKET; JACK SINGLE RR TIRE(6TD) EXC. AUSTRALIA EQUIPMENT(B13),FRT INDEPENDENT SUSPENSION(FF0)	8-97589-376-2	01	1	0809-	●
195	08.820 BRACKET; JACK	8-98033-737-1	01	1	0710-0803		●
195	08.820 BRACKET; JACK EXC. AUSTRALIA EQUIPMENT(B13),FRT INDEPENDENT SUSPENSION(FF0)	8-98033-737-1	01	1	0804-0805	●
195	08.820 BRACKET; JACK	8-98033-737-1	01	1	0804-0805		●
195	08.820 BRACKET; JACK EXC. AUSTRALIA EQUIPMENT(B13),FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD)	8-98033-737-1	01	1	0806-0808	●
195	08.820 BRACKET; JACK	8-98033-737-1	01	1	0806-0808		●
195	08.820 BRACKET; JACK EXC. AUSTRALIA EQUIPMENT(B13),FRT INDEPENDENT SUSPENSION(FF0),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD)	8-98033-737-2	01	1	0809-	●
195	08.820 BRACKET; JACK	8-98033-737-2	01	1	0809-		●
195	08.820 BRACKET; JACK	8-94262-068-3	01	1	0804-0805			●	●
195	08.820 BRACKET; JACK EXC. SINGLE RR TIRE(6TD)	8-94262-068-3	01	1	0806-			●
195	08.820 BRACKET; JACK	8-94262-068-3	01	1	0806-				●
199	08.820 BOLT; JACK SINGLE RR TIRE(6TD) M8X30 WING	8-94279-018-1	01	1	0806-			●
199	08.820 BOLT; JACK FRT INDEPENDENT SUSPENSION(FF0) EXC. AUSTRALIA EQUIPMENT(B13) M8X30 WING	8-98005-536-0	01	1	0804-0805	●
199	08.820 BOLT; JACK AUSTRALIA EQUIPMENT(B13) EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X30 WING	8-98005-536-0	01	1	0804-0805	●
199	08.820 BOLT; JACK AUSTRALIA EQUIPMENT(B13) EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X30 WING	8-98005-536-0	01	1	0806-0808	●
199	08.820 BOLT; JACK FRT INDEPENDENT SUSPENSION(FF0) EXC. AUSTRALIA EQUIPMENT(B13) M8X30 WING	8-98005-536-0	01	1	0806-0808	●
199	08.820 BOLT; JACK SINGLE RR TIRE(6TD) EXC. AUSTRALIA EQUIPMENT(B13),FRT INDEPENDENT SUSPENSION(FF0) M8X30 WING	8-98005-536-0	01	1	0806-0808	●
199	08.820 BOLT; JACK AUSTRALIA EQUIPMENT(B13) EXC. FRT INDEPENDENT SUSPENSION(FF0) M8X30 WING	8-98005-536-0	01	1	0809-	●
199	08.820 BOLT; JACK FRT INDEPENDENT SUSPENSION(FF0) EXC. AUSTRALIA EQUIPMENT(B13), SUSPENSION - RR UNDER SLUNG<V4U> M8X30 WING	8-98005-536-0	01	1	0809-	●
199	08.820 BOLT; JACK SUSPENSION - RR UNDER SLUNG<V4U> EXC. AUSTRALIA EQUIPMENT(B13) M8X30 WING	8-98005-536-0	01	1	0809-	●
199	08.820 BOLT; JACK SINGLE RR TIRE(6TD) EXC. AUSTRALIA EQUIPMENT(B13),FRT INDEPENDENT SUSPENSION(FF0) M8X30 WING	8-98005-536-0	01	1	0809-	●
199	08.820 BOLT; JACK M8X50 WING	8-98005-537-0	01	1	0710-0803	●	●
199	08.820 BOLT; JACK EXC. AUSTRALIA EQUIPMENT(B13),FRT INDEPENDENT SUSPENSION(FF0) M8X50 WING	8-98005-537-0	01	1	0804-0805	●
199	08.820 BOLT; JACK AUSTRALIA EQUIPMENT(B13) FRT INDEPENDENT SUSPENSION(FF0) M8X50 WING	8-98005-537-0	01	1	0804-0805	●
199	08.820 BOLT; JACK M8X50 WING	8-98005-537-0	01	1	0804-0805		●
199	08.820 BOLT; JACK AUSTRALIA EQUIPMENT(B13) FRT INDEPENDENT SUSPENSION(FF0) M8X50 WING	8-98005-537-0	01	1	0806-0808	●
199	08.820 BOLT; JACK EXC. AUSTRALIA EQUIPMENT(B13),FRT INDEPENDENT SUSPENSION(FF0),SINGLE RR TIRE(6TD) M8X50 WING	8-98005-537-0	01	1	0806-0808	●
199	08.820 BOLT; JACK M8X50 WING	8-98005-537-0	01	1	0806-0808		●
199	08.820 BOLT; JACK AUSTRALIA EQUIPMENT(B13) FRT INDEPENDENT SUSPENSION(FF0) M8X50 WING	8-98005-537-0	01	1	0809-	●
199	08.820 BOLT; JACK EXC. AUSTRALIA EQUIPMENT(B13),FRT INDEPENDENT SUSPENSION(FF0),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) M8X50 WING	8-98005-537-0	01	1	0809-	●
199	08.820 BOLT; JACK M8X50 WING	8-98005-537-0	01	1	0809-		●
199	08.820 BOLT; JACK M8X50 WING	8-94279-136-0	01	1	0804-0805			●	●
199	08.820 BOLT; JACK EXC. SINGLE RR TIRE(6TD) M8X50 WING	8-94279-136-0	01	1	0806-			●
199	08.820 BOLT; JACK M8X50 WING	8-94279-136-0	01	1	0806-				●
204	08.820 BOLT; BRKT,JACK 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0710-	●	●
206	08.820 SCREW; OIL JACK BRKT 16.570 M6X16	0-38050-616-0	01	1	0804-			●	●
208	08.820 HANDLE; JACK WHEEL BASE 2400MM(24W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) L=580	1-85515-005-1	01	1	0710-0812	●	●
208	08.820 HANDLE; JACK WHEEL BASE 3300MM(33W) (B) L=580	1-85515-005-1	01	1	0710-0812	●	●
208	08.820 HANDLE; JACK WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) L=580	1-85515-005-1	01	1	0901-1108	●
208	08.820 HANDLE; JACK WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) L=580	1-85515-005-1	01	1	0901-1108	●
208	08.820 HANDLE; JACK WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) L=580	1-85515-005-1	01	1	0901-1108		●
208	08.820 HANDLE; JACK WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=580	1-85515-005-1	01	1	0901-1108		●
208	08.820 HANDLE; JACK WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) L=580	8-98181-249-0	01	1	1109-	●
208	08.820 HANDLE; JACK WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) (B) L=580	8-98181-249-0	01	1	1109-	●
208	08.820 HANDLE; JACK WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) L=580	8-98181-249-0	01	1	1109-		●
208	08.820 HANDLE; JACK WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=580	8-98181-249-0	01	1	1109-		●
208	08.820 HANDLE; JACK WHEEL BASE 2400MM(24W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A) L=642	8-97217-800-0	01	1	0710-0803	●	●
208	08.820 HANDLE; JACK WHEEL BASE 2400MM(24W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A) L=642	8-97217-800-0	01	1	0804-0911	●	●	●
208	08.820 HANDLE; JACK WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> (A) L=642	8-97217-800-0	01	1	0912-1108	●	●
208	08.820 HANDLE; JACK WHEEL BASE 2400MM(24W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A) L=642	8-97217-800-0	01	1	0912-1108			●
208	08.820 HANDLE; JACK WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> (A) L=642	8-98181-477-0	01	1	1109-	●	●
208	08.820 HANDLE; JACK WHEEL BASE 2400MM(24W) EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> (A) L=642	8-98181-477-0	01	1	1109-			●
237	08.821 BAG; TOOL	8-97130-903-0	01	1	0710-0803	●	●
237	08.821 BAG; TOOL	8-97130-903-1	01	1	0804-	●	●	●	●
238	08.820 SUPPORT; TOOL BAG	8-97994-977-0	01	1	0710-	●	●
239	08.820 BAND; TOOL BAG L=100	5-73997-026-1	01	1	0710-0803	●	●
239	08.820 BAND; TOOL BAG L=100	5-73997-026-1	01	1	0804-	●	●	●	●
241	08.820 SCREW; TOOL BAG SUPPORT 16.570 M6X16	0-38050-616-0	01	1	0710-	●	●
302	08.820 NUT; JACK BRKT	8-98021-556-0	01	1	0710-0808	●	●
302	08.820 NUT; JACK BRKT	8-98021-556-0	01	1	0809-	●	●
302	08.820 NUT; JACK BRKT	8-94279-522-0	01	1	0804-			●	●
319	08.821 CLIP; TOOL BAR	8-97853-077-2	02	1	0710-0803	●	●
319	08.821 CLIP; TOOL BAR	8-97853-077-2	02	1	0804-	●	●	●	●

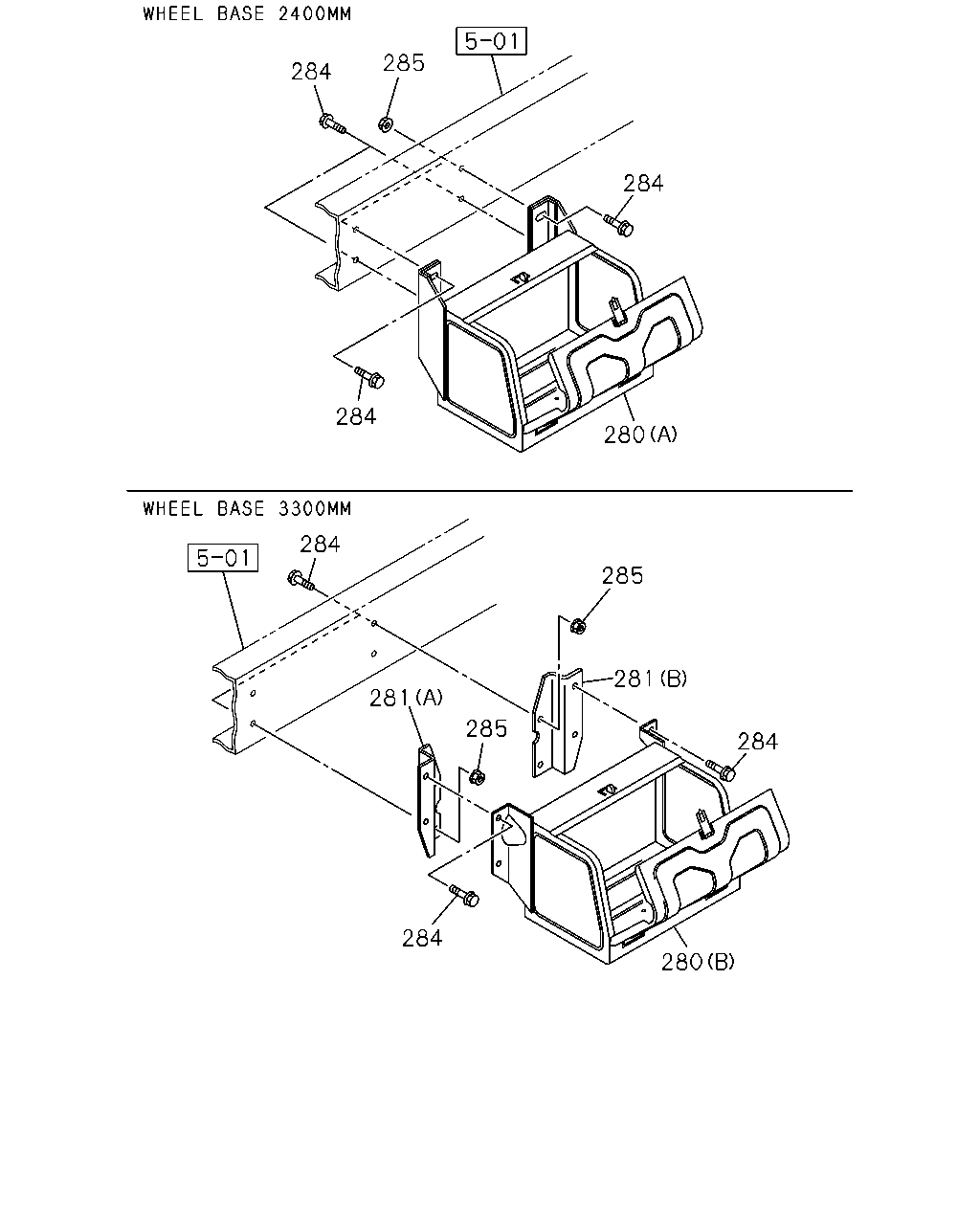

285 284 284 284 280 284 285 281 281 285 284 284 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> (A)	8-97384-079-0	01	1	0710-0710		●
280	08.821 BOX; TOOL WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (A)	8-97384-079-0	01	1	0710-0803		●
280	08.821 BOX; TOOL WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (A)	8-97384-079-0	01	1	0804-	●	●
280	08.821 BOX; TOOL WHEEL BASE 2400MM(24W) TOOL & STORAGE BOX<VK2> (B)	8-98054-885-0	01	1	0710-0803		●
280	08.821 BOX; TOOL WHEEL BASE 2400MM(24W) TOOL & STORAGE BOX<VK2> (B)	8-98054-885-0	01	1	0804-	●	●
281	08.821 BRACKET; TOOL BOX TOOL & STORAGE BOX<VK2> (B)	8-98045-642-1	01	1	0710-0710		●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (B)	8-98045-642-1	01	1	0710-0803		●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (B)	8-98045-642-1	01	1	0804-	●	●
281	08.821 BRACKET; TOOL BOX TOOL & STORAGE BOX<VK2> (A)	8-98046-374-1	01	1	0710-0710		●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (A)	8-98046-374-1	01	1	0710-0803		●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (A)	8-98046-374-1	01	1	0804-0901	●	●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (A)	8-98130-709-0	01	1	0902-	●	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 02.277 M10X35 FLANGE	0-28651-035-0	08	1	0710-0710		●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0710-0803		●
284	08.821 BOLT; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0710-0803		●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0804-	●	●
284	08.821 BOLT; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0804-	●	●
285	08.821 NUT; TOOL BOX TOOL & STORAGE BOX<VK2> 01.062 M8 FLANGE	0-91180-108-0	04	1	0710-0710		●
285	08.821 NUT; TOOL BOX WHEEL BASE 2400MM(24W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-0803		●
285	08.821 NUT; TOOL BOX WHEEL BASE 2400MM(24W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	02	1	0804-	●	●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	04	1	0710-0803		●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	04	1	0804-	●	●

450 450

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	450	16.064 SEAL; HOLE 02.580 (A) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0804-			●	●
	450	16.064 SEAL; HOLE 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0804-			●	●
