8-75 — CONDENSER (#54305) — 32 parça

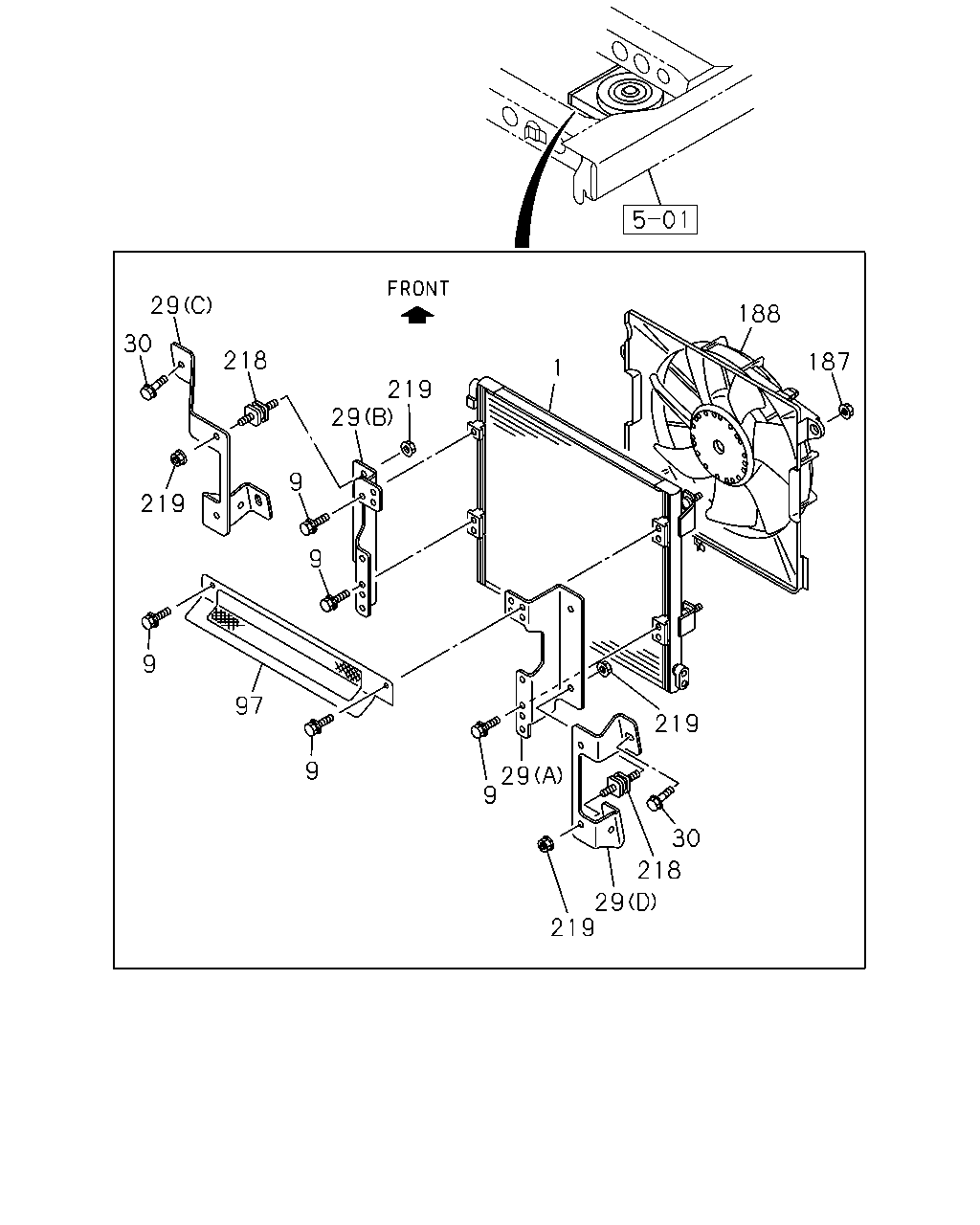

çizim 154928
29 188 30 218 187 1 219 29 9 219 9 9 97 219 9 29 9 30 218 29 219
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 09.190 CONDENSER; A/C
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98041-884-0 01 1 0710-0803 ● ●
1 09.190 CONDENSER; A/C
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 		8-98041-884-0 01 1 0804- ● ● ● ●
9 09.190 BOLT; BRKT
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) M6X14 		1-83539-382-0 08 1 0710-0803 ● ●
9 09.190 BOLT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) M6X14 		1-83539-382-0 08 1 0804- ● ● ● ●
29 09.190 BRACKET; SIDE
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A) 		8-98041-893-0 01 1 0710-0803 ● ●
29 09.190 BRACKET; SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) (A) 		8-98041-893-0 01 1 0804- ● ● ● ●
29 09.190 BRACKET; SIDE
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) 		8-98041-895-0 01 1 0710-0803 ● ●
29 09.190 BRACKET; SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) (B) 		8-98041-895-0 01 1 0804- ● ● ● ●
29 09.190 BRACKET; SIDE
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (C) 		8-98041-896-1 01 1 0710-0803 ● ●
29 09.190 BRACKET; SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) (C) 		8-98041-896-1 01 1 0804- ● ● ● ●
29 09.190 BRACKET; SIDE
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (D) 		8-98041-897-1 01 1 0710-0803 ● ●
29 09.190 BRACKET; SIDE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) (D) 		8-98041-897-1 01 1 0804- ● ● ● ●
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.060 M8X35 FLANGE 		0-28650-835-0 04 1 0710-0803 ● ●
30 09.190 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 01.060 M8X35 FLANGE 		0-28650-835-0 04 1 0804- ● ● ● ●
97 09.190 NET; CONDENSER UNIT
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98041-900-0 01 1 0710-0803 ● ●
97 09.190 NET; CONDENSER UNIT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 		8-98041-900-0 01 1 0804- ● ● ● ●
187 09.190 NUT; SHROUD
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) M6 		1-83539-354-0 04 1 0710-0803 ● ●
187 09.190 NUT; SHROUD
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) M6 		1-83539-354-0 04 1 0804- ● ● ● ●
188 09.215 BLOWER ASM; SHROUD
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98041-889-0 01 1 0710-0803 ● ●
188 09.215 BLOWER ASM; SHROUD
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 		8-98041-889-0 01 1 0804- ● ● ● ●
218 09.215 CUSHION; CONDENSER
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98041-898-0 04 1 0710-0803 ● ●
218 09.215 CUSHION; CONDENSER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 		8-98041-898-0 04 1 0804- ● ● ● ●
219 09.190 NUT; CUSHION
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) M8 		1-83539-319-0 08 1 0710-0803 ● ●
219 09.190 NUT; CUSHION
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) M8 		1-83539-319-0 08 1 0804- ● ● ● ●

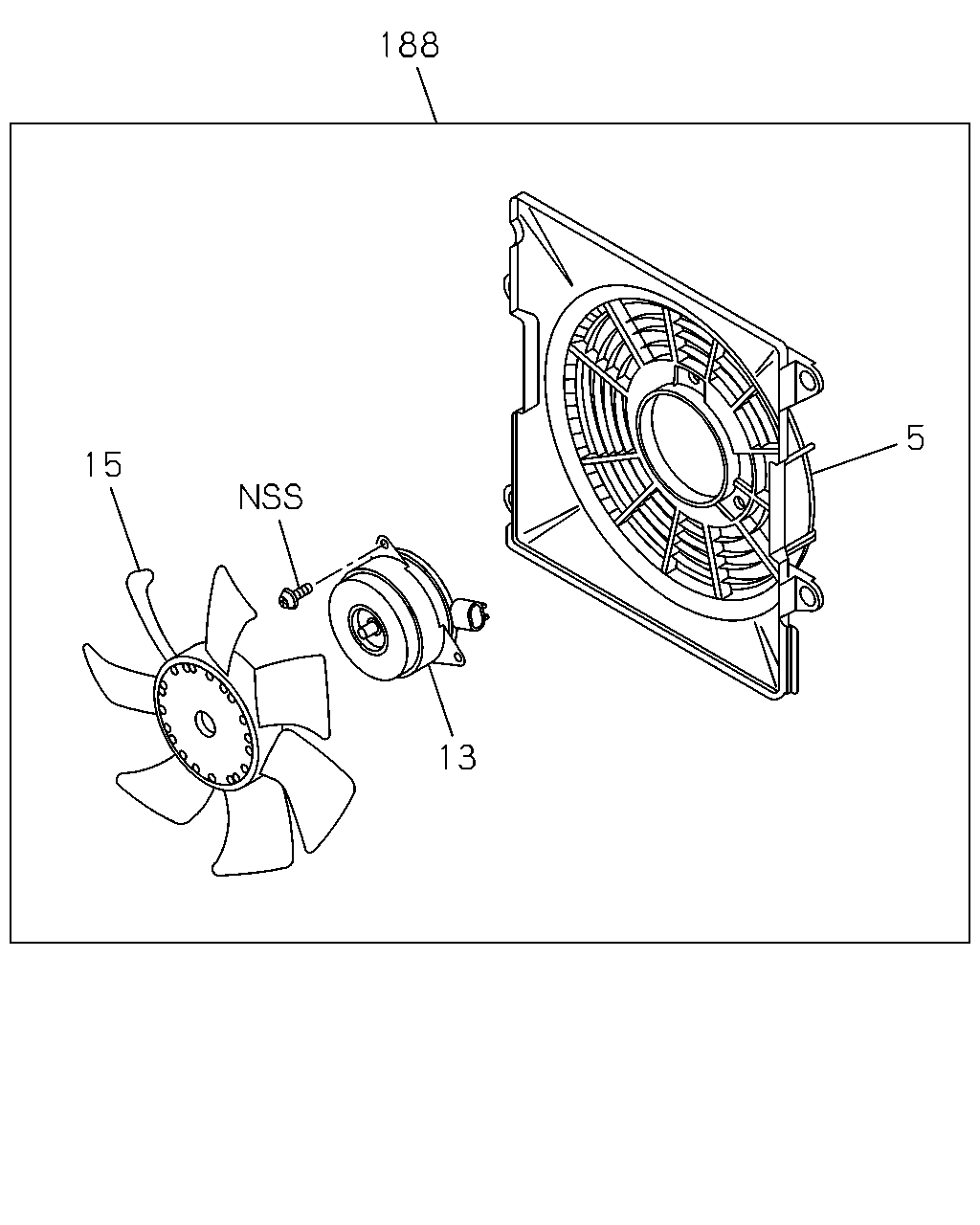

çizim 154982
188 5 15 13
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 09.216 SHROUD; FAN MOTOR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98152-865-0 01 1 0710-0803 ● ●
5 09.216 SHROUD; FAN MOTOR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 		8-98152-865-0 01 1 0804- ● ● ● ●
13 09.215 MOTOR; FAN
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98157-044-0 01 1 0710-0803 ● ●
13 09.215 MOTOR; FAN
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 		8-98157-044-0 01 1 0804- ● ● ● ●
15 09.216 FAN; MOTOR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98152-860-0 01 1 0710-0803 ● ●
15 09.216 FAN; MOTOR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 		8-98152-860-0 01 1 0804- ● ● ● ●
188 09.215 BLOWER ASM; SHROUD
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98041-889-0 01 1 0710-0803 ● ●
188 09.215 BLOWER ASM; SHROUD
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 		8-98041-889-0 01 1 0804- ● ● ● ●
