8-60 — HEATER UNIT; FRONT (#54301) — 522 parça

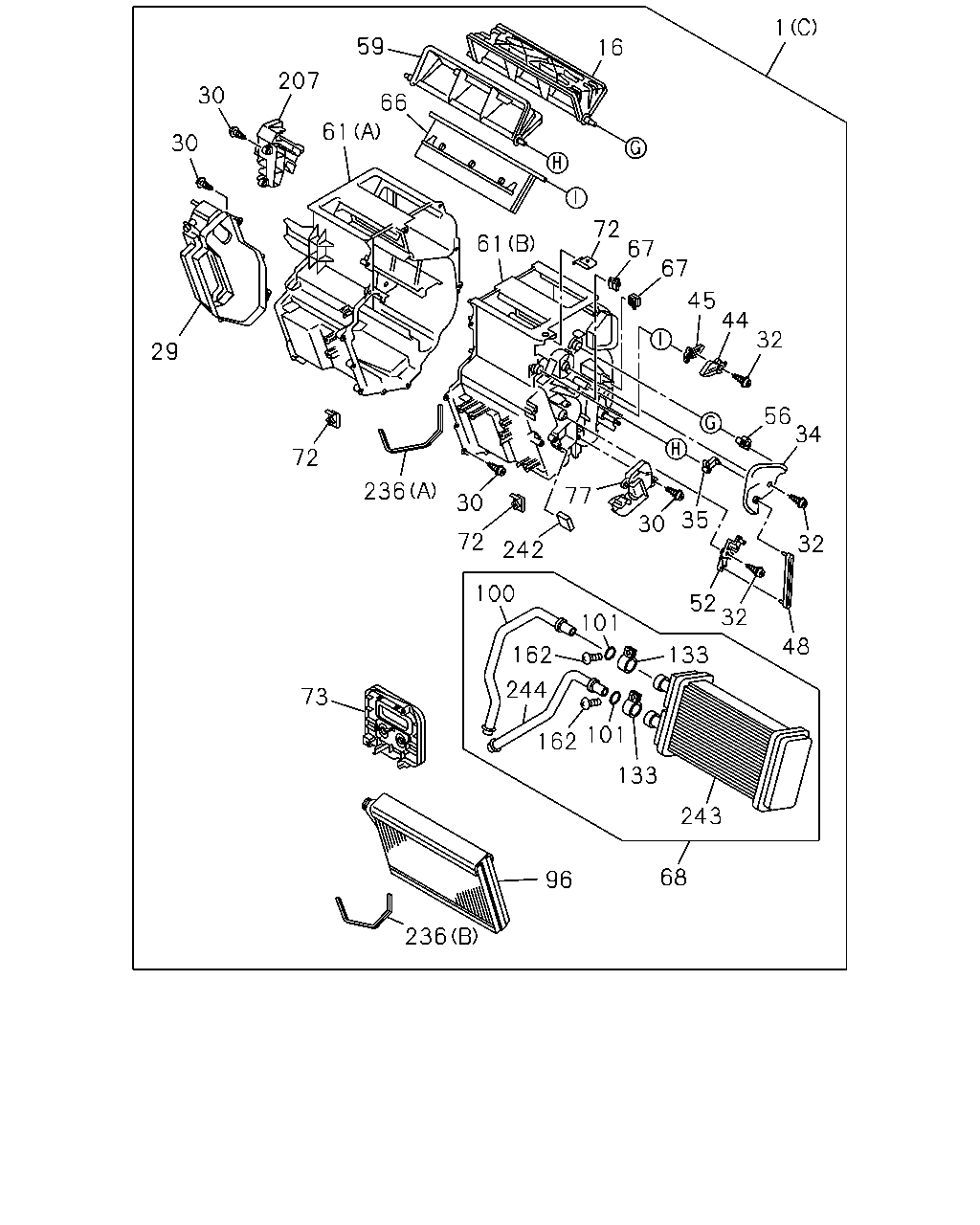

çizim 154929
1 59 16 207 30 66 61 30 72 67 67 61 45 44 32 29 56 34 72 77 236 30 35 30 72 32 242 100 52 32 101 48 162 133 244 73 101 162 133 243 68 96 236
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 08.845 HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98021-973-4 01 1 0710- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 0710-0803 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 0804- ● ● ● ●
1 08.845 HEATER UNIT
COOLER WO/HEATER(C65) (E) 		8-98057-980-2 01 1 0804- ● ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98062-757-1 01 1 0804-1301 ● ● ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98214-400-1 01 1 1302- ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (C) 		8-98062-756-1 01 1 0710-0803 ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (C) 		8-98062-756-1 01 1 0804- ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-387-0 01 1 0710-0803 ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98047-387-0 01 1 0804- ● ● ● ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98231-367-0 01 1 1302- ● ● ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98074-119-0 01 1 0710-0803 ● ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98074-119-0 01 1 0804-1301 ● ● ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ,FULLAUTO AIR CONDITIONER(C68) 		8-98074-119-0 01 1 1302- ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 1302- ● ● ● ●
30 08.845 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M4X16 		8-98047-418-0 31 1 0710-0711 ●
30 08.845 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 08.852 M4X16 TAPPING 		8-97957-708-0 31 1 0712- ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) M4X16 		8-98047-418-0 27 1 0710-0711 ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0712-0803 ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 0804-1301 ● ● ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING 		8-97957-708-0 20 1 1302- ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 0710-0803 ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0804- ● ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0804- ●
32 08.852 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M4X16 		8-98047-416-0 01 1 0710- ●
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 		8-98047-416-0 02 1 0804- ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-98047-416-0 03 1 0710-0803 ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-98047-416-0 03 1 0804- ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-389-0 01 1 0710-0803 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-389-0 01 1 0710-0803 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-389-0 01 1 0804- ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-98047-467-0 01 1 0710- ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-392-0 01 1 0710-0803 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98047-392-0 01 1 0804- ● ● ● ●
44 08.852 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-394-0 01 1 0710-0803 ●
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-394-0 01 1 0710-0803 ●
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-394-0 01 1 0804- ● ● ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-395-0 01 1 0710-0803 ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-395-0 01 1 0710-0803 ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-395-0 01 1 0804- ● ● ● ●
48 09.786 LEVER; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 0710-0803 ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-391-0 01 1 0710-0803 ●
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-391-0 01 1 0804- ● ● ● ●
48 09.786 LEVER; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-98047-468-0 01 1 0710- ●
52 08.852 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-390-0 01 1 0710-0803 ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-390-0 01 1 0710-0803 ●
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-390-0 01 1 0804- ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-393-0 01 1 0710-0803 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98047-393-0 01 1 0804- ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-386-0 01 1 0710-0803 ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98047-386-0 01 1 0804- ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 0710-0803 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98047-375-0 01 1 0710-0803 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98047-375-0 01 1 0804- ● ● ● ●
61 08.854 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-465-0 01 1 0710- ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (A) 		8-98047-376-0 01 1 0710-0803 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (A) 		8-98047-376-0 01 1 0804- ● ● ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) 		8-98077-422-0 01 1 0804- ● ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98077-422-0 01 1 0804- ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D) 		8-98077-423-0 01 1 0804- ● ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98077-423-0 01 1 0804- ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-385-0 01 1 0710-0803 ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-385-0 01 1 0804- ● ● ● ●
67 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 0710-0803 ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-417-0 02 1 0710-0803 ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-417-0 02 1 0804- ● ● ● ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) 		8-98047-417-0 01 1 0804- ● ● ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-417-0 01 1 0804- ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-380-0 01 1 0710-0803 ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-380-0 01 1 0804- ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) M6 		8-98047-428-0 03 1 0710-0803 ● ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) M6 		8-98047-428-0 03 1 0804- ● ● ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98074-118-0 01 1 0710-0803 ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98074-118-0 01 1 0804- ● ● ● ●
73 08.845 PLATE; HTR UNIT
COOLER WO/HEATER(C65) 		8-98077-420-0 01 1 0804- ● ● ●
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98077-419-0 01 1 0804-1301 ● ● ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 0710-0803 ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 0804- ● ● ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-414-0 01 1 0710-0803 ● ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98047-414-0 01 1 0804- ● ● ● ●
96 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 0710-0803 ●
96 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 0804-1301 ● ● ● ●
96 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1302- ● ● ● ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98072-528-0 01 1 0710-0803 ● ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98072-528-0 01 1 0804- ● ● ● ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98072-531-0 02 1 0710-0803 ● ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98072-531-0 02 1 0804- ● ● ● ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98072-530-0 02 1 0710-0803 ● ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98072-530-0 02 1 0804- ● ● ● ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98072-529-0 02 1 0710-0803 ● ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98072-529-0 02 1 0804- ● ● ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-379-0 01 1 0710-0803 ● ●
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98047-379-0 01 1 0804-1301 ● ● ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ,FULLAUTO AIR CONDITIONER(C68) 		8-98047-379-0 01 1 1302- ● ● ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (A) 		8-98047-420-0 01 1 0710-0803 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) (A) 		8-98047-420-0 01 1 0804- ● ● ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (B) 		8-98047-421-0 01 1 0710-0803 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) (B) 		8-98047-421-0 01 1 0804- ● ● ● ●
242 08.855 GASKET; CASE
HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 0710-0803 ●
242 08.855 GASKET; CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 0804-1411 ● ● ● ●
242 08.855 GASKET; CASE
HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 1412- ● ● ● ●
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 01.656 		8-98048-508-0 01 1 0710-0803 ● ●
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 01.656 		8-98048-508-0 01 1 0804- ● ● ● ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98048-510-0 01 1 0710-0803 ● ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98048-510-0 01 1 0804- ● ● ● ●

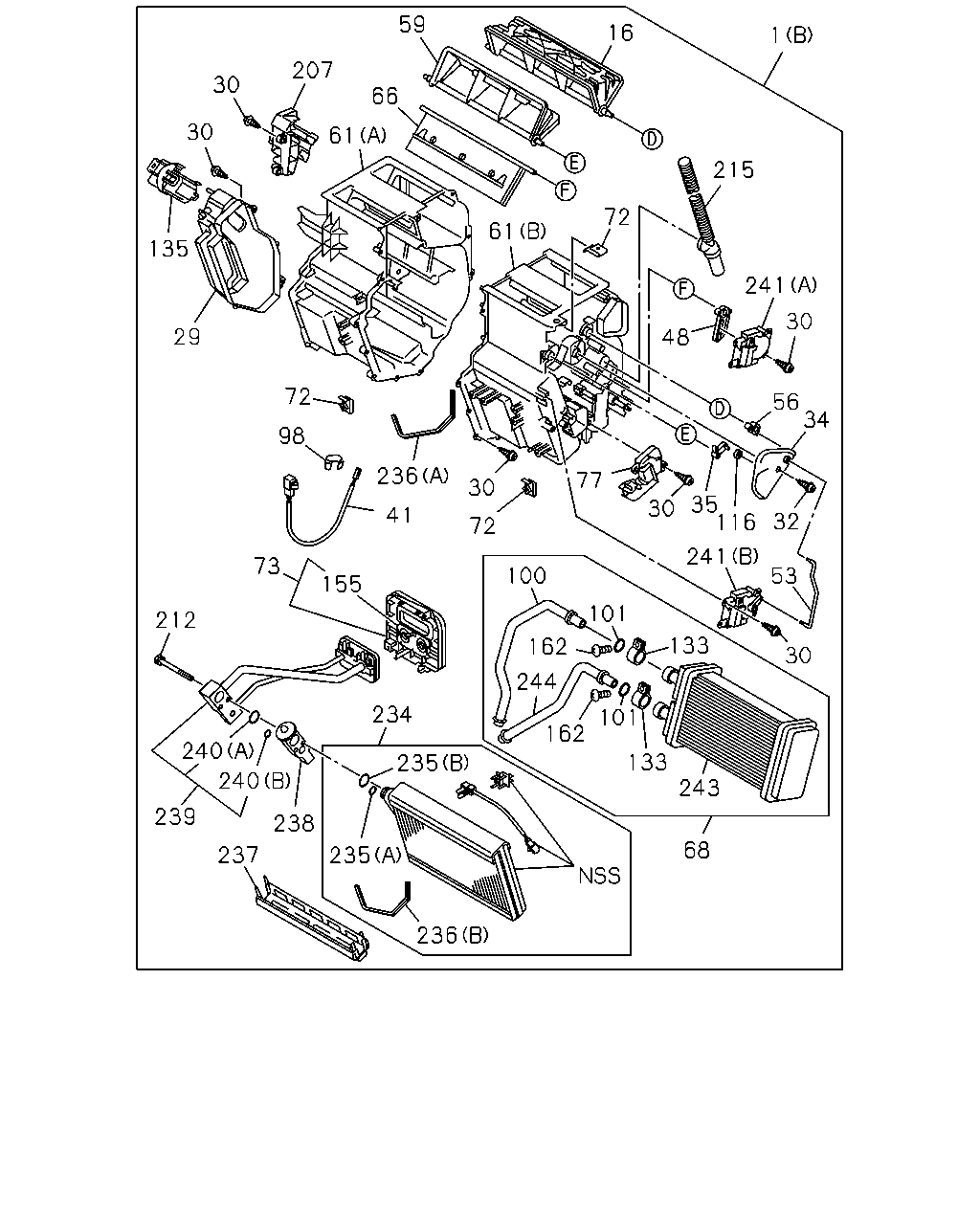

çizim 154936
59 16 1 207 30 66 30 61 215 72 61 135 241 30 29 48 72 56 34 98 236 77 30 35 116 30 41 32 72 241 73 100 53 155 101 212 133 162 30 244 234 101 162 240 133 235 240 243 239 238 68 237 235 236
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 08.845 HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98021-973-4 01 1 0710- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 0710-0803 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 0804- ● ● ● ●
1 08.845 HEATER UNIT
COOLER WO/HEATER(C65) (E) 		8-98057-980-2 01 1 0804- ● ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98062-757-1 01 1 0804-1301 ● ● ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98214-400-1 01 1 1302- ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (C) 		8-98062-756-1 01 1 0710-0803 ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (C) 		8-98062-756-1 01 1 0804- ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-387-0 01 1 0710-0803 ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98047-387-0 01 1 0804- ● ● ● ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98231-367-0 01 1 1302- ● ● ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98074-119-0 01 1 0710-0803 ● ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98074-119-0 01 1 0804-1301 ● ● ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ,FULLAUTO AIR CONDITIONER(C68) 		8-98074-119-0 01 1 1302- ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 1302- ● ● ● ●
30 08.845 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M4X16 		8-98047-418-0 31 1 0710-0711 ●
30 08.845 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 08.852 M4X16 TAPPING 		8-97957-708-0 31 1 0712- ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) M4X16 		8-98047-418-0 27 1 0710-0711 ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0712-0803 ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 0804-1301 ● ● ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING 		8-97957-708-0 20 1 1302- ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 0710-0803 ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0804- ● ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0804- ●
32 08.852 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M4X16 		8-98047-416-0 01 1 0710- ●
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 		8-98047-416-0 02 1 0804- ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-98047-416-0 03 1 0710-0803 ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-98047-416-0 03 1 0804- ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-389-0 01 1 0710-0803 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-389-0 01 1 0710-0803 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-389-0 01 1 0804- ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-98047-467-0 01 1 0710- ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-392-0 01 1 0710-0803 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98047-392-0 01 1 0804- ● ● ● ●
41 08.852 THERMOSTAT; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-98047-475-0 01 1 0710- ●
48 09.786 LEVER; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 0710-0803 ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-391-0 01 1 0710-0803 ●
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-391-0 01 1 0804- ● ● ● ●
48 09.786 LEVER; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-98047-468-0 01 1 0710- ●
53 08.866 ROD; SHUTTER LEVER
FULLAUTO AIR CONDITIONER(C68) 		8-98047-469-0 01 1 0710- ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-393-0 01 1 0710-0803 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98047-393-0 01 1 0804- ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-386-0 01 1 0710-0803 ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98047-386-0 01 1 0804- ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 0710-0803 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98047-375-0 01 1 0710-0803 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98047-375-0 01 1 0804- ● ● ● ●
61 08.854 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-465-0 01 1 0710- ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (A) 		8-98047-376-0 01 1 0710-0803 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (A) 		8-98047-376-0 01 1 0804- ● ● ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) 		8-98077-422-0 01 1 0804- ● ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98077-422-0 01 1 0804- ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D) 		8-98077-423-0 01 1 0804- ● ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98077-423-0 01 1 0804- ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-385-0 01 1 0710-0803 ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-385-0 01 1 0804- ● ● ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-380-0 01 1 0710-0803 ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-380-0 01 1 0804- ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) M6 		8-98047-428-0 03 1 0710-0803 ● ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) M6 		8-98047-428-0 03 1 0804- ● ● ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98074-118-0 01 1 0710-0803 ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98074-118-0 01 1 0804- ● ● ● ●
73 08.845 PLATE; HTR UNIT
COOLER WO/HEATER(C65) 		8-98077-420-0 01 1 0804- ● ● ●
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98077-419-0 01 1 0804-1301 ● ● ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 0710-0803 ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 0804- ● ● ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-414-0 01 1 0710-0803 ● ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98047-414-0 01 1 0804- ● ● ● ●
98 08.854 CLIP; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-98047-477-0 01 1 0710- ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98072-528-0 01 1 0710-0803 ● ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98072-528-0 01 1 0804- ● ● ● ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98072-531-0 02 1 0710-0803 ● ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98072-531-0 02 1 0804- ● ● ● ●
116 08.854 BUSHING; LEVER
FULLAUTO AIR CONDITIONER(C68) 		8-98045-897-0 01 1 0710- ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98072-530-0 02 1 0710-0803 ● ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98072-530-0 02 1 0804- ● ● ● ●
135 08.854 COVER; HTR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98047-384-0 01 1 0710-0803 ● ●
135 08.854 COVER; HTR
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 		8-98047-384-0 01 1 0804- ● ● ● ●
155 09.260 GROMMET; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98047-431-0 01 1 0710-0803 ● ●
155 09.260 GROMMET; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98047-431-0 01 1 0804- ● ● ● ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98072-529-0 02 1 0710-0803 ● ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98072-529-0 02 1 0804- ● ● ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-379-0 01 1 0710-0803 ● ●
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98047-379-0 01 1 0804-1301 ● ● ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ,FULLAUTO AIR CONDITIONER(C68) 		8-98047-379-0 01 1 1302- ● ● ● ●
212 09.262 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) M5X61 		8-98047-415-0 02 1 0710-0803 ● ●
212 09.262 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) M5X61 		8-98047-415-0 02 1 0804- ● ● ● ●
215 08.854 DUCT ASM; SUB
FULLAUTO AIR CONDITIONER(C68) 		8-98047-476-0 01 1 0710- ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98074-116-0 01 1 0710-0803 ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 		8-98074-116-1 01 1 0804- ● ● ● ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.260 (A) ID=11.7 		8-97095-907-0 01 1 0710-0803 ● ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.260 (A) ID=11.7 		8-97095-907-0 01 1 0804- ● ● ● ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (B) ID=14.5 		8-97095-908-0 01 1 0710-0803 ● ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (B) ID=14.5 		8-97095-908-0 01 1 0804- ● ● ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (A) 		8-98047-420-0 01 1 0710-0803 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) (A) 		8-98047-420-0 01 1 0804- ● ● ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (B) 		8-98047-421-0 01 1 0710-0803 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) (B) 		8-98047-421-0 01 1 0804- ● ● ● ●
237 08.855 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98047-382-0 01 1 0710-0803 ● ●
237 08.855 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 		8-98047-382-0 01 1 0804- ● ● ● ●
238 08.845 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98047-383-0 01 1 0710-0803 ● ●
238 08.845 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 		8-98047-383-0 01 1 0804- ● ● ● ●
239 08.846 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98074-115-0 01 1 0710-0803 ● ●
239 08.846 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 		8-98074-115-0 01 1 0804- ● ● ● ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (B) ID=7.4 		8-97095-906-0 01 1 0710-0803 ● ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (B) ID=7.4 		8-97095-906-0 01 1 0804- ● ● ● ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (A) ID=14.5 		8-97095-908-0 01 1 0710-0803 ● ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (A) ID=14.5 		8-97095-908-0 01 1 0804- ● ● ● ●
241 08.855 MOTOR ASM; SERVO
FULLAUTO AIR CONDITIONER(C68) (A) 		8-98047-473-0 01 1 0710- ●
241 08.855 MOTOR ASM; SERVO
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-474-0 01 1 0710- ●
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 01.656 		8-98048-508-0 01 1 0710-0803 ● ●
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 01.656 		8-98048-508-0 01 1 0804- ● ● ● ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98048-510-0 01 1 0710-0803 ● ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98048-510-0 01 1 0804- ● ● ● ●
çizim 154951
1 59 16 207 30 66 61 30 72 67 67 61 135 45 44 2 29 56 34 72 236 77 30 30 35 219 93 72 2 73 155 100 52 30 2 101 212 48 162 133 244 234 101 162 240 133 235 240 243 239 238 235 68 236 237
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 08.845 HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98021-973-4 01 1 0710- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 0710-0803 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 0804- ● ● ● ●
1 08.845 HEATER UNIT
COOLER WO/HEATER(C65) (E) 		8-98057-980-2 01 1 0804- ● ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98062-757-1 01 1 0804-1301 ● ● ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98214-400-1 01 1 1302- ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (C) 		8-98062-756-1 01 1 0710-0803 ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (C) 		8-98062-756-1 01 1 0804- ● ● ● ●
2 08.854 SCREW; LEVER
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-98047-416-0 03 1 0710-0803 ● ●
2 08.854 SCREW; LEVER
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-98047-416-0 03 1 0804- ● ● ● ●
2 08.854 SCREW; LEVER
COOLER WO/HEATER(C65) 08.852 M4X16 		8-98047-416-0 02 1 0804- ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-387-0 01 1 0710-0803 ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98047-387-0 01 1 0804- ● ● ● ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98231-367-0 01 1 1302- ● ● ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98074-119-0 01 1 0710-0803 ● ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98074-119-0 01 1 0804-1301 ● ● ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ,FULLAUTO AIR CONDITIONER(C68) 		8-98074-119-0 01 1 1302- ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 1302- ● ● ● ●
30 08.845 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M4X16 		8-98047-418-0 31 1 0710-0711 ●
30 08.845 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 08.852 M4X16 TAPPING 		8-97957-708-0 31 1 0712- ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) M4X16 		8-98047-418-0 27 1 0710-0711 ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0712-0803 ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 0804-1301 ● ● ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING 		8-97957-708-0 20 1 1302- ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 0710-0803 ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0804- ● ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0804- ●
34 09.786 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-389-0 01 1 0710-0803 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-389-0 01 1 0710-0803 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-389-0 01 1 0804- ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-98047-467-0 01 1 0710- ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-392-0 01 1 0710-0803 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98047-392-0 01 1 0804- ● ● ● ●
44 08.852 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-394-0 01 1 0710-0803 ●
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-394-0 01 1 0710-0803 ●
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-394-0 01 1 0804- ● ● ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-395-0 01 1 0710-0803 ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-395-0 01 1 0710-0803 ●
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-395-0 01 1 0804- ● ● ● ●
48 09.786 LEVER; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 0710-0803 ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-391-0 01 1 0710-0803 ●
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-391-0 01 1 0804- ● ● ● ●
48 09.786 LEVER; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-98047-468-0 01 1 0710- ●
52 08.852 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-390-0 01 1 0710-0803 ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-390-0 01 1 0710-0803 ●
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-390-0 01 1 0804- ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-393-0 01 1 0710-0803 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98047-393-0 01 1 0804- ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-386-0 01 1 0710-0803 ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98047-386-0 01 1 0804- ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 0710-0803 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98047-375-0 01 1 0710-0803 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98047-375-0 01 1 0804- ● ● ● ●
61 08.854 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-465-0 01 1 0710- ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (A) 		8-98047-376-0 01 1 0710-0803 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (A) 		8-98047-376-0 01 1 0804- ● ● ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) 		8-98077-422-0 01 1 0804- ● ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98077-422-0 01 1 0804- ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D) 		8-98077-423-0 01 1 0804- ● ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98077-423-0 01 1 0804- ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-385-0 01 1 0710-0803 ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-385-0 01 1 0804- ● ● ● ●
67 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 0710-0803 ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-417-0 02 1 0710-0803 ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-417-0 02 1 0804- ● ● ● ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) 		8-98047-417-0 01 1 0804- ● ● ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-417-0 01 1 0804- ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-380-0 01 1 0710-0803 ● ●
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-380-0 01 1 0804- ● ● ● ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) M6 		8-98047-428-0 03 1 0710-0803 ● ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) M6 		8-98047-428-0 03 1 0804- ● ● ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98074-118-0 01 1 0710-0803 ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98074-118-0 01 1 0804- ● ● ● ●
73 08.845 PLATE; HTR UNIT
COOLER WO/HEATER(C65) 		8-98077-420-0 01 1 0804- ● ● ●
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98077-419-0 01 1 0804-1301 ● ● ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 0710-0803 ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 0804- ● ● ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-414-0 01 1 0710-0803 ● ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98047-414-0 01 1 0804- ● ● ● ●
93 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-427-0 01 1 0710-0803 ● ●
93 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 		8-98047-427-0 01 1 0804- ● ● ●
93 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-427-0 01 1 0804- ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98072-528-0 01 1 0710-0803 ● ●
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98072-528-0 01 1 0804- ● ● ● ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98072-531-0 02 1 0710-0803 ● ●
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98072-531-0 02 1 0804- ● ● ● ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98072-530-0 02 1 0710-0803 ● ●
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98072-530-0 02 1 0804- ● ● ● ●
135 08.854 COVER; HTR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98047-384-0 01 1 0710-0803 ● ●
135 08.854 COVER; HTR
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 		8-98047-384-0 01 1 0804- ● ● ● ●
155 09.260 GROMMET; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98047-431-0 01 1 0710-0803 ● ●
155 09.260 GROMMET; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98047-431-0 01 1 0804- ● ● ● ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98072-529-0 02 1 0710-0803 ● ●
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98072-529-0 02 1 0804- ● ● ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-379-0 01 1 0710-0803 ● ●
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98047-379-0 01 1 0804-1301 ● ● ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ,FULLAUTO AIR CONDITIONER(C68) 		8-98047-379-0 01 1 1302- ● ● ● ●
212 09.262 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) M5X61 		8-98047-415-0 02 1 0710-0803 ● ●
212 09.262 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) M5X61 		8-98047-415-0 02 1 0804- ● ● ● ●
219 08.854 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-429-0 01 1 0710-0803 ● ●
219 08.854 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-429-0 01 1 0804- ● ● ● ●
219 08.854 AMPLIFIER; HEATER UNIT
COOLER WO/HEATER(C65) 		8-98064-733-0 01 1 0804- ● ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98074-116-0 01 1 0710-0803 ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 		8-98074-116-1 01 1 0804- ● ● ● ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.260 (A) ID=11.7 		8-97095-907-0 01 1 0710-0803 ● ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.260 (A) ID=11.7 		8-97095-907-0 01 1 0804- ● ● ● ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (B) ID=14.5 		8-97095-908-0 01 1 0710-0803 ● ●
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (B) ID=14.5 		8-97095-908-0 01 1 0804- ● ● ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (A) 		8-98047-420-0 01 1 0710-0803 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) (A) 		8-98047-420-0 01 1 0804- ● ● ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (B) 		8-98047-421-0 01 1 0710-0803 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) (B) 		8-98047-421-0 01 1 0804- ● ● ● ●
237 08.855 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98047-382-0 01 1 0710-0803 ● ●
237 08.855 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 		8-98047-382-0 01 1 0804- ● ● ● ●
238 08.845 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98047-383-0 01 1 0710-0803 ● ●
238 08.845 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 		8-98047-383-0 01 1 0804- ● ● ● ●
239 08.846 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98074-115-0 01 1 0710-0803 ● ●
239 08.846 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 		8-98074-115-0 01 1 0804- ● ● ● ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (B) ID=7.4 		8-97095-906-0 01 1 0710-0803 ● ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (B) ID=7.4 		8-97095-906-0 01 1 0804- ● ● ● ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (A) ID=14.5 		8-97095-908-0 01 1 0710-0803 ● ●
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (A) ID=14.5 		8-97095-908-0 01 1 0804- ● ● ● ●
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 01.656 		8-98048-508-0 01 1 0710-0803 ● ●
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 01.656 		8-98048-508-0 01 1 0804- ● ● ● ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98048-510-0 01 1 0710-0803 ● ●
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98048-510-0 01 1 0804- ● ● ● ●

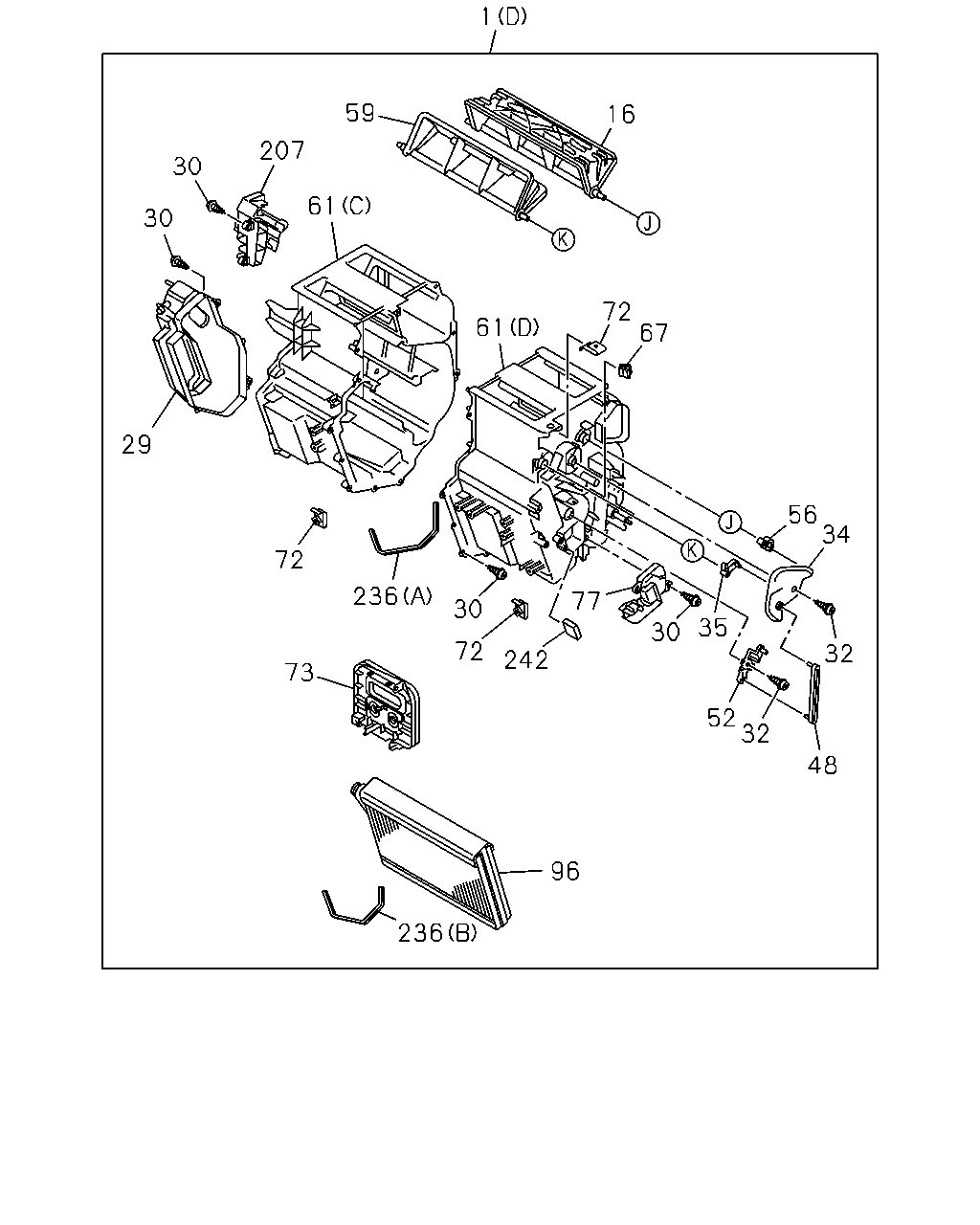

çizim 154983
1 59 16 207 30 61 30 72 67 61 29 56 34 72 77 236 30 35 30 72 32 242 73 52 32 48 96 236
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 08.845 HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98021-973-4 01 1 0710- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 0710-0803 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 0804- ● ● ● ●
1 08.845 HEATER UNIT
COOLER WO/HEATER(C65) (E) 		8-98057-980-2 01 1 0804- ● ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98062-757-1 01 1 0804-1301 ● ● ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98214-400-1 01 1 1302- ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (C) 		8-98062-756-1 01 1 0710-0803 ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (C) 		8-98062-756-1 01 1 0804- ● ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-387-0 01 1 0710-0803 ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98047-387-0 01 1 0804- ● ● ● ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98231-367-0 01 1 1302- ● ● ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98074-119-0 01 1 0710-0803 ● ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98074-119-0 01 1 0804-1301 ● ● ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ,FULLAUTO AIR CONDITIONER(C68) 		8-98074-119-0 01 1 1302- ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 1302- ● ● ● ●
30 08.845 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M4X16 		8-98047-418-0 31 1 0710-0711 ●
30 08.845 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 08.852 M4X16 TAPPING 		8-97957-708-0 31 1 0712- ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) M4X16 		8-98047-418-0 27 1 0710-0711 ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0712-0803 ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 0804-1301 ● ● ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING 		8-97957-708-0 20 1 1302- ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 0710-0803 ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0804- ● ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0804- ●
32 08.852 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M4X16 		8-98047-416-0 01 1 0710- ●
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 		8-98047-416-0 02 1 0804- ● ● ● ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-98047-416-0 03 1 0710-0803 ●
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-98047-416-0 03 1 0804- ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-389-0 01 1 0710-0803 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-389-0 01 1 0710-0803 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-389-0 01 1 0804- ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-98047-467-0 01 1 0710- ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-392-0 01 1 0710-0803 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98047-392-0 01 1 0804- ● ● ● ●
48 09.786 LEVER; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 0710-0803 ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-391-0 01 1 0710-0803 ●
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-391-0 01 1 0804- ● ● ● ●
48 09.786 LEVER; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-98047-468-0 01 1 0710- ●
52 08.852 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-390-0 01 1 0710-0803 ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-390-0 01 1 0710-0803 ●
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-390-0 01 1 0804- ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-393-0 01 1 0710-0803 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98047-393-0 01 1 0804- ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-386-0 01 1 0710-0803 ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98047-386-0 01 1 0804- ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 0710-0803 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98047-375-0 01 1 0710-0803 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98047-375-0 01 1 0804- ● ● ● ●
61 08.854 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-465-0 01 1 0710- ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (A) 		8-98047-376-0 01 1 0710-0803 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (A) 		8-98047-376-0 01 1 0804- ● ● ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) 		8-98077-422-0 01 1 0804- ● ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98077-422-0 01 1 0804- ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D) 		8-98077-423-0 01 1 0804- ● ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98077-423-0 01 1 0804- ●
67 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 0710-0803 ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-417-0 02 1 0710-0803 ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-417-0 02 1 0804- ● ● ● ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) 		8-98047-417-0 01 1 0804- ● ● ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-417-0 01 1 0804- ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) M6 		8-98047-428-0 03 1 0710-0803 ● ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) M6 		8-98047-428-0 03 1 0804- ● ● ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98074-118-0 01 1 0710-0803 ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98074-118-0 01 1 0804- ● ● ● ●
73 08.845 PLATE; HTR UNIT
COOLER WO/HEATER(C65) 		8-98077-420-0 01 1 0804- ● ● ●
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98077-419-0 01 1 0804-1301 ● ● ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 0710-0803 ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 0804- ● ● ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-414-0 01 1 0710-0803 ● ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98047-414-0 01 1 0804- ● ● ● ●
96 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 0710-0803 ●
96 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 0804-1301 ● ● ● ●
96 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1302- ● ● ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-379-0 01 1 0710-0803 ● ●
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98047-379-0 01 1 0804-1301 ● ● ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ,FULLAUTO AIR CONDITIONER(C68) 		8-98047-379-0 01 1 1302- ● ● ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (A) 		8-98047-420-0 01 1 0710-0803 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) (A) 		8-98047-420-0 01 1 0804- ● ● ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (B) 		8-98047-421-0 01 1 0710-0803 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) (B) 		8-98047-421-0 01 1 0804- ● ● ● ●
242 08.855 GASKET; CASE
HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 0710-0803 ●
242 08.855 GASKET; CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 0804-1411 ● ● ● ●
242 08.855 GASKET; CASE
HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 1412- ● ● ● ●

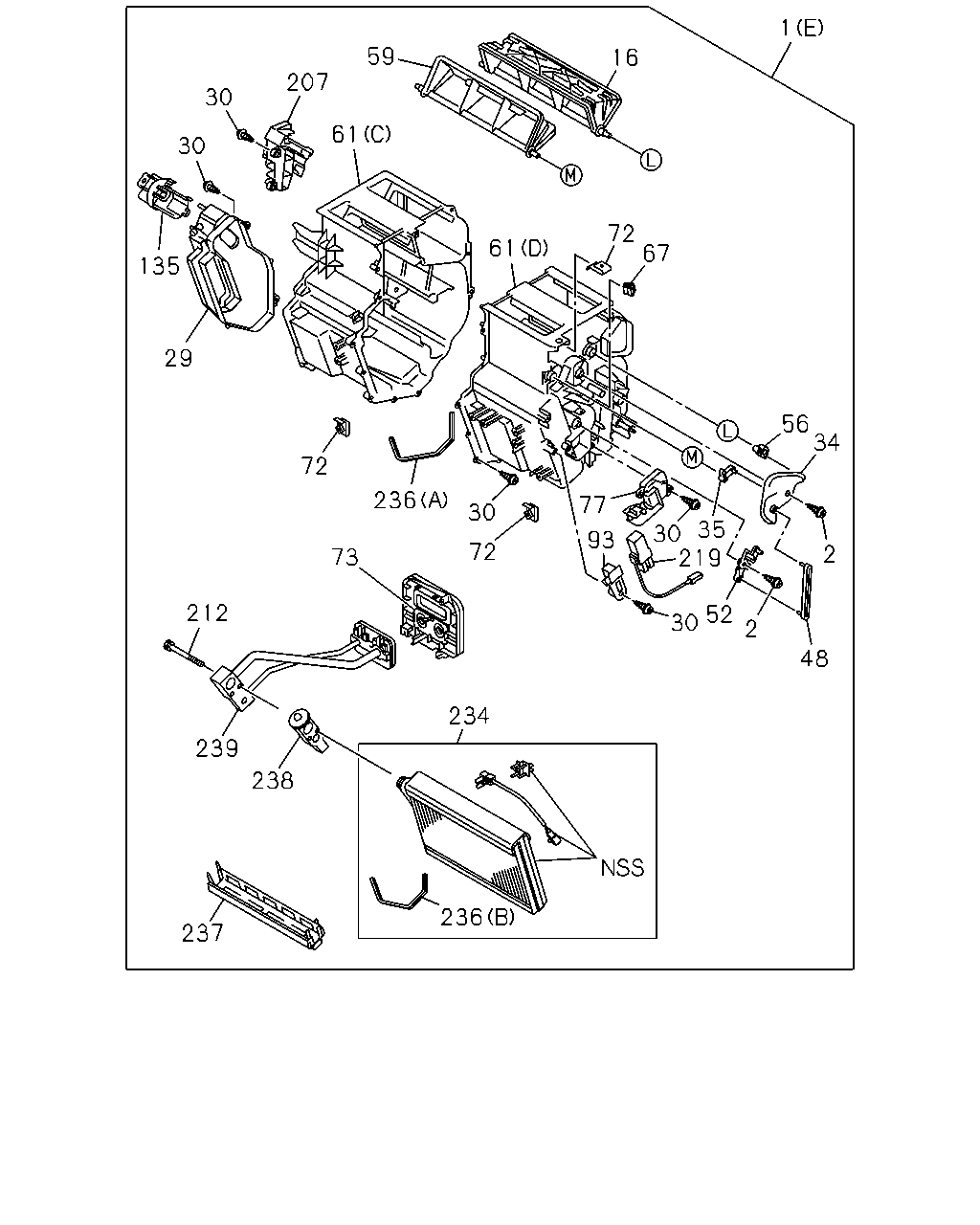

çizim 155061
1 59 16 207 30 61 30 72 67 61 135 29 56 34 72 236 77 30 30 35 219 93 72 2 73 212 52 30 2 48 234 239 238 236 237
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 08.845 HEATER UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98021-973-4 01 1 0710- ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 0710-0803 ● ●
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 0804- ● ● ● ●
1 08.845 HEATER UNIT
COOLER WO/HEATER(C65) (E) 		8-98057-980-2 01 1 0804- ● ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98062-757-1 01 1 0804-1301 ● ● ● ●
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98214-400-1 01 1 1302- ● ● ● ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (C) 		8-98062-756-1 01 1 0710-0803 ●
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (C) 		8-98062-756-1 01 1 0804- ● ● ● ●
2 08.854 SCREW; LEVER
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-98047-416-0 03 1 0710-0803 ● ●
2 08.854 SCREW; LEVER
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-98047-416-0 03 1 0804- ● ● ● ●
2 08.854 SCREW; LEVER
COOLER WO/HEATER(C65) 08.852 M4X16 		8-98047-416-0 02 1 0804- ● ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-387-0 01 1 0710-0803 ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98047-387-0 01 1 0804- ● ● ● ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98231-367-0 01 1 1302- ● ● ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98074-119-0 01 1 0710-0803 ● ●
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98074-119-0 01 1 0804-1301 ● ● ● ●
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ,FULLAUTO AIR CONDITIONER(C68) 		8-98074-119-0 01 1 1302- ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 1302- ● ● ● ●
30 08.845 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) M4X16 		8-98047-418-0 31 1 0710-0711 ●
30 08.845 SCREW; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 08.852 M4X16 TAPPING 		8-97957-708-0 31 1 0712- ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) M4X16 		8-98047-418-0 27 1 0710-0711 ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0712-0803 ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 0804-1301 ● ● ● ●
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING 		8-97957-708-0 20 1 1302- ● ● ● ●
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING 		8-97957-708-0 25 1 0710-0803 ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0804- ● ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING 		8-97957-708-0 27 1 0804- ●
34 09.786 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-389-0 01 1 0710-0803 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-389-0 01 1 0710-0803 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-389-0 01 1 0804- ● ● ● ●
34 09.786 LEVER; SHUTTER,HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-98047-467-0 01 1 0710- ●
35 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-392-0 01 1 0710-0803 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98047-392-0 01 1 0804- ● ● ● ●
48 09.786 LEVER; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 0710-0803 ●
48 09.786 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-391-0 01 1 0710-0803 ●
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-391-0 01 1 0804- ● ● ● ●
48 09.786 LEVER; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) 		8-98047-468-0 01 1 0710- ●
52 08.852 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-390-0 01 1 0710-0803 ●
52 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-390-0 01 1 0710-0803 ●
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-390-0 01 1 0804- ● ● ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-393-0 01 1 0710-0803 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98047-393-0 01 1 0804- ● ● ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-386-0 01 1 0710-0803 ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98047-386-0 01 1 0804- ● ● ● ●
61 08.854 CASE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 0710-0803 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98047-375-0 01 1 0710-0803 ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-98047-375-0 01 1 0804- ● ● ● ●
61 08.854 CASE; HTR UNIT
FULLAUTO AIR CONDITIONER(C68) (B) 		8-98047-465-0 01 1 0710- ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (A) 		8-98047-376-0 01 1 0710-0803 ● ●
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (A) 		8-98047-376-0 01 1 0804- ● ● ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) 		8-98077-422-0 01 1 0804- ● ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (C) 		8-98077-422-0 01 1 0804- ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D) 		8-98077-423-0 01 1 0804- ● ● ●
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98077-423-0 01 1 0804- ●
67 08.854 CLIP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 0710-0803 ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-417-0 02 1 0710-0803 ●
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 		8-98047-417-0 02 1 0804- ● ● ● ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) 		8-98047-417-0 01 1 0804- ● ● ●
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98047-417-0 01 1 0804- ●
72 08.845 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) M6 		8-98047-428-0 03 1 0710-0803 ● ●
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) M6 		8-98047-428-0 03 1 0804- ● ● ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98074-118-0 01 1 0710-0803 ● ●
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98074-118-0 01 1 0804- ● ● ● ●
73 08.845 PLATE; HTR UNIT
COOLER WO/HEATER(C65) 		8-98077-420-0 01 1 0804- ● ● ●
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98077-419-0 01 1 0804-1301 ● ● ● ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 0710-0803 ●
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 0804- ● ● ● ●
77 08.857 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-414-0 01 1 0710-0803 ● ●
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98047-414-0 01 1 0804- ● ● ● ●
93 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-427-0 01 1 0710-0803 ● ●
93 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 		8-98047-427-0 01 1 0804- ● ● ●
93 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-427-0 01 1 0804- ●
135 08.854 COVER; HTR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98047-384-0 01 1 0710-0803 ● ●
135 08.854 COVER; HTR
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 		8-98047-384-0 01 1 0804- ● ● ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98047-379-0 01 1 0710-0803 ● ●
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98047-379-0 01 1 0804-1301 ● ● ● ●
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ,FULLAUTO AIR CONDITIONER(C68) 		8-98047-379-0 01 1 1302- ● ● ● ●
212 09.262 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) M5X61 		8-98047-415-0 02 1 0710-0803 ● ●
212 09.262 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) M5X61 		8-98047-415-0 02 1 0804- ● ● ● ●
219 08.854 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-429-0 01 1 0710-0803 ● ●
219 08.854 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-429-0 01 1 0804- ● ● ● ●
219 08.854 AMPLIFIER; HEATER UNIT
COOLER WO/HEATER(C65) 		8-98064-733-0 01 1 0804- ● ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98074-116-0 01 1 0710-0803 ● ●
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 		8-98074-116-1 01 1 0804- ● ● ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (A) 		8-98047-420-0 01 1 0710-0803 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) (A) 		8-98047-420-0 01 1 0804- ● ● ● ●
236 08.855 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (B) 		8-98047-421-0 01 1 0710-0803 ● ●
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) (B) 		8-98047-421-0 01 1 0804- ● ● ● ●
237 08.855 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98047-382-0 01 1 0710-0803 ● ●
237 08.855 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 		8-98047-382-0 01 1 0804- ● ● ● ●
238 08.845 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98047-383-0 01 1 0710-0803 ● ●
238 08.845 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 		8-98047-383-0 01 1 0804- ● ● ● ●
239 08.846 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98074-115-0 01 1 0710-0803 ● ●
239 08.846 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 		8-98074-115-0 01 1 0804- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
