8-52 — PIPING; AIR CONDITIONING (#54300) — 84 parça

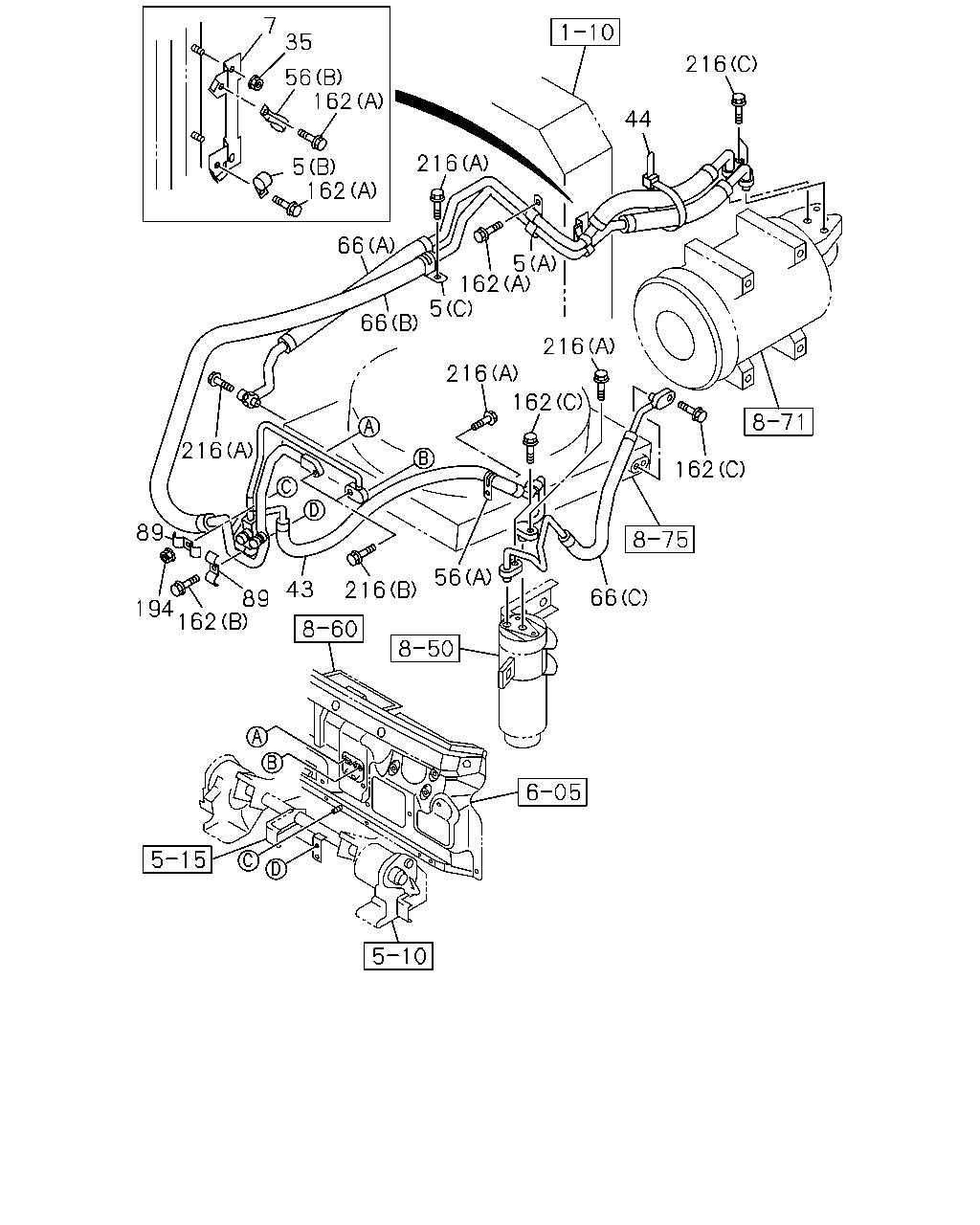

çizim 154930
7 35 216 56 162 44 216 5 162 66 5 162 5 66 216 216 162 216 162 89 56 43 216 66 194 162 89
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 09.242 CLIP; FLEX HOSE,A/C
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 04.686 (B) ID=16 L=20 		0-95235-532-0 01 1 0710-0803 ● ●
5 09.242 CLIP; FLEX HOSE,A/C
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 04.686 (B) ID=16 L=20 		0-95235-532-0 01 1 0804- ● ● ● ●
5 09.242 CLIP; FLEX HOSE,A/C
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (C) 		8-98038-798-0 01 1 0710-0803 ● ●
5 09.242 CLIP; FLEX HOSE,A/C
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) (C) 		8-98038-798-0 01 1 0804- ● ● ● ●
5 09.242 CLIP; FLEX HOSE,A/C
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A) 		8-98052-857-0 01 1 0710-0803 ● ●
5 09.242 CLIP; FLEX HOSE,A/C
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) (A) 		8-98052-857-0 01 1 0804- ● ● ● ●
7 09.242 BRACKET; FLEX HOSE,A/C
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-97388-130-1 01 1 0710-0803 ● ●
7 09.242 BRACKET; FLEX HOSE,A/C
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 		8-97388-130-1 01 1 0804- ● ● ● ●
35 09.242 NUT; FLEX HOSE,A/C
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0710-0803 ● ●
35 09.242 NUT; FLEX HOSE,A/C
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0804- ● ● ● ●
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) HIGH PRESSURE 		8-98088-340-0 01 1 0710-0803 ● ●
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) HIGH PRESSURE 		8-98088-340-0 01 1 0804- ● ● ● ●
44 09.242 CLIP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 02.559 L=250 		5-09707-030-1 01 1 0710-0803 ● ●
44 09.242 CLIP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 02.559 L=250 		5-09707-030-1 01 1 0804- ● ● ● ●
44 09.242 CLIP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 03.162 L=140 		5-09707-031-1 01 1 0710-0803 ● ●
44 09.242 CLIP; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 03.162 L=140 		5-09707-031-1 01 1 0804- ● ● ● ●
56 09.242 CLIP; PIPE,A/C
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A) 		8-98032-641-0 01 1 0710-0803 ● ●
56 09.242 CLIP; PIPE,A/C
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) (A) 		8-98032-641-0 01 1 0804- ● ● ● ●
56 09.242 CLIP; PIPE,A/C
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) ID=13 H=12 L=20 		8-98038-485-0 01 1 0710-0803 ● ●
56 09.242 CLIP; PIPE,A/C
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) (B) ID=13 H=12 L=20 		8-98038-485-0 01 1 0804- ● ● ● ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (C) HIGH PRESSURE 		8-98001-204-1 01 1 0710-0803 ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) FRT INDEPENDENT SUSPENSION(FF0) (C) HIGH PRESSURE 		8-98001-204-1 01 1 0804- ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A) HIGH PRESSURE 		8-98001-205-2 01 1 0710-0803 ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) (A) HIGH PRESSURE 		8-98001-205-2 01 1 0804- ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) LOW PRESSURE 		8-98001-207-1 01 1 0710-0803 ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) (B) LOW PRESSURE 		8-98001-207-1 01 1 0804-1009 ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) (B) LOW PRESSURE 		8-98159-611-1 01 1 1010- ● ● ● ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE 		8-98038-579-3 01 1 0710-0803 ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) HIGH PRESSURE 		8-98038-579-3 01 1 0804- ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (C) HIGH PRESSURE 		8-98038-579-3 01 1 0804- ● ● ●
89 09.242 BRACKET; A/C PIPE
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98029-613-0 02 1 0710-0803 ● ●
89 09.242 BRACKET; A/C PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 		8-98029-613-0 02 1 0804-1009 ● ● ● ●
89 09.242 BRACKET; A/C PIPE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 		8-98151-264-0 02 1 1010- ● ● ● ●
162 09.173 BOLT; FLEX HOSE
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 03.162 (A) M6X12 FLANGE 		0-28050-612-0 03 1 0710-0803 ● ●
162 09.173 BOLT; FLEX HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 03.162 (A) M6X12 FLANGE 		0-28050-612-0 03 1 0804- ● ● ● ●
162 09.173 BOLT; FLEX HOSE
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 03.162 (B) M6X20 FLANGE 		0-28650-620-0 01 1 0710-0803 ● ●
162 09.173 BOLT; FLEX HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 03.162 (B) M6X20 FLANGE 		0-28650-620-0 01 1 0804- ● ● ● ●
162 09.173 BOLT; FLEX HOSE
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 02 1 0710-0803 ● ●
162 09.173 BOLT; FLEX HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 02 1 0804- ● ● ● ●
194 09.242 NUT; HOSE
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0710-0803 ● ●
194 09.242 NUT; HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 01.062 M6 FLANGE 		0-91180-106-0 02 1 0804- ● ● ● ●
216 09.173 BOLT; HOSE FIX
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 03.680 (B) M6X30 FLANGE 		0-28650-630-0 02 1 0710-0803 ● ●
216 09.173 BOLT; HOSE FIX
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 03.680 (B) M6X30 FLANGE 		0-28650-630-0 02 1 0804- ● ● ● ●
216 09.173 BOLT; HOSE FIX
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 02 1 0710-0803 ● ●
216 09.173 BOLT; HOSE FIX
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 02 1 0710-0803 ● ●
216 09.173 BOLT; HOSE FIX
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 02 1 0804- ● ● ● ●
216 09.173 BOLT; HOSE FIX
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 00.685 (A) M6X25 FLANGE 		0-28650-625-0 02 1 0804- ● ● ● ●
216 09.173 BOLT; HOSE FIX
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0803 ● ●
216 09.173 BOLT; HOSE FIX
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ● ● ●
çizim 154953
202 50 43 148 147 50 66 67 67 67 66 67 147 148 67 66 67
BalonParca AdiParca NoAdetTipApplied Date A B C D
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) HIGH PRESSURE 		8-98088-340-0 01 1 0710-0803 ● ●
43 09.225 HOSE; FLEX,A/C,EVAP TO CMPR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) HIGH PRESSURE 		8-98088-340-0 01 1 0804- ● ● ● ●
50 09.222 GASKET; FLEX HOSE,A/C
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) ID=7.5 		1-83539-316-0 02 1 0710-0803 ● ●
50 09.222 GASKET; FLEX HOSE,A/C
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) ID=7.5 		1-83539-316-0 02 1 0804- ● ● ● ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (C) HIGH PRESSURE 		8-98001-204-1 01 1 0710-0803 ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) FRT INDEPENDENT SUSPENSION(FF0) (C) HIGH PRESSURE 		8-98001-204-1 01 1 0804- ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A) HIGH PRESSURE 		8-98001-205-2 01 1 0710-0803 ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) (A) HIGH PRESSURE 		8-98001-205-2 01 1 0804- ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) LOW PRESSURE 		8-98001-207-1 01 1 0710-0803 ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) (B) LOW PRESSURE 		8-98001-207-1 01 1 0804-1009 ● ● ● ●
66 09.225 HOSE; FLEX,A/C
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) (B) LOW PRESSURE 		8-98159-611-1 01 1 1010- ● ● ● ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE 		8-98038-579-3 01 1 0710-0803 ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) HIGH PRESSURE 		8-98038-579-3 01 1 0804- ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) (C) HIGH PRESSURE 		8-98038-579-3 01 1 0804- ● ● ●
67 09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (D) ID=7.4 		8-97095-906-0 02 1 0710-0803 ●
67 09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) FRT INDEPENDENT SUSPENSION(FF0) 09.225 (D) ID=7.4 		8-97095-906-0 02 1 0804- ●
67 09.260 GASKET; FLEX HOSE
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A) ID=11.7 		8-97095-907-0 02 1 0710-0803 ● ●
67 09.260 GASKET; FLEX HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) (A) ID=11.7 		8-97095-907-0 02 1 0804- ● ● ● ●
67 09.260 GASKET; FLEX HOSE
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (B) ID=14.5 		8-97095-908-0 01 1 0710-0803 ● ●
67 09.260 GASKET; FLEX HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 09.225 (B) ID=14.5 		8-97095-908-0 01 1 0804- ● ● ● ●
67 09.260 GASKET; FLEX HOSE
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (C) ID=17.6 		8-98036-895-0 01 1 0710-0803 ● ●
67 09.260 GASKET; FLEX HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) (C) ID=17.6 		8-98036-895-0 01 1 0804- ● ● ● ●
67 09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60) 09.222 (D) ID=7.5 		1-83539-316-0 02 1 0710-0803 ●
67 09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) EXC. FRT INDEPENDENT SUSPENSION(FF0) 09.222 (D) ID=7.5 		1-83539-316-0 02 1 0804- ●
67 09.260 GASKET; FLEX HOSE
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 09.222 (D) ID=7.5 		1-83539-316-0 02 1 0804- ● ● ●
147 09.242 CAP; FLEX HOSE
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A) CAP MARK L 		1-83539-331-0 01 1 0710-0803 ● ●
147 09.242 CAP; FLEX HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) (A) CAP MARK L 		1-83539-331-0 01 1 0804- ● ● ● ●
147 09.242 CAP; FLEX HOSE
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) CAP MARK H 		8-97095-911-0 01 1 0710-0803 ● ●
147 09.242 CAP; FLEX HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) (B) CAP MARK H 		8-97095-911-0 01 1 0804- ● ● ● ●
148 09.262 VALVE; FLEX HOSE
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A) 		8-97095-909-0 01 1 0710-0803 ● ●
148 09.262 VALVE; FLEX HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) (A) 		8-97095-909-0 01 1 0804- ● ● ● ●
148 09.262 VALVE; FLEX HOSE
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) 		8-98031-629-0 01 1 0710-0803 ● ●
148 09.262 VALVE; FLEX HOSE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) (B) 		8-98031-629-0 01 1 0804- ● ● ● ●
202 09.275 SWITCH; PRESSURE
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		1-83564-392-1 01 1 0710-0803 ● ●
202 09.275 SWITCH; PRESSURE
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 		1-83564-392-1 01 1 0804- ● ● ● ●
