5-01 — FRAME AND OTHER PARTS (#543) — 144 parça

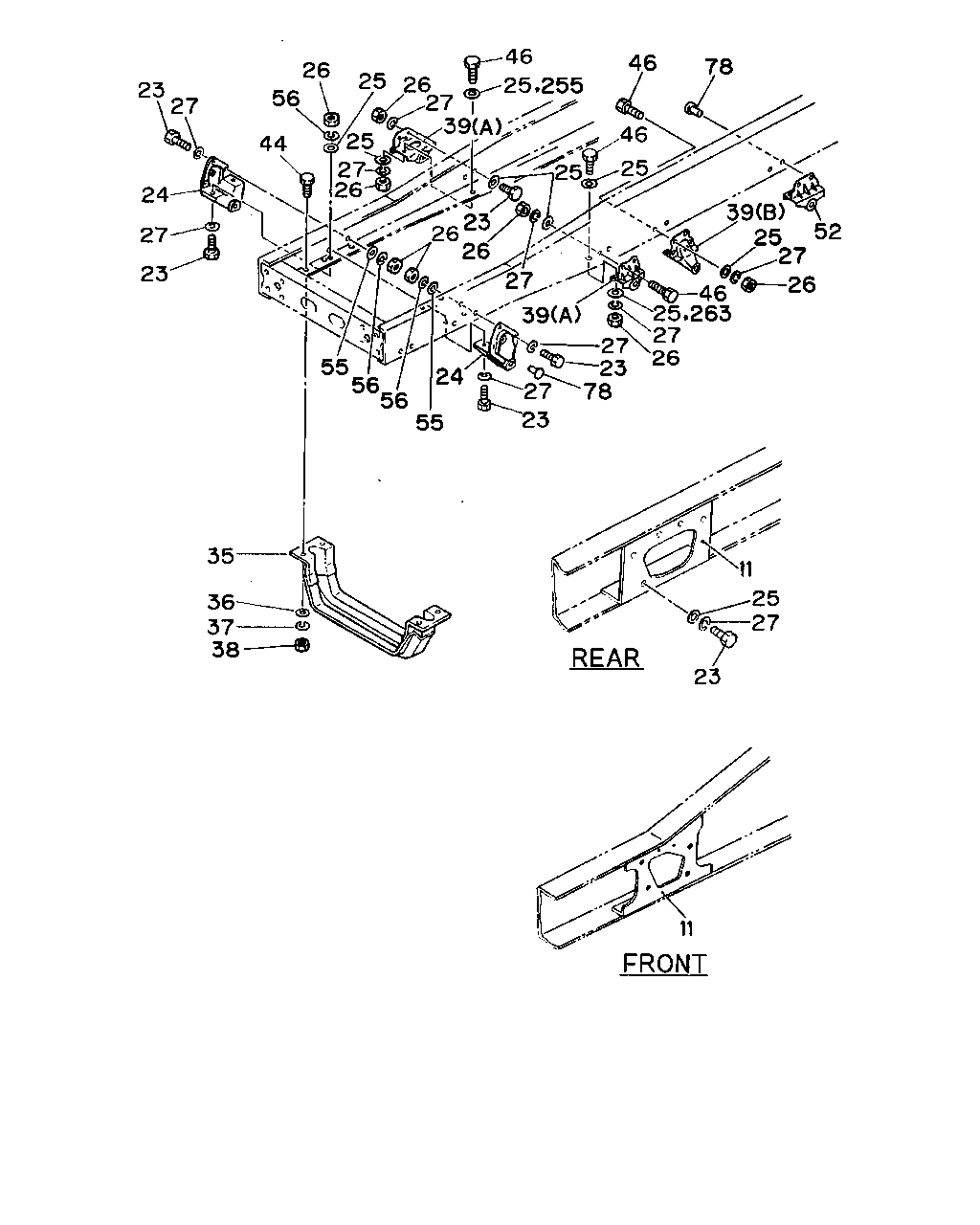

78 46 46 255 25 39 27 26 25 26 56 44 27 23 24 27 23 26 27 25 26 26 23 25 25 46 39 25 27 52 263 25 26 27 39 27 27 26 23 78 27 23 24 55 56 56 55 35 36 37 38 11 25 27 23 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BRACKET; ENG MTG REAR	1-53219-308-0	01	1	8712-9001	●
11	BRACKET; ENG MTG FRONT	1-53219-313-0	01	1	8712-9404	●
11	BRACKET; ENG MTG FRONT	1-53219-431-0	01	1	9405-	●
11	BRACKET; ENG MTG REAR	1-53219-307-1	01	1	8712-9001	●
11	BRACKET; ENG MTG FRONT	1-53219-312-0	01	1	8712-9404	●
11	BRACKET; ENG MTG FRONT	1-53219-430-0	01	1	9405-	●
11	BRACKET; ENG MTG REAR	1-53219-494-1	01	1	9002-	●
11	BRACKET; ENG MTG REAR	1-53219-493-2	01	1	9002-	●
11	BRACKET; ENG MTG FRONT	1-53219-141-2	01	1	8712-		●
11	BRACKET; ENG MTG REAR	1-53219-154-2	01	1	8712-		●
11	BRACKET; ENG MTG FRONT	1-53219-142-2	01	1	8712-9306		●
11	BRACKET; ENG MTG REAR	1-53219-155-3	01	1	8712-		●
11	BRACKET; ENG MTG FRONT	1-53219-622-0	01	1	9307-		●
23	BOLT; BRKT,SPR M16X55	9-91066-655-0	04	1	8712-	●
23	BOLT; BRKT,SPR M14X50	9-92061-450-0	08	1	9307-	●
23	BOLT; BRKT,SPR M14X55	9-91066-455-0	04	1	8712-9306	●	●
23	BOLT; BRKT,SPR M14X55	9-91066-455-0	04	1	9307-		●
23	BOLT; BRKT,SPR M14X45	9-91066-445-0	04	1	8712-9001		●
23	BOLT; BRKT,SPR M14X45	9-92061-445-0	04	1	9002-9306	●	●
23	BOLT; BRKT,SPR M14X45	9-92061-445-0	04	1	9307-		●
23	BOLT; BRKT,SPR M16X50	9-92061-650-0	04	1	9002-		●
24	BRACKET; FRT SPR,FRT	1-53351-115-5	02	1	8712-	●	●
25	WASHER; PL,BRKT T=3.1 ID=16.2	1-09503-223-0	24	1	9307-	●
25	WASHER; PL,BRKT ID=15	9-09651-069-0	40	1	9307-	●
25	WASHER; PL,BRKT T=3.1 ID=16.2	1-09503-223-0	20	1	9002-9306	●	●
25	WASHER; PL,BRKT ID=15	9-09651-069-0	32	1	9002-9306	●	●
25	WASHER; PL,BRKT FRONT AXLE F063<FS7> T=2.7 ID=16.2	9-09851-672-2	04	1	8712-9001	●	●
25	WASHER; PL,BRKT FRONT AXLE F063<FS7> ID=14	9-09857-023-0	08	1	8712-9001	●	●
25	WASHER; PL,BRKT EXC. FRONT AXLE F063<FS7> T=3.1 ID=16.2	1-09503-223-0	08	1	8712-9001	●	●
25	WASHER; PL,BRKT EXC. FRONT AXLE F063<FS7> ID=15	9-09651-069-0	32	1	8712-9001	●	●
25	WASHER; PL,BRKT T=3.1 ID=16.2	1-09503-223-0	20	1	9307-		●
25	WASHER; PL,BRKT ID=15	9-09651-069-0	32	1	9307-		●
26	NUT; BRKT,SPR M14	9-99110-514-0	20	1	9002-	●
26	NUT; BRKT,SPR M16	9-99110-516-0	12	1	8712-	●	●
26	NUT; BRKT,SPR FRONT AXLE F063<FS7> M14	9-99110-514-0	12	1	8712-9001	●	●
26	NUT; BRKT,SPR EXC. FRONT AXLE F063<FS7> M14	9-99110-514-0	16	1	8712-9001	●	●
26	NUT; BRKT,SPR M14	9-99110-514-0	16	1	9002-		●
27	WASHER; LK,BRKT,FRT SPR ID=16.2	9-09150-616-0	12	1	8712-	●	●
27	WASHER; LK,BRKT,FRT SPR ID=14.2	9-09150-614-0	20	1	9002-	●	●
27	WASHER; LK,BRKT,FRT SPR EXC. FRONT AXLE F063<FS7> ID=14.2	9-09150-614-0	16	1	8712-9001	●	●
35	MEMBER; UNDER	1-53174-104-2	01	1	8712-	●	●
36	WASHER; PL,UNDER MBR ID=15 OD=26	9-09164-514-0	12	1	8712-	●	●
37	WASHER; LK,UNDER MBR ID=14.2	9-09150-514-0	12	1	8712-	●	●
38	NUT; UNDER MBR M14	9-99110-414-0	06	1	8712-	●
38	NUT; UNDER MBR M14	9-99110-414-0	12	1	8712-		●
39	BRACKET; FRT SPR,RR (A)	1-53352-067-3	02	1	8712-	●	●
39	BRACKET; FRT SPR,RR (B)	1-53351-187-0	01	1	9002-	●	●
39	BRACKET; FRT SPR,RR (B)	1-53351-186-0	01	1	9002-	●	●
39	BRACKET; FRT SPR,RR FRONT AXLE F063<FS7> (B)	1-53351-187-0	01	1	8712-9001	●	●
39	BRACKET; FRT SPR,RR FRONT AXLE F063<FS7> (B)	1-53351-186-0	01	1	8712-9001	●	●
39	BRACKET; FRT SPR,RR EXC. FRONT AXLE F063<FS7> (B)	1-53351-127-3	01	1	8712-9001	●	●
39	BRACKET; FRT SPR,RR EXC. FRONT AXLE F063<FS7> (B)	1-53351-126-3	01	1	8712-9001	●	●
44	BOLT; UNDER MBR M14X45	9-92051-445-0	02	1	8712-9005	●
44	BOLT; UNDER MBR M14X45	0-20801-445-0	02	1	9006-	●
44	BOLT; UNDER MBR M14X40	9-92051-440-0	10	1	8712-9005	●	●
44	BOLT; UNDER MBR M14X40	0-20801-440-0	10	1	9006-	●	●
44	BOLT; UNDER MBR M14X40	9-92051-440-0	02	1	8712-9005		●
44	BOLT; UNDER MBR M14X40	0-20801-440-0	02	1	9006-		●
46	BOLT; BRKT FIX M14X55	9-91066-455-0	12	1	9009-9306	●
46	BOLT; BRKT FIX M14X50	9-92061-450-0	12	1	9307-	●
46	BOLT; BRKT FIX M16X55	1-09000-480-0	08	1	9002-	●	●
46	BOLT; BRKT FIX M14X50	9-91066-450-0	04	1	9002-9008	●	●
46	BOLT; BRKT FIX M14X55	9-91066-455-0	08	1	9002-9008	●	●
46	BOLT; BRKT FIX FRONT AXLE F063<FS7> M16X55	1-09000-480-0	08	1	8712-9001	●	●
46	BOLT; BRKT FIX FRONT AXLE F063<FS7> M14X50	9-91066-450-0	12	1	8712-9001	●	●
46	BOLT; BRKT FIX EXC. FRONT AXLE F063<FS7> M14X50	9-91066-450-0	04	1	8712-9001	●	●
46	BOLT; BRKT FIX EXC. FRONT AXLE F063<FS7> M16X55	9-91066-655-0	04	1	8712-9001	●	●
46	BOLT; BRKT FIX M14X45	9-91066-445-0	04	1	8712-8912		●
46	BOLT; BRKT FIX M14X45	9-92061-445-0	04	1	9001-		●
46	BOLT; BRKT FIX M14X55	9-91066-455-0	04	1	9002-9008		●
46	BOLT; BRKT FIX M14X55	9-91066-455-0	08	1	9009-		●
52	BRACKET; FWD FRT SPRING,RR	1-53352-074-3	01	1	8712-	●	●
52	BRACKET; FWD FRT SPRING,RR	1-53352-073-3	01	1	8712-	●	●
55	WASHER; PL ID=16.2	9-09851-672-2	04	1	8712-	●	●
55	WASHER; PL ID=14	9-09857-023-0	08	1	8712-	●	●
56	WASHER; LK ID=14.2	9-09150-614-0	08	1	8712-	●	●
56	WASHER; LK ID=16.2	9-09150-616-0	04	1	8712-	●	●
78	RIVET; FWD FRT SPR BRKT D13X48	1-09730-112-0	08	1	8712-9212	●	●
78	RIVET; FWD FRT SPR BRKT L=48 D13X48	1-09730-092-0	08	1	9301-9306	●	●
78	RIVET; FWD FRT SPR BRKT L=48	1-09730-092-0	08	1	9307-	●
78	RIVET; FWD FRT SPR BRKT L=45	1-09730-091-0	08	1	9307-		●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	08	1	9206-	●	●
263	WASHER; PL,SUB FRAME ID=15	9-09651-069-0	10	1	9307-		●

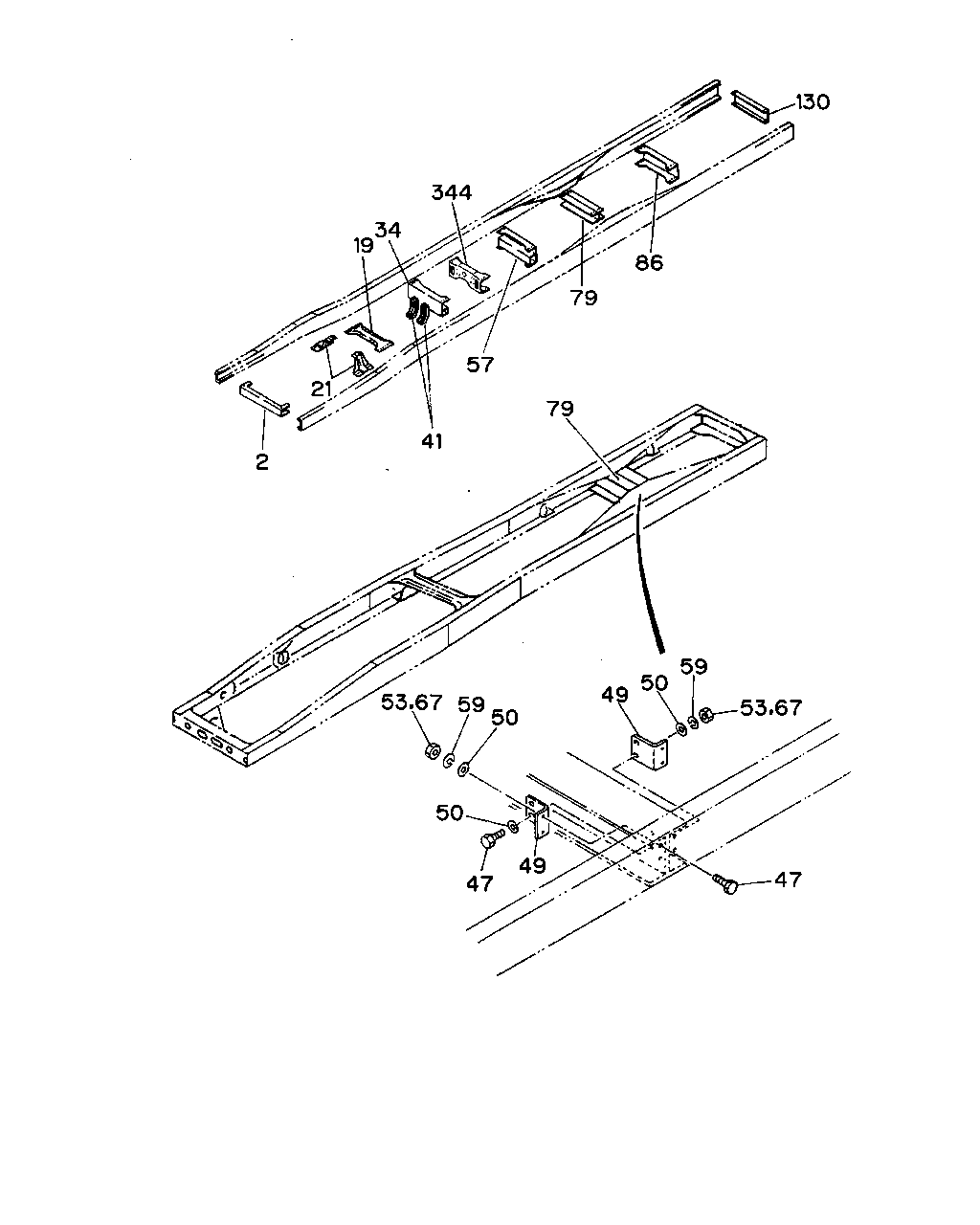

130 86 79 79 344 34 19 2 21 57 41 53 67 59 50 50 47 49 49 50 59 53 67 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST	1-53181-198-0	01	1	8712-9001	●
2	MEMBER; CROSS,1ST	1-53181-387-1	01	1	9002-9306	●
2	MEMBER; CROSS,1ST	1-53181-517-2	01	1	9307-9404	●
2	MEMBER; CROSS,1ST	1-53181-694-0	01	1	9405-	●
2	MEMBER; CROSS,1ST	1-53171-899-2	01	1	8712-9003		●
2	MEMBER; CROSS,1ST	1-53181-388-0	01	1	9004-9306		●
2	MEMBER; CROSS,1ST	1-53171-899-2	01	1	9307-9404		●
2	MEMBER; CROSS,1ST	1-53181-695-0	01	1	9405-		●
19	MEMBER; CROSS,2ND	1-53174-082-2	01	1	8712-9001	●
19	MEMBER; CROSS,2ND	1-53174-155-0	01	1	9002-9404	●	●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	9405-	●	●
19	MEMBER; CROSS,2ND	1-53174-076-0	01	1	8712-9001		●
21	GUSSET; 2ND CROSS	1-53164-132-2	01	1	8712-9001	●
21	GUSSET; 2ND CROSS	1-53164-133-2	01	1	8712-9001	●
21	GUSSET; 2ND CROSS	1-53164-198-0	01	1	9002-	●
21	GUSSET; 2ND CROSS	1-53164-197-0	01	1	9002-	●
21	GUSSET; 2ND CROSS	1-53164-130-1	02	1	8712-9001		●
21	GUSSET; 2ND CROSS	1-53164-199-2	02	1	9002-9404		●
21	GUSSET; 2ND CROSS	1-53164-212-0	02	1	9405-		●
34	MEMBER; CROSS,3RD	1-53181-148-0	01	1	8712-9404	●
34	MEMBER; CROSS,3RD	1-53181-644-1	01	1	9405-	●
34	MEMBER; CROSS,3RD	1-53171-670-6	01	1	8712-9001		●
34	MEMBER; CROSS,3RD	1-53181-288-0	01	1	9002-9404		●
34	MEMBER; CROSS,3RD	1-53181-650-1	01	1	9405-		●
41	BRACKET; CENTER BRG,FRAME SIDE L=260	1-53271-260-2	02	1	8712-8901	●
41	BRACKET; CENTER BRG,FRAME SIDE L=280	1-53271-303-1	02	1	8712-9306	●
41	BRACKET; CENTER BRG,FRAME SIDE L=275	1-53271-308-1	02	1	8902-	●
41	BRACKET; CENTER BRG,FRAME SIDE L=300	1-53271-306-1	02	1	9307-	●
41	BRACKET; CENTER BRG,FRAME SIDE L=285	1-53271-261-2	04	1	8712-		●
47	BOLT; BRKT,TRUNNION MBR M14X45	9-91066-445-0	08	1	8712-9001	●
47	BOLT; BRKT,TRUNNION MBR M14X45	9-92061-445-0	08	1	9002-	●
47	BOLT; BRKT,TRUNNION MBR M14X55	9-91066-455-0	04	1	8712-	●	●
47	BOLT; BRKT,TRUNNION MBR M14X38	9-92061-438-0	08	1	8712-		●
49	BRACKET; TRUNNION MBR	1-53167-288-0	04	1	8712-	●
49	BRACKET; TRUNNION MBR	1-53167-081-5	04	1	8712-		●
50	WASHER; PL,BRKT,TRUNNION MBR ID=15 OD=26	9-09164-514-0	16	1	8712-	●	●
53	NUT; BRKT,TRUNNION MBR M14	9-99110-514-0	12	1	8712-	●	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-2	01	1	8712-	●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-651-5	01	1	8712-		●
59	WASHER; LK,BRKT,TRUNNION MBR ID=14.2	9-09150-614-0	12	1	8712-	●	●
67	NUT; C/MBR M14	9-99110-514-0	08	1	8712-9003		●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-149-0	01	1	8712-9001	●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-374-0	01	1	9002-	●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-164-1	01	1	8712-9001		●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-376-0	01	1	9002-9103		●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-164-2	01	1	9104-9406		●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-686-0	01	1	9407-		●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-0	01	1	8712-	●
86	MEMBER; CROSS,RR SUSP RR	1-53171-536-9	01	1	8712-8904		●
86	MEMBER; CROSS,RR SUSP RR	1-53181-355-2	01	1	8905-9404		●
86	MEMBER; CROSS,RR SUSP RR	1-53181-646-2	01	1	9405-		●
130	MEMBER; CROSS,END	1-53171-876-2	01	1	8712-	●
130	MEMBER; CROSS,END	1-53171-568-4	01	1	9307-9404		●
130	MEMBER; CROSS,END	1-53181-613-0	01	1	9405-		●
130	MEMBER; CROSS,END NYLON TUBE AIR PIPING<Z29>	1-53171-568-4	01	1	8712-9306		●
130	MEMBER; CROSS,END EXC. NYLON TUBE AIR PIPING<Z29>	1-53171-652-1	01	1	8712-9306		●
344	MEMBER; CROSS,4TH	1-53181-233-0	01	1	8712-9404	●
344	MEMBER; CROSS,4TH	1-53181-643-1	01	1	9405-	●
344	MEMBER; CROSS,4TH	1-53171-670-6	01	1	8712-9001		●
344	MEMBER; CROSS,4TH	1-53181-288-0	01	1	9002-9404		●
344	MEMBER; CROSS,4TH	1-53181-650-1	01	1	9405-		●
