8-50 — AIR CONDITIONING SYSTEM; FRONT (#54299) — 35 parça

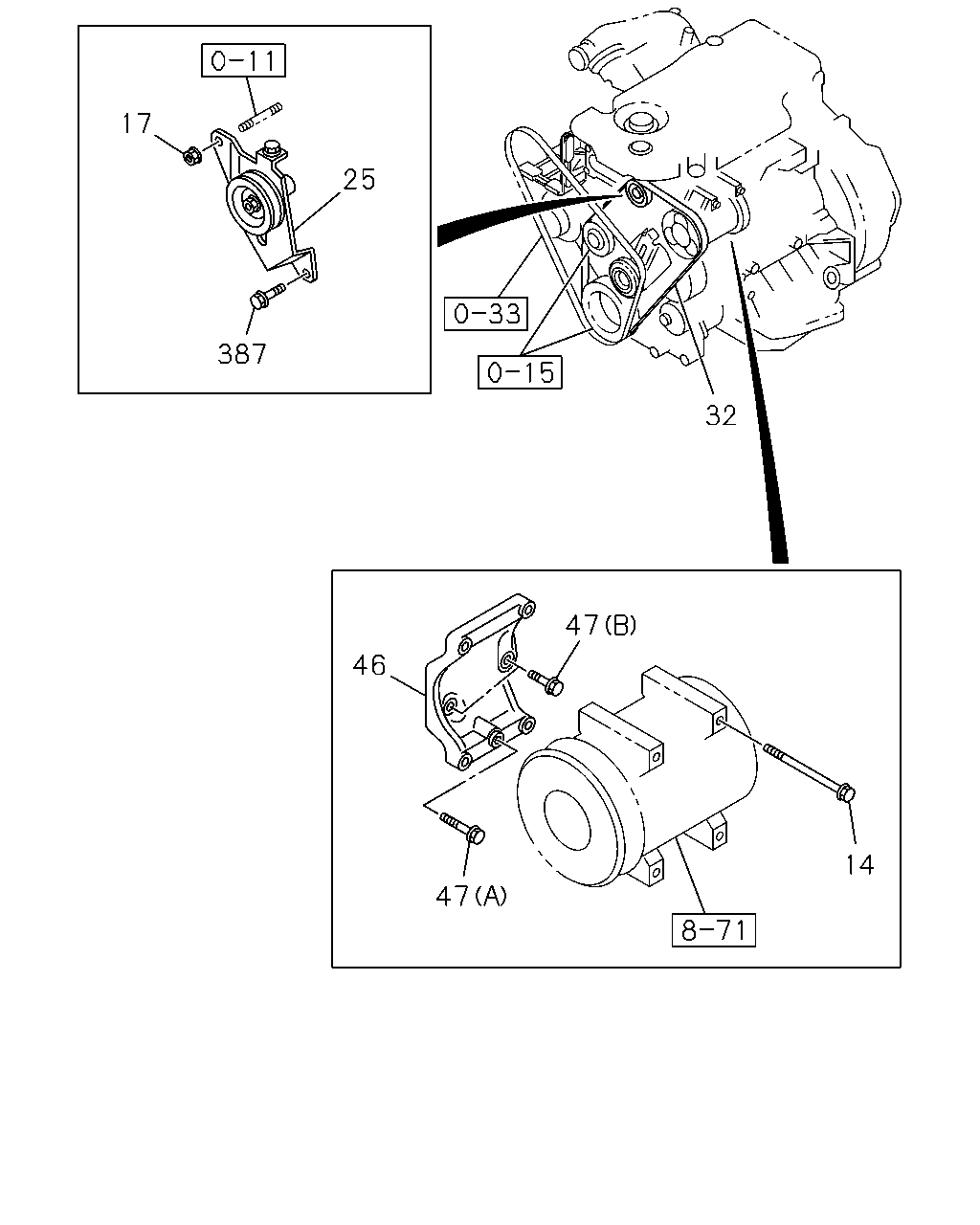

çizim 154922
17 25 387 32 47 46 14 47
BalonParca AdiParca NoAdetTipApplied Date A B C D
14 09.171 BOLT; CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 00.386 M8X100 FLANGE 		0-28050-800-0 04 1 0710-0803 ● ●
14 09.171 BOLT; CMPR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 00.386 M8X100 FLANGE 		0-28050-800-0 04 1 0804- ● ● ● ●
17 09.171 NUT; CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.540 M8 FLANGE 		0-91180-208-0 01 1 0710-0803 ● ●
17 09.171 NUT; CMPR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 01.540 M8 FLANGE 		0-91180-208-0 01 1 0804- ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 1-GROOVE 		8-98051-011-0 01 1 0710-0803 ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 1-GROOVE 		8-98051-011-0 01 1 0804-1006 ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 1-GROOVE 		8-98114-437-0 01 1 1007- ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) BEST VALUE PARTS 		5-87610-103-0 01 1 0710-0803 ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) BEST VALUE PARTS 		5-87610-103-0 01 1 0804- ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) L=1369 MITSUBOSHI 		8-94252-342-0 01 1 0710-0803 ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) L=1369 MITSUBOSHI 		8-94252-342-0 01 1 0804-0804 ● ● ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) L=1355 MITSUBOSHI 		8-98088-385-0 01 1 0805- ● ● ● ●
46 09.171 BRACKET; CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.242 		8-98037-322-0 01 1 0710-0803 ● ●
46 09.171 BRACKET; CMPR
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 09.242 		8-98037-322-0 01 1 0804- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A) M8X45 FLANGE 		0-28050-845-0 01 1 0710-0803 ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) (A) M8X45 FLANGE 		0-28050-845-0 01 1 0804- ● ● ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0803 ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ● ● ●
387 09.190 BOLT; TENSIONER FIX
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0710-0803 ● ●
387 09.190 BOLT; TENSIONER FIX
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0804- ● ● ● ●

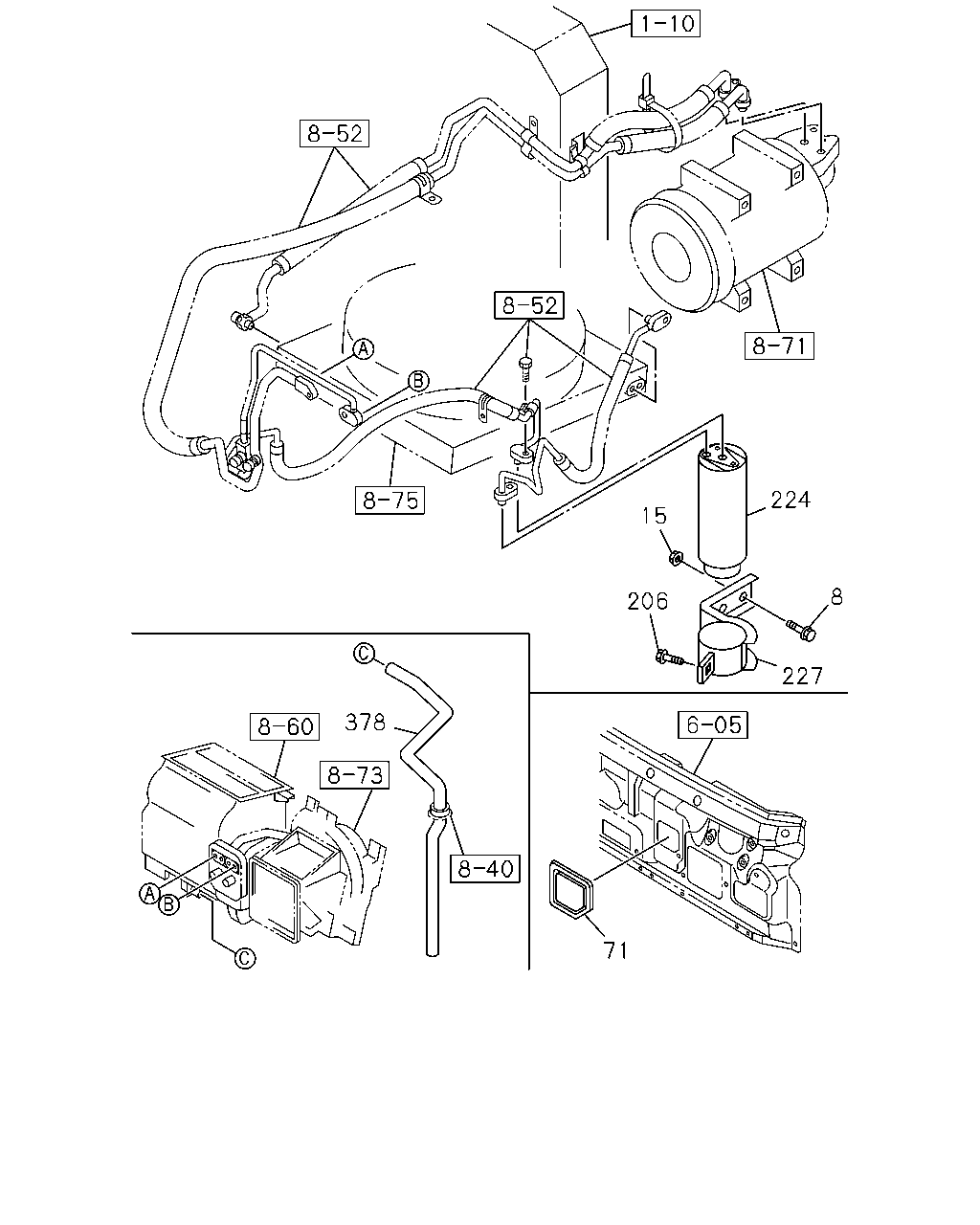

çizim 154923
224 15 8 206 227 378 71
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 09.171 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0710-0803 ● ●
8 09.171 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0804- ● ● ● ●
15 09.173 NUT; BRKT
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-0803 ● ●
15 09.173 NUT; BRKT
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ● ● ● ●
71 09.190 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98017-234-1 01 1 0710-0803 ● ●
71 09.190 COVER; EVAP,A/C
EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68) 		8-98017-234-1 01 1 0804-1301 ● ● ● ●
71 09.190 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 		8-98017-234-1 01 1 1302- ● ● ● ●
206 09.242 BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) M6X16 		8-97096-525-0 01 1 0710-0803 ● ●
206 09.242 BOLT; CLIP BRKT
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) M6X16 		8-97096-525-0 01 1 0804- ● ● ● ●
224 09.195 TANK ASM; RECEIVER
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-97096-593-0 01 1 0710-0803 ● ●
224 09.195 TANK ASM; RECEIVER
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 		8-97096-593-0 01 1 0804- ● ● ● ●
227 09.196 BRACKET; RECEIVER TANK
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98042-566-0 01 1 0710-0803 ● ●
227 09.196 BRACKET; RECEIVER TANK
AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 		8-98042-566-0 01 1 0804- ● ● ● ●
378 09.211 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 		8-98001-241-2 01 1 0710-0803 ● ●
378 09.211 HOSE; DRAIN,EVAPORATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 		8-98001-241-2 01 1 0804- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
