Sayfa 8-40 - Isuzu EPC

8-40 — HEATER SYSTEM (#54297) — 180 parça

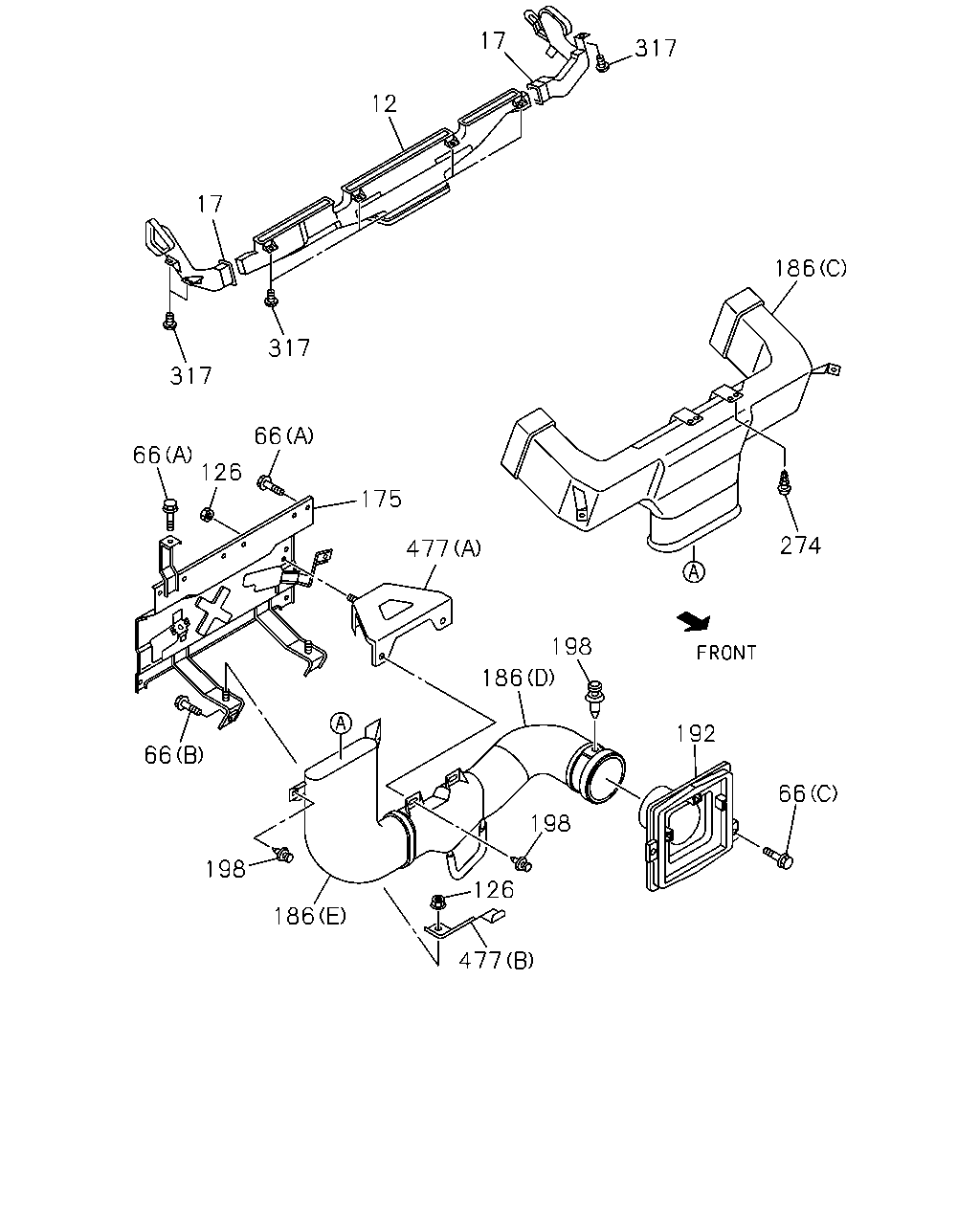

317 17 12 17 317 317 66 175 477 126 66 66 198 186 477 126 198 198 186 192 66 274 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	09.779 NOZZLE; DEFROSTER	8-97585-478-3	01	1	0710-0803	●	●
12	09.779 NOZZLE; DEFROSTER	8-97585-478-3	01	1	0804-	●	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68)	8-97585-475-5	01	1	0710-0803	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97585-475-5	01	1	0804-0804	●	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68)	8-97585-475-5	01	1	0804-	●	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68)	8-97585-469-0	01	1	0710-0803	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97585-469-0	01	1	0804-0804	●	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68)	8-97585-469-1	01	1	0804-	●	●	●	●
66	08.845 BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	0710-0803	●	●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),FULLAUTO AIR CONDITIONER(C68) 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	0804-0804	●	●	●	●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68) 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	0804-	●	●	●	●
66	08.845 BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 08.857 (C) M6X20 W/LK&PL WASHER	8-98081-030-0	03	1	0710-0803	●	●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),FULLAUTO AIR CONDITIONER(C68) 08.857 (C) M6X20 W/LK&PL WASHER	8-98081-030-0	03	1	0804-0804	●	●	●	●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68) 08.857 (C) M6X20 W/LK&PL WASHER	8-98081-030-0	03	1	0804-	●	●	●	●
66	08.845 BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X20 W/LK&PL WASHER	8-98081-175-0	01	1	0710-0803	●	●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X20 W/LK&PL WASHER	8-98081-175-0	01	1	0804-0804	●	●	●	●
66	08.845 BOLT; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68) (B) M6X20 W/LK&PL WASHER	8-98081-175-0	01	1	0804-	●	●	●	●
126	09.262 NUT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	02	1	0710-0803	●	●
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	02	1	0804-0804	●	●	●	●
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	02	1	0804-1001	●	●	●	●
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	01	1	1002-	●	●	●	●
126	09.262 NUT; BRKT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68),KD PREPARATORY PACK VAR.4<7TV> 01.062 M6 FLANGE	0-91180-106-0	01	1	1002-	●	●	●	●
175	09.262 BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98091-542-1	01	1	0710-0803	●	●
175	09.262 BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98091-542-1	01	1	0804-0804	●	●	●	●
175	09.262 BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68)	8-98091-542-5	01	1	0804-1206	●	●	●	●
175	09.262 BRACKET; HTR DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68)	8-98221-687-0	01	1	1207-	●	●	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (B)	8-97585-484-4	01	1	0710-0803	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97585-484-4	01	1	0804-0804	●	●	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) (B)	8-97585-484-5	01	1	0804-1410	●	●	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) (B)	8-98285-589-0	01	1	1411-	●	●	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (A)	8-97585-466-6	01	1	0710-0803	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97585-466-6	01	1	0804-0804	●	●	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) (A)	8-97585-466-7	01	1	0804-1410	●	●	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) (A)	8-98285-582-0	01	1	1411-	●	●	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-98054-361-0	01	1	0710-0803	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-98054-361-0	01	1	0804-0804	●	●	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68) (C)	8-98054-361-0	01	1	0804-	●	●	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (E)	8-98054-371-0	01	1	0710-0803	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),FULLAUTO AIR CONDITIONER(C68) (E)	8-98054-371-0	01	1	0804-0804	●	●	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68) (E)	8-98054-371-0	01	1	0804-	●	●	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (D)	8-98054-379-1	01	1	0710-0803	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),FULLAUTO AIR CONDITIONER(C68) (D)	8-98054-379-1	01	1	0804-0804	●	●	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68) (D)	8-98054-379-2	01	1	0804-	●	●	●	●
192	09.262 DUCT; RAM AIR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 03.417	8-98054-386-1	01	1	0710-0803	●	●
192	09.262 DUCT; RAM AIR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),FULLAUTO AIR CONDITIONER(C68) 03.417	8-98054-386-1	01	1	0804-0804	●	●	●	●
192	09.262 DUCT; RAM AIR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68) 03.417	8-98054-386-4	01	1	0804-	●	●	●	●
198	09.787 CLIP; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 09.786	8-98056-059-0	05	1	0710-0802	●	●
198	09.787 CLIP; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 09.264	1-09987-144-0	05	1	0803-0803	●	●
198	09.787 CLIP; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),FULLAUTO AIR CONDITIONER(C68) 09.264	1-09987-144-0	05	1	0804-0804	●	●	●	●
198	09.787 CLIP; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68) 09.264	1-09987-144-0	05	1	0804-	●	●	●	●
274	08.852 SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0710-0803	●	●
274	08.852 SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0804-0804	●	●	●	●
274	08.852 SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0804-1101	●	●	●	●
274	08.852 SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212	●	●	●	●
274	08.852 SCREW; VENT DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0710-0803	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0804-1101	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-1212	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	0710-0803	●	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	0804-0804	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	0805-0808	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0809-1101	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●	●	●
477	09.786 BRACKET; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98091-304-0	01	1	0710-0803	●	●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98091-304-0	01	1	0804-0804	●	●	●	●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68) (A)	8-98091-304-0	01	1	0804-	●	●	●	●
477	09.786 BRACKET; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98091-306-0	01	1	0710-0803	●	●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98091-306-0	01	1	0804-0804	●	●	●	●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68) (B)	8-98091-306-0	01	1	0804-0808	●	●	●	●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68) (B)	8-98132-529-1	01	1	0809-1001	●	●	●	●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98132-529-1	01	1	1002-1005	●	●	●	●
477	09.786 BRACKET; DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98164-455-0	01	1	1006-	●	●	●	●

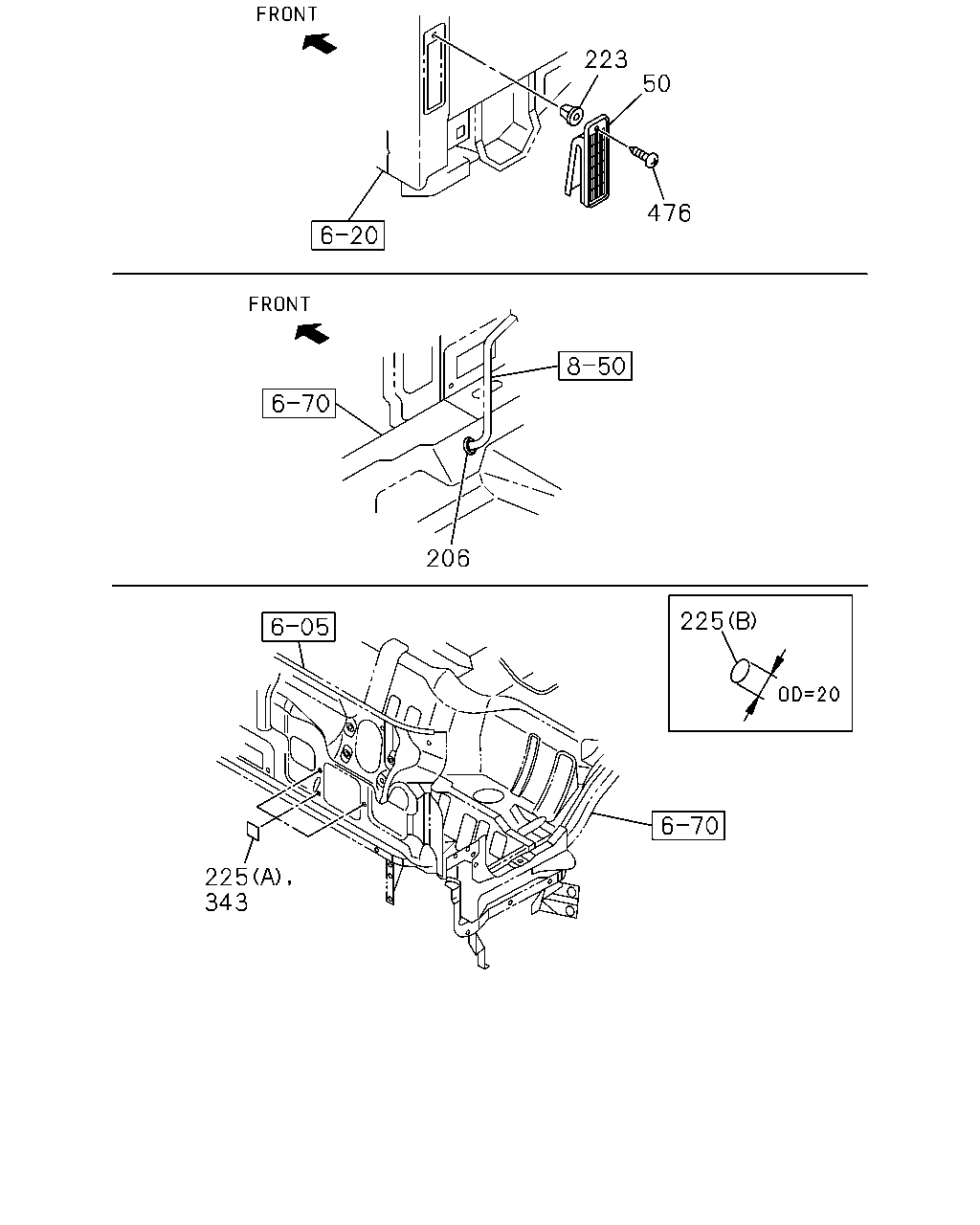

223 50 206 225 225 343 476

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
50	08.845 VALVE ASM; HTR	8-98080-998-1	01	1	0710-	●	●
50	08.845 VALVE ASM; HTR	8-98080-999-2	01	1	0804-			●	●
206	09.743 GROMMET; A/C PIPE TO BLOWER UNIT	8-98019-649-0	01	1	0710-0803	●	●
206	09.743 GROMMET; A/C PIPE TO BLOWER UNIT	8-98019-649-0	01	1	0804-	●	●	●	●
223	08.845 GROMMET; SCREW 02.679 D=7.9X7.9 L=20 M5	8-94441-539-0	01	1	0710-0803	●	●
223	08.845 GROMMET; SCREW 02.679 D=7.9X7.9 L=20 M5	8-94441-539-0	01	1	0804-	●	●	●	●
225	08.845 SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ,FULLAUTO AIR CONDITIONER(C68) (A)	8-97856-616-0	01	1	1303-	●	●	●	●
225	08.845 SEAL; WATER EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0710-0803	●
225	08.845 SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0710-0803		●
225	08.845 SEAL; WATER EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68) 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0804-1301	●	●	●	●
225	08.845 SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1302-	●	●	●	●
225	08.845 SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (A)	8-97856-616-0	01	1	0710-0803	●	●
225	08.845 SEAL; WATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97856-616-0	01	1	0804-0810	●	●	●	●
225	08.845 SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (A)	8-97856-616-0	02	1	0710-0803	●	●
225	08.845 SEAL; WATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) (A)	8-97856-616-0	02	1	0804-0810	●	●	●	●
225	08.845 SEAL; WATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) (A)	8-97856-616-0	03	1	0811-1302	●	●	●	●
225	08.845 SEAL; WATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) (A)	8-97856-616-0	02	1	1303-	●	●	●	●
343	08.845 SEAL; AIR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97856-616-0	02	1	0710-0803	●	●
343	08.845 SEAL; AIR DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97856-616-0	02	1	0804-0804	●	●	●	●
343	08.845 SEAL; AIR DUCT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68)	8-97856-616-0	02	1	0804-	●	●	●	●
476	09.222 SCREW; VALVE M5X16 TAPPING HEXALOBULAR	8-98062-675-0	01	1	0710-0803	●	●
476	09.222 SCREW; VALVE M5X16 TAPPING HEXALOBULAR	8-98062-675-0	01	1	0804-	●	●	●	●

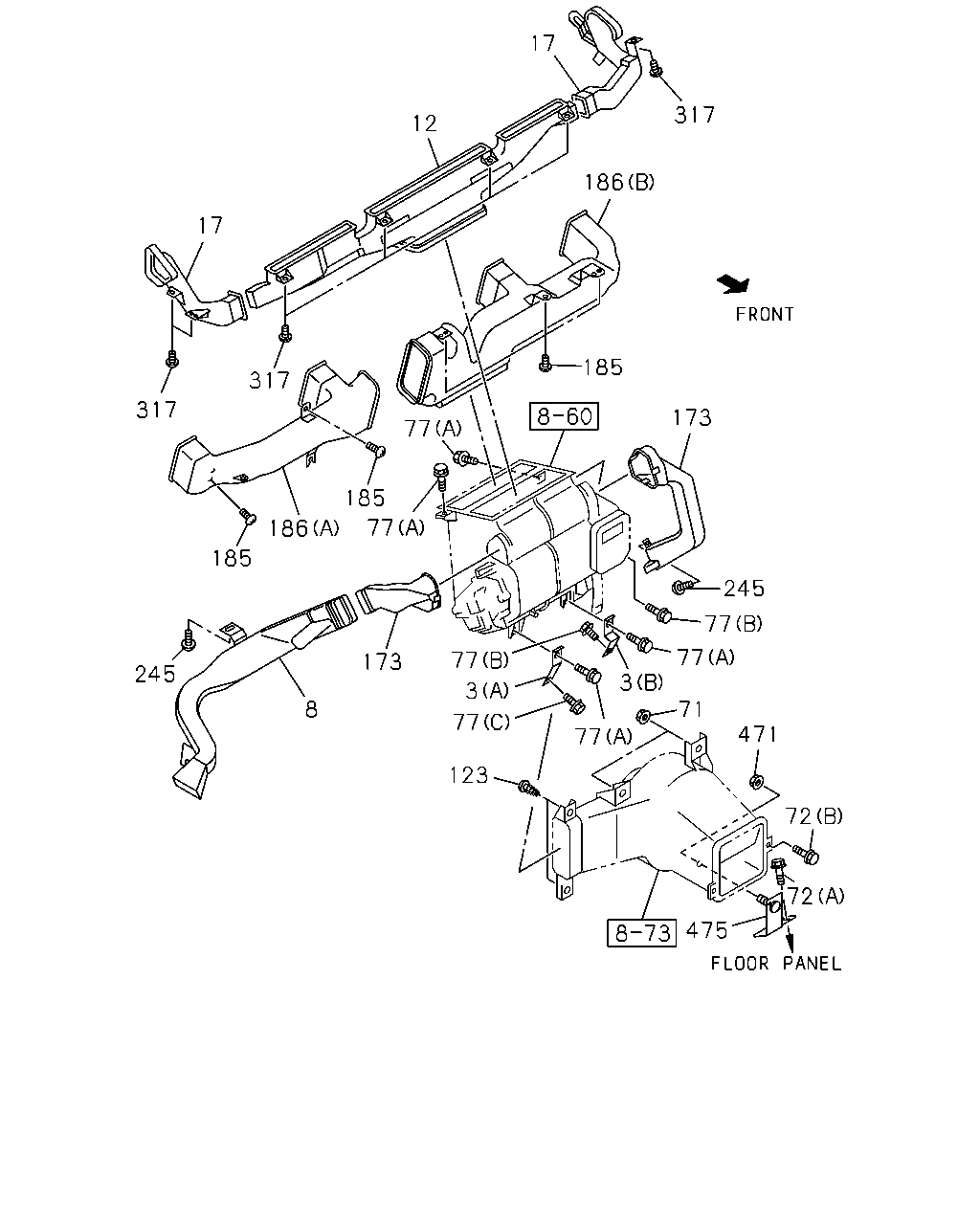

17 317 12 186 17 185 317 317 173 77 185 77 186 185 245 77 77 77 173 245 3 3 8 71 77 471 77 123 72 72 475

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	08.854 BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (A)	8-98082-473-1	01	1	0710-0803	●	●
3	08.854 BRACKET; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) (A)	8-98082-473-1	01	1	0804-	●	●	●	●
3	08.854 BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (B)	8-98082-474-1	01	1	0710-0803	●	●
3	08.854 BRACKET; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) (B)	8-98082-474-1	01	1	0804-	●	●	●	●
8	09.786 DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68)	8-98084-146-0	01	1	0710-0803	●	●
8	09.786 DUCT; HTR AIR,DRIVER FOOT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98084-146-0	01	1	0804-0804	●	●	●	●
8	09.786 DUCT; HTR AIR,DRIVER FOOT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68)	8-98084-146-0	01	1	0804-	●	●	●	●
12	09.779 NOZZLE; DEFROSTER	8-97585-478-3	01	1	0710-0803	●	●
12	09.779 NOZZLE; DEFROSTER	8-97585-478-3	01	1	0804-	●	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68)	8-97585-475-5	01	1	0710-0803	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97585-475-5	01	1	0804-0804	●	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68)	8-97585-475-5	01	1	0804-	●	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68)	8-97585-469-0	01	1	0710-0803	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97585-469-0	01	1	0804-0804	●	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68)	8-97585-469-1	01	1	0804-	●	●	●	●
71	08.845 NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 01.062 M6 FLANGE	0-91180-106-0	02	1	0710-0803	●	●
71	08.845 NUT; BLOWER UNIT TO DASH FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	02	1	0804-	●	●	●	●
72	08.857 BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 16.085 (A) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0710-0803	●	●
72	08.857 BOLT; BLOWER UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 16.085 (A) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0804-	●	●	●	●
72	08.857 BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0710-0803	●	●
72	08.857 BOLT; BLOWER UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0804-	●	●	●	●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) ,FULLAUTO AIR CONDITIONER(C68) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1302-	●	●	●	●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 02.343 (A) M6X16 FLANGE	0-28650-616-0	04	1	0710-0803	●	●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 02.343 (A) M6X16 FLANGE	0-28650-616-0	04	1	0804-	●	●	●	●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0710-0803	●	●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	0804-1301	●	●	●	●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39) 08.857 (B) M6X20 W/LK&PL WASHER	8-98081-030-0	01	1	1302-	●	●	●	●
77	08.845 BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	01	1	0710-0803	●	●
77	08.845 BOLT; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	01	1	0804-	●	●	●	●
123	09.786 SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0710-0803	●	●
123	09.786 SCREW; DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0804-1101	●	●	●	●
123	09.786 SCREW; DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212	●	●	●	●
123	09.786 SCREW; DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●	●	●
173	09.786 DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68)	8-97585-504-3	01	1	0710-0803	●	●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-97585-504-3	01	1	0804-0804	●	●	●	●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68)	8-97585-504-3	01	1	0804-	●	●	●	●
173	09.786 DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68)	8-98084-145-0	01	1	0710-0803	●	●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98084-145-0	01	1	0804-0804	●	●	●	●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68)	8-98084-145-0	01	1	0804-1411	●	●	●	●
173	09.786 DUCT; FOOT,HTR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68)	8-98246-555-0	01	1	1412-	●	●	●	●
185	09.262 SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	05	1	0710-0803	●	●
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	05	1	0804-0804	●	●	●	●
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	05	1	0804-1003	●	●	●	●
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1004-1101	●	●	●	●
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-1212	●	●	●	●
185	09.262 SCREW; VENT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-	●	●	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (B)	8-97585-484-4	01	1	0710-0803	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97585-484-4	01	1	0804-0804	●	●	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) (B)	8-97585-484-5	01	1	0804-1410	●	●	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) (B)	8-98285-589-0	01	1	1411-	●	●	●	●
186	09.786 DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) (A)	8-97585-466-6	01	1	0710-0803	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97585-466-6	01	1	0804-0804	●	●	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) (A)	8-97585-466-7	01	1	0804-1410	●	●	●	●
186	09.786 DUCT; VENTILATOR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) (A)	8-98285-582-0	01	1	1411-	●	●	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-98054-361-0	01	1	0710-0803	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-98054-361-0	01	1	0804-0804	●	●	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68) (C)	8-98054-361-0	01	1	0804-	●	●	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (E)	8-98054-371-0	01	1	0710-0803	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),FULLAUTO AIR CONDITIONER(C68) (E)	8-98054-371-0	01	1	0804-0804	●	●	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68) (E)	8-98054-371-0	01	1	0804-	●	●	●	●
186	09.786 DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (D)	8-98054-379-1	01	1	0710-0803	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),FULLAUTO AIR CONDITIONER(C68) (D)	8-98054-379-1	01	1	0804-0804	●	●	●	●
186	09.786 DUCT; VENTILATOR EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68) (D)	8-98054-379-2	01	1	0804-	●	●	●	●
245	09.786 CLIP; FOOT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68)	8-98056-059-0	02	1	0710-0802	●	●
245	09.786 CLIP; FOOT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 09.264	1-09987-144-0	02	1	0803-0803	●	●
245	09.786 CLIP; FOOT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 09.264	1-09987-144-0	02	1	0804-0804	●	●	●	●
245	09.786 CLIP; FOOT DUCT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 09.264	1-09987-144-0	02	1	0804-	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0710-0803	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	0804-1101	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-1212	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	0710-0803	●	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	0804-0804	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	03	1	0805-0808	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0809-1101	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1212	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●	●	●
471	08.866 NUT; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68) 01.062 M6 FLANGE	0-91180-106-0	01	1	0710-0803	●	●
471	08.866 NUT; BLOWER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	01	1	0804-	●	●	●	●
475	09.277 BRACKET; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIO NER(C68)	8-98001-196-2	01	1	0710-0803	●	●
475	09.277 BRACKET; BLOWER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FULLAUTO A IR CONDITIONER(C68)	8-98001-196-2	01	1	0804-	●	●	●	●

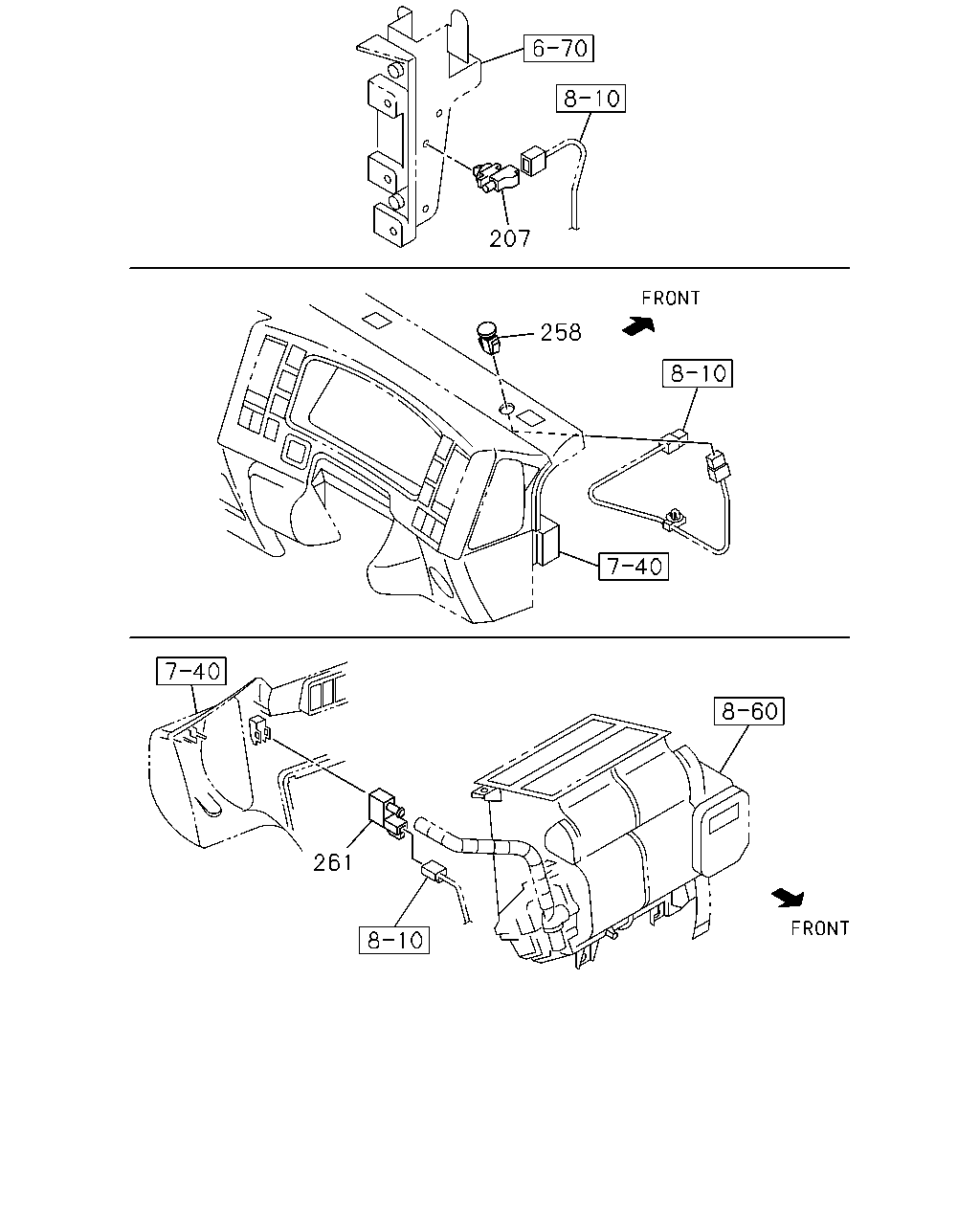

207 258 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
207	08.845 SENSOR; AMBIENT FULLAUTO AIR CONDITIONER(C68) 01.150	8-98008-687-0	01	1	0710-	●
258	08.845 SENSOR; SUN FULLAUTO AIR CONDITIONER(C68)	8-97386-826-0	01	1	0710-	●
261	08.845 SENSOR; IN CAR FULLAUTO AIR CONDITIONER(C68)	8-97386-701-0	01	1	0710-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
