8-28 — CHASSIS ELECTRICAL (#54296) — 113 parça

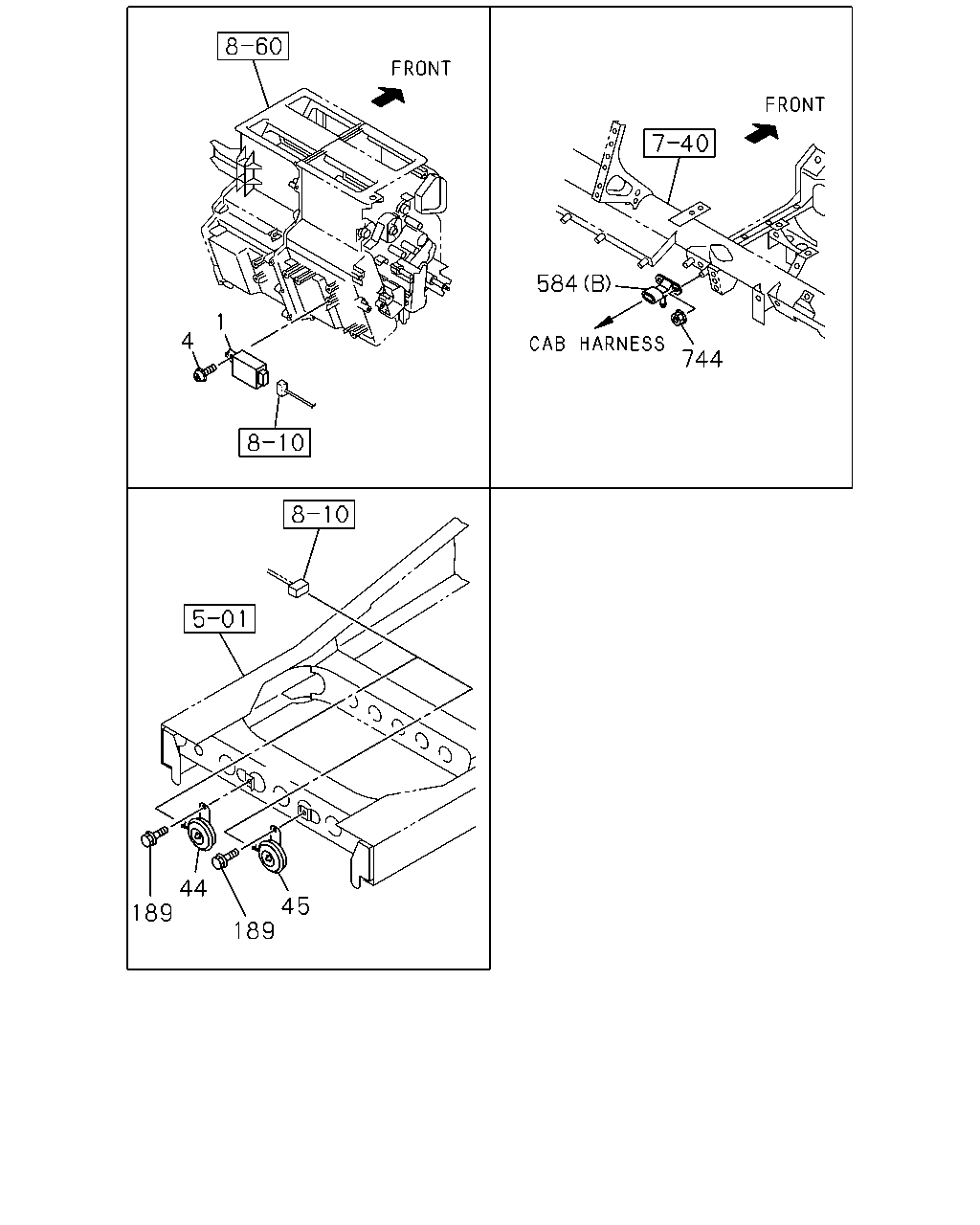

584 1 4 744 44 189 45 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.575 UNIT; FLASHER	8-98025-533-1	01	1	0710-0803	●	●
1	02.575 UNIT; FLASHER EXC. VOLTAGE 12V<TRQ>	8-98025-533-1	01	1	0804-	●	●
1	02.575 UNIT; FLASHER	8-98025-533-1	01	1	0804-			●	●
1	02.575 UNIT; FLASHER VOLTAGE 12V<TRQ>	8-98001-519-0	01	1	0804-	●	●
4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0710-0803	●	●
4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0804-1101	●	●	●	●
4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●	●	●
4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●	●	●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN(6KK)	8-98022-022-0	01	1	0710-0803	●	●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN(6KK) EXC. VOLTAGE 12V<TRQ>	8-98022-022-0	01	1	0804-	●	●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN(6KK)	8-98022-022-0	01	1	0804-			●	●
44	02.810 HORN; HIGH NOTE VOLTAGE 12V<TRQ> DUAL HEAVY DUTY HORN(6KK)	8-98022-024-0	01	1	0804-	●	●
45	02.810 HORN; LOW NOTE	8-98022-023-0	01	1	0710-0803	●	●
45	02.810 HORN; LOW NOTE EXC. VOLTAGE 12V<TRQ>	8-98022-023-0	01	1	0804-	●	●
45	02.810 HORN; LOW NOTE	8-98022-023-0	01	1	0804-			●	●
45	02.810 HORN; LOW NOTE VOLTAGE 12V<TRQ>	8-98022-025-0	01	1	0804-	●	●
189	02.812 BOLT; HORN 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0710-0803	●	●
189	02.812 BOLT; HORN DUAL HEAVY DUTY HORN(6KK) 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0710-0803	●	●
189	02.812 BOLT; HORN 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0804-1004	●	●	●	●
189	02.812 BOLT; HORN DUAL HEAVY DUTY HORN(6KK) 02.559 M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0804-1004	●	●	●	●
189	02.812 BOLT; HORN 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●	●	●
189	02.812 BOLT; HORN DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●	●	●
584	02.440 SENSOR; PRESSURE (A)	8-97387-682-0	01	1	0710-0803	●	●
584	02.440 SENSOR; PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97387-682-0	01	1	0804-	●	●
584	02.440 SENSOR; PRESSURE 4JJ1-TCS ENG(LFB) 03.331 (B)	8-98020-514-0	01	1	0710-0803	●	●
584	02.440 SENSOR; PRESSURE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.331 (B)	8-98020-514-0	01	1	0804-	●	●
584	02.440 SENSOR; PRESSURE 4JJ1-TCC ENG(RDU) 03.331 (B)	8-98020-514-0	01	1	0804-			●	●
744	09.277 NUT; SENSOR 4JJ1-TCS ENG(LFB) 01.062 M6 FLANGE	0-91180-106-0	02	1	0710-0803	●	●
744	09.277 NUT; SENSOR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M6 FLANGE	0-91180-106-0	02	1	0804-	●	●
744	09.277 NUT; SENSOR 4JJ1-TCC ENG(RDU) 01.062 M6 FLANGE	0-91180-106-0	02	1	0804-			●	●

531 666

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
531	02.769 RELAY; MAIN 4JJ1-TCS ENG(LFB) 02.510 24V 30A MITSUBA	8-97238-540-0	01	1	0710-0803	●	●
531	02.769 RELAY; MAIN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.510 24V 30A MITSUBA	8-97238-540-0	01	1	0804-1402	●	●
531	02.769 RELAY; MAIN 4JJ1-TCC ENG(RDU) 02.510 24V 30A MITSUBA	8-97238-540-0	01	1	0804-1402			●	●
531	02.769 RELAY; MAIN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.485 24V 30A MITSUBA	8-98259-779-0	01	1	1403-	●	●
531	02.769 RELAY; MAIN 4JJ1-TCC ENG(RDU) 02.485 24V 30A MITSUBA	8-98259-779-0	01	1	1403-			●	●
666	02.173 RELAY; STARTER 4JJ1-TCS ENG(LFB) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0710-0803	●	●
666	02.173 RELAY; STARTER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0804-1005	●	●
666	02.173 RELAY; STARTER 4JJ1-TCC ENG(RDU) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0804-1005			●	●
666	02.173 RELAY; STARTER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 24V 10A PANASONIC	8-98167-173-0	01	1	1006-	●	●
666	02.173 RELAY; STARTER 4JJ1-TCC ENG(RDU) 24V 10A PANASONIC	8-98167-173-0	01	1	1006-			●	●

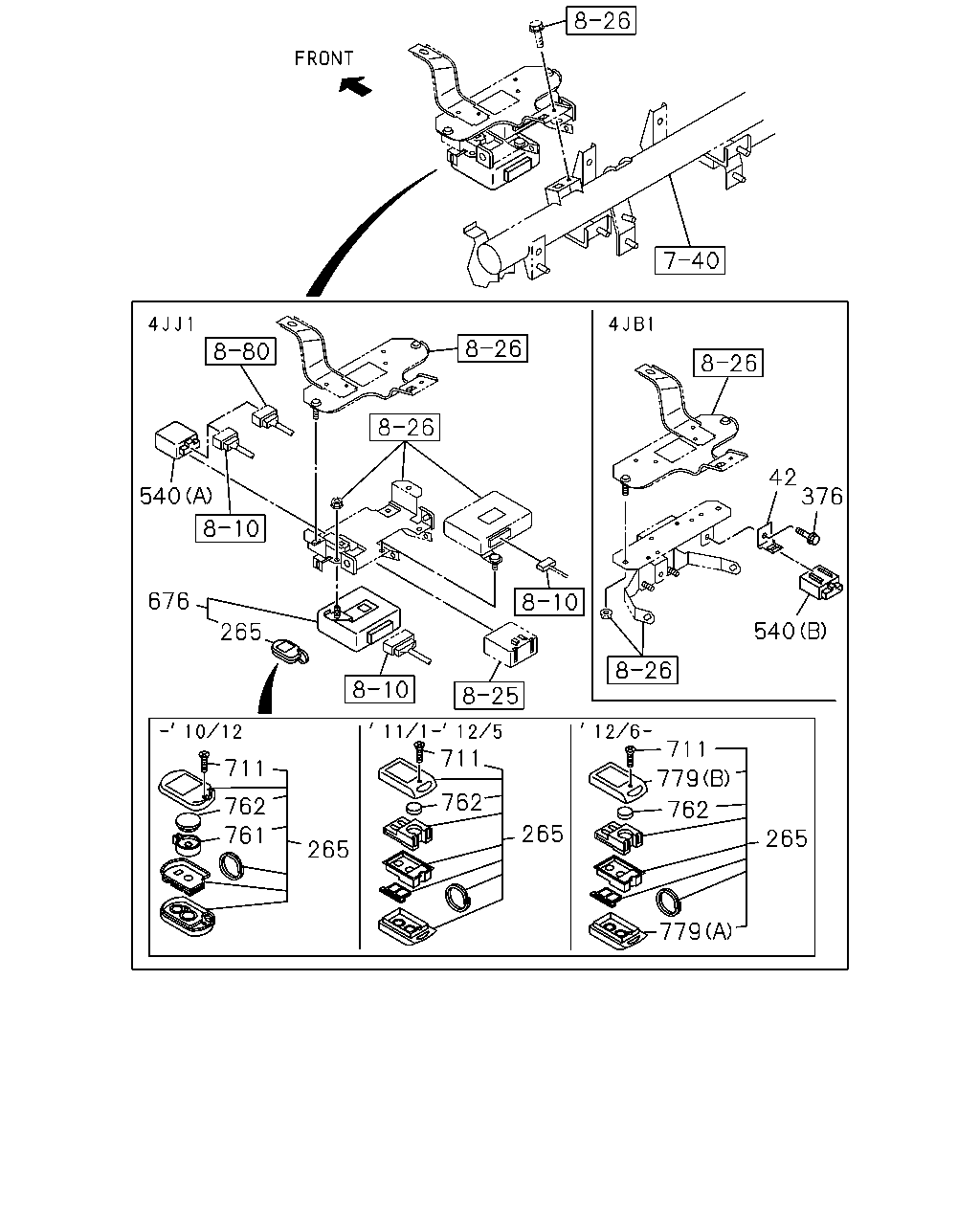

540 676 265 711 762 761 711 762 42 540 376 711 776 762 779 265 265 265

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
42	09.766 BRACKET; RELAY INTERMITTENT WIPER<C13> VOLTAGE 12V<TRQ>	8-98094-199-0	01	1	0804-	●	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK	8-98048-459-1	02	1	0710-0803	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF>	8-98048-459-1	02	1	0804-0906	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF> EXC. HONG KONG EQUIPMENT(B14)	8-98048-459-1	02	1	0804-0906		●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK 4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<6NF>	8-98048-459-1	02	1	0907-1012	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK 4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<6NF> EXC. HONG KONG EQUIPMENT(B14)	8-98048-459-1	02	1	0907-1012		●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK 4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<6NF>	8-98180-751-0	02	1	1101-1205	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK 4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<6NF> EXC. HONG KONG EQUIPMENT(B14)	8-98180-751-0	02	1	1101-1205		●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK 4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<6NF>	8-98218-236-0	02	1	1206-	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK 4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<6NF> EXC. HONG KONG EQUIPMENT(B14)	8-98218-236-0	02	1	1206-		●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF>	8-98048-462-1	02	1	0710-0803		●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK HONG KONG EQUIPMENT(B14) REMOTE CONT DOOR LOCK<6NF>	8-98048-462-1	02	1	0804-1012		●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK HONG KONG EQUIPMENT(B14) REMOTE CONT DOOR LOCK<6NF>	8-98178-860-0	02	1	1101-1205		●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK HONG KONG EQUIPMENT(B14) REMOTE CONT DOOR LOCK<6NF>	8-98218-235-0	02	1	1206-1309		●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK HONG KONG EQUIPMENT(B14) REMOTE CONT DOOR LOCK<6NF>	8-98249-522-0	02	1	1310-		●
376	03.342 BOLT; RELAY INTERMITTENT WIPER<C13> VOLTAGE 12V<TRQ> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0804-	●	●
540	16.067 RELAY; WIPER INTERVAL (A)	8-98060-388-0	01	1	0710-0803	●
540	16.067 RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13> (A)	8-98060-388-0	01	1	0710-0803		●
540	16.067 RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13> EXC. VOLTAGE 12V<TRQ> (A)	8-98060-388-0	01	1	0804-0906	●	●
540	16.067 RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13> (A)	8-98060-388-0	01	1	0804-0906			●	●
540	16.067 RELAY; WIPER INTERVAL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> EXC. VOLTAGE 12V<TRQ> (A)	8-98060-388-0	01	1	0907-1308	●	●
540	16.067 RELAY; WIPER INTERVAL 4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> (A)	8-98060-388-0	01	1	0907-1308			●	●
540	16.067 RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13> EXC. VOLTAGE 12V<TRQ> (A)	8-98233-976-0	01	1	1309-	●	●
540	16.067 RELAY; WIPER INTERVAL 4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> (A)	8-98233-976-0	01	1	1309-			●	●
540	16.067 RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13> VOLTAGE 12V<TRQ> (B)	8-98032-320-1	01	1	0804-	●	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY	8-98044-504-1	01	1	0710-0803	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF>	8-98044-504-1	01	1	0804-0906	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF> EXC. HONG KONG EQUIPMENT(B14)	8-98044-504-1	01	1	0804-0906		●
676	07.450 CONTROL UNIT; KEYLESS ENTRY 4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<6NF>	8-98044-504-1	01	1	0907-1012	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY 4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<6NF> EXC. HONG KONG EQUIPMENT(B14)	8-98044-504-1	01	1	0907-1012		●
676	07.450 CONTROL UNIT; KEYLESS ENTRY 4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<6NF>	8-98181-810-0	01	1	1101-1205	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY 4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<6NF> EXC. HONG KONG EQUIPMENT(B14)	8-98181-810-0	01	1	1101-1205		●
676	07.450 CONTROL UNIT; KEYLESS ENTRY 4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<6NF>	8-98218-233-0	01	1	1206-	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY 4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<6NF> EXC. HONG KONG EQUIPMENT(B14)	8-98218-233-0	01	1	1206-		●
676	07.450 CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF>	8-98048-469-1	01	1	0710-0803		●
676	07.450 CONTROL UNIT; KEYLESS ENTRY HONG KONG EQUIPMENT(B14) REMOTE CONT DOOR LOCK<6NF>	8-98048-469-1	01	1	0804-1012		●
676	07.450 CONTROL UNIT; KEYLESS ENTRY HONG KONG EQUIPMENT(B14) REMOTE CONT DOOR LOCK<6NF>	8-98181-812-0	01	1	1101-1205		●
676	07.450 CONTROL UNIT; KEYLESS ENTRY HONG KONG EQUIPMENT(B14) REMOTE CONT DOOR LOCK<6NF>	8-98218-234-0	01	1	1206-1309		●
676	07.450 CONTROL UNIT; KEYLESS ENTRY HONG KONG EQUIPMENT(B14) REMOTE CONT DOOR LOCK<6NF>	8-98249-524-0	01	1	1310-		●
711	02.510 SCREW; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> M2X5	8-98078-067-0	02	1	0710-1205	●	●
711	02.510 SCREW; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> M2X5	8-98218-239-0	02	1	1206-	●	●
761	04.439 HOLDER; BATTERY REMOTE CONT DOOR LOCK<6NF>	8-98078-063-0	02	1	0710-0906	●	●
761	04.439 HOLDER; BATTERY REMOTE CONT DOOR LOCK<6NF> 4JJ1-TCS ENG(LFB)	8-98078-063-0	02	1	0907-1012	●	●
762	02.559 BATTERY REMOTE CONT DOOR LOCK<6NF>	8-98078-061-0	02	1	0710-	●	●
779	04.115 COVER; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> 02.510 (A)	8-98218-240-0	02	1	1206-	●	●
779	04.115 COVER; TRANSMITTER 4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<6NF> 02.510 (B)	8-98218-243-0	02	1	1206-	●
779	04.115 COVER; TRANSMITTER 4JJ1-TCS ENG(LFB) REMOTE CONT DOOR LOCK<6NF> EXC. HONG KONG EQUIPMENT(B14) 02.510 (B)	8-98218-243-0	02	1	1206-		●
779	04.115 COVER; TRANSMITTER HONG KONG EQUIPMENT(B14) REMOTE CONT DOOR LOCK<6NF> 02.510 (B)	8-98218-241-0	02	1	1206-1309		●
779	04.115 COVER; TRANSMITTER HONG KONG EQUIPMENT(B14) REMOTE CONT DOOR LOCK<6NF> 02.510 (B)	8-98250-559-0	02	1	1310-		●

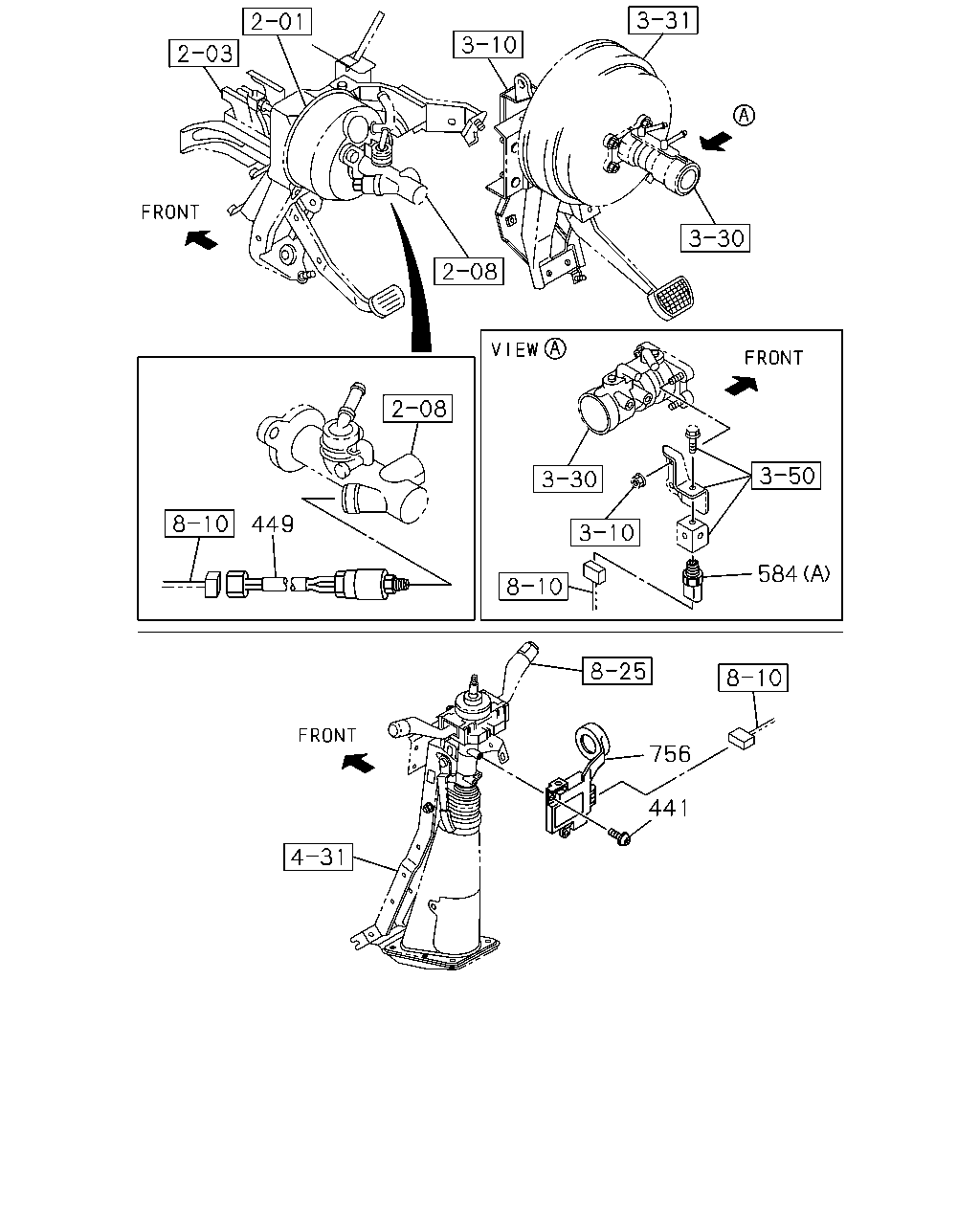

449 584 756 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
441	02.575 SCREW; CONT UNIT 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	0710-0803	●
441	02.575 SCREW; CONT UNIT IMMOBILIZER SYSTEM(7KC) 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	0804-	●
449	08.083 SWITCH; OIL PRESS,CLUTCH H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98072-042-0	01	1	0710-0801	●
449	08.083 SWITCH; OIL PRESS,CLUTCH H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T)	8-98072-042-0	01	1	0710-0801		●
449	08.083 SWITCH; OIL PRESS,CLUTCH 4JJ1-TCC ENG(RDU) H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98072-042-0	01	1	0802-0803	●	●
449	08.083 SWITCH; OIL PRESS,CLUTCH 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98072-042-0	01	1	0804-0804	●	●
449	08.083 SWITCH; OIL PRESS,CLUTCH H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98072-042-1	01	1	0805-	●	●
584	02.440 SENSOR; PRESSURE (A)	8-97387-682-0	01	1	0710-0803	●	●
584	02.440 SENSOR; PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97387-682-0	01	1	0804-	●	●
584	02.440 SENSOR; PRESSURE 4JJ1-TCS ENG(LFB) 03.331 (B)	8-98020-514-0	01	1	0710-0803	●	●
584	02.440 SENSOR; PRESSURE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.331 (B)	8-98020-514-0	01	1	0804-	●	●
584	02.440 SENSOR; PRESSURE 4JJ1-TCC ENG(RDU) 03.331 (B)	8-98020-514-0	01	1	0804-			●	●
756	16.263 CONTROL UNIT; IMMOBILIZER	8-98073-883-0	01	1	0710-0711	●
756	16.263 CONTROL UNIT; IMMOBILIZER	8-98097-554-0	01	1	0712-0803	●
756	16.263 CONTROL UNIT; IMMOBILIZER IMMOBILIZER SYSTEM(7KC)	8-98097-554-0	01	1	0804-1005	●
756	16.263 CONTROL UNIT; IMMOBILIZER IMMOBILIZER SYSTEM(7KC)	8-98158-127-0	01	1	1006-	●

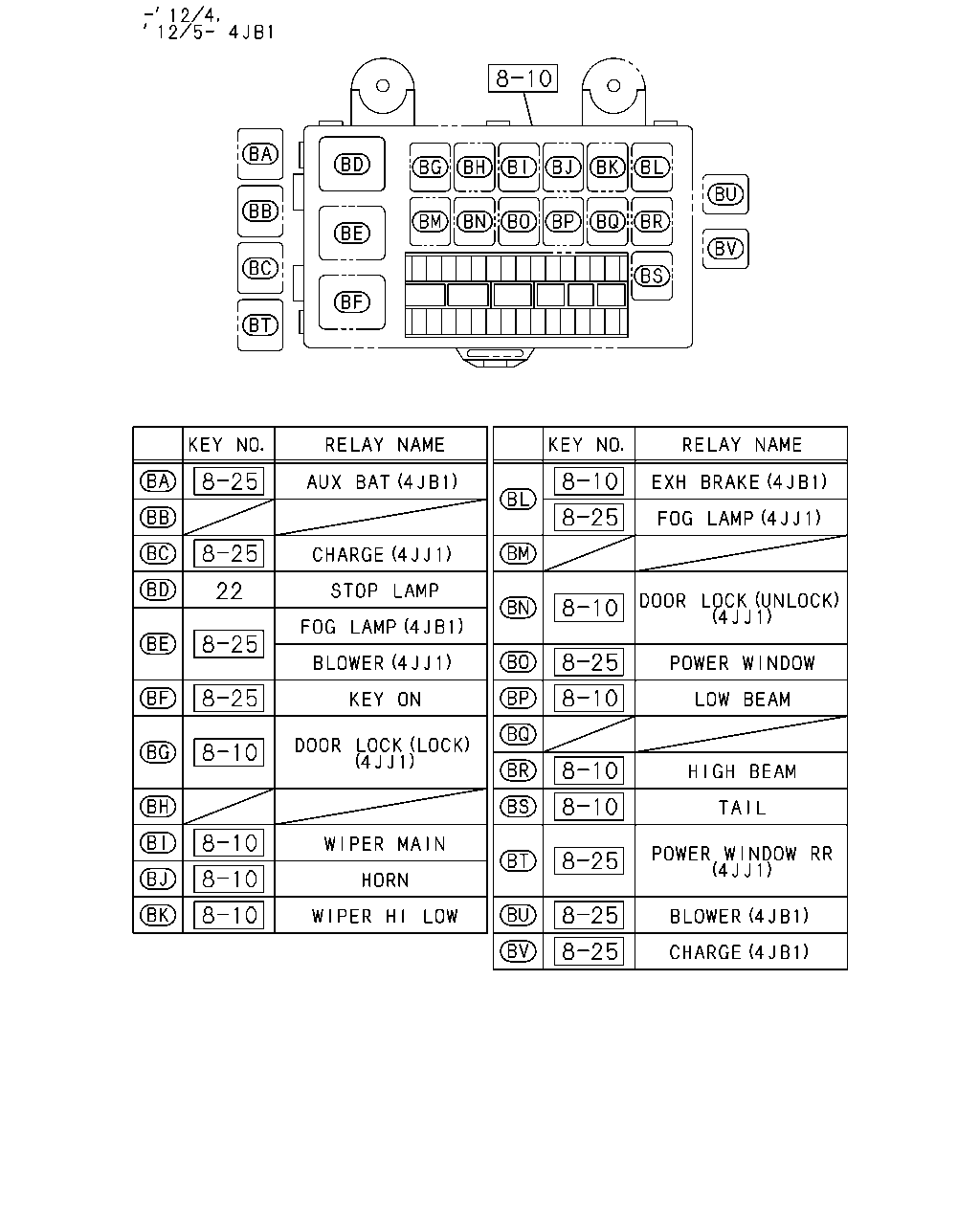

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
22	02.679 RELAY; STOP LAMP 4JB1-TC ENG(RDT) 09.277 12V 30A	8-97210-972-1	01	1	0804-	●	●
22	02.679 RELAY; STOP LAMP 4JJ1-TCS ENG(LFB) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-0803	●	●
22	02.679 RELAY; STOP LAMP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0804-	●	●
22	02.679 RELAY; STOP LAMP 4JJ1-TCC ENG(RDU) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0804-			●	●

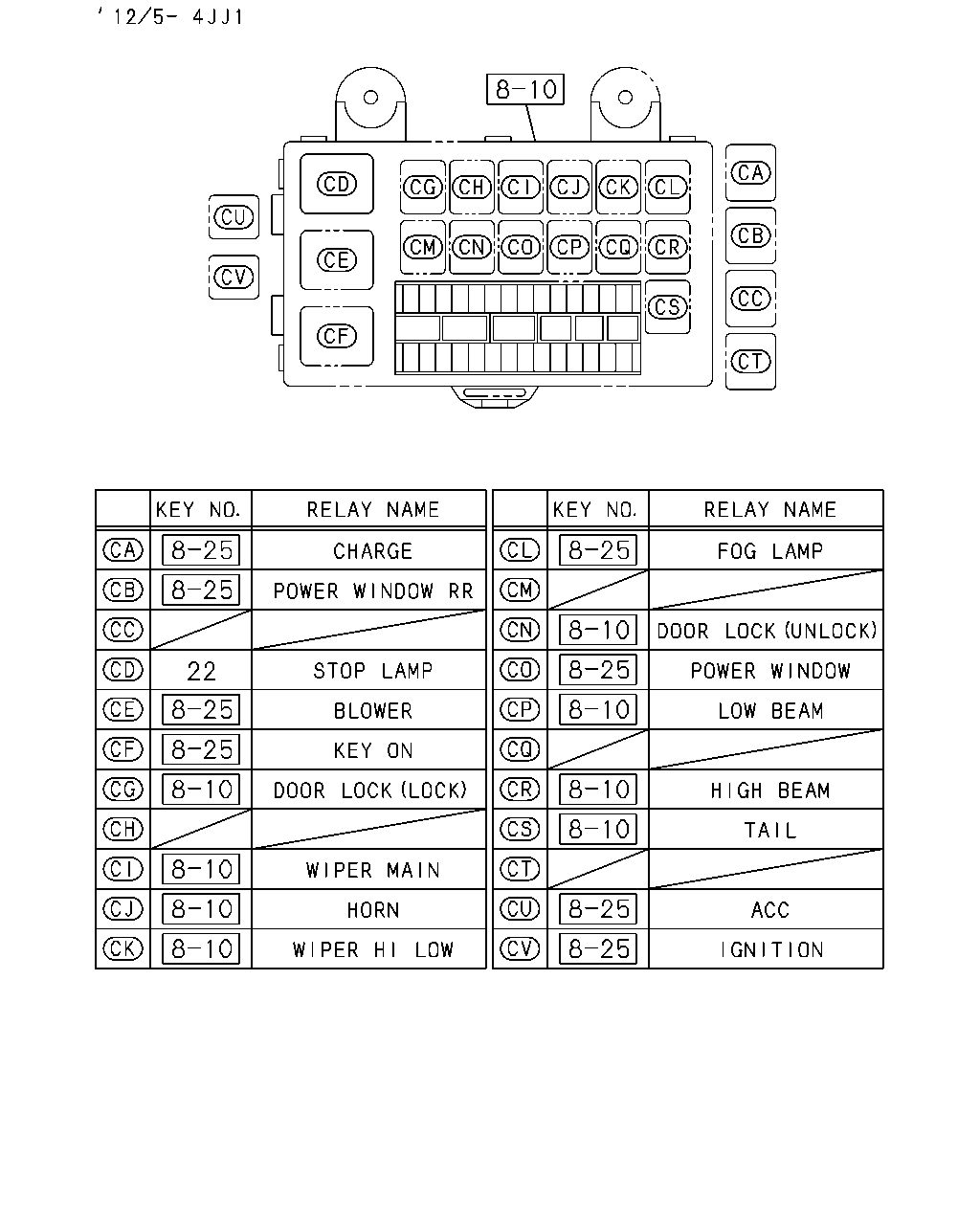

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
22	02.679 RELAY; STOP LAMP 4JB1-TC ENG(RDT) 09.277 12V 30A	8-97210-972-1	01	1	0804-	●	●
22	02.679 RELAY; STOP LAMP 4JJ1-TCS ENG(LFB) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-0803	●	●
22	02.679 RELAY; STOP LAMP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0804-	●	●
22	02.679 RELAY; STOP LAMP 4JJ1-TCC ENG(RDU) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0804-			●	●
