Sayfa 8-25 - Isuzu EPC

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#54293) — 358 parça

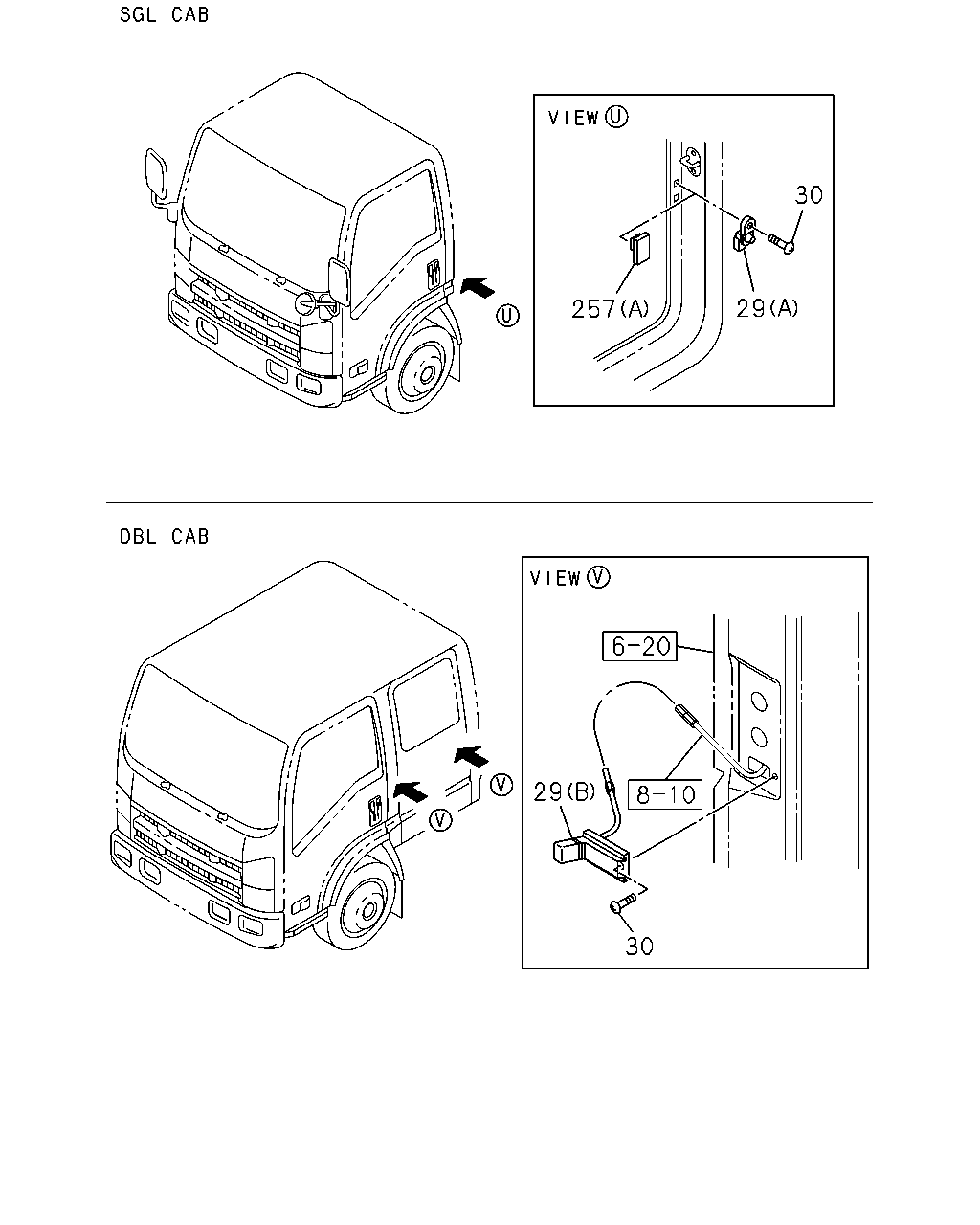

26 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
21	02.575 SWITCH; CLU 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97358-248-0	01	1	0710-0803	●
21	02.575 SWITCH; CLU 4JJ1-TCS ENG(LFB)	8-97358-248-0	01	1	0710-0803		●
21	02.575 SWITCH; CLU EXHAUST BRAKE<NF8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97358-248-0	01	1	0804-0804	●
21	02.575 SWITCH; CLU EXHAUST BRAKE<NF8>	8-97358-248-0	01	1	0804-0804		●
21	02.575 SWITCH; CLU 4JJ1-TCC ENG(RDU)	8-97358-248-0	01	1	0804-0804			●	●
21	02.575 SWITCH; CLU EXHAUST BRAKE<NF8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97358-248-0	01	1	0805-	●
21	02.575 SWITCH; CLU EXHAUST BRAKE<NF8>	8-97358-248-0	01	1	0805-		●
21	02.575 SWITCH; CLU	8-97358-248-0	01	1	0805-			●	●
26	03.636 SWITCH; ACCEL 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97358-315-0	01	1	0804-	●	●

608 151 154 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
151	09.277 RELAY; HTR & A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-0803	●
151	09.277 RELAY; HTR & A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-0803		●
151	09.277 RELAY; HTR & A/C 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0804-	●	●	●	●
154	09.277 RELAY; CONDENSER FAN 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0710-0803	●
154	09.277 RELAY; CONDENSER FAN 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0710-0803		●
154	09.277 RELAY; CONDENSER FAN 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65),FULLAUTO AIR CONDITIONE R(C68) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0804-	●	●	●	●
315	09.277 RELAY; EXH BRAKE CONT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 02.510 12V 20A	8-97173-037-1	01	1	0804-	●	●
608	02.485 RELAY; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) 02.510 24V 30A MITSUBA	8-97238-540-0	01	1	0710-1402	●
608	02.485 RELAY; SHIFT TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 30A MITSUBA	8-98259-779-0	01	1	1403-	●

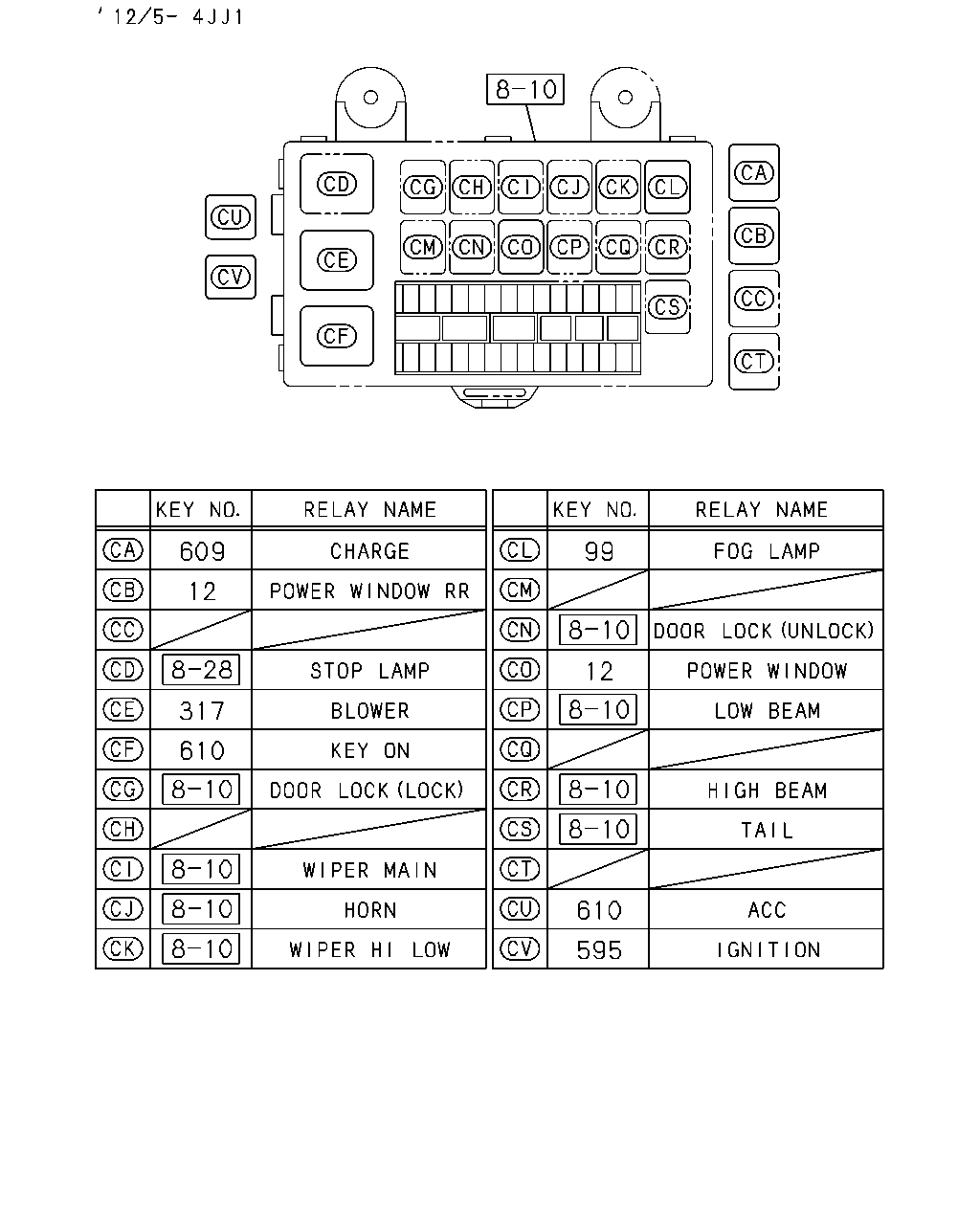

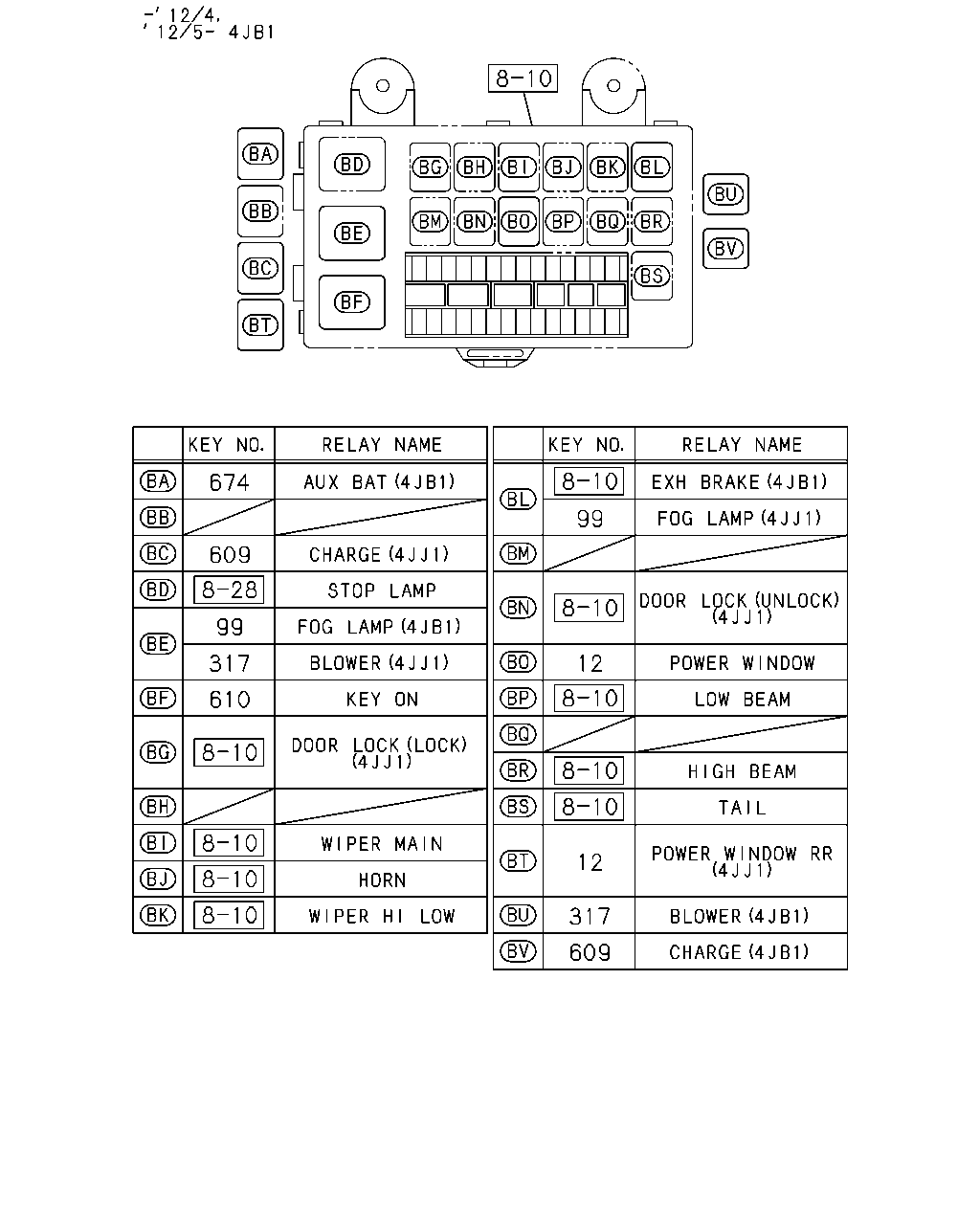

674 99 609 99 317 12 610 12 317 609

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	08.852 RELAY; POWER WINDOW 4JJ1-TCS ENG(LFB) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-0803	●
12	08.852 RELAY; POWER WINDOW 4JJ1-TCS ENG(LFB) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	0710-0803		●
12	08.852 RELAY; POWER WINDOW 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	0804-	●	●
12	08.852 RELAY; POWER WINDOW 4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	0804-			●	●
12	08.852 RELAY; POWER WINDOW 4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	0804-			●	●
12	08.852 RELAY; POWER WINDOW 4JB1-TC ENG(RDT) POWER WINDOW FRT DOOR<A32> 02.510 12V 20A	8-97173-037-1	01	1	0804-	●	●
99	02.485 RELAY; FOG LAMP 4JJ1-TCS ENG(LFB) FOG LAMP<T96> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0710-0803	●
99	02.485 RELAY; FOG LAMP 4JJ1-TCS ENG(LFB) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0710-0803		●
99	02.485 RELAY; FOG LAMP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FOG LAMP<T96> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0804-	●	●
99	02.485 RELAY; FOG LAMP 4JJ1-TCC ENG(RDU) FOG LAMP<T96> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0804-			●	●
99	02.485 RELAY; FOG LAMP 4JB1-TC ENG(RDT) FOG LAMP<T96> 09.277 12V 30A	8-97210-972-1	01	1	0804-	●	●
317	02.510 RELAY; BLOWER MOTOR,HTR 4JB1-TC ENG(RDT) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 12V 35A	8-97180-794-1	01	1	0804-	●	●
317	02.510 RELAY; BLOWER MOTOR,HTR 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-0803	●	●
317	02.510 RELAY; BLOWER MOTOR,HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0804-	●	●	●	●
609	02.485 RELAY; CHARGE 4JB1-TC ENG(RDT) 02.510 12V	8-97063-441-2	01	1	0804-	●	●
609	02.485 RELAY; CHARGE 4JJ1-TCS ENG(LFB) H.S.A SYSTEM<6EP> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0710-0803	●	●
609	02.485 RELAY; CHARGE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) H.S.A SYSTEM<6EP> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0804-	●	●
610	02.510 RELAY; KEY ON 4JB1-TC ENG(RDT) 09.277 12V 30A	8-97210-972-1	01	1	0804-	●	●
610	02.510 RELAY; KEY ON 4JJ1-TCS ENG(LFB) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-0803	●	●
610	02.510 RELAY; KEY ON 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0804-1204	●	●
610	02.510 RELAY; KEY ON 4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0804-1204			●	●
610	02.510 RELAY; KEY ON 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-1206	●	●
610	02.510 RELAY; KEY ON 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-1206	●	●
610	02.510 RELAY; KEY ON 4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-1206			●	●
610	02.510 RELAY; KEY ON 4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-1206			●	●
610	02.510 RELAY; KEY ON 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1207-	●	●
610	02.510 RELAY; KEY ON 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1207-	●
610	02.510 RELAY; KEY ON 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1207-		●
610	02.510 RELAY; KEY ON 4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1207-			●	●
610	02.510 RELAY; KEY ON 4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1207-			●	●
674	02.510 RELAY; BATTERY 4JB1-TC ENG(RDT) 12V 20A	8-97173-037-1	01	1	0804-	●	●

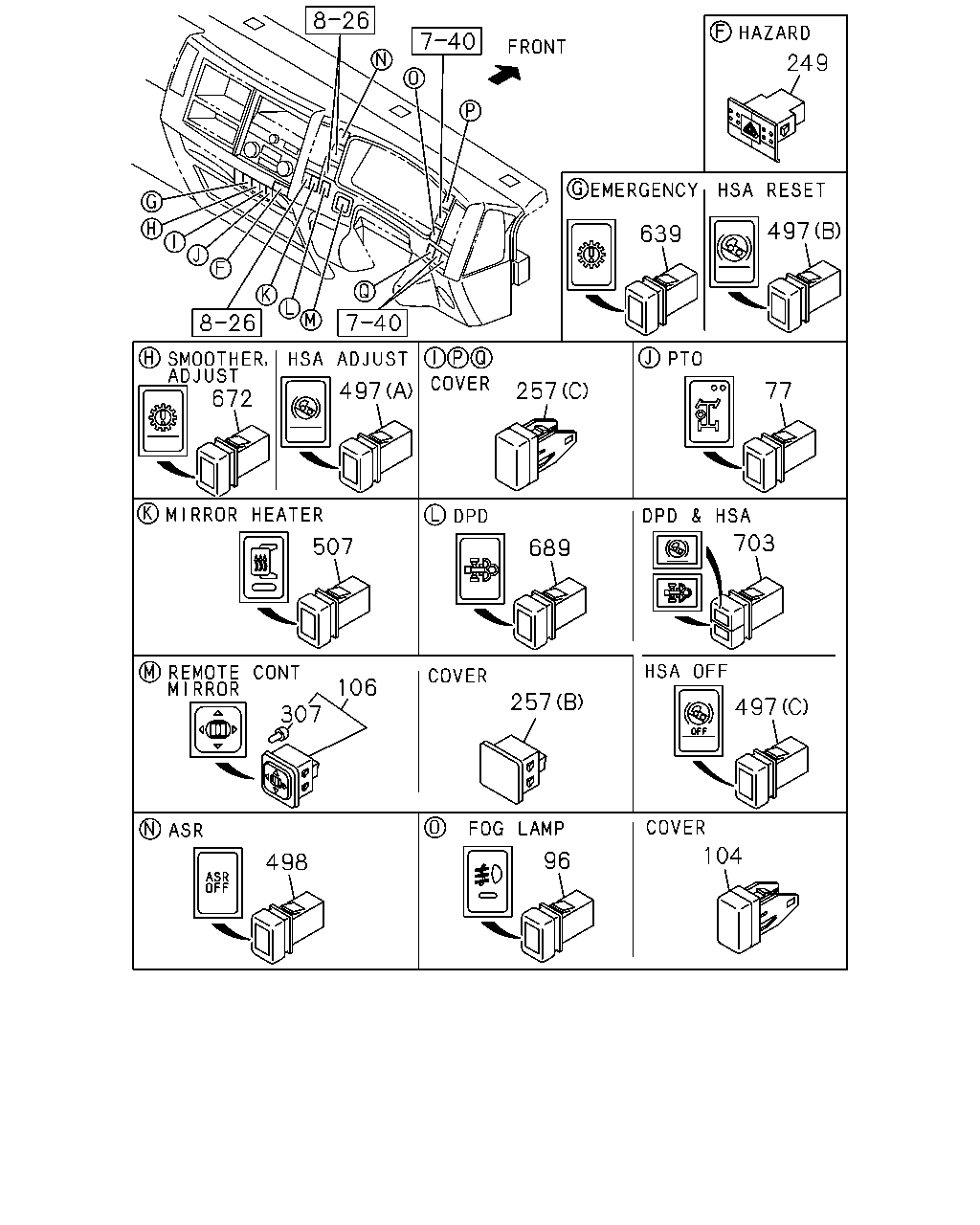

249 497 639 672 77 497 257 703 507 689 106 257 497 307 104 96 498

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
77	04.439 SWITCH; PTO PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97386-964-2	01	1	0710-0903	●
77	04.439 SWITCH; PTO PTO TRANSMISSION SIDE(V66),PTO T/M SIDEDIRECT PUMP(8KZ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97386-964-2	01	1	0904-	●
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96>	8-97387-031-4	01	1	0710-0803	●
96	02.485 SWITCH; FOG LAMP	8-97387-031-4	01	1	0710-0803		●
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96> EXC. VOLTAGE 12V<TRQ>	8-97387-031-4	01	1	0804-	●	●
96	02.485 SWITCH; FOG LAMP FOG LAMP<T96>	8-97387-031-4	01	1	0804-			●	●
96	02.485 SWITCH; FOG LAMP VOLTAGE 12V<TRQ> FOG LAMP<T96>	8-98022-021-1	01	1	0804-	●	●
104	09.778 COVER; SW HOLE,FOG LAMP EXC. FOG LAMP<T96> 16.081	8-98025-954-1	01	1	0710-0803	●
104	09.778 COVER; SW HOLE,FOG LAMP EXC. FOG LAMP<T96> 16.081	8-98025-954-1	01	1	0804-	●	●	●	●
106	10.186 SWITCH; REMOTE CONT MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>	8-97173-294-1	01	1	0710-0803	●
106	10.186 SWITCH; REMOTE CONT MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. VOLTAGE 12V<TRQ>	8-97173-294-1	01	1	0804-	●
249	02.485 SWITCH; HAZARD	8-97386-922-1	01	1	0710-0803	●	●
249	02.485 SWITCH; HAZARD EXC. VOLTAGE 12V<TRQ>	8-97386-922-1	01	1	0804-	●	●
249	02.485 SWITCH; HAZARD	8-97386-922-1	01	1	0804-			●	●
249	02.485 SWITCH; HAZARD VOLTAGE 12V<TRQ>	8-98011-707-2	01	1	0804-	●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	0710-0803	●
257	16.081 COVER; HOLE,SW (B)	8-98029-914-1	01	1	0710-0803		●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	0804-	●
257	16.081 COVER; HOLE,SW (B)	8-98029-914-1	01	1	0804-		●	●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	02	1	0710-0803	●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	02	1	0804-0906	●	●	●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0907-	●	●	●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0907-	●	●	●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0907-	●	●	●	●
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (C)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0907-	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (C)	8-98025-954-1	01	1	0907-	●
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98025-954-1	01	1	0907-	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO T/MSIDE DIRECT PUMP(8KZ) (C)	8-98025-954-1	01	1	0907-	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98025-954-1	01	1	0907-	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0907-		●	●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0907-		●	●	●
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0907-		●
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0907-		●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0907-			●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0907-			●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0907-			●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0907-			●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0710-0803	●	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (C)	8-98025-954-1	01	1	0710-0803	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98025-954-1	01	1	0710-0803	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0710-0803	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (C)	8-98025-954-1	01	1	0710-0803	●
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98025-954-1	01	1	0710-0803	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0710-0803		●
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0710-0803		●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0710-0803		●
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0710-0803		●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0804-0903	●	●	●	●
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98025-954-1	01	1	0804-0903	●	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (C)	8-98025-954-1	01	1	0804-0903	●	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0804-0903	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (C)	8-98025-954-1	01	1	0804-0903	●
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98025-954-1	01	1	0804-0903	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (C)	8-98025-954-1	01	1	0804-0903	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98025-954-1	01	1	0804-0903	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0804-0903		●	●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0804-0903		●	●	●
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0804-0903		●
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0804-0903		●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0804-0903			●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0804-0903			●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0804-0903			●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0804-0903			●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0904-0906	●	●	●	●
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98025-954-1	01	1	0904-0906	●	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (C)	8-98025-954-1	01	1	0904-0906	●	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0904-0906	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (C)	8-98025-954-1	01	1	0904-0906	●
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98025-954-1	01	1	0904-0906	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO T/MSIDE DIRECT PUMP(8KZ) (C)	8-98025-954-1	01	1	0904-0906	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98025-954-1	01	1	0904-0906	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0904-0906		●	●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0904-0906		●	●	●
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0904-0906		●
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0904-0906		●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0904-0906			●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0904-0906			●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0904-0906			●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0904-0906			●	●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> (A)	8-98029-917-0	01	1	0710-0803		●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98029-917-0	01	1	0804-	●	●
307	08.991 BULB ASM; SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V	8-98226-896-0	01	1	0710-0803	●
307	08.991 BULB ASM; SW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. VOLTAGE 12V<TRQ> 24V	8-98226-896-0	01	1	0804-	●
497	04.439 SWITCH; HSA H.S.A SYSTEM<6EP> (A) ADJUST	8-97386-967-2	01	1	0710-0806	●	●
497	04.439 SWITCH; HSA H.S.A SYSTEM<6EP> (B) RESET	8-98119-946-0	01	1	0807-	●	●
497	04.439 SWITCH; HSA H.S.A SYSTEM<6EP> (B) RESET	8-97386-985-1	01	1	0710-0806	●	●
497	04.439 SWITCH; HSA H.S.A SYSTEM<6EP> (A) ADJUST	8-98119-947-1	01	1	0807-	●	●
497	04.439 SWITCH; HSA H.S.A SYSTEM<6EP> EXC. CATALYSIS CONTROL WITH DPD(8JM) (C) OFF	8-97386-923-2	01	1	0804-	●	●
498	03.883 SWITCH; ASR	8-97386-920-2	01	1	0710-0803	●	●
498	03.883 SWITCH; ASR THROTTLE CONTROL SYSTEM<6XH> EXC. VOLTAGE 12V<TRQ>	8-97386-920-2	01	1	0804-	●	●
507	10.186 SWITCH; MIRROR HEATER O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV>	8-97386-924-3	01	1	0710-0803	●
507	10.186 SWITCH; MIRROR HEATER O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. VOLTAGE 12V<TRQ>	8-97386-924-3	01	1	0804-	●
639	16.263 SWITCH; EMERGENCY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97387-000-2	01	1	0710-0806	●
639	16.263 SWITCH; EMERGENCY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98119-948-0	01	1	0807-	●
672	16.263 SWITCH; SMOOTHER,ADJUST TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. H.S.A SYSTEM<6EP>	8-97386-971-2	01	1	0710-0806	●
672	16.263 SWITCH; SMOOTHER,ADJUST TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. H.S.A SYSTEM<6EP>	8-98119-949-1	01	1	0807-	●
689	02.780 SWITCH; DPD EXC. H.S.A SYSTEM<6EP>	8-97386-921-2	01	1	0710-0803	●	●
689	02.780 SWITCH; DPD CATALYSIS CONTROL WITH DPD(8JM) EXC. H.S.A SYSTEM<6EP>	8-97386-921-2	01	1	0804-	●	●
703	02.780 SWITCH; DPD & HSA H.S.A SYSTEM<6EP>	8-98011-346-2	01	1	0710-0803	●	●
703	02.780 SWITCH; DPD & HSA H.S.A SYSTEM<6EP> CATALYSIS CONTROL WITH DPD(8JM)	8-98011-346-2	01	1	0804-	●	●

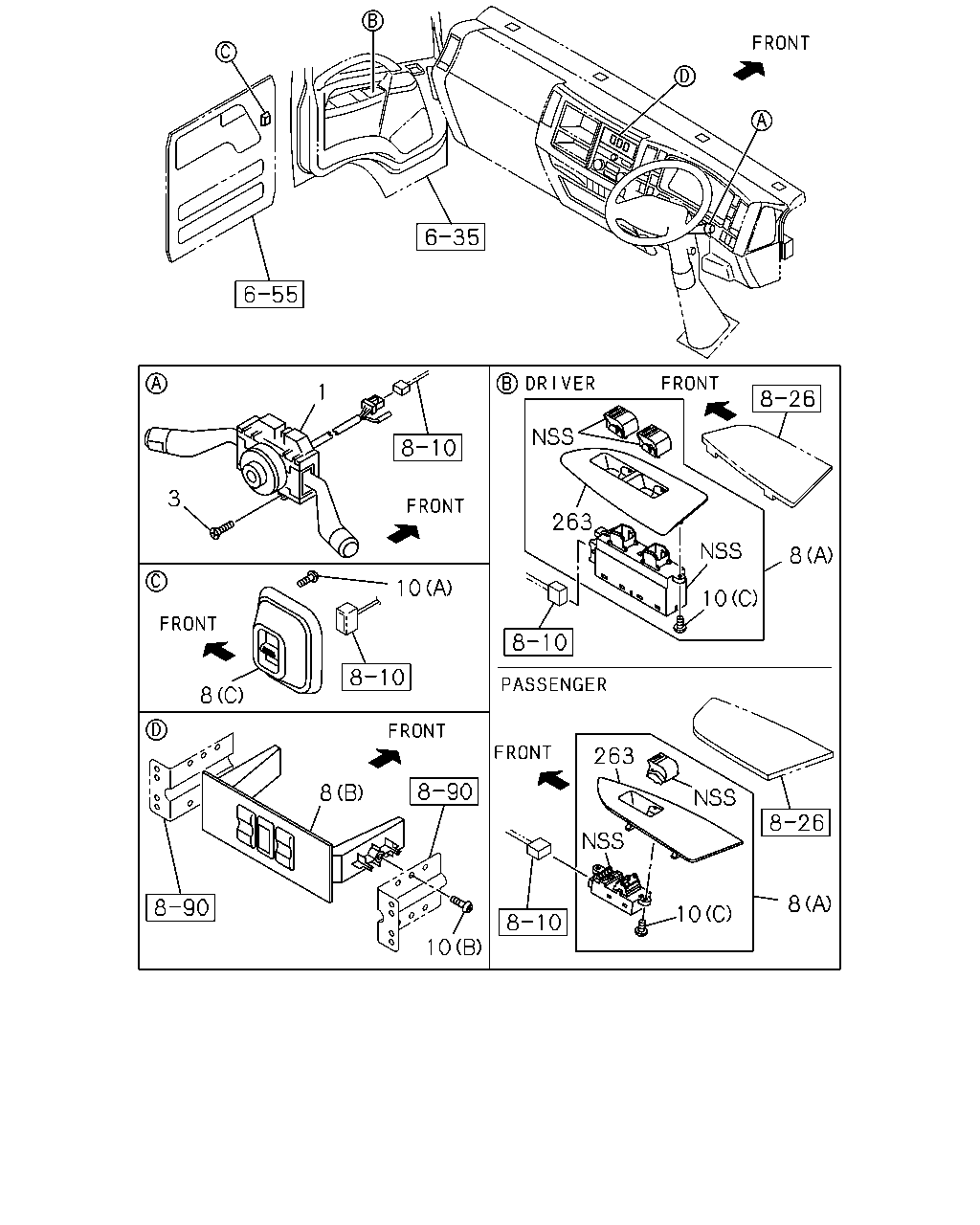

1 3 263 8 10 10 8 263 8 8 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-001-1	01	1	0710-0803	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13>	8-98070-001-1	01	1	0710-0803		●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. VOLTAGE 12V<TRQ>	8-98070-001-1	01	1	0804-0905	●	●
1	02.895 SWITCH; COMB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. VOLTAGE 12V<TRQ>	8-98146-635-0	01	1	0906-0906	●	●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. VOLTAGE 12V<TRQ>	8-98146-635-0	01	1	0907-1210	●	●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. VOLTAGE 12V<TRQ>	8-98217-808-0	01	1	1211-1310	●	●
1	02.895 SWITCH; COMB 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. VOLTAGE 12V<TRQ>	8-98243-725-0	01	1	1311-	●	●
1	02.895 SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98069-995-1	01	1	0710-0803	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98069-995-1	01	1	0710-0803		●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,VOLTAGE 12V<TRQ>	8-98069-995-1	01	1	0804-1310	●	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13>	8-98069-995-1	01	1	0804-1310			●	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,VOLTAGE 12V<TRQ>	8-98243-729-0	01	1	1311-	●	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13>	8-98243-729-0	01	1	1311-			●	●
1	02.895 SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8>	8-98072-663-2	01	1	0804-1310	●	●
1	02.895 SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8>	8-98243-732-0	01	1	1311-	●	●
1	02.895 SWITCH; COMB EXHAUST BRAKE<NF8> VOLTAGE 12V<TRQ> EXC. INTERMITTENT WIPER<C13>	8-98072-671-2	01	1	0804-1310	●	●
1	02.895 SWITCH; COMB EXHAUST BRAKE<NF8> VOLTAGE 12V<TRQ> EXC. INTERMITTENT WIPER<C13>	8-98243-734-0	01	1	1311-	●	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,EXHAUST BRAKE<NF8>	8-98072-665-1	01	1	0804-1310	●	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,EXHAUST BRAKE<NF8>	8-98243-731-0	01	1	1311-	●	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> VOLTAGE 12V<TRQ>	8-98072-670-1	01	1	0804-1310	●	●
1	02.895 SWITCH; COMB INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> VOLTAGE 12V<TRQ>	8-98243-733-0	01	1	1311-	●	●
1	02.895 SWITCH; COMB EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>	8-98069-993-2	01	1	0710-0803		●
1	02.895 SWITCH; COMB EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,VOLTAGE 12V<TRQ>	8-98069-993-2	01	1	0804-1310	●	●
1	02.895 SWITCH; COMB EXC. INTERMITTENT WIPER<C13>	8-98069-993-2	01	1	0804-1310			●	●
1	02.895 SWITCH; COMB EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,VOLTAGE 12V<TRQ>	8-98243-728-0	01	1	1311-	●	●
1	02.895 SWITCH; COMB EXC. INTERMITTENT WIPER<C13>	8-98243-728-0	01	1	1311-			●	●
3	02.897 SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	0710-0803	●	●
3	02.897 SCREW; COMB SW M5X20 W/PL WASHER&TORQUES	8-98061-743-0	02	1	0804-	●	●	●	●
8	16.263 SWITCH; POWER WINDOW (A) PASSENGER SIDE	8-97387-034-2	01	1	0710-0803	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE	8-97387-034-2	01	1	0710-0803		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE	8-97387-034-2	01	1	0804-1509	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE	8-97387-034-2	01	1	0804-1509			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE	8-98316-415-0	01	1	1510-	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE	8-98316-415-0	01	1	1510-			●	●
8	16.263 SWITCH; POWER WINDOW (A) DRIVER SIDE	8-98003-785-1	01	1	0710-0803	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE	8-98003-785-1	01	1	0710-0803		●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 12V<TRQ> (A) DRIVER SIDE	8-98003-785-1	01	1	0804-0809	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE	8-98003-785-1	01	1	0804-0809			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 12V<TRQ> (A) DRIVER SIDE	8-98129-844-0	01	1	0810-1001	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE	8-98129-844-0	01	1	0810-1001			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 12V<TRQ> (A) DRIVER SIDE	8-98159-543-0	01	1	1002-1509	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE	8-98159-543-0	01	1	1002-1509			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> EXC. VOLTAGE 12V<TRQ> (A) DRIVER SIDE	8-98298-750-0	01	1	1510-	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE	8-98298-750-0	01	1	1510-			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> VOLTAGE 12V<TRQ> (A) DRIVER SIDE	8-98112-663-0	01	1	0804-0809	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> VOLTAGE 12V<TRQ> (A) DRIVER SIDE	8-98129-847-0	01	1	0810-1001	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> VOLTAGE 12V<TRQ> (A) DRIVER SIDE	8-98159-545-0	01	1	1002-1509	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT DOOR<A32> VOLTAGE 12V<TRQ> (A) DRIVER SIDE	8-98298-752-0	01	1	1510-	●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (B)	8-97386-987-2	01	1	0804-			●	●
8	16.263 SWITCH; POWER WINDOW POWER WINDOW FRT&REAR DOOR<A31> (C) REAR SIDE	8-97387-035-0	02	1	0804-			●	●
10	03.885 SCREW; POWER WINDOW SW (C)	8-98153-865-0	01	1	0710-0803	●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT DOOR<A32> (C)	8-98153-865-0	01	1	0710-0803		●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT DOOR<A32> (C)	8-98153-865-0	01	1	0804-	●	●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> (C)	8-98153-865-0	01	1	0804-			●	●
10	03.885 SCREW; POWER WINDOW SW (C)	8-98153-865-0	02	1	0710-0803	●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT DOOR<A32> (C)	8-98153-865-0	02	1	0710-0803		●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT DOOR<A32> (C)	8-98153-865-0	02	1	0804-	●	●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> (C)	8-98153-865-0	02	1	0804-			●	●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> 16.714 (A) M4X14 TAPPING	0-74360-414-0	04	1	0804-			●	●
10	03.885 SCREW; POWER WINDOW SW POWER WINDOW FRT&REAR DOOR<A31> 16.100 (B) T25 L=10 HEXALOBULAR	8-98058-632-0	02	1	0804-			●	●
263	16.081 COVER; SW	8-98153-836-0	01	1	0710-0803	●
263	16.081 COVER; SW POWER WINDOW FRT DOOR<A32>	8-98153-836-0	01	1	0710-0803		●
263	16.081 COVER; SW POWER WINDOW FRT DOOR<A32>	8-98153-836-0	01	1	0804-	●	●
263	16.081 COVER; SW POWER WINDOW FRT&REAR DOOR<A31>	8-98153-836-0	01	1	0804-			●	●
263	16.081 COVER; SW	8-98153-841-0	01	1	0710-0803	●
263	16.081 COVER; SW POWER WINDOW FRT DOOR<A32>	8-98153-841-0	01	1	0710-0803		●
263	16.081 COVER; SW POWER WINDOW FRT DOOR<A32>	8-98153-841-0	01	1	0804-	●	●
263	16.081 COVER; SW POWER WINDOW FRT&REAR DOOR<A31>	8-98153-841-0	01	1	0804-			●	●

609 99 12 12 317 610 610 595

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	08.852 RELAY; POWER WINDOW 4JJ1-TCS ENG(LFB) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-0803	●
12	08.852 RELAY; POWER WINDOW 4JJ1-TCS ENG(LFB) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	0710-0803		●
12	08.852 RELAY; POWER WINDOW 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC	8-97173-035-1	01	1	0804-	●	●
12	08.852 RELAY; POWER WINDOW 4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	0804-			●	●
12	08.852 RELAY; POWER WINDOW 4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC	8-97173-035-1	01	1	0804-			●	●
12	08.852 RELAY; POWER WINDOW 4JB1-TC ENG(RDT) POWER WINDOW FRT DOOR<A32> 02.510 12V 20A	8-97173-037-1	01	1	0804-	●	●
99	02.485 RELAY; FOG LAMP 4JJ1-TCS ENG(LFB) FOG LAMP<T96> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0710-0803	●
99	02.485 RELAY; FOG LAMP 4JJ1-TCS ENG(LFB) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0710-0803		●
99	02.485 RELAY; FOG LAMP 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FOG LAMP<T96> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0804-	●	●
99	02.485 RELAY; FOG LAMP 4JJ1-TCC ENG(RDU) FOG LAMP<T96> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0804-			●	●
99	02.485 RELAY; FOG LAMP 4JB1-TC ENG(RDT) FOG LAMP<T96> 09.277 12V 30A	8-97210-972-1	01	1	0804-	●	●
317	02.510 RELAY; BLOWER MOTOR,HTR 4JB1-TC ENG(RDT) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 12V 35A	8-97180-794-1	01	1	0804-	●	●
317	02.510 RELAY; BLOWER MOTOR,HTR 4JJ1-TCS ENG(LFB) HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-0803	●	●
317	02.510 RELAY; BLOWER MOTOR,HTR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CON T(C60),COOLER WO/HEATER(C65),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0804-	●	●	●	●
595	02.510 RELAY; IGNITION 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-1206	●	●
595	02.510 RELAY; IGNITION 4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-1206			●	●
595	02.510 RELAY; IGNITION 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1207-	●
595	02.510 RELAY; IGNITION 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1207-		●
595	02.510 RELAY; IGNITION 4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1207-			●	●
609	02.485 RELAY; CHARGE 4JB1-TC ENG(RDT) 02.510 12V	8-97063-441-2	01	1	0804-	●	●
609	02.485 RELAY; CHARGE 4JJ1-TCS ENG(LFB) H.S.A SYSTEM<6EP> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0710-0803	●	●
609	02.485 RELAY; CHARGE 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) H.S.A SYSTEM<6EP> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	0804-	●	●
610	02.510 RELAY; KEY ON 4JB1-TC ENG(RDT) 09.277 12V 30A	8-97210-972-1	01	1	0804-	●	●
610	02.510 RELAY; KEY ON 4JJ1-TCS ENG(LFB) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0710-0803	●	●
610	02.510 RELAY; KEY ON 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0804-1204	●	●
610	02.510 RELAY; KEY ON 4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0804-1204			●	●
610	02.510 RELAY; KEY ON 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-1206	●	●
610	02.510 RELAY; KEY ON 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-1206	●	●
610	02.510 RELAY; KEY ON 4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-1206			●	●
610	02.510 RELAY; KEY ON 4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1205-1206			●	●
610	02.510 RELAY; KEY ON 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1207-	●	●
610	02.510 RELAY; KEY ON 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1207-	●
610	02.510 RELAY; KEY ON 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1207-		●
610	02.510 RELAY; KEY ON 4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1207-			●	●
610	02.510 RELAY; KEY ON 4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1207-			●	●

30 29 257 29 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
29	16.263 SWITCH; DOOR (A) BLACK	8-98022-211-0	02	1	0710-0710	●
29	16.263 SWITCH; DOOR H.S.A SYSTEM<6EP> EXC. REMOTE CONT DOOR LOCK<6NF> (A) BLACK	8-98022-211-0	02	1	0710-0710		●
29	16.263 SWITCH; DOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOORLOCK<6NF> (A) BLACK	8-98022-211-0	02	1	0710-0710		●
29	16.263 SWITCH; DOOR REMOTE CONT DOOR LOCK<6NF> (A) BLACK	8-98022-211-0	02	1	0710-0710		●
29	16.263 SWITCH; DOOR (A) BLACK	8-98022-211-0	01	1	0710-0803	●	●
29	16.263 SWITCH; DOOR H.S.A SYSTEM<6EP> EXC. REMOTE CONT DOOR LOCK<6NF> (A) BLACK	8-98022-211-0	01	1	0710-0803		●
29	16.263 SWITCH; DOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOORLOCK<6NF> (A) BLACK	8-98022-211-0	01	1	0710-0803		●
29	16.263 SWITCH; DOOR REMOTE CONT DOOR LOCK<6NF> (A) BLACK	8-98022-211-0	01	1	0710-0803		●
29	16.263 SWITCH; DOOR H.S.A SYSTEM<6EP> EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK	8-98022-211-0	01	1	0804-	●	●
29	16.263 SWITCH; DOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOORLOCK<6NF>,TRANSMISSION CONTROL-SMOOTHE R(8GF) (A) BLACK	8-98022-211-0	01	1	0804-	●	●
29	16.263 SWITCH; DOOR REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK	8-98022-211-0	01	1	0804-	●	●
29	16.263 SWITCH; DOOR (A) BLACK	8-98022-211-0	01	1	0804-	●	●
29	16.263 SWITCH; DOOR TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK	8-98022-211-0	01	1	0804-	●
29	16.263 SWITCH; DOOR EXC. ROOM LAMP W/ALL DOORS SW(SDF), H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> (A) BLACK	8-98022-211-0	01	1	0710-0710		●
29	16.263 SWITCH; DOOR (B)FRONT	8-97855-032-3	01	1	0804-			●	●
29	16.263 SWITCH; DOOR (B)FRONT	8-97855-032-3	01	1	0804-			●	●
29	16.263 SWITCH; DOOR (B)REAR	8-98054-195-0	01	1	0804-			●	●
29	16.263 SWITCH; DOOR (B)REAR	8-98054-195-0	01	1	0804-			●	●
30	16.263 SCREW; DOOR SW M5X18	8-98047-201-0	02	1	0710-0803	●
30	16.263 SCREW; DOOR SW H.S.A SYSTEM<6EP> EXC. REMOTE CONT DOOR LOCK<6NF> M5X18	8-98047-201-0	02	1	0710-0803		●
30	16.263 SCREW; DOOR SW ROOM LAMP W/ALL DOORS SW(SDF) EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOORLOCK<6NF> M5X18	8-98047-201-0	02	1	0710-0803		●
30	16.263 SCREW; DOOR SW REMOTE CONT DOOR LOCK<6NF> M5X18	8-98047-201-0	02	1	0710-0803		●
30	16.263 SCREW; DOOR SW H.S.A SYSTEM<6EP> EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18	8-98047-201-0	02	1	0804-	●	●
30	16.263 SCREW; DOOR SW ROOM LAMP W/ALL DOORS SW(SDF) EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOORLOCK<6NF>,TRANSMISSION CONTROL-SMOOTHE R(8GF) M5X18	8-98047-201-0	02	1	0804-	●	●
30	16.263 SCREW; DOOR SW REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18	8-98047-201-0	02	1	0804-	●	●
30	16.263 SCREW; DOOR SW TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18	8-98047-201-0	02	1	0804-	●
30	16.263 SCREW; DOOR SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> M5X18	8-98047-201-0	01	1	0710-0803		●
30	16.263 SCREW; DOOR SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) M5X18	8-98047-201-0	01	1	0804-	●	●
30	16.263 SCREW; DOOR SW M5X16	8-94279-341-0	04	1	0804-			●	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	0710-0803	●
257	16.081 COVER; HOLE,SW (B)	8-98029-914-1	01	1	0710-0803		●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B)	8-98029-914-1	01	1	0804-	●
257	16.081 COVER; HOLE,SW (B)	8-98029-914-1	01	1	0804-		●	●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	02	1	0710-0803	●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	02	1	0804-0906	●	●	●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0907-	●	●	●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0907-	●	●	●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0907-	●	●	●	●
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (C)	8-98025-954-1	01	1	0907-	●	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0907-	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (C)	8-98025-954-1	01	1	0907-	●
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98025-954-1	01	1	0907-	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO T/MSIDE DIRECT PUMP(8KZ) (C)	8-98025-954-1	01	1	0907-	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98025-954-1	01	1	0907-	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0907-		●	●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0907-		●	●	●
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0907-		●
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0907-		●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0907-			●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0907-			●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0907-			●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0907-			●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0710-0803	●	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (C)	8-98025-954-1	01	1	0710-0803	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98025-954-1	01	1	0710-0803	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0710-0803	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (C)	8-98025-954-1	01	1	0710-0803	●
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98025-954-1	01	1	0710-0803	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0710-0803		●
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0710-0803		●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0710-0803		●
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0710-0803		●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0804-0903	●	●	●	●
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98025-954-1	01	1	0804-0903	●	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (C)	8-98025-954-1	01	1	0804-0903	●	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0804-0903	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (C)	8-98025-954-1	01	1	0804-0903	●
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98025-954-1	01	1	0804-0903	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) (C)	8-98025-954-1	01	1	0804-0903	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98025-954-1	01	1	0804-0903	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0804-0903		●	●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0804-0903		●	●	●
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0804-0903		●
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0804-0903		●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0804-0903			●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0804-0903			●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0804-0903			●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0804-0903			●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0904-0906	●	●	●	●
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98025-954-1	01	1	0904-0906	●	●
257	16.081 COVER; HOLE,SW EXC. THROTTLE CONTROL SYSTEM<6XH> (C)	8-98025-954-1	01	1	0904-0906	●	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0904-0906	●
257	16.081 COVER; HOLE,SW EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (C)	8-98025-954-1	01	1	0904-0906	●
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98025-954-1	01	1	0904-0906	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO T/MSIDE DIRECT PUMP(8KZ) (C)	8-98025-954-1	01	1	0904-0906	●
257	16.081 COVER; HOLE,SW TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98025-954-1	01	1	0904-0906	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0904-0906		●	●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0904-0906		●	●	●
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0904-0906		●
257	16.081 COVER; HOLE,SW EXC. H.S.A SYSTEM<6EP> (C)	8-98025-954-1	01	1	0904-0906		●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0904-0906			●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0904-0906			●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0904-0906			●	●
257	16.081 COVER; HOLE,SW (C)	8-98025-954-1	01	1	0904-0906			●	●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> (A)	8-98029-917-0	01	1	0710-0803		●
257	16.081 COVER; HOLE,SW EXC. ROOM LAMP W/ALL DOORS SW(SDF), H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98029-917-0	01	1	0804-	●	●

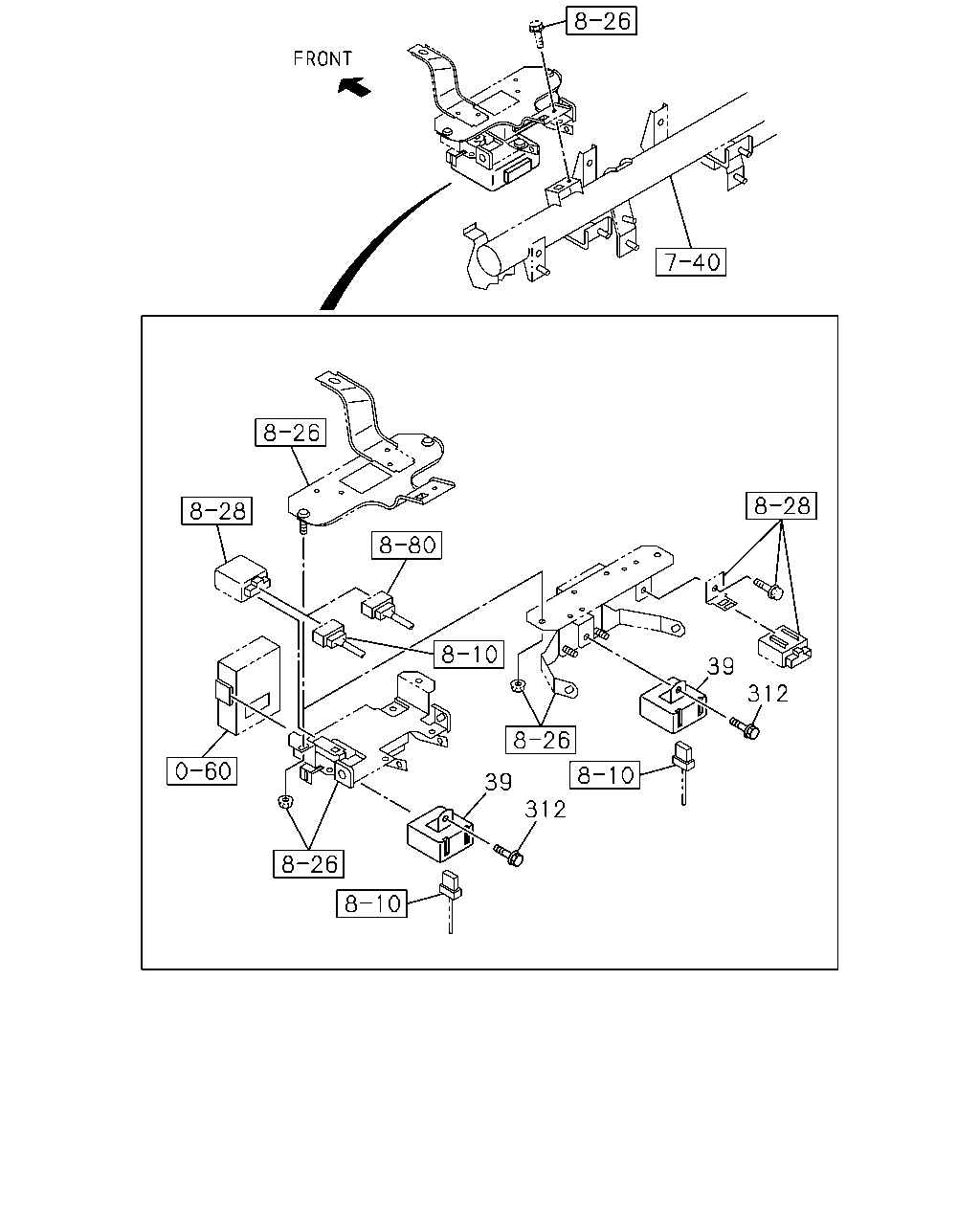

39 39 312 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
39	16.341 RELAY; DOOR LK AUTO DOOR LOCK<AU4> VOLTAGE 12V<TRQ>	8-97359-591-0	01	1	0804-	●	●
39	16.341 RELAY; DOOR LK AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF>	8-98060-789-0	01	1	0710-0803		●
39	16.341 RELAY; DOOR LK AUTO DOOR LOCK<AU4> EXC. VOLTAGE 12V<TRQ>,REMOTE CONT DOOR LOCK<6NF>	8-98060-789-0	01	1	0804-0906	●	●
39	16.341 RELAY; DOOR LK AUTO DOOR LOCK<AU4>	8-98060-789-0	01	1	0804-0906			●	●
39	16.341 RELAY; DOOR LK 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) AUTO DOOR LOCK<AU4> EXC. VOLTAGE 12V<TRQ>,REMOTE CONT DOOR LOCK<6NF>	8-98060-789-0	01	1	0907-	●	●
39	16.341 RELAY; DOOR LK 4JJ1-TCC ENG(RDU) AUTO DOOR LOCK<AU4>	8-98060-789-0	01	1	0907-			●	●
312	02.483 BOLT; RELAY AUTO DOOR LOCK<AU4> VOLTAGE 12V<TRQ> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0804-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
