Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#54291) — 557 parça

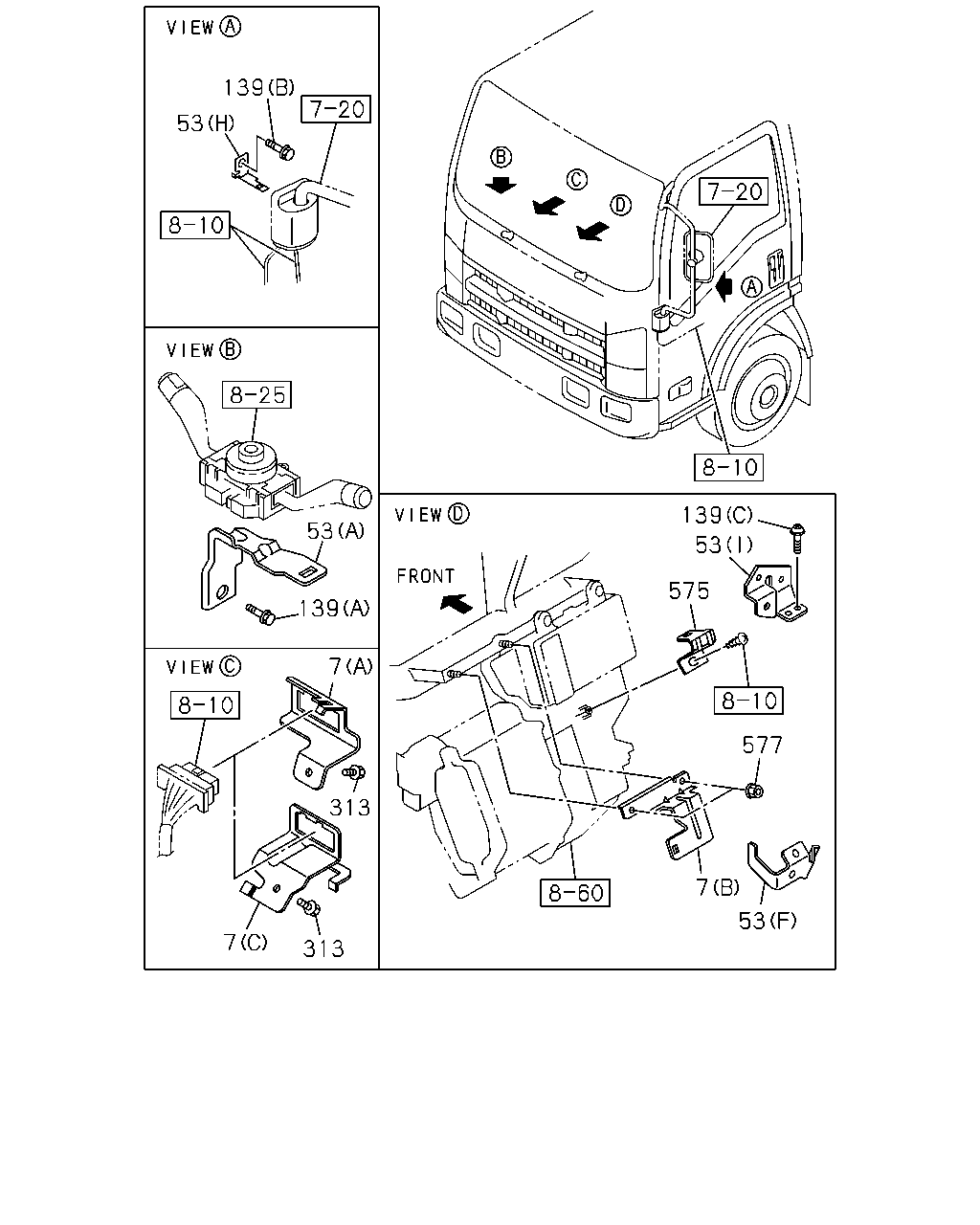

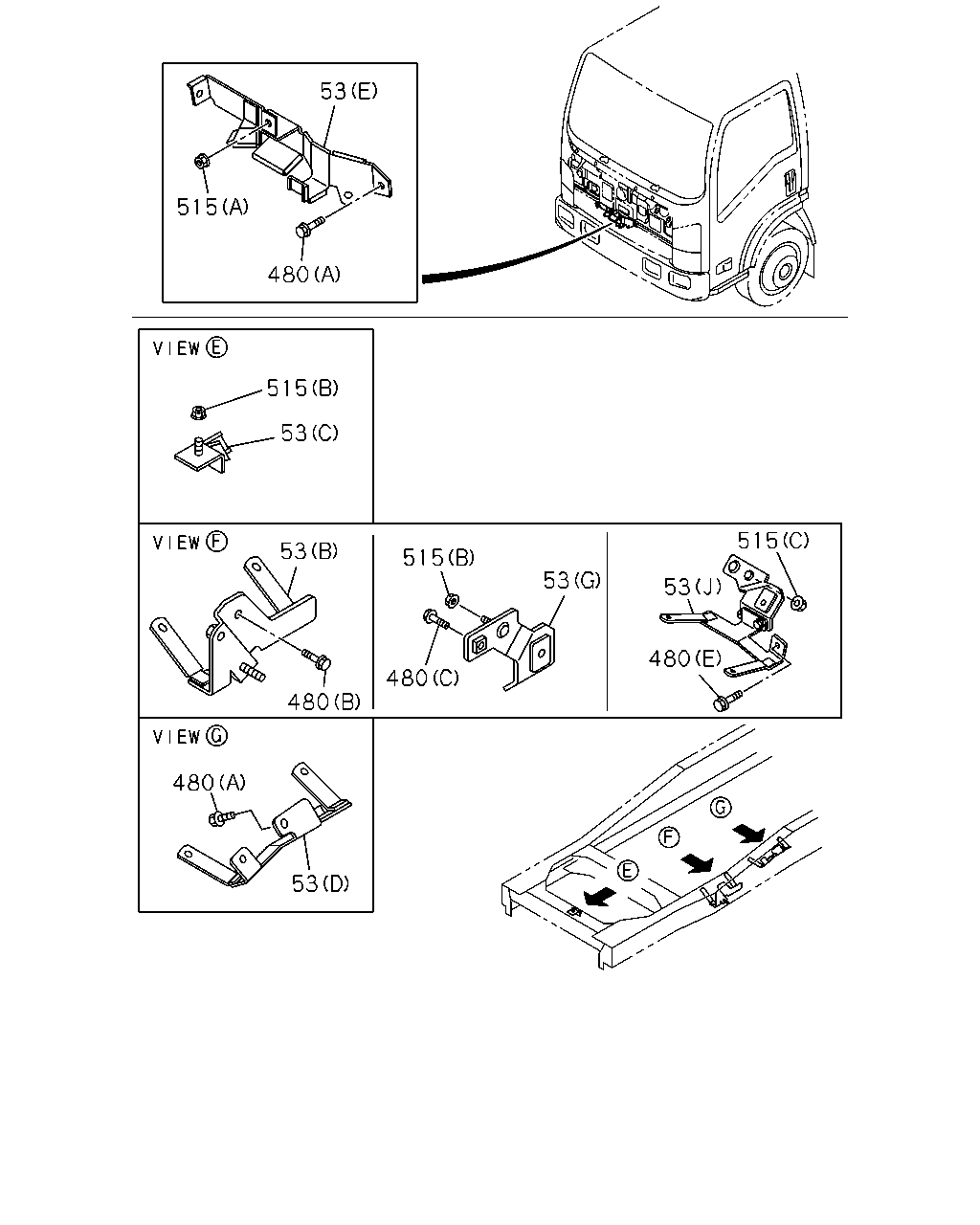

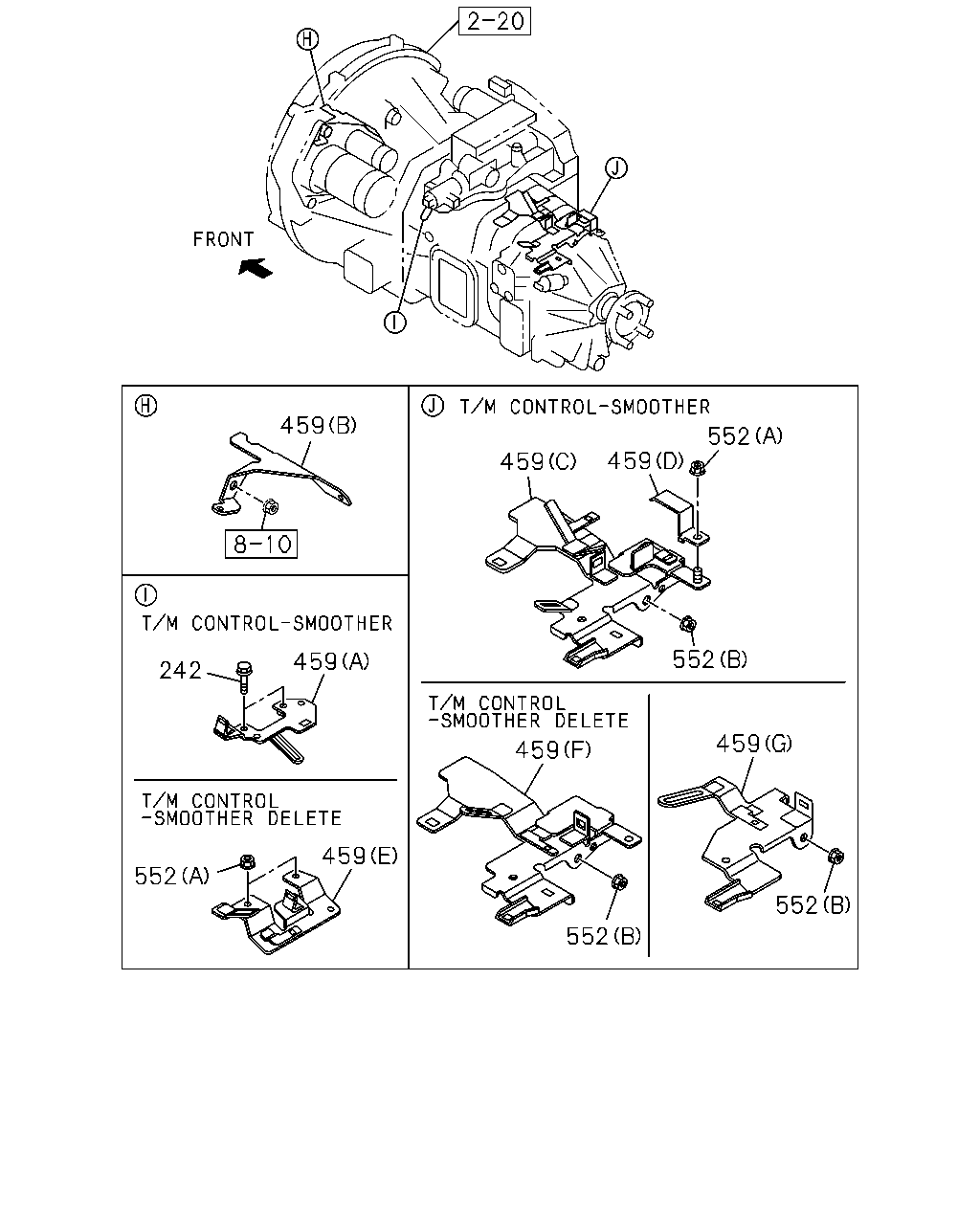

22 16 22 617 483 488 22 22 22 48 48 48 48 16 48 48 22 483 488 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	02.559 CLIP; HARNESS COOLER WO/HEATER(C65) 03.162 (J) L=140	5-09707-031-1	01	1	1401-	●	●	●
16	02.559 CLIP; HARNESS (F) L=40.6	8-97229-357-0	02	1	0710-0803	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	02	1	0804-	●
16	02.559 CLIP; HARNESS EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (F) L=40.6	8-97229-357-0	02	1	0804-	●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	02	1	0804-		●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (F) L=40.6	8-97229-357-0	02	1	0804-			●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0710-0803	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0804-	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0710-0803	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0804-	●	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0710-0803	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> (A) L=155	8-97173-307-0	14	1	0804-	●
16	02.559 CLIP; HARNESS EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) L=155	8-97173-307-0	14	1	0804-	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0804-		●	●	●
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	0710-0803	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	0804-	●
16	02.559 CLIP; HARNESS EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (C)	8-98052-679-0	02	1	0804-	●
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	0804-		●	●	●
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	0710-0803	●	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=20	8-94241-972-0	01	1	0804-	●	●
16	02.559 CLIP; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 02.343 (D) ID=10 & 16	8-94413-325-0	02	1	0710-0710	●	●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 03.483 (G) ID=6 & 10	8-94154-844-0	01	1	0710-0803	●	●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 03.483 (G) ID=6 & 10	8-94154-844-0	01	1	0804-0804	●	●	●	●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 03.483 (G) ID=6 & 10	8-94154-844-0	01	1	0805-	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (F) L=40.6	8-97229-357-0	01	1	0710-0803		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (F) L=40.6	8-97229-357-0	01	1	0804-0904	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (F) L=40.6	8-97229-357-0	01	1	0905-	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (H) L=60	8-94449-165-0	02	1	0804-			●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (I) L=60	8-97063-335-0	02	1	0804-			●	●
22	02.559 CLIP; ENG HARNESS 4JB1-TC ENG(RDT) (H) ID=20	8-94241-972-0	02	1	0804-	●	●
22	02.559 CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 04.866 (I) ID=18 & 18	8-94323-068-0	01	1	0801-0801	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 02.343 (D) L=119.5	1-09707-197-0	01	1	0710-0803	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.343 (D) L=119.5	1-09707-197-0	01	1	0804-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 02.343 (D) L=119.5	1-09707-197-0	01	1	0804-			●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0710-0803	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0710-0803	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	0804-	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) 03.162 (A) L=140	5-09707-031-1	01	1	0804-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0804-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.594 (B) L=100	5-09707-036-1	01	1	0710-0803	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 04.594 (B) L=100	5-09707-036-1	01	1	0804-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.594 (B) L=100	5-09707-036-1	01	1	0804-			●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0710-0803	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0804-	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0710-0803	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0804-	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0710-0803	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0804-	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) (C) ID=34	8-98069-482-0	01	1	0710-0803	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C) ID=34	8-98069-482-0	01	1	0804-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) (C) ID=34	8-98069-482-0	01	1	0804-			●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) EURO4 SPECIFICATION(NT4) (F) T=5.5	8-97371-951-0	02	1	0904-	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2800MM(28W) 01.240 (D) ID=14 L=47	5-09700-319-0	08	1	0904-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB) (E) ID=20	8-94241-972-0	01	1	0803-0803	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (E) ID=20	8-94241-972-0	01	1	0804-0806	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (E) ID=20	8-94241-972-0	01	1	0804-0806	●	●
48	02.559 CLIP; FRAME HARNESS (E) ID=20	8-94241-972-0	01	1	0804-0806			●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (E) ID=20	8-94241-972-0	01	1	0807-	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (E) ID=20	8-94241-972-0	01	1	0807-	●	●
48	02.559 CLIP; FRAME HARNESS (E) ID=20	8-94241-972-0	01	1	0807-			●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	0710-0710	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB) (G) T=4.5 & 9	8-97371-947-0	01	1	0711-0803	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (G) T=4.5 & 9	8-97371-947-0	01	1	0804-	●	●
48	02.559 CLIP; FRAME HARNESS (C) T=9 & 10.5	8-97371-949-0	01	1	0710-0710	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB) (F) T=5.5	8-97371-951-0	01	1	0711-0803	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (F) T=5.5	8-97371-951-0	01	1	0804-0903	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) (F) T=5.5	8-97371-951-0	01	1	0904-	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) 01.240 (D) ID=14 L=47	5-09700-319-0	07	1	0710-0803	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) EXC. SINGLE RR TIRE(6TD) 01.240 (D) ID=14 L=47	5-09700-319-0	07	1	0804-	●		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) 01.240 (D) ID=14 L=47	5-09700-319-0	07	1	0804-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0710-0803	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0804-	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0804-				●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> 09.001 (H) ID=11 H=20 L=25	1-09700-848-0	01	1	0804-	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB) (E) ID=20	8-94241-972-0	01	1	0710-0801	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) 02.525 (A) T=4.5 & 9	5-09709-023-0	01	1	0710-0710	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) 01.240 (B) T=5.5	5-09709-047-0	01	1	0710-0710	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 01.240 (B) T=5.5	5-09709-047-0	03	1	0710-0710	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0804-	●		●
483	02.559 CLIP; ENG HARNESS 4JB1-TC ENG(RDT) (A) ID=11 L=20	0-95235-035-0	01	1	0804-0804	●	●
483	02.559 CLIP; ENG HARNESS 4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) (A) ID=11 L=20	0-95235-035-0	01	1	0804-0809	●	●
483	02.559 CLIP; ENG HARNESS 4JB1-TC ENG(RDT) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) (A) ID=11 L=20	0-95235-035-0	01	1	0810-	●	●
483	02.559 CLIP; ENG HARNESS 4JB1-TC ENG(RDT) 04.342 (B) L=197	1-83574-032-0	01	1	0804-0804	●	●
483	02.559 CLIP; ENG HARNESS 4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) 04.342 (B) L=197	1-83574-032-0	01	1	0804-0809	●	●
483	02.559 CLIP; ENG HARNESS 4JB1-TC ENG(RDT) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 04.342 (B) L=197	1-83574-032-0	01	1	0810-	●	●
488	02.559 CLIP; CABLE,TRAILER (A) L=250	5-09707-030-1	01	1	0710-0803	●	●
488	02.559 CLIP; CABLE,TRAILER (A) L=250	5-09707-030-1	01	1	0804-	●	●	●	●
488	02.559 CLIP; CABLE,TRAILER RR BODY FLAT BED(RS6) 02.587 (B) L=112	8-94232-618-0	05	1	0804-1104	●		●
488	02.559 CLIP; CABLE,TRAILER RR BODY FLAT BED(RS6) 02.587 (B) L=112	8-94232-618-0	04	1	1105-	●		●
617	02.559 STRAP; BAND 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 L=140	5-09707-031-1	01	1	1012-1106	●	●	●	●

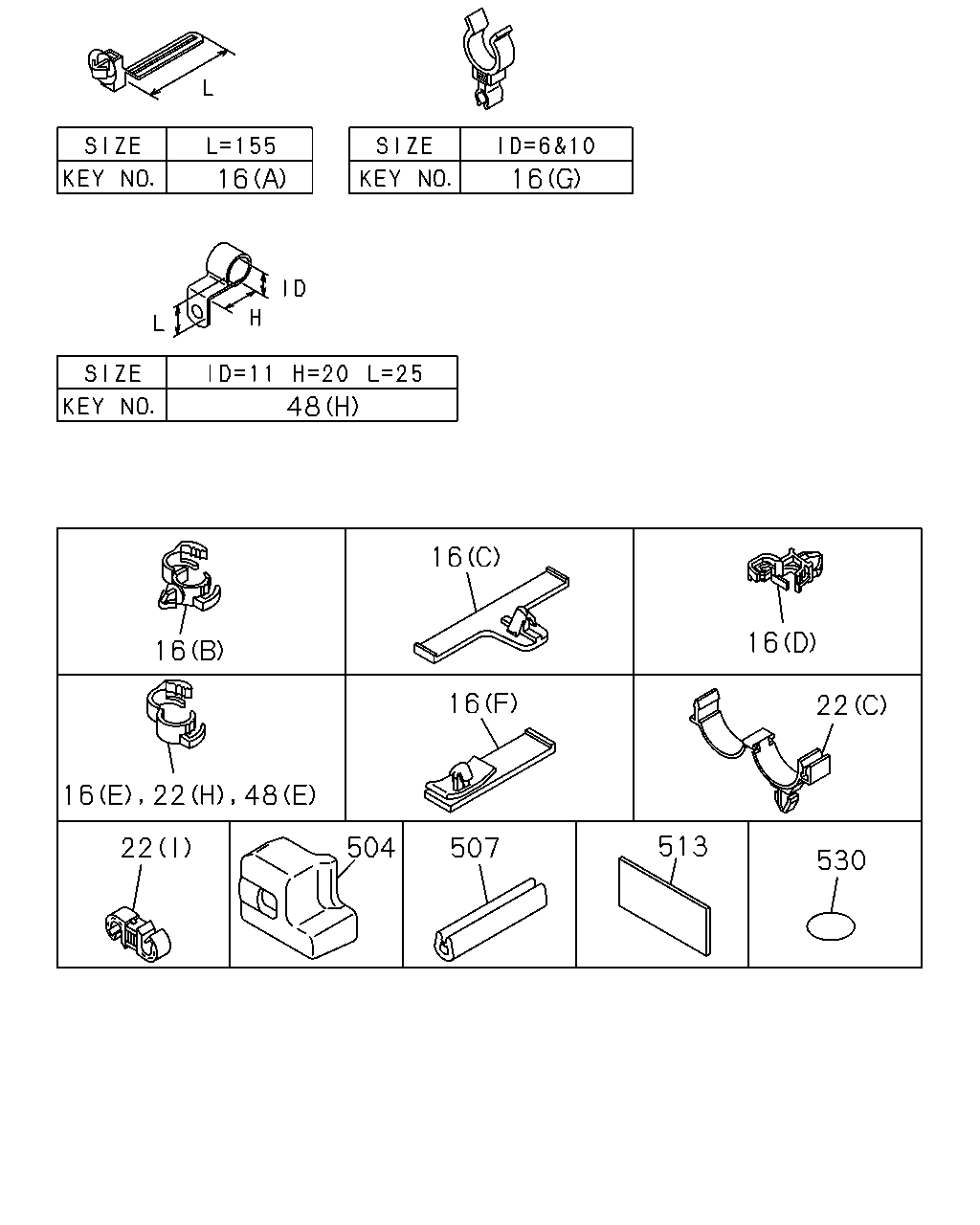

16 16 48 16 16 16 22 16 48 22 16 22 504 507 513 530

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	02.559 CLIP; HARNESS COOLER WO/HEATER(C65) 03.162 (J) L=140	5-09707-031-1	01	1	1401-	●	●	●
16	02.559 CLIP; HARNESS (F) L=40.6	8-97229-357-0	02	1	0710-0803	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	02	1	0804-	●
16	02.559 CLIP; HARNESS EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,CORNERING LAMP<T87>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> (F) L=40.6	8-97229-357-0	02	1	0804-	●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (F) L=40.6	8-97229-357-0	02	1	0804-		●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (F) L=40.6	8-97229-357-0	02	1	0804-			●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0710-0803	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	0804-	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0710-0803	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	0804-	●	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0710-0803	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> (A) L=155	8-97173-307-0	14	1	0804-	●
16	02.559 CLIP; HARNESS EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) L=155	8-97173-307-0	14	1	0804-	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	0804-		●	●	●
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	0710-0803	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	0804-	●
16	02.559 CLIP; HARNESS EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (C)	8-98052-679-0	02	1	0804-	●
16	02.559 CLIP; HARNESS (C)	8-98052-679-0	02	1	0804-		●	●	●
16	02.559 CLIP; HARNESS (E) ID=20	8-94241-972-0	01	1	0710-0803	●	●
16	02.559 CLIP; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=20	8-94241-972-0	01	1	0804-	●	●
16	02.559 CLIP; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 02.343 (D) ID=10 & 16	8-94413-325-0	02	1	0710-0710	●	●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 03.483 (G) ID=6 & 10	8-94154-844-0	01	1	0710-0803	●	●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 03.483 (G) ID=6 & 10	8-94154-844-0	01	1	0804-0804	●	●	●	●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 03.483 (G) ID=6 & 10	8-94154-844-0	01	1	0805-	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (F) L=40.6	8-97229-357-0	01	1	0710-0803		●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (F) L=40.6	8-97229-357-0	01	1	0804-0904	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31>,POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (F) L=40.6	8-97229-357-0	01	1	0905-	●	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (H) L=60	8-94449-165-0	02	1	0804-			●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (I) L=60	8-97063-335-0	02	1	0804-			●	●
22	02.559 CLIP; ENG HARNESS 4JB1-TC ENG(RDT) (H) ID=20	8-94241-972-0	02	1	0804-	●	●
22	02.559 CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 04.866 (I) ID=18 & 18	8-94323-068-0	01	1	0801-0801	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 02.343 (D) L=119.5	1-09707-197-0	01	1	0710-0803	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.343 (D) L=119.5	1-09707-197-0	01	1	0804-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 02.343 (D) L=119.5	1-09707-197-0	01	1	0804-			●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0710-0803	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	0710-0803	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	0804-	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) 03.162 (A) L=140	5-09707-031-1	01	1	0804-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	0804-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.594 (B) L=100	5-09707-036-1	01	1	0710-0803	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 04.594 (B) L=100	5-09707-036-1	01	1	0804-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.594 (B) L=100	5-09707-036-1	01	1	0804-			●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0710-0803	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	0804-	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0710-0803	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	0804-	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0710-0803	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	0804-	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) (C) ID=34	8-98069-482-0	01	1	0710-0803	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) (C) ID=34	8-98069-482-0	01	1	0804-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) (C) ID=34	8-98069-482-0	01	1	0804-			●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2800MM(28W) EURO4 SPECIFICATION(NT4) (F) T=5.5	8-97371-951-0	02	1	0904-	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2800MM(28W) 01.240 (D) ID=14 L=47	5-09700-319-0	08	1	0904-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB) (E) ID=20	8-94241-972-0	01	1	0803-0803	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (E) ID=20	8-94241-972-0	01	1	0804-0806	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> (E) ID=20	8-94241-972-0	01	1	0804-0806	●	●
48	02.559 CLIP; FRAME HARNESS (E) ID=20	8-94241-972-0	01	1	0804-0806			●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (E) ID=20	8-94241-972-0	01	1	0807-	●	●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> (E) ID=20	8-94241-972-0	01	1	0807-	●	●
48	02.559 CLIP; FRAME HARNESS (E) ID=20	8-94241-972-0	01	1	0807-			●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	0710-0710	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB) (G) T=4.5 & 9	8-97371-947-0	01	1	0711-0803	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (G) T=4.5 & 9	8-97371-947-0	01	1	0804-	●	●
48	02.559 CLIP; FRAME HARNESS (C) T=9 & 10.5	8-97371-949-0	01	1	0710-0710	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB) (F) T=5.5	8-97371-951-0	01	1	0711-0803	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (F) T=5.5	8-97371-951-0	01	1	0804-0903	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) (F) T=5.5	8-97371-951-0	01	1	0904-	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) 01.240 (D) ID=14 L=47	5-09700-319-0	07	1	0710-0803	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) EXC. SINGLE RR TIRE(6TD) 01.240 (D) ID=14 L=47	5-09700-319-0	07	1	0804-	●		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) 01.240 (D) ID=14 L=47	5-09700-319-0	07	1	0804-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0710-0803	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0804-	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0804-				●
48	02.559 CLIP; FRAME HARNESS 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8> 09.001 (H) ID=11 H=20 L=25	1-09700-848-0	01	1	0804-	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB) (E) ID=20	8-94241-972-0	01	1	0710-0801	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) 02.525 (A) T=4.5 & 9	5-09709-023-0	01	1	0710-0710	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 2400MM(24W) 01.240 (B) T=5.5	5-09709-047-0	01	1	0710-0710	●	●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 01.240 (B) T=5.5	5-09709-047-0	03	1	0710-0710	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0804-	●		●
504	02.559 PROTECTOR; HARNESS 4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4)	8-98208-886-0	01	1	1201-	●	●
507	02.559 FINISHER 02.183 L=40	8-94212-660-0	01	1	0711-0803	●	●
507	02.559 FINISHER 02.183 L=40	8-94212-660-0	01	1	0804-0902	●	●	●	●
507	02.559 FINISHER 02.183 L=40	8-94212-660-0	01	1	0903-1301			●	●
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	0907-1309	●	●	●	●
513	02.559 TAPE; SOFT,HARNESS EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68) 130X80	8-97304-373-0	01	1	0808-	●	●	●	●
530	02.559 SEAL; HARNESS 16.545 OD=32 BLACK	8-98031-126-0	01	1	0710-0710	●	●

53 515 480 515 53 515 53 515 53 53 480 480 480 480 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
53	02.483 BRACKET; HARNESS (B)	8-98052-900-1	01	1	0710-0710	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98052-900-1	01	1	0710-0710		●
53	02.483 BRACKET; HARNESS (B)	8-98052-900-1	01	1	0711-0711	●	●
53	02.483 BRACKET; HARNESS (B)	8-98052-900-1	01	1	0712-0803	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98052-900-1	01	1	0712-0803		●
53	02.483 BRACKET; HARNESS WHEEL BASE 2400MM(24W) MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (B)	8-98052-900-1	01	1	0804-1309	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98052-900-1	01	1	0804-1309	●
53	02.483 BRACKET; HARNESS INDONESIA EQUIPMENT(B00) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (B)	8-98052-900-1	01	1	0804-1309	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98052-900-1	01	1	0804-1309	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98052-900-1	01	1	0804-1309		●
53	02.483 BRACKET; HARNESS INDONESIA EQUIPMENT(B00) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B)	8-98052-900-1	01	1	0804-1309		●
53	02.483 BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (B)	8-98052-900-1	01	1	1310-	●	●	●
53	02.483 BRACKET; HARNESS WHEEL BASE 2400MM(24W) MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> (B)	8-98052-900-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB> (B)	8-98052-900-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS INDONESIA EQUIPMENT(B00) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> (B)	8-98052-900-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (B)	8-98052-900-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB> (B)	8-98052-900-1	01	1	1310-		●
53	02.483 BRACKET; HARNESS INDONESIA EQUIPMENT(B00) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (B)	8-98052-900-1	01	1	1310-		●
53	02.483 BRACKET; HARNESS (B)	8-98052-900-1	01	1	1310-				●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0710-0803	●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0804-	●	●	●	●
53	02.483 BRACKET; HARNESS (E)	8-98039-984-2	01	1	0710-0803	●	●
53	02.483 BRACKET; HARNESS (E)	8-98039-984-2	01	1	0804-	●	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0710-0803	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0804-	●	●	●	●
53	02.483 BRACKET; HARNESS (D)	8-98033-918-2	01	1	0710-0711	●	●
53	02.483 BRACKET; HARNESS (D)	8-98033-918-2	01	1	0712-0803	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98033-918-2	01	1	0712-0803		●
53	02.483 BRACKET; HARNESS WHEEL BASE 2400MM(24W) MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (D)	8-98033-918-2	01	1	0804-1309	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98033-918-2	01	1	0804-1309	●
53	02.483 BRACKET; HARNESS INDONESIA EQUIPMENT(B00) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (D)	8-98033-918-2	01	1	0804-1309	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98033-918-2	01	1	0804-1309	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98033-918-2	01	1	0804-1309		●
53	02.483 BRACKET; HARNESS INDONESIA EQUIPMENT(B00) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (D)	8-98033-918-2	01	1	0804-1309		●
53	02.483 BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (D)	8-98033-918-2	01	1	1310-	●	●	●
53	02.483 BRACKET; HARNESS WHEEL BASE 2400MM(24W) MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> (D)	8-98033-918-2	01	1	1310-	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB> (D)	8-98033-918-2	01	1	1310-	●
53	02.483 BRACKET; HARNESS INDONESIA EQUIPMENT(B00) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> (D)	8-98033-918-2	01	1	1310-	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (D)	8-98033-918-2	01	1	1310-	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB> (D)	8-98033-918-2	01	1	1310-		●
53	02.483 BRACKET; HARNESS INDONESIA EQUIPMENT(B00) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (D)	8-98033-918-2	01	1	1310-		●
53	02.483 BRACKET; HARNESS (D)	8-98033-918-2	01	1	1310-				●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (I)	8-98084-590-0	01	1	0710-0803	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),FULLAUTO AIR CONDITIONER(C68) (I)	8-98084-590-0	01	1	0804-0810	●	●	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68) (I)	8-98084-590-0	01	1	0811-	●	●	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (H)	8-98039-277-1	02	1	0710-0710	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (H)	8-98039-277-1	02	1	0710-0803	●
53	02.483 BRACKET; HARNESS DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (H)	8-98039-277-1	02	1	0804-0805	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (H)	8-98039-277-2	02	1	0806-	●
53	02.483 BRACKET; HARNESS (F)	8-98074-502-0	01	1	0710-0803		●
53	02.483 BRACKET; HARNESS EXC. VOLTAGE 12V<TRQ>,IMMOBILIZER SYSTEM(7KC) (F)	8-98074-502-0	01	1	0804-	●
53	02.483 BRACKET; HARNESS EXC. VOLTAGE 12V<TRQ> (F)	8-98074-502-0	01	1	0804-		●
53	02.483 BRACKET; HARNESS (F)	8-98074-502-0	01	1	0804-			●	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (J)	8-98107-111-1	01	1	0712-0803		●
53	02.483 BRACKET; HARNESS MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),SINGLE RR TIRE(6TD) (J)	8-98107-111-1	01	1	0804-1309	●	●
53	02.483 BRACKET; HARNESS MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (J)	8-98107-111-1	01	1	0804-1309	●	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRT INDEPENDENT SUSPENSION(FF0) (J)	8-98107-111-1	01	1	0804-1309	●	●
53	02.483 BRACKET; HARNESS (J)	8-98107-111-1	01	1	0804-1309			●	●
53	02.483 BRACKET; HARNESS WHEEL BASE 2400MM(24W) MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),SINGLE RR TIRE(6TD),HEAVY DUTY FRAME<6WB> (J)	8-98107-111-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS WHEEL BASE 3300MM(33W) MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> (J)	8-98107-111-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> (J)	8-98107-111-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (J)	8-98107-111-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB> (J)	8-98107-111-1	01	1	1310-		●
53	02.483 BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB> (J)	8-98107-111-1	01	1	1310-			●
53	02.483 BRACKET; HARNESS 4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (G)	8-98072-739-1	01	1	0710-0710		●
53	02.483 BRACKET; HARNESS WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (G)	8-98072-739-1	01	1	0710-0710		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (G)	8-98072-739-1	01	1	0711-0711		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B)	8-98105-778-0	01	1	0712-0803		●
53	02.483 BRACKET; HARNESS MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),SINGLE RR TIRE(6TD) (B)	8-98105-778-0	01	1	0804-1309	●	●
53	02.483 BRACKET; HARNESS MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (B)	8-98105-778-0	01	1	0804-1309	●	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98105-778-0	01	1	0804-1309	●	●
53	02.483 BRACKET; HARNESS (B)	8-98105-778-0	01	1	0804-1309			●	●
53	02.483 BRACKET; HARNESS WHEEL BASE 2400MM(24W) MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),SINGLE RR TIRE(6TD),HEAVY DUTY FRAME<6WB> (B)	8-98105-778-0	01	1	1310-	●
53	02.483 BRACKET; HARNESS WHEEL BASE 3300MM(33W) MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> (B)	8-98105-778-0	01	1	1310-	●
53	02.483 BRACKET; HARNESS MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> (B)	8-98105-778-0	01	1	1310-	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (B)	8-98105-778-0	01	1	1310-	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB> (B)	8-98105-778-0	01	1	1310-		●
53	02.483 BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB> (B)	8-98105-778-0	01	1	1310-			●
480	02.483 BOLT; BRKT 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0803-0803	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0803-0803		●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0804-0804	●	●	●	●
480	02.483 BOLT; BRKT WHEEL BASE 2400MM(24W) MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0804-0804	●	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0804-0804	●	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0804-0804			●	●
480	02.483 BOLT; BRKT WHEEL BASE 2400MM(24W) MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0804-1309	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0804-1309	●
480	02.483 BOLT; BRKT INDONESIA EQUIPMENT(B00) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0804-1309	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0804-1309	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0804-1309		●
480	02.483 BOLT; BRKT INDONESIA EQUIPMENT(B00) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0804-1309		●
480	02.483 BOLT; BRKT HEAVY DUTY FRAME<6WB> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●	●	●
480	02.483 BOLT; BRKT WHEEL BASE 2400MM(24W) MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●
480	02.483 BOLT; BRKT INDONESIA EQUIPMENT(B00) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1310-		●
480	02.483 BOLT; BRKT INDONESIA EQUIPMENT(B00) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1310-		●
480	02.483 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1310-				●
480	02.483 BOLT; BRKT 06.216 (D) M8X25 FLANGE	0-28650-825-0	02	1	0710-0803	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (D) M8X25 FLANGE	0-28650-825-0	02	1	0804-	●
480	02.483 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-0711	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-0711		●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0710-0803	●	●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0804-	●	●	●	●
480	02.483 BOLT; BRKT 4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 00.029 (C) M10X25 FLANGE	0-28651-025-0	01	1	0710-0710		●
480	02.483 BOLT; BRKT 4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 00.029 (E) M10X30 FLANGE	0-28651-030-0	01	1	0711-0711		●
480	02.483 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 00.029 (E) M10X30 FLANGE	0-28651-030-0	01	1	0712-0712		●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0710-0803	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0804-	●	●	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0710-0803	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0804-	●	●	●	●
515	02.559 NUT; BRKT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0710-0802		●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0801-0803		●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-0804	●	●	●	●
515	02.559 NUT; BRKT WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-0804	●	●
515	02.559 NUT; BRKT MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),SINGLE RR TIRE(6TD) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-1309	●	●
515	02.559 NUT; BRKT MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-1309	●	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRT INDEPENDENT SUSPENSION(FF0) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-1309	●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-1309			●	●
515	02.559 NUT; BRKT WHEEL BASE 2400MM(24W) MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),SINGLE RR TIRE(6TD),HEAVY DUTY FRAME<6WB> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-	●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W) MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-	●
515	02.559 NUT; BRKT MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-		●
515	02.559 NUT; BRKT EXC. HEAVY DUTY FRAME<6WB> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-			●

139 313 480 481 38 139 150 516 480 481 480 242 529 480 480 386 386 377 377 386 377 386 24 515 577 219 294 515 524 552 515 552 519 516 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	02.559 NUT; HARNESS 01.062 M6 FLANGE	0-91180-106-0	01	1	0710-0803	●	●
24	02.559 NUT; HARNESS 01.062 M6 FLANGE	0-91180-106-0	01	1	0804-1409	●	●	●	●
24	02.559 NUT; HARNESS M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0710-0803	●	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0804-	●	●	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0710-0803	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-	●	●	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0710-0803	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0804-0810	●	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0811-1101	●	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-0710	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-0803	●
139	02.559 BOLT; BRKT DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0804-0805	●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0806-	●
150	02.343 BOLT; CLIP 4JB1-TC ENG(RDT) M8X12 FLANGE	0-28050-812-0	01	1	0804-0804	●	●
150	02.343 BOLT; CLIP 4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) M8X12 FLANGE	0-28050-812-0	01	1	0804-0809	●	●
150	02.343 BOLT; CLIP 4JB1-TC ENG(RDT) EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) M8X12 FLANGE	0-28050-812-0	01	1	0810-	●	●
219	02.559 NUT 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-0802	●	●
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-0803	●	●
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	0804-	●	●	●	●
242	02.483 BOLT; BRKT,HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	0710-0803	●
242	02.483 BOLT; BRKT,HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	0804-	●
294	02.559 NUT 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-0803	●	●
294	02.559 NUT 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●	●
294	02.559 NUT 4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-			●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0710-0803	●	●
313	02.559 BOLT; BRKT EXC. VOLTAGE 12V<TRQ> 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0804-	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0804-			●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0710-0803	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	0804-1004	●	●	●	●
377	02.559 BOLT; CAB EARTH 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1005-	●	●	●	●
377	02.559 BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0710-0803	●	●
377	02.559 BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0804-1004	●	●	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1005-	●	●	●	●
386	02.559 BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0710-0803	●	●
386	02.559 BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0804-1004	●	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0710-0803	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0804-1004	●	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (D) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-	●	●	●	●
480	02.483 BOLT; BRKT 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0803-0803	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0803-0803		●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0804-0804	●	●	●	●
480	02.483 BOLT; BRKT WHEEL BASE 2400MM(24W) MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0804-0804	●	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0804-0804	●	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0804-0804			●	●
480	02.483 BOLT; BRKT WHEEL BASE 2400MM(24W) MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0804-1309	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0804-1309	●
480	02.483 BOLT; BRKT INDONESIA EQUIPMENT(B00) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0804-1309	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0804-1309	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0804-1309		●
480	02.483 BOLT; BRKT INDONESIA EQUIPMENT(B00) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0804-1309		●
480	02.483 BOLT; BRKT HEAVY DUTY FRAME<6WB> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●	●	●
480	02.483 BOLT; BRKT WHEEL BASE 2400MM(24W) MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●
480	02.483 BOLT; BRKT INDONESIA EQUIPMENT(B00) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1310-	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1310-		●
480	02.483 BOLT; BRKT INDONESIA EQUIPMENT(B00) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1310-		●
480	02.483 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1310-				●
480	02.483 BOLT; BRKT 06.216 (D) M8X25 FLANGE	0-28650-825-0	02	1	0710-0803	●
480	02.483 BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (D) M8X25 FLANGE	0-28650-825-0	02	1	0804-	●
480	02.483 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-0711	●
480	02.483 BOLT; BRKT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-0711		●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0710-0803	●	●
480	02.483 BOLT; BRKT 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0804-	●	●	●	●
480	02.483 BOLT; BRKT 4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 00.029 (C) M10X25 FLANGE	0-28651-025-0	01	1	0710-0710		●
480	02.483 BOLT; BRKT 4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 00.029 (E) M10X30 FLANGE	0-28651-030-0	01	1	0711-0711		●
480	02.483 BOLT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 00.029 (E) M10X30 FLANGE	0-28651-030-0	01	1	0712-0712		●
481	13.090 BOLT; CABLE HARNESS 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0803	●	●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0804-0903	●	●
481	13.090 BOLT; CABLE HARNESS 04.665 (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	0710-0803	●	●
481	13.090 BOLT; CABLE HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 04.665 (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	0804-	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0710-0803	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0804-	●	●	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0710-0803	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	0804-	●	●	●	●
515	02.559 NUT; BRKT WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0710-0802		●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0801-0803		●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),FRT INDEPENDENT SUSPENSION(FF0) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-0804	●	●	●	●
515	02.559 NUT; BRKT WHEEL BASE 2400MM(24W) INDONESIA EQUIPMENT(B00) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-0804	●	●
515	02.559 NUT; BRKT MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),SINGLE RR TIRE(6TD) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-1309	●	●
515	02.559 NUT; BRKT MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-1309	●	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRT INDEPENDENT SUSPENSION(FF0) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-1309	●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0804-1309			●	●
515	02.559 NUT; BRKT WHEEL BASE 2400MM(24W) MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),SINGLE RR TIRE(6TD),HEAVY DUTY FRAME<6WB> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-	●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W) MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-	●
515	02.559 NUT; BRKT MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-	●
515	02.559 NUT; BRKT EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-		●
515	02.559 NUT; BRKT EXC. HEAVY DUTY FRAME<6WB> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1310-			●
516	02.559 BOLT; HARNESS 4JJ1-TCS ENG(LFB) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0710-0803	●	●
516	02.559 BOLT; HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-1111	●	●	●	●
516	02.559 BOLT; HARNESS 4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1112-	●	●
516	02.559 BOLT; HARNESS 09.650 (B) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0710-0803		●
516	02.559 BOLT; HARNESS EXC. IMMOBILIZER SYSTEM(7KC) 09.650 (B) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0804-	●
516	02.559 BOLT; HARNESS 09.650 (B) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0804-		●	●	●
519	02.559 NUT; EARTH CABLE 4JB1-TC ENG(RDT) 04.439 M12	0-91111-512-0	01	1	0804-	●	●
524	02.559 NUT; HARNESS 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	01	1	0904-	●	●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	0710-0803	●	●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	0804-	●	●	●	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0710-0803	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0710-0803		●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0804-	●	●	●	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0710-0803	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0804-	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0710-0803	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0710-0803	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0710-0803		●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-	●	●	●	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	0710-0710	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0710-0803	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0710-0803	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0804-	●	●	●	●
577	02.559 NUT; FUSE BOX EXC. VOLTAGE 12V<TRQ> 01.062 M6 FLANGE	0-91180-106-0	02	1	0804-	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0804-			●	●

139 53 139 53 53 575 139 7 577 313 7 53 7 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98043-070-1	01	1	0710-0803	●
7	02.559 BRACKET; CONNECTOR (A)	8-98043-070-1	01	1	0710-0803		●
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VOLTAGE 12V<TRQ> (A)	8-98043-070-1	01	1	0804-	●
7	02.559 BRACKET; CONNECTOR EXC. VOLTAGE 12V<TRQ> (A)	8-98043-070-1	01	1	0804-		●
7	02.559 BRACKET; CONNECTOR (A)	8-98043-070-1	01	1	0804-			●	●
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98043-069-1	01	1	0710-0803	●
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VOLTAGE 12V<TRQ> (C)	8-98114-514-0	01	1	0804-	●
7	02.559 BRACKET; CONNECTOR (B)	8-98029-762-4	01	1	0710-0803	●	●
7	02.559 BRACKET; CONNECTOR EXC. VOLTAGE 12V<TRQ> (B)	8-98029-762-4	01	1	0804-	●	●
7	02.559 BRACKET; CONNECTOR (B)	8-98029-762-4	01	1	0804-			●	●
53	02.483 BRACKET; HARNESS (B)	8-98052-900-1	01	1	0710-0710	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98052-900-1	01	1	0710-0710		●
53	02.483 BRACKET; HARNESS (B)	8-98052-900-1	01	1	0711-0711	●	●
53	02.483 BRACKET; HARNESS (B)	8-98052-900-1	01	1	0712-0803	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98052-900-1	01	1	0712-0803		●
53	02.483 BRACKET; HARNESS WHEEL BASE 2400MM(24W) MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (B)	8-98052-900-1	01	1	0804-1309	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98052-900-1	01	1	0804-1309	●
53	02.483 BRACKET; HARNESS INDONESIA EQUIPMENT(B00) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (B)	8-98052-900-1	01	1	0804-1309	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98052-900-1	01	1	0804-1309	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98052-900-1	01	1	0804-1309		●
53	02.483 BRACKET; HARNESS INDONESIA EQUIPMENT(B00) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B)	8-98052-900-1	01	1	0804-1309		●
53	02.483 BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (B)	8-98052-900-1	01	1	1310-	●	●	●
53	02.483 BRACKET; HARNESS WHEEL BASE 2400MM(24W) MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> (B)	8-98052-900-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB> (B)	8-98052-900-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS INDONESIA EQUIPMENT(B00) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> (B)	8-98052-900-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (B)	8-98052-900-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB> (B)	8-98052-900-1	01	1	1310-		●
53	02.483 BRACKET; HARNESS INDONESIA EQUIPMENT(B00) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (B)	8-98052-900-1	01	1	1310-		●
53	02.483 BRACKET; HARNESS (B)	8-98052-900-1	01	1	1310-				●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0710-0803	●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	0804-	●	●	●	●
53	02.483 BRACKET; HARNESS (E)	8-98039-984-2	01	1	0710-0803	●	●
53	02.483 BRACKET; HARNESS (E)	8-98039-984-2	01	1	0804-	●	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0710-0803	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	0804-	●	●	●	●
53	02.483 BRACKET; HARNESS (D)	8-98033-918-2	01	1	0710-0711	●	●
53	02.483 BRACKET; HARNESS (D)	8-98033-918-2	01	1	0712-0803	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98033-918-2	01	1	0712-0803		●
53	02.483 BRACKET; HARNESS WHEEL BASE 2400MM(24W) MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (D)	8-98033-918-2	01	1	0804-1309	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98033-918-2	01	1	0804-1309	●
53	02.483 BRACKET; HARNESS INDONESIA EQUIPMENT(B00) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (D)	8-98033-918-2	01	1	0804-1309	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98033-918-2	01	1	0804-1309	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D)	8-98033-918-2	01	1	0804-1309		●
53	02.483 BRACKET; HARNESS INDONESIA EQUIPMENT(B00) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (D)	8-98033-918-2	01	1	0804-1309		●
53	02.483 BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (D)	8-98033-918-2	01	1	1310-	●	●	●
53	02.483 BRACKET; HARNESS WHEEL BASE 2400MM(24W) MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) SINGLE RR TIRE(6TD) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> (D)	8-98033-918-2	01	1	1310-	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRT INDEPENDENT SUSPENSION(FF0), HEAVY DUTY FRAME<6WB> (D)	8-98033-918-2	01	1	1310-	●
53	02.483 BRACKET; HARNESS INDONESIA EQUIPMENT(B00) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> (D)	8-98033-918-2	01	1	1310-	●
53	02.483 BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (D)	8-98033-918-2	01	1	1310-	●
53	02.483 BRACKET; HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB> (D)	8-98033-918-2	01	1	1310-		●
53	02.483 BRACKET; HARNESS INDONESIA EQUIPMENT(B00) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (D)	8-98033-918-2	01	1	1310-		●
53	02.483 BRACKET; HARNESS (D)	8-98033-918-2	01	1	1310-				●
53	02.483 BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (I)	8-98084-590-0	01	1	0710-0803	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),FULLAUTO AIR CONDITIONER(C68) (I)	8-98084-590-0	01	1	0804-0810	●	●	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68) (I)	8-98084-590-0	01	1	0811-	●	●	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (H)	8-98039-277-1	02	1	0710-0710	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (H)	8-98039-277-1	02	1	0710-0803	●
53	02.483 BRACKET; HARNESS DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (H)	8-98039-277-1	02	1	0804-0805	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (H)	8-98039-277-2	02	1	0806-	●
53	02.483 BRACKET; HARNESS (F)	8-98074-502-0	01	1	0710-0803		●
53	02.483 BRACKET; HARNESS EXC. VOLTAGE 12V<TRQ>,IMMOBILIZER SYSTEM(7KC) (F)	8-98074-502-0	01	1	0804-	●
53	02.483 BRACKET; HARNESS EXC. VOLTAGE 12V<TRQ> (F)	8-98074-502-0	01	1	0804-		●
53	02.483 BRACKET; HARNESS (F)	8-98074-502-0	01	1	0804-			●	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (J)	8-98107-111-1	01	1	0712-0803		●
53	02.483 BRACKET; HARNESS MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),SINGLE RR TIRE(6TD) (J)	8-98107-111-1	01	1	0804-1309	●	●
53	02.483 BRACKET; HARNESS MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (J)	8-98107-111-1	01	1	0804-1309	●	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRT INDEPENDENT SUSPENSION(FF0) (J)	8-98107-111-1	01	1	0804-1309	●	●
53	02.483 BRACKET; HARNESS (J)	8-98107-111-1	01	1	0804-1309			●	●
53	02.483 BRACKET; HARNESS WHEEL BASE 2400MM(24W) MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),SINGLE RR TIRE(6TD),HEAVY DUTY FRAME<6WB> (J)	8-98107-111-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS WHEEL BASE 3300MM(33W) MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> (J)	8-98107-111-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> (J)	8-98107-111-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (J)	8-98107-111-1	01	1	1310-	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB> (J)	8-98107-111-1	01	1	1310-		●
53	02.483 BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB> (J)	8-98107-111-1	01	1	1310-			●
53	02.483 BRACKET; HARNESS 4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (G)	8-98072-739-1	01	1	0710-0710		●
53	02.483 BRACKET; HARNESS WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (G)	8-98072-739-1	01	1	0710-0710		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (G)	8-98072-739-1	01	1	0711-0711		●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> (B)	8-98105-778-0	01	1	0712-0803		●
53	02.483 BRACKET; HARNESS MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),SINGLE RR TIRE(6TD) (B)	8-98105-778-0	01	1	0804-1309	●	●
53	02.483 BRACKET; HARNESS MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0) (B)	8-98105-778-0	01	1	0804-1309	●	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98105-778-0	01	1	0804-1309	●	●
53	02.483 BRACKET; HARNESS (B)	8-98105-778-0	01	1	0804-1309			●	●
53	02.483 BRACKET; HARNESS WHEEL BASE 2400MM(24W) MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),SINGLE RR TIRE(6TD),HEAVY DUTY FRAME<6WB> (B)	8-98105-778-0	01	1	1310-	●
53	02.483 BRACKET; HARNESS WHEEL BASE 3300MM(33W) MALAYSIA EQUIPMENT(B10) G.V.W. 4.0-4.5TON(RPR) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> (B)	8-98105-778-0	01	1	1310-	●
53	02.483 BRACKET; HARNESS MALAYSIA EQUIPMENT(B10) G.V.W. 3.5-4.0TON(RPQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,FRT INDEPENDENT SUSPE NSION(FF0),HEAVY DUTY FRAME<6WB> (B)	8-98105-778-0	01	1	1310-	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),MALAYSIA EQUIPMENT(B10),FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (B)	8-98105-778-0	01	1	1310-	●
53	02.483 BRACKET; HARNESS EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INDONESIA EQUIPMENT(B00),HEAVY DUTY FRAME<6WB> (B)	8-98105-778-0	01	1	1310-		●
53	02.483 BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB> (B)	8-98105-778-0	01	1	1310-			●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0710-0803	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0804-	●	●	●	●
139	02.559 BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0710-0803	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0804-0810	●	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0811-1101	●	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60),COOLER WO/HEATER(C65), FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-0710	●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-0803	●
139	02.559 BOLT; BRKT DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0804-0805	●
139	02.559 BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 02.343 (B) M8X16 FLANGE	0-28050-816-0	02	1	0806-	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0710-0803	●	●
313	02.559 BOLT; BRKT EXC. VOLTAGE 12V<TRQ> 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0804-	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	0804-			●	●
575	02.559 BRACKET; FUSE BOX	8-98042-656-2	01	1	0710-0803	●	●
575	02.559 BRACKET; FUSE BOX	8-98042-656-2	01	1	0804-	●	●	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	0710-0710	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0710-0803	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0710-0803	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0804-	●	●	●	●
577	02.559 NUT; FUSE BOX EXC. VOLTAGE 12V<TRQ> 01.062 M6 FLANGE	0-91180-106-0	02	1	0804-	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	0804-			●	●

459 552 459 459 552 459 242 459 459 459 552 552 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
242	02.483 BOLT; BRKT,HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	0710-0803	●
242	02.483 BOLT; BRKT,HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	0804-	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98020-227-3	01	1	0710-0803	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB) (E)	8-98020-227-3	01	1	0710-0803		●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98020-227-3	01	1	0804-	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98030-990-2	01	1	0710-0803	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB) (F)	8-98030-990-2	01	1	0710-0803		●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98030-990-2	01	1	0804-1109	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98196-974-0	01	1	1110-	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98018-899-1	01	1	0710-0803	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98018-899-1	01	1	0804-	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98030-988-2	01	1	0710-0803	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98030-988-2	01	1	0804-	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98030-991-2	01	1	0710-0803	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98030-991-2	01	1	0804-	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98044-758-2	01	1	0710-0803	●
459	02.483 BRACKET; SUPPORT,HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98044-758-2	01	1	0804-	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0710-0803	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0710-0803		●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0804-	●	●	●	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0710-0803	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0804-	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0710-0803	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0710-0803	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0710-0803		●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-	●	●	●	●
552	02.483 NUT; BRKT,HARNESS 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0804-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
