◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51149 - NLR/NMR 55,85(RHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#54287) — 249 parça
çizim 154869
1 4 20 20 23 420 457 382 5 5 408 420
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.725 LAMP ASM; HEAD 8-97585-165-3 01 1 0710-0710 ● ●
1 02.725 LAMP ASM; HEAD 8-98095-403-0 01 1 0710-0710 ● ●
1 02.725 LAMP ASM; HEAD 8-98098-480-1 01 1 0711-0803 ● ●
1 02.725 LAMP ASM; HEAD
EXC. VOLTAGE 12V<TRQ> 		8-98098-480-1 01 1 0804-1208 ● ●
1 02.725 LAMP ASM; HEAD 8-98098-480-1 01 1 0804-1208 ● ●
1 02.725 LAMP ASM; HEAD
EXC. VOLTAGE 12V<TRQ> 		8-98225-600-0 01 1 1209-1301 ● ●
1 02.725 LAMP ASM; HEAD 8-98225-600-0 01 1 1209-1301 ● ●
1 02.725 LAMP ASM; HEAD
EXC. VOLTAGE 12V<TRQ> 		8-98225-641-0 01 1 1302-1305 ● ●
1 02.725 LAMP ASM; HEAD 8-98225-641-0 01 1 1302-1305 ● ●
1 02.725 LAMP ASM; HEAD
EXC. VOLTAGE 12V<TRQ> 		8-98241-326-0 01 1 1306- ● ●
1 02.725 LAMP ASM; HEAD 8-98241-326-0 01 1 1306- ● ●
1 02.725 LAMP ASM; HEAD 8-97585-164-3 01 1 0710-0710 ● ●
1 02.725 LAMP ASM; HEAD 8-98095-402-0 01 1 0710-0710 ● ●
1 02.725 LAMP ASM; HEAD 8-98098-479-1 01 1 0711-0803 ● ●
1 02.725 LAMP ASM; HEAD
EXC. VOLTAGE 12V<TRQ> 		8-98098-479-1 01 1 0804-1208 ● ●
1 02.725 LAMP ASM; HEAD 8-98098-479-1 01 1 0804-1208 ● ●
1 02.725 LAMP ASM; HEAD
EXC. VOLTAGE 12V<TRQ> 		8-98225-599-0 01 1 1209-1301 ● ●
1 02.725 LAMP ASM; HEAD 8-98225-599-0 01 1 1209-1301 ● ●
1 02.725 LAMP ASM; HEAD
EXC. VOLTAGE 12V<TRQ> 		8-98225-640-0 01 1 1302-1305 ● ●
1 02.725 LAMP ASM; HEAD 8-98225-640-0 01 1 1302-1305 ● ●
1 02.725 LAMP ASM; HEAD
EXC. VOLTAGE 12V<TRQ> 		8-98241-325-0 01 1 1306- ● ●
1 02.725 LAMP ASM; HEAD 8-98241-325-0 01 1 1306- ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 12V<TRQ> 		8-98098-486-1 01 1 0804-1208 ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 12V<TRQ> 		8-98225-594-0 01 1 1209-1301 ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 12V<TRQ> 		8-98225-637-0 01 1 1302-1305 ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 12V<TRQ> 		8-98241-322-0 01 1 1306- ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 12V<TRQ> 		8-98098-485-1 01 1 0804-1208 ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 12V<TRQ> 		8-98225-593-0 01 1 1209-1301 ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 12V<TRQ> 		8-98225-636-0 01 1 1302-1305 ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 12V<TRQ> 		8-98241-321-0 01 1 1306- ● ●
4 02.727 HEADLAMP UNIT 8-98051-401-0 01 1 0710-0803 ● ●
4 02.727 HEADLAMP UNIT 8-98051-401-0 01 1 0804-1301 ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98226-183-0 01 1 1302- ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98051-400-0 01 1 0710-0803 ● ●
4 02.727 HEADLAMP UNIT 8-98051-400-0 01 1 0804-1301 ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98226-182-0 01 1 1302- ● ● ● ●
5 02.727 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 0710-0803 ● ●
5 02.727 BULB; HEADLAMP
EXC. VOLTAGE 12V<TRQ> (B) 24V 5W 		1-82194-042-0 02 1 0804- ● ●
5 02.727 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 0804- ● ●
5 02.727 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 0710-0803 ● ●
5 02.727 BULB; HEADLAMP
EXC. VOLTAGE 12V<TRQ> (A) 24V 75/70W 		1-82194-063-0 02 1 0804- ● ●
5 02.727 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 0804- ● ●
5 02.727 BULB; HEADLAMP
VOLTAGE 12V<TRQ> 08.991 (B) 12V 5W 		8-94124-595-0 02 1 0804- ● ●
5 02.727 BULB; HEADLAMP
VOLTAGE 12V<TRQ> (A) 12V 60/55W 		8-97106-708-0 02 1 0804- ● ●
20 02.736 SCREW; HEADLAMP 8-97378-871-0 06 1 0710-0803 ● ●
20 02.736 SCREW; HEADLAMP 8-97378-871-0 06 1 0804- ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 0710-0803 ● ●
23 02.727 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 0804- ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP 8-98069-364-0 02 1 0710-0803 ● ●
382 02.575 PLUG; SOCKET,HEADLAMP 8-98069-364-0 02 1 0804-1208 ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1209- ● ● ● ●
408 02.727 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 0710-0803 ● ●
408 02.727 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 0804- ● ● ● ●
420 02.737 SPRING; BULB,HEADLAMP
(A) 		8-97378-875-0 02 1 0710-0803 ● ●
420 02.737 SPRING; BULB,HEADLAMP
(A) 		8-97378-875-0 02 1 0804-1301 ● ● ● ●
420 02.737 SPRING; BULB,HEADLAMP
(B) 		8-98218-601-0 02 1 1302- ● ● ● ●
457 16.450 GRIP; HEADLAMP 8-98241-354-0 02 1 1306- ● ● ● ●

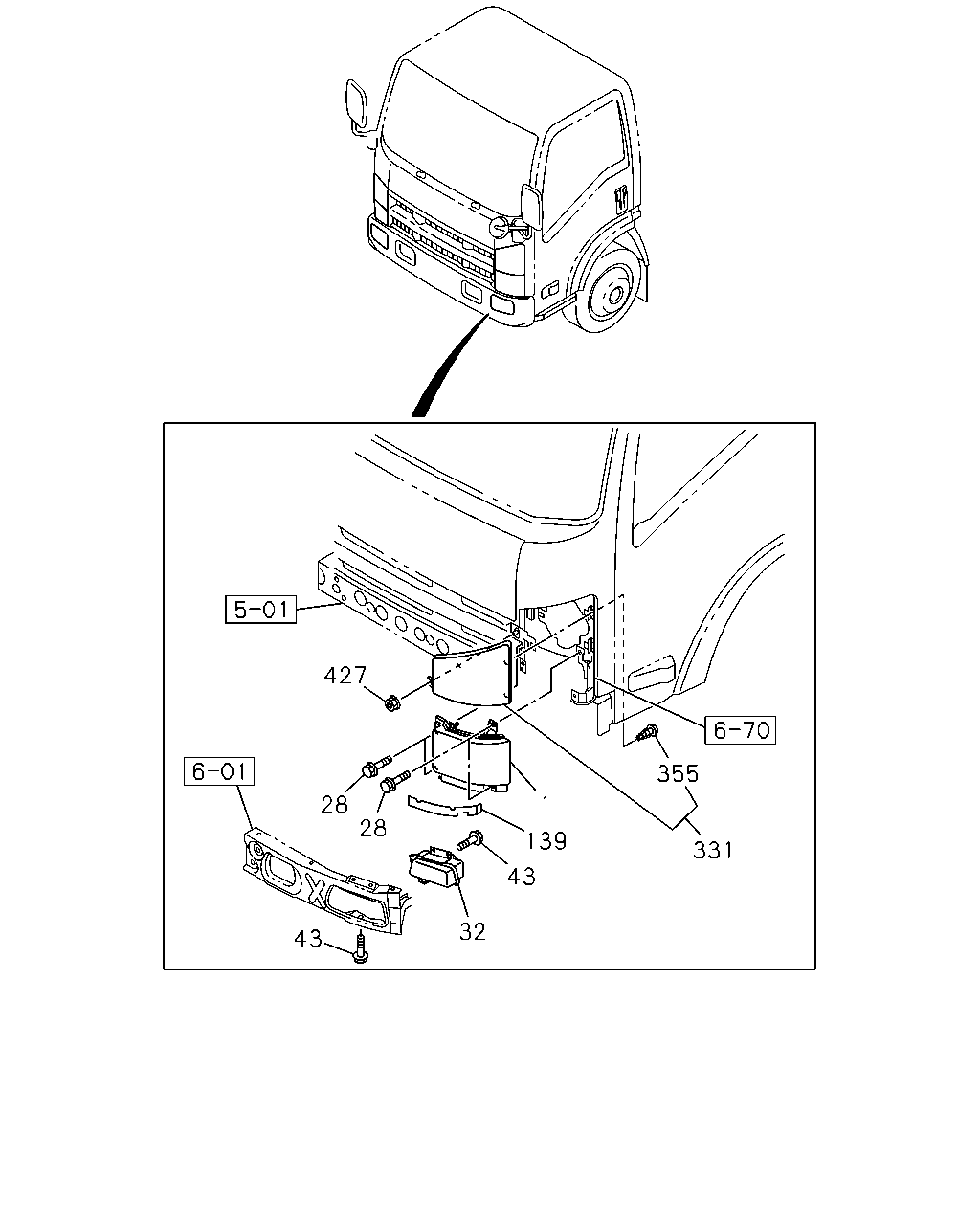

çizim 154881
427 355 1 28 28 139 331 43 32 43
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.725 LAMP ASM; HEAD 8-97585-165-3 01 1 0710-0710 ● ●
1 02.725 LAMP ASM; HEAD 8-98095-403-0 01 1 0710-0710 ● ●
1 02.725 LAMP ASM; HEAD 8-98098-480-1 01 1 0711-0803 ● ●
1 02.725 LAMP ASM; HEAD
EXC. VOLTAGE 12V<TRQ> 		8-98098-480-1 01 1 0804-1208 ● ●
1 02.725 LAMP ASM; HEAD 8-98098-480-1 01 1 0804-1208 ● ●
1 02.725 LAMP ASM; HEAD
EXC. VOLTAGE 12V<TRQ> 		8-98225-600-0 01 1 1209-1301 ● ●
1 02.725 LAMP ASM; HEAD 8-98225-600-0 01 1 1209-1301 ● ●
1 02.725 LAMP ASM; HEAD
EXC. VOLTAGE 12V<TRQ> 		8-98225-641-0 01 1 1302-1305 ● ●
1 02.725 LAMP ASM; HEAD 8-98225-641-0 01 1 1302-1305 ● ●
1 02.725 LAMP ASM; HEAD
EXC. VOLTAGE 12V<TRQ> 		8-98241-326-0 01 1 1306- ● ●
1 02.725 LAMP ASM; HEAD 8-98241-326-0 01 1 1306- ● ●
1 02.725 LAMP ASM; HEAD 8-97585-164-3 01 1 0710-0710 ● ●
1 02.725 LAMP ASM; HEAD 8-98095-402-0 01 1 0710-0710 ● ●
1 02.725 LAMP ASM; HEAD 8-98098-479-1 01 1 0711-0803 ● ●
1 02.725 LAMP ASM; HEAD
EXC. VOLTAGE 12V<TRQ> 		8-98098-479-1 01 1 0804-1208 ● ●
1 02.725 LAMP ASM; HEAD 8-98098-479-1 01 1 0804-1208 ● ●
1 02.725 LAMP ASM; HEAD
EXC. VOLTAGE 12V<TRQ> 		8-98225-599-0 01 1 1209-1301 ● ●
1 02.725 LAMP ASM; HEAD 8-98225-599-0 01 1 1209-1301 ● ●
1 02.725 LAMP ASM; HEAD
EXC. VOLTAGE 12V<TRQ> 		8-98225-640-0 01 1 1302-1305 ● ●
1 02.725 LAMP ASM; HEAD 8-98225-640-0 01 1 1302-1305 ● ●
1 02.725 LAMP ASM; HEAD
EXC. VOLTAGE 12V<TRQ> 		8-98241-325-0 01 1 1306- ● ●
1 02.725 LAMP ASM; HEAD 8-98241-325-0 01 1 1306- ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 12V<TRQ> 		8-98098-486-1 01 1 0804-1208 ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 12V<TRQ> 		8-98225-594-0 01 1 1209-1301 ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 12V<TRQ> 		8-98225-637-0 01 1 1302-1305 ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 12V<TRQ> 		8-98241-322-0 01 1 1306- ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 12V<TRQ> 		8-98098-485-1 01 1 0804-1208 ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 12V<TRQ> 		8-98225-593-0 01 1 1209-1301 ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 12V<TRQ> 		8-98225-636-0 01 1 1302-1305 ● ●
1 02.725 LAMP ASM; HEAD
VOLTAGE 12V<TRQ> 		8-98241-321-0 01 1 1306- ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0710-0803 ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0804-1005 ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1006- ● ● ● ●
32 02.725 LAMP ASM; FOG 8-97378-909-1 01 1 0710-0803 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. VOLTAGE 12V<TRQ> 		8-97378-909-1 01 1 0804-0909 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-909-1 01 1 0804-0909 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. VOLTAGE 12V<TRQ> 		8-98149-144-1 01 1 0910-1301 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-144-1 01 1 0910-1301 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. VOLTAGE 12V<TRQ> 		8-98232-059-1 01 1 1302- ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-059-1 01 1 1302- ● ●
32 02.725 LAMP ASM; FOG 8-97378-908-1 01 1 0710-0803 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. VOLTAGE 12V<TRQ> 		8-97378-908-1 01 1 0804-0909 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-908-1 01 1 0804-0909 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. VOLTAGE 12V<TRQ> 		8-98149-143-1 01 1 0910-1301 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-143-1 01 1 0910-1301 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. VOLTAGE 12V<TRQ> 		8-98232-058-1 01 1 1302- ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-058-1 01 1 1302- ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> VOLTAGE 12V<TRQ> 		8-98003-095-1 01 1 0804-0909 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> VOLTAGE 12V<TRQ> 		8-98149-146-1 01 1 0910-1301 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> VOLTAGE 12V<TRQ> 		8-98232-061-1 01 1 1302- ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> VOLTAGE 12V<TRQ> 		8-98003-094-1 01 1 0804-0909 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> VOLTAGE 12V<TRQ> 		8-98149-145-1 01 1 0910-1301 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> VOLTAGE 12V<TRQ> 		8-98232-060-1 01 1 1302- ● ●
43 02.736 BOLT; FOG LAMP
01.531 M6X20 W/LK&PL WASHER 		0-50640-620-0 06 1 0710-0803 ● ●
43 02.736 BOLT; FOG LAMP
01.531 M6X20 W/LK&PL WASHER 		0-50640-620-0 06 1 0804-0804 ● ● ● ●
43 02.736 BOLT; FOG LAMP
FOG LAMP<T96> 01.531 M6X20 W/LK&PL WASHER 		0-50640-620-0 06 1 0804- ● ● ● ●
139 02.726 COVER; HEADLAMP 8-98034-056-1 02 1 0710-0803 ● ●
139 02.726 COVER; HEADLAMP 8-98034-056-1 02 1 0804- ● ● ● ●
331 02.585 LAMP; TURN SIGNAL 8-97585-173-2 01 1 0710-0803 ● ●
331 02.585 LAMP; TURN SIGNAL
EXC. VOLTAGE 12V<TRQ> 		8-97585-173-2 01 1 0804-0911 ● ●
331 02.585 LAMP; TURN SIGNAL 8-97585-173-2 01 1 0804-0911 ● ●
331 02.585 LAMP; TURN SIGNAL
EXC. VOLTAGE 12V<TRQ> 		8-98155-459-0 01 1 0912- ● ●
331 02.585 LAMP; TURN SIGNAL 8-98155-459-0 01 1 0912- ● ●
331 02.585 LAMP; TURN SIGNAL 8-97585-172-2 01 1 0710-0803 ● ●
331 02.585 LAMP; TURN SIGNAL
EXC. VOLTAGE 12V<TRQ> 		8-97585-172-2 01 1 0804-0911 ● ●
331 02.585 LAMP; TURN SIGNAL 8-97585-172-2 01 1 0804-0911 ● ●
331 02.585 LAMP; TURN SIGNAL
EXC. VOLTAGE 12V<TRQ> 		8-98155-458-0 01 1 0912- ● ●
331 02.585 LAMP; TURN SIGNAL 8-98155-458-0 01 1 0912- ● ●
331 02.585 LAMP; TURN SIGNAL
VOLTAGE 12V<TRQ> 		8-97410-189-2 01 1 0804-0911 ● ●
331 02.585 LAMP; TURN SIGNAL
VOLTAGE 12V<TRQ> 		8-98155-461-0 01 1 0912- ● ●
331 02.585 LAMP; TURN SIGNAL
VOLTAGE 12V<TRQ> 		8-97410-188-2 01 1 0804-0911 ● ●
331 02.585 LAMP; TURN SIGNAL
VOLTAGE 12V<TRQ> 		8-98155-460-0 01 1 0912- ● ●
355 02.726 SCREW; TURN SIGNAL 8-98051-428-0 04 1 0710-0803 ● ●
355 02.726 SCREW; TURN SIGNAL 8-98051-428-0 04 1 0804- ● ● ● ●
427 02.587 NUT; TURN SIGNAL LAMP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0710-0803 ● ●
427 02.587 NUT; TURN SIGNAL LAMP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0804- ● ● ● ●
çizim 154884
331 357 355 399 432 431 32 47 49 36 44 15 421 448
BalonParca AdiParca NoAdetTipApplied Date A B C D
15 08.991 BULB; FOG LAMP
24V 70W 		1-82194-106-0 02 1 0710-0803 ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> EXC. VOLTAGE 12V<TRQ> 24V 70W 		1-82194-106-0 02 1 0804- ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		1-82194-106-0 02 1 0804- ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> VOLTAGE 12V<TRQ> 12V 55W 		8-97093-859-0 02 1 0804- ● ●
32 02.725 LAMP ASM; FOG 8-97378-909-1 01 1 0710-0803 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. VOLTAGE 12V<TRQ> 		8-97378-909-1 01 1 0804-0909 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-909-1 01 1 0804-0909 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. VOLTAGE 12V<TRQ> 		8-98149-144-1 01 1 0910-1301 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-144-1 01 1 0910-1301 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. VOLTAGE 12V<TRQ> 		8-98232-059-1 01 1 1302- ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-059-1 01 1 1302- ● ●
32 02.725 LAMP ASM; FOG 8-97378-908-1 01 1 0710-0803 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. VOLTAGE 12V<TRQ> 		8-97378-908-1 01 1 0804-0909 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-908-1 01 1 0804-0909 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. VOLTAGE 12V<TRQ> 		8-98149-143-1 01 1 0910-1301 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-143-1 01 1 0910-1301 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> EXC. VOLTAGE 12V<TRQ> 		8-98232-058-1 01 1 1302- ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-058-1 01 1 1302- ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> VOLTAGE 12V<TRQ> 		8-98003-095-1 01 1 0804-0909 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> VOLTAGE 12V<TRQ> 		8-98149-146-1 01 1 0910-1301 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> VOLTAGE 12V<TRQ> 		8-98232-061-1 01 1 1302- ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> VOLTAGE 12V<TRQ> 		8-98003-094-1 01 1 0804-0909 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> VOLTAGE 12V<TRQ> 		8-98149-145-1 01 1 0910-1301 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> VOLTAGE 12V<TRQ> 		8-98232-060-1 01 1 1302- ● ●
36 02.727 CORD; FOG LAMP 1-82118-016-0 01 1 0710-0803 ● ●
36 02.727 CORD; FOG LAMP 1-82118-016-0 01 1 0804-0804 ● ● ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-016-0 01 1 0804- ● ● ● ●
36 02.727 CORD; FOG LAMP 1-82118-015-0 01 1 0710-0803 ● ●
36 02.727 CORD; FOG LAMP 1-82118-015-0 01 1 0804-0804 ● ● ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-015-0 01 1 0804- ● ● ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> M6 		8-98217-430-0 02 1 1205- ● ● ● ●
47 02.737 WASHER; PL,FOG LAMP
FOG LAMP<T96> 		8-98217-429-0 02 1 1205- ● ● ● ●
49 02.726 BRACKET; LAMP 8-98051-435-0 01 1 0710-0803 ● ●
49 02.726 BRACKET; LAMP 8-98051-435-0 01 1 0804-0804 ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-435-0 01 1 0804- ● ● ● ●
49 02.726 BRACKET; LAMP 8-98051-436-0 01 1 0710-0803 ● ●
49 02.726 BRACKET; LAMP 8-98051-436-0 01 1 0804-0804 ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-436-0 01 1 0804- ● ● ● ●
331 02.585 LAMP; TURN SIGNAL 8-97585-173-2 01 1 0710-0803 ● ●
331 02.585 LAMP; TURN SIGNAL
EXC. VOLTAGE 12V<TRQ> 		8-97585-173-2 01 1 0804-0911 ● ●
331 02.585 LAMP; TURN SIGNAL 8-97585-173-2 01 1 0804-0911 ● ●
331 02.585 LAMP; TURN SIGNAL
EXC. VOLTAGE 12V<TRQ> 		8-98155-459-0 01 1 0912- ● ●
331 02.585 LAMP; TURN SIGNAL 8-98155-459-0 01 1 0912- ● ●
331 02.585 LAMP; TURN SIGNAL 8-97585-172-2 01 1 0710-0803 ● ●
331 02.585 LAMP; TURN SIGNAL
EXC. VOLTAGE 12V<TRQ> 		8-97585-172-2 01 1 0804-0911 ● ●
331 02.585 LAMP; TURN SIGNAL 8-97585-172-2 01 1 0804-0911 ● ●
331 02.585 LAMP; TURN SIGNAL
EXC. VOLTAGE 12V<TRQ> 		8-98155-458-0 01 1 0912- ● ●
331 02.585 LAMP; TURN SIGNAL 8-98155-458-0 01 1 0912- ● ●
331 02.585 LAMP; TURN SIGNAL
VOLTAGE 12V<TRQ> 		8-97410-189-2 01 1 0804-0911 ● ●
331 02.585 LAMP; TURN SIGNAL
VOLTAGE 12V<TRQ> 		8-98155-461-0 01 1 0912- ● ●
331 02.585 LAMP; TURN SIGNAL
VOLTAGE 12V<TRQ> 		8-97410-188-2 01 1 0804-0911 ● ●
331 02.585 LAMP; TURN SIGNAL
VOLTAGE 12V<TRQ> 		8-98155-460-0 01 1 0912- ● ●
355 02.726 SCREW; TURN SIGNAL 8-98051-428-0 04 1 0710-0803 ● ●
355 02.726 SCREW; TURN SIGNAL 8-98051-428-0 04 1 0804- ● ● ● ●
357 08.991 BULB; TURN SIGNAL
24V 21W AMBER 		8-97323-806-0 02 1 0710-0803 ● ●
357 08.991 BULB; TURN SIGNAL
EXC. VOLTAGE 12V<TRQ> 24V 21W AMBER 		8-97323-806-0 02 1 0804- ● ●
357 08.991 BULB; TURN SIGNAL
24V 21W AMBER 		8-97323-806-0 02 1 0804- ● ●
357 08.991 BULB; TURN SIGNAL
VOLTAGE 12V<TRQ> 12V 21W 		8-97179-967-0 02 1 0804- ● ●
399 02.596 SOCKET; TURN SIGNAL
VOLTAGE 12V<TRQ> 		8-98051-386-0 02 1 0912- ● ●
399 02.596 SOCKET; TURN SIGNAL 8-98051-387-0 02 1 0710-0803 ● ●
399 02.596 SOCKET; TURN SIGNAL 8-98051-387-0 02 1 0804-0911 ● ● ● ●
399 02.596 SOCKET; TURN SIGNAL
EXC. VOLTAGE 12V<TRQ> 		8-98051-387-0 02 1 0912- ● ●
399 02.596 SOCKET; TURN SIGNAL 8-98051-387-0 02 1 0912- ● ●
421 02.593 TUBE; BREATHER,FOG LAMP
02.596 		8-97025-128-0 02 1 0710-0803 ● ●
421 02.593 TUBE; BREATHER,FOG LAMP
02.596 		8-97025-128-0 02 1 0804-0804 ● ● ● ●
421 02.593 TUBE; BREATHER,FOG LAMP
FOG LAMP<T96> 02.596 		8-97025-128-0 02 1 0804-0909 ● ● ● ●
431 02.727 CAP; TURN SIGNAL,LAMP 8-97378-874-0 02 1 0710-0803 ● ●
431 02.727 CAP; TURN SIGNAL,LAMP 8-97378-874-0 02 1 0804- ● ● ● ●
432 02.726 FASTENER; TURN SIGNAL,LAMP 8-98051-431-0 04 1 0710-0803 ● ●
432 02.726 FASTENER; TURN SIGNAL,LAMP 8-98051-431-0 04 1 0804- ● ● ● ●
448 02.727 CAP ASM; LAMP
FOG LAMP<T96> 		8-97378-874-0 02 1 0910- ● ● ● ●

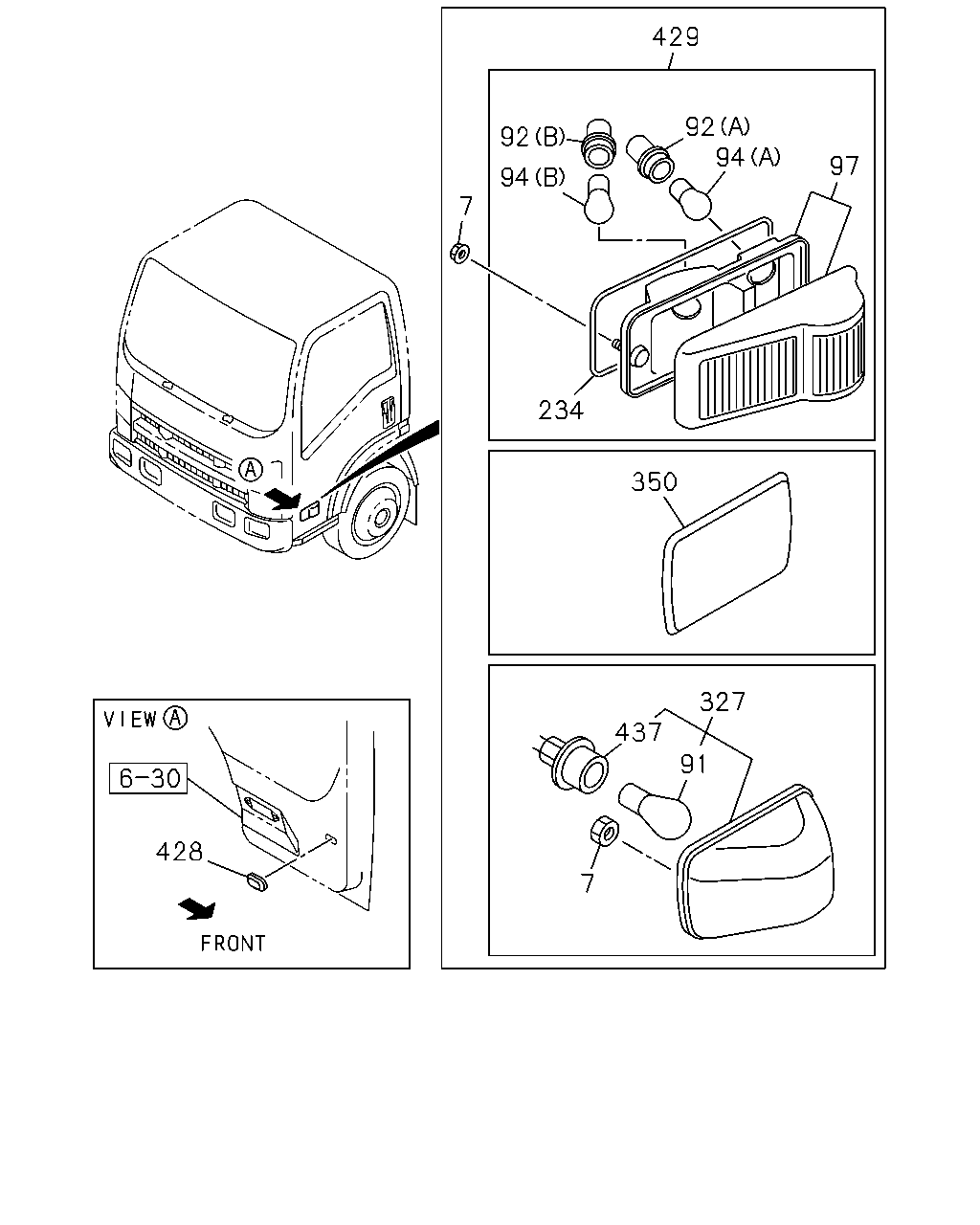

çizim 154891
429 92 94 92 97 94 7 234 350 327 437 91 428 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
7 02.587 NUT; FRT COMB LAMP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0710-0803 ● ●
7 02.587 NUT; FRT COMB LAMP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0804- ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 0710-0803 ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. VOLTAGE 12V<TRQ>,CORNERING LAMP<T87> 24V 21W 		8-98051-495-0 02 1 0804- ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
VOLTAGE 12V<TRQ> EXC. CORNERING LAMP<T87> 12V 21W 		8-97179-967-0 02 1 0804- ● ●
92 02.596 SOCKET ASM; SIDE COMB LAMP
02.575 (B) 		8-97172-959-0 02 1 0710-0803 ●
92 02.596 SOCKET ASM; SIDE COMB LAMP
CORNERING LAMP<T87> EXC. VOLTAGE 12V<TRQ> 02.575 (B) 		8-97172-959-0 02 1 0804- ● ●
92 02.596 SOCKET ASM; SIDE COMB LAMP
CORNERING LAMP<T87> 02.575 (B) 		8-97172-959-0 02 1 0804- ● ●
92 02.596 SOCKET ASM; SIDE COMB LAMP
(A) 		8-98051-390-0 02 1 0710-0803 ●
92 02.596 SOCKET ASM; SIDE COMB LAMP
CORNERING LAMP<T87> EXC. VOLTAGE 12V<TRQ> (A) 		8-98051-390-0 02 1 0804- ● ●
92 02.596 SOCKET ASM; SIDE COMB LAMP
CORNERING LAMP<T87> (A) 		8-98051-390-0 02 1 0804- ● ●
94 08.991 BULB; SIDE COMB LAMP
(A) 24V 21W 		8-98051-495-0 02 1 0710-0803 ●
94 08.991 BULB; SIDE COMB LAMP
CORNERING LAMP<T87> EXC. VOLTAGE 12V<TRQ> (A) 24V 21W 		8-98051-495-0 02 1 0804- ● ●
94 08.991 BULB; SIDE COMB LAMP
CORNERING LAMP<T87> (A) 24V 21W 		8-98051-495-0 02 1 0804- ● ●
94 08.991 BULB; SIDE COMB LAMP
(B) 24V 21W 		8-98051-496-0 02 1 0710-0803 ●
94 08.991 BULB; SIDE COMB LAMP
CORNERING LAMP<T87> EXC. VOLTAGE 12V<TRQ> (B) 24V 21W 		8-98051-496-0 02 1 0804- ● ●
94 08.991 BULB; SIDE COMB LAMP
CORNERING LAMP<T87> (B) 24V 21W 		8-98051-496-0 02 1 0804- ● ●
97 02.895 LAMP UNIT; COMB 8-98051-420-0 01 1 0710-0803 ●
97 02.895 LAMP UNIT; COMB
CORNERING LAMP<T87> EXC. VOLTAGE 12V<TRQ> 		8-98051-420-0 01 1 0804- ● ●
97 02.895 LAMP UNIT; COMB
CORNERING LAMP<T87> 		8-98051-420-0 01 1 0804- ● ●
97 02.895 LAMP UNIT; COMB 8-98051-419-0 01 1 0710-0803 ●
97 02.895 LAMP UNIT; COMB
CORNERING LAMP<T87> EXC. VOLTAGE 12V<TRQ> 		8-98051-419-0 01 1 0804- ● ●
97 02.895 LAMP UNIT; COMB
CORNERING LAMP<T87> 		8-98051-419-0 01 1 0804- ● ●
234 02.590 GASKET; SIDE COMB LAMP 8-98051-432-0 02 1 0710-0803 ●
234 02.590 GASKET; SIDE COMB LAMP
CORNERING LAMP<T87> EXC. VOLTAGE 12V<TRQ> 		8-98051-432-0 02 1 0804- ● ●
234 02.590 GASKET; SIDE COMB LAMP
CORNERING LAMP<T87> 		8-98051-432-0 02 1 0804- ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 0710-0803 ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
EXC. VOLTAGE 12V<TRQ>,CORNERING LAMP<T87> 		8-97410-181-3 01 1 0804- ● ● ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 0710-0803 ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
EXC. VOLTAGE 12V<TRQ>,CORNERING LAMP<T87> 		8-97410-180-4 01 1 0804- ● ● ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
VOLTAGE 12V<TRQ> EXC. CORNERING LAMP<T87> 		8-97410-185-3 01 1 0804- ● ●
327 02.585 LAMP ASM; SIDE TURN SIGNAL
VOLTAGE 12V<TRQ> EXC. CORNERING LAMP<T87> 		8-97410-184-4 01 1 0804- ● ●
350 02.596 COVER; SIDE TURN HOLE 8-98061-390-0 02 1 0710-0803 ●
350 02.596 COVER; SIDE TURN HOLE
AUSTRALIA EQUIPMENT(B13) 		8-98061-390-0 02 1 0804-1509 ●
350 02.596 COVER; SIDE TURN HOLE
AUSTRALIA EQUIPMENT(B13) EXC. CORNERING LAMP<T87> 		8-98061-390-0 02 1 1510- ●
428 02.587 GROMMET; SIDE COMB LAMP
17.447 		8-94430-184-1 02 1 0710-0803 ● ●
428 02.587 GROMMET; SIDE COMB LAMP
17.447 		8-94430-184-1 02 1 0804- ● ● ● ●
429 02.585 LAMP ASM; SIDE COMB 8-98039-777-2 01 1 0710-0803 ●
429 02.585 LAMP ASM; SIDE COMB
CORNERING LAMP<T87> EXC. VOLTAGE 12V<TRQ> 		8-98039-777-2 01 1 0804- ● ●
429 02.585 LAMP ASM; SIDE COMB
CORNERING LAMP<T87> 		8-98039-777-2 01 1 0804- ● ●
429 02.585 LAMP ASM; SIDE COMB 8-98039-776-2 01 1 0710-0803 ●
429 02.585 LAMP ASM; SIDE COMB
CORNERING LAMP<T87> EXC. VOLTAGE 12V<TRQ> 		8-98039-776-2 01 1 0804- ● ●
429 02.585 LAMP ASM; SIDE COMB
CORNERING LAMP<T87> 		8-98039-776-2 01 1 0804- ● ●
437 02.596 SOCKET; SIDE,TURN 8-98051-390-0 02 1 0710-0803 ●
437 02.596 SOCKET; SIDE,TURN
EXC. CORNERING LAMP<T87> 		8-98051-390-0 02 1 0804- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
