◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51149 - NLR/NMR 55,85(RHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#54276) — 96 parça

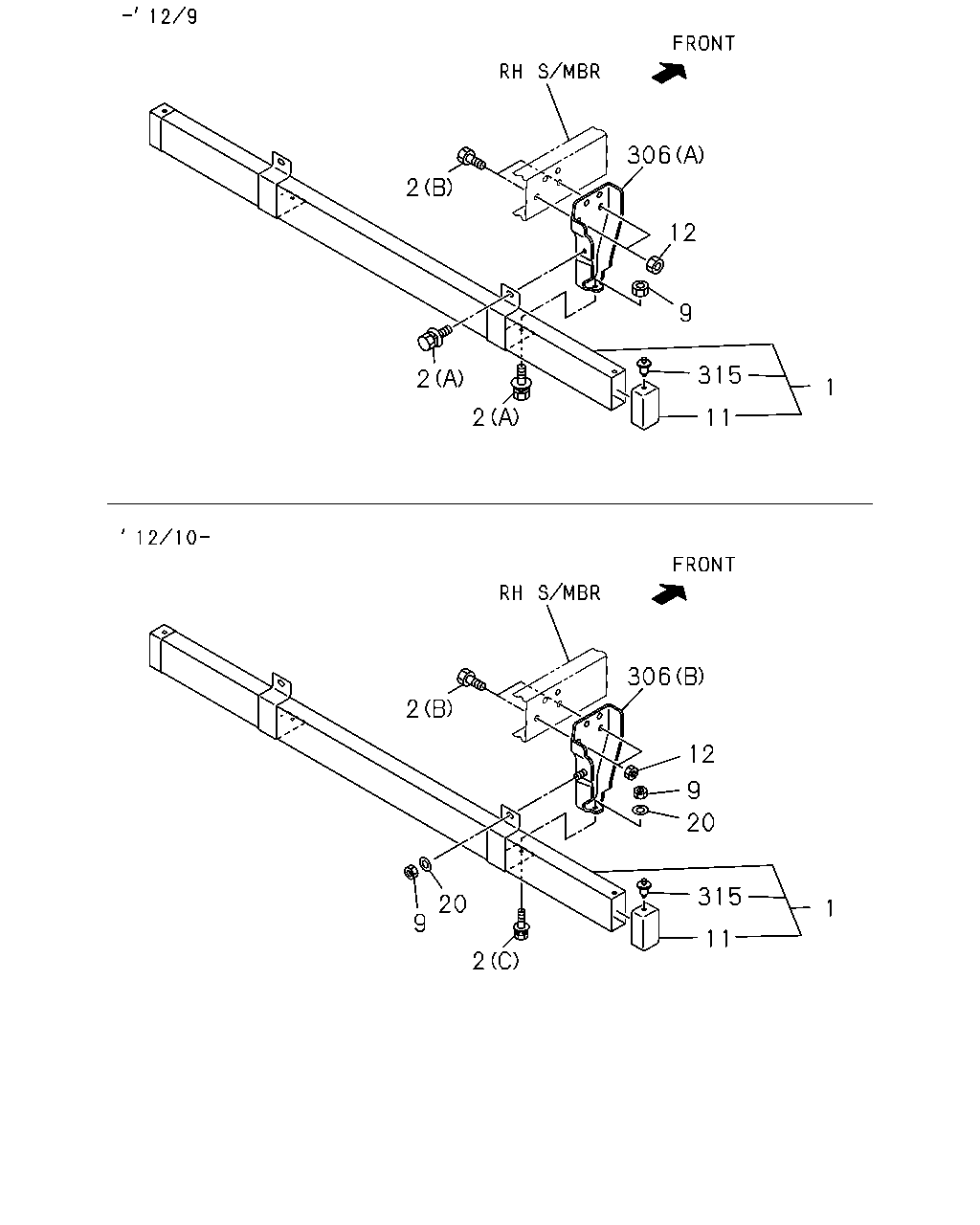

çizim 154850
1 11 315 9 12 306 2 2 2 2 9 20 2 11 315 1 20 9 12 306
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 07.070 BUMPER; RR
WIDE STEEL REAR BUMPER<SMS> REAR WIDE TREAD(V4T) STEEL BUMPER STAMP IJ2H 		8-98000-145-1 01 1 0804- ●
1 07.070 BUMPER; RR
WIDE STEEL REAR BUMPER<SMS> STEEL BUMPER STAMP IJ2H 		8-98000-145-1 01 1 0804- ●
1 07.070 BUMPER; RR
WIDE STEEL REAR BUMPER<SMS> EXC. REAR WIDE TREAD(V4T) STEEL BUMPER STAMP IJ2G 		8-98000-144-1 01 1 0804- ●
2 07.874 BOLT; BACK BAR
WIDE STEEL REAR BUMPER<SMS> (B) M14X30 		0-20851-430-0 08 1 0804-0904 ● ●
2 07.874 BOLT; BACK BAR
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) WIDE STEEL REAR BUMPER<SMS> (B) M14X30 		0-20851-430-0 08 1 0905- ●
2 07.874 BOLT; BACK BAR
WIDE STEEL REAR BUMPER<SMS> (B) M14X30 		0-20851-430-0 08 1 0905- ●
2 07.874 BOLT; BACK BAR
WIDE STEEL REAR BUMPER<SMS> 01.271 (A) M10X30 		8-94324-205-0 04 1 0804-1209 ● ●
2 07.874 BOLT; BACK BAR
WIDE STEEL REAR BUMPER<SMS> 00.029 (C) M10X25 FLANGE 		0-28651-025-0 02 1 1210- ● ●
9 07.070 NUT; BUMPER
WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE 		0-91180-210-0 02 1 0804-1209 ● ●
9 07.070 NUT; BUMPER
WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE 		0-91180-210-0 04 1 1210- ● ●
11 07.829 CAP; RR BUMPER
WIDE STEEL REAR BUMPER<SMS> 		8-97174-008-0 02 1 0804- ● ●
12 07.833 NUT; BRKT
WIDE STEEL REAR BUMPER<SMS> 00.429 M14 FLANGE 		0-91180-214-0 08 1 0804-0904 ● ●
12 07.833 NUT; BRKT
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) WIDE STEEL REAR BUMPER<SMS> 00.429 M14 FLANGE 		0-91180-214-0 08 1 0905- ●
12 07.833 NUT; BRKT
WIDE STEEL REAR BUMPER<SMS> 00.429 M14 FLANGE 		0-91180-214-0 08 1 0905- ●
20 07.070 WASHER; PL,BUMPER
WIDE STEEL REAR BUMPER<SMS> 00.002 ID=10.5 OD=32 		0-91614-810-0 04 1 1210- ● ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> (A) STAMP IA1 		8-98039-406-0 01 1 0804-1209 ● ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> (B) STAMP IA1 		8-98208-979-0 01 1 1210- ● ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> (A) STAMP IA1 		8-98039-407-0 01 1 0804-1209 ● ●
306 07.836 BAR; BACK,RR
WIDE STEEL REAR BUMPER<SMS> (B) STAMP IA1 		8-98208-980-0 01 1 1210- ● ●
315 07.829 RIVET; CAP
WIDE STEEL REAR BUMPER<SMS> 08.155 D8X13.5 		1-09987-248-1 04 1 0804- ● ●
çizim 155022
134 133 134 136 133 136 128 128 114 113 114
BalonParca AdiParca NoAdetTipApplied Date A B C D
113 07.800 BRACKET; LICENSE PLATE
RR BODY FLAT BED(RS6) SMALL DOUBLE RR TIRE(6YE) 		8-97077-571-2 01 1 0804- ●
113 07.800 BRACKET; LICENSE PLATE
RR BODY FLAT BED(RS6) EXC. SMALL DOUBLE RR TIRE(6YE) 		8-97077-573-2 01 1 0804- ●
113 07.800 BRACKET; LICENSE PLATE
RR BODY FLAT BED(RS6) 		8-97077-573-2 01 1 0804- ●
113 07.800 BRACKET; LICENSE PLATE 8-98029-390-3 01 1 0710-0803 ● ●
113 07.800 BRACKET; LICENSE PLATE
EXC. RR BODY FLAT BED(RS6) 		8-98029-390-3 01 1 0804- ● ●
113 07.800 BRACKET; LICENSE PLATE 8-98029-390-3 01 1 0804- ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
00.685 M8X40 FLANGE 		0-28650-840-0 02 1 0710-0803 ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
EXC. RR BODY FLAT BED(RS6) 00.685 M8X40 FLANGE 		0-28650-840-0 02 1 0804- ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
00.685 M8X40 FLANGE 		0-28650-840-0 02 1 0804- ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
RR BODY FLAT BED(RS6) 00.685 M6X25 FLANGE 		0-28650-625-0 02 1 0804- ● ●
128 02.662 NUT; CROSS PLATE
01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-0803 ● ●
128 02.662 NUT; CROSS PLATE
EXC. RR BODY FLAT BED(RS6) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ● ●
128 02.662 NUT; CROSS PLATE
01.062 M8 FLANGE 		0-91180-108-0 02 1 0804- ● ●
133 07.112 HOOK
07.330 (A) 		8-94183-262-0 01 1 0710-0803 ●
133 07.112 HOOK
FULL FLATLOW<6GL> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 07.330 (A) 		8-94183-262-0 01 1 0804-0903 ●
133 07.112 HOOK
SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) EXC. REAR WIDE TREAD(V4T),FULL FLATLOW<6GL> 07.330 (A) 		8-94183-262-0 01 1 0804-0903 ●
133 07.112 HOOK
SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 07.330 (A) 		8-94183-262-0 01 1 0804-0903 ●
133 07.112 HOOK
WHEEL BASE 2400MM(24W) FULL FLATLOW<6GL> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 07.330 (A) 		8-94183-262-0 01 1 0904- ●
133 07.112 HOOK
WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) EXC. REAR WIDE TREAD(V4T),FULL FLATLOW<6GL> 07.330 (A) 		8-94183-262-0 01 1 0904- ●
133 07.112 HOOK
WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 07.330 (A) 		8-94183-262-0 01 1 0904- ●
133 07.112 HOOK
WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T) 07.330 (A) 		8-94183-262-0 01 1 0904- ●
133 07.112 HOOK
07.068 (B) 		8-97387-665-0 01 1 0710-0803 ●
133 07.112 HOOK
REAR WIDE TREAD(V4T) EXC. FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 07.068 (B) 		8-97387-665-0 01 1 0804-0903 ●
133 07.112 HOOK
REAR WIDE TREAD(V4T) 07.068 (B) 		8-97387-665-0 01 1 0804-0903 ●
133 07.112 HOOK
REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 07.068 (B) 		8-97387-665-0 01 1 0804-0903 ●
133 07.112 HOOK
07.068 (B) 		8-97387-665-0 01 1 0804-0903 ●
133 07.112 HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 07.068 (B) 		8-97387-665-0 01 1 0904- ●
133 07.112 HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) 07.068 (B) 		8-97387-665-0 01 1 0904- ●
133 07.112 HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 07.068 (B) 		8-97387-665-0 01 1 0904- ●
133 07.112 HOOK
07.068 (B) 		8-97387-665-0 01 1 0904- ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD),IDENTIFICATION LABEL FOR KD<6UT>,SM ALL DOUBLE RR TIRE(6YE) M14X60 		0-10861-460-0 02 1 1012- ●
134 07.068 BOLT; HOOK
WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SINGLE RR TIRE(6TD), IDENTIFICATIONLABEL FOR KD<6UT>,SMALL DOUBLE RR TIRE(6YE) M14X60 		0-10861-460-0 02 1 1012- ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. IDENTIFICATION LABEL FOR KD<6UT> M14X60 		0-10861-460-0 02 1 1012- ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD), IDENTIFICATIONLABEL FOR KD<6UT> M14X60 		0-10861-460-0 02 1 1012- ●
134 07.068 BOLT; HOOK
EXC. IDENTIFICATION LABEL FOR KD<6UT> M14X60 		0-10861-460-0 02 1 1012- ●
134 07.068 BOLT; HOOK
00.685 M10X45 FLANGE 		0-28051-045-0 02 1 0710-0803 ●
134 07.068 BOLT; HOOK
FULL FLATLOW<6GL> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 00.685 M10X45 FLANGE 		0-28051-045-0 02 1 0804-0903 ●
134 07.068 BOLT; HOOK
EXC. REAR WIDE TREAD(V4T),FULL FLATLOW<6GL> 00.685 M10X45 FLANGE 		0-28051-045-0 02 1 0804-0903 ●
134 07.068 BOLT; HOOK
EXC. REAR WIDE TREAD(V4T) 00.685 M10X45 FLANGE 		0-28051-045-0 02 1 0804-0903 ● ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T),FULL FLATLOW<6GL> 00.685 M10X45 FLANGE 		0-28051-045-0 02 1 0904- ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W) FULL FLATLOW<6GL> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 00.685 M10X45 FLANGE 		0-28051-045-0 02 1 0904- ●
134 07.068 BOLT; HOOK
WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 00.685 M10X45 FLANGE 		0-28051-045-0 02 1 0904- ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T) 00.685 M10X45 FLANGE 		0-28051-045-0 02 1 0904- ● ●
134 07.068 BOLT; HOOK
07.039 M14X50 		0-10856-450-0 02 1 0710-0803 ●
134 07.068 BOLT; HOOK
REAR WIDE TREAD(V4T) EXC. FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 07.039 M14X50 		0-10856-450-0 02 1 0804-0903 ●
134 07.068 BOLT; HOOK
REAR WIDE TREAD(V4T) 07.039 M14X50 		0-10856-450-0 02 1 0804-0903 ●
134 07.068 BOLT; HOOK
REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 07.039 M14X50 		0-10856-450-0 02 1 0804-0903 ●
134 07.068 BOLT; HOOK
07.039 M14X50 		0-10856-450-0 02 1 0804-0903 ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 07.039 M14X50 		0-10856-450-0 02 1 0904-1011 ●
134 07.068 BOLT; HOOK
WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 07.039 M14X50 		0-10856-450-0 02 1 0904-1011 ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) 07.039 M14X50 		0-10856-450-0 02 1 0904-1011 ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 07.039 M14X50 		0-10856-450-0 02 1 0904-1011 ●
134 07.068 BOLT; HOOK
07.039 M14X50 		0-10856-450-0 02 1 0904-1011 ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) IDENTIFICATION LABEL FOR KD<6UT> EXC. FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 07.039 M14X50 		0-10856-450-0 02 1 1012- ●
134 07.068 BOLT; HOOK
WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> IDENTIFICATION LABEL FOR KD<6UT> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 07.039 M14X50 		0-10856-450-0 02 1 1012- ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) IDENTIFICATION LABEL FOR KD<6UT> 07.039 M14X50 		0-10856-450-0 02 1 1012- ●
134 07.068 BOLT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) IDENTIFICATION LABEL FOR KD<6UT> EXC. SINGLE RR TIRE(6TD) 07.039 M14X50 		0-10856-450-0 02 1 1012- ●
134 07.068 BOLT; HOOK
IDENTIFICATION LABEL FOR KD<6UT> 07.039 M14X50 		0-10856-450-0 02 1 1012- ●
136 07.068 NUT; HOOK
00.833 M10 		0-91110-510-0 02 1 0710-0803 ●
136 07.068 NUT; HOOK
FULL FLATLOW<6GL> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 00.833 M10 		0-91110-510-0 02 1 0804-0903 ●
136 07.068 NUT; HOOK
EXC. REAR WIDE TREAD(V4T),FULL FLATLOW<6GL> 00.833 M10 		0-91110-510-0 02 1 0804-0903 ●
136 07.068 NUT; HOOK
EXC. REAR WIDE TREAD(V4T) 00.833 M10 		0-91110-510-0 02 1 0804-0903 ● ●
136 07.068 NUT; HOOK
WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T),FULL FLATLOW<6GL> 00.833 M10 		0-91110-510-0 02 1 0904- ●
136 07.068 NUT; HOOK
WHEEL BASE 2400MM(24W) FULL FLATLOW<6GL> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 00.833 M10 		0-91110-510-0 02 1 0904- ●
136 07.068 NUT; HOOK
WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 00.833 M10 		0-91110-510-0 02 1 0904- ●
136 07.068 NUT; HOOK
WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T) 00.833 M10 		0-91110-510-0 02 1 0904- ● ●
136 07.068 NUT; HOOK
00.429 M14 FLANGE 		0-91180-214-0 02 1 0710-0803 ●
136 07.068 NUT; HOOK
REAR WIDE TREAD(V4T) EXC. FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 00.429 M14 FLANGE 		0-91180-214-0 02 1 0804-0903 ●
136 07.068 NUT; HOOK
REAR WIDE TREAD(V4T) 00.429 M14 FLANGE 		0-91180-214-0 02 1 0804-0903 ●
136 07.068 NUT; HOOK
REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 00.429 M14 FLANGE 		0-91180-214-0 02 1 0804-0903 ●
136 07.068 NUT; HOOK
00.429 M14 FLANGE 		0-91180-214-0 02 1 0804-0903 ●
136 07.068 NUT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 00.429 M14 FLANGE 		0-91180-214-0 02 1 0904- ●
136 07.068 NUT; HOOK
WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) 00.429 M14 FLANGE 		0-91180-214-0 02 1 0904- ●
136 07.068 NUT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) 00.429 M14 FLANGE 		0-91180-214-0 02 1 0904- ●
136 07.068 NUT; HOOK
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 00.429 M14 FLANGE 		0-91180-214-0 02 1 0904- ●
136 07.068 NUT; HOOK
00.429 M14 FLANGE 		0-91180-214-0 02 1 0904- ●
