Sayfa 6-76 - Isuzu EPC

6-76 — FLOOR EQUIPMENT AND SEALING (#54271) — 229 parça

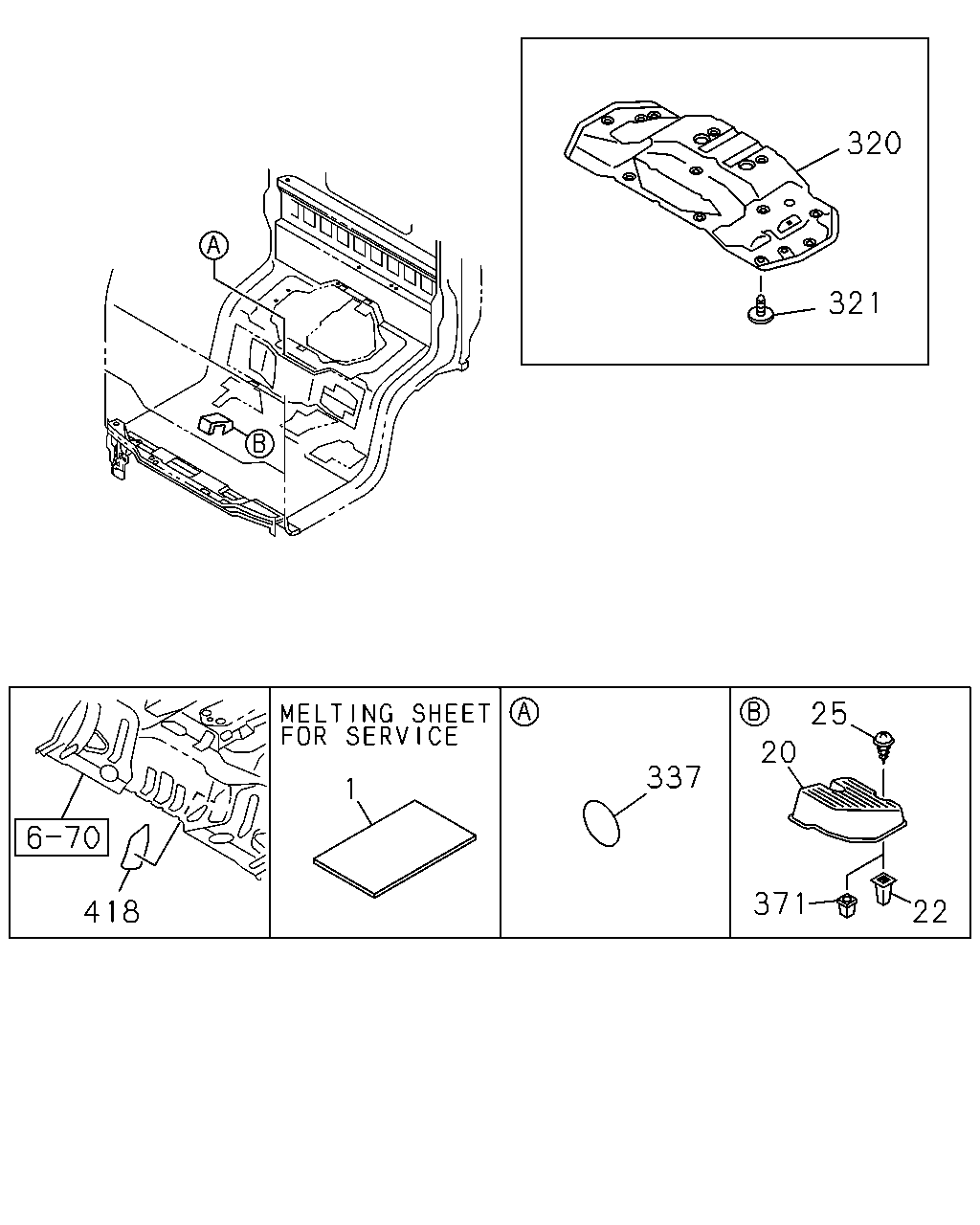

320 321 25 20 337 1 371 22 418

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	16.850 SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS ONLY	8-94262-093-0	AR	1	0710-0803	●	●
1	16.850 SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS ONLY	8-94262-093-0	AR	1	0804-	●	●	●	●
20	16.547 REST; FOOT EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ)	8-98032-754-0	01	1	0710-	●
22	16.547 GROMMET; SCREW,FOOT REST EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) 04.931 H=15	8-94463-268-1	02	1	0710-	●
25	16.549 SCREW; FOOT REST EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ) 16.570 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	02	1	0710-	●
320	16.549 INSULATOR; FLOOR,FRT AUSTRALIA EQUIPMENT(B13) EXC. INSPECTION ENGINE COVER<8GA>	8-98242-224-0	01	1	1401-1408	●
320	16.549 INSULATOR; FLOOR,FRT EXC. INSPECTION ENGINE COVER<8GA>	8-98242-224-0	01	1	1409-	●	●
320	16.549 INSULATOR; FLOOR,FRT	8-97586-162-1	01	1	0710-0801	●
320	16.549 INSULATOR; FLOOR,FRT EXC. INSPECTION ENGINE COVER<8GA>	8-97586-162-1	01	1	0802-1312	●	●
320	16.549 INSULATOR; FLOOR,FRT EXC. AUSTRALIA EQUIPMENT(B13), INSPECTION ENGINE COVER<8GA>	8-97586-162-1	01	1	1401-1408	●
320	16.549 INSULATOR; FLOOR,FRT EXC. INSPECTION ENGINE COVER<8GA>	8-97586-162-1	01	1	1401-1408		●
321	16.549 CLIP; INSULATOR,FLOOR 08.021 ID=6.2 L=11.4	8-97808-623-0	14	1	0710-0801	●
321	16.549 CLIP; INSULATOR,FLOOR EXC. INSPECTION ENGINE COVER<8GA> 08.021 ID=6.2 L=11.4	8-97808-623-0	14	1	0802-	●	●
337	16.545 SEAL; CLIP HOLE EXC. MALAYSIA EQUIPMENT(B10),FUEL TANK 63L<6EF> 16.165 OD=25 BLACK	1-76798-019-0	14	1	0811-			●
337	16.545 SEAL; CLIP HOLE 16.165 OD=25 BLACK	1-76798-019-0	14	1	0811-				●
337	16.545 SEAL; CLIP HOLE OD=32 BLACK	8-98031-126-0	04	1	0710-0801	●
337	16.545 SEAL; CLIP HOLE EXC. INSPECTION ENGINE COVER<8GA> OD=32 BLACK	8-98031-126-0	04	1	0802-	●	●
337	16.545 SEAL; CLIP HOLE OD=32 BLACK	8-98031-126-0	08	1	0710-0801	●
337	16.545 SEAL; CLIP HOLE EXC. INSPECTION ENGINE COVER<8GA> OD=32 BLACK	8-98031-126-0	08	1	0802-	●	●
337	16.545 SEAL; CLIP HOLE 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	03	1	0710-0801		●
337	16.545 SEAL; CLIP HOLE INSPECTION ENGINE COVER<8GA> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	03	1	0802-	●	●
337	16.545 SEAL; CLIP HOLE OD=32 BLACK	8-98031-126-0	01	1	0710-0801		●
337	16.545 SEAL; CLIP HOLE INSPECTION ENGINE COVER<8GA> OD=32 BLACK	8-98031-126-0	01	1	0802-	●	●
337	16.545 SEAL; CLIP HOLE OD=32 BLACK	8-98031-126-0	07	1	0710-0801		●
337	16.545 SEAL; CLIP HOLE INSPECTION ENGINE COVER<8GA> OD=32 BLACK	8-98031-126-0	07	1	0802-0803	●	●
337	16.545 SEAL; CLIP HOLE INSPECTION ENGINE COVER<8GA> OD=32 BLACK	8-98031-126-0	07	1	0804-	●	●
337	16.545 SEAL; CLIP HOLE OD=32 BLACK	8-98031-126-0	07	1	0804-			●	●
337	16.545 SEAL; CLIP HOLE MALAYSIA EQUIPMENT(B10) 16.165 OD=25 BLACK	1-76798-019-0	22	1	0804-			●
337	16.545 SEAL; CLIP HOLE EXC. MALAYSIA EQUIPMENT(B10) 16.165 OD=25 BLACK	1-76798-019-0	14	1	0804-0810			●
337	16.545 SEAL; CLIP HOLE 16.165 OD=25 BLACK	1-76798-019-0	14	1	0804-0810				●
337	16.545 SEAL; CLIP HOLE FUEL TANK 63L<6EF> EXC. MALAYSIA EQUIPMENT(B10) 16.165 OD=25 BLACK	1-76798-019-0	18	1	0811-			●
371	16.549 GROMMET; LOCATION HOLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 16.547 14.5X14.5 BLACK	8-94279-714-0	02	1	0710-0803	●
371	16.549 GROMMET; LOCATION HOLE 16.547 14.5X14.5 BLACK	8-94279-714-0	02	1	0710-0803		●
371	16.549 GROMMET; LOCATION HOLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 16.547 14.5X14.5 BLACK	8-94279-714-0	02	1	0804-	●
371	16.549 GROMMET; LOCATION HOLE 16.547 14.5X14.5 BLACK	8-94279-714-0	02	1	0804-		●	●	●
418	16.549 SEAL; PROTECTOR	8-98090-192-1	01	1	0710-0803	●	●
418	16.549 SEAL; PROTECTOR	8-98090-192-1	01	1	0804-	●	●	●	●
418	16.549 SEAL; PROTECTOR	8-98090-191-1	01	1	0710-0803	●	●
418	16.549 SEAL; PROTECTOR	8-98090-191-1	01	1	0804-	●	●	●	●

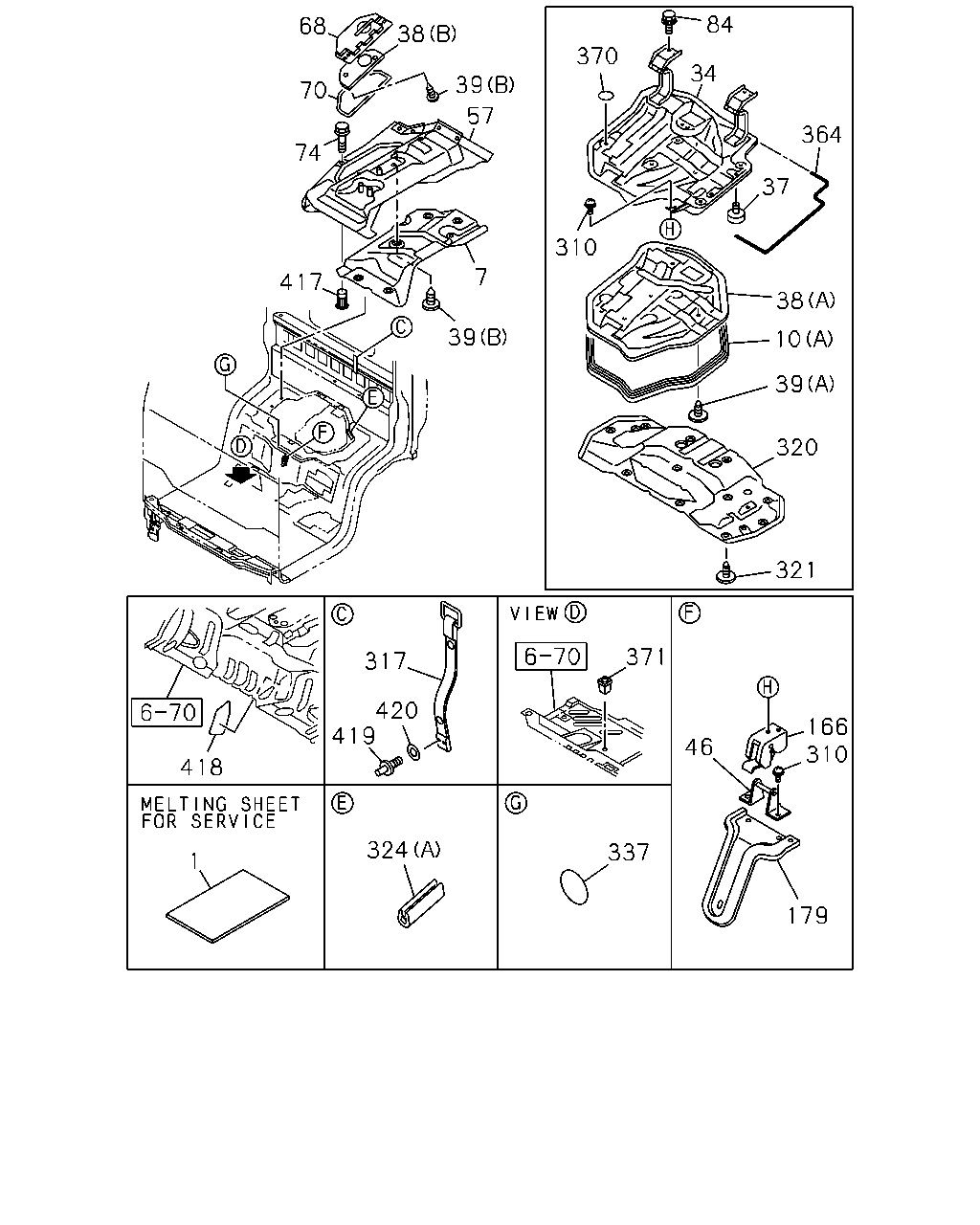

84 68 38 370 34 39 70 57 364 74 37 310 7 417 38 39 10 39 20 321 371 317 420 419 166 310 46 418 324 337 1 179

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	16.850 SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS ONLY	8-94262-093-0	AR	1	0710-0803	●	●
1	16.850 SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS ONLY	8-94262-093-0	AR	1	0804-	●	●	●	●
7	16.545 INSULATOR; SUPPORT COVER	8-97586-174-1	01	1	0710-0801		●
7	16.545 INSULATOR; SUPPORT COVER INSPECTION ENGINE COVER<8GA>	8-97586-174-1	01	1	0802-0803	●	●
7	16.545 INSULATOR; SUPPORT COVER INSPECTION ENGINE COVER<8GA>	8-97586-174-1	01	1	0804-1401	●	●
7	16.545 INSULATOR; SUPPORT COVER	8-97586-174-1	01	1	0804-1401			●	●
7	16.545 INSULATOR; SUPPORT COVER INSPECTION ENGINE COVER<8GA> EXC. AUSTRALIA EQUIPMENT(B13)	8-97586-174-1	01	1	1402-1408	●
7	16.545 INSULATOR; SUPPORT COVER INSPECTION ENGINE COVER<8GA>	8-97586-174-1	01	1	1402-1408		●
7	16.545 INSULATOR; SUPPORT COVER	8-97586-174-1	01	1	1402-1408			●	●
7	16.545 INSULATOR; SUPPORT COVER INSPECTION ENGINE COVER<8GA>	8-98242-227-0	01	1	1409-	●	●
7	16.545 INSULATOR; SUPPORT COVER	8-98242-227-0	01	1	1409-			●	●
10	16.549 SEAL; ENG COVER (A)	8-98029-377-0	01	1	0710-0801		●
10	16.549 SEAL; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98029-377-0	01	1	0802-0803	●	●
10	16.549 SEAL; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98029-377-0	01	1	0804-	●	●
10	16.549 SEAL; ENG COVER (A)	8-98029-377-0	01	1	0804-			●	●
10	16.549 SEAL; ENG COVER (B)	8-98033-268-0	01	1	0804-			●	●
10	16.549 SEAL; ENG COVER (C)	8-98033-269-0	01	1	0804-			●	●
10	16.549 SEAL; ENG COVER (D)	8-98033-270-0	01	1	0804-			●	●
10	16.549 SEAL; ENG COVER (E)	8-98105-285-0	01	1	0804-			●	●
10	16.549 SEAL; ENG COVER (F)	8-98105-300-0	01	1	0804-			●	●
20	16.547 REST; FOOT EXC. TRANSMISSION CONTROL-SMOOTHER DELE TE(8GJ)	8-98032-754-0	01	1	0710-	●
34	16.549 COVER ASM; ENG,CAB FLOOR	8-97589-241-3	01	1	0710-0801		●
34	16.549 COVER ASM; ENG,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97589-241-3	01	1	0802-0803	●	●
34	16.549 COVER ASM; ENG,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97589-241-3	01	1	0804-	●	●
34	16.549 COVER ASM; ENG,CAB FLOOR	8-97589-241-3	01	1	0804-			●	●
37	16.549 RUBBER; BUFFER,ENG COVER 16.155 OD=30 T=10	5-74917-001-2	02	1	0710-0801		●
37	16.549 RUBBER; BUFFER,ENG COVER INSPECTION ENGINE COVER<8GA> 16.155 OD=30 T=10	5-74917-001-2	02	1	0802-0803	●	●
37	16.549 RUBBER; BUFFER,ENG COVER INSPECTION ENGINE COVER<8GA> 16.155 OD=30 T=10	5-74917-001-2	02	1	0804-	●	●
37	16.549 RUBBER; BUFFER,ENG COVER 16.155 OD=30 T=10	5-74917-001-2	02	1	0804-			●	●
38	16.549 INSULATOR; ENG COVER (B)	8-97586-169-2	01	1	0710-0801		●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (B)	8-97586-169-2	01	1	0802-0803	●	●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (B)	8-97586-169-2	01	1	0804-1401	●	●
38	16.549 INSULATOR; ENG COVER (B)	8-97586-169-2	01	1	0804-1401			●	●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> EXC. AUSTRALIA EQUIPMENT(B13) (B)	8-97586-169-2	01	1	1402-1408	●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (B)	8-97586-169-2	01	1	1402-1408		●
38	16.549 INSULATOR; ENG COVER (B)	8-97586-169-2	01	1	1402-1408			●	●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (B)	8-98242-234-0	01	1	1409-	●	●
38	16.549 INSULATOR; ENG COVER (B)	8-98242-234-0	01	1	1409-			●	●
38	16.549 INSULATOR; ENG COVER (A)	8-97586-182-2	01	1	0710-0801		●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-97586-182-2	01	1	0802-0803	●	●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-97586-182-2	01	1	0804-1401	●	●
38	16.549 INSULATOR; ENG COVER (A)	8-97586-182-2	01	1	0804-1401			●	●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> EXC. AUSTRALIA EQUIPMENT(B13) (A)	8-97586-182-2	01	1	1402-1408	●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-97586-182-2	01	1	1402-1408		●
38	16.549 INSULATOR; ENG COVER (A)	8-97586-182-2	01	1	1402-1408			●	●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98242-226-0	01	1	1409-	●	●
38	16.549 INSULATOR; ENG COVER (A)	8-98242-226-0	01	1	1409-			●	●
39	16.549 CLIP; INSULATOR,COVER (B) OD=30	8-94279-952-0	07	1	0710-0801		●
39	16.549 CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> (B) OD=30	8-94279-952-0	07	1	0802-0803	●	●
39	16.549 CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> (B) OD=30	8-94279-952-0	07	1	0804-1401	●	●
39	16.549 CLIP; INSULATOR,COVER (B) OD=30	8-94279-952-0	07	1	0804-1401			●	●
39	16.549 CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> EXC. AUSTRALIA EQUIPMENT(B13) (B) OD=30	8-94279-952-0	07	1	1402-1408	●
39	16.549 CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> (B) OD=30	8-94279-952-0	07	1	1402-1408		●
39	16.549 CLIP; INSULATOR,COVER (B) OD=30	8-94279-952-0	07	1	1402-1408			●	●
39	16.549 CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> (B) OD=30	8-94279-952-0	07	1	1409-	●	●
39	16.549 CLIP; INSULATOR,COVER (B) OD=30	8-94279-952-0	07	1	1409-			●	●
39	16.549 CLIP; INSULATOR,COVER 08.021 (A) ID=6.2 L=11.4	8-97808-623-0	05	1	0710-0801		●
39	16.549 CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> 08.021 (A) ID=6.2 L=11.4	8-97808-623-0	05	1	0802-0803	●	●
39	16.549 CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> 08.021 (A) ID=6.2 L=11.4	8-97808-623-0	05	1	0804-1401	●	●
39	16.549 CLIP; INSULATOR,COVER 08.021 (A) ID=6.2 L=11.4	8-97808-623-0	05	1	0804-1401			●	●
39	16.549 CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> EXC. AUSTRALIA EQUIPMENT(B13) 08.021 (A) ID=6.2 L=11.4	8-97808-623-0	05	1	1402-1408	●
39	16.549 CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> 08.021 (A) ID=6.2 L=11.4	8-97808-623-0	05	1	1402-1408		●
39	16.549 CLIP; INSULATOR,COVER 08.021 (A) ID=6.2 L=11.4	8-97808-623-0	05	1	1402-1408			●	●
39	16.549 CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> 08.021 (A) ID=6.2 L=11.4	8-97808-623-0	05	1	1409-	●	●
39	16.549 CLIP; INSULATOR,COVER 08.021 (A) ID=6.2 L=11.4	8-97808-623-0	05	1	1409-			●	●
46	16.549 HOOK ASM; ENG COVER	8-98040-145-0	02	1	0710-0801		●
46	16.549 HOOK ASM; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-145-0	02	1	0802-0803	●	●
46	16.549 HOOK ASM; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-145-0	02	1	0804-	●	●
46	16.549 HOOK ASM; ENG COVER	8-98040-145-0	02	1	0804-			●	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR	8-97589-291-5	01	1	0710-0801		●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97589-291-5	01	1	0802-0803	●	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97589-291-5	01	1	0804-	●	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR	8-97589-291-5	01	1	0804-			●	●
68	16.549 COVER ASM; SUB,ENG COVER	8-98040-141-0	01	1	0710-0801		●
68	16.549 COVER ASM; SUB,ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-141-0	01	1	0802-0803	●	●
68	16.549 COVER ASM; SUB,ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-141-0	01	1	0804-	●	●
68	16.549 COVER ASM; SUB,ENG COVER	8-98040-141-0	01	1	0804-			●	●
70	16.549 SEAL; ENG SUB COVER,CAB FLOOR	8-97853-050-1	01	1	0710-0801		●
70	16.549 SEAL; ENG SUB COVER,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97853-050-1	01	1	0802-0803	●	●
70	16.549 SEAL; ENG SUB COVER,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97853-050-1	01	1	0804-	●	●
70	16.549 SEAL; ENG SUB COVER,CAB FLOOR	8-97853-050-1	01	1	0804-			●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 01.531 M8X20 FLANGE	0-28650-820-0	09	1	0710-0801		●
74	16.549 BOLT; SUPPORT COVER TO FLOOR INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE	0-28650-820-0	09	1	0802-0803	●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE	0-28650-820-0	09	1	0804-	●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 01.531 M8X20 FLANGE	0-28650-820-0	09	1	0804-			●	●
84	16.549 BOLT; ENG COVER HINGE 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0710-0801		●
84	16.549 BOLT; ENG COVER HINGE INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0802-	●	●
84	16.549 BOLT; ENG COVER HINGE 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0804-			●	●
166	16.549 LOCK; ENG COVER	8-98040-152-0	02	1	0710-0801		●
166	16.549 LOCK; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-152-0	02	1	0802-0803	●	●
166	16.549 LOCK; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-152-0	02	1	0804-	●	●
166	16.549 LOCK; ENG COVER	8-98040-152-0	02	1	0804-			●	●
179	16.549 REINFORCEMENT; COVER	8-98048-301-1	01	1	0710-0801		●
179	16.549 REINFORCEMENT; COVER INSPECTION ENGINE COVER<8GA>	8-98048-301-1	01	1	0802-0803	●	●
179	16.549 REINFORCEMENT; COVER INSPECTION ENGINE COVER<8GA>	8-98048-301-1	01	1	0804-	●	●
179	16.549 REINFORCEMENT; COVER	8-98048-301-1	01	1	0804-			●	●
310	16.549 SCREW; ENG COVER HOOK INSPECTION ENGINE COVER<8GA> 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0811-	●	●
310	16.549 SCREW; ENG COVER HOOK 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0811-			●	●
310	16.549 SCREW; ENG COVER HOOK 16.570 M6X16	0-38050-616-0	09	1	0710-0801		●
310	16.549 SCREW; ENG COVER HOOK INSPECTION ENGINE COVER<8GA> 16.570 M6X16	0-38050-616-0	09	1	0802-0803	●	●
310	16.549 SCREW; ENG COVER HOOK INSPECTION ENGINE COVER<8GA> 16.570 M6X16	0-38050-616-0	09	1	0804-0810	●	●
310	16.549 SCREW; ENG COVER HOOK 16.570 M6X16	0-38050-616-0	09	1	0804-0810			●	●
310	16.549 SCREW; ENG COVER HOOK INSPECTION ENGINE COVER<8GA> 16.570 M6X16	0-38050-616-0	05	1	0811-	●	●
310	16.549 SCREW; ENG COVER HOOK 16.570 M6X16	0-38050-616-0	05	1	0811-			●	●
317	16.549 BAND; ENGINE COVER	8-97585-575-0	01	1	0710-0801		●
317	16.549 BAND; ENGINE COVER INSPECTION ENGINE COVER<8GA>	8-97585-575-0	01	1	0802-0803	●	●
317	16.549 BAND; ENGINE COVER INSPECTION ENGINE COVER<8GA>	8-97585-575-0	01	1	0804-	●	●
317	16.549 BAND; ENGINE COVER	8-97585-575-0	01	1	0804-			●	●
321	16.549 CLIP; INSULATOR,FLOOR 08.021 ID=6.2 L=11.4	8-97808-623-0	14	1	0710-0801	●
321	16.549 CLIP; INSULATOR,FLOOR EXC. INSPECTION ENGINE COVER<8GA> 08.021 ID=6.2 L=11.4	8-97808-623-0	14	1	0802-	●	●
324	16.545 FINISHER; FLOOR PANEL (A) L=140	8-97892-742-0	01	1	0710-0801		●
324	16.545 FINISHER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A) L=140	8-97892-742-0	01	1	0802-0803	●	●
324	16.545 FINISHER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A) L=140	8-97892-742-0	01	1	0804-	●	●
324	16.545 FINISHER; FLOOR PANEL (A) L=140	8-97892-742-0	01	1	0804-			●	●
324	16.545 FINISHER; FLOOR PANEL 16.742 (B) L=120	1-73948-004-0	02	1	0804-			●	●
324	16.545 FINISHER; FLOOR PANEL 03.417 (B) L=314	8-94262-845-0	02	1	0804-			●	●
337	16.545 SEAL; CLIP HOLE EXC. MALAYSIA EQUIPMENT(B10),FUEL TANK 63L<6EF> 16.165 OD=25 BLACK	1-76798-019-0	14	1	0811-			●
337	16.545 SEAL; CLIP HOLE 16.165 OD=25 BLACK	1-76798-019-0	14	1	0811-				●
337	16.545 SEAL; CLIP HOLE OD=32 BLACK	8-98031-126-0	04	1	0710-0801	●
337	16.545 SEAL; CLIP HOLE EXC. INSPECTION ENGINE COVER<8GA> OD=32 BLACK	8-98031-126-0	04	1	0802-	●	●
337	16.545 SEAL; CLIP HOLE OD=32 BLACK	8-98031-126-0	08	1	0710-0801	●
337	16.545 SEAL; CLIP HOLE EXC. INSPECTION ENGINE COVER<8GA> OD=32 BLACK	8-98031-126-0	08	1	0802-	●	●
337	16.545 SEAL; CLIP HOLE 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	03	1	0710-0801		●
337	16.545 SEAL; CLIP HOLE INSPECTION ENGINE COVER<8GA> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	03	1	0802-	●	●
337	16.545 SEAL; CLIP HOLE OD=32 BLACK	8-98031-126-0	01	1	0710-0801		●
337	16.545 SEAL; CLIP HOLE INSPECTION ENGINE COVER<8GA> OD=32 BLACK	8-98031-126-0	01	1	0802-	●	●
337	16.545 SEAL; CLIP HOLE OD=32 BLACK	8-98031-126-0	07	1	0710-0801		●
337	16.545 SEAL; CLIP HOLE INSPECTION ENGINE COVER<8GA> OD=32 BLACK	8-98031-126-0	07	1	0802-0803	●	●
337	16.545 SEAL; CLIP HOLE INSPECTION ENGINE COVER<8GA> OD=32 BLACK	8-98031-126-0	07	1	0804-	●	●
337	16.545 SEAL; CLIP HOLE OD=32 BLACK	8-98031-126-0	07	1	0804-			●	●
337	16.545 SEAL; CLIP HOLE MALAYSIA EQUIPMENT(B10) 16.165 OD=25 BLACK	1-76798-019-0	22	1	0804-			●
337	16.545 SEAL; CLIP HOLE EXC. MALAYSIA EQUIPMENT(B10) 16.165 OD=25 BLACK	1-76798-019-0	14	1	0804-0810			●
337	16.545 SEAL; CLIP HOLE 16.165 OD=25 BLACK	1-76798-019-0	14	1	0804-0810				●
337	16.545 SEAL; CLIP HOLE FUEL TANK 63L<6EF> EXC. MALAYSIA EQUIPMENT(B10) 16.165 OD=25 BLACK	1-76798-019-0	18	1	0811-			●
364	16.545 FINISHER; ENG COVER SIDE L=1100	8-97892-744-0	01	1	0710-0801		●
364	16.545 FINISHER; ENG COVER SIDE INSPECTION ENGINE COVER<8GA> L=1100	8-97892-744-0	01	1	0802-0803	●	●
364	16.545 FINISHER; ENG COVER SIDE INSPECTION ENGINE COVER<8GA> L=1100	8-97892-744-0	01	1	0804-	●	●
364	16.545 FINISHER; ENG COVER SIDE L=1100	8-97892-744-0	01	1	0804-			●	●
370	16.549 SEAL; LOCATION HOLE 16.165 OD=25 BLACK	1-76798-019-0	01	1	0710-0801		●
370	16.549 SEAL; LOCATION HOLE INSPECTION ENGINE COVER<8GA> 16.165 OD=25 BLACK	1-76798-019-0	01	1	0802-0803	●	●
370	16.549 SEAL; LOCATION HOLE INSPECTION ENGINE COVER<8GA> 16.165 OD=25 BLACK	1-76798-019-0	01	1	0804-	●	●
370	16.549 SEAL; LOCATION HOLE 16.165 OD=25 BLACK	1-76798-019-0	01	1	0804-			●	●
371	16.549 GROMMET; LOCATION HOLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 16.547 14.5X14.5 BLACK	8-94279-714-0	02	1	0710-0803	●
371	16.549 GROMMET; LOCATION HOLE 16.547 14.5X14.5 BLACK	8-94279-714-0	02	1	0710-0803		●
371	16.549 GROMMET; LOCATION HOLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 16.547 14.5X14.5 BLACK	8-94279-714-0	02	1	0804-	●
371	16.549 GROMMET; LOCATION HOLE 16.547 14.5X14.5 BLACK	8-94279-714-0	02	1	0804-		●	●	●
417	16.549 NUT; POP 09.786 M6 POP NUT	8-98013-752-0	01	1	0710-0801		●
417	16.549 NUT; POP INSPECTION ENGINE COVER<8GA> 09.786 M6 POP NUT	8-98013-752-0	01	1	0802-0803	●	●
417	16.549 NUT; POP INSPECTION ENGINE COVER<8GA> 09.786 M6 POP NUT	8-98013-752-0	01	1	0804-	●	●
417	16.549 NUT; POP 09.786 M6 POP NUT	8-98013-752-0	01	1	0804-			●	●
417	16.549 NUT; POP M8 POP NUT	8-98021-404-0	01	1	0710-0801		●
417	16.549 NUT; POP INSPECTION ENGINE COVER<8GA> M8 POP NUT	8-98021-404-0	01	1	0802-0803	●	●
417	16.549 NUT; POP INSPECTION ENGINE COVER<8GA> M8 POP NUT	8-98021-404-0	01	1	0804-	●	●
417	16.549 NUT; POP M8 POP NUT	8-98021-404-0	01	1	0804-			●	●
418	16.549 SEAL; PROTECTOR	8-98090-192-1	01	1	0710-0803	●	●
418	16.549 SEAL; PROTECTOR	8-98090-192-1	01	1	0804-	●	●	●	●
418	16.549 SEAL; PROTECTOR	8-98090-191-1	01	1	0710-0803	●	●
418	16.549 SEAL; PROTECTOR	8-98090-191-1	01	1	0804-	●	●	●	●
419	09.786 RIVET; ENG COVER	8-98065-262-0	01	1	0710-0801		●
419	09.786 RIVET; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98065-262-0	01	1	0802-0803	●	●
419	09.786 RIVET; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98065-262-0	01	1	0804-	●	●
419	09.786 RIVET; ENG COVER	8-98065-262-0	01	1	0804-			●	●
420	09.786 WASHER; ENG COVER 02.335 ID=5.3 OD=16	0-91614-705-0	01	1	0710-0801		●
420	09.786 WASHER; ENG COVER INSPECTION ENGINE COVER<8GA> 02.335 ID=5.3 OD=16	0-91614-705-0	01	1	0802-0803	●	●
420	09.786 WASHER; ENG COVER INSPECTION ENGINE COVER<8GA> 02.335 ID=5.3 OD=16	0-91614-705-0	01	1	0804-	●	●
420	09.786 WASHER; ENG COVER 02.335 ID=5.3 OD=16	0-91614-705-0	01	1	0804-			●	●

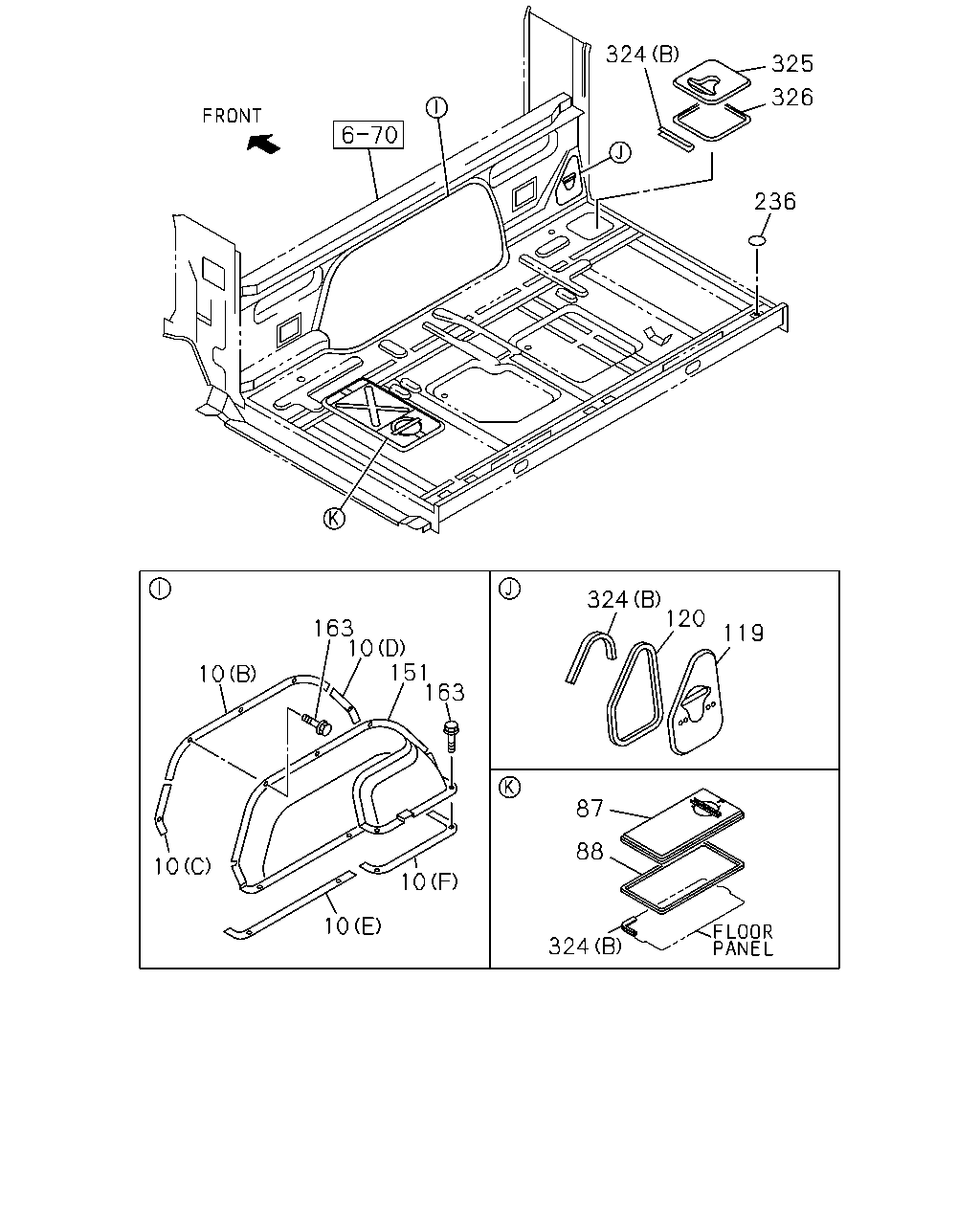

324 325 326 236 324 120 163 10 151 163 119 10 87 88 10 10 10 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
10	16.549 SEAL; ENG COVER (A)	8-98029-377-0	01	1	0710-0801		●
10	16.549 SEAL; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98029-377-0	01	1	0802-0803	●	●
10	16.549 SEAL; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98029-377-0	01	1	0804-	●	●
10	16.549 SEAL; ENG COVER (A)	8-98029-377-0	01	1	0804-			●	●
10	16.549 SEAL; ENG COVER (B)	8-98033-268-0	01	1	0804-			●	●
10	16.549 SEAL; ENG COVER (C)	8-98033-269-0	01	1	0804-			●	●
10	16.549 SEAL; ENG COVER (D)	8-98033-270-0	01	1	0804-			●	●
10	16.549 SEAL; ENG COVER (E)	8-98105-285-0	01	1	0804-			●	●
10	16.549 SEAL; ENG COVER (F)	8-98105-300-0	01	1	0804-			●	●
87	16.549 COVER; BATTERY CHECK HOLE	8-97856-332-4	01	1	0804-			●	●
88	16.549 SEAL; BATTERY CHECK HOLE COVER	8-97853-725-1	01	1	0804-			●	●
119	16.090 LID; P/S OIL TANK	8-97410-834-1	01	1	0804-			●	●
120	16.090 SEAL; LID,P/S	8-97853-441-1	01	1	0804-			●	●
151	16.549 COVER ASM; ENG	8-98081-412-0	01	1	0804-			●	●
163	16.549 BOLT; RR,ENG COVER,FRT 02.343 M6X16 FLANGE	0-28650-616-0	09	1	0804-			●	●
236	16.549 SEAL; CHECK HOLE 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0804-			●	●
324	16.545 FINISHER; FLOOR PANEL (A) L=140	8-97892-742-0	01	1	0710-0801		●
324	16.545 FINISHER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A) L=140	8-97892-742-0	01	1	0802-0803	●	●
324	16.545 FINISHER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A) L=140	8-97892-742-0	01	1	0804-	●	●
324	16.545 FINISHER; FLOOR PANEL (A) L=140	8-97892-742-0	01	1	0804-			●	●
324	16.545 FINISHER; FLOOR PANEL 16.742 (B) L=120	1-73948-004-0	02	1	0804-			●	●
324	16.545 FINISHER; FLOOR PANEL 03.417 (B) L=314	8-94262-845-0	02	1	0804-			●	●
325	16.549 COVER; LLC	8-97856-974-0	01	1	0804-			●	●
326	16.549 SEAL; COVER	8-97856-975-1	01	1	0804-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
