Sayfa 6-70 - Isuzu EPC

6-70 — FLOOR PANEL (#54269) — 260 parça

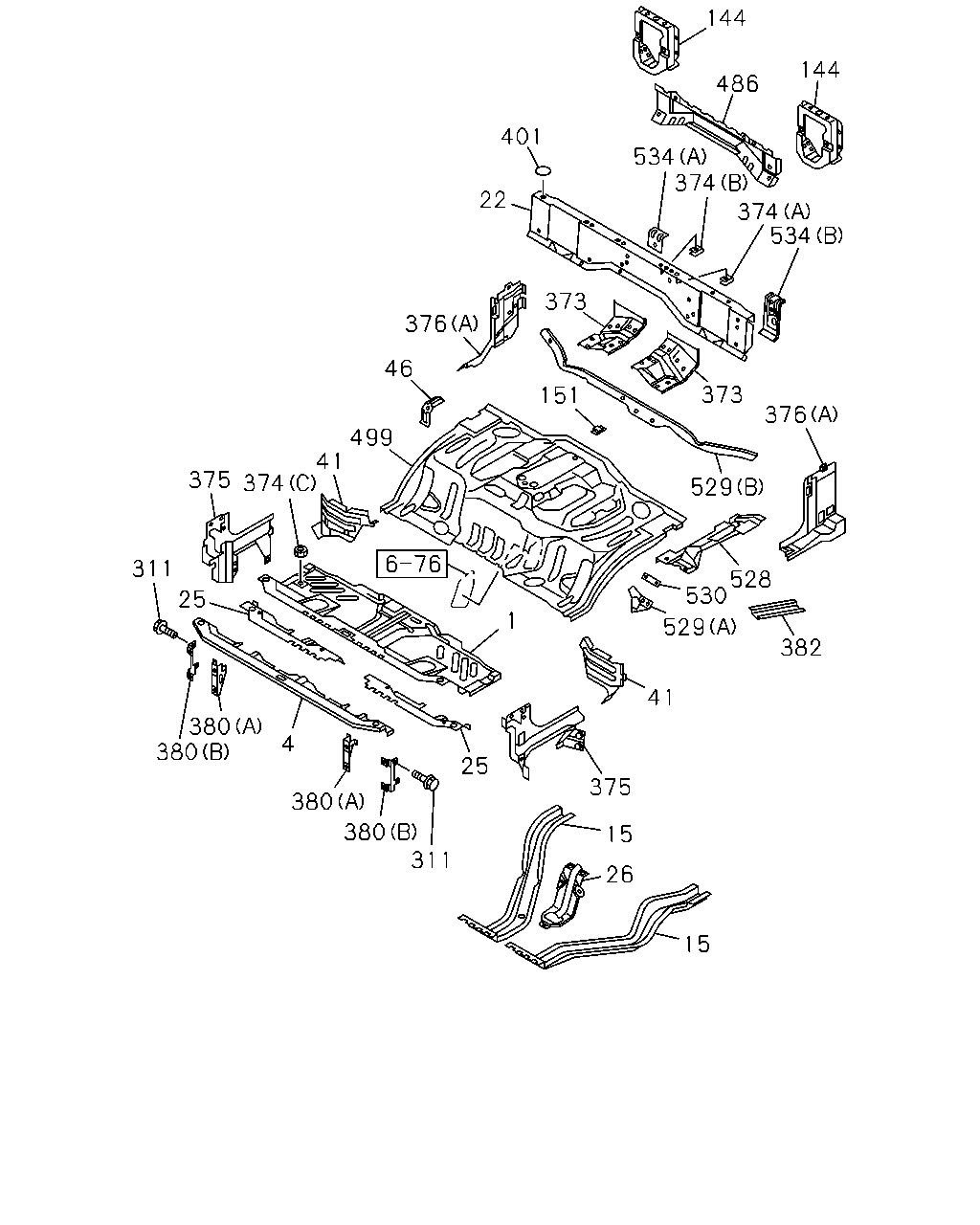

144 144 486 401 534 374 22 374 534 373 376 46 373 151 376 499 41 374 375 529 311 528 530 25 1 529 382 41 380 380 4 25 375 380 380 311 15 26 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	16.545 PANEL; FLOOR 4JJ1-TCS ENG(LFB)	8-97583-910-5	01	1	0710-0803	●	●
1	16.545 PANEL; FLOOR	8-97583-910-5	01	1	0804-	●	●	●	●
4	16.545 FRAME; FLOOR,FRT 4JJ1-TCS ENG(LFB)	8-98059-496-0	01	1	0710-0803	●	●
4	16.545 FRAME; FLOOR,FRT	8-98059-496-0	01	1	0804-	●	●	●	●
15	16.545 FRAME; UNDER 4JJ1-TCS ENG(LFB)	8-98061-278-1	01	1	0710-0803	●	●
15	16.545 FRAME; UNDER	8-98061-278-1	01	1	0804-	●	●	●	●
15	16.545 FRAME; UNDER 4JJ1-TCS ENG(LFB)	8-98061-277-1	01	1	0710-0803	●	●
15	16.545 FRAME; UNDER	8-98061-277-1	01	1	0804-	●	●	●	●
22	16.545 FRAME; FLOOR REAR 4JJ1-TCS ENG(LFB)	8-97583-925-2	01	1	0710-0801	●
22	16.545 FRAME; FLOOR REAR 4JJ1-TCS ENG(LFB) EXC. INSPECTION ENGINE COVER<8GA>	8-97583-925-2	01	1	0802-0803	●	●
22	16.545 FRAME; FLOOR REAR EXC. INSPECTION ENGINE COVER<8GA>	8-97583-925-3	01	1	0804-	●	●
22	16.545 FRAME; FLOOR REAR 4JJ1-TCS ENG(LFB)	8-97589-306-3	01	1	0710-0801		●
22	16.545 FRAME; FLOOR REAR 4JJ1-TCS ENG(LFB) INSPECTION ENGINE COVER<8GA>	8-97589-306-3	01	1	0802-0803	●	●
22	16.545 FRAME; FLOOR REAR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) INSPECTION ENGINE COVER<8GA>	8-97589-306-4	01	1	0804-	●	●
22	16.545 FRAME; FLOOR REAR 4JB1-TC ENG(RDT) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-97589-306-4	01	1	0804-	●	●
22	16.545 FRAME; FLOOR REAR 4JJ1-TCC ENG(RDU)	8-97589-306-4	01	1	0804-			●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT 4JJ1-TCS ENG(LFB)	8-97588-031-1	01	1	0710-0803	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97588-031-1	01	1	0804-	●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT 4JJ1-TCS ENG(LFB)	8-97588-030-1	01	1	0710-0803	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97588-030-1	01	1	0804-	●	●	●	●
26	16.545 PANEL; GEAR CONT REINF 4JJ1-TCS ENG(LFB)	8-97589-382-1	01	1	0710-0803	●	●
26	16.545 PANEL; GEAR CONT REINF	8-97589-382-1	01	1	0804-	●	●	●	●
41	16.545 SUPPORT; STEP,RR 4JJ1-TCS ENG(LFB)	8-97583-936-2	01	1	0710-0803	●	●
41	16.545 SUPPORT; STEP,RR	8-97583-936-2	01	1	0804-	●	●	●	●
41	16.545 SUPPORT; STEP,RR 4JJ1-TCS ENG(LFB)	8-97583-935-2	01	1	0710-0803	●	●
41	16.545 SUPPORT; STEP,RR	8-97583-935-2	01	1	0804-	●	●	●	●
46	16.545 BRACKET; FRT SEAT,RR OUTER 4JJ1-TCS ENG(LFB)	8-97583-834-0	01	1	0710-0803	●	●
46	16.545 BRACKET; FRT SEAT,RR OUTER	8-97583-834-0	01	1	0804-	●	●	●	●
144	16.545 BRACKET; MTG,RR 4JB1-TC ENG(RDT) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98112-244-2	02	1	0804-	●	●
144	16.545 BRACKET; MTG,RR 4JJ1-TCC ENG(RDU)	8-98112-244-2	02	1	0804-			●	●
144	16.545 BRACKET; MTG,RR 4JJ1-TCS ENG(LFB)	8-97589-544-1	02	1	0710-0803	●	●
144	16.545 BRACKET; MTG,RR 4JB1-TC ENG(RDT) EXC. INSPECTION ENGINE COVER<8GA>	8-97589-544-3	02	1	0804-	●	●
144	16.545 BRACKET; MTG,RR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97589-544-3	02	1	0804-	●	●
151	16.670 BRACKET; SEAT CUSHION STOPPER 4JJ1-TCS ENG(LFB)	8-97583-833-0	01	1	0710-0801	●
151	16.670 BRACKET; SEAT CUSHION STOPPER 4JJ1-TCS ENG(LFB) EXC. INSPECTION ENGINE COVER<8GA>	8-97583-833-0	01	1	0802-0803	●	●
151	16.670 BRACKET; SEAT CUSHION STOPPER EXC. INSPECTION ENGINE COVER<8GA>	8-97583-833-0	01	1	0804-	●	●
311	16.545 BOLT; BRKT 02.500 M6X16	0-52000-616-0	04	1	0710-0803	●	●
311	16.545 BOLT; BRKT 02.500 M6X16	0-52000-616-0	04	1	0804-0804	●	●	●	●
311	16.545 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0805-	●	●	●	●
373	16.545 REINFORCEMENT; SEAT BELT 4JJ1-TCS ENG(LFB)	8-98014-522-2	01	1	0710-0801	●
373	16.545 REINFORCEMENT; SEAT BELT 4JJ1-TCS ENG(LFB) EXC. INSPECTION ENGINE COVER<8GA>	8-98014-522-2	01	1	0802-0803	●	●
373	16.545 REINFORCEMENT; SEAT BELT EXC. INSPECTION ENGINE COVER<8GA>	8-98014-522-2	01	1	0804-	●	●
373	16.545 REINFORCEMENT; SEAT BELT 4JJ1-TCS ENG(LFB)	8-98014-521-2	01	1	0710-0801	●
373	16.545 REINFORCEMENT; SEAT BELT 4JJ1-TCS ENG(LFB) EXC. INSPECTION ENGINE COVER<8GA>	8-98014-521-2	01	1	0802-0803	●	●
373	16.545 REINFORCEMENT; SEAT BELT EXC. INSPECTION ENGINE COVER<8GA>	8-98014-521-2	01	1	0804-	●	●
373	16.545 REINFORCEMENT; SEAT BELT 16.714	8-98015-215-2	01	1	0804-			●	●
374	16.545 NUT; FLOOR 4JJ1-TCS ENG(LFB) (A) M8	1-09984-111-0	01	1	0710-0801	●
374	16.545 NUT; FLOOR 4JJ1-TCS ENG(LFB) EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	0802-0803	●	●
374	16.545 NUT; FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	0804-	●	●
374	16.545 NUT; FLOOR (C) M8	9-09114-068-0	04	1	0710-0803	●	●
374	16.545 NUT; FLOOR (C) M8	9-09114-068-0	04	1	0804-	●	●	●	●
374	16.545 NUT; FLOOR 4JJ1-TCS ENG(LFB) (B) M6	1-09984-110-0	02	1	0710-0803	●	●
374	16.545 NUT; FLOOR (B) M6	1-09984-110-0	02	1	0804-	●	●	●	●
374	16.545 NUT; FLOOR 4JJ1-TCS ENG(LFB) (A) M8	1-09984-111-0	04	1	0710-0801		●
374	16.545 NUT; FLOOR 4JJ1-TCS ENG(LFB) INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	04	1	0802-0803	●	●
374	16.545 NUT; FLOOR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	04	1	0804-	●	●
374	16.545 NUT; FLOOR 4JB1-TC ENG(RDT) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A) M8	1-09984-111-0	04	1	0804-	●	●
374	16.545 NUT; FLOOR 4JJ1-TCC ENG(RDU) (A) M8	1-09984-111-0	04	1	0804-			●	●
374	16.545 NUT; FLOOR 09.786 (D) M6 POP NUT	8-98013-752-0	01	1	0804-			●	●
375	16.545 CLOSING; PILLAR 4JJ1-TCS ENG(LFB)	8-97583-883-1	01	1	0710-0803	●	●
375	16.545 CLOSING; PILLAR	8-97583-883-2	01	1	0804-	●	●	●	●
375	16.545 CLOSING; PILLAR 4JJ1-TCS ENG(LFB)	8-97583-882-2	01	1	0710-0803	●	●
375	16.545 CLOSING; PILLAR	8-97583-882-3	01	1	0804-	●	●	●	●
376	16.545 CLOSING; PILLAR,LWR 4JJ1-TCS ENG(LFB) (A)	8-97583-888-2	01	1	0710-0803	●	●
376	16.545 CLOSING; PILLAR,LWR (A)	8-97583-888-2	01	1	0804-	●	●
376	16.545 CLOSING; PILLAR,LWR 4JJ1-TCS ENG(LFB) (A)	8-97584-618-2	01	1	0710-0803	●	●
376	16.545 CLOSING; PILLAR,LWR (A)	8-97584-618-2	01	1	0804-	●	●
376	16.545 CLOSING; PILLAR,LWR (B)	8-98024-545-6	01	1	0804-			●	●
376	16.545 CLOSING; PILLAR,LWR (B)	8-98024-544-7	01	1	0804-			●	●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-289-0	01	1	0710-0803	●	●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-289-0	01	1	0804-	●	●	●	●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-288-0	01	1	0710-0803	●	●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-288-0	01	1	0804-	●	●	●	●
380	16.545 BRACKET; HEAD LAMP 4JJ1-TCS ENG(LFB) (A)	8-97589-385-3	01	1	0710-0803	●	●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-385-3	01	1	0804-	●	●	●	●
380	16.545 BRACKET; HEAD LAMP 4JJ1-TCS ENG(LFB) (A)	8-97589-384-4	01	1	0710-0803	●	●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-384-4	01	1	0804-	●	●	●	●
382	16.545 STIFFENER; RR FLOOR 4JJ1-TCS ENG(LFB)	8-98041-232-0	01	1	0710-0801	●
382	16.545 STIFFENER; RR FLOOR 4JJ1-TCS ENG(LFB) EXC. INSPECTION ENGINE COVER<8GA>	8-98041-232-0	01	1	0802-0803	●	●
382	16.545 STIFFENER; RR FLOOR EXC. INSPECTION ENGINE COVER<8GA>	8-98041-232-0	01	1	0804-	●	●
401	16.545 GROMMET; HOLE OD=24.5 T=7.5	8-97224-683-0	01	1	0710-0803	●	●
401	16.545 GROMMET; HOLE OD=24.5 T=7.5	8-97224-683-0	01	1	0804-	●	●	●	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR 4JJ1-TCS ENG(LFB)	8-98030-610-2	01	1	0710-0801	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR 4JJ1-TCS ENG(LFB) EXC. INSPECTION ENGINE COVER<8GA>	8-98030-610-2	01	1	0802-0803	●	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR EXC. INSPECTION ENGINE COVER<8GA>	8-98030-610-2	01	1	0804-	●	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR 4JJ1-TCS ENG(LFB)	8-98030-611-2	01	1	0710-0801		●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR 4JJ1-TCS ENG(LFB) INSPECTION ENGINE COVER<8GA>	8-98030-611-2	01	1	0802-0803	●	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) INSPECTION ENGINE COVER<8GA>	8-98030-611-2	01	1	0804-	●	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR 4JB1-TC ENG(RDT) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98030-611-2	01	1	0804-	●	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR 4JJ1-TCC ENG(RDU)	8-98030-611-2	01	1	0804-			●	●
499	16.545 PANEL; FLOOR,RR 4JJ1-TCS ENG(LFB)	8-97583-912-4	01	1	0710-0801	●
499	16.545 PANEL; FLOOR,RR 4JJ1-TCS ENG(LFB) EXC. INSPECTION ENGINE COVER<8GA>	8-97583-912-4	01	1	0802-0803	●	●
499	16.545 PANEL; FLOOR,RR EXC. INSPECTION ENGINE COVER<8GA>	8-97583-912-4	01	1	0804-	●	●
499	16.545 PANEL; FLOOR,RR 4JJ1-TCS ENG(LFB)	8-97584-630-1	01	1	0710-0801		●
499	16.545 PANEL; FLOOR,RR 4JJ1-TCS ENG(LFB) INSPECTION ENGINE COVER<8GA>	8-97584-630-1	01	1	0802-0803	●	●
499	16.545 PANEL; FLOOR,RR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) INSPECTION ENGINE COVER<8GA>	8-97584-630-1	01	1	0804-	●	●
499	16.545 PANEL; FLOOR,RR 4JB1-TC ENG(RDT) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-97584-630-1	01	1	0804-	●	●
499	16.545 PANEL; FLOOR,RR 4JJ1-TCC ENG(RDU)	8-97584-630-1	01	1	0804-			●	●
528	16.545 REINFORCEMENT; PARKING BRAKE 4JJ1-TCS ENG(LFB)	8-97583-829-4	01	1	0710-0801	●
528	16.545 REINFORCEMENT; PARKING BRAKE 4JJ1-TCS ENG(LFB) EXC. INSPECTION ENGINE COVER<8GA>	8-97583-829-4	01	1	0802-0803	●	●
528	16.545 REINFORCEMENT; PARKING BRAKE EXC. INSPECTION ENGINE COVER<8GA>	8-97583-829-4	01	1	0804-	●	●
529	16.545 RETAINER; FLOOR PANEL 4JJ1-TCS ENG(LFB) (B)	8-97589-307-1	01	1	0710-0801		●
529	16.545 RETAINER; FLOOR PANEL 4JJ1-TCS ENG(LFB) INSPECTION ENGINE COVER<8GA> (B)	8-97589-307-1	01	1	0802-0803	●	●
529	16.545 RETAINER; FLOOR PANEL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) INSPECTION ENGINE COVER<8GA> (B)	8-97589-307-1	01	1	0804-	●	●
529	16.545 RETAINER; FLOOR PANEL 4JB1-TC ENG(RDT) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (B)	8-97589-307-1	01	1	0804-	●	●
529	16.545 RETAINER; FLOOR PANEL 4JJ1-TCC ENG(RDU) (B)	8-97589-307-1	01	1	0804-			●	●
529	16.545 RETAINER; FLOOR PANEL 4JJ1-TCS ENG(LFB) (A)	8-98030-358-0	01	1	0710-0801		●
529	16.545 RETAINER; FLOOR PANEL 4JJ1-TCS ENG(LFB) INSPECTION ENGINE COVER<8GA> (A)	8-98030-358-0	01	1	0802-0803	●	●
529	16.545 RETAINER; FLOOR PANEL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) INSPECTION ENGINE COVER<8GA> (A)	8-98030-358-0	01	1	0804-	●	●
529	16.545 RETAINER; FLOOR PANEL 4JB1-TC ENG(RDT) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A)	8-98030-358-0	01	1	0804-	●	●
529	16.545 RETAINER; FLOOR PANEL 4JJ1-TCC ENG(RDU) (A)	8-98030-358-0	01	1	0804-			●	●
530	16.565 BRACKET; COVER 4JJ1-TCS ENG(LFB)	8-97589-255-0	01	1	0710-0801		●
530	16.565 BRACKET; COVER 4JJ1-TCS ENG(LFB) INSPECTION ENGINE COVER<8GA>	8-97589-255-0	01	1	0802-0803	●	●
530	16.565 BRACKET; COVER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) INSPECTION ENGINE COVER<8GA>	8-97589-255-0	01	1	0804-	●	●
530	16.565 BRACKET; COVER 4JB1-TC ENG(RDT) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-97589-255-0	01	1	0804-	●	●
530	16.565 BRACKET; COVER 4JJ1-TCC ENG(RDU)	8-97589-255-0	01	1	0804-			●	●
534	16.545 REINFORCEMENT; SEAT BACK 4JJ1-TCS ENG(LFB) (B)	8-98007-678-1	01	1	0710-0803	●	●
534	16.545 REINFORCEMENT; SEAT BACK (B)	8-98007-678-2	01	1	0804-	●	●	●	●
534	16.545 REINFORCEMENT; SEAT BACK 4JJ1-TCS ENG(LFB) (A)	8-98019-181-2	01	1	0710-0803	●	●
534	16.545 REINFORCEMENT; SEAT BACK (A)	8-98019-181-2	01	1	0804-	●	●	●	●

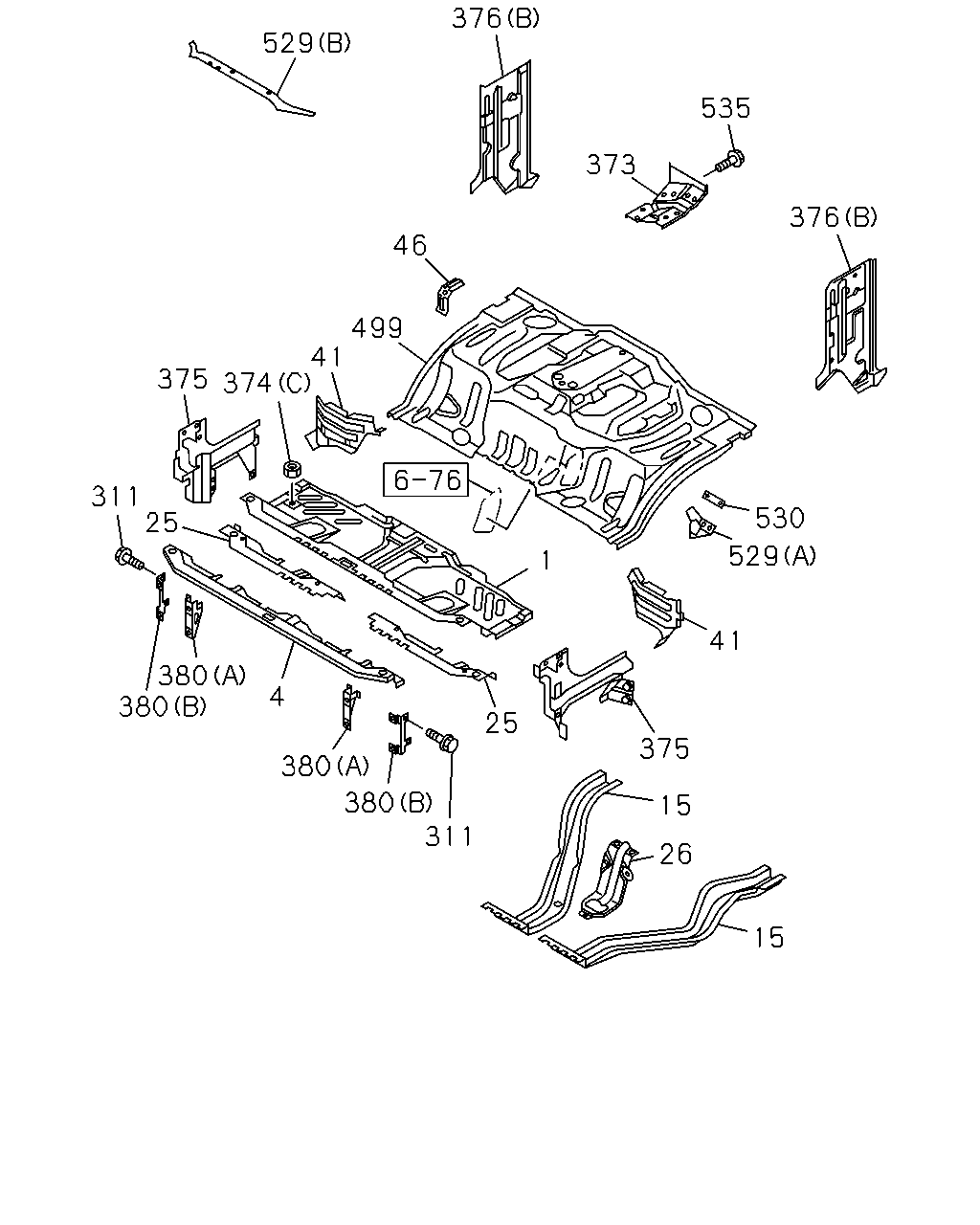

376 529 535 373 376 46 499 41 374 375 311 25 530 529 1 41 380 380 4 25 375 380 380 311 15 26 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	16.545 PANEL; FLOOR 4JJ1-TCS ENG(LFB)	8-97583-910-5	01	1	0710-0803	●	●
1	16.545 PANEL; FLOOR	8-97583-910-5	01	1	0804-	●	●	●	●
4	16.545 FRAME; FLOOR,FRT 4JJ1-TCS ENG(LFB)	8-98059-496-0	01	1	0710-0803	●	●
4	16.545 FRAME; FLOOR,FRT	8-98059-496-0	01	1	0804-	●	●	●	●
15	16.545 FRAME; UNDER 4JJ1-TCS ENG(LFB)	8-98061-278-1	01	1	0710-0803	●	●
15	16.545 FRAME; UNDER	8-98061-278-1	01	1	0804-	●	●	●	●
15	16.545 FRAME; UNDER 4JJ1-TCS ENG(LFB)	8-98061-277-1	01	1	0710-0803	●	●
15	16.545 FRAME; UNDER	8-98061-277-1	01	1	0804-	●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT 4JJ1-TCS ENG(LFB)	8-97588-031-1	01	1	0710-0803	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97588-031-1	01	1	0804-	●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT 4JJ1-TCS ENG(LFB)	8-97588-030-1	01	1	0710-0803	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97588-030-1	01	1	0804-	●	●	●	●
26	16.545 PANEL; GEAR CONT REINF 4JJ1-TCS ENG(LFB)	8-97589-382-1	01	1	0710-0803	●	●
26	16.545 PANEL; GEAR CONT REINF	8-97589-382-1	01	1	0804-	●	●	●	●
41	16.545 SUPPORT; STEP,RR 4JJ1-TCS ENG(LFB)	8-97583-936-2	01	1	0710-0803	●	●
41	16.545 SUPPORT; STEP,RR	8-97583-936-2	01	1	0804-	●	●	●	●
41	16.545 SUPPORT; STEP,RR 4JJ1-TCS ENG(LFB)	8-97583-935-2	01	1	0710-0803	●	●
41	16.545 SUPPORT; STEP,RR	8-97583-935-2	01	1	0804-	●	●	●	●
46	16.545 BRACKET; FRT SEAT,RR OUTER 4JJ1-TCS ENG(LFB)	8-97583-834-0	01	1	0710-0803	●	●
46	16.545 BRACKET; FRT SEAT,RR OUTER	8-97583-834-0	01	1	0804-	●	●	●	●
311	16.545 BOLT; BRKT 02.500 M6X16	0-52000-616-0	04	1	0710-0803	●	●
311	16.545 BOLT; BRKT 02.500 M6X16	0-52000-616-0	04	1	0804-0804	●	●	●	●
311	16.545 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0805-	●	●	●	●
373	16.545 REINFORCEMENT; SEAT BELT 4JJ1-TCS ENG(LFB)	8-98014-522-2	01	1	0710-0801	●
373	16.545 REINFORCEMENT; SEAT BELT 4JJ1-TCS ENG(LFB) EXC. INSPECTION ENGINE COVER<8GA>	8-98014-522-2	01	1	0802-0803	●	●
373	16.545 REINFORCEMENT; SEAT BELT EXC. INSPECTION ENGINE COVER<8GA>	8-98014-522-2	01	1	0804-	●	●
373	16.545 REINFORCEMENT; SEAT BELT 4JJ1-TCS ENG(LFB)	8-98014-521-2	01	1	0710-0801	●
373	16.545 REINFORCEMENT; SEAT BELT 4JJ1-TCS ENG(LFB) EXC. INSPECTION ENGINE COVER<8GA>	8-98014-521-2	01	1	0802-0803	●	●
373	16.545 REINFORCEMENT; SEAT BELT EXC. INSPECTION ENGINE COVER<8GA>	8-98014-521-2	01	1	0804-	●	●
373	16.545 REINFORCEMENT; SEAT BELT 16.714	8-98015-215-2	01	1	0804-			●	●
374	16.545 NUT; FLOOR 4JJ1-TCS ENG(LFB) (A) M8	1-09984-111-0	01	1	0710-0801	●
374	16.545 NUT; FLOOR 4JJ1-TCS ENG(LFB) EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	0802-0803	●	●
374	16.545 NUT; FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	0804-	●	●
374	16.545 NUT; FLOOR (C) M8	9-09114-068-0	04	1	0710-0803	●	●
374	16.545 NUT; FLOOR (C) M8	9-09114-068-0	04	1	0804-	●	●	●	●
374	16.545 NUT; FLOOR 4JJ1-TCS ENG(LFB) (B) M6	1-09984-110-0	02	1	0710-0803	●	●
374	16.545 NUT; FLOOR (B) M6	1-09984-110-0	02	1	0804-	●	●	●	●
374	16.545 NUT; FLOOR 4JJ1-TCS ENG(LFB) (A) M8	1-09984-111-0	04	1	0710-0801		●
374	16.545 NUT; FLOOR 4JJ1-TCS ENG(LFB) INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	04	1	0802-0803	●	●
374	16.545 NUT; FLOOR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	04	1	0804-	●	●
374	16.545 NUT; FLOOR 4JB1-TC ENG(RDT) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A) M8	1-09984-111-0	04	1	0804-	●	●
374	16.545 NUT; FLOOR 4JJ1-TCC ENG(RDU) (A) M8	1-09984-111-0	04	1	0804-			●	●
374	16.545 NUT; FLOOR 09.786 (D) M6 POP NUT	8-98013-752-0	01	1	0804-			●	●
375	16.545 CLOSING; PILLAR 4JJ1-TCS ENG(LFB)	8-97583-883-1	01	1	0710-0803	●	●
375	16.545 CLOSING; PILLAR	8-97583-883-2	01	1	0804-	●	●	●	●
375	16.545 CLOSING; PILLAR 4JJ1-TCS ENG(LFB)	8-97583-882-2	01	1	0710-0803	●	●
375	16.545 CLOSING; PILLAR	8-97583-882-3	01	1	0804-	●	●	●	●
376	16.545 CLOSING; PILLAR,LWR 4JJ1-TCS ENG(LFB) (A)	8-97583-888-2	01	1	0710-0803	●	●
376	16.545 CLOSING; PILLAR,LWR (A)	8-97583-888-2	01	1	0804-	●	●
376	16.545 CLOSING; PILLAR,LWR 4JJ1-TCS ENG(LFB) (A)	8-97584-618-2	01	1	0710-0803	●	●
376	16.545 CLOSING; PILLAR,LWR (A)	8-97584-618-2	01	1	0804-	●	●
376	16.545 CLOSING; PILLAR,LWR (B)	8-98024-545-6	01	1	0804-			●	●
376	16.545 CLOSING; PILLAR,LWR (B)	8-98024-544-7	01	1	0804-			●	●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-289-0	01	1	0710-0803	●	●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-289-0	01	1	0804-	●	●	●	●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-288-0	01	1	0710-0803	●	●
380	16.545 BRACKET; HEAD LAMP (B)	8-98029-288-0	01	1	0804-	●	●	●	●
380	16.545 BRACKET; HEAD LAMP 4JJ1-TCS ENG(LFB) (A)	8-97589-385-3	01	1	0710-0803	●	●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-385-3	01	1	0804-	●	●	●	●
380	16.545 BRACKET; HEAD LAMP 4JJ1-TCS ENG(LFB) (A)	8-97589-384-4	01	1	0710-0803	●	●
380	16.545 BRACKET; HEAD LAMP (A)	8-97589-384-4	01	1	0804-	●	●	●	●
499	16.545 PANEL; FLOOR,RR 4JJ1-TCS ENG(LFB)	8-97583-912-4	01	1	0710-0801	●
499	16.545 PANEL; FLOOR,RR 4JJ1-TCS ENG(LFB) EXC. INSPECTION ENGINE COVER<8GA>	8-97583-912-4	01	1	0802-0803	●	●
499	16.545 PANEL; FLOOR,RR EXC. INSPECTION ENGINE COVER<8GA>	8-97583-912-4	01	1	0804-	●	●
499	16.545 PANEL; FLOOR,RR 4JJ1-TCS ENG(LFB)	8-97584-630-1	01	1	0710-0801		●
499	16.545 PANEL; FLOOR,RR 4JJ1-TCS ENG(LFB) INSPECTION ENGINE COVER<8GA>	8-97584-630-1	01	1	0802-0803	●	●
499	16.545 PANEL; FLOOR,RR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) INSPECTION ENGINE COVER<8GA>	8-97584-630-1	01	1	0804-	●	●
499	16.545 PANEL; FLOOR,RR 4JB1-TC ENG(RDT) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-97584-630-1	01	1	0804-	●	●
499	16.545 PANEL; FLOOR,RR 4JJ1-TCC ENG(RDU)	8-97584-630-1	01	1	0804-			●	●
529	16.545 RETAINER; FLOOR PANEL 4JJ1-TCS ENG(LFB) (B)	8-97589-307-1	01	1	0710-0801		●
529	16.545 RETAINER; FLOOR PANEL 4JJ1-TCS ENG(LFB) INSPECTION ENGINE COVER<8GA> (B)	8-97589-307-1	01	1	0802-0803	●	●
529	16.545 RETAINER; FLOOR PANEL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) INSPECTION ENGINE COVER<8GA> (B)	8-97589-307-1	01	1	0804-	●	●
529	16.545 RETAINER; FLOOR PANEL 4JB1-TC ENG(RDT) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (B)	8-97589-307-1	01	1	0804-	●	●
529	16.545 RETAINER; FLOOR PANEL 4JJ1-TCC ENG(RDU) (B)	8-97589-307-1	01	1	0804-			●	●
529	16.545 RETAINER; FLOOR PANEL 4JJ1-TCS ENG(LFB) (A)	8-98030-358-0	01	1	0710-0801		●
529	16.545 RETAINER; FLOOR PANEL 4JJ1-TCS ENG(LFB) INSPECTION ENGINE COVER<8GA> (A)	8-98030-358-0	01	1	0802-0803	●	●
529	16.545 RETAINER; FLOOR PANEL 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) INSPECTION ENGINE COVER<8GA> (A)	8-98030-358-0	01	1	0804-	●	●
529	16.545 RETAINER; FLOOR PANEL 4JB1-TC ENG(RDT) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A)	8-98030-358-0	01	1	0804-	●	●
529	16.545 RETAINER; FLOOR PANEL 4JJ1-TCC ENG(RDU) (A)	8-98030-358-0	01	1	0804-			●	●
530	16.565 BRACKET; COVER 4JJ1-TCS ENG(LFB)	8-97589-255-0	01	1	0710-0801		●
530	16.565 BRACKET; COVER 4JJ1-TCS ENG(LFB) INSPECTION ENGINE COVER<8GA>	8-97589-255-0	01	1	0802-0803	●	●
530	16.565 BRACKET; COVER 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) INSPECTION ENGINE COVER<8GA>	8-97589-255-0	01	1	0804-	●	●
530	16.565 BRACKET; COVER 4JB1-TC ENG(RDT) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-97589-255-0	01	1	0804-	●	●
530	16.565 BRACKET; COVER 4JJ1-TCC ENG(RDU)	8-97589-255-0	01	1	0804-			●	●
535	16.549 BOLT; REINFORCEMENT 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0804-			●	●

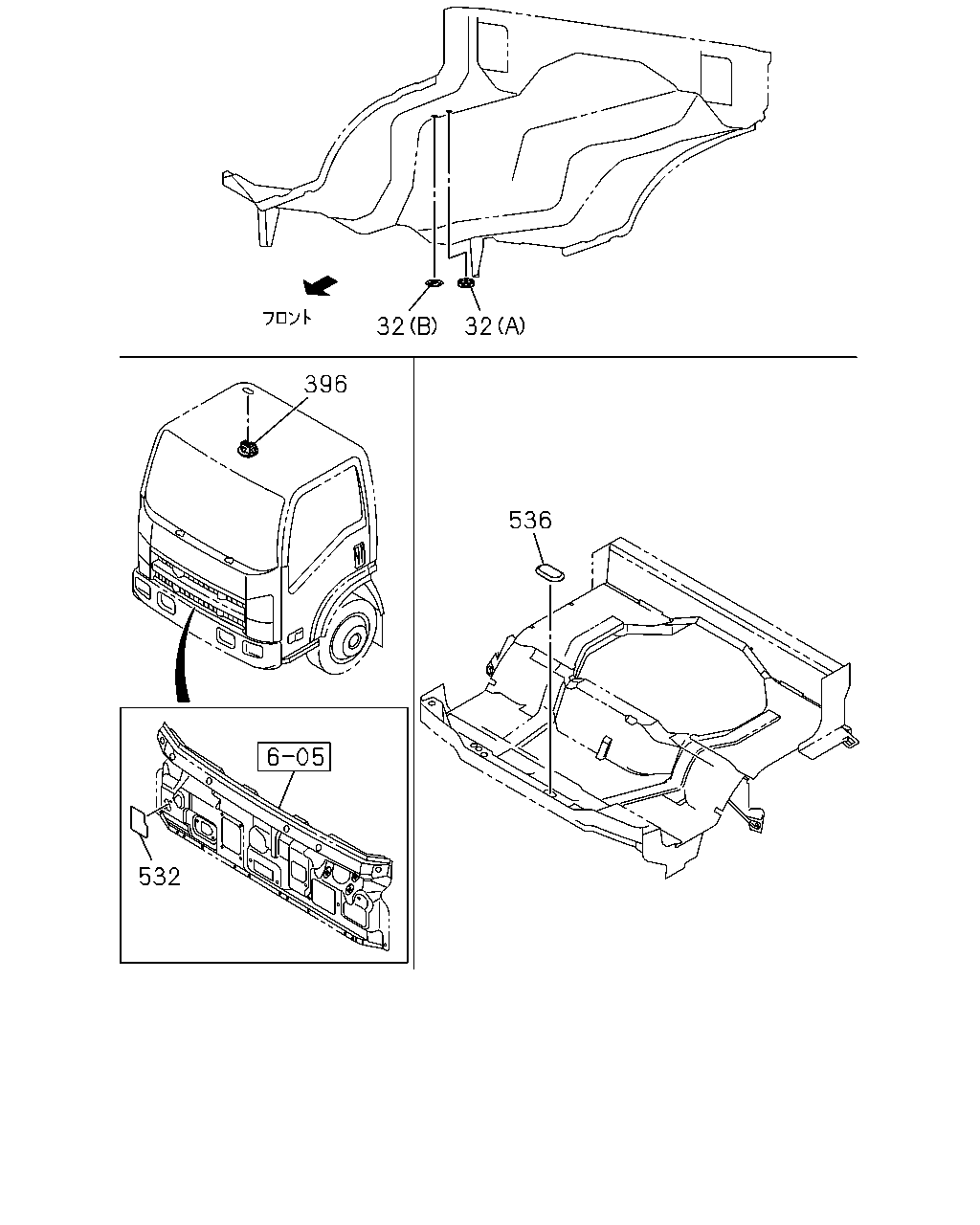

32 32 396 536 532

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
32	16.547 GROMMET; FLOOR PANEL,LOCATION HO 00.785 (A) OD=16.2	8-94492-493-0	02	1	0710-0803	●	●
32	16.547 GROMMET; FLOOR PANEL,LOCATION HO 00.785 (A) OD=16.2	8-94492-493-0	02	1	0804-0908	●	●	●	●
32	16.547 GROMMET; FLOOR PANEL,LOCATION HO (A) OD=15.0	8-94279-040-0	02	1	0909-	●	●	●	●
32	16.547 GROMMET; FLOOR PANEL,LOCATION HO (B) OD=12.1	8-97898-423-0	02	1	0710-0803	●	●
32	16.547 GROMMET; FLOOR PANEL,LOCATION HO (B) OD=12.1	8-97898-423-0	02	1	0804-	●	●	●	●
396	16.547 GROMMET; LOCATION HOLE EXC. INTERIOR TRIM-FULL TRIMMING<WM3>	8-98054-990-0	02	1	0710-	●
396	16.547 GROMMET; LOCATION HOLE	8-98054-990-0	02	1	0710-		●
532	16.520 SEAL; CABLE EXC. PTO MANUAL CONTROL(6WC)	8-98042-432-1	01	1	0710-0803	●	●
532	16.520 SEAL; CABLE EXC. PTO MANUAL CONTROL(6WC)	8-98042-432-1	01	1	0804-	●	●	●	●
536	16.549 PLUG; CABLE,PTO 04.008	8-98029-219-1	01	1	0710-0803	●	●
536	16.549 PLUG; CABLE,PTO 04.008	8-98029-219-1	01	1	0804-	●	●	●	●

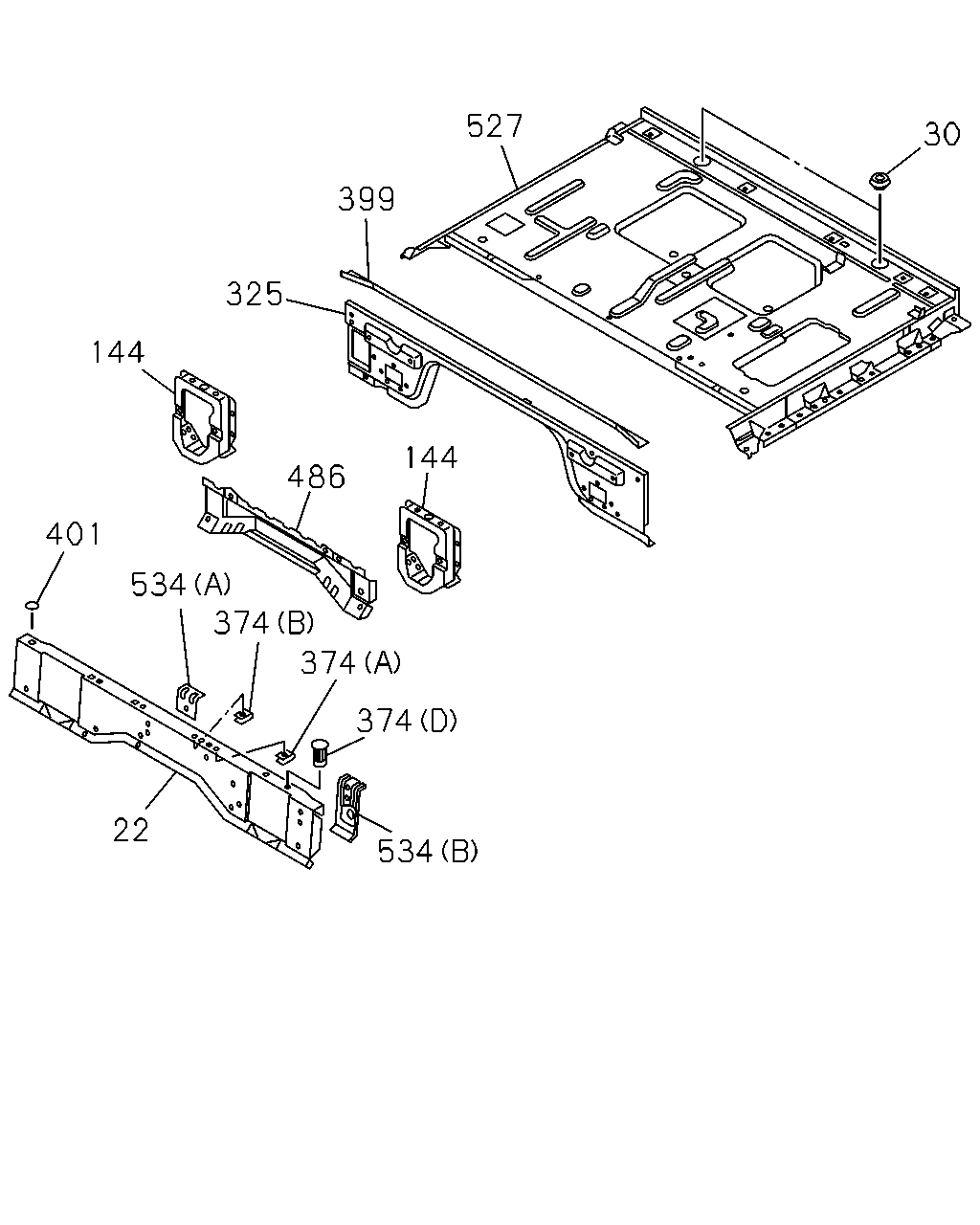

527 30 399 325 144 144 486 401 534 374 374 374 22 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
22	16.545 FRAME; FLOOR REAR 4JJ1-TCS ENG(LFB)	8-97583-925-2	01	1	0710-0801	●
22	16.545 FRAME; FLOOR REAR 4JJ1-TCS ENG(LFB) EXC. INSPECTION ENGINE COVER<8GA>	8-97583-925-2	01	1	0802-0803	●	●
22	16.545 FRAME; FLOOR REAR EXC. INSPECTION ENGINE COVER<8GA>	8-97583-925-3	01	1	0804-	●	●
22	16.545 FRAME; FLOOR REAR 4JJ1-TCS ENG(LFB)	8-97589-306-3	01	1	0710-0801		●
22	16.545 FRAME; FLOOR REAR 4JJ1-TCS ENG(LFB) INSPECTION ENGINE COVER<8GA>	8-97589-306-3	01	1	0802-0803	●	●
22	16.545 FRAME; FLOOR REAR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) INSPECTION ENGINE COVER<8GA>	8-97589-306-4	01	1	0804-	●	●
22	16.545 FRAME; FLOOR REAR 4JB1-TC ENG(RDT) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-97589-306-4	01	1	0804-	●	●
22	16.545 FRAME; FLOOR REAR 4JJ1-TCC ENG(RDU)	8-97589-306-4	01	1	0804-			●	●
30	16.547 GROMMET; CAB MTG RAIL OD=74	8-94279-731-0	02	1	0804-			●	●
144	16.545 BRACKET; MTG,RR 4JB1-TC ENG(RDT) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98112-244-2	02	1	0804-	●	●
144	16.545 BRACKET; MTG,RR 4JJ1-TCC ENG(RDU)	8-98112-244-2	02	1	0804-			●	●
144	16.545 BRACKET; MTG,RR 4JJ1-TCS ENG(LFB)	8-97589-544-1	02	1	0710-0803	●	●
144	16.545 BRACKET; MTG,RR 4JB1-TC ENG(RDT) EXC. INSPECTION ENGINE COVER<8GA>	8-97589-544-3	02	1	0804-	●	●
144	16.545 BRACKET; MTG,RR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU)	8-97589-544-3	02	1	0804-	●	●
325	16.545 REINFORCEMENT ASM; RR MTG	8-97588-942-2	01	1	0804-			●	●
374	16.545 NUT; FLOOR 4JJ1-TCS ENG(LFB) (A) M8	1-09984-111-0	01	1	0710-0801	●
374	16.545 NUT; FLOOR 4JJ1-TCS ENG(LFB) EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	0802-0803	●	●
374	16.545 NUT; FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	0804-	●	●
374	16.545 NUT; FLOOR (C) M8	9-09114-068-0	04	1	0710-0803	●	●
374	16.545 NUT; FLOOR (C) M8	9-09114-068-0	04	1	0804-	●	●	●	●
374	16.545 NUT; FLOOR 4JJ1-TCS ENG(LFB) (B) M6	1-09984-110-0	02	1	0710-0803	●	●
374	16.545 NUT; FLOOR (B) M6	1-09984-110-0	02	1	0804-	●	●	●	●
374	16.545 NUT; FLOOR 4JJ1-TCS ENG(LFB) (A) M8	1-09984-111-0	04	1	0710-0801		●
374	16.545 NUT; FLOOR 4JJ1-TCS ENG(LFB) INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	04	1	0802-0803	●	●
374	16.545 NUT; FLOOR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	04	1	0804-	●	●
374	16.545 NUT; FLOOR 4JB1-TC ENG(RDT) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ> (A) M8	1-09984-111-0	04	1	0804-	●	●
374	16.545 NUT; FLOOR 4JJ1-TCC ENG(RDU) (A) M8	1-09984-111-0	04	1	0804-			●	●
374	16.545 NUT; FLOOR 09.786 (D) M6 POP NUT	8-98013-752-0	01	1	0804-			●	●
399	16.545 PANEL; EXTENSION,RR MTG RAIL	8-97588-952-1	01	1	0804-			●	●
401	16.545 GROMMET; HOLE OD=24.5 T=7.5	8-97224-683-0	01	1	0710-0803	●	●
401	16.545 GROMMET; HOLE OD=24.5 T=7.5	8-97224-683-0	01	1	0804-	●	●	●	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR 4JJ1-TCS ENG(LFB)	8-98030-610-2	01	1	0710-0801	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR 4JJ1-TCS ENG(LFB) EXC. INSPECTION ENGINE COVER<8GA>	8-98030-610-2	01	1	0802-0803	●	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR EXC. INSPECTION ENGINE COVER<8GA>	8-98030-610-2	01	1	0804-	●	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR 4JJ1-TCS ENG(LFB)	8-98030-611-2	01	1	0710-0801		●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR 4JJ1-TCS ENG(LFB) INSPECTION ENGINE COVER<8GA>	8-98030-611-2	01	1	0802-0803	●	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) INSPECTION ENGINE COVER<8GA>	8-98030-611-2	01	1	0804-	●	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR 4JB1-TC ENG(RDT) INSPECTION ENGINE COVER<8GA> EXC. MANUAL TILT CAB<RWZ>	8-98030-611-2	01	1	0804-	●	●
486	16.545 REINFORCEMENT; FRAME FLOOR,REAR 4JJ1-TCC ENG(RDU)	8-98030-611-2	01	1	0804-			●	●
527	16.545 FLOOR; RR	8-98081-408-4	01	1	0804-			●	●
534	16.545 REINFORCEMENT; SEAT BACK 4JJ1-TCS ENG(LFB) (B)	8-98007-678-1	01	1	0710-0803	●	●
534	16.545 REINFORCEMENT; SEAT BACK (B)	8-98007-678-2	01	1	0804-	●	●	●	●
534	16.545 REINFORCEMENT; SEAT BACK 4JJ1-TCS ENG(LFB) (A)	8-98019-181-2	01	1	0710-0803	●	●
534	16.545 REINFORCEMENT; SEAT BACK (A)	8-98019-181-2	01	1	0804-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
