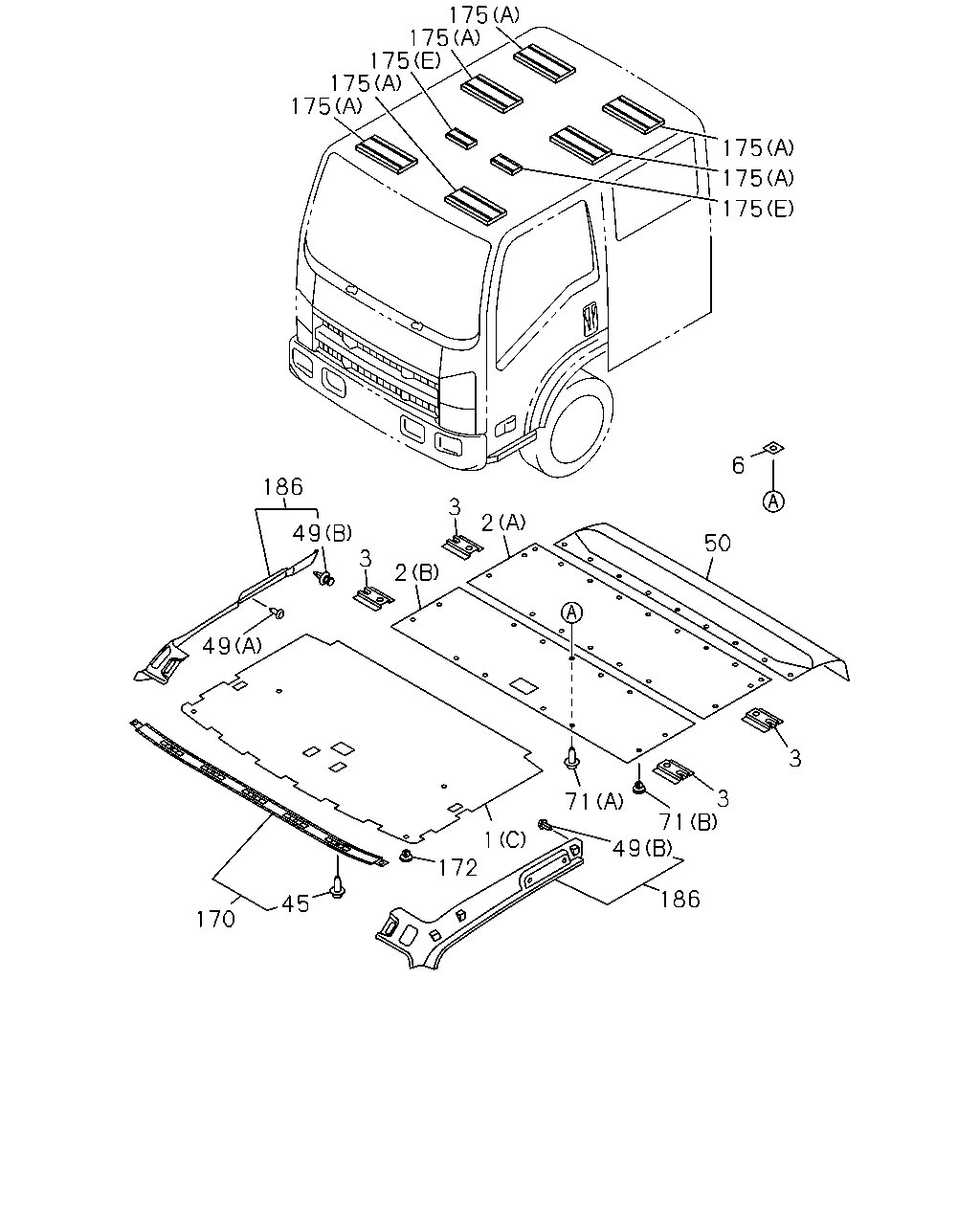

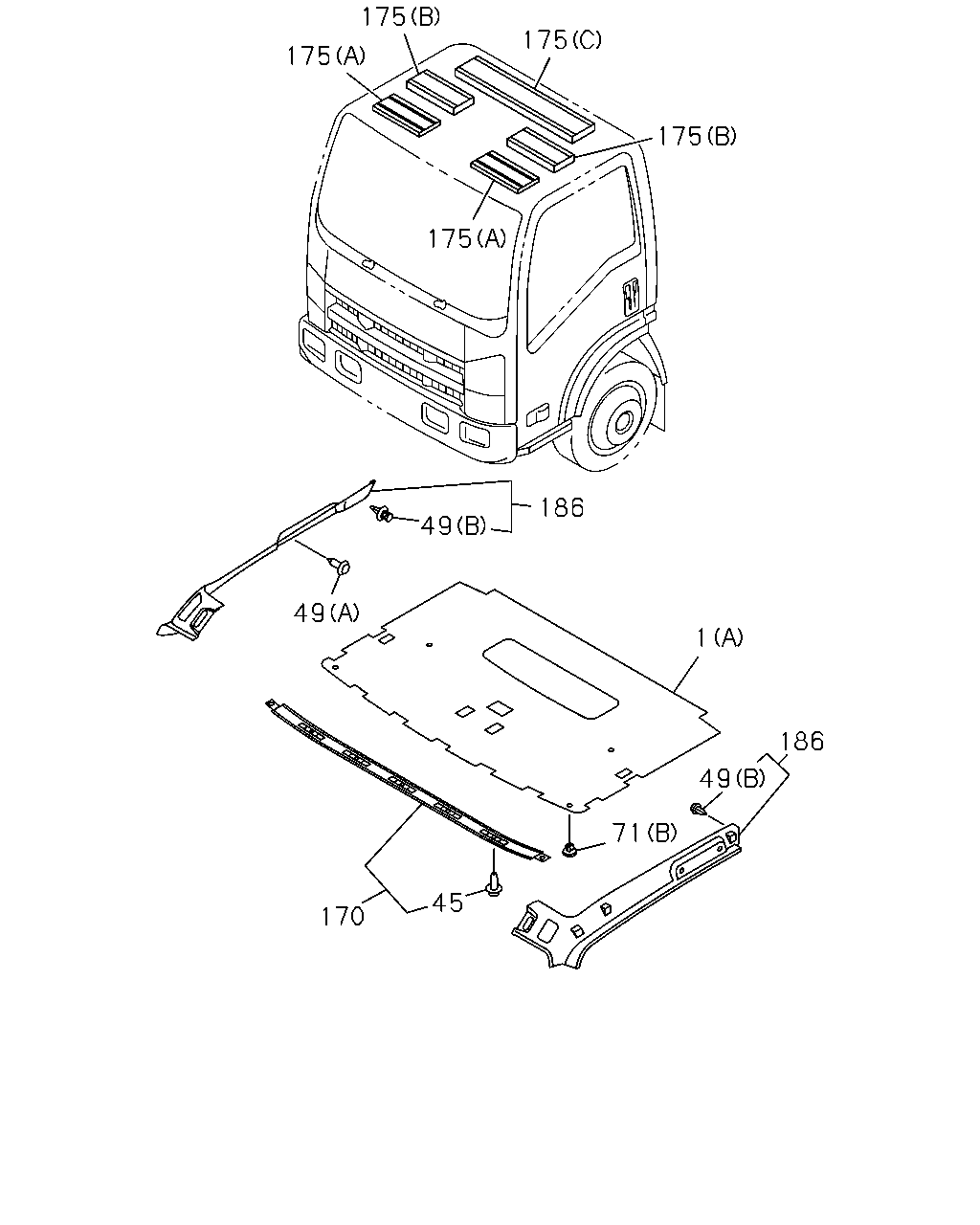

1 |
16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY>
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>
(A)
DARK GRAY
|
8-97406-282-6 |
01 |
1 |
0710- |
● |
|
|
|
| |
1 |
16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY>
(A)
DARK GRAY
|
8-97406-282-6 |
01 |
1 |
0710- |
|
● |
|
|
| |
1 |
16.742 LINING; HD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,
HEADER TRAY DRIVER & PASSENGER<8LY>
(A)
DARK GRAY
|
8-97406-277-5 |
01 |
1 |
0710-0803 |
● |
|
|
|
| |
1 |
16.742 LINING; HD
EXC. HEADER TRAY DRIVER<W56>,HEADER
TRAY DRIVER & PASSENGER<8LY>
(A)
DARK GRAY
|
8-97406-277-5 |
01 |
1 |
0710-0803 |
|
● |
|
|
| |
1 |
16.742 LINING; HD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,
HEADER TRAY DRIVER<W56>,HEADER TRAY
DRIVER & PASSENGER<8LY>
(A)
DARK GRAY
|
8-97406-277-5 |
01 |
1 |
0804- |
● |
|
|
|
| |
1 |
16.742 LINING; HD
EXC. HEADER TRAY DRIVER<W56>,HEADER
TRAY DRIVER & PASSENGER<8LY>
(A)
DARK GRAY
|
8-97406-277-5 |
01 |
1 |
0804- |
|
● |
|
|
| |
1 |
16.742 LINING; HD
HEADER TRAY DRIVER<W56>
(A)
DARK GRAY
|
8-97406-280-6 |
01 |
1 |
0710-0803 |
|
● |
|
|
| |
1 |
16.742 LINING; HD
HEADER TRAY DRIVER<W56>
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>
(A)
DARK GRAY
|
8-97406-280-6 |
01 |
1 |
0804- |
● |
|
|
|
| |
1 |
16.742 LINING; HD
HEADER TRAY DRIVER<W56>
(A)
DARK GRAY
|
8-97406-280-6 |
01 |
1 |
0804- |
|
● |
|
|
| |
1 |

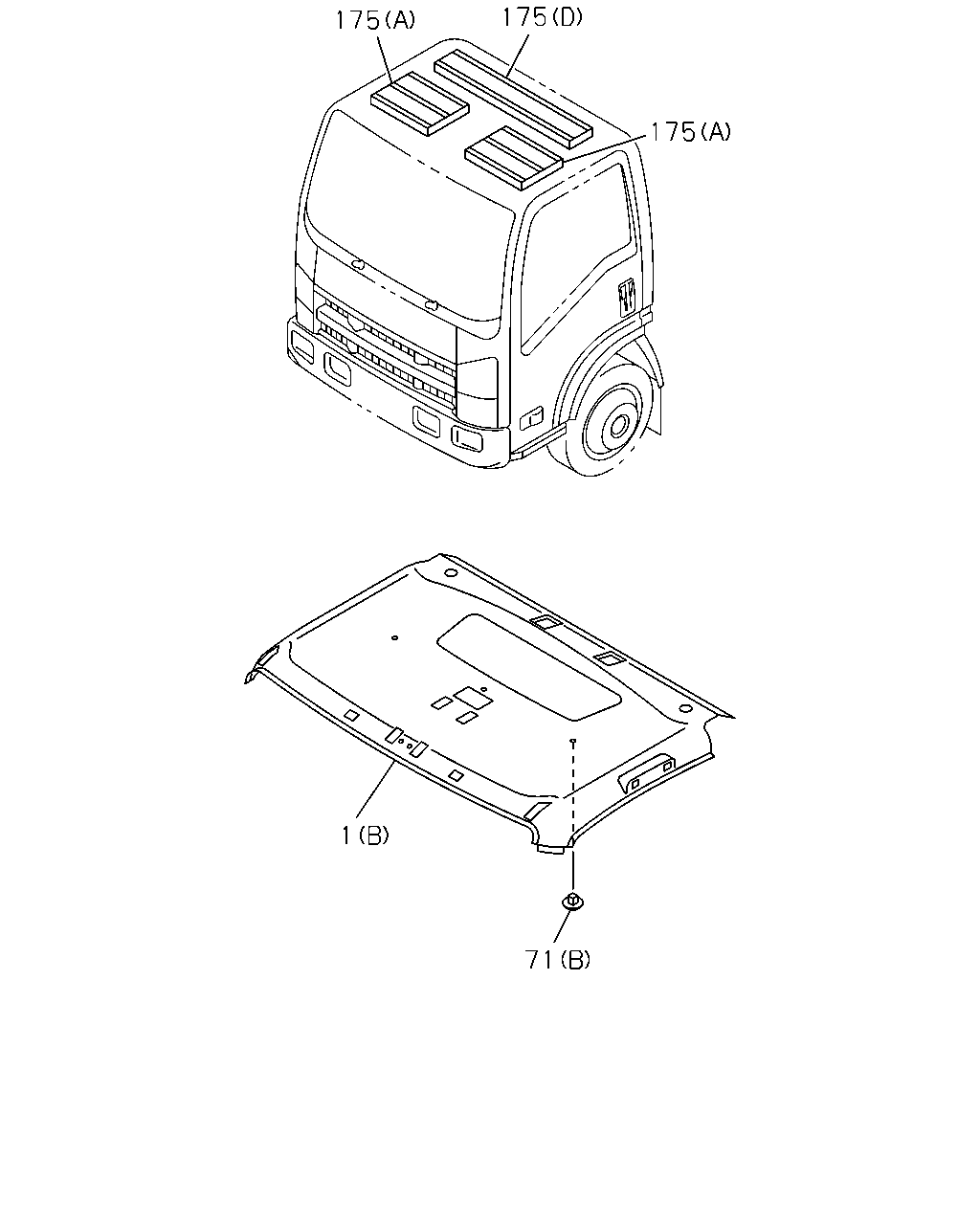

16.742 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3>
HEADER TRAY DRIVER & PASSENGER<8LY>
(B)
DARK GRAY
|
8-97406-284-4 |
01 |
1 |
0710-0803 |
● |
|
|
|
| |
1 |
16.742 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3>
WINDOW RR<8LF>
HEADER TRAY DRIVER & PASSENGER<8LY>
(B)
DARK GRAY
|
8-97406-284-4 |
01 |
1 |
0804-1211 |
● |
|
|
|
| |
1 |
16.742 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3>
WINDOW RR<8LF>
HEADER TRAY DRIVER & PASSENGER<8LY>
(B)
DARK GRAY
|
8-97425-043-0 |
01 |
1 |
1212- |
● |
|
|
|
| |
1 |
16.742 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3>
HEADER TRAY DRIVER & PASSENGER<8LY>
EXC. WINDOW RR<8LF>
(B)
DARK GRAY
|
8-97409-018-1 |
01 |
1 |
0804-1211 |
● |
|
|
|
| |
1 |
16.742 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3>
HEADER TRAY DRIVER & PASSENGER<8LY>
EXC. WINDOW RR<8LF>
(B)
DARK GRAY
|
8-97425-046-0 |
01 |
1 |
1212- |
● |
|
|
|
| |
1 |
16.742 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3>
HEADER TRAY DRIVER<W56>
WINDOW RR<8LF>
(B)
DARK GRAY
|
8-97409-859-1 |
01 |
1 |
0804-1211 |
● |
|
|
|
| |
1 |
16.742 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3>
HEADER TRAY DRIVER<W56>
WINDOW RR<8LF>
(B)
DARK GRAY
|
8-97425-050-0 |
01 |
1 |
1212- |
● |
|
|
|
| |
1 |
16.742 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3>
HEADER TRAY DRIVER<W56>
EXC. WINDOW RR<8LF>
(B)
DARK GRAY
|
8-97411-683-1 |
01 |
1 |
0804-1211 |
● |
|
|
|
| |
1 |
16.742 LINING; HD
INTERIOR TRIM-FULL TRIMMING<WM3>
HEADER TRAY DRIVER<W56>
EXC. WINDOW RR<8LF>
(B)
DARK GRAY
|
8-97425-047-0 |
01 |
1 |
1212- |
● |
|
|
|
| |
1 |
16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY>
(C)
DARK GRAY
|
8-97406-291-4 |
01 |
1 |
0804- |
|
|
● |
● |
| |
1 |
16.742 LINING; HD
HEADER TRAY DRIVER<W56>
(C)
DARK GRAY
|
8-97406-290-4 |
01 |
1 |
0804- |
|
|
● |
● |
| |
1 |
16.742 LINING; HD
EXC. HEADER TRAY DRIVER<W56>,HEADER
TRAY DRIVER & PASSENGER<8LY>
(C)
DARK GRAY
|
8-97406-289-3 |
01 |
1 |
0804- |
|
|
● |
● |
| |
2 |
16.742 LINING; HD,ROOF RR
(A)
DARK GRAY
|
8-97406-292-2 |
01 |
1 |
0804- |
|
|
● |
● |
| |
2 |
16.742 LINING; HD,ROOF RR
(B)
DARK GRAY
|
8-97407-331-3 |
01 |
1 |
0804- |
|
|
● |
● |
| |
3 |
16.575 COVER; TRIM,ROOF SIDE
DARK GRAY
|
8-97407-365-0 |
04 |
1 |
0804- |
|
|
● |
● |
| |
6 |
16.742 SPACER; HD LINING
1 SET=20 PIECE
|
8-98100-429-0 |
01 |
1 |
0804- |
|
|
● |
● |
| |
45 |
16.742 CLIP; FINISHER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>
|
8-98035-592-1 |
05 |
1 |
0710-0803 |
● |
|
|
|
| |
45 |
16.742 CLIP; FINISHER
|
8-98035-592-1 |
05 |
1 |
0710-0803 |
|
● |
|
|
| |
45 |
16.742 CLIP; FINISHER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>
|
8-98035-592-1 |
05 |
1 |
0804-0911 |
● |
|
|
|
| |
45 |
16.742 CLIP; FINISHER
|
8-98035-592-1 |
05 |
1 |
0804-0911 |
|
● |
● |
● |
| |
45 |
16.742 CLIP; FINISHER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>
|
8-98035-592-1 |
03 |
1 |
0912- |
● |
|
|
|
| |
45 |
16.742 CLIP; FINISHER
|
8-98035-592-1 |
03 |
1 |
0912- |
|
● |
● |
● |
| |
49 |
16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>
(A)
DARK GRAY
|
8-97407-768-0 |
02 |
1 |
0710-0803 |
● |
|
|
|
| |
49 |
16.742 CLIP; TRIM COVER
ASSIST GRIP PASSENGER<EG5>
(A)
DARK GRAY
|
8-97407-768-0 |
02 |
1 |
0710-0803 |
|
● |
|
|
| |
49 |
16.742 CLIP; TRIM COVER
ASSIST GRIP PASSENGER<EG5>
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>
(A)
DARK GRAY
|
8-97407-768-0 |
02 |
1 |
0804- |
● |
|
|
|
| |
49 |
16.742 CLIP; TRIM COVER
ASSIST GRIP PASSENGER<EG5>
(A)
DARK GRAY
|
8-97407-768-0 |
02 |
1 |
0804- |
|
● |
● |
● |
| |
49 |
16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>
16.578
(B)
|
8-98059-610-0 |
03 |
1 |
0710-0803 |
● |
|
|
|
| |
49 |
16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>
16.578
(B)
|
8-98059-610-0 |
03 |
1 |
0710-0803 |
● |
|
|
|
| |
49 |
16.742 CLIP; TRIM COVER
16.578
(B)
|
8-98059-610-0 |
03 |
1 |
0710-0803 |
|
● |
|
|
| |
49 |
16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>
16.578
(B)
|
8-98059-610-0 |
03 |
1 |
0804-1410 |
● |
|
|
|
| |
49 |
16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>
16.578
(B)
|
8-98059-610-0 |
03 |
1 |
0804-1410 |
● |
|
|
|
| |
49 |
16.742 CLIP; TRIM COVER
16.578
(B)
|
8-98059-610-0 |
03 |
1 |
0804-1410 |
|
● |
● |
● |
| |
49 |
16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>
16.578
(B)
|
8-98059-610-0 |
02 |
1 |
1411- |
● |
|
|
|
| |
49 |
16.742 CLIP; TRIM COVER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>
16.578
(B)
|
8-98059-610-0 |
02 |
1 |
1411- |
● |
|
|
|
| |
49 |
16.742 CLIP; TRIM COVER
16.578
(B)
|
8-98059-610-0 |
02 |
1 |
1411- |
|
● |
● |
● |
| |
49 |
16.742 CLIP; TRIM COVER
EXC. ASSIST GRIP PASSENGER<EG5>
(A)
DARK GRAY
|
8-97407-768-0 |
04 |
1 |
0710-0803 |
|
● |
|
|
| |
49 |
16.742 CLIP; TRIM COVER
EXC. ASSIST GRIP PASSENGER<EG5>,
INTERIOR TRIM-FULL TRIMMING<WM3>
(A)
DARK GRAY
|
8-97407-768-0 |
04 |
1 |
0804- |
● |
|
|
|
| |
49 |
16.742 CLIP; TRIM COVER
EXC. ASSIST GRIP PASSENGER<EG5>
(A)
DARK GRAY
|
8-97407-768-0 |
04 |
1 |
0804- |
|
● |
● |
● |
| |
50 |
16.742 TRIM; ROOF BACK
DARK GRAY
|
8-97406-295-2 |
01 |
1 |
0804- |
|
|
● |
● |
| |
71 |
16.742 FASTENER; HD LINING
INTERIOR TRIM-FULL TRIMMING<WM3>
(B) D=8.7X16.5
DARK GRAY
|
8-97405-282-0 |
02 |
1 |
0710- |
● |
|
|
|
| |
71 |
16.742 FASTENER; HD LINING
INTERIOR TRIM-FULL TRIMMING<WM3>
(B) D=11.6X13.6
DARK GRAY
|
8-97405-301-2 |
03 |
1 |
0710-0803 |
● |
|
|
|
| |
71 |
16.742 FASTENER; HD LINING
COAT HOOK<S9M>
INTERIOR TRIM-FULL TRIMMING<WM3>
(B) D=11.6X13.6
DARK GRAY
|
8-97405-301-2 |
03 |
1 |
0804- |
● |
|
|
|
| |
71 |
16.742 FASTENER; HD LINING
INTERIOR TRIM-FULL TRIMMING<WM3>
EXC. COAT HOOK<S9M>
(B) D=11.6X13.6
DARK GRAY
|
8-97405-301-2 |
04 |
1 |
0804- |
● |
|
|
|
| |
71 |
16.742 FASTENER; HD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>
(B) D=8.7X16.5
DARK GRAY
|
8-97405-282-0 |
06 |
1 |
0710- |
● |
|
|
|
| |
71 |
16.742 FASTENER; HD LINING
(B) D=8.7X16.5
DARK GRAY
|
8-97405-282-0 |
06 |
1 |
0710- |
|
● |
|
|
| |
71 |
16.742 FASTENER; HD LINING
(B) D=8.7X16.5
DARK GRAY
|
8-97405-282-0 |
34 |
1 |
0804- |
|
|
● |
● |
| |
71 |
16.742 FASTENER; HD LINING
(A)
DARK GRAY
|
8-97411-797-0 |
01 |
1 |
0804- |
|
|
● |
● |
| |
170 |
16.742 FINISHER; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>
DARK GRAY
|
8-97406-296-4 |
01 |
1 |
0710-0803 |
● |
|
|
|
| |
170 |
16.742 FINISHER; HEAD LINING
DARK GRAY
|
8-97406-296-4 |
01 |
1 |
0710-0803 |
|
● |
|
|
| |
170 |
16.742 FINISHER; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>
DARK GRAY
|
8-97406-296-4 |
01 |
1 |
0804- |
● |
|
|
|
| |
170 |
16.742 FINISHER; HEAD LINING
DARK GRAY
|
8-97406-296-4 |
01 |
1 |
0804- |
|
● |
● |
● |
| |
172 |
16.742 RETAINER; HEAD LINING
DARK GRAY
|
8-97405-282-0 |
19 |
1 |
0804- |
|
|
● |
● |
| |
175 |
16.742 CUSHION; HEAD LINING
INTERIOR TRIM-FULL TRIMMING<WM3>
(D)
|
8-98051-799-2 |
01 |
1 |
0710- |
● |
|
|
|
| |
175 |
16.742 CUSHION; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>
(B)
|
8-98037-299-3 |
02 |
1 |
0710- |
● |
|
|
|
| |
175 |
16.742 CUSHION; HEAD LINING
(B)
|
8-98037-299-3 |
02 |
1 |
0710- |
|
● |
|
|
| |
175 |
16.742 CUSHION; HEAD LINING
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>
(C)
|
8-98037-300-3 |
01 |
1 |
0710- |
● |
|
|
|
| |
175 |
16.742 CUSHION; HEAD LINING
(C)
|
8-98037-300-3 |
01 |
1 |
0710- |
|
● |
|
|
| |
175 |
16.742 CUSHION; HEAD LINING
(A)
|
8-98082-685-1 |
02 |
1 |
0710-0803 |
● |
● |
|
|
| |
175 |
16.742 CUSHION; HEAD LINING
(A)
|
8-98082-685-1 |
02 |
1 |
0804- |
● |
● |
● |
● |
| |
175 |
16.742 CUSHION; HEAD LINING
(E)
|
8-98053-866-2 |
02 |
1 |
0804- |
|
|
● |
● |
| |
175 |
16.742 CUSHION; HEAD LINING
(A)
|
8-98082-685-1 |
04 |
1 |
0804- |
|
|
● |
● |
| |
186 |
16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY>
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>
DARK GRAY
|
8-97405-252-3 |
01 |
1 |
0710-0803 |
● |
|
|
|
| |
186 |
16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY>
DARK GRAY
|
8-97405-252-3 |
01 |
1 |
0710-0803 |
|
● |
|
|
| |
186 |
16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY>
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>
DARK GRAY
|
8-97405-252-3 |
01 |
1 |
0804- |
● |
|
|
|
| |
186 |
16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY>
DARK GRAY
|
8-97405-252-3 |
01 |
1 |
0804- |
|
● |
● |
● |
| |
186 |
16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY>
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>
DARK GRAY
|
8-97405-250-3 |
01 |
1 |
0710-0803 |
● |
|
|
|
| |
186 |
16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER<W56>,HEADER TRAY
DRIVER & PASSENGER<8LY>
DARK GRAY
|
8-97405-250-3 |
01 |
1 |
0710-0803 |
|
● |
|
|
| |
186 |
16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER<W56>,HEADER TRAY
DRIVER & PASSENGER<8LY>
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>
DARK GRAY
|
8-97405-250-3 |
01 |
1 |
0804- |
● |
|
|
|
| |
186 |
16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER<W56>,HEADER TRAY
DRIVER & PASSENGER<8LY>
DARK GRAY
|
8-97405-250-3 |
01 |
1 |
0804- |
|
● |
● |
● |
| |
186 |
16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,
HEADER TRAY DRIVER & PASSENGER<8LY>
DARK GRAY
|
8-97405-263-3 |
01 |
1 |
0710-0803 |
● |
|
|
|
| |
186 |
16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER &
PASSENGER<8LY>
DARK GRAY
|
8-97405-263-3 |
01 |
1 |
0710-0803 |
|
● |
|
|
| |
186 |
16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,
HEADER TRAY DRIVER & PASSENGER<8LY>
DARK GRAY
|
8-97405-263-3 |
01 |
1 |
0804- |
● |
|
|
|
| |
186 |
16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER &
PASSENGER<8LY>
DARK GRAY
|
8-97405-263-3 |
01 |
1 |
0804- |
|
● |
● |
● |
| |
186 |
16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,
HEADER TRAY DRIVER & PASSENGER<8LY>
DARK GRAY
|
8-97405-251-3 |
01 |
1 |
0710-0803 |
● |
|
|
|
| |
186 |
16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER<W56>,HEADER
TRAY DRIVER & PASSENGER<8LY>
DARK GRAY
|
8-97405-251-3 |
01 |
1 |
0710-0803 |
|
● |
|
|
| |
186 |
16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. INTERIOR TRIM-FULL TRIMMING<WM3>,
HEADER TRAY DRIVER<W56>,HEADER TRAY
DRIVER & PASSENGER<8LY>
DARK GRAY
|
8-97405-251-3 |
01 |
1 |
0804- |
● |
|
|
|
| |
186 |
16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER<W56>,HEADER
TRAY DRIVER & PASSENGER<8LY>
DARK GRAY
|
8-97405-251-3 |
01 |
1 |
0804- |
|
● |
● |
● |
