6-76 — FLOOR EQUIPMENT AND SEALING (#5426) — 29 parça
çizim 8352
144 146 146 342 50 144 211 211 141 326
BalonParca AdiParca NoAdetTipApplied Date
50 COVER ASM; SUPPORT,SIDE 1-72537-124-0 01 1 9601-
141 HOLDER
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-79996-101-1 01 1 9601-9601
141 HOLDER 1-79996-101-1 01 1 9602-9904
141 HOLDER 1-79907-076-1 01 1 9905-
141 HOLDER
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-79997-973-3 01 1 9601-9601
144 COVER; HAND BRK VLV
(B) 		1-72537-106-0 01 1 9601-9812
144 COVER; HAND BRK VLV
(B) 		1-72538-166-0 01 1 9901-
144 COVER; HAND BRK VLV
ELEC OUTLET 12V<TAW> PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-353-0 01 1 9905-
144 COVER; HAND BRK VLV
HONG KONG EQUIPMENT(PQ1) (A) 		1-72417-314-0 01 1 9601-9601
144 COVER; HAND BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-332-0 01 1 9602-9904
144 COVER; HAND BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. ELEC OUTLET 12V<TAW> (A) 		1-72417-332-0 01 1 9905-
144 COVER; HAND BRK VLV
EXC. HONG KONG EQUIPMENT(PQ1) (A) 		1-72417-315-0 01 1 9601-9601
144 COVER; HAND BRK VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-335-0 01 1 9602-9608
144 COVER; HAND BRK VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) 		1-72417-337-0 01 1 9609-
146 BOLT; COVER BRKT
M6X24 W/LK&PL WASHER 		8-94279-404-0 03 1 9601-
211 BOLT; COVER
(A) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 9601-
211 BOLT; COVER
(B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9601-9610
211 BOLT; COVER
BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) (B) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9611-
326 SEAL; COVER 1-79997-978-1 01 1 9601-
342 FASTENER
D8X13.5 		1-09987-248-1 01 1 9601-9610
342 FASTENER
BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) D8X13.5 		1-09987-248-1 01 1 9611-

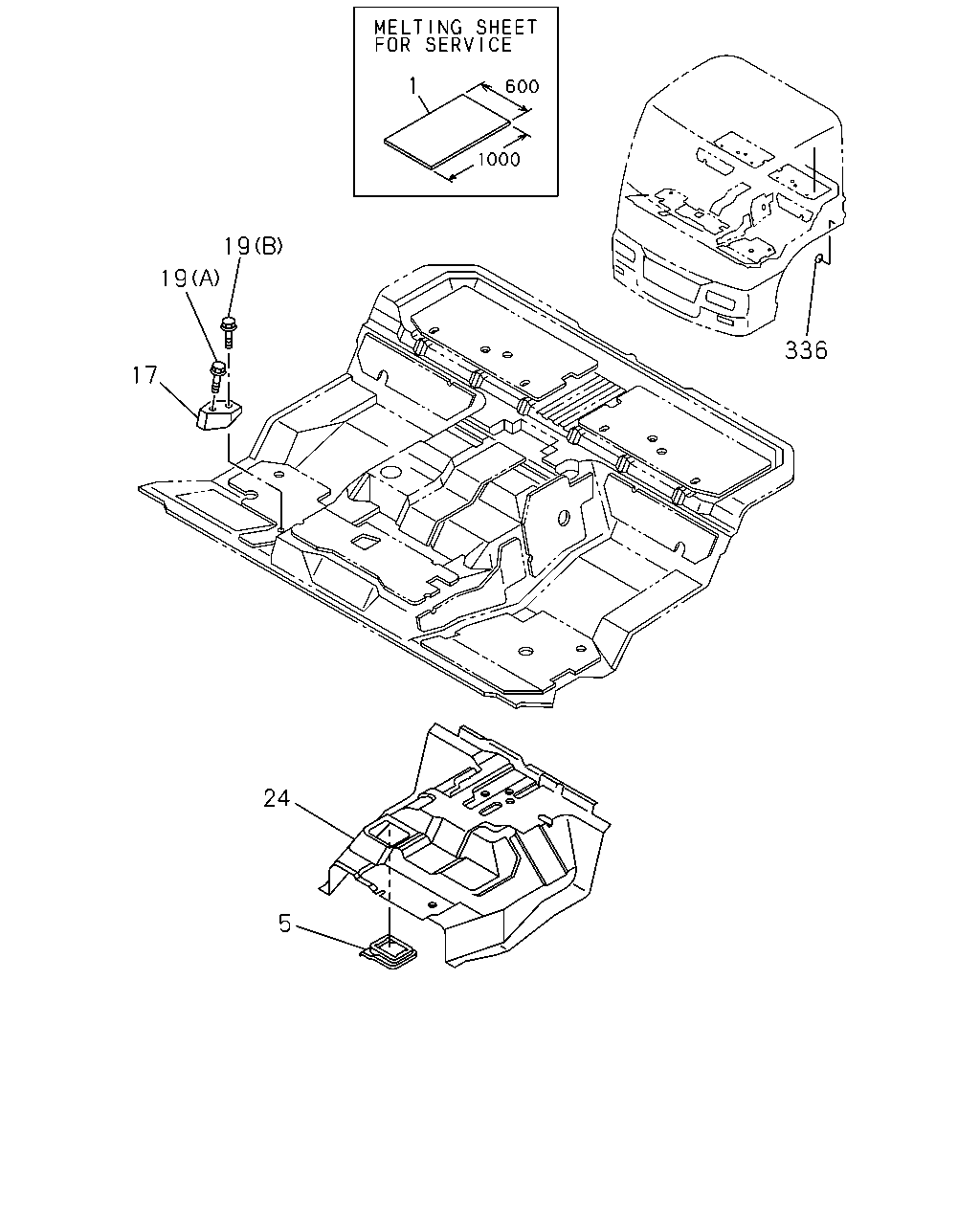

çizim 42461
1 19 19 336 17 24 5
BalonParca AdiParca NoAdetTipApplied Date
1 SHEET; MELTING,FLOOR
CUT BULK SHEET 600X1000 T=3.0 		1-61970-039-0 AR 1 9601-
5 COVER; CHANGE LEVER 1-33619-163-0 01 1 9601-
17 REST; FOOT,DRIVER 1-73907-176-0 01 1 9601-
19 BOLT; FOOT REST
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9601-
19 BOLT; FOOT REST
(A) M6X47 		8-94407-876-1 01 1 9601-
24 INSULATOR; HEAT,FRT 1-71907-299-5 01 1 9601-
336 SEAL; FLOOR SIDE
OD=25 BLACK 		1-76798-019-0 02 1 9601-
336 SEAL; FLOOR SIDE
EXC. BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) OD=25 BLACK 		1-76798-019-0 01 1 9611-
