◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10724 - EXR RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#5425) — 42 parça

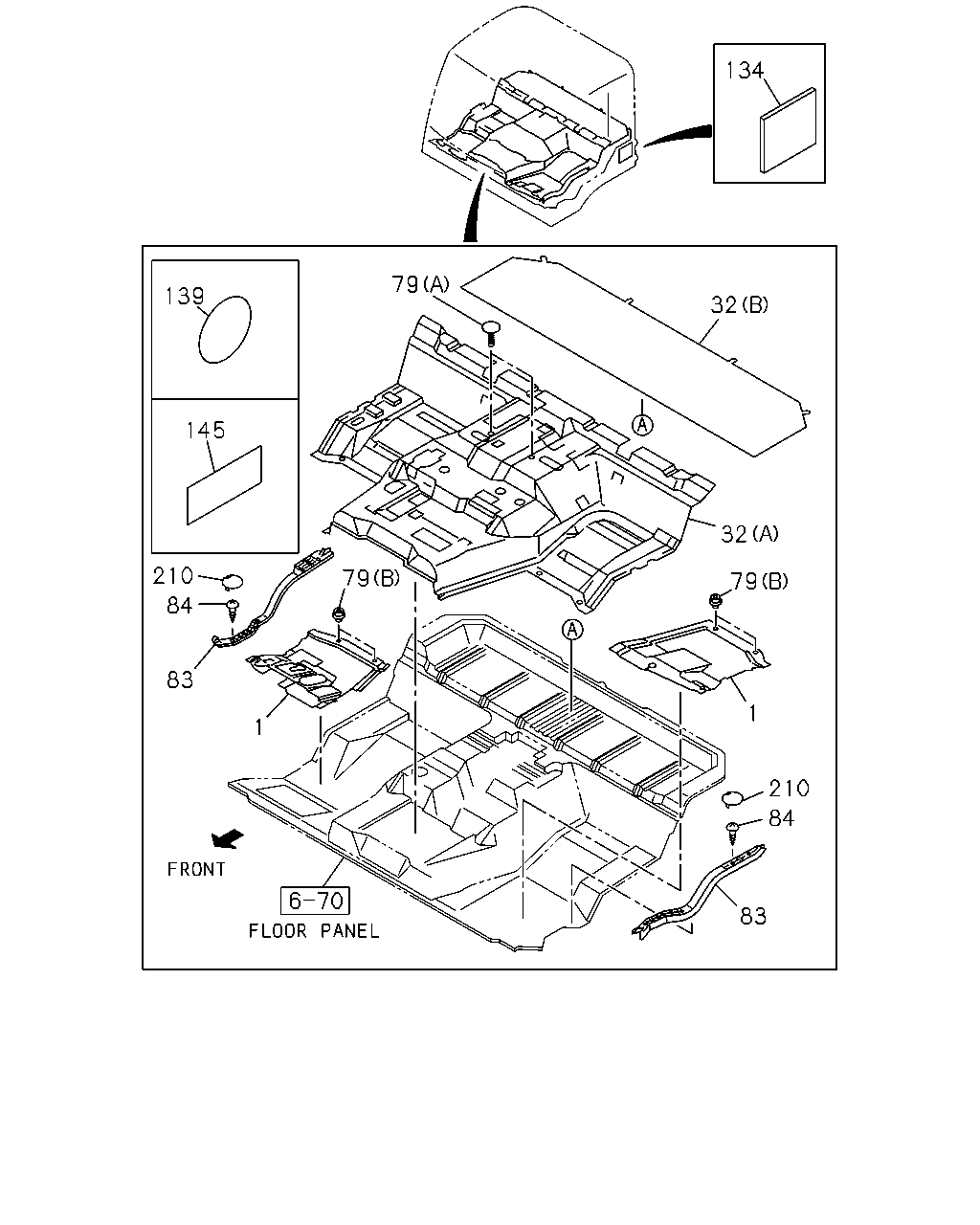

çizim 39102
134 79 139 32 145 32 210 79 79 84 83 1 1 210 84 83
BalonParca AdiParca NoAdetTipApplied Date
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-538-2 01 1 9601-
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-537-1 01 1 9601-0006
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-666-0 01 1 0007-
32 CARPET; FLOOR
DELUXE CARPET<BF2> (A) 		1-73237-507-0 01 1 9601-9606
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. CENTER SEAT DELETE(SP9) (A) 		1-73237-507-5 01 1 9607-9904
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) (A) 		1-73237-507-9 01 1 9905-
32 CARPET; FLOOR
DELUXE CARPET<BF2> CENTER SEAT DELETE(SP9) (A) 		1-73237-562-5 01 1 9607-9904
32 CARPET; FLOOR
DELUXE CARPET<BF2> CENTER SEAT DELETE(SP9) EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-73237-562-9 01 1 9905-
32 CARPET; FLOOR
DELUXE CARPET<BF2> ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9) (A) 		1-73237-600-7 01 1 9905-
32 CARPET; FLOOR
DELUXE CARPET<BF2> ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (A) 		1-73237-609-7 01 1 9905-
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> (B) 		1-73237-539-0 01 1 9601-
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 9601-
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 9601-
83 PLATE; KICKING,FLOOR MAT 1-76798-027-2 01 1 9601-
83 PLATE; KICKING,FLOOR MAT 1-76798-026-3 01 1 9601-
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 9601-
134 SILENCER; RR FLOOR,SIDE 1-73367-016-0 01 1 9601-
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 04 1 9601-
145 SEAL; FLOOR PANEL
100X30 		1-72498-014-1 01 1 9601-9903
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-0 01 1 9904-
210 COVER; KICKING PLATE 1-72538-166-0 09 1 9601-

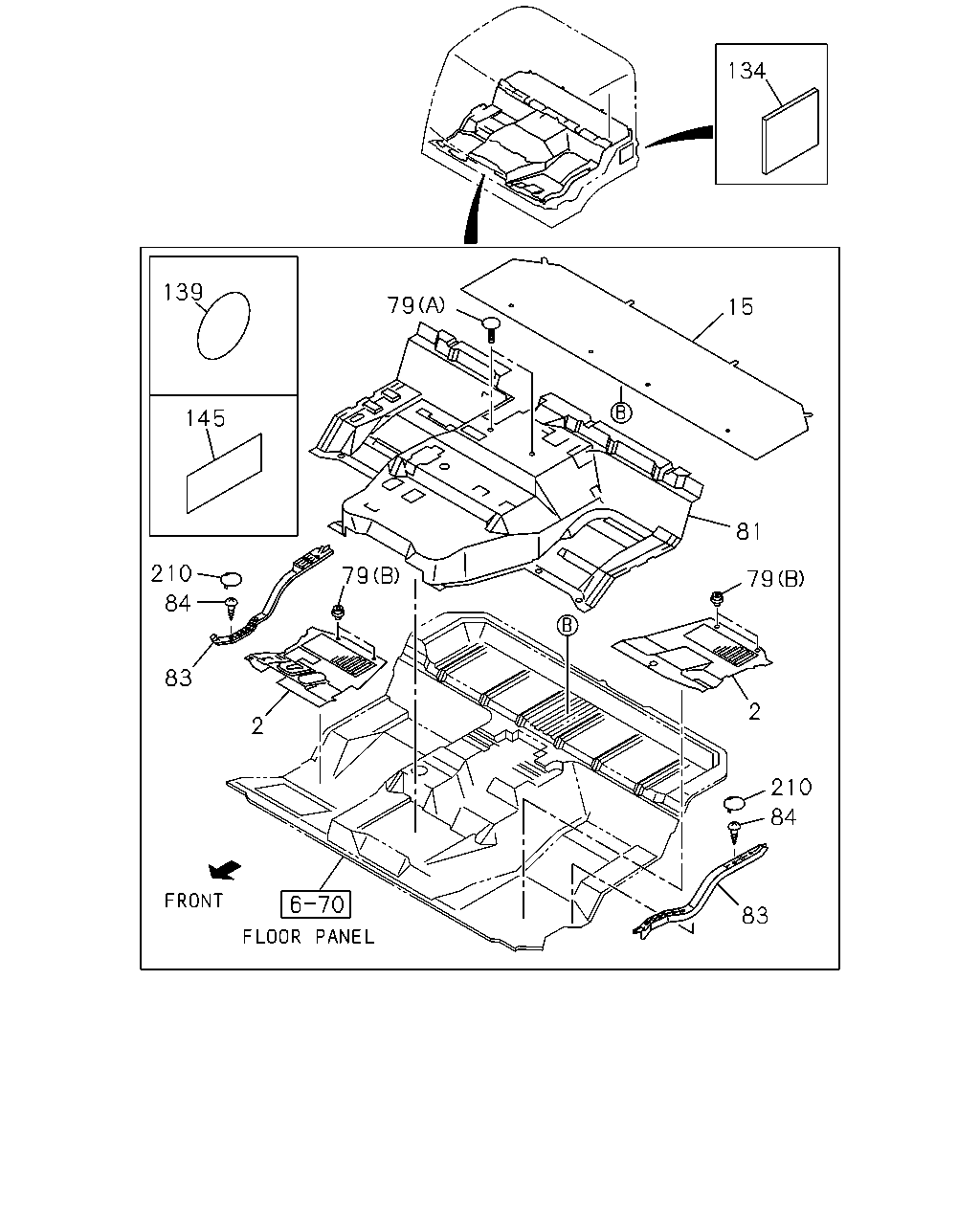

çizim 42458
134 139 79 15 145 81 79 210 79 84 83 2 2 210 84 83
BalonParca AdiParca NoAdetTipApplied Date
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-536-3 01 1 9601-
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-535-2 01 1 9601-0006
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-675-0 01 1 0007-
15 MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40> 		1-73237-517-2 01 1 9601-
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 9601-
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 9601-
81 MAT; FLOOR,CENTER
CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2> 		1-73237-563-5 01 1 9607-9904
81 MAT; FLOOR,CENTER
CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2>,ISRINGHAUSEN SEAT(SJA) 		1-73237-563-7 01 1 9905-
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2> 		1-73237-508-1 01 1 9601-9606
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9) 		1-73237-508-6 01 1 9607-9904
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2>,ISRINGHAUSEN SEAT(SJA), CENTER SEAT DELETE(SP9) 		1-73237-508-7 01 1 9905-
81 MAT; FLOOR,CENTER
ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2> 		1-73237-607-5 01 1 9905-
81 MAT; FLOOR,CENTER
ISRINGHAUSEN SEAT(SJA) EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9) 		1-73237-608-4 01 1 9905-
83 PLATE; KICKING,FLOOR MAT 1-76798-027-2 01 1 9601-
83 PLATE; KICKING,FLOOR MAT 1-76798-026-3 01 1 9601-
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 9601-
134 SILENCER; RR FLOOR,SIDE 1-73367-016-0 01 1 9601-
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 04 1 9601-
145 SEAL; FLOOR PANEL
100X30 		1-72498-014-1 01 1 9601-9903
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-0 01 1 9904-
210 COVER; KICKING PLATE 1-72538-166-0 09 1 9601-
