◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51149 - NLR/NMR 55,85(RHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#54245) — 226 parça

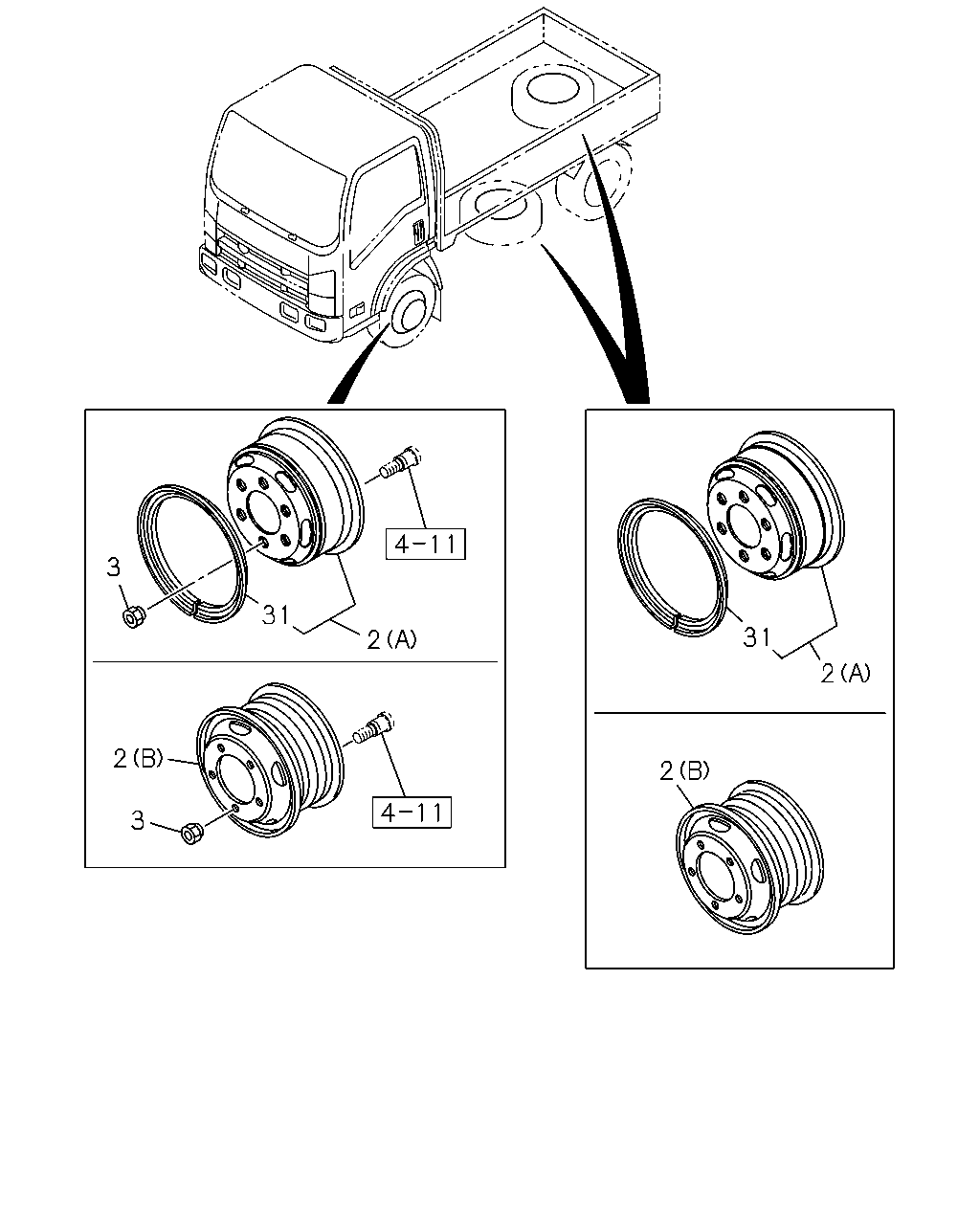

çizim 154824
3 31 31 2 2 2 2 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 05.803 WHEEL; DISC
FRT&RR 7-15-8 5.5FX25-170(CTK),FRT&RR 7-15-10 5.5FX25-170(CTL),FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R- 15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0804-0809 ●
2 05.803 WHEEL; DISC
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0804-0809 ●
2 05.803 WHEEL; DISC
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.5-15-105.5FX15-25(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0810- ●
2 05.803 WHEEL; DISC
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0810- ●
2 05.803 WHEEL; DISC
FRT&RR 7-15-8 5.5FX25-170(CTK),FRT&RR 7-15-10 5.5FX25-170(CTL),FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 0804-0809 ●
2 05.803 WHEEL; DISC
FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 0810- ●
2 05.803 WHEEL; DISC
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL) (A) SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 0804- ●
2 05.803 WHEEL; DISC
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL) (A) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 0804- ●
2 05.803 WHEEL; DISC
(B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0710-0803 ● ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 185/85R16 16X5.5J -116.5 SILVER(CSZ) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0804-0906 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0907-1005 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 RIB(CVT) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1006- ● ● ●
2 05.803 WHEEL; DISC
(B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0710-0803 ● ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 185/85R16 16X5.5J -116.5 SILVER(CSZ) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0804-0906 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0907-1005 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 RIB(CVT) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1006- ● ● ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 0804-0809 ● ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 0810- ● ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 0804-0809 ● ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 0810- ● ●
2 05.803 WHEEL; DISC
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT6.5R-15-10 RR7R-15-10 F&R/D ISC 5.5F-25-170(CUP) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 0804- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7-16-10 5.5FX16-25(89C) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 0804-0809 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 0810- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7-16-10 5.5FX16-25(89C) (A) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 0804-0809 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 0810- ● ●
2 05.803 WHEEL; DISC
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT 7-15-10 5.5F X15-25 RR 7.5-15-12 6GSX15-25(25H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0804-0809 ● ●
2 05.803 WHEEL; DISC
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0810- ● ●
2 05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177 A(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0804-0809 ● ●
2 05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F- 115(07H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0810- ● ●
2 05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177 A(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0804-0809 ● ●
2 05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F- 115(07H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0810- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 0804-0809 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 0810- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 0804-0809 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 0810- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) M14 LH THREAD 		8-98007-906-0 06 1 0804- ●
3 05.813 NUT; WHEEL,FRT AXLE
SINGLE RR TIRE(6TD) M14 LH THREAD 		8-98007-906-0 06 1 0804- ●
3 05.813 NUT; WHEEL,FRT AXLE
SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) M14 RH THREAD 		8-98007-905-0 06 1 0804- ●
3 05.813 NUT; WHEEL,FRT AXLE
SINGLE RR TIRE(6TD) M14 RH THREAD 		8-98007-905-0 06 1 0804- ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD 		8-98007-908-0 05 1 0710-0803 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) M18 LH THREAD 		8-98007-908-0 05 1 0804- ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD 		8-98007-908-0 05 1 0804- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
EXC. SINGLE RR TIRE(6TD) M18 LH THREAD 		8-98007-908-0 05 1 0804- ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD 		8-98007-907-0 05 1 0710-0803 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) M18 RH THREAD 		8-98007-907-0 05 1 0804- ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD 		8-98007-907-0 05 1 0804- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
EXC. SINGLE RR TIRE(6TD) M18 RH THREAD 		8-98007-907-0 05 1 0804- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-15-8 5.5FX25-170(CTK),FRT&RR 7-15-10 5.5FX25-170(CTL),FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R- 15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT&RR 7.5-15-10 5.5FX15-25(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0804-0809 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0804-0809 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0804-0809 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.5-15-105.5FX15-25(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0810- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-15-8 5.5FX25-170(CTK),FRT&RR 7-15-10 5.5FX25-170(CTL),FRT&RR 7.5-15-10 5.5FX15-25(09V) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 0804-0809 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.5-15-10 5.5FX15-25(09V) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 5.5FX16-25(89C),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7 -16-10L 5.5FX16-115 T/VLV TR177A(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0804-0809 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0810- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F- 115(07H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-11 5(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 0804-0809 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 0810- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 0804-0809 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 0810- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT6.5R-15-10 RR7R-15-10 F&R/D ISC 5.5F-25-170(CUP) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 0804- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-16-10 5.5FX16-25(89C) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 0804-0809 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 0810- ● ●
31 05.839 RING; SIDE,DISC WHEEL
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT 7-15-10 5.5F X15-25 RR 7.5-15-12 6GSX15-25(25H) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0804-0809 ● ●
31 05.839 RING; SIDE,DISC WHEEL
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0810- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177 A(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0804-0809 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F- 115(07H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0810- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0804-0809 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0810- ● ●

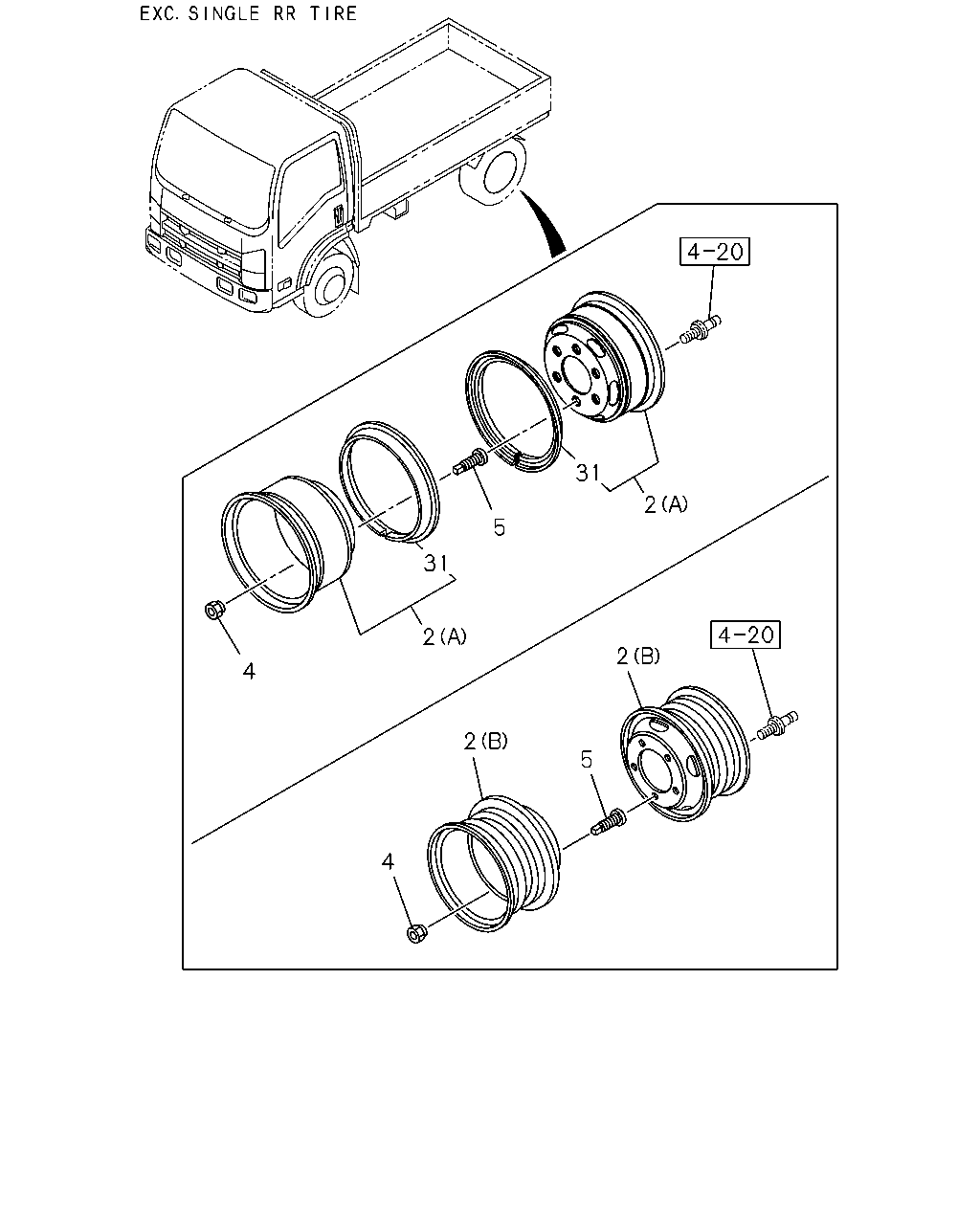

çizim 154830
31 2 5 31 2 2 4 2 5 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 05.803 WHEEL; DISC
FRT&RR 7-15-8 5.5FX25-170(CTK),FRT&RR 7-15-10 5.5FX25-170(CTL),FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R- 15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0804-0809 ●
2 05.803 WHEEL; DISC
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0804-0809 ●
2 05.803 WHEEL; DISC
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.5-15-105.5FX15-25(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0810- ●
2 05.803 WHEEL; DISC
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0810- ●
2 05.803 WHEEL; DISC
FRT&RR 7-15-8 5.5FX25-170(CTK),FRT&RR 7-15-10 5.5FX25-170(CTL),FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 0804-0809 ●
2 05.803 WHEEL; DISC
FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 0810- ●
2 05.803 WHEEL; DISC
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL) (A) SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 0804- ●
2 05.803 WHEEL; DISC
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL) (A) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 0804- ●
2 05.803 WHEEL; DISC
(B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0710-0803 ● ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 185/85R16 16X5.5J -116.5 SILVER(CSZ) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0804-0906 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0907-1005 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 RIB(CVT) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1006- ● ● ●
2 05.803 WHEEL; DISC
(B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0710-0803 ● ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 185/85R16 16X5.5J -116.5 SILVER(CSZ) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0804-0906 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0907-1005 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 RIB(CVT) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1006- ● ● ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 0804-0809 ● ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 0810- ● ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 0804-0809 ● ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 0810- ● ●
2 05.803 WHEEL; DISC
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT6.5R-15-10 RR7R-15-10 F&R/D ISC 5.5F-25-170(CUP) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 0804- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7-16-10 5.5FX16-25(89C) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 0804-0809 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 0810- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7-16-10 5.5FX16-25(89C) (A) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 0804-0809 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 0810- ● ●
2 05.803 WHEEL; DISC
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT 7-15-10 5.5F X15-25 RR 7.5-15-12 6GSX15-25(25H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0804-0809 ● ●
2 05.803 WHEEL; DISC
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0810- ● ●
2 05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177 A(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0804-0809 ● ●
2 05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F- 115(07H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0810- ● ●
2 05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177 A(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0804-0809 ● ●
2 05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F- 115(07H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0810- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 0804-0809 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 0810- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 0804-0809 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 0810- ● ●
4 05.813 NUT; WHEEL,RR AXLE
SMALL DOUBLE RR TIRE(6YE) M25 LH THREAD 		8-98007-831-0 06 1 0804- ●
4 05.813 NUT; WHEEL,RR AXLE
SMALL DOUBLE RR TIRE(6YE) M25 RH THREAD 		8-98007-830-0 06 1 0804- ●
4 05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-98007-825-0 05 1 0710-0803 ● ●
4 05.813 NUT; WHEEL,RR AXLE
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) M27 LH THREAD 		8-98007-825-0 05 1 0804- ●
4 05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-98007-825-0 05 1 0804- ● ●
4 05.813 NUT; WHEEL,RR AXLE
EXC. SINGLE RR TIRE(6TD) M27 LH THREAD 		8-98007-825-0 05 1 0804- ●
4 05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-98007-824-0 05 1 0710-0803 ● ●
4 05.813 NUT; WHEEL,RR AXLE
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) M27 RH THREAD 		8-98007-824-0 05 1 0804- ●
4 05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-98007-824-0 05 1 0804- ● ●
4 05.813 NUT; WHEEL,RR AXLE
EXC. SINGLE RR TIRE(6TD) M27 RH THREAD 		8-98007-824-0 05 1 0804- ●
4 05.813 NUT; WHEEL,RR AXLE
SINGLE RR TIRE(6TD) M14 LH THREAD 		8-98007-906-0 06 1 0804- ● ●
4 05.813 NUT; WHEEL,RR AXLE
SINGLE RR TIRE(6TD) M14 RH THREAD 		8-98007-905-0 06 1 0804- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
SMALL DOUBLE RR TIRE(6YE) OUTER M25,INNER M16 LH THREAD 		8-98007-829-0 06 1 0804- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
SMALL DOUBLE RR TIRE(6YE) OUTER M25,INNER M16 RH THREAD 		8-98007-828-0 06 1 0804- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 0710-0803 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 0804- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 0804- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
EXC. SINGLE RR TIRE(6TD) OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 0804- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 0710-0803 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 0804- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 0804- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
EXC. SINGLE RR TIRE(6TD) OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 0804- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-15-8 5.5FX25-170(CTK),FRT&RR 7-15-10 5.5FX25-170(CTL),FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R- 15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT&RR 7.5-15-10 5.5FX15-25(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0804-0809 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0804-0809 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0804-0809 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.5-15-105.5FX15-25(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0810- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-15-8 5.5FX25-170(CTK),FRT&RR 7-15-10 5.5FX25-170(CTL),FRT&RR 7.5-15-10 5.5FX15-25(09V) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 0804-0809 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.5-15-10 5.5FX15-25(09V) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 5.5FX16-25(89C),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7 -16-10L 5.5FX16-115 T/VLV TR177A(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0804-0809 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0810- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F- 115(07H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-11 5(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 0804-0809 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 0810- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 0804-0809 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 0810- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT6.5R-15-10 RR7R-15-10 F&R/D ISC 5.5F-25-170(CUP) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 0804- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-16-10 5.5FX16-25(89C) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 0804-0809 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 0810- ● ●
31 05.839 RING; SIDE,DISC WHEEL
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT 7-15-10 5.5F X15-25 RR 7.5-15-12 6GSX15-25(25H) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0804-0809 ● ●
31 05.839 RING; SIDE,DISC WHEEL
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0810- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177 A(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0804-0809 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F- 115(07H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0810- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0804-0809 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0810- ● ●

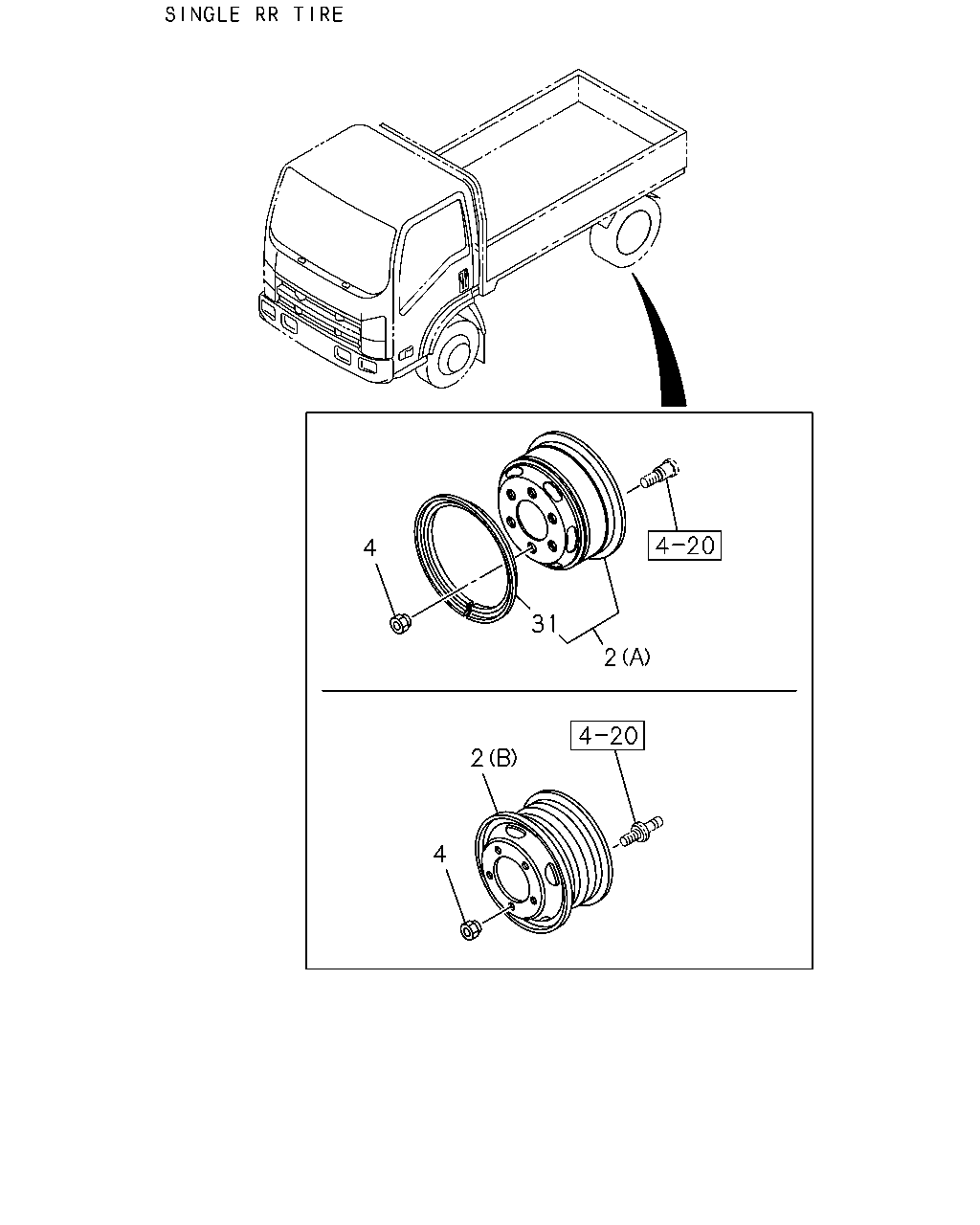

çizim 155046
4 31 2 2 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 05.803 WHEEL; DISC
FRT&RR 7-15-8 5.5FX25-170(CTK),FRT&RR 7-15-10 5.5FX25-170(CTL),FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R- 15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0804-0809 ●
2 05.803 WHEEL; DISC
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0804-0809 ●
2 05.803 WHEEL; DISC
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.5-15-105.5FX15-25(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0810- ●
2 05.803 WHEEL; DISC
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 01 1 0810- ●
2 05.803 WHEEL; DISC
FRT&RR 7-15-8 5.5FX25-170(CTK),FRT&RR 7-15-10 5.5FX25-170(CTL),FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 0804-0809 ●
2 05.803 WHEEL; DISC
FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 0810- ●
2 05.803 WHEEL; DISC
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL) (A) SPARE 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 01 1 0804- ●
2 05.803 WHEEL; DISC
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL) (A) REAR 13X4J OFFSET=98 BLACK 6-HOLE 		8-94116-197-2 04 1 0804- ●
2 05.803 WHEEL; DISC
(B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0710-0803 ● ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 185/85R16 16X5.5J -116.5 SILVER(CSZ) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0804-0906 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0907-1005 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 RIB(CVT) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1006- ● ● ●
2 05.803 WHEEL; DISC
(B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0710-0803 ● ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 185/85R16 16X5.5J -116.5 SILVER(CSZ) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0804-0906 ● ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0907-1005 ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 E EC(BQU),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 RIB(CVT) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1006- ● ● ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 0804-0809 ● ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 01 1 0810- ● ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 0804-0809 ● ●
2 05.803 WHEEL; DISC
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE 		8-94128-017-0 02 1 0810- ● ●
2 05.803 WHEEL; DISC
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT6.5R-15-10 RR7R-15-10 F&R/D ISC 5.5F-25-170(CUP) (A) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 04 1 0804- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7-16-10 5.5FX16-25(89C) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 0804-0809 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 01 1 0810- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7-16-10 5.5FX16-25(89C) (A) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 0804-0809 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (A) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE 		8-94128-561-0 04 1 0810- ● ●
2 05.803 WHEEL; DISC
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT 7-15-10 5.5F X15-25 RR 7.5-15-12 6GSX15-25(25H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0804-0809 ● ●
2 05.803 WHEEL; DISC
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE 		8-94116-196-0 02 1 0810- ● ●
2 05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177 A(98H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0804-0809 ● ●
2 05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F- 115(07H) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 01 1 0810- ● ●
2 05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177 A(98H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0804-0809 ● ●
2 05.803 WHEEL; DISC
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F- 115(07H) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE 		8-94378-330-1 06 1 0810- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 0804-0809 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) SPARE 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 01 1 0810- ● ●
2 05.803 WHEEL; DISC
FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 0804-0809 ● ●
2 05.803 WHEEL; DISC
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) (A) FRONT,REAR 5.5FX15 OFFSET=115 BLACK 5-HOLE 		8-94116-198-0 06 1 0810- ● ●
4 05.813 NUT; WHEEL,RR AXLE
SMALL DOUBLE RR TIRE(6YE) M25 LH THREAD 		8-98007-831-0 06 1 0804- ●
4 05.813 NUT; WHEEL,RR AXLE
SMALL DOUBLE RR TIRE(6YE) M25 RH THREAD 		8-98007-830-0 06 1 0804- ●
4 05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-98007-825-0 05 1 0710-0803 ● ●
4 05.813 NUT; WHEEL,RR AXLE
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) M27 LH THREAD 		8-98007-825-0 05 1 0804- ●
4 05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-98007-825-0 05 1 0804- ● ●
4 05.813 NUT; WHEEL,RR AXLE
EXC. SINGLE RR TIRE(6TD) M27 LH THREAD 		8-98007-825-0 05 1 0804- ●
4 05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-98007-824-0 05 1 0710-0803 ● ●
4 05.813 NUT; WHEEL,RR AXLE
EXC. SINGLE RR TIRE(6TD),SMALL DOUBLE RR TIRE(6YE) M27 RH THREAD 		8-98007-824-0 05 1 0804- ●
4 05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-98007-824-0 05 1 0804- ● ●
4 05.813 NUT; WHEEL,RR AXLE
EXC. SINGLE RR TIRE(6TD) M27 RH THREAD 		8-98007-824-0 05 1 0804- ●
4 05.813 NUT; WHEEL,RR AXLE
SINGLE RR TIRE(6TD) M14 LH THREAD 		8-98007-906-0 06 1 0804- ● ●
4 05.813 NUT; WHEEL,RR AXLE
SINGLE RR TIRE(6TD) M14 RH THREAD 		8-98007-905-0 06 1 0804- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-15-8 5.5FX25-170(CTK),FRT&RR 7-15-10 5.5FX25-170(CTL),FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP),FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R- 15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT&RR 7.5-15-10 5.5FX15-25(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0804-0809 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0804-0809 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0804-0809 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),F6.5R-15-10,R155R-13-8 F5.5FX1 5-25,R4JX13-98(CUL),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.5-15-105.5FX15-25(09V) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0810- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT6.5R-15-10 RR7R-15-10 F&R/DISC 5.5F- 25-170(CUP) SPARE 15X5.50F STAMP, BLACK 		8-94135-599-0 01 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-15-8 5.5FX25-170(CTK),FRT&RR 7-15-10 5.5FX25-170(CTL),FRT&RR 7.5-15-10 5.5FX15-25(09V) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 0804-0809 ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT),FRT&RR 7.5-15-10 5.5FX15-25(09V) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 5.5FX16-25(89C),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7 -16-10L 5.5FX16-115 T/VLV TR177A(98H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0804-0809 ● ● ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0810- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F- 115(07H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-11 5(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) SPARE 16X5.50F STAMP, BLACK 		8-94135-601-0 01 1 0810- ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 0804-0809 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) SPARE 15X6.00GS STAMP, BLACK 		8-94135-600-0 01 1 0810- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 0804-0809 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F -15-25(CUQ) REAR 15X6.00GS STAMP, BLACK 		8-94135-600-0 02 1 0810- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 6.5R-15-10 DISC 5.5F-25-170(CTP) ,FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25(CTQ),FRT6.5R-15-10 RR7R-15-10 F&R/D ISC 5.5F-25-170(CUP) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 04 1 0804- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-16-10 5.5FX16-25(89C) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 0804-0809 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 04 1 0810- ● ●
31 05.839 RING; SIDE,DISC WHEEL
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ),FRT 7-15-10 5.5F X15-25 RR 7.5-15-12 6GSX15-25(25H) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0804-0809 ● ●
31 05.839 RING; SIDE,DISC WHEEL
F6.5R-15-10,R155R-13-8 F5.5FX15-25, R4JX13-98(CUL),FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F-15-25(CUQ) FRONT 15X5.50F STAMP, BLACK 		8-94135-599-0 02 1 0810- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177 A(98H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0804-0809 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT 7-16-14 RR 7-16-14 FRT&RR 5.5FX16-1 15(AQE),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F- 115(07H) FRONT,REAR 16X5.50F STAMP, BLACK 		8-94135-601-0 06 1 0810- ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0804-0809 ● ●
31 05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H) FRONT,REAR 15X5.50F STAMP, BLACK 		8-94135-599-0 06 1 0810- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
