◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10724 - EXR RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#5424) — 39 parça

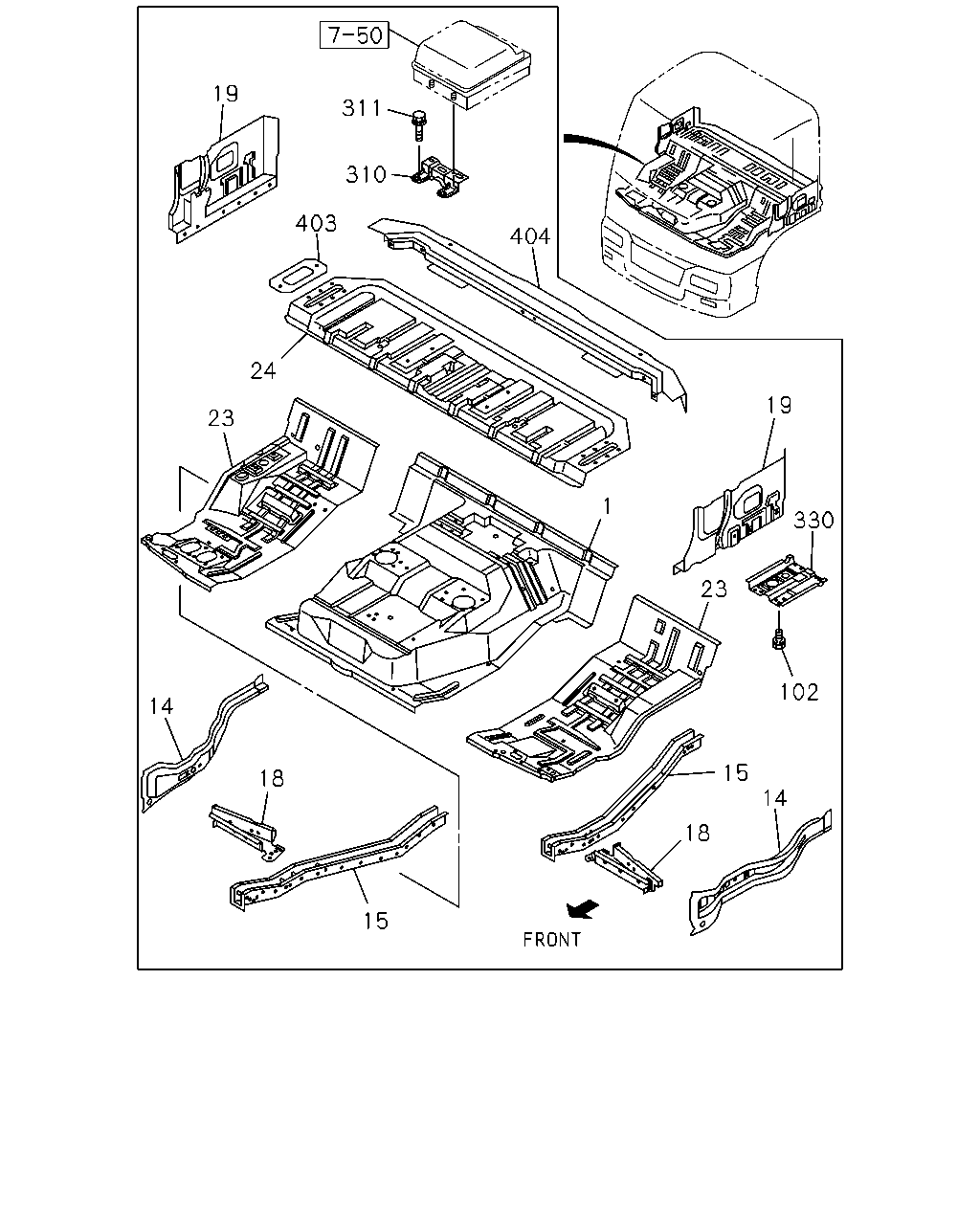

çizim 43029
19 311 310 403 404 24 19 23 1 330 23 102 14 15 18 14 18 15
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR
ISUZU M/T<X9A> 		1-62172-610-1 01 1 9601-9904
1 PANEL; FLOOR
ISUZU M/T<X9A> 		1-62172-610-3 01 1 9905-
1 PANEL; FLOOR
TRANSMISSION-ZF 8S151 OD(Y3N) 		1-62172-610-3 01 1 9905-
1 PANEL; FLOOR
ZF M/T<X9E> 		1-62172-603-1 01 1 9601-9610
1 PANEL; FLOOR
FULLER M/T<X9B>,ZF M/T<X9E> 		1-62172-603-1 01 1 9611-9904
1 PANEL; FLOOR
FULLER M/T<X9B> 		1-62172-603-3 01 1 9905-
1 PANEL; FLOOR
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62172-603-3 01 1 9905-
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 9601-
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 9601-
15 FRAME; UNDER
FRONT 		1-62472-603-9 01 1 9601-
15 FRAME; UNDER
REAR 		1-62472-680-1 01 1 9601-
15 FRAME; UNDER
REAR 		1-62472-598-6 01 1 9601-
15 FRAME; UNDER
FRONT 		1-62472-602-9 01 1 9601-0103
15 FRAME; UNDER
FRONT 		1-62472-766-1 01 1 0104-
18 FRAME; FLOOR,CENTER SIDE 1-62482-997-5 01 1 9601-
18 FRAME; FLOOR,CENTER SIDE 1-62482-957-2 01 1 9601-9609
18 FRAME; FLOOR,CENTER SIDE 1-62483-168-2 01 1 9610-
19 PANEL; FLOOR SIDE,REAR 1-62472-660-2 01 1 9601-
19 PANEL; FLOOR SIDE,REAR 1-62472-659-2 01 1 9601-9904
19 PANEL; FLOOR SIDE,REAR
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-659-2 01 1 9905-
19 PANEL; FLOOR SIDE,REAR
L TYPE ENG<90L> BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-659-2 01 1 9905-
19 PANEL; FLOOR SIDE,REAR
L TYPE ENG<90L> BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-615-4 01 1 9905-
19 PANEL; FLOOR SIDE,REAR
V TYPE ENG<91L> BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-614-4 01 1 9905-
23 PANEL; FLOOR,SIDE 1-62183-273-4 01 1 9601-9609
23 PANEL; FLOOR,SIDE
EXC. ELECTRONIC GOV RED3(KG5) 		1-62183-273-4 01 1 9611-9903
23 PANEL; FLOOR,SIDE
EXC. ELECTRONIC GOV RED3(KG5) 		1-62172-799-0 01 1 9904-
23 PANEL; FLOOR,SIDE 1-62183-307-1 01 1 9601-9903
23 PANEL; FLOOR,SIDE 1-62172-798-0 01 1 9904-
23 PANEL; FLOOR,SIDE
ELECTRONIC GOV RED3(KG5) 		1-62172-729-0 01 1 9611-9903
23 PANEL; FLOOR,SIDE
ELECTRONIC GOV RED3(KG5) 		1-62172-802-0 01 1 9904-
24 PANEL; BED PAN 1-62172-540-9 01 1 9601-
102 BOLT; FLOOR BOARD
M8X20 W/LK & PL WASHER 		8-94279-208-0 06 1 9601-
310 BRACKET; SEAT STAND 1-76397-015-0 01 1 9601-9606
310 BRACKET; SEAT STAND
EXC. CENTER SEAT DELETE(SP9) 		1-76397-015-0 01 1 9607-
311 BOLT; BRKT
M8X20 W/LK & PL WASHER 		8-94279-208-0 02 1 9601-9606
311 BOLT; BRKT
EXC. CENTER SEAT DELETE(SP9) M8X20 W/LK & PL WASHER 		8-94279-208-0 02 1 9607-
330 REINFORCEMENT; FLOOR 1-62172-585-5 01 1 9601-
403 PATCH; FIRE EXTINGUSHER 1-62172-569-0 01 1 9601-
404 RAIL ASM; MTG,RR 1-62472-596-8 01 1 9601-
