◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51287 - ELF200/300(MEXICO) ▶ 3 - Brakes, Brake System ▶ 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER ▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#54230) — 42 parça
çizim 174950
35
BalonParca AdiParca NoAdetTipApplied Date A B
35 PIPE; BRK,VLV TO RR AXLE 8-98064-716-0 01 1 1012- ●
35 PIPE; BRK,VLV TO RR AXLE 8-97389-540-0 01 1 1012-1406 ●
35 PIPE; BRK,VLV TO RR AXLE
EXC. FRAME-KICK UP<7EW> 		8-97389-540-0 01 1 1407-1407 ●
35 PIPE; BRK,VLV TO RR AXLE 8-97389-540-0 01 1 1408- ●

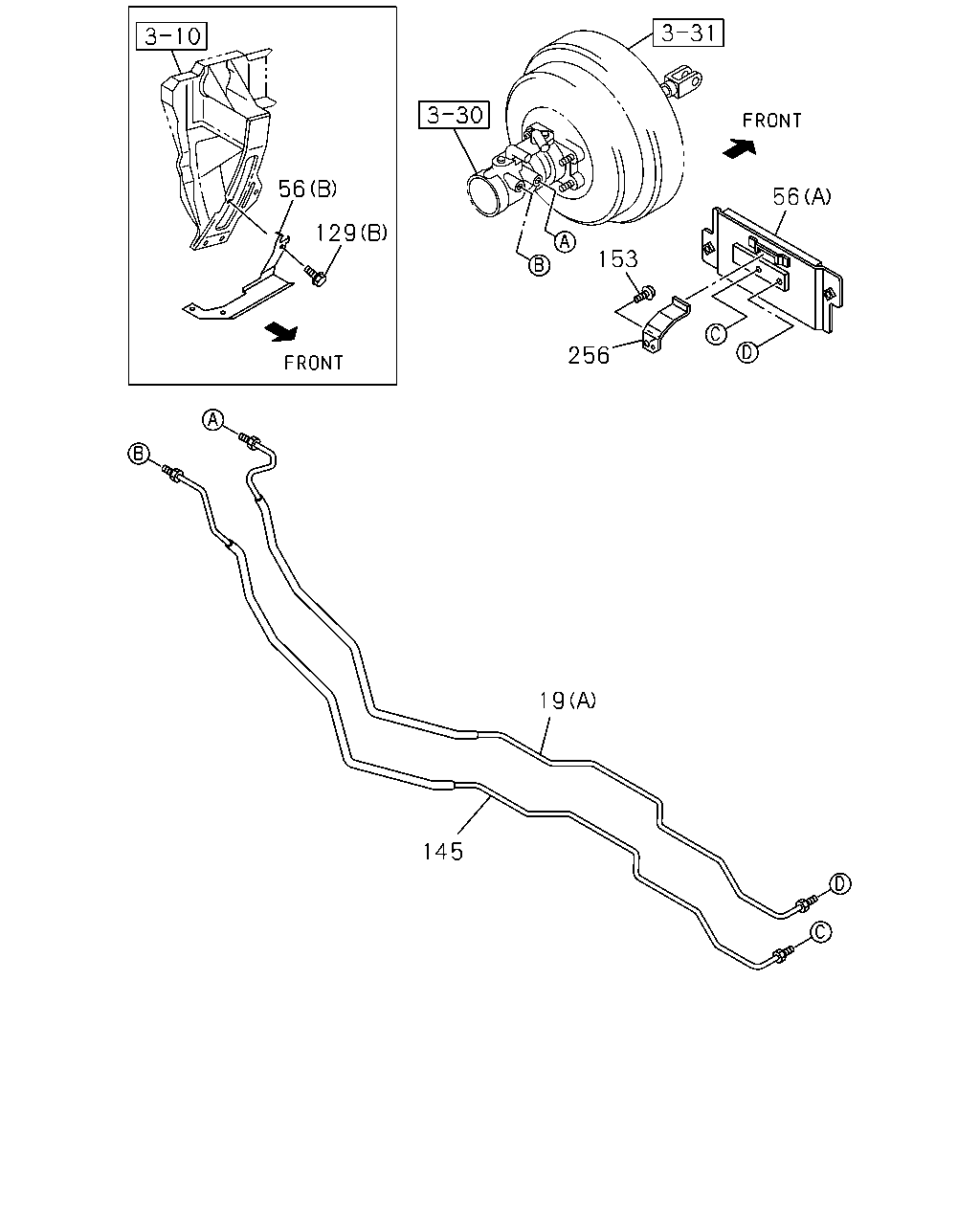

çizim 174954
56 56 129 153 256 19 145
BalonParca AdiParca NoAdetTipApplied Date A B
19 PIPE; BRK,M/CYL TO UNION
(B) 		8-98047-210-2 02 1 1012- ● ●
19 PIPE; BRK,M/CYL TO UNION
(A) 		8-98097-183-1 01 1 1012- ● ●
56 BRACKET; UNION,BRK
(B) 		8-98097-178-1 01 1 1012- ● ●
56 BRACKET; UNION,BRK
(A) 		8-98154-268-1 01 1 1012- ● ●
129 BOLT; BRKT
(B) M6X16 FLANGE 		0-28650-616-0 01 1 1012- ● ●
129 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1012- ● ●
145 PIPE; BRK,METERING VLV TO UNION 8-98097-179-1 01 1 1012- ● ●
153 SCREW; BRKT FIX
EXC. KD PREPARATORY PACK VAR.4<7TV> T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 1012-1112 ● ●
153 SCREW; BRKT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 1201- ● ●
256 BRACKET; BRK PIPE
EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98163-521-0 01 1 1012-1112 ● ●
256 BRACKET; BRK PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98163-521-0 01 1 1201- ● ●

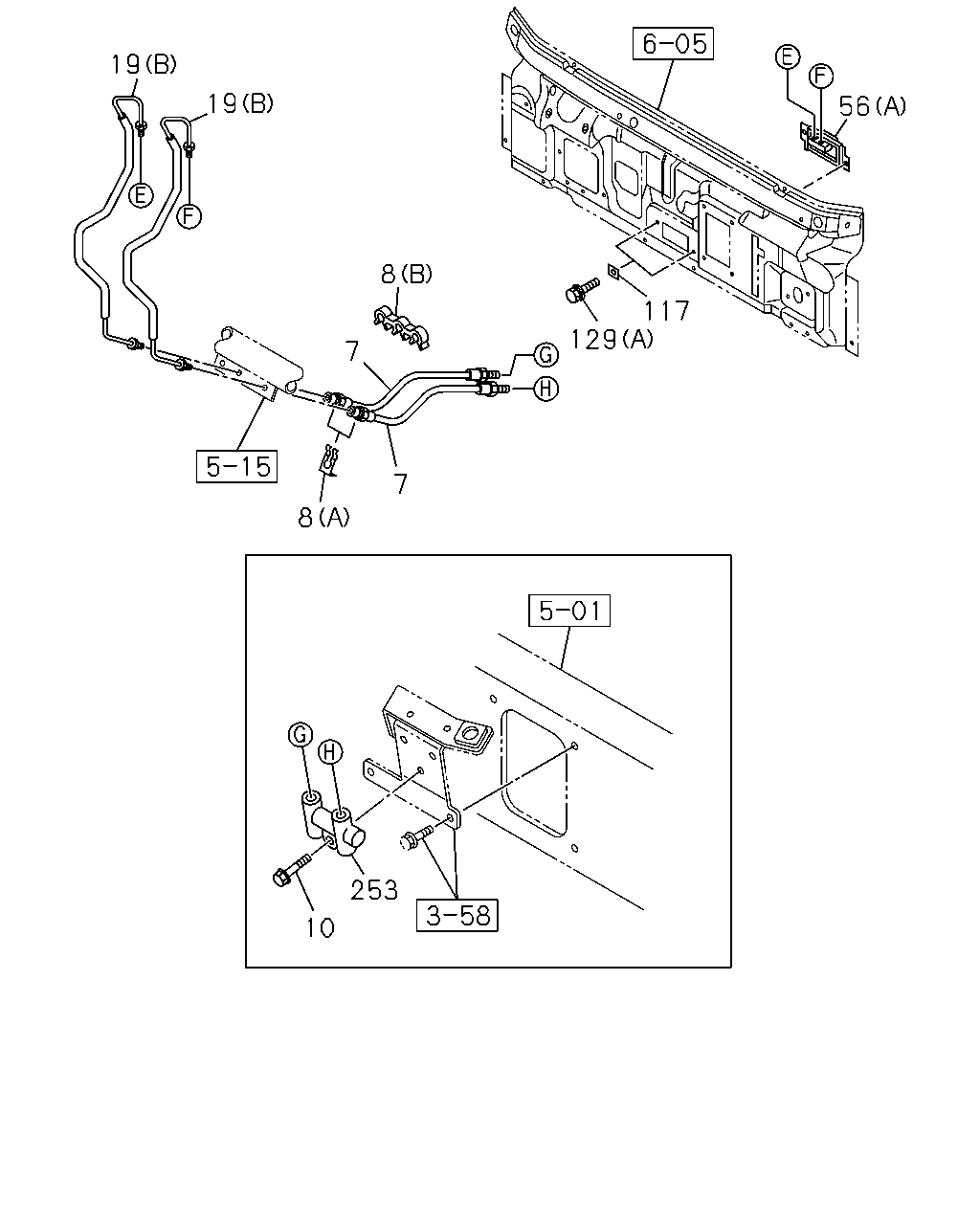

çizim 174957
19 19 56 8 117 129 7 7 8 253 10
BalonParca AdiParca NoAdetTipApplied Date A B
7 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-98033-732-0 02 1 1012- ● ●
8 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 1012- ● ●
8 CLIP; FLEX HOSE,CABLE SIDE
(B) 		8-98056-614-0 01 1 1012- ● ●
10 BOLT; JOINT
M6X40 FLANGE 		0-28650-640-0 01 1 1012- ● ●
19 PIPE; BRK,M/CYL TO UNION
(B) 		8-98047-210-2 02 1 1012- ● ●
19 PIPE; BRK,M/CYL TO UNION
(A) 		8-98097-183-1 01 1 1012- ● ●
56 BRACKET; UNION,BRK
(B) 		8-98097-178-1 01 1 1012- ● ●
56 BRACKET; UNION,BRK
(A) 		8-98154-268-1 01 1 1012- ● ●
117 SEAL; UNION,BRK PIPE JOINT 8-97856-616-0 02 1 1012- ● ●
129 BOLT; BRKT
(B) M6X16 FLANGE 		0-28650-616-0 01 1 1012- ● ●
129 BOLT; BRKT
(A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 1012- ● ●
253 JOINT 8-97120-033-2 01 1 1012- ● ●

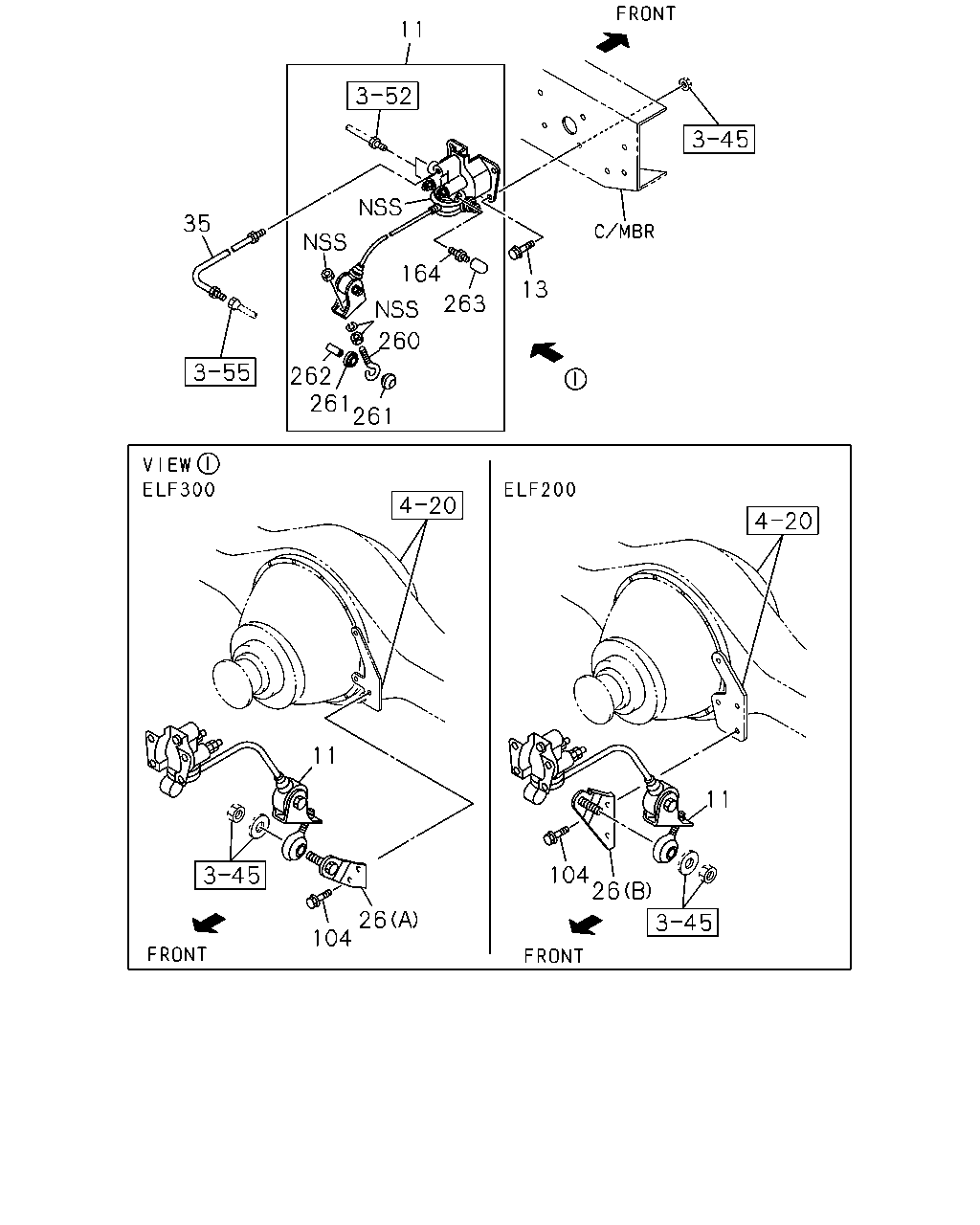

çizim 174958
11 35 164 13 263 260 262 261 261 11 11 104 26 26 104
BalonParca AdiParca NoAdetTipApplied Date A B
11 VALVE; BRK CONT 8-94368-455-2 01 1 1012- ●
11 VALVE; BRK CONT 8-97070-721-0 01 1 1012- ●
13 BOLT; VLV TO BRKT
M8X16 FLANGE 		0-28050-816-0 04 1 1012- ● ●
26 BRACKET; PROPORTIONING VLV
(B) 		8-98029-822-0 01 1 1012- ●
26 BRACKET; PROPORTIONING VLV
(A) 		8-98029-821-0 01 1 1012- ●
35 PIPE; BRK,VLV TO RR AXLE 8-98064-716-0 01 1 1012- ●
35 PIPE; BRK,VLV TO RR AXLE 8-97389-540-0 01 1 1012-1406 ●
35 PIPE; BRK,VLV TO RR AXLE
EXC. FRAME-KICK UP<7EW> 		8-97389-540-0 01 1 1407-1407 ●
35 PIPE; BRK,VLV TO RR AXLE 8-97389-540-0 01 1 1408- ●
104 BOLT; BRKT TO BODY
M8X16 FLANGE 		0-28050-816-0 02 1 1012- ● ●
164 SCREW; BLEEDER 8-97093-663-0 01 1 1012- ● ●
260 SHACKLE; LSPV 8-97173-366-0 01 1 1012- ● ●
261 BUSHING; LSPV 8-97145-631-0 02 1 1012- ● ●
262 COLLAR; LSPV 8-97139-186-0 01 1 1012- ● ●
263 CAP; BLEEDER 8-97093-662-0 01 1 1012- ● ●
