◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51287 - ELF200/300(MEXICO) ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶
3-30 — BRAKE MASTER CYLINDER (#54227) — 44 parça

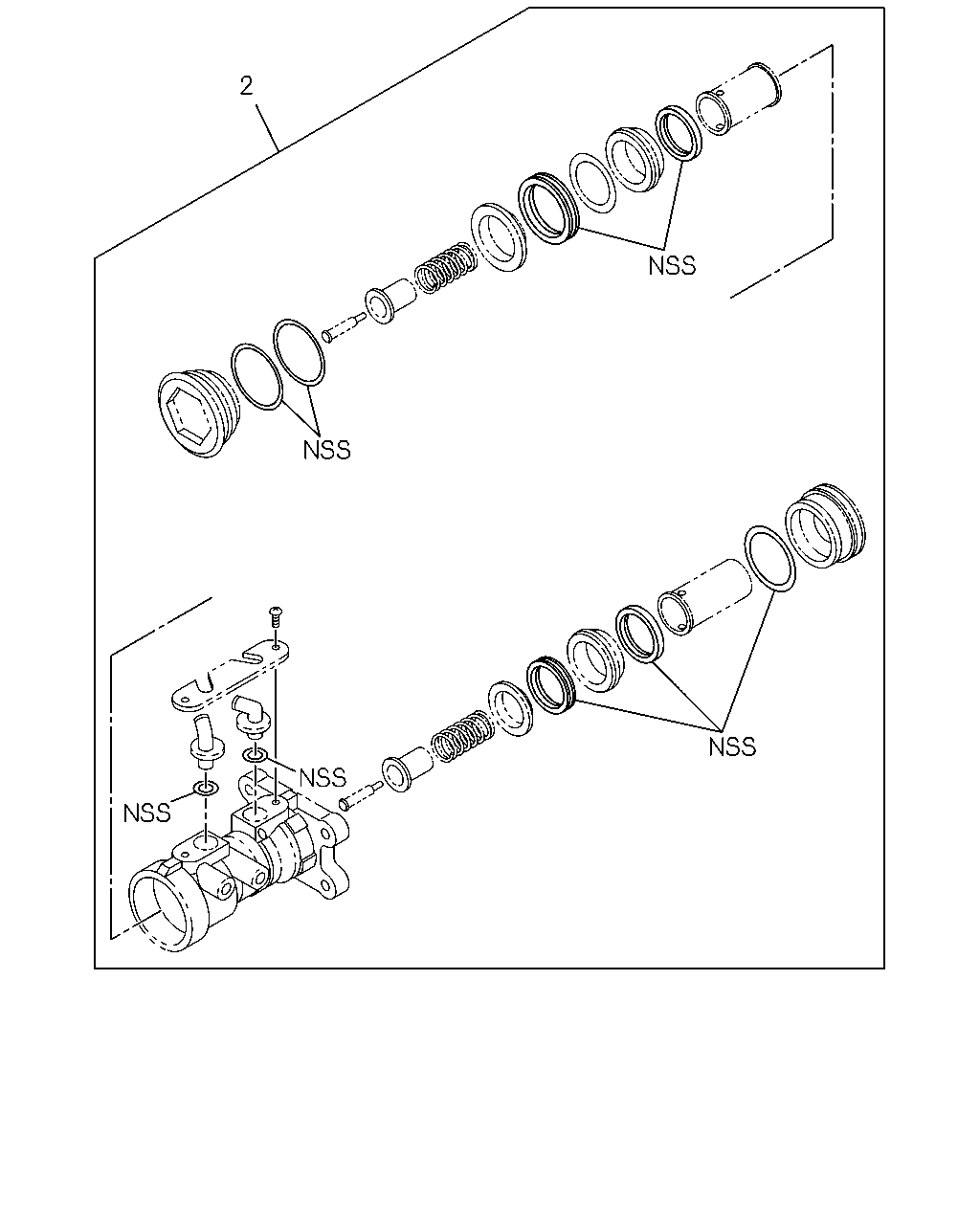

çizim 174947
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; BRK,M/CYL
FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-470-0 01 1 1012- ●
2 REPAIR KIT; BRK,M/CYL
EXC. FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> 		8-97130-470-0 01 1 1012- ●
2 REPAIR KIT; BRK,M/CYL
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-471-0 01 1 1012- ●
2 REPAIR KIT; BRK,M/CYL 8-97130-471-0 01 1 1012- ●

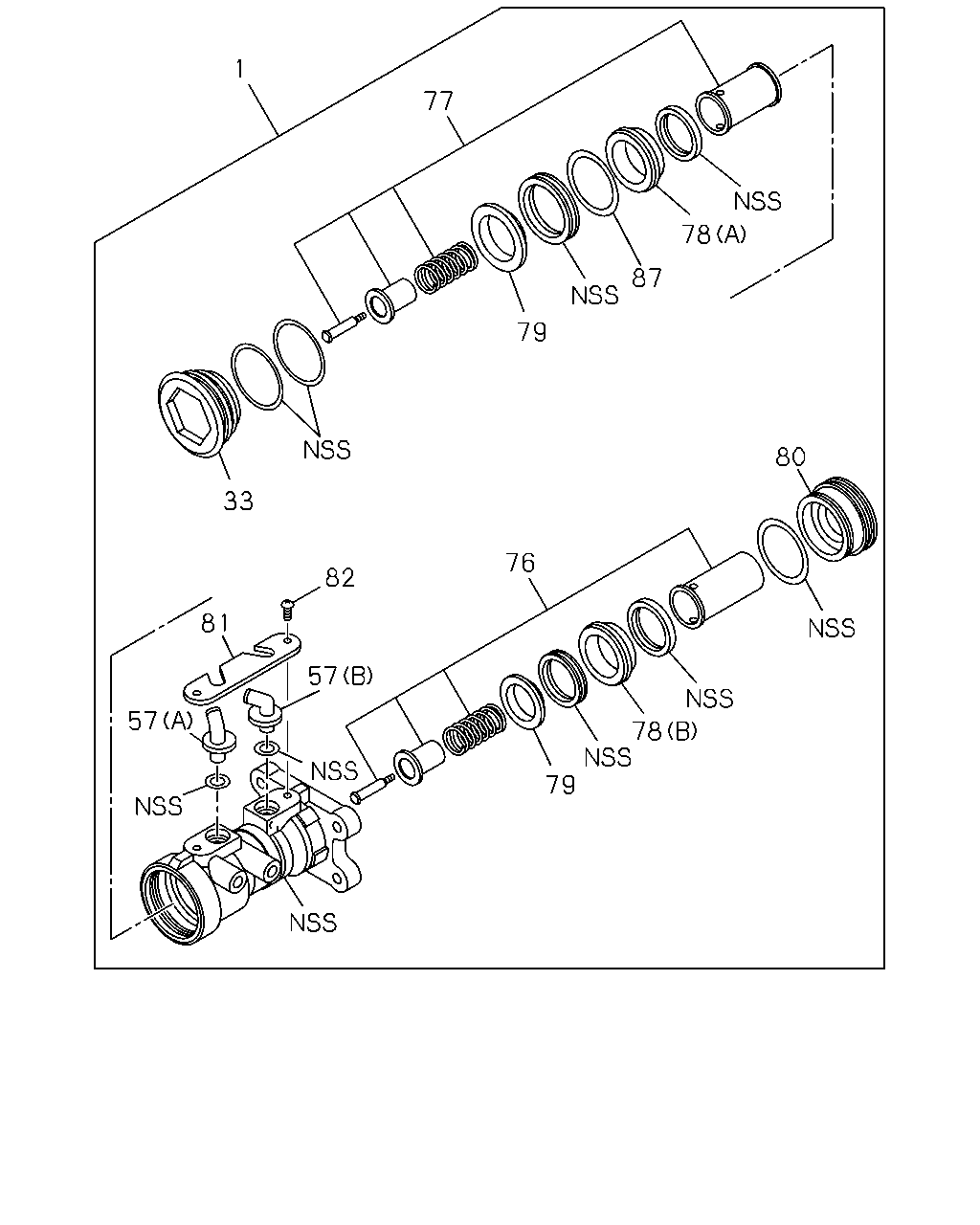

çizim 174955
1 77 78 87 79 80 33 76 82 81 57 57 78 79
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; BRK MASTER
FRT INDEPENDENT SUSPENSION(FF0) 		8-98032-617-0 01 1 1012- ●
1 CYLINDER ASM; BRK MASTER
EXC. FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> 		8-98032-617-0 01 1 1012- ●
1 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98032-602-0 01 1 1012- ●
1 CYLINDER ASM; BRK MASTER 8-98032-602-0 01 1 1012- ●
33 PLUG; END,M/CYL
FRT INDEPENDENT SUSPENSION(FF0) 		8-97186-696-0 01 1 1012- ●
33 PLUG; END,M/CYL
EXC. FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> 		8-97186-696-0 01 1 1012- ●
33 PLUG; END,M/CYL
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97186-697-0 01 1 1012- ●
33 PLUG; END,M/CYL 8-97186-697-0 01 1 1012- ●
57 NIPPLE; BRK M/CYL
(A) 		8-97130-441-0 01 1 1012- ● ●
57 NIPPLE; BRK M/CYL
(B) 		8-97130-442-0 01 1 1012- ● ●
76 PISTON ASM; PRIMARY
FRT INDEPENDENT SUSPENSION(FF0) 		8-97224-636-0 01 1 1012- ●
76 PISTON ASM; PRIMARY
EXC. FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> 		8-97224-636-0 01 1 1012- ●
76 PISTON ASM; PRIMARY
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97224-643-0 01 1 1012- ●
76 PISTON ASM; PRIMARY 8-97224-643-0 01 1 1012- ●
77 PISTON ASM; SECONDARY
FRT INDEPENDENT SUSPENSION(FF0) 		8-97224-635-0 01 1 1012- ●
77 PISTON ASM; SECONDARY
EXC. FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> 		8-97224-635-0 01 1 1012- ●
77 PISTON ASM; SECONDARY
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97224-642-0 01 1 1012- ●
77 PISTON ASM; SECONDARY 8-97224-642-0 01 1 1012- ●
78 BUSHING; MASTER CYL
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97130-454-0 01 1 1012- ●
78 BUSHING; MASTER CYL
EXC. FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> (A) 		8-97130-454-0 01 1 1012- ●
78 BUSHING; MASTER CYL
FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-97217-310-0 01 1 1012- ●
78 BUSHING; MASTER CYL
EXC. FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> (B) 		8-97217-310-0 01 1 1012- ●
78 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97130-455-0 01 1 1012- ●
78 BUSHING; MASTER CYL
(A) 		8-97130-455-0 01 1 1012- ●
78 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-97217-312-0 01 1 1012- ●
78 BUSHING; MASTER CYL
(B) 		8-97217-312-0 01 1 1012- ●
79 SUPPORTER; CUP
FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-462-0 02 1 1012- ●
79 SUPPORTER; CUP
EXC. FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> 		8-97130-462-0 02 1 1012- ●
79 SUPPORTER; CUP
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-463-0 02 1 1012- ●
79 SUPPORTER; CUP 8-97130-463-0 02 1 1012- ●
80 COVER; MASTER CYL
FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-448-0 01 1 1012- ●
80 COVER; MASTER CYL
EXC. FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> 		8-97130-448-0 01 1 1012- ●
80 COVER; MASTER CYL
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-449-0 01 1 1012- ●
80 COVER; MASTER CYL 8-97130-449-0 01 1 1012- ●
81 HOLDER; NIPPLE 8-97315-168-0 01 1 1012- ● ●
82 SCREW; HOLDER 8-97130-446-0 02 1 1012- ● ●
87 SPACER; CUP
FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-458-0 01 1 1012- ●
87 SPACER; CUP
EXC. FRT INDEPENDENT SUSPENSION(FF0),DISC BRAKE FRT<J52> 		8-97130-458-0 01 1 1012- ●
87 SPACER; CUP
DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97130-459-0 01 1 1012- ●
87 SPACER; CUP 8-97130-459-0 01 1 1012- ●
