◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51287 - ELF200/300(MEXICO) ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#54225) — 65 parça
çizim 174941
235 237 225 85 225 85 235 324 181 91 238 238 324 181 324
BalonParca AdiParca NoAdetTipApplied Date A B
85 CLIP; BRKT
ID=14.5 L=20 		1-09701-012-0 01 1 1012- ● ●
91 CLIP; PARKING BRK CABLE 8-97036-333-1 03 1 1012- ● ●
181 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
181 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1012- ● ●
225 NUT; CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
235 BRACKET; CONT CABLE TO FRAME
FRAME-KICK UP<7EW> (B) 		8-98013-968-0 01 1 1407-1407 ●
235 BRACKET; CONT CABLE TO FRAME
(A) 		8-98034-352-0 01 1 1012-1406 ● ●
235 BRACKET; CONT CABLE TO FRAME
(A) 		8-98034-352-0 01 1 1407-1407 ●
235 BRACKET; CONT CABLE TO FRAME
EXC. FRAME-KICK UP<7EW> (A) 		8-98034-352-0 01 1 1407-1407 ●
235 BRACKET; CONT CABLE TO FRAME
(A) 		8-98034-352-0 01 1 1408- ● ●
237 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 1012-1406 ● ●
237 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 1407-1407 ●
237 NUT; BRKT TO FRAME
EXC. FRAME-KICK UP<7EW> M8 FLANGE 		0-91180-108-0 01 1 1407-1407 ●
237 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 1408- ● ●
238 BOLT; CLIP TO BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 1012- ● ●
324 BRACKET
FRAME-KICK UP<7EW> (F) 		8-98063-429-0 01 1 1407-1407 ●
324 BRACKET
(A) 		8-98003-642-1 01 1 1012- ● ●
324 BRACKET
(B) 		8-98026-099-2 01 1 1012-1406 ● ●
324 BRACKET
(B) 		8-98026-099-2 01 1 1407-1407 ●
324 BRACKET
EXC. FRAME-KICK UP<7EW> (B) 		8-98026-099-2 01 1 1407-1407 ●
324 BRACKET
(B) 		8-98026-099-2 01 1 1408- ● ●
324 BRACKET
(C) 		8-98047-573-0 01 1 1012- ● ●
324 BRACKET
(D) 		8-98047-575-1 01 1 1012- ● ●
324 BRACKET
(E) 		8-98116-060-0 01 1 1012- ● ●

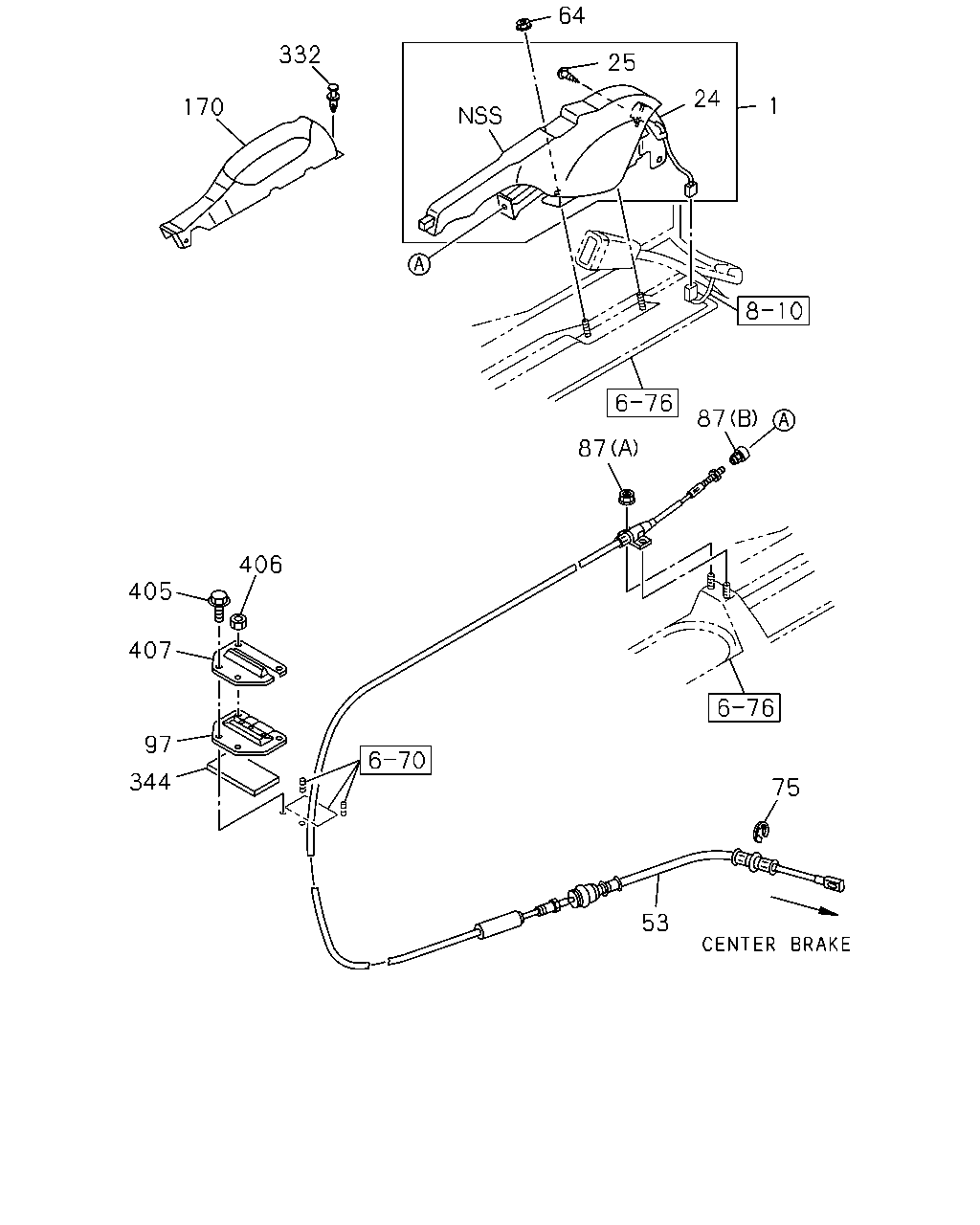

çizim 174945
64 332 25 24 1 170 87 87 406 405 407 97 344 75 53
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEM ASM; PARKING BRK
GRAY 		8-97406-006-0 01 1 1012-1303 ● ●
1 STEM ASM; PARKING BRK
GRAY 		8-97426-514-0 01 1 1304- ● ●
24 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 1012-1303 ● ●
24 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1304- ● ●
25 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 1012- ● ●
53 CABLE; PARK BRK,FRT LWR 8-98051-572-4 01 1 1012- ● ●
64 NUT; PARKING BRK
M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 1012- ● ●
75 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 1012- ● ●
87 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
87 NUT
(B) M6 		8-98034-313-1 01 1 1012- ● ●
97 GROMMET; PARKING BRK CABLE 8-97091-890-0 01 1 1012- ● ●
170 COVER; PARKING BRK LEVER
GRAY 		8-97411-674-1 01 1 1012- ● ●
332 CLIP; COVER
GRAY 		8-97406-171-0 01 1 1012- ● ●
344 GASKET; DASH LWR
MANUAL TILT CAB<RWZ> 		8-97096-753-0 01 1 1012- ● ●
405 BOLT; GROMMET
M6X20 FLANGE 		0-28450-620-0 02 1 1012- ● ●
406 NUT; GROMMET
M6 FLANGE 		0-91180-106-0 02 1 1012- ● ●
407 RETAINER; GROMMET 1-33657-674-0 01 1 1012- ● ●

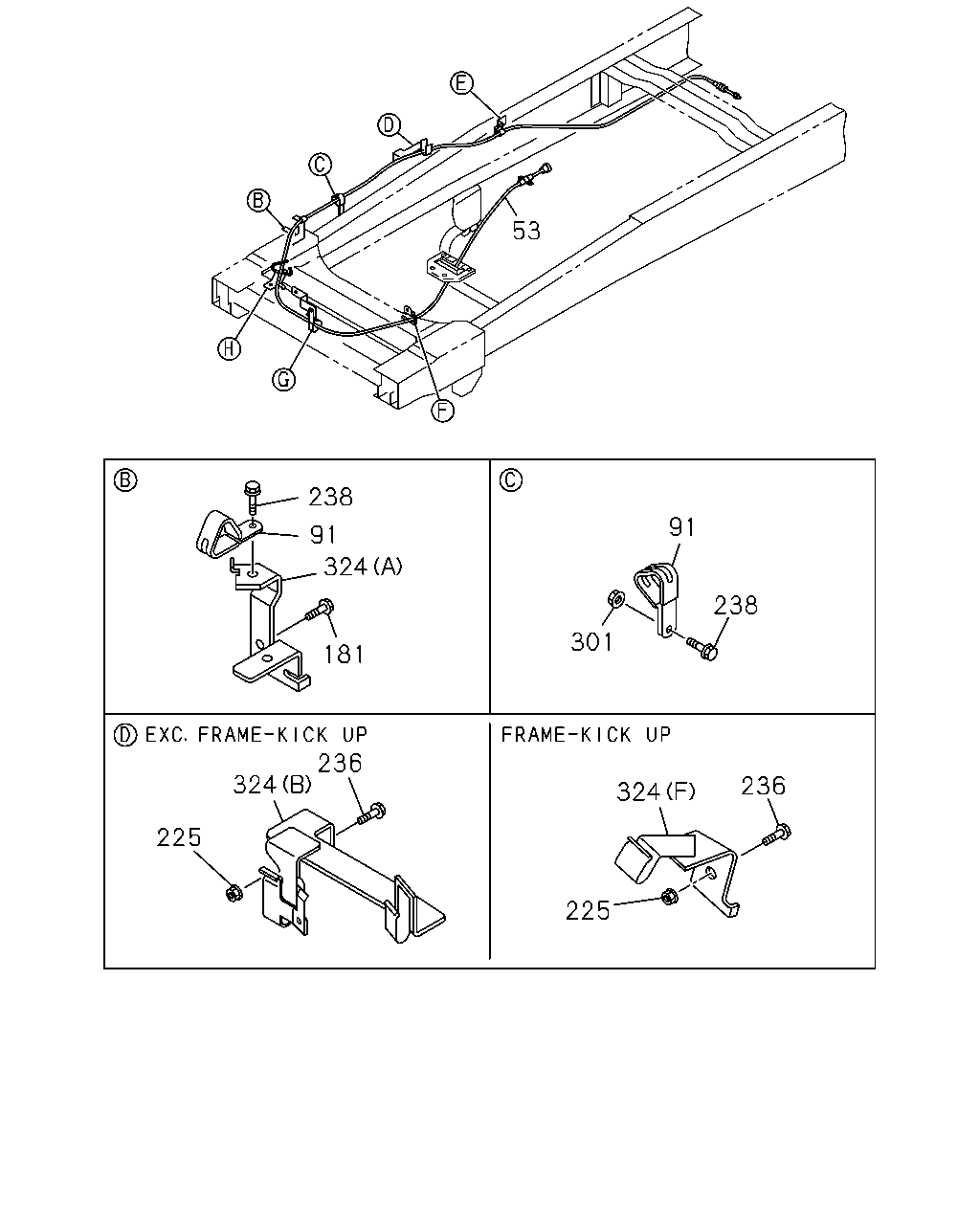

çizim 174951
53 238 91 324 181 236 324 225 225 324 236 238 91 301
BalonParca AdiParca NoAdetTipApplied Date A B
53 CABLE; PARK BRK,FRT LWR 8-98051-572-4 01 1 1012- ● ●
91 CLIP; PARKING BRK CABLE 8-97036-333-1 03 1 1012- ● ●
181 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
181 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1012- ● ●
225 NUT; CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
236 BOLT; BRKT TO FRAME
FRAME-KICK UP<7EW> M8X25 FLANGE 		0-28650-825-0 02 1 1407-1407 ●
236 BOLT; BRKT TO FRAME
M8X25 FLANGE 		0-28650-825-0 01 1 1012-1406 ● ●
236 BOLT; BRKT TO FRAME
M8X25 FLANGE 		0-28650-825-0 01 1 1012-1406 ● ●
236 BOLT; BRKT TO FRAME
M8X25 FLANGE 		0-28650-825-0 01 1 1407-1407 ● ●
236 BOLT; BRKT TO FRAME
M8X25 FLANGE 		0-28650-825-0 01 1 1407-1407 ●
236 BOLT; BRKT TO FRAME
EXC. FRAME-KICK UP<7EW> M8X25 FLANGE 		0-28650-825-0 01 1 1407-1407 ●
236 BOLT; BRKT TO FRAME
M8X25 FLANGE 		0-28650-825-0 01 1 1408- ● ●
236 BOLT; BRKT TO FRAME
M8X25 FLANGE 		0-28650-825-0 01 1 1408- ● ●
238 BOLT; CLIP TO BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 1012- ● ●
301 NUT; BRKT,BRK & CLU PEDAL
M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
324 BRACKET
FRAME-KICK UP<7EW> (F) 		8-98063-429-0 01 1 1407-1407 ●
324 BRACKET
(A) 		8-98003-642-1 01 1 1012- ● ●
324 BRACKET
(B) 		8-98026-099-2 01 1 1012-1406 ● ●
324 BRACKET
(B) 		8-98026-099-2 01 1 1407-1407 ●
324 BRACKET
EXC. FRAME-KICK UP<7EW> (B) 		8-98026-099-2 01 1 1407-1407 ●
324 BRACKET
(B) 		8-98026-099-2 01 1 1408- ● ●
324 BRACKET
(C) 		8-98047-573-0 01 1 1012- ● ●
324 BRACKET
(D) 		8-98047-575-1 01 1 1012- ● ●
324 BRACKET
(E) 		8-98116-060-0 01 1 1012- ● ●
