3-05 — REAR WHEEL BRAKE (#54222) — 97 parça

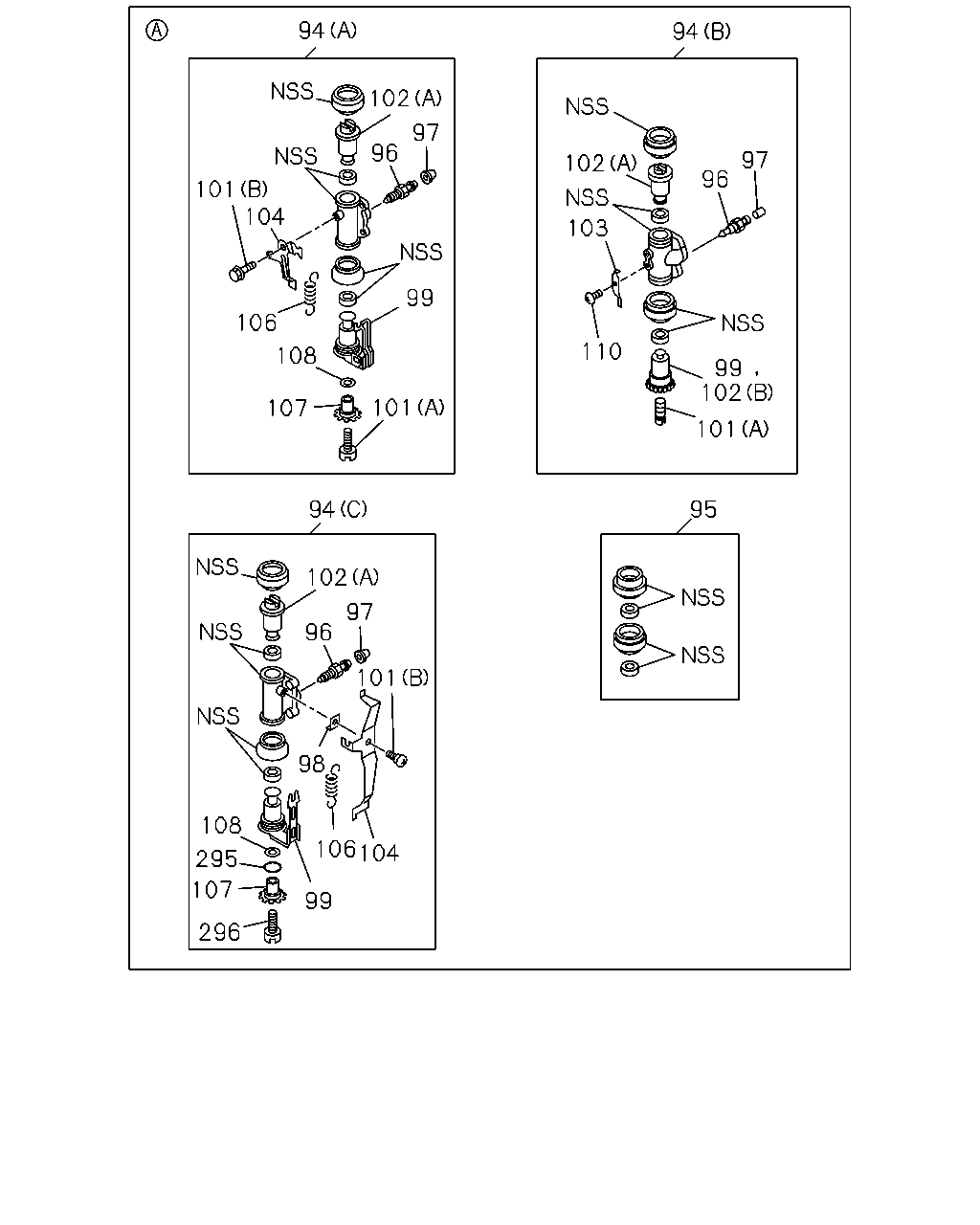

çizim 174932
94 94 102 97 96 97 102 96 101 104 103 99 106 110 108 99 102 101 107 101 94 95 102 97 96 101 98 108 106 104 295 107 99 296
BalonParca AdiParca NoAdetTipApplied Date A B
94 CYLINDER; WHEEL,RR BRK
FRT INDEPENDENT SUSPENSION(FF0) (C) FRONT 		8-97191-497-0 01 1 1012- ●
94 CYLINDER; WHEEL,RR BRK
FRT INDEPENDENT SUSPENSION(FF0) (C) REAR 		8-97191-499-0 01 1 1012- ●
94 CYLINDER; WHEEL,RR BRK
FRT INDEPENDENT SUSPENSION(FF0) (C) 		8-97191-502-0 02 1 1012- ●
94 CYLINDER; WHEEL,RR BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) FRONT 		8-97139-840-0 01 1 1012-1308 ●
94 CYLINDER; WHEEL,RR BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) REAR 		8-97139-841-0 01 1 1012-1308 ●
94 CYLINDER; WHEEL,RR BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-97139-842-0 02 1 1012-1308 ●
94 CYLINDER; WHEEL,RR BRK
(A) 		8-97349-689-0 02 1 1012- ●
94 CYLINDER; WHEEL,RR BRK
(A) REAR 		8-97349-690-0 01 1 1012- ●
94 CYLINDER; WHEEL,RR BRK
(A) FRONT 		8-97349-692-0 01 1 1012- ●
95 CUP SET; RR WHEEL CYL
FRT INDEPENDENT SUSPENSION(FF0) 		5-87831-781-0 01 1 1012- ●
95 CUP SET; RR WHEEL CYL
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		5-87831-621-0 01 1 1012-1308 ●
95 CUP SET; RR WHEEL CYL 5-87831-622-0 01 1 1012- ●
96 SCREW; BLEEDER,RR BRK
FRT INDEPENDENT SUSPENSION(FF0) 		8-97191-759-0 01 1 1012- ●
96 SCREW; BLEEDER,RR BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98050-476-0 01 1 1012-1308 ●
96 SCREW; BLEEDER,RR BRK 8-98050-476-0 01 1 1012-1308 ●
96 SCREW; BLEEDER,RR BRK 8-98050-476-0 01 1 1309- ●
97 CAP; BLEEDER,RR WHEEL CYL
FRT INDEPENDENT SUSPENSION(FF0) 		8-97191-774-0 01 1 1012- ●
97 CAP; BLEEDER,RR WHEEL CYL
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-98050-479-0 01 1 1012-1308 ●
97 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 01 1 1012-1308 ●
97 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 01 1 1309- ●
98 SPRING; RR WHEEL CYL
FRT INDEPENDENT SUSPENSION(FF0) 		8-97191-768-0 04 1 1012- ●
99 PISTON; RR WHEEL CYL
FRT INDEPENDENT SUSPENSION(FF0) 		8-97191-731-0 02 1 1012- ●
99 PISTON; RR WHEEL CYL
FRT INDEPENDENT SUSPENSION(FF0) 		8-97191-732-0 02 1 1012- ●
99 PISTON; RR WHEEL CYL
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97078-698-0 03 1 1012-1308 ●
99 PISTON; RR WHEEL CYL 8-97349-727-0 02 1 1012- ●
99 PISTON; RR WHEEL CYL 8-97349-728-0 02 1 1012- ●
101 SCREW; ADJ,RR WHEEL CYL
FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-97191-770-0 04 1 1012- ●
101 SCREW; ADJ,RR WHEEL CYL
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97078-623-0 04 1 1012-1308 ●
101 SCREW; ADJ,RR WHEEL CYL
(A) M12X30.2 RH THREAD 		5-47622-003-1 02 1 1012- ●
101 SCREW; ADJ,RR WHEEL CYL
(A) M12X30.2 LH THREAD 		5-47622-004-1 02 1 1012- ●
101 SCREW; ADJ,RR WHEEL CYL
(B) 		8-97349-747-0 04 1 1012- ●
102 PISTON; REAR WHEEL CYL
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97191-755-0 04 1 1012- ●
102 PISTON; REAR WHEEL CYL
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-97078-698-0 01 1 1012-1308 ●
102 PISTON; REAR WHEEL CYL
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) D=25.4 		8-94128-531-1 04 1 1012-1308 ●
102 PISTON; REAR WHEEL CYL
(A) D=25.4 		8-94128-531-1 04 1 1012-1308 ●
102 PISTON; REAR WHEEL CYL
(A) D=25.4 		8-94128-531-1 04 1 1309- ●
103 SPRING; LK,RR WHEEL CYL,ADJ
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-94128-486-0 04 1 1012-1308 ●
104 LEVER; ADJ
FRT INDEPENDENT SUSPENSION(FF0) 		8-97191-739-0 02 1 1012- ●
104 LEVER; ADJ
FRT INDEPENDENT SUSPENSION(FF0) 		8-97191-740-0 02 1 1012- ●
104 LEVER; ADJ 8-97349-743-0 02 1 1012- ●
104 LEVER; ADJ 8-97349-744-0 02 1 1012- ●
106 SPRING; ADJ LEVER
FRT INDEPENDENT SUSPENSION(FF0) 		8-97191-743-0 02 1 1012- ●
106 SPRING; ADJ LEVER
FRT INDEPENDENT SUSPENSION(FF0) 		8-97191-744-0 02 1 1012- ●
106 SPRING; ADJ LEVER 8-97349-745-0 04 1 1012- ●
107 GEAR; ADJ,RR W/CYL
FRT INDEPENDENT SUSPENSION(FF0) 		8-97191-747-0 02 1 1012- ●
107 GEAR; ADJ,RR W/CYL
FRT INDEPENDENT SUSPENSION(FF0) 		8-97191-748-0 02 1 1012- ●
107 GEAR; ADJ,RR W/CYL 8-97349-737-0 02 1 1012- ●
107 GEAR; ADJ,RR W/CYL 8-97349-739-0 02 1 1012- ●
108 WASHER; THRUST,GEAR ADJ
FRT INDEPENDENT SUSPENSION(FF0) 		8-97191-762-0 04 1 1012- ●
108 WASHER; THRUST,GEAR ADJ 8-97029-304-0 04 1 1012- ●
110 SCREW; LOCK SPRING,RR WHEEL CYL
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-94128-727-0 04 1 1012-1308 ●
295 SEAL; DUST
FRT INDEPENDENT SUSPENSION(FF0) 		8-97191-751-0 04 1 1012- ●
296 BOLT; ADJ,RR WHEEL CYL
FRT INDEPENDENT SUSPENSION(FF0) 		8-97191-764-0 02 1 1012- ●
296 BOLT; ADJ,RR WHEEL CYL
FRT INDEPENDENT SUSPENSION(FF0) 		8-97191-765-0 02 1 1012- ●

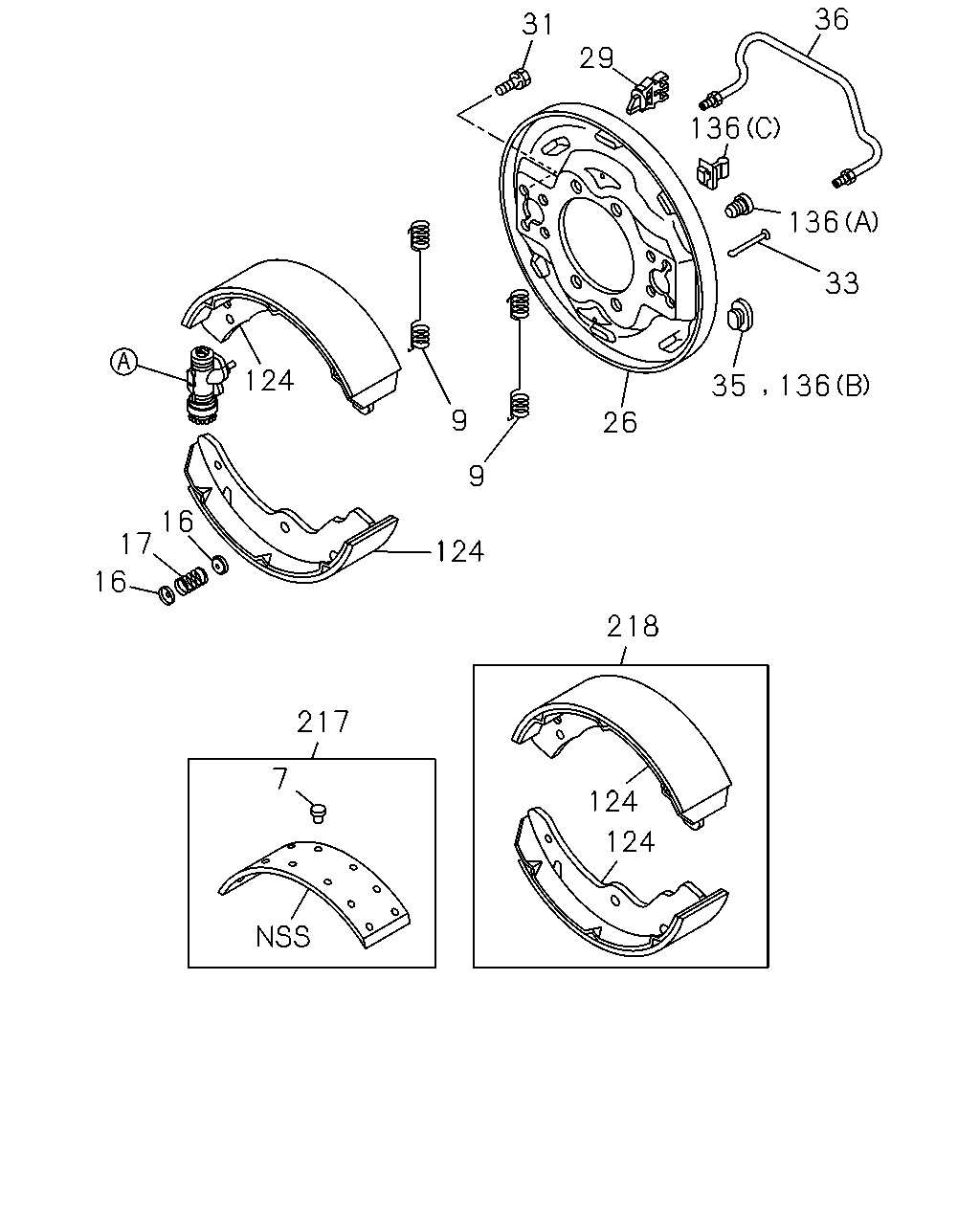

çizim 174948
36 31 29 136 136 33 124 136 35 9 26 9 16 17 124 16 218 217 7 124 124
BalonParca AdiParca NoAdetTipApplied Date A B
7 RIVET; LINING,RR BRK 1-09732-029-0 40 1 1012- ●
9 SPRING; RETURN,BRK SHOE
FRT INDEPENDENT SUSPENSION(FF0) 		8-97191-707-0 04 1 1012- ●
9 SPRING; RETURN,BRK SHOE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97078-739-0 04 1 1012-1308 ●
9 SPRING; RETURN,BRK SHOE 5-09583-118-0 04 1 1012- ●
16 CUP; SHOE HOLDING
FRT INDEPENDENT SUSPENSION(FF0) 		8-97191-712-0 08 1 1012- ●
16 CUP; SHOE HOLDING
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		9-47162-033-0 08 1 1012-1308 ●
16 CUP; SHOE HOLDING 9-47165-096-0 08 1 1012- ●
17 SPRING; SHOE HOLD DOWN
FRT INDEPENDENT SUSPENSION(FF0) 		8-97191-708-0 04 1 1012- ●
17 SPRING; SHOE HOLD DOWN
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		9-09940-989-1 04 1 1012-1308 ●
17 SPRING; SHOE HOLD DOWN 5-09580-101-1 04 1 1012- ●
26 PLATE; BACK,RR BRK
FRT INDEPENDENT SUSPENSION(FF0) 		8-98148-180-0 01 1 1012- ●
26 PLATE; BACK,RR BRK
FRT INDEPENDENT SUSPENSION(FF0) 		8-98148-181-0 01 1 1012- ●
26 PLATE; BACK,RR BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97093-934-0 01 1 1012-1308 ●
26 PLATE; BACK,RR BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97093-935-0 01 1 1012-1308 ●
26 PLATE; BACK,RR BRK 8-97079-848-0 01 1 1012- ●
26 PLATE; BACK,RR BRK 8-97079-849-0 01 1 1012- ●
29 CLIP; PIPE,BRK
FRT INDEPENDENT SUSPENSION(FF0) 		8-97191-703-0 02 1 1012- ●
29 CLIP; PIPE,BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-94128-307-0 02 1 1012-1308 ●
29 CLIP; PIPE,BRK 8-94128-306-0 02 1 1012- ●
31 BOLT; RR WHEEL CYL
FRT INDEPENDENT SUSPENSION(FF0) 		8-97191-714-0 16 1 1012- ●
31 BOLT; RR WHEEL CYL
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		5-09030-036-1 16 1 1012-1308 ●
31 BOLT; RR WHEEL CYL 5-09030-016-1 16 1 1012- ●
33 PIN; SHOE HOLD DOWN
FRT INDEPENDENT SUSPENSION(FF0) 		8-97191-711-0 04 1 1012- ●
33 PIN; SHOE HOLD DOWN
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		9-47162-607-0 04 1 1012-1308 ●
33 PIN; SHOE HOLD DOWN 5-47162-001-0 04 1 1012- ●
35 GROMMET; CHECK HOLE
FRT INDEPENDENT SUSPENSION(FF0) 		8-97191-720-0 02 1 1012- ●
35 GROMMET; CHECK HOLE
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-94344-919-0 02 1 1012-1308 ●
35 GROMMET; CHECK HOLE 8-94171-287-0 02 1 1012- ●
36 PIPE; OIL,RR BRK
FRT INDEPENDENT SUSPENSION(FF0) 		8-97191-702-0 02 1 1012- ●
36 PIPE; OIL,RR BRK
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-94128-192-0 02 1 1012-1308 ●
36 PIPE; OIL,RR BRK 8-94154-916-0 02 1 1012- ●
124 SHOE ASM; BRK,RR
FRT INDEPENDENT SUSPENSION(FF0) 		8-97331-932-0 04 1 1012- ●
124 SHOE ASM; BRK,RR
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		8-97035-085-1 04 1 1012-1308 ●
124 SHOE ASM; BRK,RR 8-97287-778-0 04 1 1012- ●
136 GROMMET
FRT INDEPENDENT SUSPENSION(FF0) (B) 		8-97191-718-0 08 1 1012- ●
136 GROMMET
EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) 		9-09956-640-0 04 1 1012-1308 ●
136 GROMMET
(A) 		1-47154-008-0 04 1 1012- ●
136 GROMMET
(B) 		8-94171-287-0 04 1 1012- ●
217 LINING KIT; RR BRK 5-87831-801-0 01 1 1012- ●
217 LINING KIT; RR BRK
BEST VALUE PARTS 		5-87610-121-0 01 1 1012- ●
218 SHOE KIT; BRK,RR
FRT INDEPENDENT SUSPENSION(FF0) 		5-87832-044-0 01 1 1012- ●
218 SHOE KIT; BRK,RR
EXC. FRT INDEPENDENT SUSPENSION(FF0) 		5-87832-045-0 01 1 1012-1308 ●
218 SHOE KIT; BRK,RR 5-87832-047-0 01 1 1012- ●
