◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51287 - ELF200/300(MEXICO) ▶ 3 - Brakes, Brake System ▶ 3-02 - FRONT DISC BRAKE CALIPER ▶
3-02 — FRONT DISC BRAKE CALIPER (#54221) — 48 parça

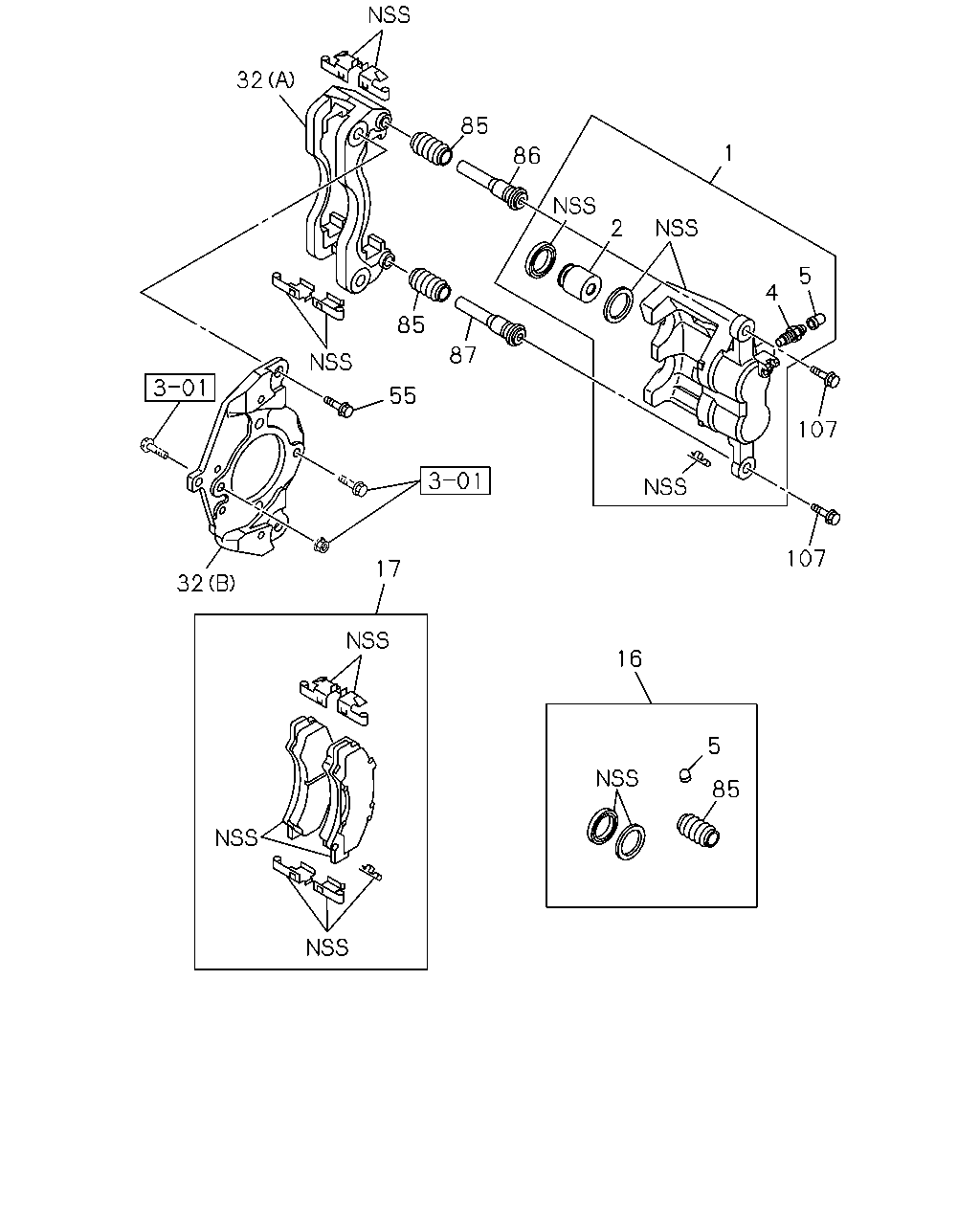

çizim 174936
32 85 1 86 2 5 4 85 87 55 107 107 17 32 16 5 85
BalonParca AdiParca NoAdetTipApplied Date A B
1 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) 		8-97367-533-0 01 1 1012-1412 ●
1 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) 		8-98303-459-0 01 1 1501- ●
1 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) 		8-97367-534-0 01 1 1012-1412 ●
1 CALIPER; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) 		8-98303-460-0 01 1 1501- ●
1 CALIPER; FRT DISC BRK 8-97365-907-0 01 1 1012-1310 ●
1 CALIPER; FRT DISC BRK 8-98247-730-0 01 1 1311-1412 ●
1 CALIPER; FRT DISC BRK 8-98303-461-0 01 1 1501- ●
1 CALIPER; FRT DISC BRK 8-97365-908-0 01 1 1012-1310 ●
1 CALIPER; FRT DISC BRK 8-98247-731-0 01 1 1311-1412 ●
1 CALIPER; FRT DISC BRK 8-98303-462-0 01 1 1501- ●
2 PISTON; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-97365-256-0 04 1 1012- ●
2 PISTON; CALIPER,DISC BRK,FRT 8-97365-269-0 04 1 1012- ●
4 SCREW; BLEEDER,DISC BRK,FRT 8-98050-476-0 02 1 1311-1412 ●
4 SCREW; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98050-476-0 02 1 1501- ●
4 SCREW; BLEEDER,DISC BRK,FRT 8-98050-476-0 02 1 1501- ●
4 SCREW; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		1-47615-027-0 02 1 1012-1310 ●
4 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 1012-1310 ●
4 SCREW; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		1-47615-027-0 02 1 1311-1412 ●
5 CAP; BLEEDER,DISC BRK,FRT 8-98050-479-0 02 1 1311-1412 ●
5 CAP; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98050-479-0 02 1 1501- ●
5 CAP; BLEEDER,DISC BRK,FRT 8-98050-479-0 02 1 1501- ●
5 CAP; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		1-47619-009-0 02 1 1012-1310 ●
5 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 1012-1310 ●
5 CAP; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		1-47619-009-0 02 1 1311-1412 ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98120-383-0 01 1 1012-1412 ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98302-529-0 01 1 1501- ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-98120-357-0 01 1 1012-1310 ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-98248-904-0 01 1 1311-1412 ●
16 REPAIR KIT; CALIPER,DISC BRK,FRT
W/GREASE 		8-98302-531-0 01 1 1501- ●
17 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98091-271-0 01 1 1012-1212 ●
17 PAD KIT; CALIPER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(FF0) 		8-98216-921-0 01 1 1301- ●
17 PAD KIT; CALIPER,DISC BRK,FRT 8-97329-266-0 01 1 1012-1212 ●
17 PAD KIT; CALIPER,DISC BRK,FRT 8-98216-922-0 01 1 1301- ●
32 SUPPORT; FRT DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-97365-258-0 02 1 1012- ●
32 SUPPORT; FRT DISC BRK
(A) 		8-97365-271-0 02 1 1012- ●
32 SUPPORT; FRT DISC BRK
(B) 		8-98009-728-0 01 1 1012- ●
32 SUPPORT; FRT DISC BRK
(B) 		8-98009-729-0 01 1 1012- ●
55 BOLT; SUPPORT BRKT TO DISC BRK
FRT INDEPENDENT SUSPENSION(FF0) M16X48 FLANGE 		8-98033-656-0 04 1 1012- ●
55 BOLT; SUPPORT BRKT TO DISC BRK
M16X31 FLANGE 		8-97359-816-0 04 1 1012- ●
85 BOOT; PIN
FRT INDEPENDENT SUSPENSION(FF0) 		8-98120-354-0 04 1 1012- ●
85 BOOT; PIN 8-98120-354-0 04 1 1012- ●
86 PIN; GUIDE
FRT INDEPENDENT SUSPENSION(FF0) 		8-98047-530-0 02 1 1012- ●
86 PIN; GUIDE 8-98047-529-0 02 1 1012- ●
87 PIN; LOCK
FRT INDEPENDENT SUSPENSION(FF0) 		8-98047-532-0 02 1 1012- ●
87 PIN; LOCK 8-98047-531-0 02 1 1012-1310 ●
87 PIN; LOCK 8-98248-005-0 02 1 1311- ●
107 BOLT; PIN
FRT INDEPENDENT SUSPENSION(FF0) 		8-97365-264-0 04 1 1012- ●
107 BOLT; PIN 8-97365-264-0 04 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
