Sayfa 2-85 - Isuzu EPC

2-85 — POWER TAKE OFF CONTROL (#54219) — 190 parça

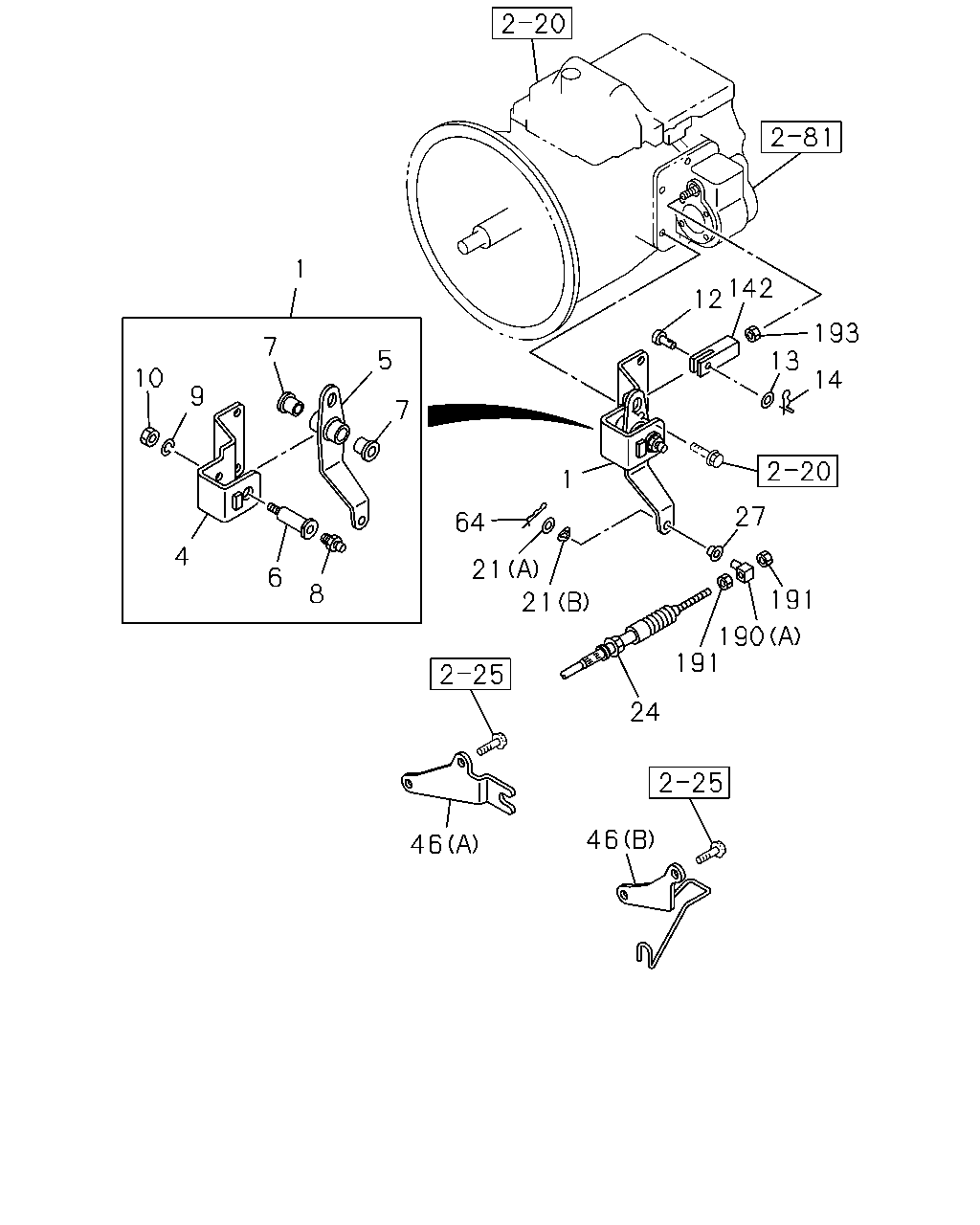

1 7 9 10 4 6 8 7 5 64 21 21 24 46 46 1 142 12 193 13 14 27 191 190 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-98032-714-0	01	1	1012-1107
1	LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-98150-089-1	01	1	1108-1301
1	LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-089-1	01	1	1302-
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98032-717-0	01	1	1012-1107
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98150-099-1	01	1	1108-1301
4	BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-099-1	01	1	1302-
5	LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66)	8-98032-718-0	01	1	1012-1301
5	LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98032-718-0	01	1	1302-
6	SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98032-720-0	01	1	1012-1107
6	SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98150-101-0	01	1	1108-1301
6	SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98150-101-0	01	1	1302-
7	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	1012-1301
7	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	5-33659-053-0	02	1	1302-
8	NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) M6 STRAIGHT	0-90301-406-0	01	1	1012-1301
8	NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M6 STRAIGHT	0-90301-406-0	01	1	1302-
9	WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) ID=8.2	0-91510-508-0	01	1	1012-1301
9	WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=8.2	0-91510-508-0	01	1	1302-
10	NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) M8	0-91110-508-0	01	1	1012-1301
10	NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8	0-91110-508-0	01	1	1302-
12	JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-98031-692-0	01	1	1012-1301
12	JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-692-0	01	1	1302-
13	WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22	0-91610-512-0	01	1	1012-1301
13	WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=12.5 OD=22	0-91610-512-0	01	1	1302-
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66)	8-97581-216-0	01	1	1012-1301
14	PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97581-216-0	01	1	1302-
21	WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) (A) ID=8.4 OD=22	0-91614-708-0	01	1	1012-1406
21	WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D),PTO T/M SIDE DIRECT PUMP(8KZ) (A) ID=8.4 OD=22	0-91614-708-0	01	1	1407-1407
21	WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) (A) ID=8.4 OD=22	0-91614-708-0	01	1	1408-
21	WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) (B) ID=8.5 T=0.3	5-09509-001-0	01	1	1012-1406
21	WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D),PTO T/M SIDE DIRECT PUMP(8KZ) (B) ID=8.5 T=0.3	5-09509-001-0	01	1	1407-1407
21	WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) (B) ID=8.5 T=0.3	5-09509-001-0	01	1	1408-
24	CABLE; PTO CONT . DUMP CHASSIS(V4D) L=3014	8-98223-292-0	01	1	1407-1407
24	CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3028	8-98139-164-0	01	1	1012-1204
24	CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3028	8-98212-223-0	01	1	1205-1207
24	CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3028	8-98223-336-0	01	1	1208-1406
24	CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0),DUMP CHASSIS(V4D) L=3028	8-98223-336-0	01	1	1407-1407
24	CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3028	8-98223-336-0	01	1	1408-
27	BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC)	8-94367-367-0	01	1	1012-1406
27	BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D),PTO T/M SIDE DIRECT PUMP(8KZ)	8-94367-367-0	01	1	1407-1407
27	BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC)	8-94367-367-0	01	1	1408-
46	BRACKET; PTO,TRANS SIDE DUMP CHASSIS(V4D) (B)	8-98133-150-0	01	1	1407-1407
46	BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) (A)	8-98032-829-2	01	1	1012-1406
46	BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D),PTO T/M SIDE DIRECT PUMP(8KZ) (A)	8-98032-829-2	01	1	1407-1407
46	BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) (A)	8-98032-829-2	01	1	1408-
64	PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) L=27.7	8-94111-137-0	01	1	1012-1406
64	PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D),PTO T/M SIDE DIRECT PUMP(8KZ) L=27.7	8-94111-137-0	01	1	1407-1407
64	PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) L=27.7	8-94111-137-0	01	1	1408-
142	CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66)	8-98031-691-0	01	1	1012-1301
142	CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98031-691-0	01	1	1302-
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (A)	8-94366-842-2	01	1	1012-1406
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D),PTO T/M SIDE DIRECT PUMP(8KZ) (A)	8-94366-842-2	01	1	1407-1407
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (A)	8-94366-842-2	01	1	1408-
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	1012-1406
190	BOSS; LEVER,PTO DUMP CHASSIS(V4D) (B)	8-98029-878-0	01	1	1407-1407
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B)	8-98029-878-0	01	1	1407-1407
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	1408-
191	NUT; BOSS PTO MANUAL CONTROL(6WC) M6	0-91110-506-0	02	1	1012-1406
191	NUT; BOSS PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D),PTO T/M SIDE DIRECT PUMP(8KZ) M6	0-91110-506-0	02	1	1407-1407
191	NUT; BOSS PTO MANUAL CONTROL(6WC) M6	0-91110-506-0	02	1	1408-
193	NUT PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	1012-1301
193	NUT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M12	0-91111-512-0	01	1	1302-

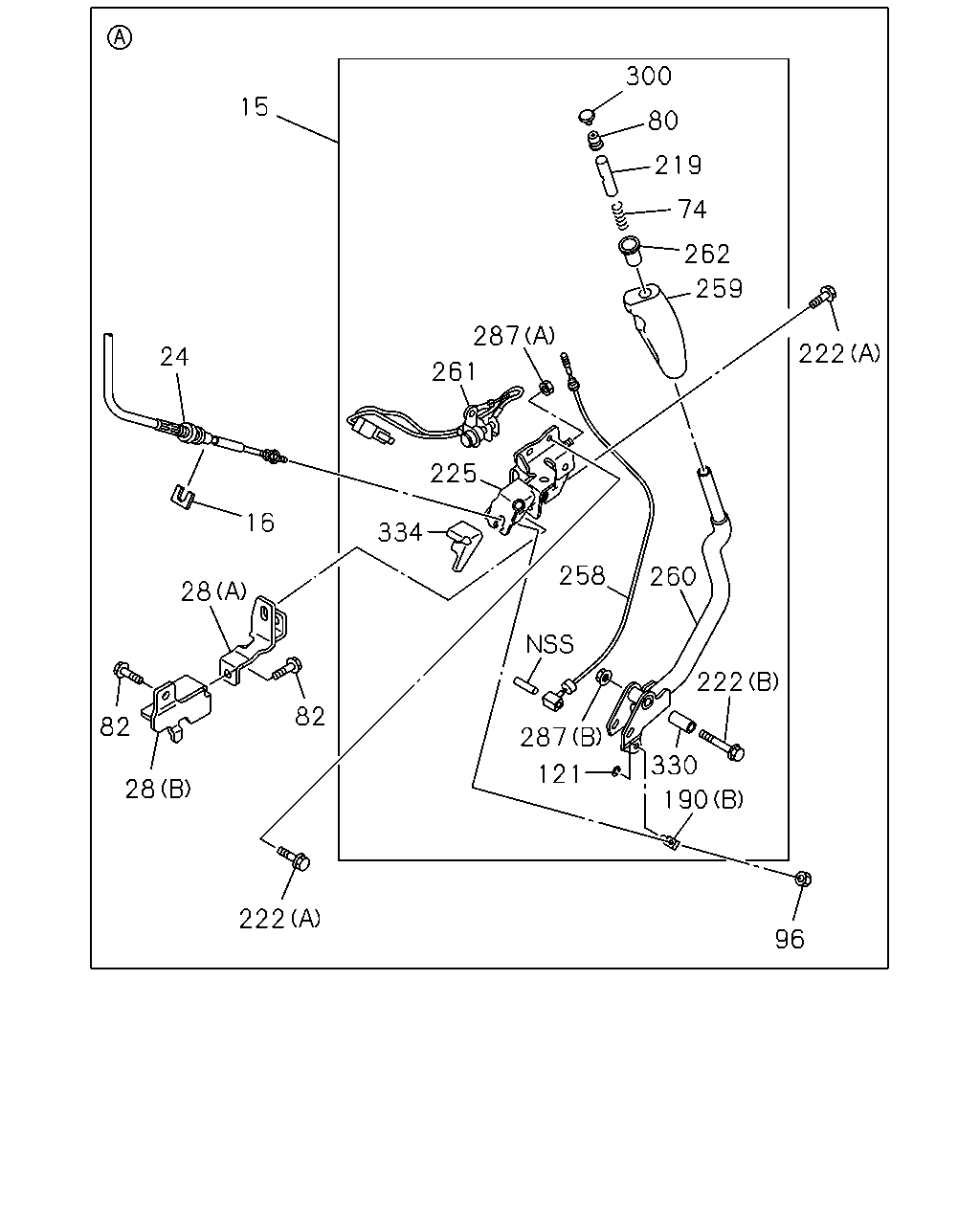

15 24 16 28 82 82 28 222 121 287 190 330 96 222 260 258 334 225 261 287 259 262 74 219 80 300 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC)	8-98070-129-3	01	1	1012-1406
15	LEVER ASM; PTO CONT DUMP CHASSIS(V4D)	8-98070-129-3	01	1	1407-1407
15	LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98070-129-3	01	1	1407-1407
15	LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC)	8-98070-129-3	01	1	1408-
16	CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC)	8-98050-126-0	01	1	1012-
24	CABLE; PTO CONT . DUMP CHASSIS(V4D) L=3014	8-98223-292-0	01	1	1407-1407
24	CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3028	8-98139-164-0	01	1	1012-1204
24	CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3028	8-98212-223-0	01	1	1205-1207
24	CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3028	8-98223-336-0	01	1	1208-1406
24	CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0),DUMP CHASSIS(V4D) L=3028	8-98223-336-0	01	1	1407-1407
24	CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3028	8-98223-336-0	01	1	1408-
28	BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (A)	8-98096-005-2	01	1	1012-1406
28	BRACKET; CONT LEVER DUMP CHASSIS(V4D) (A)	8-98096-005-2	01	1	1407-1407
28	BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98096-005-2	01	1	1407-1407
28	BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (A)	8-98096-005-2	01	1	1408-
28	BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (B)	8-98096-006-0	01	1	1012-1406
28	BRACKET; CONT LEVER DUMP CHASSIS(V4D) (B)	8-98096-006-0	01	1	1407-1407
28	BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B)	8-98096-006-0	01	1	1407-1407
28	BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (B)	8-98096-006-0	01	1	1408-
74	SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC)	8-98029-874-0	01	1	1012-1406
74	SPRING; RETURN,CONT LEVER DUMP CHASSIS(V4D)	8-98029-874-0	01	1	1407-1407
74	SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98029-874-0	01	1	1407-1407
74	SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC)	8-98029-874-0	01	1	1408-
80	COVER; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97122-741-0	01	1	1012-1406
80	COVER; CONT LEVER DUMP CHASSIS(V4D)	8-97122-741-0	01	1	1407-1407
80	COVER; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97122-741-0	01	1	1407-1407
80	COVER; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97122-741-0	01	1	1408-
82	BOLT; CONT LEVER PTO MANUAL CONTROL(6WC) M8X20 FLANGE	0-28650-820-0	02	1	1012-1406
82	BOLT; CONT LEVER DUMP CHASSIS(V4D) M8X20 FLANGE	0-28650-820-0	02	1	1407-1407
82	BOLT; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) M8X20 FLANGE	0-28650-820-0	02	1	1407-1407
82	BOLT; CONT LEVER PTO MANUAL CONTROL(6WC) M8X20 FLANGE	0-28650-820-0	02	1	1408-
96	NUT PTO MANUAL CONTROL(6WC) M6	0-91110-506-0	01	1	1012-
121	RING; SNAP PTO MANUAL CONTROL(6WC) ID=4	0-91805-504-0	01	1	1012-1406
121	RING; SNAP DUMP CHASSIS(V4D) ID=4	0-91805-504-0	01	1	1407-1407
121	RING; SNAP PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) ID=4	0-91805-504-0	01	1	1407-1407
121	RING; SNAP PTO MANUAL CONTROL(6WC) ID=4	0-91805-504-0	01	1	1408-
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (A)	8-94366-842-2	01	1	1012-1406
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D),PTO T/M SIDE DIRECT PUMP(8KZ) (A)	8-94366-842-2	01	1	1407-1407
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (A)	8-94366-842-2	01	1	1408-
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	1012-1406
190	BOSS; LEVER,PTO DUMP CHASSIS(V4D) (B)	8-98029-878-0	01	1	1407-1407
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B)	8-98029-878-0	01	1	1407-1407
190	BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	1408-
219	KNOB; LEVER PTO MANUAL CONTROL(6WC)	8-97122-736-0	01	1	1012-1406
219	KNOB; LEVER DUMP CHASSIS(V4D)	8-97122-736-0	01	1	1407-1407
219	KNOB; LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97122-736-0	01	1	1407-1407
219	KNOB; LEVER PTO MANUAL CONTROL(6WC)	8-97122-736-0	01	1	1408-
222	BOLT; LEVER PTO MANUAL CONTROL(6WC) (B) M8X60	0-10855-860-0	01	1	1012-1406
222	BOLT; LEVER DUMP CHASSIS(V4D) (B) M8X60	0-10855-860-0	01	1	1407-1407
222	BOLT; LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B) M8X60	0-10855-860-0	01	1	1407-1407
222	BOLT; LEVER PTO MANUAL CONTROL(6WC) (B) M8X60	0-10855-860-0	01	1	1408-
222	BOLT; LEVER PTO MANUAL CONTROL(6WC) (A) M8X20 FLANGE	0-28650-820-0	03	1	1012-1406
222	BOLT; LEVER ELF200(NMA0AE) PTO MANUAL CONTROL(6WC) (A) M8X20 FLANGE	0-28650-820-0	03	1	1407-1407
222	BOLT; LEVER ELF300(NM***N) DUMP CHASSIS(V4D) (A) M8X20 FLANGE	0-28650-820-0	03	1	1407-1407
222	BOLT; LEVER ELF300(NM***N) PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A) M8X20 FLANGE	0-28650-820-0	03	1	1407-1407
222	BOLT; LEVER PTO MANUAL CONTROL(6WC) (A) M8X20 FLANGE	0-28650-820-0	03	1	1408-
225	BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC)	8-98077-250-2	01	1	1012-1406
225	BRACKET; CONT LEVER DUMP CHASSIS(V4D)	8-98077-250-2	01	1	1407-1407
225	BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98077-250-2	01	1	1407-1407
225	BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC)	8-98077-250-2	01	1	1408-
258	CABLE; DUMP CONT . PTO MANUAL CONTROL(6WC)	8-98077-160-1	01	1	1012-1406
258	CABLE; DUMP CONT . DUMP CHASSIS(V4D)	8-98077-160-1	01	1	1407-1407
258	CABLE; DUMP CONT . PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98077-160-1	01	1	1407-1407
258	CABLE; DUMP CONT . PTO MANUAL CONTROL(6WC)	8-98077-160-1	01	1	1408-
259	GRIP; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97141-653-0	01	1	1012-1406
259	GRIP; CONT LEVER DUMP CHASSIS(V4D)	8-97141-653-0	01	1	1407-1407
259	GRIP; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97141-653-0	01	1	1407-1407
259	GRIP; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97141-653-0	01	1	1408-
260	LEVER; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98077-136-1	01	1	1012-1406
260	LEVER; DUMP CONT DUMP CHASSIS(V4D)	8-98077-136-1	01	1	1407-1407
260	LEVER; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98077-136-1	01	1	1407-1407
260	LEVER; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98077-136-1	01	1	1408-
261	SWITCH; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98081-899-2	01	1	1012-1406
261	SWITCH; DUMP CONT DUMP CHASSIS(V4D)	8-98081-899-2	01	1	1407-1407
261	SWITCH; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98081-899-2	01	1	1407-1407
261	SWITCH; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98081-899-2	01	1	1408-
262	RETAINER; SPRING PTO MANUAL CONTROL(6WC)	8-97129-397-0	01	1	1012-1406
262	RETAINER; SPRING DUMP CHASSIS(V4D)	8-97129-397-0	01	1	1407-1407
262	RETAINER; SPRING PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97129-397-0	01	1	1407-1407
262	RETAINER; SPRING PTO MANUAL CONTROL(6WC)	8-97129-397-0	01	1	1408-
287	NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) (A) M6	0-91110-506-0	01	1	1012-1406
287	NUT; SWITCH,CONT LEVER DUMP CHASSIS(V4D) (A) M6	0-91110-506-0	01	1	1407-1407
287	NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A) M6	0-91110-506-0	01	1	1407-1407
287	NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) (A) M6	0-91110-506-0	01	1	1408-
287	NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) (B) M8 FLANGE	0-91180-208-0	01	1	1012-1406
287	NUT; SWITCH,CONT LEVER DUMP CHASSIS(V4D) (B) M8 FLANGE	0-91180-208-0	01	1	1407-1407
287	NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B) M8 FLANGE	0-91180-208-0	01	1	1407-1407
287	NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) (B) M8 FLANGE	0-91180-208-0	01	1	1408-
300	CAP; KNOB PTO MANUAL CONTROL(6WC)	8-97122-740-0	01	1	1012-1406
300	CAP; KNOB DUMP CHASSIS(V4D)	8-97122-740-0	01	1	1407-1407
300	CAP; KNOB PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-97122-740-0	01	1	1407-1407
300	CAP; KNOB PTO MANUAL CONTROL(6WC)	8-97122-740-0	01	1	1408-
330	COLOR; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98049-802-0	01	1	1012-1406
330	COLOR; DUMP CONT DUMP CHASSIS(V4D)	8-98049-802-0	01	1	1407-1407
330	COLOR; DUMP CONT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98049-802-0	01	1	1407-1407
330	COLOR; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98049-802-0	01	1	1408-
334	SHEET; PTO PTO MANUAL CONTROL(6WC)	8-98109-990-1	01	1	1012-1406
334	SHEET; PTO DUMP CHASSIS(V4D)	8-98109-990-1	01	1	1407-1407
334	SHEET; PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D)	8-98109-990-1	01	1	1407-1407
334	SHEET; PTO PTO MANUAL CONTROL(6WC)	8-98109-990-1	01	1	1408-

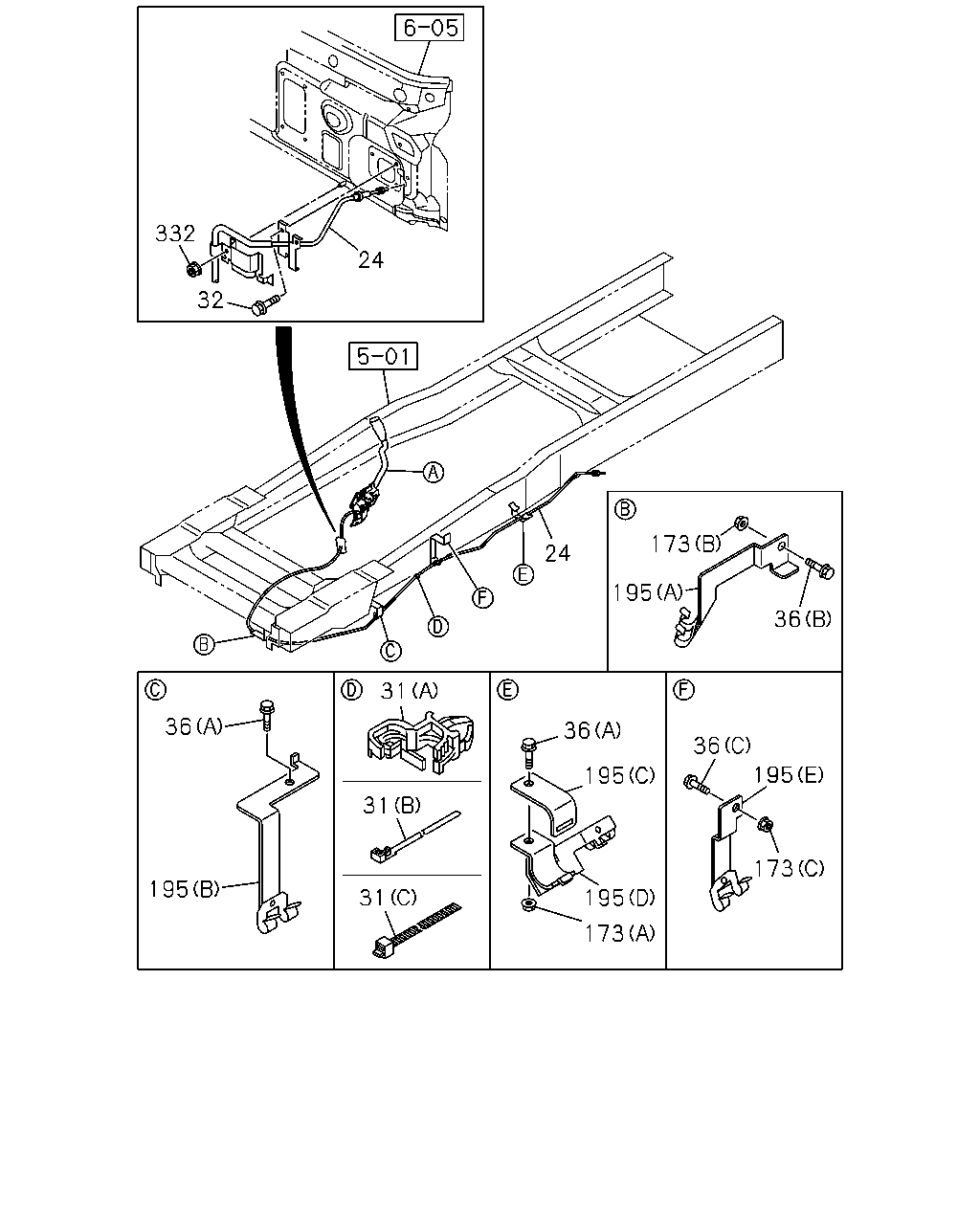

332 32 24 24 173 195 36 195 36 173 195 173 195 36 31 31 31 195 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CABLE; PTO CONT . DUMP CHASSIS(V4D) L=3014	8-98223-292-0	01	1	1407-1407
24	CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3028	8-98139-164-0	01	1	1012-1204
24	CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3028	8-98212-223-0	01	1	1205-1207
24	CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3028	8-98223-336-0	01	1	1208-1406
24	CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0),DUMP CHASSIS(V4D) L=3028	8-98223-336-0	01	1	1407-1407
24	CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) L=3028	8-98223-336-0	01	1	1408-
31	CLIP; BAND,CABLE DUMP CHASSIS(V4D) (C) L=300	1-09707-001-1	02	1	1407-1407
31	CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) L=250	5-09707-030-1	01	1	1012-
31	CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) ID=16	8-97040-812-0	01	1	1012-
32	BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) M6X12 FLANGE	8-97329-610-0	02	1	1012-
36	BOLT; PTO BRKT AIR CONDITIONER MANUAL CONT(C60) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M6X20 FLANGE	0-28650-620-0	01	1	1201-
36	BOLT; PTO BRKT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) (A) M8X25 FLANGE	0-28650-825-0	02	1	1012-
36	BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) (B) M14X30 FLANGE	0-28651-430-0	01	1	1012-
36	BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-1112
36	BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-1112
36	BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M8X25 FLANGE	0-28650-825-0	01	1	1201-
36	BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60),FRT INDEPENDENT SUSPENSION(FF0) (A) M8X25 FLANGE	0-28650-825-0	01	1	1201-
173	NUT; BRKT PTO MANUAL CONTROL(6WC) (B) M14 FLANGE	0-91180-114-0	01	1	1112-
173	NUT; BRKT AIR CONDITIONER MANUAL CONT(C60) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M6 FLANGE	0-91180-106-0	01	1	1201-
173	NUT; BRKT FRT INDEPENDENT SUSPENSION(FF0) PTO MANUAL CONTROL(6WC) (A) M8 FLANGE	0-91180-108-0	02	1	1012-
173	NUT; BRKT PTO MANUAL CONTROL(6WC) (B) M14 FLANGE	0-91180-114-0	01	1	1012-1111
173	NUT; BRKT PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) M8 FLANGE	0-91180-108-0	01	1	1012-
195	BRACKET; CONT CABLE AIR CONDITIONER MANUAL CONT(C60) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98086-266-0	01	1	1201-
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (A)	8-98086-263-0	01	1	1012-
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98086-265-0	01	1	1012-1112
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60),FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98086-265-0	01	1	1201-
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (D)	8-98117-131-0	01	1	1012-
195	BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C)	8-98117-132-0	01	1	1012-
332	NUT; PTO CONT CABLE PTO MANUAL CONTROL(6WC) M6 FLANGE	0-91180-106-0	01	1	1012-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
