Sayfa 2-81 - Isuzu EPC

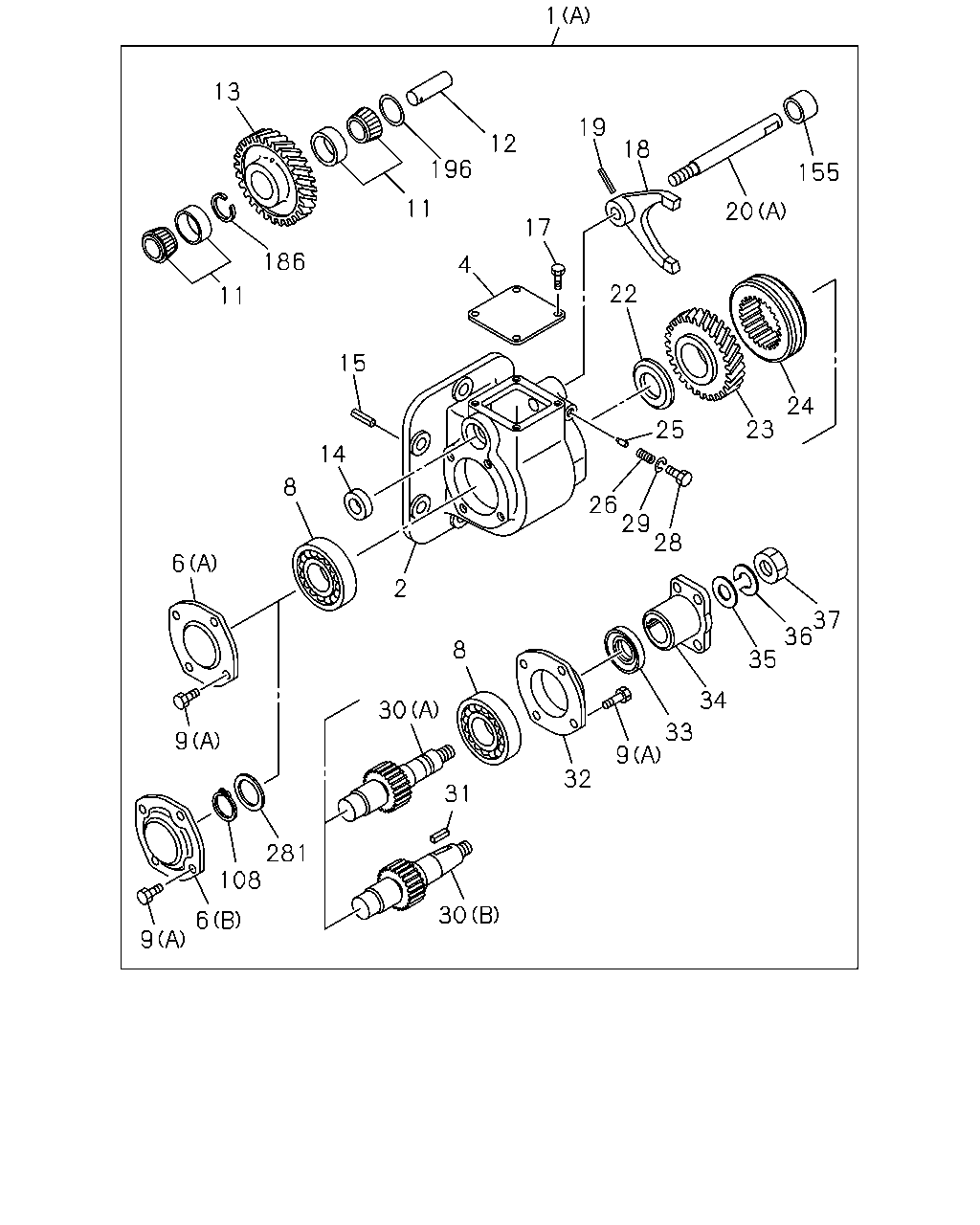

2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#54218) — 191 parça

1 13 186 11 11 196 12 19 22 17 4 20 155 24 23 25 28 29 26 2 14 15 8 6 9 281 108 6 9 30 31 30 8 32 9 33 34 35 36 37 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	POWER TAKE OFF ASM; TRANS SIDE PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) (B) IDENTIFICATION=F	8-97379-829-1	01	1	1407-1407
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) (A) IDENTIFICATION=YG	8-97286-908-7	01	1	1012-1210
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) (A) IDENTIFICATION=YG	8-98223-523-0	01	1	1211-1301
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) IDENTIFICATION=YG	8-98223-523-0	01	1	1302-1305
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) IDENTIFICATION=YG	8-98233-783-1	01	1	1306-
2	CASE; GEAR,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97352-776-1	01	1	1407-1407
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97308-689-2	01	1	1012-1301
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97308-689-2	01	1	1302-1409
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98282-381-0	01	1	1410-
4	COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-613-0	01	1	1012-1301
4	COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98046-613-0	01	1	1302-
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	8-98046-612-0	01	1	1012-1301
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A)	8-98046-612-0	01	1	1302-1305
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (B)	8-98233-778-0	01	1	1306-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) ID=25 OD=52	9-00090-657-0	02	1	1407-1407
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	1012-1301
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=25 OD=62	8-94343-031-1	02	1	1302-
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) (C) M8X16 FLANGE	0-28050-816-0	04	1	1407-1407
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) (A) M8X20 FLANGE	0-28050-820-0	02	1	1407-1407
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) (B) M10X16 FLANGE	0-28151-016-0	01	1	1407-1407
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) (A) M8X20 FLANGE	0-28050-820-0	08	1	1012-1301
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) M8X20 FLANGE	0-28050-820-0	08	1	1302-
11	BEARING; IDLE GEAR,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) NSK	9-00096-646-0	02	1	1407-1407
11	BEARING; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) NSK	8-97106-734-0	02	1	1012-1301
11	BEARING; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) NSK	8-97106-734-0	02	1	1302-
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	1012-1301
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-38211-606-0	01	1	1302-1406
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC)	9-38211-606-0	01	1	1407-1407
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-38211-606-0	01	1	1408-
13	GEAR; IDLE,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) Z=31	8-97352-777-0	01	1	1407-1407
13	GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=31	8-97308-700-0	01	1	1012-1301
13	GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=31	8-97308-700-0	01	1	1302-
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97308-735-0	02	1	1407-1407
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98028-789-0	01	1	1012-1301
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98028-789-0	01	1	1302-
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=16	9-09878-613-0	01	1	1012-1301
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=16	9-09878-613-0	01	1	1302-1406
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) L=16	9-09878-613-0	01	1	1407-1407
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=16	9-09878-613-0	01	1	1408-
17	BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M8X20 FLANGE	0-28050-820-0	04	1	1012-1301
17	BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8X20 FLANGE	0-28050-820-0	04	1	1302-
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97308-694-0	01	1	1407-1407
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97224-702-0	01	1	1012-1301
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97224-702-0	01	1	1302-
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) L=20 OD=4	9-09678-514-0	01	1	1407-1407
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25 OD=5	8-94135-771-0	01	1	1012-1301
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=25 OD=5	8-94135-771-0	01	1	1302-
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) (B)	8-97186-946-1	01	1	1407-1407
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) (C)	8-98080-011-0	01	1	1407-1407
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	8-98046-623-0	01	1	1012-1301
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A)	8-98046-623-0	01	1	1302-
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	1012-1301
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-38245-603-1	01	1	1302-1406
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC)	9-38245-603-1	01	1	1407-1407
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-38245-603-1	01	1	1408-
23	GEAR; OUTPUT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) Z=27	8-97352-778-0	01	1	1407-1407
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=27	8-98120-609-0	01	1	1012-1301
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=27	8-98120-609-0	01	1	1302-
24	SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97231-316-1	01	1	1012-1301
24	SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97231-316-1	01	1	1302-
25	PIN; LK,SIDE PTO PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97139-695-0	01	1	1407-1407
25	PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66)	8-94169-071-0	01	1	1012-1301
25	PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-94169-071-0	01	1	1302-
26	SPRING; SHIFTER ROD,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97139-700-0	01	1	1407-1407
26	SPRING; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-09940-380-0	01	1	1012-1301
26	SPRING; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-09940-380-0	01	1	1302-
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) M8	8-98038-424-0	01	1	1012-1301
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8	8-98038-424-0	01	1	1302-1406
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) M8	8-98038-424-0	01	1	1407-1407
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8	8-98038-424-0	01	1	1408-
29	WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) ID=8.2	0-91510-808-0	01	1	1012-1301
29	WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=8.2	0-91510-808-0	01	1	1302-1406
29	WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) ID=8.2	0-91510-808-0	01	1	1407-1407
29	WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=8.2	0-91510-808-0	01	1	1408-
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) (C)	8-97186-945-0	01	1	1407-1407
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	8-97118-183-1	01	1	1012-1210
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B)	8-98223-518-0	01	1	1211-1301
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (B)	8-98223-518-0	01	1	1302-1305
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (B)	8-98233-777-0	01	1	1306-
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25	8-98068-088-0	01	1	1211-1301
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=25	8-98068-088-0	01	1	1302-
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97305-794-0	01	1	1012-1301
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97305-794-0	01	1	1302-
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	1-38159-007-0	01	1	1012-1301
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	1-38159-007-0	01	1	1302-
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-624-0	01	1	1012-1210
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98223-519-0	01	1	1211-1301
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98223-519-0	01	1	1302-
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=15	0-91610-514-0	01	1	1012-1301
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=15	0-91610-514-0	01	1	1302-
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=14.2	0-91510-814-0	01	1	1012-1301
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=14.2	0-91510-814-0	01	1	1302-
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) M14	0-91111-514-0	01	1	1012-1301
37	NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M14	0-91111-514-0	01	1	1302-
108	RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=23.2	9-09180-025-0	01	1	1306-
155	PLUG; SHIFTER ROD PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ)	8-98046-860-0	01	1	1407-1407
155	PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-98037-770-0	01	1	1012-1301
155	PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98037-770-0	01	1	1302-
186	RING; SNAP,IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97106-730-0	01	1	1012-1301
186	RING; SNAP,IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97106-730-0	01	1	1302-
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.50	8-97106-724-0	02	1	1012-1301
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.50	8-97106-724-0	02	1	1302-
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.60	8-97106-725-0	02	1	1012-1301
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.60	8-97106-725-0	02	1	1302-
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.65	8-97106-726-0	02	1	1012-1301
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.65	8-97106-726-0	02	1	1302-
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.70	8-97106-727-0	02	1	1012-1301
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.70	8-97106-727-0	02	1	1302-
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.80	8-97106-728-0	02	1	1012-1301
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.80	8-97106-728-0	02	1	1302-
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.85	8-97106-729-0	02	1	1012-1301
196	PIECE; THRUST PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.85	8-97106-729-0	02	1	1302-
281	SHIM; OUTPUT SHAFT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) T=1.85	8-97106-729-0	01	1	1306-

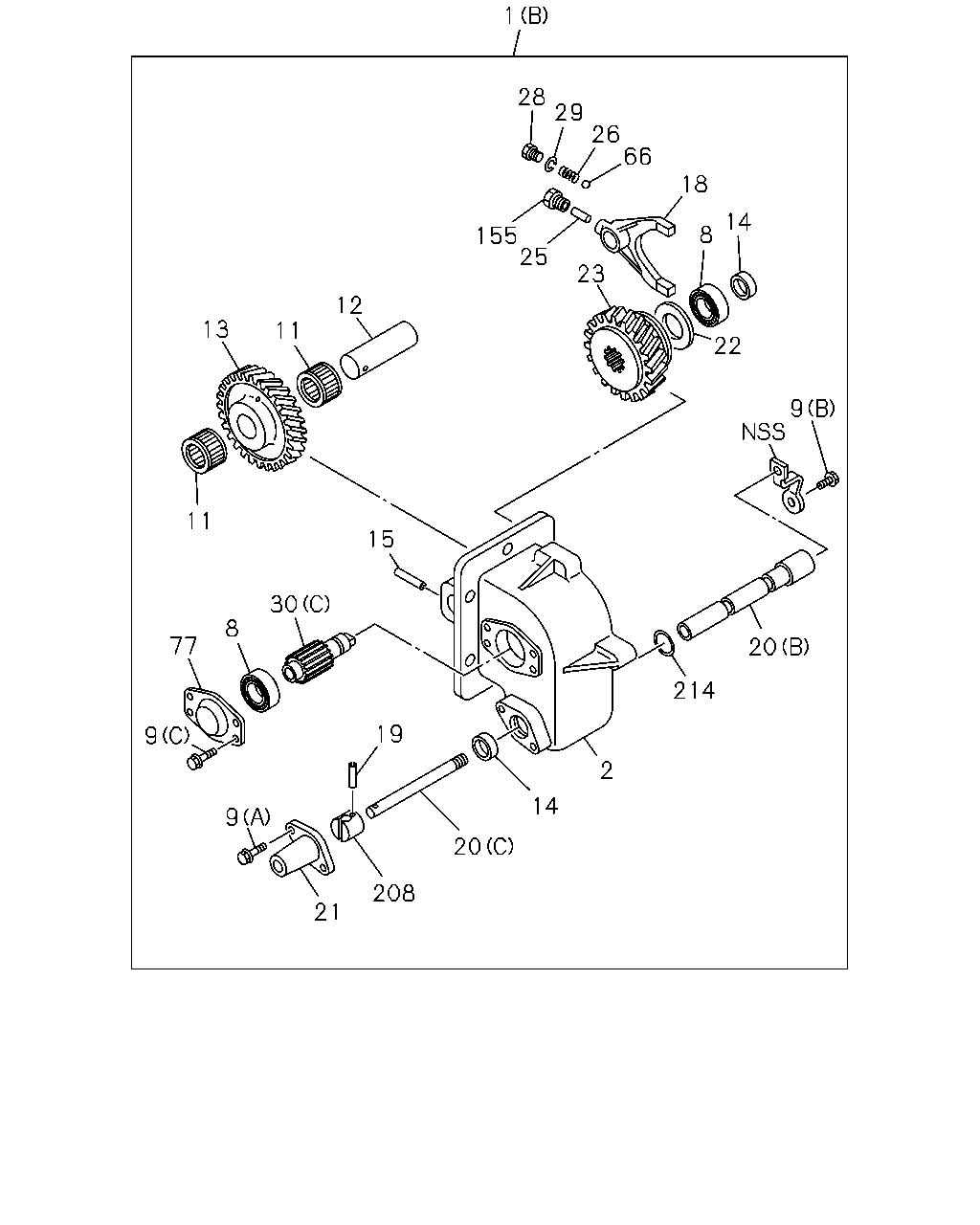

1 28 29 26 66 18 8 14 22 23 25 155 12 11 13 11 15 30 8 77 9 9 19 20 208 21 14 2 214 20 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	POWER TAKE OFF ASM; TRANS SIDE PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) (B) IDENTIFICATION=F	8-97379-829-1	01	1	1407-1407
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) (A) IDENTIFICATION=YG	8-97286-908-7	01	1	1012-1210
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) (A) IDENTIFICATION=YG	8-98223-523-0	01	1	1211-1301
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) IDENTIFICATION=YG	8-98223-523-0	01	1	1302-1305
1	POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) IDENTIFICATION=YG	8-98233-783-1	01	1	1306-
2	CASE; GEAR,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97352-776-1	01	1	1407-1407
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97308-689-2	01	1	1012-1301
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97308-689-2	01	1	1302-1409
2	CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98282-381-0	01	1	1410-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) ID=25 OD=52	9-00090-657-0	02	1	1407-1407
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	1012-1301
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=25 OD=62	8-94343-031-1	02	1	1302-
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) (C) M8X16 FLANGE	0-28050-816-0	04	1	1407-1407
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) (A) M8X20 FLANGE	0-28050-820-0	02	1	1407-1407
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) (B) M10X16 FLANGE	0-28151-016-0	01	1	1407-1407
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) (A) M8X20 FLANGE	0-28050-820-0	08	1	1012-1301
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) M8X20 FLANGE	0-28050-820-0	08	1	1302-
11	BEARING; IDLE GEAR,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) NSK	9-00096-646-0	02	1	1407-1407
11	BEARING; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) NSK	8-97106-734-0	02	1	1012-1301
11	BEARING; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) NSK	8-97106-734-0	02	1	1302-
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	1012-1301
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-38211-606-0	01	1	1302-1406
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC)	9-38211-606-0	01	1	1407-1407
12	SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-38211-606-0	01	1	1408-
13	GEAR; IDLE,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) Z=31	8-97352-777-0	01	1	1407-1407
13	GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=31	8-97308-700-0	01	1	1012-1301
13	GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=31	8-97308-700-0	01	1	1302-
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97308-735-0	02	1	1407-1407
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98028-789-0	01	1	1012-1301
14	SEAL; OIL,GEAR CASE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98028-789-0	01	1	1302-
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=16	9-09878-613-0	01	1	1012-1301
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=16	9-09878-613-0	01	1	1302-1406
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) L=16	9-09878-613-0	01	1	1407-1407
15	PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=16	9-09878-613-0	01	1	1408-
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97308-694-0	01	1	1407-1407
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97224-702-0	01	1	1012-1301
18	ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97224-702-0	01	1	1302-
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) L=20 OD=4	9-09678-514-0	01	1	1407-1407
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25 OD=5	8-94135-771-0	01	1	1012-1301
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) L=25 OD=5	8-94135-771-0	01	1	1302-
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) (B)	8-97186-946-1	01	1	1407-1407
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) (C)	8-98080-011-0	01	1	1407-1407
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	8-98046-623-0	01	1	1012-1301
20	ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A)	8-98046-623-0	01	1	1302-
21	COVER; SHIFTER ROD,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97139-693-0	01	1	1407-1407
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	1012-1301
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-38245-603-1	01	1	1302-1406
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC)	9-38245-603-1	01	1	1407-1407
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-38245-603-1	01	1	1408-
23	GEAR; OUTPUT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) Z=27	8-97352-778-0	01	1	1407-1407
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=27	8-98120-609-0	01	1	1012-1301
23	GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) Z=27	8-98120-609-0	01	1	1302-
25	PIN; LK,SIDE PTO PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97139-695-0	01	1	1407-1407
25	PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66)	8-94169-071-0	01	1	1012-1301
25	PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-94169-071-0	01	1	1302-
26	SPRING; SHIFTER ROD,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97139-700-0	01	1	1407-1407
26	SPRING; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-09940-380-0	01	1	1012-1301
26	SPRING; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-09940-380-0	01	1	1302-
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) M8	8-98038-424-0	01	1	1012-1301
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8	8-98038-424-0	01	1	1302-1406
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) M8	8-98038-424-0	01	1	1407-1407
28	BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8	8-98038-424-0	01	1	1408-
29	WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) ID=8.2	0-91510-808-0	01	1	1012-1301
29	WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=8.2	0-91510-808-0	01	1	1302-1406
29	WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) ID=8.2	0-91510-808-0	01	1	1407-1407
29	WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) ID=8.2	0-91510-808-0	01	1	1408-
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ) (C)	8-97186-945-0	01	1	1407-1407
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	8-97118-183-1	01	1	1012-1210
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B)	8-98223-518-0	01	1	1211-1301
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (B)	8-98223-518-0	01	1	1302-1305
30	SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (B)	8-98233-777-0	01	1	1306-
66	BALL; SHIFTER ROD,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97139-699-0	01	1	1407-1407
77	COVER; OUTPUT,RR,TRANS SIDE PTO PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ)	8-98046-625-0	01	1	1407-1407
155	PLUG; SHIFTER ROD PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ)	8-98046-860-0	01	1	1407-1407
155	PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-98037-770-0	01	1	1012-1301
155	PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98037-770-0	01	1	1302-
208	CONNECTOR; CABLE PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ)	8-98046-859-0	01	1	1407-1407
214	GASKET; SHIFT ROD PTO MANUAL CONTROL(6WC) PTO T/M SIDE DIRECT PUMP(8KZ)	9-09561-125-0	01	1	1407-1407

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
