Isuzu WW
▶
TRUCKS
▶
ELF
▶
51287 - ELF200/300(MEXICO)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶

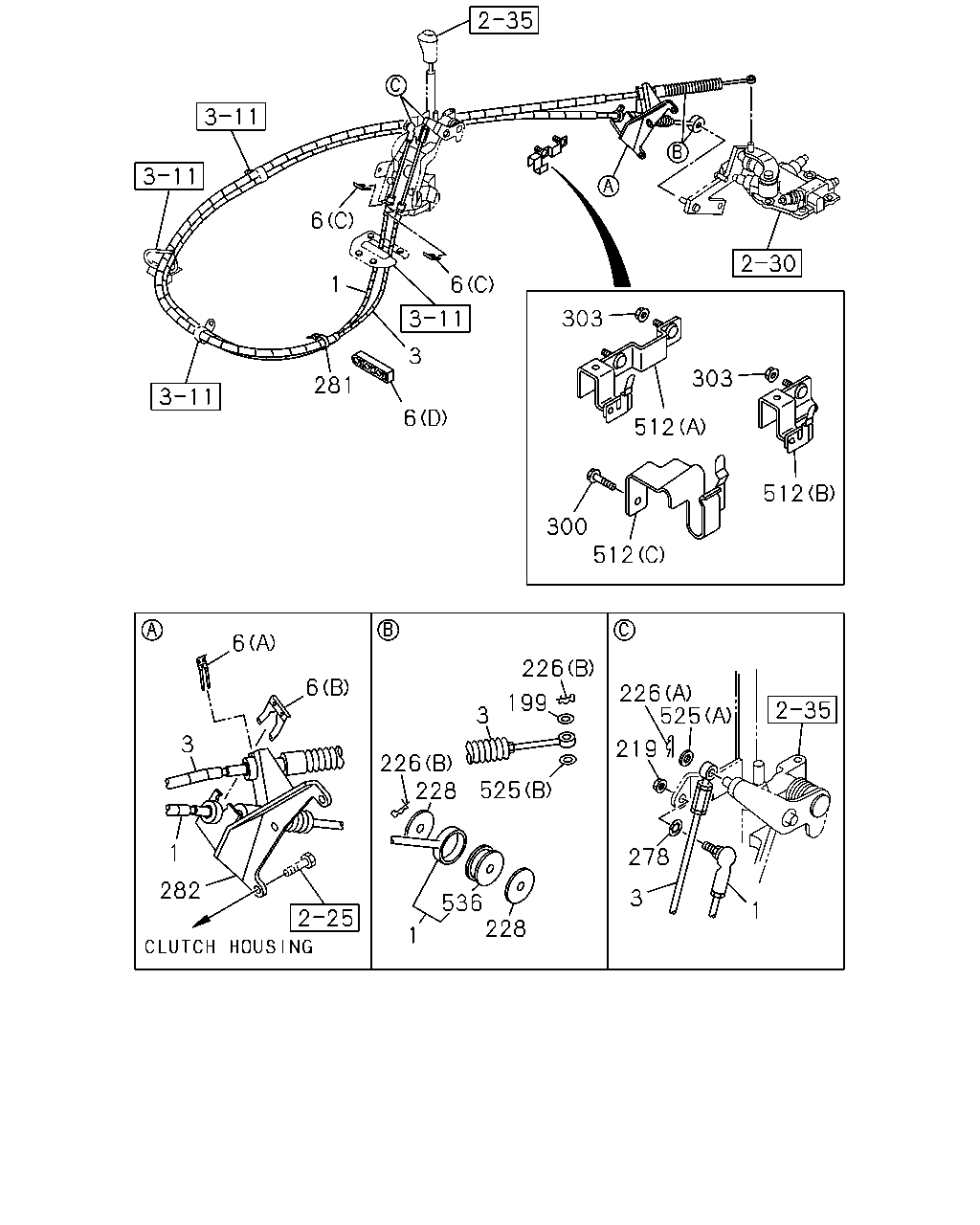

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#54217) — 25 parça
6
1
281
3
6
303
303
512
512
512
300
6
6
6
3
282
1
226
199
3
226
228
525
226
525
219
278
1
3
228
536
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; SHIFT,TRANS CONT
L=3035
8-98146-825-1
01
1
1012-
3
CABLE; SELECT,TRANS CONT
L=3120
8-98021-700-2
01
1
1012-
6
CLIP; CABLE
(A) ID=22.2
1-09701-209-1
01
1
1012-
6
CLIP; CABLE
(C)
8-97011-448-0
02
1
1012-
6
CLIP; CABLE
(B) ID=19.2
8-97211-011-0
01
1
1012-
6
CLIP; CABLE
EXC. MANUAL TILT CAB<RWZ> (D)
8-97093-491-1
01
1
1012-
199
WASHER; PL,SELECT
ID=8.4 OD=16
0-91610-508-0
01
1
1012-
219
NUT; FLANGE,SHAFT CABLE
M8 T=8.0
8-94363-045-0
01
1
1012-
226
PIN; SHIFT CABLE
(A) L=27.7
8-94111-137-0
01
1
1012-
226
PIN; SHIFT CABLE
(B) L=23
8-94170-378-0
02
1
1012-
228
WASHER; PL,SHIFT CABLE
ID=8.2 OD=40
8-97182-975-0
01
1
1012-1109
228
WASHER; PL,SHIFT CABLE
ID=8.2 OD=40
8-97182-975-0
02
1
1110-
278
WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT
0-91541-208-0
01
1
1012-
281
CLIP; BAND
L=140
5-09707-031-1
01
1
1012-
282
BRACKET; TRANS SIDE
8-97350-449-0
01
1
1012-
300
BOLT; CLIP
FRAME-KICK UP<7EW> M8X25 FLANGE
0-28650-825-0
01
1
1407-1407
303
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1012-
512
GUIDE; CABLE,GEAR CONT
FRAME-KICK UP<7EW> (C)
8-98032-833-1
01
1
1407-1407
512
GUIDE; CABLE,GEAR CONT
FRAME-KICK UP<7EW> (B)
8-98032-835-1
01
1
1407-1407
512
GUIDE; CABLE,GEAR CONT
(A)
8-98111-916-0
01
1
1012-1406
512
GUIDE; CABLE,GEAR CONT
EXC. FRAME-KICK UP<7EW> (A)
8-98111-916-0
01
1
1407-1407
512
GUIDE; CABLE,GEAR CONT
(A)
8-98111-916-0
01
1
1408-
525
WASHER; SHIFT CABLE
(A) ID=8.4 OD=16
0-91614-508-0
01
1
1012-
525
WASHER; SHIFT CABLE
(B) ID=8.4 OD=14
5-09550-002-0
01
1
1012-
536
DAMPER; CABLE
8-98097-681-0
01
1
1012-
