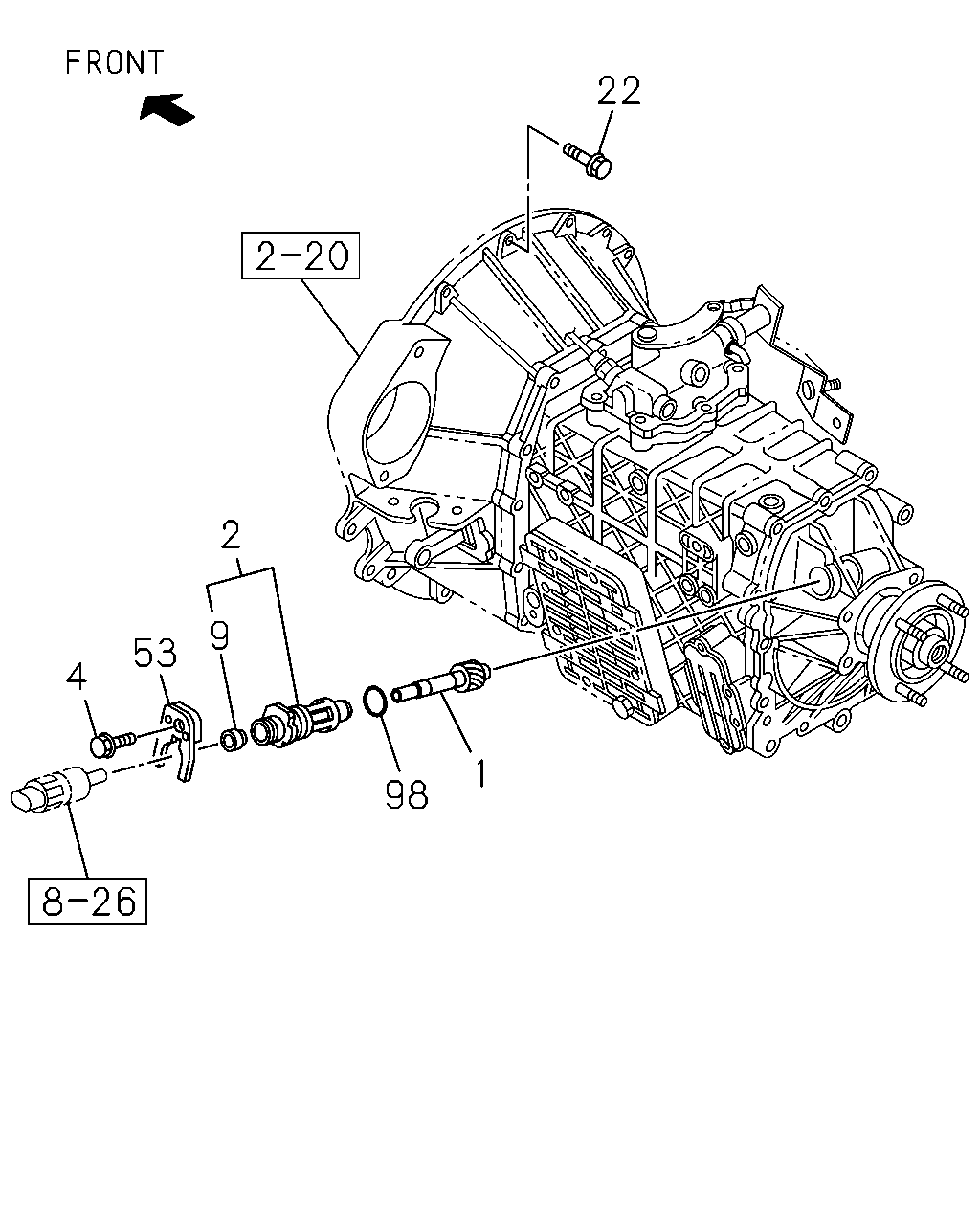

2-25 — SPEEDOMETER DRIVEN GEAR (#54213) — 72 parça

22 2 9 53 4 1 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GEAR; DRIVEN,SPD Z=14	8-97253-561-1	01	1	1012-	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER MARK "12,13,14,15"	8-97253-125-0	01	1	1012-	●	●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28650-820-0	01	1	1012-	●	●
9	SEAL; OIL,DRIVEN GEAR NOK	8-97131-328-1	01	1	1012-	●	●
22	BOLT; TRANS CASE TO ENG M10X35 FLANGE	0-28151-035-0	03	1	1302-1302	●	●
22	BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X35 FLANGE	0-28151-035-0	03	1	1302-1302	●	●
22	BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X30 FLANGE	0-28151-030-0	03	1	1302-1406	●	●
22	BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X30 FLANGE	0-28151-030-0	03	1	1407-1407	●
22	BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) M10X30 FLANGE	0-28151-030-0	03	1	1407-1407		●
22	BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X30 FLANGE	0-28151-030-0	03	1	1408-	●	●
22	BOLT; TRANS CASE TO ENG PTO MANUAL CONTROL(6WC) M10X35 FLANGE	0-28151-035-0	01	1	1012-1301	●	●
22	BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X35 FLANGE	0-28151-035-0	03	1	1302-1406	●	●
22	BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X35 FLANGE	0-28151-035-0	03	1	1407-1407	●
22	BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) M10X35 FLANGE	0-28151-035-0	03	1	1407-1407		●
22	BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X35 FLANGE	0-28151-035-0	03	1	1408-1503	●	●
22	BOLT; TRANS CASE TO ENG FRT INDEPENDENT SUSPENSION(FF0) M10X35 FLANGE	0-28151-035-0	03	1	1504-	●
22	BOLT; TRANS CASE TO ENG EXC. FRT INDEPENDENT SUSPENSION(FF0),PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X35 FLANGE	0-28151-035-0	03	1	1504-	●
22	BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X35 FLANGE	0-28151-035-0	03	1	1504-		●
22	BOLT; TRANS CASE TO ENG PTO MANUAL CONTROL(6WC) M10X130 FLANGE	0-28156-013-0	01	1	1012-1301	●	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X130 FLANGE	0-28156-013-0	01	1	1302-1406	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X130 FLANGE	0-28156-013-0	01	1	1302-1406		●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X130 FLANGE	0-28156-013-0	01	1	1407-1407	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) M10X130 FLANGE	0-28156-013-0	01	1	1407-1407		●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X130 FLANGE	0-28156-013-0	01	1	1408-	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X130 FLANGE	0-28156-013-0	01	1	1408-		●
22	BOLT; TRANS CASE TO ENG M10X30 FLANGE	0-28151-030-0	02	1	1012-1301	●	●
22	BOLT; TRANS CASE TO ENG M10X30 FLANGE	0-28151-030-0	02	1	1302-1302	●	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X30 FLANGE	0-28151-030-0	02	1	1302-1302	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X30 FLANGE	0-28151-030-0	02	1	1302-1302		●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X30 FLANGE	0-28151-030-0	02	1	1302-1406	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X30 FLANGE	0-28151-030-0	02	1	1302-1406		●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X30 FLANGE	0-28151-030-0	02	1	1407-1407	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) M10X30 FLANGE	0-28151-030-0	02	1	1407-1407		●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X30 FLANGE	0-28151-030-0	02	1	1408-	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X30 FLANGE	0-28151-030-0	02	1	1408-		●
22	BOLT; TRANS CASE TO ENG M10X35 FLANGE	0-28151-035-0	03	1	1012-1301	●	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X35 FLANGE	0-28151-035-0	04	1	1302-1406	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X35 FLANGE	0-28151-035-0	04	1	1302-1406		●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X35 FLANGE	0-28151-035-0	04	1	1407-1407	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) M10X35 FLANGE	0-28151-035-0	04	1	1407-1407		●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X35 FLANGE	0-28151-035-0	04	1	1408-	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X35 FLANGE	0-28151-035-0	04	1	1408-		●
22	BOLT; TRANS CASE TO ENG M10X50 FLANGE	0-28151-050-0	01	1	1012-1301	●	●
22	BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X50 FLANGE	0-28151-050-0	01	1	1302-1406	●	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X50 FLANGE	0-28151-050-0	01	1	1302-1406	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X50 FLANGE	0-28151-050-0	01	1	1302-1406		●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X50 FLANGE	0-28151-050-0	01	1	1407-1407	●
22	BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X50 FLANGE	0-28151-050-0	01	1	1407-1407	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) M10X50 FLANGE	0-28151-050-0	01	1	1407-1407		●
22	BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) M10X50 FLANGE	0-28151-050-0	01	1	1407-1407		●
22	BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X50 FLANGE	0-28151-050-0	01	1	1408-	●	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X50 FLANGE	0-28151-050-0	01	1	1408-	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X50 FLANGE	0-28151-050-0	01	1	1408-		●
22	BOLT; TRANS CASE TO ENG M10X140 FLANGE	0-28156-014-0	01	1	1012-1301	●	●
22	BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X140 FLANGE	0-28156-014-0	01	1	1302-1406	●	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X140 FLANGE	0-28156-014-0	01	1	1302-1406	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X140 FLANGE	0-28156-014-0	01	1	1302-1406		●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X140 FLANGE	0-28156-014-0	01	1	1407-1407	●
22	BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X140 FLANGE	0-28156-014-0	01	1	1407-1407	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) PTO MANUAL CONTROL(6WC) M10X140 FLANGE	0-28156-014-0	01	1	1407-1407		●
22	BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) M10X140 FLANGE	0-28156-014-0	01	1	1407-1407		●
22	BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X140 FLANGE	0-28156-014-0	01	1	1408-	●	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) EXC. FRT INDEPENDENT SUSPENSION(FF0) M10X140 FLANGE	0-28156-014-0	01	1	1408-	●
22	BOLT; TRANS CASE TO ENG PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M10X140 FLANGE	0-28156-014-0	01	1	1408-		●
22	BOLT; TRANS CASE TO ENG EXC. PTO MANUAL CONTROL(6WC) M10X30 FLANGE	0-28151-030-0	01	1	1012-1301	●	●
22	BOLT; TRANS CASE TO ENG EXC. PTO MANUAL CONTROL(6WC) M10X120 FLANGE	0-28156-012-0	01	1	1012-1301	●	●
22	BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X120 FLANGE	0-28156-012-0	01	1	1302-1406	●	●
22	BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X120 FLANGE	0-28156-012-0	01	1	1407-1407	●
22	BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),PTO T/M SIDE DIRECT PUMP(8KZ) M10X120 FLANGE	0-28156-012-0	01	1	1407-1407		●
22	BOLT; TRANS CASE TO ENG EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) M10X120 FLANGE	0-28156-012-0	01	1	1408-	●	●
53	PLATE; LOCK,DRIVEN GEAR	8-98046-217-0	01	1	1012-	●	●
98	SEAL; OIL,BUSH	9-09561-324-0	01	1	1012-	●	●
