6-47 — MUD GUARD AND INSULATOR (#5421) — 543 parça

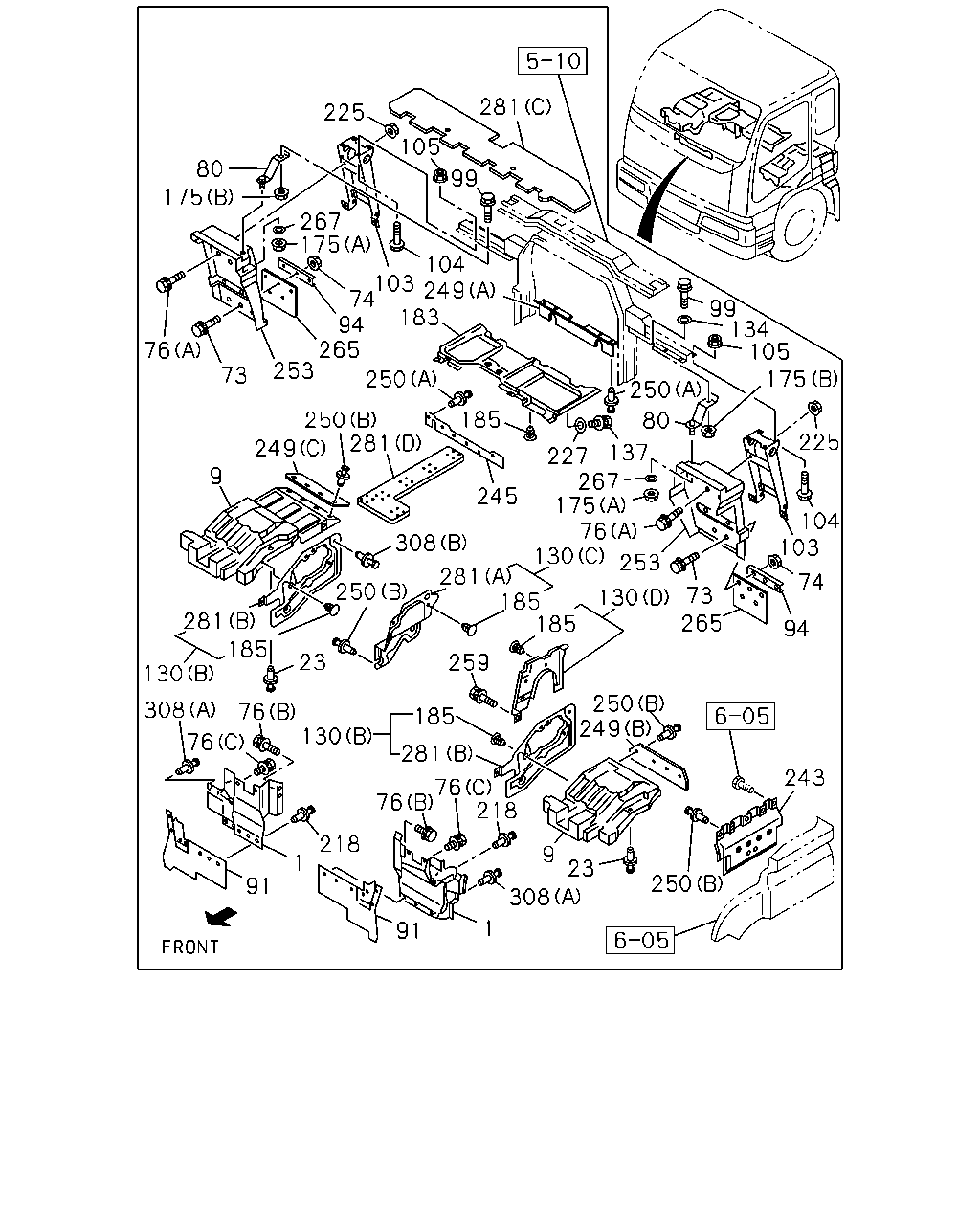

çizim 8005
281 225 105 80 175 99 267 175 104 103 249 74 183 94 265 253 99 134 105 175 76 73 250 250 225 185 250 281 80 249 137 227 267 175 76 130 9 245 104 103 308 253 281 185 185 74 250 73 265 130 281 185 94 23 259 130 250 249 308 76 130 185 76 281 243 76 76 218 218 9 1 23 250 91 308 1 91
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-895-4 01 1 9601-
1 GUARD; MUD,FRT 1-79937-894-5 01 1 9601-
9 GUARD; SPLASH,WHEEL HOUSE
L TYPE ENG<90L> 		1-79937-908-3 01 1 9601-
9 GUARD; SPLASH,WHEEL HOUSE
L TYPE ENG<90L> 		1-79937-907-3 01 1 9601-
9 GUARD; SPLASH,WHEEL HOUSE
10PE1S(60L) 		1-79937-893-3 01 1 9601-9904
9 GUARD; SPLASH,WHEEL HOUSE
V TYPE ENG<91L> 		1-79937-893-3 01 1 9905-
9 GUARD; SPLASH,WHEEL HOUSE
10PE1S(60L) 		1-79937-892-3 01 1 9601-9904
9 GUARD; SPLASH,WHEEL HOUSE
V TYPE ENG<91L> 		1-79937-892-3 01 1 9905-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 23 1 9601-9710
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 9711-
73 BOLT; MUD COVER BRKT
M8X25 W/LK & PL WASHER 		1-09030-074-0 06 1 9601-
73 BOLT; MUD COVER BRKT
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 08 1 9601-9604
73 BOLT; MUD COVER BRKT
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 03 1 9605-9606
73 BOLT; MUD COVER BRKT
6WA1 TC-S(56L) M8X16 FLANGE 		0-28280-816-0 08 1 9607-9904
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> M8X16 FLANGE 		0-28280-816-0 08 1 9905-
73 BOLT; MUD COVER BRKT
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 05 1 9605-9606
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 9601-
74 NUT
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 02 1 9601-9904
74 NUT
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 02 1 9905-
74 NUT
6WA1 TC-S(56L) EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 03 1 9607-9904
74 NUT
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 03 1 9905-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 9601-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 9601-
76 BOLT; MUD GUARD
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 9601-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 9601-
91 COVER; MUD,FRT 1-79931-200-1 01 1 9601-9904
91 COVER; MUD,FRT
BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> 		1-79931-200-1 01 1 9905-
91 COVER; MUD,FRT
EXC. BUMPER W/HEADLAMPS<SLB> 		1-79931-200-1 01 1 9905-
91 COVER; MUD,FRT 1-79931-199-1 01 1 9601-9904
91 COVER; MUD,FRT
BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> 		1-79931-199-1 01 1 9905-
91 COVER; MUD,FRT
EXC. BUMPER W/HEADLAMPS<SLB> 		1-79931-199-1 01 1 9905-
91 COVER; MUD,FRT
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> 		1-79931-241-1 01 1 9905-
91 COVER; MUD,FRT
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> 		1-79931-240-1 01 1 9905-
94 RETAINER; FLAP RUBBER 1-79931-091-2 02 1 9601-
99 BOLT; STAY TO MUD GUARD
M10X20 FLANGE 		0-28081-020-0 01 1 9601-9606
99 BOLT; STAY TO MUD GUARD
M10X20 FLANGE 		0-28681-020-0 01 1 9607-9609
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 01 1 9610-9804
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 02 1 9805-
103 BRACKET ASM; RR MUD FLAP 1-79931-088-3 02 1 9601-9904
103 BRACKET ASM; RR MUD FLAP 1-79931-307-1 02 1 9905-
104 BOLT; BRKT
L TYPE ENG<90L> M10X25 FLANGE 		0-28081-025-0 08 1 9601-9606
104 BOLT; BRKT
L TYPE ENG<90L> M10X25 FLANGE 		0-28681-025-0 06 1 9607-
104 BOLT; BRKT
10PE1S(60L) M10X25 FLANGE 		0-28081-025-0 07 1 9601-9606
104 BOLT; BRKT
V TYPE ENG<91L> M10X25 FLANGE 		0-28681-025-0 07 1 9607-
104 BOLT; BRKT
6WA1 TC-C(55L),6WA1 TC-S(56L) M10X25 FLANGE 		0-28681-025-0 06 1 9611-9904
105 NUT; BRKT
L TYPE ENG<90L> M10 FLANGE 		0-91150-110-0 08 1 9601-9606
105 NUT; BRKT
L TYPE ENG<90L> M10 FLANGE 		0-91150-210-0 06 1 9607-
105 NUT; BRKT
10PE1S(60L) M10 FLANGE 		0-91150-110-0 07 1 9601-9606
105 NUT; BRKT
V TYPE ENG<91L> M10 FLANGE 		0-91150-210-0 07 1 9607-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-916-4 01 1 9601-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-915-3 01 1 9601-
130 PANEL; SHUTTER NOISE
10PE1S(60L) (D) 		1-79937-972-0 01 1 9601-9904
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> (D) 		1-79937-972-0 01 1 9905-
130 PANEL; SHUTTER NOISE
10PE1S(60L) (C) 		1-79937-917-2 01 1 9601-9904
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> (C) 		1-79937-917-2 01 1 9905-
130 PANEL; SHUTTER NOISE
10PE1S(60L) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-768-3 01 1 9601-9610
130 PANEL; SHUTTER NOISE
10PE1S(60L) ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-768-3 01 1 9611-9904
130 PANEL; SHUTTER NOISE
10PE1S(60L) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-767-3 01 1 9601-9610
130 PANEL; SHUTTER NOISE
10PE1S(60L) ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-767-3 01 1 9611-9904
130 PANEL; SHUTTER NOISE
10PE1S(60L) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-196-2 01 1 9601-9610
130 PANEL; SHUTTER NOISE
10PE1S(60L) EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-196-2 01 1 9611-9904
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-196-2 01 1 9905-
130 PANEL; SHUTTER NOISE
10PE1S(60L) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-215-0 01 1 9601-9610
130 PANEL; SHUTTER NOISE
10PE1S(60L) EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-215-0 01 1 9611-9904
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-215-0 01 1 9905-
130 PANEL; SHUTTER NOISE
10PE1S(60L) BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-202-2 01 1 9611-9904
130 PANEL; SHUTTER NOISE
10PE1S(60L) BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-204-3 01 1 9611-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-204-3 01 1 9905-
130 PANEL; SHUTTER NOISE
10PE1S(60L) BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-212-1 01 1 9611-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-212-2 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-200-3 01 1 9611-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A) 		1-53193-200-3 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-207-2 01 1 9611-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A) 		1-53193-207-3 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-333-2 01 1 9611-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-333-2 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-332-1 01 1 9611-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-332-1 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) (C) 		1-79937-928-2 01 1 9601-9610
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (C) 		1-79937-928-2 01 1 9611-
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) (D) 		1-79937-919-2 01 1 9601-9610
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (D) 		1-79937-919-2 01 1 9611-
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-782-5 01 1 9601-9610
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-782-5 01 1 9611-9904
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-782-6 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-790-5 01 1 9601-9610
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-790-5 01 1 9611-9904
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-790-5 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 9607-9610
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 9611-9904
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 9607-9610
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 9611-9904
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 9905-
134 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 02 1 9805-9904
134 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 02 1 0002-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9601-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91150-108-0 02 1 9601-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-110-0 02 1 9601-9606
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 02 1 9607-
183 INSULATOR; HEAT,BED PAN 1-71907-169-2 01 1 9601-9705
183 INSULATOR; HEAT,BED PAN 1-71907-506-0 01 1 9706-9711
183 INSULATOR; HEAT,BED PAN 1-71907-526-2 01 1 9712-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 9601-9904
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 9601-9904
185 CLIP; HEAT INSULATOR
10PE1S(60L) ID=6.2 L=11.4 		8-97808-623-0 05 1 9601-9904
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 9905-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 9905-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9601-9610
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9601-9610
185 CLIP; HEAT INSULATOR
6WA1 TC-S(56L) ID=6.2 L=11.4 		8-97808-623-0 06 1 9601-9610
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9611-9904
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9611-9904
185 CLIP; HEAT INSULATOR
6WA1 TC-C(55L),6WA1 TC-S(56L) ID=6.2 L=11.4 		8-97808-623-0 06 1 9611-9904
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9905-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9905-
185 CLIP; HEAT INSULATOR
L TYPE ENG<90L> ID=6.2 L=11.4 		8-97808-623-0 06 1 9905-
218 FASTENER; RUBBER
BLACK PIN SQURE TYPE D8X13.5 		1-09987-248-0 08 1 9601-9606
218 FASTENER; RUBBER
BLACK PIN ROUND TYPE ID=6X6 OD=8 		1-09987-194-0 08 1 9607-
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 08 1 9601-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 9601-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-1 01 1 9601-
245 RUBBER; SHUTTER,RAD 1-79937-900-0 01 1 9601-9711
245 RUBBER; SHUTTER,RAD 1-79937-982-0 01 1 9712-
249 RUBBER; SHUTTER
(B) 		1-79937-902-2 01 1 9601-9601
249 RUBBER; SHUTTER
6WA1 TC-S(56L) (B) 		1-79937-974-0 01 1 9602-9602
249 RUBBER; SHUTTER
(B) 		1-79937-902-2 01 1 9603-
249 RUBBER; SHUTTER
(C) 		1-79937-921-3 01 1 9601-9601
249 RUBBER; SHUTTER
(C) 		1-79937-975-0 01 1 9602-
249 RUBBER; SHUTTER
(A) 		1-79937-924-1 01 1 9601-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 9601-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 07 1 9601-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-0 01 1 9601-9601
250 FASTENER; SHUTTER
(B) D6X20 		8-94361-318-0 08 1 9601-9601
250 FASTENER; SHUTTER
10PE1S(60L) (B) D6X20 		8-94361-318-0 04 1 9602-9602
250 FASTENER; SHUTTER
(B) D6X20 		8-94361-318-0 04 1 9603-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-0 09 1 9601-9601
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 9602-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 9602-
253 GUARD; MUD
L TYPE ENG<90L> 		1-79931-067-7 01 1 9601-
253 GUARD; MUD
L TYPE ENG<90L> 		1-79931-065-7 01 1 9601-
253 GUARD; MUD
V TYPE ENG<91L> 		1-79931-066-7 01 1 9601-
253 GUARD; MUD
V TYPE ENG<91L> 		1-79931-064-7 01 1 9601-
259 BOLT; NOISE PANEL
M8X20 W/LK & PL WASHER 		8-94279-208-0 12 1 9601-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 9601-
267 WASHER; PL,STAY
ID=8.4 OD=26 		9-09164-808-0 02 1 9601-
281 INSULATOR; NOISE
(D) 		1-73237-541-1 01 1 9601-9606
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (D) 		1-73237-541-3 01 1 9607-
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 9601-
281 INSULATOR; NOISE
(B) 		1-71907-170-1 01 1 9601-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-3 01 1 9601-
281 INSULATOR; NOISE
10PE1S(60L) (A) 		1-71907-166-0 01 1 9601-9904
281 INSULATOR; NOISE
V TYPE ENG<91L> (A) 		1-71907-166-0 01 1 9905-
281 INSULATOR; NOISE
6WA1 TC-S(56L) (A) 		1-71907-307-0 01 1 9601-9610
281 INSULATOR; NOISE
L TYPE ENG<90L> (A) 		1-71907-307-0 01 1 9611-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 9601-
308 FASTENER; MUD GUARD
(B) D8X13.5 		1-09987-248-1 02 1 9601-9801
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 9802-

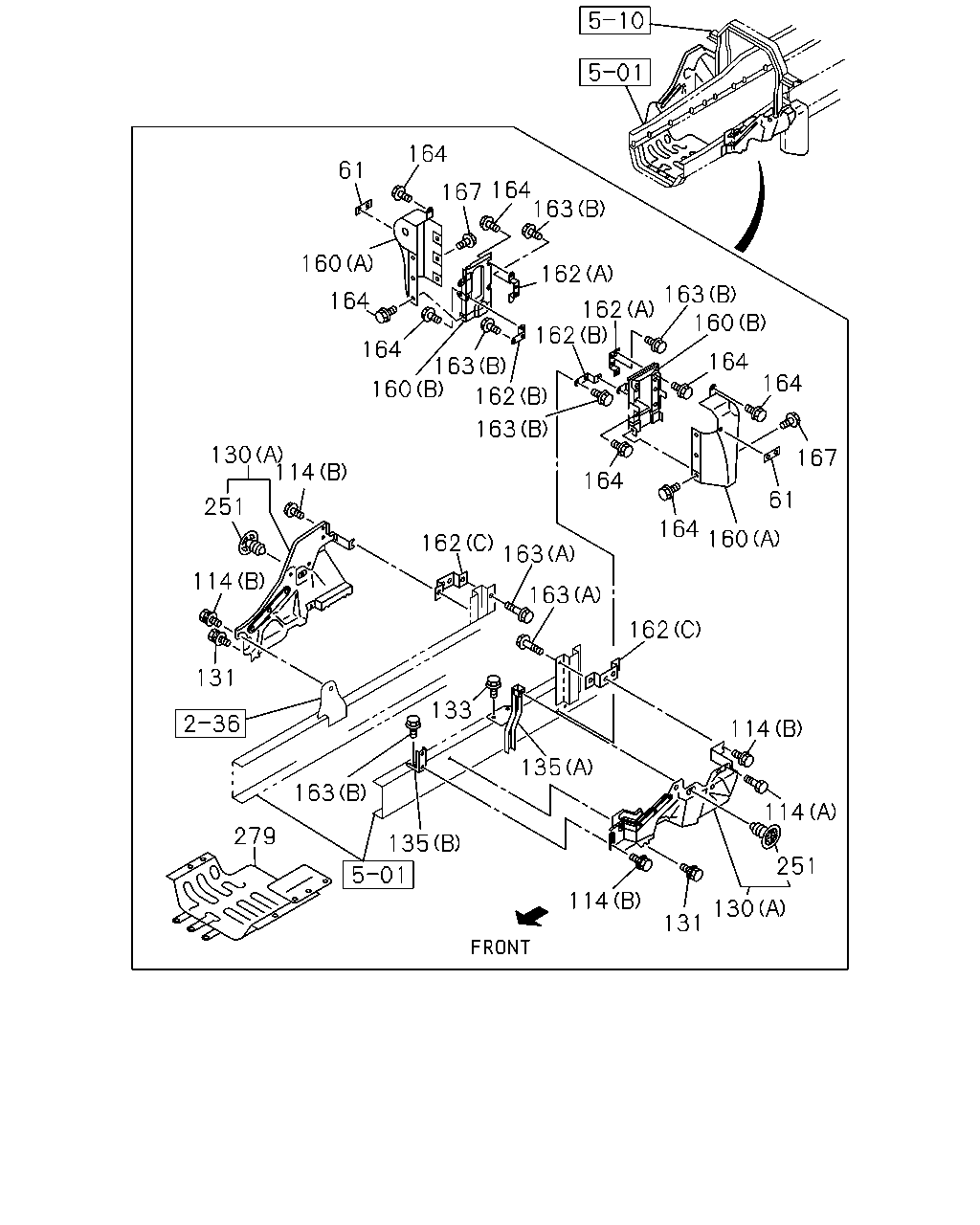

çizim 9338
164 61 164 163 167 160 162 163 160 164 162 162 164 164 163 160 164 162 163 130 114 167 164 61 251 164 160 162 163 114 163 162 131 133 114 135 163 114 251 279 135 114 130 131
BalonParca AdiParca NoAdetTipApplied Date
61 BRACKET; COVER
10PE1S(60L) 		1-53441-536-1 02 1 9601-9904
61 BRACKET; COVER
V TYPE ENG<91L> 		1-53441-536-1 02 1 9905-
114 BOLT
ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 08 1 9601-9606
114 BOLT
10PE1S(60L) ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 08 1 9607-9904
114 BOLT
ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 08 1 9905-
114 BOLT
L TYPE ENG<90L> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 06 1 9607-
114 BOLT
10PE1S(60L) EXC. ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 9601-9904
114 BOLT
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 9905-
114 BOLT
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> (A) M8X16 FLANGE 		0-28280-816-0 02 1 9601-9602
114 BOLT
10PE1S(60L) (A) M8X16 FLANGE 		0-28280-816-0 02 1 9601-9602
114 BOLT
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> (A) M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606
114 BOLT
10PE1S(60L) (A) M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606
114 BOLT
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> (A) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9607
114 BOLT
10PE1S(60L) (A) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9607
114 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9608-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-916-4 01 1 9601-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-915-3 01 1 9601-
130 PANEL; SHUTTER NOISE
10PE1S(60L) (D) 		1-79937-972-0 01 1 9601-9904
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> (D) 		1-79937-972-0 01 1 9905-
130 PANEL; SHUTTER NOISE
10PE1S(60L) (C) 		1-79937-917-2 01 1 9601-9904
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> (C) 		1-79937-917-2 01 1 9905-
130 PANEL; SHUTTER NOISE
10PE1S(60L) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-768-3 01 1 9601-9610
130 PANEL; SHUTTER NOISE
10PE1S(60L) ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-768-3 01 1 9611-9904
130 PANEL; SHUTTER NOISE
10PE1S(60L) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-767-3 01 1 9601-9610
130 PANEL; SHUTTER NOISE
10PE1S(60L) ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-767-3 01 1 9611-9904
130 PANEL; SHUTTER NOISE
10PE1S(60L) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-196-2 01 1 9601-9610
130 PANEL; SHUTTER NOISE
10PE1S(60L) EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-196-2 01 1 9611-9904
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-196-2 01 1 9905-
130 PANEL; SHUTTER NOISE
10PE1S(60L) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-215-0 01 1 9601-9610
130 PANEL; SHUTTER NOISE
10PE1S(60L) EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-215-0 01 1 9611-9904
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-215-0 01 1 9905-
130 PANEL; SHUTTER NOISE
10PE1S(60L) BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-202-2 01 1 9611-9904
130 PANEL; SHUTTER NOISE
10PE1S(60L) BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-204-3 01 1 9611-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-204-3 01 1 9905-
130 PANEL; SHUTTER NOISE
10PE1S(60L) BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-212-1 01 1 9611-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-212-2 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-200-3 01 1 9611-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A) 		1-53193-200-3 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-207-2 01 1 9611-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A) 		1-53193-207-3 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-333-2 01 1 9611-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-333-2 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-332-1 01 1 9611-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-332-1 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) (C) 		1-79937-928-2 01 1 9601-9610
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (C) 		1-79937-928-2 01 1 9611-
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) (D) 		1-79937-919-2 01 1 9601-9610
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (D) 		1-79937-919-2 01 1 9611-
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-782-5 01 1 9601-9610
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-782-5 01 1 9611-9904
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-782-6 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-790-5 01 1 9601-9610
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-790-5 01 1 9611-9904
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-790-5 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 9607-9610
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 9611-9904
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 9607-9610
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 9611-9904
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 9905-
131 BOLT; PANEL
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> M8X25 W/LK & PL WASHER 		1-09030-074-0 08 1 9601-9606
131 BOLT; PANEL
10PE1S(60L) M8X25 W/LK & PL WASHER 		1-09030-074-0 08 1 9601-9606
131 BOLT; PANEL
M8X25 W/LK & PL WASHER 		1-09030-074-0 08 1 9607-
133 BOLT; FRAME
ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28280-825-0 04 1 9601-9602
133 BOLT; FRAME
ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28080-825-0 04 1 9603-9606
133 BOLT; FRAME
V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28680-825-0 04 1 9607-
133 BOLT; FRAME
L TYPE ENG<90L> M8X25 FLANGE 		0-28680-825-0 04 1 9607-
133 BOLT; FRAME
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28280-825-0 02 1 9601-9602
133 BOLT; FRAME
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28080-825-0 02 1 9603-9606
133 BOLT; FRAME
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28680-825-0 02 1 9607-
135 BRACKET; SIDE PANEL
ANTI NOISE EQUIPMENT<SV9> (B) 		1-53441-507-0 01 1 9601-9606
135 BRACKET; SIDE PANEL
V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> (B) 		1-53441-507-0 01 1 9607-
135 BRACKET; SIDE PANEL
L TYPE ENG<90L> (B) 		1-53441-507-0 01 1 9607-
135 BRACKET; SIDE PANEL
10PE1S(60L) (A) 		1-53441-508-0 01 1 9601-9611
135 BRACKET; SIDE PANEL
L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-53441-508-0 01 1 9611-
135 BRACKET; SIDE PANEL
V TYPE ENG<91L> (A) 		1-53441-508-0 01 1 9611-
135 BRACKET; SIDE PANEL
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53441-509-0 01 1 9601-9606
135 BRACKET; SIDE PANEL
L TYPE ENG<90L> (A) 		1-53441-509-0 01 1 9607-9611
135 BRACKET; SIDE PANEL
L TYPE ENG<90L> ELECTRONIC GOV RED3(KG5) (A) 		1-53441-509-0 01 1 9611-0012
135 BRACKET; SIDE PANEL
L TYPE ENG<90L> ELECTRONIC GOV RED3(KG5) (A) 		1-53441-598-0 01 1 0101-
160 COVER ASM; EXH
10PE1S(60L) (A) 		1-79931-063-1 01 1 9601-9904
160 COVER ASM; EXH
V TYPE ENG<91L> (A) 		1-79931-063-1 01 1 9905-
160 COVER ASM; EXH
10PE1S(60L) (B) 		1-79931-111-0 01 1 9601-9904
160 COVER ASM; EXH
V TYPE ENG<91L> (B) 		1-79931-111-0 01 1 9905-
160 COVER ASM; EXH
10PE1S(60L) (A) 		1-79931-061-1 01 1 9601-9904
160 COVER ASM; EXH
V TYPE ENG<91L> (A) 		1-79931-061-1 01 1 9905-
160 COVER ASM; EXH
10PE1S(60L) (B) 		1-79931-110-0 01 1 9601-9601
160 COVER ASM; EXH
V TYPE ENG<91L> (B) 		1-79931-256-1 01 1 9602-
162 BRACKET
10PE1S(60L) (A) 		1-53441-521-1 02 1 9601-9904
162 BRACKET
V TYPE ENG<91L> (A) 		1-53441-521-2 02 1 9905-
162 BRACKET
10PE1S(60L) (B) 		1-53441-522-0 02 1 9601-9904
162 BRACKET
V TYPE ENG<91L> (B) 		1-53441-522-0 02 1 9905-
162 BRACKET
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> (C) 		1-53441-520-0 02 1 9601-9606
162 BRACKET
10PE1S(60L) (C) 		1-53441-520-0 02 1 9601-9606
162 BRACKET
(C) 		1-53441-520-0 02 1 9607-
163 BOLT; BRKT
10PE1S(60L) (B) M8X25 FLANGE 		0-28080-825-0 06 1 9601-9606
163 BOLT; BRKT
V TYPE ENG<91L> (B) M8X25 FLANGE 		0-28680-825-0 06 1 9607-
163 BOLT; BRKT
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> (A) M8X20 FLANGE 		0-28080-820-0 04 1 9601-9606
163 BOLT; BRKT
10PE1S(60L) (A) M8X20 FLANGE 		0-28080-820-0 04 1 9601-9606
163 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 04 1 9607-
164 BOLT; FLEX COVER
10PE1S(60L) M8X20 FLANGE 		0-28080-820-0 06 1 9601-9602
164 BOLT; FLEX COVER
V TYPE ENG<91L> M8X20 FLANGE 		0-28080-820-0 10 1 9603-9606
164 BOLT; FLEX COVER
V TYPE ENG<91L> M8X20 FLANGE 		0-28680-820-0 10 1 9607-
164 BOLT; FLEX COVER
10PE1S(60L) M8X20 FLANGE 		0-28280-820-0 04 1 9601-9602
167 BOLT; EXH COVER
10PE1S(60L) M8X16 FLANGE 		0-28280-816-0 12 1 9601-9602
167 BOLT; EXH COVER
V TYPE ENG<91L> M8X20 FLANGE 		0-28080-820-0 12 1 9603-9606
167 BOLT; EXH COVER
V TYPE ENG<91L> M8X20 FLANGE 		0-28680-820-0 12 1 9607-
251 CLIP; NOISE INSULATOR
10PE1S(60L) ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 08 1 9601-9904
251 CLIP; NOISE INSULATOR
10PE1S(60L) ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 08 1 9601-9610
251 CLIP; NOISE INSULATOR
10PE1S(60L) ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		8-94279-048-0 08 1 9611-9904
251 CLIP; NOISE INSULATOR
10PE1S(60L) BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 10 1 9611-9904
251 CLIP; NOISE INSULATOR
BRAKE SYSTEM SPRING BRAKE(BCR) V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 10 1 9905-
251 CLIP; NOISE INSULATOR
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 14 1 9601-9904
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> 		8-94279-048-0 14 1 9905-
251 CLIP; NOISE INSULATOR
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 10 1 9605-9606
279 COVER; UNDER
10PE1S(60L) ANTI NOISE EQUIPMENT<SV9> 		1-53192-889-3 01 1 9601-9601

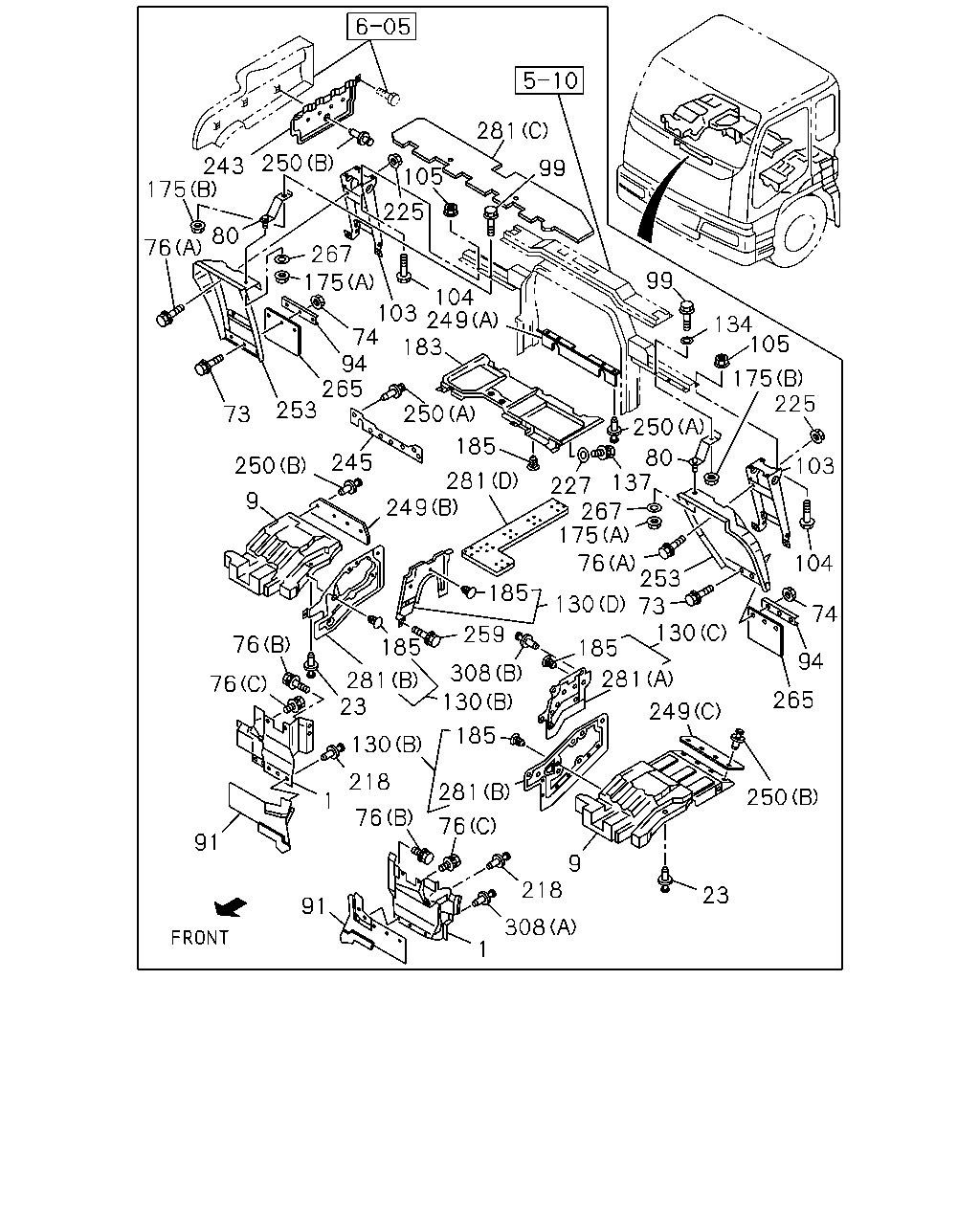

çizim 9339
281 250 243 175 105 99 225 267 175 80 76 99 104 103 249 74 183 94 265 253 134 105 175 225 250 73 250 103 185 80 137 245 250 281 249 227 267 175 9 104 76 253 73 130 185 130 74 185 259 76 185 94 308 281 281 23 76 265 130 249 185 130 218 281 250 1 76 76 91 9 218 23 91 308 1
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-895-4 01 1 9601-
1 GUARD; MUD,FRT 1-79937-894-5 01 1 9601-
9 GUARD; SPLASH,WHEEL HOUSE
L TYPE ENG<90L> 		1-79937-908-3 01 1 9601-
9 GUARD; SPLASH,WHEEL HOUSE
L TYPE ENG<90L> 		1-79937-907-3 01 1 9601-
9 GUARD; SPLASH,WHEEL HOUSE
10PE1S(60L) 		1-79937-893-3 01 1 9601-9904
9 GUARD; SPLASH,WHEEL HOUSE
V TYPE ENG<91L> 		1-79937-893-3 01 1 9905-
9 GUARD; SPLASH,WHEEL HOUSE
10PE1S(60L) 		1-79937-892-3 01 1 9601-9904
9 GUARD; SPLASH,WHEEL HOUSE
V TYPE ENG<91L> 		1-79937-892-3 01 1 9905-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 23 1 9601-9710
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 9711-
73 BOLT; MUD COVER BRKT
M8X25 W/LK & PL WASHER 		1-09030-074-0 06 1 9601-
73 BOLT; MUD COVER BRKT
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 08 1 9601-9604
73 BOLT; MUD COVER BRKT
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 03 1 9605-9606
73 BOLT; MUD COVER BRKT
6WA1 TC-S(56L) M8X16 FLANGE 		0-28280-816-0 08 1 9607-9904
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> M8X16 FLANGE 		0-28280-816-0 08 1 9905-
73 BOLT; MUD COVER BRKT
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 05 1 9605-9606
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 9601-
74 NUT
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 02 1 9601-9904
74 NUT
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 02 1 9905-
74 NUT
6WA1 TC-S(56L) EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 03 1 9607-9904
74 NUT
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 03 1 9905-
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 9601-
76 BOLT; MUD GUARD
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 9601-
76 BOLT; MUD GUARD
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 9601-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 9601-
91 COVER; MUD,FRT 1-79931-200-1 01 1 9601-9904
91 COVER; MUD,FRT
BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> 		1-79931-200-1 01 1 9905-
91 COVER; MUD,FRT
EXC. BUMPER W/HEADLAMPS<SLB> 		1-79931-200-1 01 1 9905-
91 COVER; MUD,FRT 1-79931-199-1 01 1 9601-9904
91 COVER; MUD,FRT
BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> 		1-79931-199-1 01 1 9905-
91 COVER; MUD,FRT
EXC. BUMPER W/HEADLAMPS<SLB> 		1-79931-199-1 01 1 9905-
91 COVER; MUD,FRT
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> 		1-79931-241-1 01 1 9905-
91 COVER; MUD,FRT
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> 		1-79931-240-1 01 1 9905-
94 RETAINER; FLAP RUBBER 1-79931-091-2 02 1 9601-
99 BOLT; STAY TO MUD GUARD
M10X20 FLANGE 		0-28081-020-0 01 1 9601-9606
99 BOLT; STAY TO MUD GUARD
M10X20 FLANGE 		0-28681-020-0 01 1 9607-9609
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 01 1 9610-9804
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 02 1 9805-
103 BRACKET ASM; RR MUD FLAP 1-79931-088-3 02 1 9601-9904
103 BRACKET ASM; RR MUD FLAP 1-79931-307-1 02 1 9905-
104 BOLT; BRKT
L TYPE ENG<90L> M10X25 FLANGE 		0-28081-025-0 08 1 9601-9606
104 BOLT; BRKT
L TYPE ENG<90L> M10X25 FLANGE 		0-28681-025-0 06 1 9607-
104 BOLT; BRKT
10PE1S(60L) M10X25 FLANGE 		0-28081-025-0 07 1 9601-9606
104 BOLT; BRKT
V TYPE ENG<91L> M10X25 FLANGE 		0-28681-025-0 07 1 9607-
104 BOLT; BRKT
6WA1 TC-C(55L),6WA1 TC-S(56L) M10X25 FLANGE 		0-28681-025-0 06 1 9611-9904
105 NUT; BRKT
L TYPE ENG<90L> M10 FLANGE 		0-91150-110-0 08 1 9601-9606
105 NUT; BRKT
L TYPE ENG<90L> M10 FLANGE 		0-91150-210-0 06 1 9607-
105 NUT; BRKT
10PE1S(60L) M10 FLANGE 		0-91150-110-0 07 1 9601-9606
105 NUT; BRKT
V TYPE ENG<91L> M10 FLANGE 		0-91150-210-0 07 1 9607-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-916-4 01 1 9601-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-915-3 01 1 9601-
130 PANEL; SHUTTER NOISE
10PE1S(60L) (D) 		1-79937-972-0 01 1 9601-9904
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> (D) 		1-79937-972-0 01 1 9905-
130 PANEL; SHUTTER NOISE
10PE1S(60L) (C) 		1-79937-917-2 01 1 9601-9904
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> (C) 		1-79937-917-2 01 1 9905-
130 PANEL; SHUTTER NOISE
10PE1S(60L) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-768-3 01 1 9601-9610
130 PANEL; SHUTTER NOISE
10PE1S(60L) ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-768-3 01 1 9611-9904
130 PANEL; SHUTTER NOISE
10PE1S(60L) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-767-3 01 1 9601-9610
130 PANEL; SHUTTER NOISE
10PE1S(60L) ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-767-3 01 1 9611-9904
130 PANEL; SHUTTER NOISE
10PE1S(60L) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-196-2 01 1 9601-9610
130 PANEL; SHUTTER NOISE
10PE1S(60L) EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-196-2 01 1 9611-9904
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-196-2 01 1 9905-
130 PANEL; SHUTTER NOISE
10PE1S(60L) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-215-0 01 1 9601-9610
130 PANEL; SHUTTER NOISE
10PE1S(60L) EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-215-0 01 1 9611-9904
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-215-0 01 1 9905-
130 PANEL; SHUTTER NOISE
10PE1S(60L) BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-202-2 01 1 9611-9904
130 PANEL; SHUTTER NOISE
10PE1S(60L) BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-204-3 01 1 9611-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-204-3 01 1 9905-
130 PANEL; SHUTTER NOISE
10PE1S(60L) BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-212-1 01 1 9611-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-212-2 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-200-3 01 1 9611-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A) 		1-53193-200-3 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-207-2 01 1 9611-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A) 		1-53193-207-3 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-333-2 01 1 9611-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-333-2 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-332-1 01 1 9611-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-332-1 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) (C) 		1-79937-928-2 01 1 9601-9610
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (C) 		1-79937-928-2 01 1 9611-
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) (D) 		1-79937-919-2 01 1 9601-9610
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (D) 		1-79937-919-2 01 1 9611-
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-782-5 01 1 9601-9610
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-782-5 01 1 9611-9904
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-782-6 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-790-5 01 1 9601-9610
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-790-5 01 1 9611-9904
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-790-5 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 9607-9610
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 9611-9904
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 9607-9610
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 9611-9904
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 9905-
134 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 02 1 9805-9904
134 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 02 1 0002-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9601-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91150-108-0 02 1 9601-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-110-0 02 1 9601-9606
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 02 1 9607-
183 INSULATOR; HEAT,BED PAN 1-71907-169-2 01 1 9601-9705
183 INSULATOR; HEAT,BED PAN 1-71907-506-0 01 1 9706-9711
183 INSULATOR; HEAT,BED PAN 1-71907-526-2 01 1 9712-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 9601-9904
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 9601-9904
185 CLIP; HEAT INSULATOR
10PE1S(60L) ID=6.2 L=11.4 		8-97808-623-0 05 1 9601-9904
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 9905-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 05 1 9905-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9601-9610
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9601-9610
185 CLIP; HEAT INSULATOR
6WA1 TC-S(56L) ID=6.2 L=11.4 		8-97808-623-0 06 1 9601-9610
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9611-9904
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9611-9904
185 CLIP; HEAT INSULATOR
6WA1 TC-C(55L),6WA1 TC-S(56L) ID=6.2 L=11.4 		8-97808-623-0 06 1 9611-9904
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9905-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9905-
185 CLIP; HEAT INSULATOR
L TYPE ENG<90L> ID=6.2 L=11.4 		8-97808-623-0 06 1 9905-
218 FASTENER; RUBBER
BLACK PIN SQURE TYPE D8X13.5 		1-09987-248-0 08 1 9601-9606
218 FASTENER; RUBBER
BLACK PIN ROUND TYPE ID=6X6 OD=8 		1-09987-194-0 08 1 9607-
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 08 1 9601-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 9601-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-1 01 1 9601-
245 RUBBER; SHUTTER,RAD 1-79937-900-0 01 1 9601-9711
245 RUBBER; SHUTTER,RAD 1-79937-982-0 01 1 9712-
249 RUBBER; SHUTTER
(B) 		1-79937-902-2 01 1 9601-9601
249 RUBBER; SHUTTER
6WA1 TC-S(56L) (B) 		1-79937-974-0 01 1 9602-9602
249 RUBBER; SHUTTER
(B) 		1-79937-902-2 01 1 9603-
249 RUBBER; SHUTTER
(C) 		1-79937-921-3 01 1 9601-9601
249 RUBBER; SHUTTER
(C) 		1-79937-975-0 01 1 9602-
249 RUBBER; SHUTTER
(A) 		1-79937-924-1 01 1 9601-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 9601-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 07 1 9601-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-0 01 1 9601-9601
250 FASTENER; SHUTTER
(B) D6X20 		8-94361-318-0 08 1 9601-9601
250 FASTENER; SHUTTER
10PE1S(60L) (B) D6X20 		8-94361-318-0 04 1 9602-9602
250 FASTENER; SHUTTER
(B) D6X20 		8-94361-318-0 04 1 9603-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-0 09 1 9601-9601
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 9602-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 9602-
253 GUARD; MUD
L TYPE ENG<90L> 		1-79931-067-7 01 1 9601-
253 GUARD; MUD
L TYPE ENG<90L> 		1-79931-065-7 01 1 9601-
253 GUARD; MUD
V TYPE ENG<91L> 		1-79931-066-7 01 1 9601-
253 GUARD; MUD
V TYPE ENG<91L> 		1-79931-064-7 01 1 9601-
259 BOLT; NOISE PANEL
M8X20 W/LK & PL WASHER 		8-94279-208-0 12 1 9601-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 9601-
267 WASHER; PL,STAY
ID=8.4 OD=26 		9-09164-808-0 02 1 9601-
281 INSULATOR; NOISE
(D) 		1-73237-541-1 01 1 9601-9606
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (D) 		1-73237-541-3 01 1 9607-
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 9601-
281 INSULATOR; NOISE
(B) 		1-71907-170-1 01 1 9601-
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-3 01 1 9601-
281 INSULATOR; NOISE
10PE1S(60L) (A) 		1-71907-166-0 01 1 9601-9904
281 INSULATOR; NOISE
V TYPE ENG<91L> (A) 		1-71907-166-0 01 1 9905-
281 INSULATOR; NOISE
6WA1 TC-S(56L) (A) 		1-71907-307-0 01 1 9601-9610
281 INSULATOR; NOISE
L TYPE ENG<90L> (A) 		1-71907-307-0 01 1 9611-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 9601-
308 FASTENER; MUD GUARD
(B) D8X13.5 		1-09987-248-1 02 1 9601-9801
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 9802-

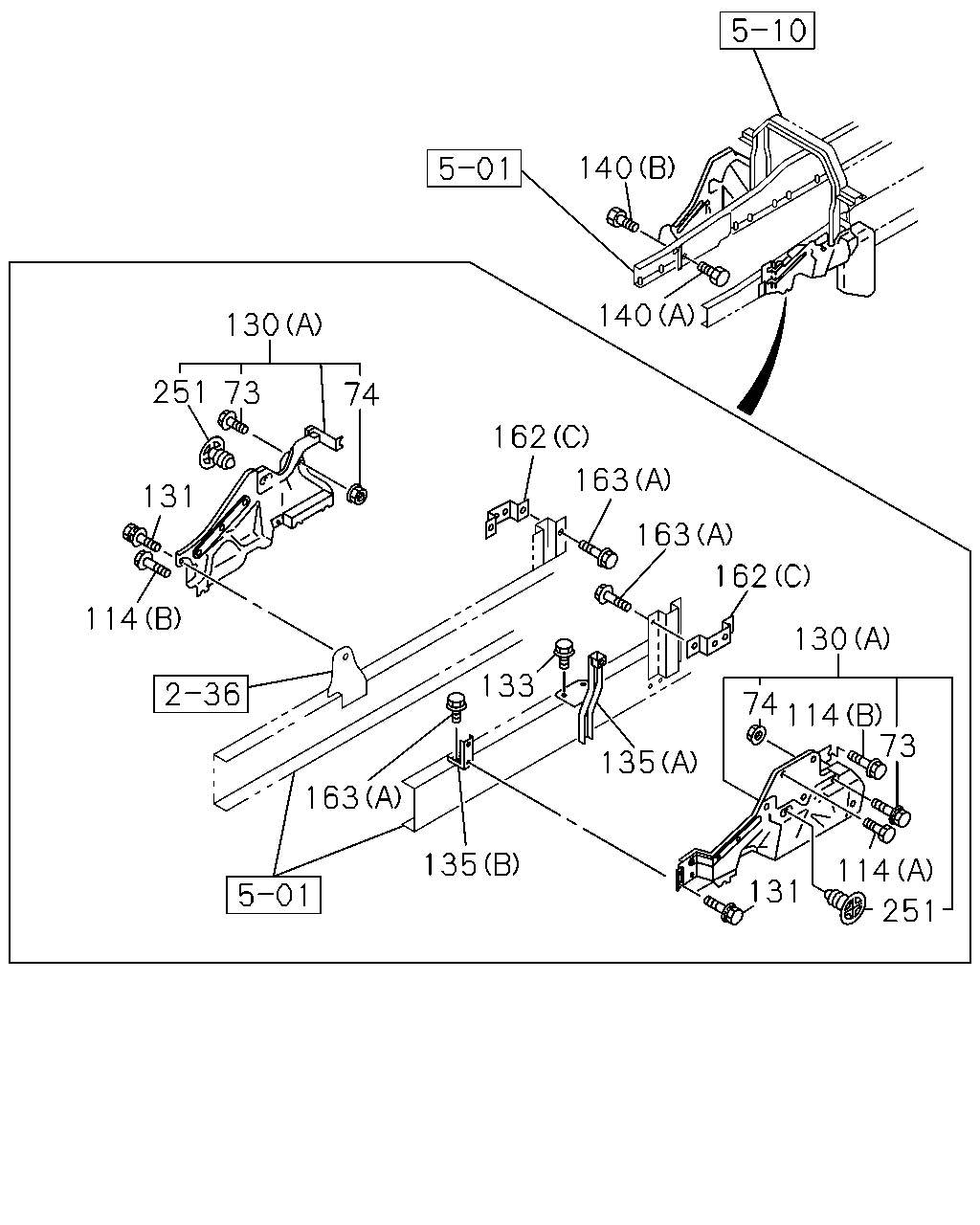

çizim 40424
140 140 130 251 73 74 162 163 131 163 162 114 130 133 74 114 73 135 163 135 114 131 251
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
M8X25 W/LK & PL WASHER 		1-09030-074-0 06 1 9601-
73 BOLT; MUD COVER BRKT
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 08 1 9601-9604
73 BOLT; MUD COVER BRKT
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 03 1 9605-9606
73 BOLT; MUD COVER BRKT
6WA1 TC-S(56L) M8X16 FLANGE 		0-28280-816-0 08 1 9607-9904
73 BOLT; MUD COVER BRKT
L TYPE ENG<90L> M8X16 FLANGE 		0-28280-816-0 08 1 9905-
73 BOLT; MUD COVER BRKT
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> M8X16 FLANGE 		0-28280-816-0 05 1 9605-9606
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 9601-
74 NUT
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 02 1 9601-9904
74 NUT
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> M8 FLANGE 		0-91150-108-0 02 1 9905-
74 NUT
6WA1 TC-S(56L) EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 03 1 9607-9904
74 NUT
L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8 FLANGE 		0-91150-108-0 03 1 9905-
114 BOLT
ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 08 1 9601-9606
114 BOLT
10PE1S(60L) ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 08 1 9607-9904
114 BOLT
ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 08 1 9905-
114 BOLT
L TYPE ENG<90L> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 06 1 9607-
114 BOLT
10PE1S(60L) EXC. ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 9601-9904
114 BOLT
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (B) M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 9905-
114 BOLT
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> (A) M8X16 FLANGE 		0-28280-816-0 02 1 9601-9602
114 BOLT
10PE1S(60L) (A) M8X16 FLANGE 		0-28280-816-0 02 1 9601-9602
114 BOLT
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> (A) M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606
114 BOLT
10PE1S(60L) (A) M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606
114 BOLT
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> (A) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9607
114 BOLT
10PE1S(60L) (A) M8X20 FLANGE 		0-28680-820-0 02 1 9607-9607
114 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9608-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-916-4 01 1 9601-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-915-3 01 1 9601-
130 PANEL; SHUTTER NOISE
10PE1S(60L) (D) 		1-79937-972-0 01 1 9601-9904
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> (D) 		1-79937-972-0 01 1 9905-
130 PANEL; SHUTTER NOISE
10PE1S(60L) (C) 		1-79937-917-2 01 1 9601-9904
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> (C) 		1-79937-917-2 01 1 9905-
130 PANEL; SHUTTER NOISE
10PE1S(60L) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-768-3 01 1 9601-9610
130 PANEL; SHUTTER NOISE
10PE1S(60L) ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-768-3 01 1 9611-9904
130 PANEL; SHUTTER NOISE
10PE1S(60L) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-767-3 01 1 9601-9610
130 PANEL; SHUTTER NOISE
10PE1S(60L) ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-767-3 01 1 9611-9904
130 PANEL; SHUTTER NOISE
10PE1S(60L) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-196-2 01 1 9601-9610
130 PANEL; SHUTTER NOISE
10PE1S(60L) EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-196-2 01 1 9611-9904
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-196-2 01 1 9905-
130 PANEL; SHUTTER NOISE
10PE1S(60L) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-215-0 01 1 9601-9610
130 PANEL; SHUTTER NOISE
10PE1S(60L) EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-215-0 01 1 9611-9904
130 PANEL; SHUTTER NOISE
V TYPE ENG<91L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-215-0 01 1 9905-
130 PANEL; SHUTTER NOISE
10PE1S(60L) BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-202-2 01 1 9611-9904
130 PANEL; SHUTTER NOISE
10PE1S(60L) BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-204-3 01 1 9611-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-204-3 01 1 9905-
130 PANEL; SHUTTER NOISE
10PE1S(60L) BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-212-1 01 1 9611-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-212-2 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-200-3 01 1 9611-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A) 		1-53193-200-3 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-207-2 01 1 9611-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> (A) 		1-53193-207-3 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-333-2 01 1 9611-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-333-2 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-332-1 01 1 9611-9904
130 PANEL; SHUTTER NOISE
BRAKE SYSTEM SPRING BRAKE(BCR) L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-332-1 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) (C) 		1-79937-928-2 01 1 9601-9610
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (C) 		1-79937-928-2 01 1 9611-
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) (D) 		1-79937-919-2 01 1 9601-9610
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> (D) 		1-79937-919-2 01 1 9611-
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-782-5 01 1 9601-9610
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-782-5 01 1 9611-9904
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-782-6 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53192-790-5 01 1 9601-9610
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-790-5 01 1 9611-9904
130 PANEL; SHUTTER NOISE
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) (A) 		1-53192-790-5 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 9607-9610
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 9611-9904
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-329-1 01 1 9905-
130 PANEL; SHUTTER NOISE
6WA1 TC-S(56L) EXC. ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 9607-9610
130 PANEL; SHUTTER NOISE
6WA1 TC-C(55L),6WA1 TC-S(56L) EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 9611-9904
130 PANEL; SHUTTER NOISE
L TYPE ENG<90L> EXC. BRAKE SYSTEM SPRING BRAKE(BCR),ANTI NOISE EQUIPMENT<SV9> (A) 		1-53193-328-0 01 1 9905-
131 BOLT; PANEL
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> M8X25 W/LK & PL WASHER 		1-09030-074-0 08 1 9601-9606
131 BOLT; PANEL
10PE1S(60L) M8X25 W/LK & PL WASHER 		1-09030-074-0 08 1 9601-9606
131 BOLT; PANEL
M8X25 W/LK & PL WASHER 		1-09030-074-0 08 1 9607-
133 BOLT; FRAME
ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28280-825-0 04 1 9601-9602
133 BOLT; FRAME
ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28080-825-0 04 1 9603-9606
133 BOLT; FRAME
V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28680-825-0 04 1 9607-
133 BOLT; FRAME
L TYPE ENG<90L> M8X25 FLANGE 		0-28680-825-0 04 1 9607-
133 BOLT; FRAME
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28280-825-0 02 1 9601-9602
133 BOLT; FRAME
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28080-825-0 02 1 9603-9606
133 BOLT; FRAME
V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X25 FLANGE 		0-28680-825-0 02 1 9607-
135 BRACKET; SIDE PANEL
ANTI NOISE EQUIPMENT<SV9> (B) 		1-53441-507-0 01 1 9601-9606
135 BRACKET; SIDE PANEL
V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> (B) 		1-53441-507-0 01 1 9607-
135 BRACKET; SIDE PANEL
L TYPE ENG<90L> (B) 		1-53441-507-0 01 1 9607-
135 BRACKET; SIDE PANEL
10PE1S(60L) (A) 		1-53441-508-0 01 1 9601-9611
135 BRACKET; SIDE PANEL
L TYPE ENG<90L> EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-53441-508-0 01 1 9611-
135 BRACKET; SIDE PANEL
V TYPE ENG<91L> (A) 		1-53441-508-0 01 1 9611-
135 BRACKET; SIDE PANEL
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> (A) 		1-53441-509-0 01 1 9601-9606
135 BRACKET; SIDE PANEL
L TYPE ENG<90L> (A) 		1-53441-509-0 01 1 9607-9611
135 BRACKET; SIDE PANEL
L TYPE ENG<90L> ELECTRONIC GOV RED3(KG5) (A) 		1-53441-509-0 01 1 9611-0012
135 BRACKET; SIDE PANEL
L TYPE ENG<90L> ELECTRONIC GOV RED3(KG5) (A) 		1-53441-598-0 01 1 0101-
140 BOLT; SIDE PANEL
L TYPE ENG<90L> (A) M8X20 FLANGE 		0-28680-820-0 01 1 9903-
140 BOLT; SIDE PANEL
L TYPE ENG<90L> (B) M8X30 FLANGE 		0-28680-830-0 02 1 9903-
162 BRACKET
10PE1S(60L) (A) 		1-53441-521-1 02 1 9601-9904
162 BRACKET
V TYPE ENG<91L> (A) 		1-53441-521-2 02 1 9905-
162 BRACKET
10PE1S(60L) (B) 		1-53441-522-0 02 1 9601-9904
162 BRACKET
V TYPE ENG<91L> (B) 		1-53441-522-0 02 1 9905-
162 BRACKET
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> (C) 		1-53441-520-0 02 1 9601-9606
162 BRACKET
10PE1S(60L) (C) 		1-53441-520-0 02 1 9601-9606
162 BRACKET
(C) 		1-53441-520-0 02 1 9607-
163 BOLT; BRKT
10PE1S(60L) (B) M8X25 FLANGE 		0-28080-825-0 06 1 9601-9606
163 BOLT; BRKT
V TYPE ENG<91L> (B) M8X25 FLANGE 		0-28680-825-0 06 1 9607-
163 BOLT; BRKT
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> (A) M8X20 FLANGE 		0-28080-820-0 04 1 9601-9606
163 BOLT; BRKT
10PE1S(60L) (A) M8X20 FLANGE 		0-28080-820-0 04 1 9601-9606
163 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 04 1 9607-
251 CLIP; NOISE INSULATOR
10PE1S(60L) ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 08 1 9601-9904
251 CLIP; NOISE INSULATOR
10PE1S(60L) ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 08 1 9601-9610
251 CLIP; NOISE INSULATOR
10PE1S(60L) ANTI NOISE EQUIPMENT<SV9> EXC. BRAKE SYSTEM SPRING BRAKE(BCR) 		8-94279-048-0 08 1 9611-9904
251 CLIP; NOISE INSULATOR
10PE1S(60L) BRAKE SYSTEM SPRING BRAKE(BCR) EXC. ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 10 1 9611-9904
251 CLIP; NOISE INSULATOR
BRAKE SYSTEM SPRING BRAKE(BCR) V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 10 1 9905-
251 CLIP; NOISE INSULATOR
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 14 1 9601-9904
251 CLIP; NOISE INSULATOR
ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> 		8-94279-048-0 14 1 9905-
251 CLIP; NOISE INSULATOR
6WA1 TC-S(56L) ANTI NOISE EQUIPMENT<SV9> 		8-94279-048-0 10 1 9605-9606
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
