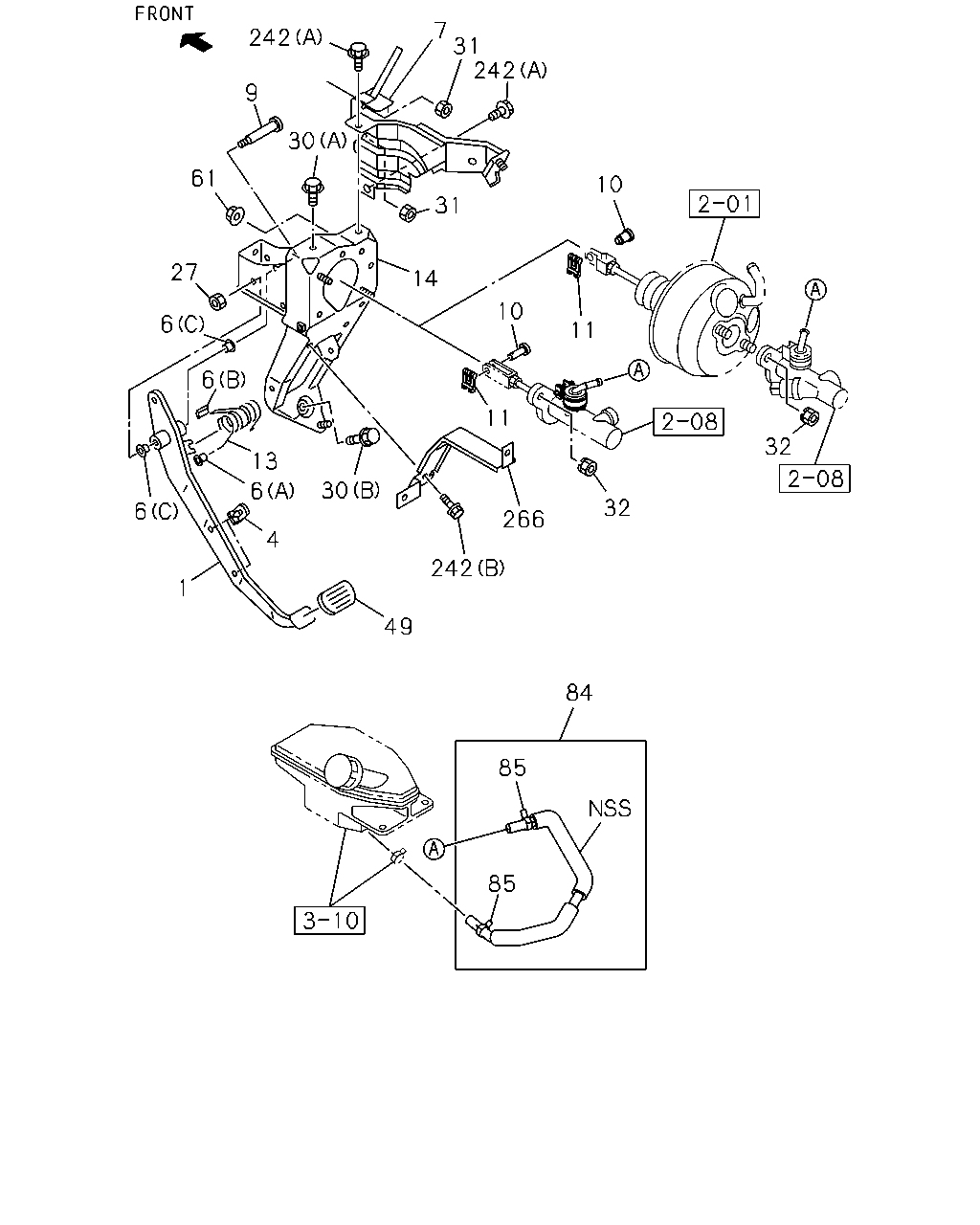

2-03 — CLUTCH PEDAL AND CONTROL
(#54206) — 33 parça
Tümü
A - NMR6SE
B - NMR6SN
7
31
242
242
9
30
61
10
31
27
14
6
10
11
6
11
32
13
30
6
6
32
266
4
242
1
49
84
85
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PEDAL; CLU
POWER ASSIST CLUTCH(S2T)
8-98002-484-0
01
1
1012-
●
●
1
PEDAL; CLU
EXC. POWER ASSIST CLUTCH(S2T)
8-98034-752-0
01
1
1012-
●
●
4
STOPPER; CLU PEDAL
8-97853-534-1
02
1
1012-
●
●
6
BUSHING; CLU PEDAL
(C)
8-94238-596-0
02
1
1012-
●
●
6
BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (A)
8-97853-619-0
02
1
1012-
●
●
6
BUSHING; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T) (B)
8-97853-620-0
01
1
1012-
●
●
7
BRACKET; CLU PEDAL
POWER ASSIST CLUTCH(S2T)
8-98062-632-3
01
1
1012-1409
●
●
7
BRACKET; CLU PEDAL
POWER ASSIST CLUTCH(S2T)
8-98222-746-0
01
1
1410-
●
●
7
BRACKET; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T)
8-98111-112-1
01
1
1012-1409
●
●
7
BRACKET; CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T)
8-98222-745-0
01
1
1410-
●
●
9
PIN; CLU PEDAL
8-97866-667-0
01
1
1012-
●
●
10
PIN; CLU PEDAL
8-98147-657-0
01
1
1012-
●
●
11
PIN; SNAP,PUSH ROD TO PEDAL
8-98007-161-0
01
1
1012-
●
●
13
SPRING; ASSIST,CLU PEDAL
POWER ASSIST CLUTCH(S2T)
8-98023-621-1
01
1
1012-
●
●
13
SPRING; ASSIST,CLU PEDAL
EXC. POWER ASSIST CLUTCH(S2T)
8-98034-014-0
01
1
1012-
●
●
14
BRACKET ASM; CLU PEDAL MTG
POWER ASSIST CLUTCH(S2T)
8-98054-876-0
01
1
1012-
●
●
14
BRACKET ASM; CLU PEDAL MTG
EXC. POWER ASSIST CLUTCH(S2T)
8-98054-878-0
01
1
1012-
●
●
27
NUT; FULCRUM PIN
M10 LOCK NUT FLANGE
0-91380-010-0
01
1
1012-
●
●
30
BOLT; CLU MTG BRKT
(A) M10X25 FLANGE
0-28661-025-0
01
1
1012-
●
●
30
BOLT; CLU MTG BRKT
(B) M10X22 W/PL WASHER
8-97313-188-0
01
1
1012-
●
●
31
NUT; MTG BRKT TO BODY
M8 W/LK WASHER
8-94279-050-0
02
1
1012-
●
●
32
NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER
8-94279-050-0
02
1
1012-
●
●
49
RUBBER; PAD,CLU PEDAL
8-97853-413-2
01
1
1012-
●
●
61
NUT; BOOSTER TO BRKT
POWER ASSIST CLUTCH(S2T) M8 W/LK WASHER
8-94279-050-0
04
1
1012-
●
●
84
HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T)
8-98023-512-1
01
1
1012-1208
●
●
84
HOSE; RUBBER,CLU LINE
POWER ASSIST CLUTCH(S2T)
8-98218-209-1
01
1
1209-
●
●
84
HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH(S2T)
8-98025-423-1
01
1
1012-1208
●
●
84
HOSE; RUBBER,CLU LINE
EXC. POWER ASSIST CLUTCH(S2T)
8-98218-210-1
01
1
1209-
●
●
85
CLIP; HOSE TO M/CYL
8-98031-178-0
02
1
1012-1208
●
●
85
CLIP; HOSE TO M/CYL
8-98168-080-0
02
1
1209-
●
●
242
BOLT; BRKT,CLUTCH
(B) M6X12 FLANGE
0-28050-612-0
01
1
1012-
●
●
242
BOLT; BRKT,CLUTCH
(A) M8X16 FLANGE
0-28450-816-0
02
1
1012-
●
●
266
BRACKET; CLU SWITCH
8-98078-745-4
01
1
1012-
●
●
