◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51287 - ELF200/300(MEXICO) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#54204) — 15 parça
çizim 174913
1 8 5 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRAKE UNIT; EXH 8-98033-200-1 01 1 1012- ● ●
5 GASKET; EXH BRAKE UNIT
ID=54 		8-94328-354-0 02 1 1012- ● ●
8 NUT; EXH BRAKE UNIT FIX
M8 W/LK WASHER 		8-97581-234-0 04 1 1012- ● ●

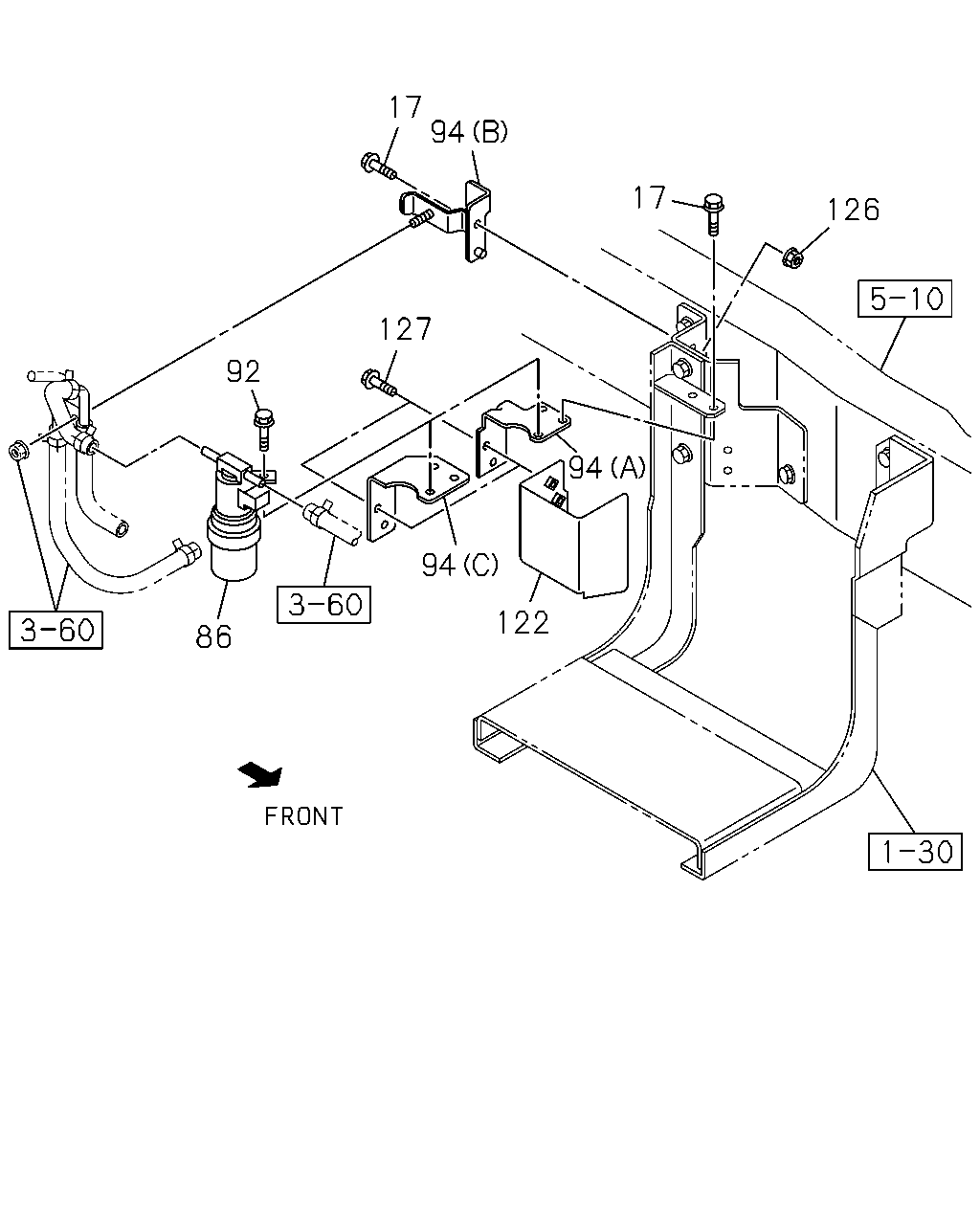

çizim 174919
17 126 94 17 127 92 94 122 94 86
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1012- ● ●
17 BOLT; BRKT
WHEEL BASE 3300MM(33W) M8X25 FLANGE 		0-28650-825-0 01 1 1012- ●
86 VALVE; MAG,EXH BRK 8-98043-344-0 01 1 1012- ● ●
92 BOLT; MAG VLV
M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
(A) 		8-98042-145-2 01 1 1012-1206 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
(C) 		8-98211-757-1 01 1 1207- ● ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 3300MM(33W) (B) 		8-98042-694-2 01 1 1012-1406 ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B) 		8-98042-694-2 01 1 1407-1407 ●
94 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 3300MM(33W) (B) 		8-98042-694-2 01 1 1408- ●
122 PROTECTOR; MAG VLV 8-98098-564-0 01 1 1012- ● ●
126 NUT; BRKT
WHEEL BASE 3300MM(33W) M8 FLANGE 		0-91180-108-0 01 1 1012- ●
127 BOLT; PROTECTOR
M6X12 FLANGE 		0-28050-612-0 02 1 1012- ● ●
