Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#54202) — 197 parça

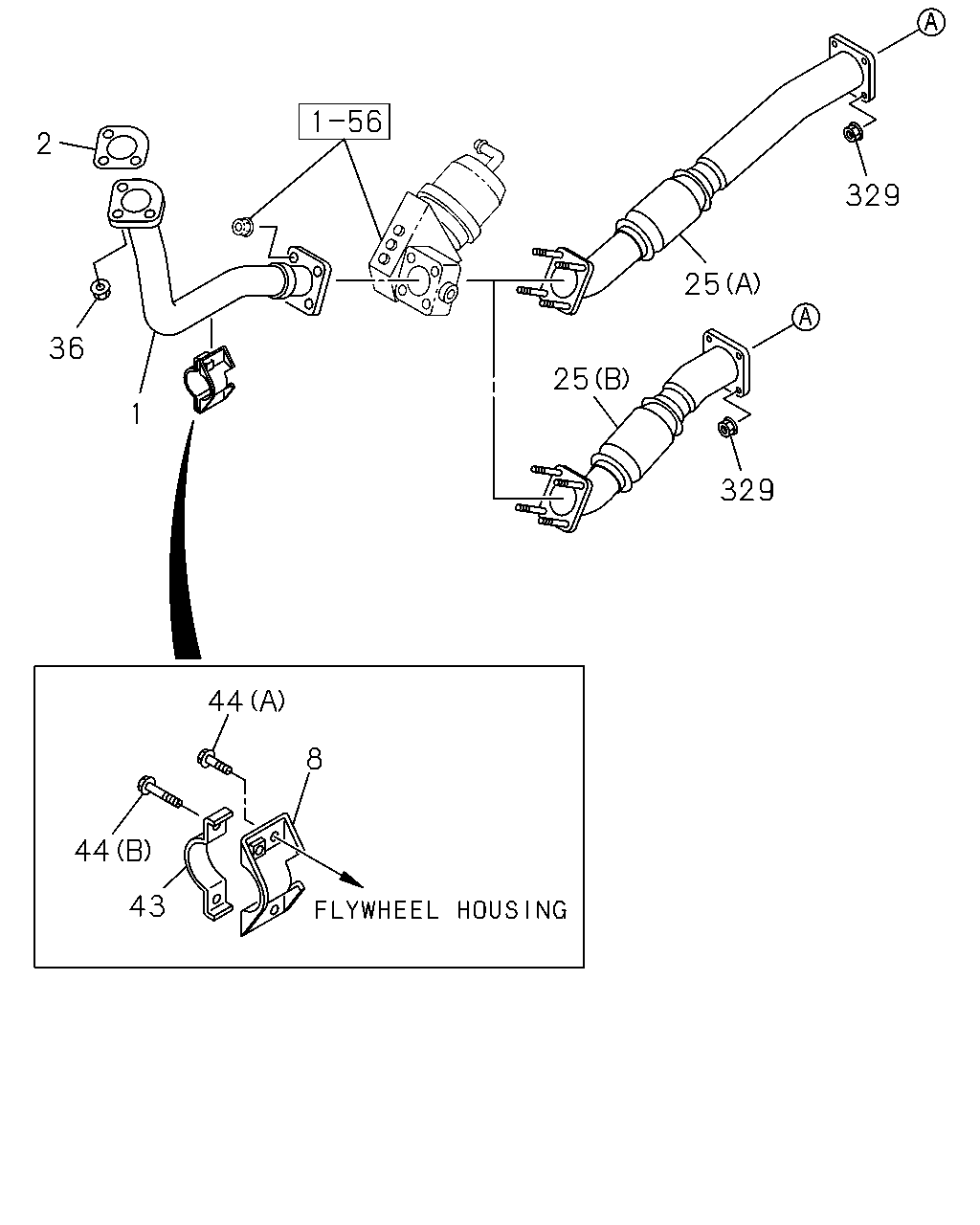

2 36 1 44 8 44 43 25 25 329 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH	8-98075-966-0	01	1	1012-	●	●
2	GASKET; PIPE TO MANIF	8-97384-590-0	01	1	1012-	●	●
8	BRACKET; EXH PIPE	8-98026-063-0	01	1	1012-	●	●
25	PIPE; EXH,BRK VLV TO SILENCER WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-98072-121-1	01	1	1407-1407		●
25	PIPE; EXH,BRK VLV TO SILENCER (A)	8-98027-805-1	01	1	1012-1406	●	●
25	PIPE; EXH,BRK VLV TO SILENCER (A)	8-98027-805-1	01	1	1407-1407	●
25	PIPE; EXH,BRK VLV TO SILENCER WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A)	8-98027-805-1	01	1	1407-1407		●
25	PIPE; EXH,BRK VLV TO SILENCER WHEEL BASE 3300MM(33W) (A)	8-98027-805-1	01	1	1407-1407		●
25	PIPE; EXH,BRK VLV TO SILENCER (A)	8-98027-805-1	01	1	1408-	●	●
36	NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	1012-	●	●
43	CLAMP; EXH PIPE	8-97351-200-1	01	1	1012-	●	●
44	BOLT; BRKT (A) M10X25 FLANGE	0-28151-025-0	02	1	1012-	●	●
44	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	1012-	●	●
329	NUT; EXH PIPE TO PIPE M8 FLANGE	0-91180-108-0	04	1	1012-	●	●

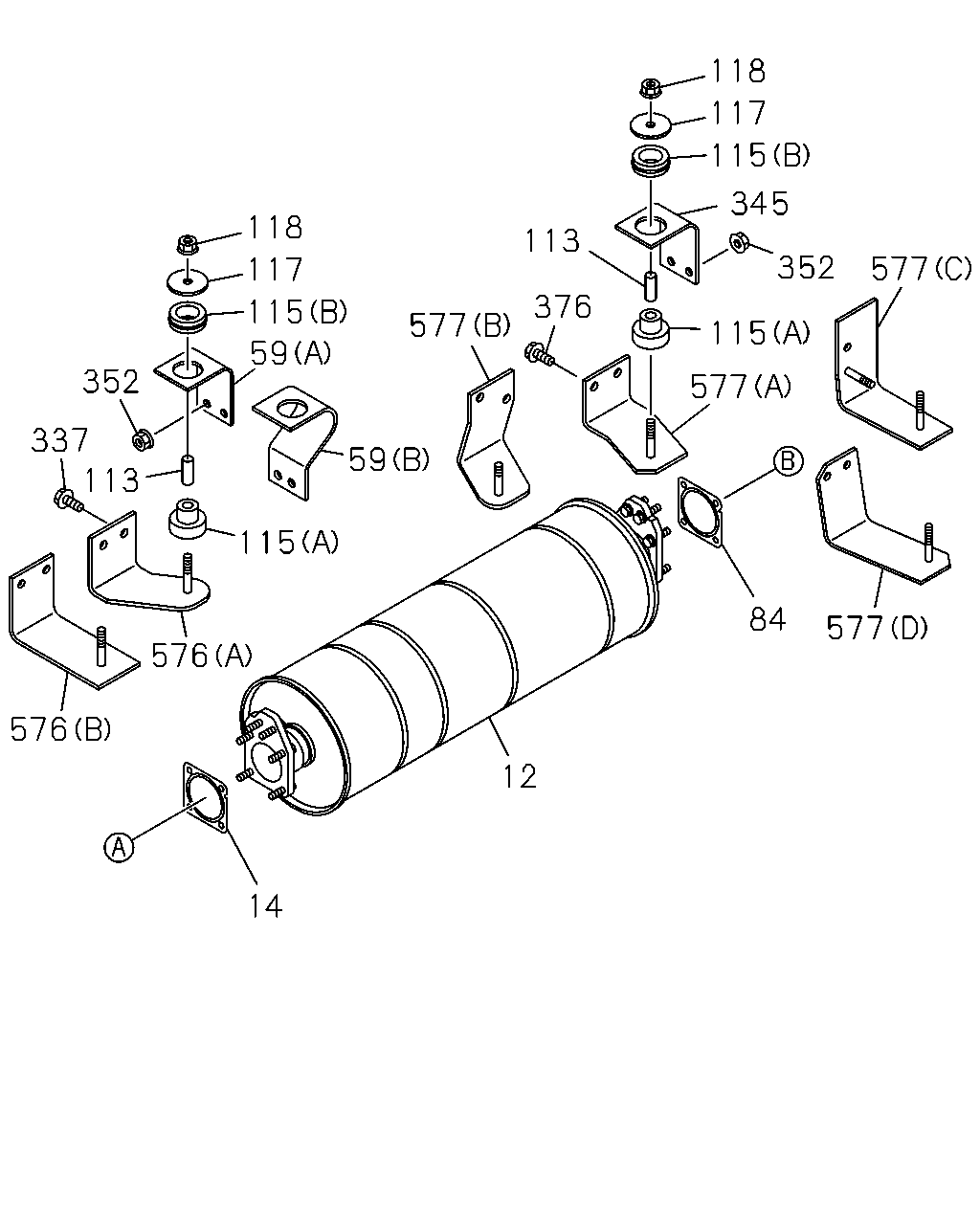

118 117 115 59 352 337 113 115 576 576 14 12 84 577 577 115 376 113 118 117 115 345 352 577 577 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH	8-98119-994-1	01	1	1012-	●	●
14	GASKET; SILENCER TO EXH PIPE ID=64	8-97373-108-0	01	1	1012-	●	●
59	BRACKET; EXH SILENCER,FRT WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-98072-143-0	01	1	1407-1407		●
59	BRACKET; EXH SILENCER,FRT (A)	8-98082-156-0	01	1	1012-1406	●	●
59	BRACKET; EXH SILENCER,FRT (A)	8-98082-156-0	01	1	1407-1407	●
59	BRACKET; EXH SILENCER,FRT WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A)	8-98082-156-0	01	1	1407-1407		●
59	BRACKET; EXH SILENCER,FRT WHEEL BASE 3300MM(33W) (A)	8-98082-156-0	01	1	1407-1407		●
59	BRACKET; EXH SILENCER,FRT (A)	8-98082-156-0	01	1	1408-	●	●
84	GASKET; EXH PIPE ID=64	8-97373-108-0	01	1	1012-	●	●
113	COLLAR; DIST,MTG BRKT L=37.5	9-22151-217-0	02	1	1012-	●	●
115	RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	1012-	●	●
115	RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	1012-	●	●
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	1012-	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	02	1	1012-	●	●
337	BOLT; RUBBER,SUPPORT M10X30 FLANGE	0-28651-030-0	02	1	1012-	●	●
345	BRACKET; EXH SILENCER,RR WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW>	8-98082-027-0	01	1	1407-1407		●
345	BRACKET; EXH SILENCER,RR	8-98027-822-0	01	1	1012-1406	●	●
345	BRACKET; EXH SILENCER,RR	8-98027-822-0	01	1	1407-1407	●
345	BRACKET; EXH SILENCER,RR WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW>	8-98027-822-0	01	1	1407-1407		●
345	BRACKET; EXH SILENCER,RR WHEEL BASE 3300MM(33W)	8-98027-822-0	01	1	1407-1407		●
345	BRACKET; EXH SILENCER,RR	8-98027-822-0	01	1	1408-	●	●
352	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	1012-1406	●	●
352	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	1407-1407	●
352	NUT; BRKT EXC. FRAME-KICK UP<7EW> M10 FLANGE	0-91180-110-0	02	1	1407-1407		●
352	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	1408-	●	●
352	NUT; BRKT M10 FLANGE	0-91180-110-0	04	1	1012-	●	●
376	BOLT; BRKT WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> M10X30 FLANGE	0-28651-030-0	02	1	1407-1407		●
376	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1012-1406	●	●
376	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1407-1407	●
376	BOLT; BRKT EXC. FRAME-KICK UP<7EW> M10X30 FLANGE	0-28651-030-0	01	1	1407-1407		●
376	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	1408-	●	●
576	BRACKET; DPD FRT TO FRAME WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-98072-139-0	01	1	1407-1407		●
576	BRACKET; DPD FRT TO FRAME (A)	8-98067-992-0	01	1	1012-1406	●	●
576	BRACKET; DPD FRT TO FRAME (A)	8-98067-992-0	01	1	1407-1407	●
576	BRACKET; DPD FRT TO FRAME WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A)	8-98067-992-0	01	1	1407-1407		●
576	BRACKET; DPD FRT TO FRAME WHEEL BASE 3300MM(33W) (A)	8-98067-992-0	01	1	1407-1407		●
576	BRACKET; DPD FRT TO FRAME (A)	8-98067-992-0	01	1	1408-	●	●
577	BRACKET; DPD RR TO FRAME WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (D)	8-98072-141-0	01	1	1407-1407		●
577	BRACKET; DPD RR TO FRAME (C)	8-98107-264-0	01	1	1012-	●
577	BRACKET; DPD RR TO FRAME WHEEL BASE 2400MM(24W) (B)	8-98107-265-0	01	1	1012-1406		●
577	BRACKET; DPD RR TO FRAME WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B)	8-98107-265-0	01	1	1407-1407		●
577	BRACKET; DPD RR TO FRAME WHEEL BASE 2400MM(24W) (B)	8-98107-265-0	01	1	1408-		●
577	BRACKET; DPD RR TO FRAME WHEEL BASE 3300MM(33W) (A)	8-98107-266-0	01	1	1012-		●

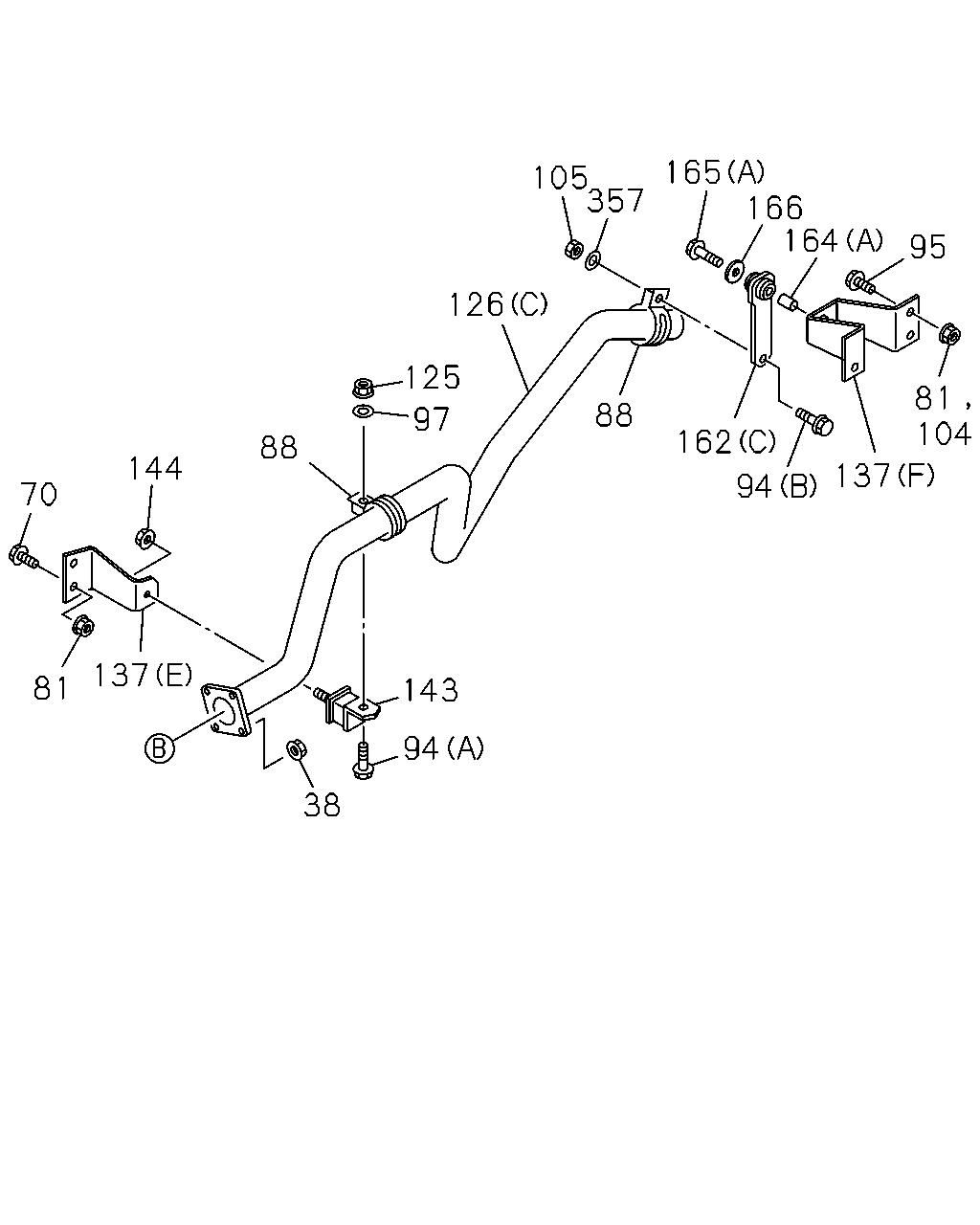

165 166 164 105 357 95 126 125 81 104 88 97 162 88 144 137 94 70 137 81 143 94 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	NUT; SILENCER M8 FLANGE	0-91180-108-0	04	1	1012-	●	●
70	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	1012-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	1012-1406	●	●
81	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	1012-1406	●
81	NUT; BRKT WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T) M10 FLANGE	0-91180-110-0	02	1	1012-1406		●
81	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	1407-1407	●
81	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	1407-1407	●
81	NUT; BRKT WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> M10 FLANGE	0-91180-110-0	02	1	1407-1407		●
81	NUT; BRKT EXC. FRAME-KICK UP<7EW> M10 FLANGE	0-91180-110-0	02	1	1407-1407		●
81	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	1408-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	1408-	●
81	NUT; BRKT WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T) M10 FLANGE	0-91180-110-0	02	1	1408-		●
81	NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) M10 FLANGE	0-91180-110-0	01	1	1012-		●
81	NUT; BRKT WHEEL BASE 3300MM(33W) M10 FLANGE	0-91180-110-0	01	1	1012-		●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	1012-	●	●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	1012-	●	●
94	BOLT; CLAMP (B) M10X45 FLANGE	0-28051-045-0	01	1	1012-	●	●
94	BOLT; CLAMP (A) M10X50 FLANGE	8-97301-165-0	01	1	1012-	●	●
95	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	1012-	●	●
97	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	1012-	●	●
104	NUT; BRKT M10 FLANGE	0-91180-110-0	01	1	1012-	●
104	NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) M10 FLANGE	0-91180-110-0	02	1	1012-		●
104	NUT; BRKT WHEEL BASE 3300MM(33W) M10 FLANGE	0-91180-110-0	02	1	1012-		●
105	NUT; CLAMP M10	0-91110-510-0	01	1	1012-	●	●
125	NUT; CLAMP M10	0-91110-510-0	01	1	1012-	●	●
126	PIPE; EXH,RR WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (D)	8-98072-134-0	01	1	1407-1407		●
126	PIPE; EXH,RR (C)	8-98140-855-0	01	1	1012-	●
126	PIPE; EXH,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98120-471-0	01	1	1012-		●
126	PIPE; EXH,RR WHEEL BASE 3300MM(33W) (B)	8-98120-472-0	01	1	1012-		●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (G)	8-98072-151-0	01	1	1407-1407		●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (H)	8-98072-152-0	01	1	1407-1407		●
137	BRACKET; TAIL PIPE (E)	8-98001-893-1	01	1	1012-	●
137	BRACKET; TAIL PIPE (F)	8-98001-903-0	01	1	1012-	●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (C)	8-98038-762-1	01	1	1012-		●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (D)	8-98075-678-0	01	1	1012-		●
137	BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (A)	8-98075-674-0	01	1	1012-		●
137	BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (B)	8-98075-675-1	01	1	1012-		●
143	RUBBER; SUPPORT	8-98034-767-0	01	1	1012-	●	●
144	NUT; MTG RUBBER M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
162	RUBBER; SUPPORT,TAIL PIPE (C)	8-98032-149-0	01	1	1012-	●
162	RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) (A)	8-98032-150-0	01	1	1012-		●
162	RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=115	8-98034-765-0	01	1	1012-		●
164	COLLAR; DIST,TAIL PIPE (A) L=23	8-98006-011-0	01	1	1012-	●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) (A) L=23	8-98006-011-0	01	1	1012-		●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=37.5	9-22151-217-0	01	1	1012-		●
165	BOLT; SUPPORT RUBBER (A) M10X45 FLANGE	0-28051-045-0	01	1	1012-	●
165	BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) (A) M10X45 FLANGE	0-28051-045-0	01	1	1012-		●
165	BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) (B) M10X70 FLANGE	0-28051-070-0	01	1	1012-		●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	0-91614-810-0	01	1	1012-	●	●
357	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	1012-	●	●

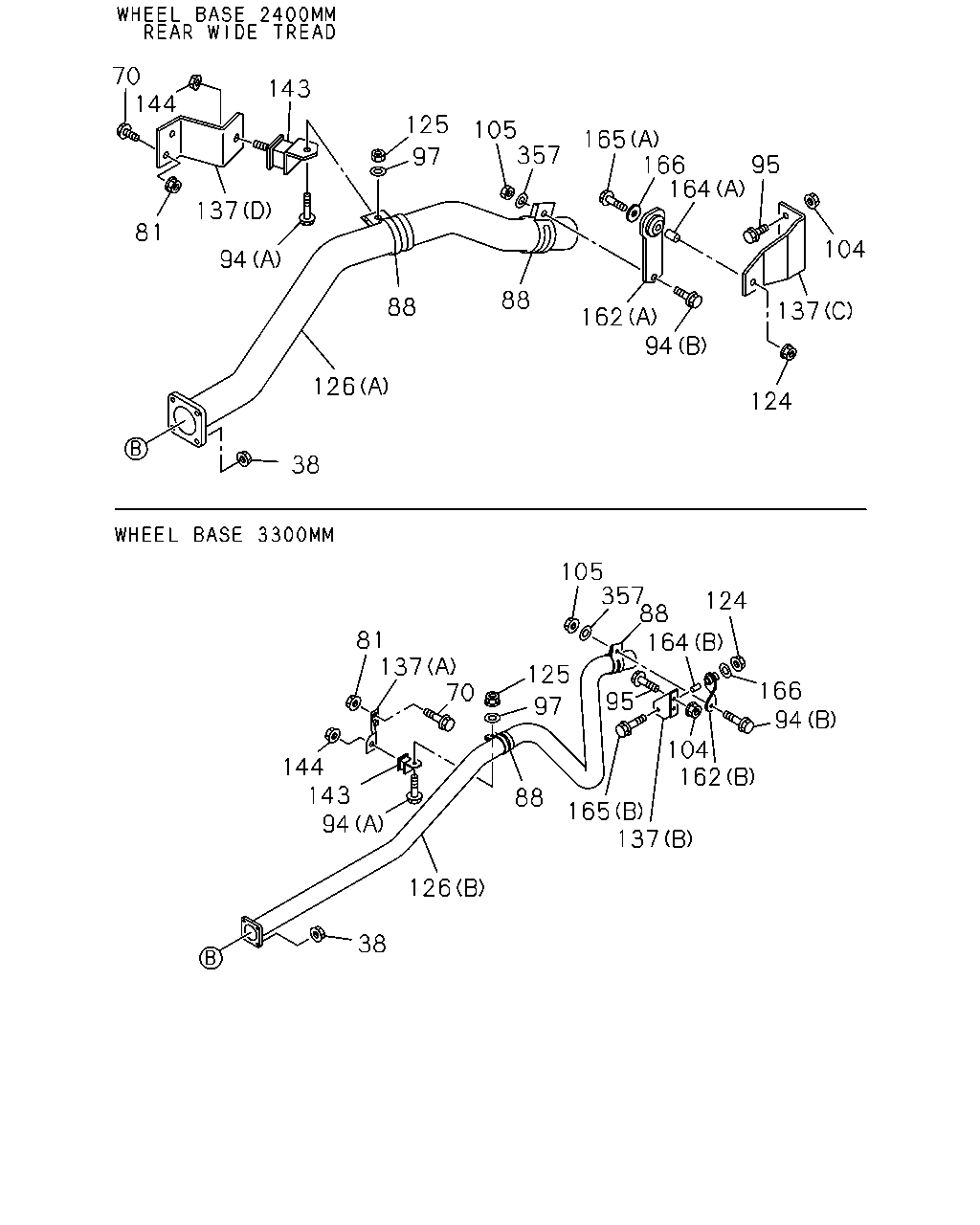

70 144 143 125 105 357 165 166 164 97 95 137 81 104 94 88 88 137 162 94 126 124 38 105 357 88 164 124 81 137 70 125 166 94 95 97 104 162 144 143 94 88 165 137 126 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	NUT; SILENCER M8 FLANGE	0-91180-108-0	04	1	1012-	●	●
70	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	1012-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	1012-1406	●	●
81	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	1012-1406	●
81	NUT; BRKT WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T) M10 FLANGE	0-91180-110-0	02	1	1012-1406		●
81	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	1407-1407	●
81	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	1407-1407	●
81	NUT; BRKT WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> M10 FLANGE	0-91180-110-0	02	1	1407-1407		●
81	NUT; BRKT EXC. FRAME-KICK UP<7EW> M10 FLANGE	0-91180-110-0	02	1	1407-1407		●
81	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	1408-	●	●
81	NUT; BRKT M10 FLANGE	0-91180-110-0	02	1	1408-	●
81	NUT; BRKT WHEEL BASE 2400MM(24W) EXC. REAR WIDE TREAD(V4T) M10 FLANGE	0-91180-110-0	02	1	1408-		●
81	NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) M10 FLANGE	0-91180-110-0	01	1	1012-		●
81	NUT; BRKT WHEEL BASE 3300MM(33W) M10 FLANGE	0-91180-110-0	01	1	1012-		●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	1012-	●	●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	1012-	●	●
94	BOLT; CLAMP (B) M10X45 FLANGE	0-28051-045-0	01	1	1012-	●	●
94	BOLT; CLAMP (A) M10X50 FLANGE	8-97301-165-0	01	1	1012-	●	●
95	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	1012-	●	●
97	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	1012-	●	●
104	NUT; BRKT M10 FLANGE	0-91180-110-0	01	1	1012-	●
104	NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) M10 FLANGE	0-91180-110-0	02	1	1012-		●
104	NUT; BRKT WHEEL BASE 3300MM(33W) M10 FLANGE	0-91180-110-0	02	1	1012-		●
105	NUT; CLAMP M10	0-91110-510-0	01	1	1012-	●	●
124	NUT; SUPPORT RUBBER M10 FLANGE	0-91180-110-0	01	1	1012-		●
125	NUT; CLAMP M10	0-91110-510-0	01	1	1012-	●	●
126	PIPE; EXH,RR WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (D)	8-98072-134-0	01	1	1407-1407		●
126	PIPE; EXH,RR (C)	8-98140-855-0	01	1	1012-	●
126	PIPE; EXH,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98120-471-0	01	1	1012-		●
126	PIPE; EXH,RR WHEEL BASE 3300MM(33W) (B)	8-98120-472-0	01	1	1012-		●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (G)	8-98072-151-0	01	1	1407-1407		●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (H)	8-98072-152-0	01	1	1407-1407		●
137	BRACKET; TAIL PIPE (E)	8-98001-893-1	01	1	1012-	●
137	BRACKET; TAIL PIPE (F)	8-98001-903-0	01	1	1012-	●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (C)	8-98038-762-1	01	1	1012-		●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (D)	8-98075-678-0	01	1	1012-		●
137	BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (A)	8-98075-674-0	01	1	1012-		●
137	BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (B)	8-98075-675-1	01	1	1012-		●
143	RUBBER; SUPPORT	8-98034-767-0	01	1	1012-	●	●
144	NUT; MTG RUBBER M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
162	RUBBER; SUPPORT,TAIL PIPE (C)	8-98032-149-0	01	1	1012-	●
162	RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) (A)	8-98032-150-0	01	1	1012-		●
162	RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=115	8-98034-765-0	01	1	1012-		●
164	COLLAR; DIST,TAIL PIPE (A) L=23	8-98006-011-0	01	1	1012-	●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) (A) L=23	8-98006-011-0	01	1	1012-		●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=37.5	9-22151-217-0	01	1	1012-		●
165	BOLT; SUPPORT RUBBER (A) M10X45 FLANGE	0-28051-045-0	01	1	1012-	●
165	BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) (A) M10X45 FLANGE	0-28051-045-0	01	1	1012-		●
165	BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) (B) M10X70 FLANGE	0-28051-070-0	01	1	1012-		●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	0-91614-810-0	01	1	1012-	●	●
357	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	1012-	●	●

70 137 143 94 144 126 38 88 165 104 164 125 97 94 162 137 95 166 124 88 357 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	NUT; SILENCER M8 FLANGE	0-91180-108-0	04	1	1012-	●	●
70	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	1012-	●	●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	1012-	●	●
88	CLAMP; EXH PIPE	8-97373-158-0	01	1	1012-	●	●
94	BOLT; CLAMP (B) M10X45 FLANGE	0-28051-045-0	01	1	1012-	●	●
94	BOLT; CLAMP (A) M10X50 FLANGE	8-97301-165-0	01	1	1012-	●	●
95	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	1012-	●	●
97	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	1012-	●	●
104	NUT; BRKT M10 FLANGE	0-91180-110-0	01	1	1012-	●
104	NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) M10 FLANGE	0-91180-110-0	02	1	1012-		●
104	NUT; BRKT WHEEL BASE 3300MM(33W) M10 FLANGE	0-91180-110-0	02	1	1012-		●
105	NUT; CLAMP M10	0-91110-510-0	01	1	1012-	●	●
124	NUT; SUPPORT RUBBER M10 FLANGE	0-91180-110-0	01	1	1012-		●
125	NUT; CLAMP M10	0-91110-510-0	01	1	1012-	●	●
126	PIPE; EXH,RR WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (D)	8-98072-134-0	01	1	1407-1407		●
126	PIPE; EXH,RR (C)	8-98140-855-0	01	1	1012-	●
126	PIPE; EXH,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98120-471-0	01	1	1012-		●
126	PIPE; EXH,RR WHEEL BASE 3300MM(33W) (B)	8-98120-472-0	01	1	1012-		●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (G)	8-98072-151-0	01	1	1407-1407		●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (H)	8-98072-152-0	01	1	1407-1407		●
137	BRACKET; TAIL PIPE (E)	8-98001-893-1	01	1	1012-	●
137	BRACKET; TAIL PIPE (F)	8-98001-903-0	01	1	1012-	●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (C)	8-98038-762-1	01	1	1012-		●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (D)	8-98075-678-0	01	1	1012-		●
137	BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (A)	8-98075-674-0	01	1	1012-		●
137	BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (B)	8-98075-675-1	01	1	1012-		●
143	RUBBER; SUPPORT	8-98034-767-0	01	1	1012-	●	●
144	NUT; MTG RUBBER M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
162	RUBBER; SUPPORT,TAIL PIPE (C)	8-98032-149-0	01	1	1012-	●
162	RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) (A)	8-98032-150-0	01	1	1012-		●
162	RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=115	8-98034-765-0	01	1	1012-		●
164	COLLAR; DIST,TAIL PIPE (A) L=23	8-98006-011-0	01	1	1012-	●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) (A) L=23	8-98006-011-0	01	1	1012-		●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=37.5	9-22151-217-0	01	1	1012-		●
165	BOLT; SUPPORT RUBBER (A) M10X45 FLANGE	0-28051-045-0	01	1	1012-	●
165	BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) (A) M10X45 FLANGE	0-28051-045-0	01	1	1012-		●
165	BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) (B) M10X70 FLANGE	0-28051-070-0	01	1	1012-		●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	0-91614-810-0	01	1	1012-	●	●
357	WASHER; PL,CLAMP ID=10.5 OD=22	0-91614-610-0	01	1	1012-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
