Sayfa 1-41 - Isuzu EPC

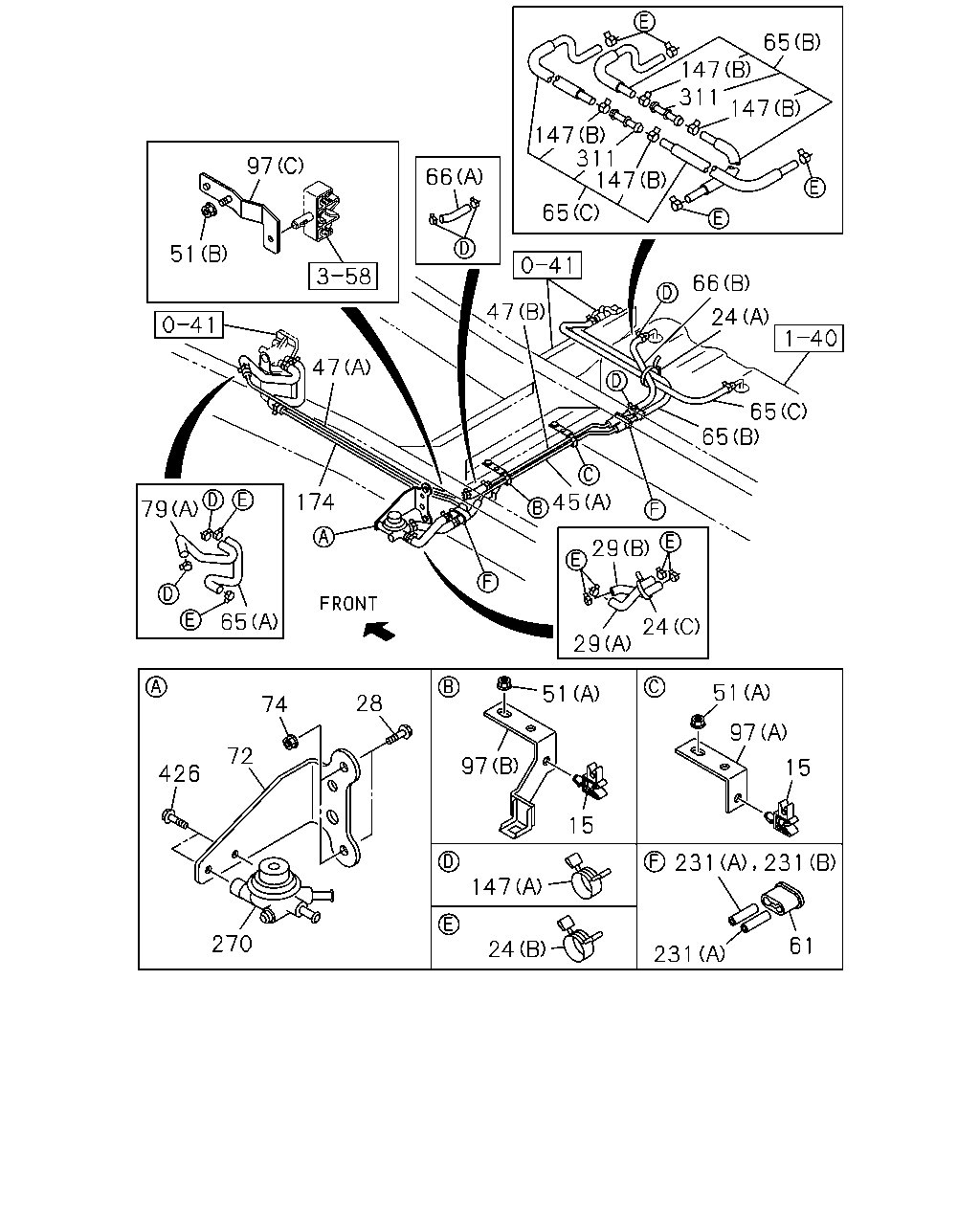

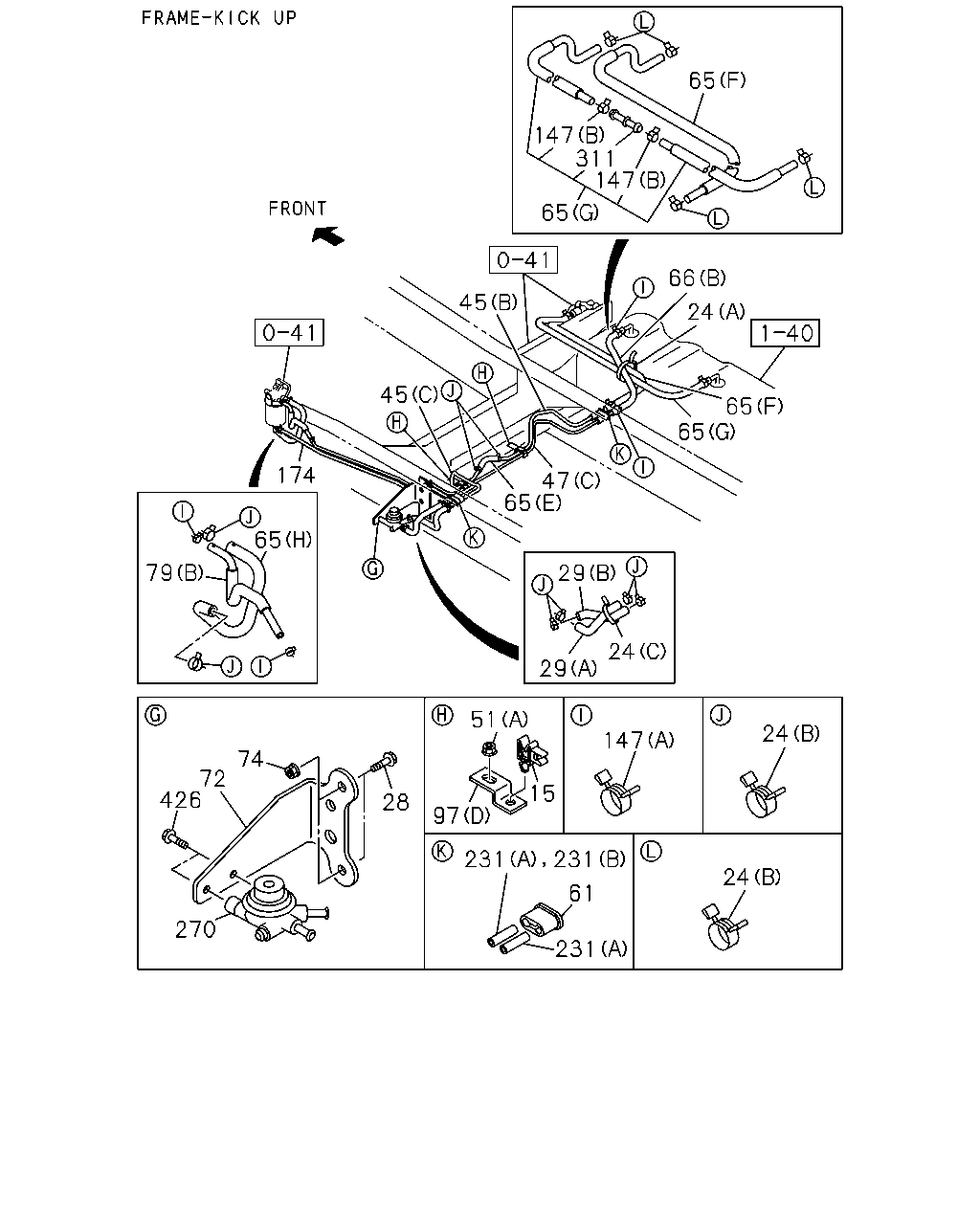

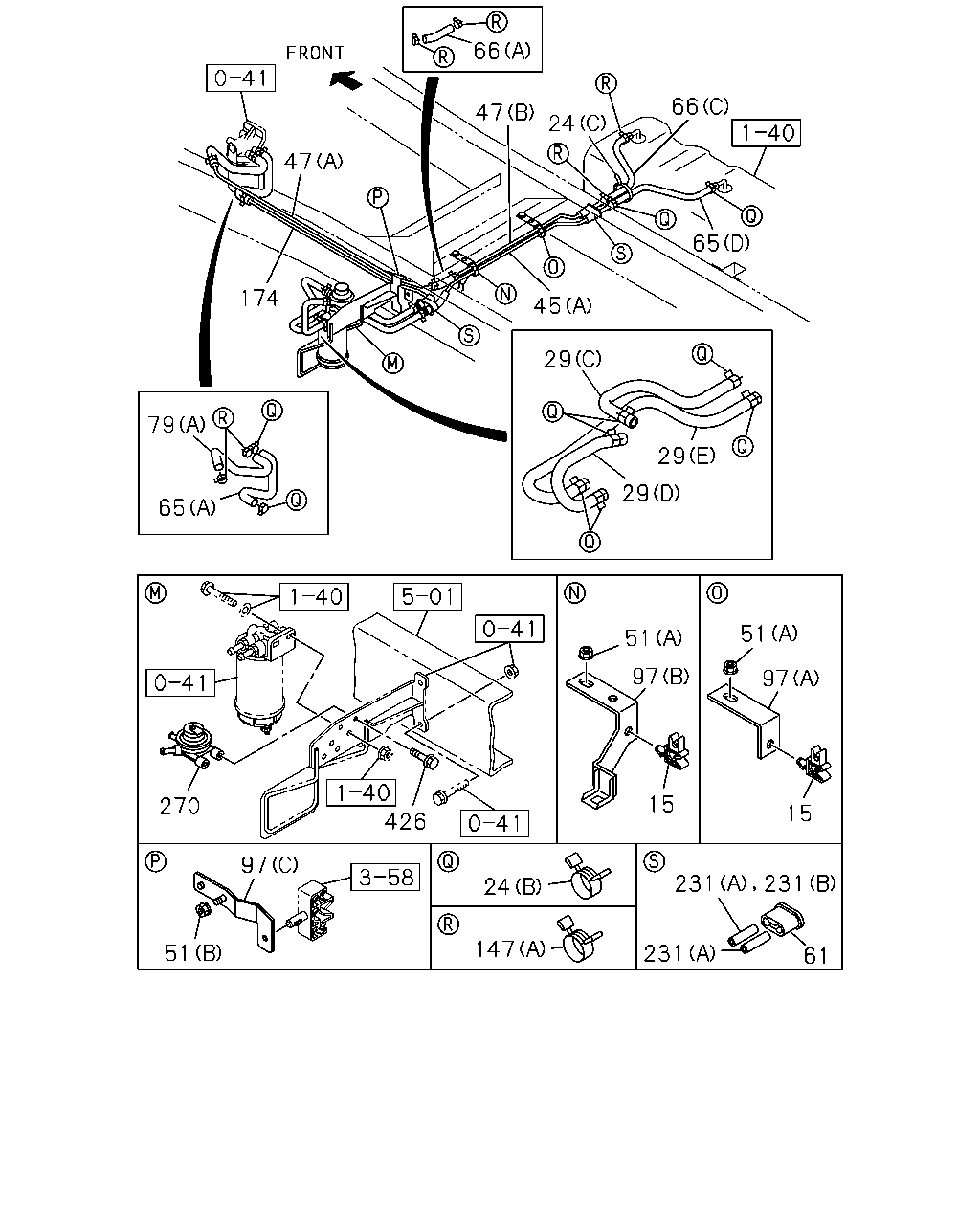

1-41 — FUEL PIPING; CHASSIS (#54201) — 535 parça

97 51 47 174 65 79 45 29 24 29 65 65 24 66 47 66 311 147 147 147 311 147 97 51 15 51 97 15 231 231 61 74 28 72 426 270 147 24 231 65 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	02	1	1012-	●	●
24	CLIP; FUEL HOSE (A) L=250	5-09707-030-1	01	1	1012-	●
24	CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) (A) L=250	5-09707-030-1	01	1	1012-		●
24	CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	1012-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	1012-		●
24	CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	1012-1406	●	●
24	CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	1407-1407	●	●
24	CLIP; FUEL HOSE FRAME-KICK UP<7EW> (B) ID=16	8-98008-098-0	02	1	1407-1407		●
24	CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	1408-	●	●
24	CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	1012-	●	●
28	BOLT; BRKT,FUEL PUMP M10X30 FLANGE	0-28651-030-0	02	1	1012-	●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) M10X30 FLANGE	0-28651-030-0	02	1	1012-		●
29	HOSE; FUEL FRAME-KICK UP<7EW> (B)	8-98063-744-1	01	1	1407-1407		●
29	HOSE; FUEL FRAME-KICK UP<7EW> (A)	8-98090-380-0	01	1	1407-1407		●
29	HOSE; FUEL (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1012-1406	●
29	HOSE; FUEL WHEEL BASE 2400MM(24W) (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1012-1406		●
29	HOSE; FUEL (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1407-1407	●
29	HOSE; FUEL WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1407-1407		●
29	HOSE; FUEL (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1408-	●
29	HOSE; FUEL WHEEL BASE 2400MM(24W) (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1408-		●
29	HOSE; FUEL (B) L=200	8-98081-038-0	01	1	1012-1406	●
29	HOSE; FUEL WHEEL BASE 2400MM(24W) (B) L=200	8-98081-038-0	01	1	1012-1406		●
29	HOSE; FUEL (B) L=200	8-98081-038-0	01	1	1407-1407	●
29	HOSE; FUEL WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B) L=200	8-98081-038-0	01	1	1407-1407		●
29	HOSE; FUEL (B) L=200	8-98081-038-0	01	1	1408-	●
29	HOSE; FUEL WHEEL BASE 2400MM(24W) (B) L=200	8-98081-038-0	01	1	1408-		●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) (C)	8-98099-502-0	01	1	1012-1406		●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C)	8-98099-502-0	01	1	1407-1407		●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) (C)	8-98099-502-0	01	1	1408-		●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98099-503-0	01	1	1012-		●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) (D)	8-98105-710-0	01	1	1012-1406		●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (D)	8-98105-710-0	01	1	1407-1407		●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) (D)	8-98105-710-0	01	1	1408-		●
45	PIPE; FUEL,DELIVERY FRAME-KICK UP<7EW> (B)	8-98177-635-0	01	1	1407-1407		●
45	PIPE; FUEL,DELIVERY FRAME-KICK UP<7EW> (C)	8-98177-636-0	01	1	1407-1407		●
45	PIPE; FUEL,DELIVERY (A)	8-97389-579-3	01	1	1012-1406	●	●
45	PIPE; FUEL,DELIVERY (A)	8-97389-579-3	01	1	1407-1407	●
45	PIPE; FUEL,DELIVERY EXC. FRAME-KICK UP<7EW> (A)	8-97389-579-3	01	1	1407-1407		●
45	PIPE; FUEL,DELIVERY (A)	8-97389-579-3	01	1	1408-	●	●
47	PIPE; FUEL,RETURN FRAME-KICK UP<7EW> (C)	8-97389-596-3	01	1	1407-1407		●
47	PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98110-833-0	01	1	1012-1301	●
47	PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98110-833-0	01	1	1302-1309	●
47	PIPE; FUEL,RETURN (A)	8-98110-833-0	01	1	1302-1309		●
47	PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98110-833-0	01	1	1310-1406	●
47	PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98110-833-0	01	1	1310-1406	●
47	PIPE; FUEL,RETURN (A)	8-98110-833-0	01	1	1310-1406		●
47	PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98110-833-0	01	1	1407-1407	●
47	PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98110-833-0	01	1	1407-1407	●
47	PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (A)	8-98110-833-0	01	1	1407-1407		●
47	PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98110-833-0	01	1	1408-	●
47	PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98110-833-0	01	1	1408-	●
47	PIPE; FUEL,RETURN (A)	8-98110-833-0	01	1	1408-		●
47	PIPE; FUEL,RETURN (B) L=679	8-98020-778-3	01	1	1012-1406	●	●
47	PIPE; FUEL,RETURN (B) L=679	8-98020-778-3	01	1	1407-1407	●
47	PIPE; FUEL,RETURN EXC. FRAME-KICK UP<7EW> (B) L=679	8-98020-778-3	01	1	1407-1407		●
47	PIPE; FUEL,RETURN (B) L=679	8-98020-778-3	01	1	1408-	●	●
47	PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98163-294-0	01	1	1012-1301	●
47	PIPE; FUEL,RETURN (A)	8-98163-294-0	01	1	1012-1301		●
47	PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98163-294-0	01	1	1302-1302	●
47	PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98163-294-0	01	1	1303-1309	●
47	PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98163-294-0	01	1	1303-1309	●
47	PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98163-294-0	01	1	1310-1406	●
47	PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98163-294-0	01	1	1310-1406	●
47	PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98163-294-0	01	1	1407-1407	●
47	PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98163-294-0	01	1	1407-1407	●
47	PIPE; FUEL,RETURN EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (A)	8-98163-294-0	01	1	1407-1407		●
47	PIPE; FUEL,RETURN EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (A)	8-98163-294-0	01	1	1407-1407		●
47	PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98163-294-0	01	1	1408-	●
47	PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98163-294-0	01	1	1408-	●
51	NUT; CLIP,PIPE (A) M10	0-91111-510-0	02	1	1012-	●	●
51	NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	1012-1406	●	●
51	NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	1407-1407	●
51	NUT; CLIP,PIPE EXC. FRAME-KICK UP<7EW> (B) M10 FLANGE	0-91180-110-0	01	1	1407-1407		●
51	NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	1408-	●	●
61	GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	1012-	●	●
61	GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	1012-	●	●
65	HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (H)	8-97389-773-1	01	1	1407-1407		●
65	HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (F)	8-98112-357-1	01	1	1407-1407		●
65	HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (G)	8-98112-358-2	01	1	1407-1407		●
65	HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (E)	8-98177-748-0	01	1	1407-1407		●
65	HOSE; FUEL,DELIVERY PIPE (B)	8-98098-175-1	01	1	1012-1406	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (B)	8-98098-175-1	01	1	1012-1406		●
65	HOSE; FUEL,DELIVERY PIPE (B)	8-98098-175-1	01	1	1407-1407	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B)	8-98098-175-1	01	1	1407-1407		●
65	HOSE; FUEL,DELIVERY PIPE (B)	8-98098-175-1	01	1	1408-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (B)	8-98098-175-1	01	1	1408-		●
65	HOSE; FUEL,DELIVERY PIPE (C)	8-98098-176-1	01	1	1012-1406	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (C)	8-98098-176-1	01	1	1012-1406		●
65	HOSE; FUEL,DELIVERY PIPE (C)	8-98098-176-1	01	1	1407-1407	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (C)	8-98098-176-1	01	1	1407-1407		●
65	HOSE; FUEL,DELIVERY PIPE (C)	8-98098-176-1	01	1	1408-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (C)	8-98098-176-1	01	1	1408-		●
65	HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	1012-1406	●	●
65	HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	1407-1407	●
65	HOSE; FUEL,DELIVERY PIPE EXC. FRAME-KICK UP<7EW> (A)	8-97389-772-0	01	1	1407-1407		●
65	HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	1408-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (D)	8-97389-790-0	01	1	1012-1406		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (D)	8-97389-790-0	01	1	1407-1407		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (D)	8-97389-790-0	01	1	1408-		●
66	HOSE; FUEL,RETURN PIPE (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1012-1406	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1012-1406		●
66	HOSE; FUEL,RETURN PIPE (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1407-1407	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1407-1407		●
66	HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1407-1407		●
66	HOSE; FUEL,RETURN PIPE (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1408-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1408-		●
66	HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1012-1406	●	●
66	HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1407-1407	●
66	HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1407-1407		●
66	HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1408-	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (C) L=500	8-98057-029-0	01	1	1012-1406		●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C) L=500	8-98057-029-0	01	1	1407-1407		●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (C) L=500	8-98057-029-0	01	1	1408-		●
72	BRACKET; FUEL PUMP & FILTER	8-98107-370-0	01	1	1012-	●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM(24W)	8-98107-370-0	01	1	1012-		●
74	NUT; BRKT,FUEL PUMP M10 FLANGE	0-91180-110-0	02	1	1012-1406	●
74	NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) M10 FLANGE	0-91180-110-0	02	1	1012-1406		●
74	NUT; BRKT,FUEL PUMP M10 FLANGE	0-91180-110-0	02	1	1407-1407	●
74	NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> M10 FLANGE	0-91180-110-0	02	1	1407-1407		●
74	NUT; BRKT,FUEL PUMP M10 FLANGE	0-91180-110-0	02	1	1408-	●
74	NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) M10 FLANGE	0-91180-110-0	02	1	1408-		●
79	HOSE; FUEL,PUMP TO PIPE,RETURN FRAME-KICK UP<7EW> (B)	8-97389-776-1	01	1	1407-1407		●
79	HOSE; FUEL,PUMP TO PIPE,RETURN (A)	8-98147-758-0	01	1	1012-1406	●	●
79	HOSE; FUEL,PUMP TO PIPE,RETURN (A)	8-98147-758-0	01	1	1407-1407	●
79	HOSE; FUEL,PUMP TO PIPE,RETURN EXC. FRAME-KICK UP<7EW> (A)	8-98147-758-0	01	1	1407-1407		●
79	HOSE; FUEL,PUMP TO PIPE,RETURN (A)	8-98147-758-0	01	1	1408-	●	●
97	BRACKET; CLIP FRAME-KICK UP<7EW> (D)	8-98034-748-1	02	1	1407-1407		●
97	BRACKET; CLIP (A)	8-98006-480-1	01	1	1012-1406	●	●
97	BRACKET; CLIP (A)	8-98006-480-1	01	1	1407-1407	●
97	BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (A)	8-98006-480-1	01	1	1407-1407		●
97	BRACKET; CLIP (A)	8-98006-480-1	01	1	1408-	●	●
97	BRACKET; CLIP (B)	8-98039-929-1	01	1	1012-1406	●	●
97	BRACKET; CLIP (B)	8-98039-929-1	01	1	1407-1407	●
97	BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (B)	8-98039-929-1	01	1	1407-1407		●
97	BRACKET; CLIP (B)	8-98039-929-1	01	1	1408-	●	●
97	BRACKET; CLIP (C)	8-98064-442-1	01	1	1012-1406	●	●
97	BRACKET; CLIP (C)	8-98064-442-1	01	1	1407-1407	●
97	BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (C)	8-98064-442-1	01	1	1407-1407		●
97	BRACKET; CLIP (C)	8-98064-442-1	01	1	1408-	●	●
147	CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (B) ID=16	8-98008-098-0	02	1	1407-1407		●
147	CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	04	1	1012-1406	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (B) ID=16	8-98008-098-0	04	1	1012-1406		●
147	CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	04	1	1407-1407	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B) ID=16	8-98008-098-0	04	1	1407-1407		●
147	CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	04	1	1408-	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (B) ID=16	8-98008-098-0	04	1	1408-		●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-98150-358-0	02	1	1012-1406	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-98150-358-0	02	1	1407-1407	●
147	CLIP; FUEL PIPE TO HOSE EXC. FRAME-KICK UP<7EW> (A) ID=12	8-98150-358-0	02	1	1407-1407		●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-98150-358-0	02	1	1408-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-98150-358-0	04	1	1012-	●	●
174	PIPE; FUEL,FEED,FRT FRAME-KICK UP<7EW>	8-98063-732-0	01	1	1407-1407		●
174	PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1012-1301	●
174	PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1302-1309	●
174	PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	1302-1309		●
174	PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1310-1406	●
174	PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1310-1406	●
174	PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	1310-1406		●
174	PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1407-1407	●
174	PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1407-1407	●
174	PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW>	8-97389-589-1	01	1	1407-1407		●
174	PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1408-	●
174	PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1408-	●
174	PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	1408-		●
174	PIPE; FUEL,FEED,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98064-632-1	01	1	1012-1301	●
174	PIPE; FUEL,FEED,FRT	8-98064-632-1	01	1	1012-1301		●
174	PIPE; FUEL,FEED,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98064-632-1	01	1	1302-1309	●
174	PIPE; FUEL,FEED,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98064-632-1	01	1	1310-1406	●
174	PIPE; FUEL,FEED,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98064-632-1	01	1	1407-1407	●
174	PIPE; FUEL,FEED,FRT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW>	8-98064-632-1	01	1	1407-1407		●
174	PIPE; FUEL,FEED,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98064-632-1	01	1	1408-	●
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	1012-	●	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	1012-	●	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	02	1	1012-	●	●
270	PUMP ASM; FUEL	8-98018-187-4	01	1	1012-1408	●	●
270	PUMP ASM; FUEL	8-97948-892-0	01	1	1409-	●	●
311	JOINT; HOSE FRAME-KICK UP<7EW>	8-97353-668-0	01	1	1407-1407		●
311	JOINT; HOSE	8-97353-668-0	02	1	1012-1406	●
311	JOINT; HOSE WHEEL BASE 2400MM(24W)	8-97353-668-0	02	1	1012-1406		●
311	JOINT; HOSE	8-97353-668-0	02	1	1407-1407	●
311	JOINT; HOSE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW>	8-97353-668-0	02	1	1407-1407		●
311	JOINT; HOSE	8-97353-668-0	02	1	1408-	●
311	JOINT; HOSE WHEEL BASE 2400MM(24W)	8-97353-668-0	02	1	1408-		●
426	BOLT; FUEL PUMP M8X20 FLANGE	0-28650-820-0	02	1	1012-	●	●

147 147 311 65 66 24 65 65 47 65 45 174 65 79 72 74 426 270 28 51 15 97 231 231 61 29 29 24 147 24 24 231 45 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	02	1	1012-	●	●
24	CLIP; FUEL HOSE (A) L=250	5-09707-030-1	01	1	1012-	●
24	CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) (A) L=250	5-09707-030-1	01	1	1012-		●
24	CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	1012-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	1012-		●
24	CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	1012-1406	●	●
24	CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	1407-1407	●	●
24	CLIP; FUEL HOSE FRAME-KICK UP<7EW> (B) ID=16	8-98008-098-0	02	1	1407-1407		●
24	CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	1408-	●	●
24	CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	1012-	●	●
28	BOLT; BRKT,FUEL PUMP M10X30 FLANGE	0-28651-030-0	02	1	1012-	●
28	BOLT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) M10X30 FLANGE	0-28651-030-0	02	1	1012-		●
29	HOSE; FUEL FRAME-KICK UP<7EW> (B)	8-98063-744-1	01	1	1407-1407		●
29	HOSE; FUEL FRAME-KICK UP<7EW> (A)	8-98090-380-0	01	1	1407-1407		●
29	HOSE; FUEL (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1012-1406	●
29	HOSE; FUEL WHEEL BASE 2400MM(24W) (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1012-1406		●
29	HOSE; FUEL (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1407-1407	●
29	HOSE; FUEL WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1407-1407		●
29	HOSE; FUEL (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1408-	●
29	HOSE; FUEL WHEEL BASE 2400MM(24W) (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1408-		●
29	HOSE; FUEL (B) L=200	8-98081-038-0	01	1	1012-1406	●
29	HOSE; FUEL WHEEL BASE 2400MM(24W) (B) L=200	8-98081-038-0	01	1	1012-1406		●
29	HOSE; FUEL (B) L=200	8-98081-038-0	01	1	1407-1407	●
29	HOSE; FUEL WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B) L=200	8-98081-038-0	01	1	1407-1407		●
29	HOSE; FUEL (B) L=200	8-98081-038-0	01	1	1408-	●
29	HOSE; FUEL WHEEL BASE 2400MM(24W) (B) L=200	8-98081-038-0	01	1	1408-		●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) (C)	8-98099-502-0	01	1	1012-1406		●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C)	8-98099-502-0	01	1	1407-1407		●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) (C)	8-98099-502-0	01	1	1408-		●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98099-503-0	01	1	1012-		●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) (D)	8-98105-710-0	01	1	1012-1406		●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (D)	8-98105-710-0	01	1	1407-1407		●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) (D)	8-98105-710-0	01	1	1408-		●
45	PIPE; FUEL,DELIVERY FRAME-KICK UP<7EW> (B)	8-98177-635-0	01	1	1407-1407		●
45	PIPE; FUEL,DELIVERY FRAME-KICK UP<7EW> (C)	8-98177-636-0	01	1	1407-1407		●
45	PIPE; FUEL,DELIVERY (A)	8-97389-579-3	01	1	1012-1406	●	●
45	PIPE; FUEL,DELIVERY (A)	8-97389-579-3	01	1	1407-1407	●
45	PIPE; FUEL,DELIVERY EXC. FRAME-KICK UP<7EW> (A)	8-97389-579-3	01	1	1407-1407		●
45	PIPE; FUEL,DELIVERY (A)	8-97389-579-3	01	1	1408-	●	●
47	PIPE; FUEL,RETURN FRAME-KICK UP<7EW> (C)	8-97389-596-3	01	1	1407-1407		●
47	PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98110-833-0	01	1	1012-1301	●
47	PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98110-833-0	01	1	1302-1309	●
47	PIPE; FUEL,RETURN (A)	8-98110-833-0	01	1	1302-1309		●
47	PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98110-833-0	01	1	1310-1406	●
47	PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98110-833-0	01	1	1310-1406	●
47	PIPE; FUEL,RETURN (A)	8-98110-833-0	01	1	1310-1406		●
47	PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98110-833-0	01	1	1407-1407	●
47	PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98110-833-0	01	1	1407-1407	●
47	PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (A)	8-98110-833-0	01	1	1407-1407		●
47	PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98110-833-0	01	1	1408-	●
47	PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98110-833-0	01	1	1408-	●
47	PIPE; FUEL,RETURN (A)	8-98110-833-0	01	1	1408-		●
47	PIPE; FUEL,RETURN (B) L=679	8-98020-778-3	01	1	1012-1406	●	●
47	PIPE; FUEL,RETURN (B) L=679	8-98020-778-3	01	1	1407-1407	●
47	PIPE; FUEL,RETURN EXC. FRAME-KICK UP<7EW> (B) L=679	8-98020-778-3	01	1	1407-1407		●
47	PIPE; FUEL,RETURN (B) L=679	8-98020-778-3	01	1	1408-	●	●
47	PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98163-294-0	01	1	1012-1301	●
47	PIPE; FUEL,RETURN (A)	8-98163-294-0	01	1	1012-1301		●
47	PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98163-294-0	01	1	1302-1302	●
47	PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98163-294-0	01	1	1303-1309	●
47	PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98163-294-0	01	1	1303-1309	●
47	PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98163-294-0	01	1	1310-1406	●
47	PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98163-294-0	01	1	1310-1406	●
47	PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98163-294-0	01	1	1407-1407	●
47	PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98163-294-0	01	1	1407-1407	●
47	PIPE; FUEL,RETURN EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (A)	8-98163-294-0	01	1	1407-1407		●
47	PIPE; FUEL,RETURN EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (A)	8-98163-294-0	01	1	1407-1407		●
47	PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98163-294-0	01	1	1408-	●
47	PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98163-294-0	01	1	1408-	●
51	NUT; CLIP,PIPE (A) M10	0-91111-510-0	02	1	1012-	●	●
51	NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	1012-1406	●	●
51	NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	1407-1407	●
51	NUT; CLIP,PIPE EXC. FRAME-KICK UP<7EW> (B) M10 FLANGE	0-91180-110-0	01	1	1407-1407		●
51	NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	1408-	●	●
61	GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	1012-	●	●
61	GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	1012-	●	●
65	HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (H)	8-97389-773-1	01	1	1407-1407		●
65	HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (F)	8-98112-357-1	01	1	1407-1407		●
65	HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (G)	8-98112-358-2	01	1	1407-1407		●
65	HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (E)	8-98177-748-0	01	1	1407-1407		●
65	HOSE; FUEL,DELIVERY PIPE (B)	8-98098-175-1	01	1	1012-1406	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (B)	8-98098-175-1	01	1	1012-1406		●
65	HOSE; FUEL,DELIVERY PIPE (B)	8-98098-175-1	01	1	1407-1407	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B)	8-98098-175-1	01	1	1407-1407		●
65	HOSE; FUEL,DELIVERY PIPE (B)	8-98098-175-1	01	1	1408-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (B)	8-98098-175-1	01	1	1408-		●
65	HOSE; FUEL,DELIVERY PIPE (C)	8-98098-176-1	01	1	1012-1406	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (C)	8-98098-176-1	01	1	1012-1406		●
65	HOSE; FUEL,DELIVERY PIPE (C)	8-98098-176-1	01	1	1407-1407	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (C)	8-98098-176-1	01	1	1407-1407		●
65	HOSE; FUEL,DELIVERY PIPE (C)	8-98098-176-1	01	1	1408-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (C)	8-98098-176-1	01	1	1408-		●
65	HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	1012-1406	●	●
65	HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	1407-1407	●
65	HOSE; FUEL,DELIVERY PIPE EXC. FRAME-KICK UP<7EW> (A)	8-97389-772-0	01	1	1407-1407		●
65	HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	1408-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (D)	8-97389-790-0	01	1	1012-1406		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (D)	8-97389-790-0	01	1	1407-1407		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (D)	8-97389-790-0	01	1	1408-		●
66	HOSE; FUEL,RETURN PIPE (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1012-1406	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1012-1406		●
66	HOSE; FUEL,RETURN PIPE (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1407-1407	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1407-1407		●
66	HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1407-1407		●
66	HOSE; FUEL,RETURN PIPE (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1408-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1408-		●
66	HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1012-1406	●	●
66	HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1407-1407	●
66	HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1407-1407		●
66	HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1408-	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (C) L=500	8-98057-029-0	01	1	1012-1406		●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C) L=500	8-98057-029-0	01	1	1407-1407		●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (C) L=500	8-98057-029-0	01	1	1408-		●
72	BRACKET; FUEL PUMP & FILTER	8-98107-370-0	01	1	1012-	●
72	BRACKET; FUEL PUMP & FILTER WHEEL BASE 2400MM(24W)	8-98107-370-0	01	1	1012-		●
74	NUT; BRKT,FUEL PUMP M10 FLANGE	0-91180-110-0	02	1	1012-1406	●
74	NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) M10 FLANGE	0-91180-110-0	02	1	1012-1406		●
74	NUT; BRKT,FUEL PUMP M10 FLANGE	0-91180-110-0	02	1	1407-1407	●
74	NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> M10 FLANGE	0-91180-110-0	02	1	1407-1407		●
74	NUT; BRKT,FUEL PUMP M10 FLANGE	0-91180-110-0	02	1	1408-	●
74	NUT; BRKT,FUEL PUMP WHEEL BASE 2400MM(24W) M10 FLANGE	0-91180-110-0	02	1	1408-		●
79	HOSE; FUEL,PUMP TO PIPE,RETURN FRAME-KICK UP<7EW> (B)	8-97389-776-1	01	1	1407-1407		●
79	HOSE; FUEL,PUMP TO PIPE,RETURN (A)	8-98147-758-0	01	1	1012-1406	●	●
79	HOSE; FUEL,PUMP TO PIPE,RETURN (A)	8-98147-758-0	01	1	1407-1407	●
79	HOSE; FUEL,PUMP TO PIPE,RETURN EXC. FRAME-KICK UP<7EW> (A)	8-98147-758-0	01	1	1407-1407		●
79	HOSE; FUEL,PUMP TO PIPE,RETURN (A)	8-98147-758-0	01	1	1408-	●	●
97	BRACKET; CLIP FRAME-KICK UP<7EW> (D)	8-98034-748-1	02	1	1407-1407		●
97	BRACKET; CLIP (A)	8-98006-480-1	01	1	1012-1406	●	●
97	BRACKET; CLIP (A)	8-98006-480-1	01	1	1407-1407	●
97	BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (A)	8-98006-480-1	01	1	1407-1407		●
97	BRACKET; CLIP (A)	8-98006-480-1	01	1	1408-	●	●
97	BRACKET; CLIP (B)	8-98039-929-1	01	1	1012-1406	●	●
97	BRACKET; CLIP (B)	8-98039-929-1	01	1	1407-1407	●
97	BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (B)	8-98039-929-1	01	1	1407-1407		●
97	BRACKET; CLIP (B)	8-98039-929-1	01	1	1408-	●	●
97	BRACKET; CLIP (C)	8-98064-442-1	01	1	1012-1406	●	●
97	BRACKET; CLIP (C)	8-98064-442-1	01	1	1407-1407	●
97	BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (C)	8-98064-442-1	01	1	1407-1407		●
97	BRACKET; CLIP (C)	8-98064-442-1	01	1	1408-	●	●
147	CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (B) ID=16	8-98008-098-0	02	1	1407-1407		●
147	CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	04	1	1012-1406	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (B) ID=16	8-98008-098-0	04	1	1012-1406		●
147	CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	04	1	1407-1407	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B) ID=16	8-98008-098-0	04	1	1407-1407		●
147	CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	04	1	1408-	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (B) ID=16	8-98008-098-0	04	1	1408-		●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-98150-358-0	02	1	1012-1406	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-98150-358-0	02	1	1407-1407	●
147	CLIP; FUEL PIPE TO HOSE EXC. FRAME-KICK UP<7EW> (A) ID=12	8-98150-358-0	02	1	1407-1407		●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-98150-358-0	02	1	1408-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-98150-358-0	04	1	1012-	●	●
174	PIPE; FUEL,FEED,FRT FRAME-KICK UP<7EW>	8-98063-732-0	01	1	1407-1407		●
174	PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1012-1301	●
174	PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1302-1309	●
174	PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	1302-1309		●
174	PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1310-1406	●
174	PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1310-1406	●
174	PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	1310-1406		●
174	PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1407-1407	●
174	PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1407-1407	●
174	PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW>	8-97389-589-1	01	1	1407-1407		●
174	PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1408-	●
174	PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1408-	●
174	PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	1408-		●
174	PIPE; FUEL,FEED,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98064-632-1	01	1	1012-1301	●
174	PIPE; FUEL,FEED,FRT	8-98064-632-1	01	1	1012-1301		●
174	PIPE; FUEL,FEED,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98064-632-1	01	1	1302-1309	●
174	PIPE; FUEL,FEED,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98064-632-1	01	1	1310-1406	●
174	PIPE; FUEL,FEED,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98064-632-1	01	1	1407-1407	●
174	PIPE; FUEL,FEED,FRT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW>	8-98064-632-1	01	1	1407-1407		●
174	PIPE; FUEL,FEED,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98064-632-1	01	1	1408-	●
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	1012-	●	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	1012-	●	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	02	1	1012-	●	●
270	PUMP ASM; FUEL	8-98018-187-4	01	1	1012-1408	●	●
270	PUMP ASM; FUEL	8-97948-892-0	01	1	1409-	●	●
311	JOINT; HOSE FRAME-KICK UP<7EW>	8-97353-668-0	01	1	1407-1407		●
311	JOINT; HOSE	8-97353-668-0	02	1	1012-1406	●
311	JOINT; HOSE WHEEL BASE 2400MM(24W)	8-97353-668-0	02	1	1012-1406		●
311	JOINT; HOSE	8-97353-668-0	02	1	1407-1407	●
311	JOINT; HOSE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW>	8-97353-668-0	02	1	1407-1407		●
311	JOINT; HOSE	8-97353-668-0	02	1	1408-	●
311	JOINT; HOSE WHEEL BASE 2400MM(24W)	8-97353-668-0	02	1	1408-		●
426	BOLT; FUEL PUMP M8X20 FLANGE	0-28650-820-0	02	1	1012-	●	●

47 174 47 66 24 66 65 45 29 29 29 79 65 270 97 426 24 15 97 51 51 97 15 231 231 231 61 147 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	02	1	1012-	●	●
24	CLIP; FUEL HOSE (A) L=250	5-09707-030-1	01	1	1012-	●
24	CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) (A) L=250	5-09707-030-1	01	1	1012-		●
24	CLIP; FUEL HOSE (C) L=140	5-09707-031-1	01	1	1012-	●	●
24	CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) (C) L=140	5-09707-031-1	01	1	1012-		●
24	CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	1012-1406	●	●
24	CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	1407-1407	●	●
24	CLIP; FUEL HOSE FRAME-KICK UP<7EW> (B) ID=16	8-98008-098-0	02	1	1407-1407		●
24	CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	02	1	1408-	●	●
24	CLIP; FUEL HOSE (B) ID=16	8-98008-098-0	08	1	1012-	●	●
29	HOSE; FUEL FRAME-KICK UP<7EW> (B)	8-98063-744-1	01	1	1407-1407		●
29	HOSE; FUEL FRAME-KICK UP<7EW> (A)	8-98090-380-0	01	1	1407-1407		●
29	HOSE; FUEL (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1012-1406	●
29	HOSE; FUEL WHEEL BASE 2400MM(24W) (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1012-1406		●
29	HOSE; FUEL (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1407-1407	●
29	HOSE; FUEL WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1407-1407		●
29	HOSE; FUEL (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1408-	●
29	HOSE; FUEL WHEEL BASE 2400MM(24W) (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	1408-		●
29	HOSE; FUEL (B) L=200	8-98081-038-0	01	1	1012-1406	●
29	HOSE; FUEL WHEEL BASE 2400MM(24W) (B) L=200	8-98081-038-0	01	1	1012-1406		●
29	HOSE; FUEL (B) L=200	8-98081-038-0	01	1	1407-1407	●
29	HOSE; FUEL WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B) L=200	8-98081-038-0	01	1	1407-1407		●
29	HOSE; FUEL (B) L=200	8-98081-038-0	01	1	1408-	●
29	HOSE; FUEL WHEEL BASE 2400MM(24W) (B) L=200	8-98081-038-0	01	1	1408-		●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) (C)	8-98099-502-0	01	1	1012-1406		●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C)	8-98099-502-0	01	1	1407-1407		●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) (C)	8-98099-502-0	01	1	1408-		●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) (E)	8-98099-503-0	01	1	1012-		●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) (D)	8-98105-710-0	01	1	1012-1406		●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (D)	8-98105-710-0	01	1	1407-1407		●
29	HOSE; FUEL WHEEL BASE 3300MM(33W) (D)	8-98105-710-0	01	1	1408-		●
45	PIPE; FUEL,DELIVERY FRAME-KICK UP<7EW> (B)	8-98177-635-0	01	1	1407-1407		●
45	PIPE; FUEL,DELIVERY FRAME-KICK UP<7EW> (C)	8-98177-636-0	01	1	1407-1407		●
45	PIPE; FUEL,DELIVERY (A)	8-97389-579-3	01	1	1012-1406	●	●
45	PIPE; FUEL,DELIVERY (A)	8-97389-579-3	01	1	1407-1407	●
45	PIPE; FUEL,DELIVERY EXC. FRAME-KICK UP<7EW> (A)	8-97389-579-3	01	1	1407-1407		●
45	PIPE; FUEL,DELIVERY (A)	8-97389-579-3	01	1	1408-	●	●
47	PIPE; FUEL,RETURN FRAME-KICK UP<7EW> (C)	8-97389-596-3	01	1	1407-1407		●
47	PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98110-833-0	01	1	1012-1301	●
47	PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98110-833-0	01	1	1302-1309	●
47	PIPE; FUEL,RETURN (A)	8-98110-833-0	01	1	1302-1309		●
47	PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98110-833-0	01	1	1310-1406	●
47	PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98110-833-0	01	1	1310-1406	●
47	PIPE; FUEL,RETURN (A)	8-98110-833-0	01	1	1310-1406		●
47	PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98110-833-0	01	1	1407-1407	●
47	PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98110-833-0	01	1	1407-1407	●
47	PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (A)	8-98110-833-0	01	1	1407-1407		●
47	PIPE; FUEL,RETURN FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98110-833-0	01	1	1408-	●
47	PIPE; FUEL,RETURN HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98110-833-0	01	1	1408-	●
47	PIPE; FUEL,RETURN (A)	8-98110-833-0	01	1	1408-		●
47	PIPE; FUEL,RETURN (B) L=679	8-98020-778-3	01	1	1012-1406	●	●
47	PIPE; FUEL,RETURN (B) L=679	8-98020-778-3	01	1	1407-1407	●
47	PIPE; FUEL,RETURN EXC. FRAME-KICK UP<7EW> (B) L=679	8-98020-778-3	01	1	1407-1407		●
47	PIPE; FUEL,RETURN (B) L=679	8-98020-778-3	01	1	1408-	●	●
47	PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98163-294-0	01	1	1012-1301	●
47	PIPE; FUEL,RETURN (A)	8-98163-294-0	01	1	1012-1301		●
47	PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98163-294-0	01	1	1302-1302	●
47	PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98163-294-0	01	1	1303-1309	●
47	PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0) (A)	8-98163-294-0	01	1	1303-1309	●
47	PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98163-294-0	01	1	1310-1406	●
47	PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98163-294-0	01	1	1310-1406	●
47	PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98163-294-0	01	1	1407-1407	●
47	PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98163-294-0	01	1	1407-1407	●
47	PIPE; FUEL,RETURN EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (A)	8-98163-294-0	01	1	1407-1407		●
47	PIPE; FUEL,RETURN EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (A)	8-98163-294-0	01	1	1407-1407		●
47	PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98163-294-0	01	1	1408-	●
47	PIPE; FUEL,RETURN EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (A)	8-98163-294-0	01	1	1408-	●
51	NUT; CLIP,PIPE (A) M10	0-91111-510-0	02	1	1012-	●	●
51	NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	1012-1406	●	●
51	NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	1407-1407	●
51	NUT; CLIP,PIPE EXC. FRAME-KICK UP<7EW> (B) M10 FLANGE	0-91180-110-0	01	1	1407-1407		●
51	NUT; CLIP,PIPE (B) M10 FLANGE	0-91180-110-0	01	1	1408-	●	●
61	GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	1012-	●	●
61	GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	1012-	●	●
65	HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (H)	8-97389-773-1	01	1	1407-1407		●
65	HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (F)	8-98112-357-1	01	1	1407-1407		●
65	HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (G)	8-98112-358-2	01	1	1407-1407		●
65	HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (E)	8-98177-748-0	01	1	1407-1407		●
65	HOSE; FUEL,DELIVERY PIPE (B)	8-98098-175-1	01	1	1012-1406	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (B)	8-98098-175-1	01	1	1012-1406		●
65	HOSE; FUEL,DELIVERY PIPE (B)	8-98098-175-1	01	1	1407-1407	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B)	8-98098-175-1	01	1	1407-1407		●
65	HOSE; FUEL,DELIVERY PIPE (B)	8-98098-175-1	01	1	1408-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (B)	8-98098-175-1	01	1	1408-		●
65	HOSE; FUEL,DELIVERY PIPE (C)	8-98098-176-1	01	1	1012-1406	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (C)	8-98098-176-1	01	1	1012-1406		●
65	HOSE; FUEL,DELIVERY PIPE (C)	8-98098-176-1	01	1	1407-1407	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (C)	8-98098-176-1	01	1	1407-1407		●
65	HOSE; FUEL,DELIVERY PIPE (C)	8-98098-176-1	01	1	1408-	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (C)	8-98098-176-1	01	1	1408-		●
65	HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	1012-1406	●	●
65	HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	1407-1407	●
65	HOSE; FUEL,DELIVERY PIPE EXC. FRAME-KICK UP<7EW> (A)	8-97389-772-0	01	1	1407-1407		●
65	HOSE; FUEL,DELIVERY PIPE (A)	8-97389-772-0	01	1	1408-	●	●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (D)	8-97389-790-0	01	1	1012-1406		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (D)	8-97389-790-0	01	1	1407-1407		●
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) (D)	8-97389-790-0	01	1	1408-		●
66	HOSE; FUEL,RETURN PIPE (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1012-1406	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1012-1406		●
66	HOSE; FUEL,RETURN PIPE (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1407-1407	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1407-1407		●
66	HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1407-1407		●
66	HOSE; FUEL,RETURN PIPE (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1408-	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) (B) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	1408-		●
66	HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1012-1406	●	●
66	HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1407-1407	●
66	HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1407-1407		●
66	HOSE; FUEL,RETURN PIPE (A) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	1408-	●	●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (C) L=500	8-98057-029-0	01	1	1012-1406		●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C) L=500	8-98057-029-0	01	1	1407-1407		●
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) (C) L=500	8-98057-029-0	01	1	1408-		●
79	HOSE; FUEL,PUMP TO PIPE,RETURN FRAME-KICK UP<7EW> (B)	8-97389-776-1	01	1	1407-1407		●
79	HOSE; FUEL,PUMP TO PIPE,RETURN (A)	8-98147-758-0	01	1	1012-1406	●	●
79	HOSE; FUEL,PUMP TO PIPE,RETURN (A)	8-98147-758-0	01	1	1407-1407	●
79	HOSE; FUEL,PUMP TO PIPE,RETURN EXC. FRAME-KICK UP<7EW> (A)	8-98147-758-0	01	1	1407-1407		●
79	HOSE; FUEL,PUMP TO PIPE,RETURN (A)	8-98147-758-0	01	1	1408-	●	●
97	BRACKET; CLIP FRAME-KICK UP<7EW> (D)	8-98034-748-1	02	1	1407-1407		●
97	BRACKET; CLIP (A)	8-98006-480-1	01	1	1012-1406	●	●
97	BRACKET; CLIP (A)	8-98006-480-1	01	1	1407-1407	●
97	BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (A)	8-98006-480-1	01	1	1407-1407		●
97	BRACKET; CLIP (A)	8-98006-480-1	01	1	1408-	●	●
97	BRACKET; CLIP (B)	8-98039-929-1	01	1	1012-1406	●	●
97	BRACKET; CLIP (B)	8-98039-929-1	01	1	1407-1407	●
97	BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (B)	8-98039-929-1	01	1	1407-1407		●
97	BRACKET; CLIP (B)	8-98039-929-1	01	1	1408-	●	●
97	BRACKET; CLIP (C)	8-98064-442-1	01	1	1012-1406	●	●
97	BRACKET; CLIP (C)	8-98064-442-1	01	1	1407-1407	●
97	BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (C)	8-98064-442-1	01	1	1407-1407		●
97	BRACKET; CLIP (C)	8-98064-442-1	01	1	1408-	●	●
147	CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> (B) ID=16	8-98008-098-0	02	1	1407-1407		●
147	CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	04	1	1012-1406	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (B) ID=16	8-98008-098-0	04	1	1012-1406		●
147	CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	04	1	1407-1407	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (B) ID=16	8-98008-098-0	04	1	1407-1407		●
147	CLIP; FUEL PIPE TO HOSE (B) ID=16	8-98008-098-0	04	1	1408-	●
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (B) ID=16	8-98008-098-0	04	1	1408-		●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-98150-358-0	02	1	1012-1406	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-98150-358-0	02	1	1407-1407	●
147	CLIP; FUEL PIPE TO HOSE EXC. FRAME-KICK UP<7EW> (A) ID=12	8-98150-358-0	02	1	1407-1407		●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-98150-358-0	02	1	1408-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=12	8-98150-358-0	04	1	1012-	●	●
174	PIPE; FUEL,FEED,FRT FRAME-KICK UP<7EW>	8-98063-732-0	01	1	1407-1407		●
174	PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1012-1301	●
174	PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1302-1309	●
174	PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	1302-1309		●
174	PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1310-1406	●
174	PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1310-1406	●
174	PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	1310-1406		●
174	PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1407-1407	●
174	PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1407-1407	●
174	PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW>	8-97389-589-1	01	1	1407-1407		●
174	PIPE; FUEL,FEED,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1408-	●
174	PIPE; FUEL,FEED,FRT HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-97389-589-1	01	1	1408-	●
174	PIPE; FUEL,FEED,FRT	8-97389-589-1	01	1	1408-		●
174	PIPE; FUEL,FEED,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98064-632-1	01	1	1012-1301	●
174	PIPE; FUEL,FEED,FRT	8-98064-632-1	01	1	1012-1301		●
174	PIPE; FUEL,FEED,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98064-632-1	01	1	1302-1309	●
174	PIPE; FUEL,FEED,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98064-632-1	01	1	1310-1406	●
174	PIPE; FUEL,FEED,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98064-632-1	01	1	1407-1407	●
174	PIPE; FUEL,FEED,FRT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW>	8-98064-632-1	01	1	1407-1407		●
174	PIPE; FUEL,FEED,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98064-632-1	01	1	1408-	●
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=17 L=50	8-94157-054-1	01	1	1012-	●	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	01	1	1012-	●	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=16.5 L=50	8-97214-235-0	02	1	1012-	●	●
270	PUMP ASM; FUEL	8-98018-187-4	01	1	1012-1408	●	●
270	PUMP ASM; FUEL	8-97948-892-0	01	1	1409-	●	●
426	BOLT; FUEL PUMP M8X20 FLANGE	0-28650-820-0	02	1	1012-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
