1-40 — FUEL TANK (#54200) — 61 parça

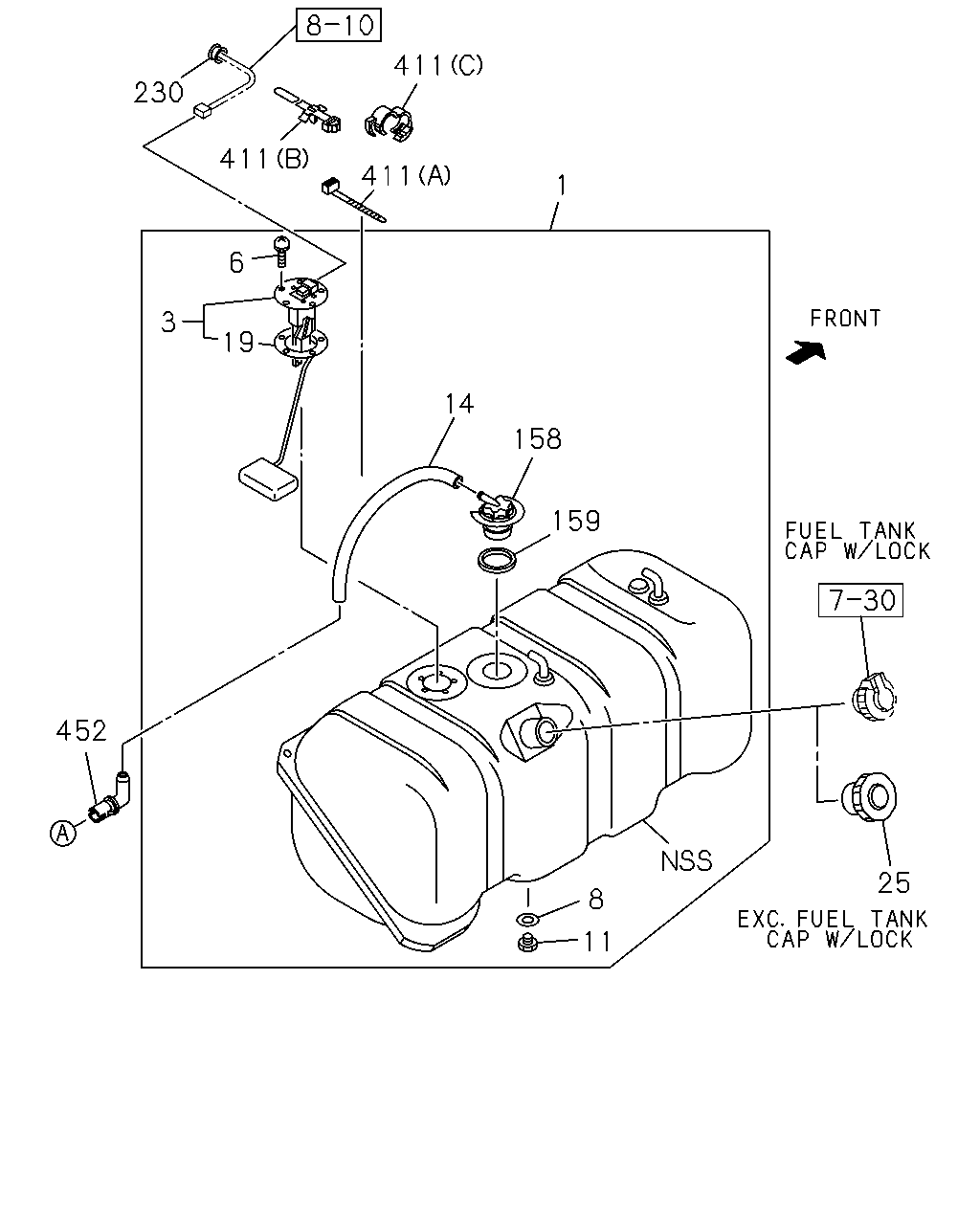

çizim 174907
230 411 411 411 1 6 3 19 14 158 159 8 11 25 452
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
756X375X375 75L 		8-98021-294-5 01 1 1012- ●
1 TANK; FUEL
FUEL TANK 75 LITTER<7GX> 756X375X375 75L 		8-98021-294-5 01 1 1012- ●
1 TANK; FUEL
FUEL TANK 100 LITTER<N02> 1003X375X380 100L 		8-98021-295-6 01 1 1012- ●
3 UNIT; FUEL TANK,SUB 8-98056-703-0 01 1 1012- ●
3 UNIT; FUEL TANK,SUB
FUEL TANK 75 LITTER<7GX> 		8-98056-703-0 01 1 1012- ●
3 UNIT; FUEL TANK,SUB
FUEL TANK 100 LITTER<N02> 		8-98056-704-0 01 1 1012- ●
6 SCREW; TANK UNIT TO SUB FUEL TANK
M5X12 W/LK WASHER 		0-36220-512-0 05 1 1012- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
ID=8.2 OD=17 		9-09572-008-0 01 1 1012- ● ●
11 PLUG; DRAIN,FUEL TANK
M8X12 FLANGE 		0-28050-812-0 01 1 1012- ● ●
14 HOSE; BREATHER,OUTLET
L=320 		8-98157-805-0 01 1 1012- ●
14 HOSE; BREATHER,OUTLET
FUEL TANK 75 LITTER<7GX> L=320 		8-98157-805-0 01 1 1012- ●
14 HOSE; BREATHER,OUTLET
FUEL TANK 100 LITTER<N02> L=420 		8-98157-809-0 01 1 1012- ●
19 GASKET; FUEL TANK UNIT 8-98051-797-0 01 1 1012- ● ●
25 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97387-179-0 01 1 1012- ● ●
158 VALVE; ROLL OVER & FLOAT 8-97179-645-0 01 1 1012- ● ●
159 SEAL; ROLL OVER & FLOAT VALVE 8-97326-488-0 01 1 1012- ● ●
230 GROMMET; HARNESS,FUEL TANK UNIT
FRAME-KICK UP<7EW> ID=24 OD=30 T=20 		1-09332-096-0 01 1 1407-1407 ●
411 CLIP; FUEL TANK UNIT HARNESS
FRAME-KICK UP<7EW> (A) L=140 		5-09707-031-1 01 1 1407-1407 ●
411 CLIP; FUEL TANK UNIT HARNESS
(B) L=170.3 		1-09987-182-0 01 1 1012-1406 ● ●
411 CLIP; FUEL TANK UNIT HARNESS
(B) L=170.3 		1-09987-182-0 01 1 1407-1407 ●
411 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME-KICK UP<7EW> (B) L=170.3 		1-09987-182-0 01 1 1407-1407 ●
411 CLIP; FUEL TANK UNIT HARNESS
(B) L=170.3 		1-09987-182-0 01 1 1408- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
(A) L=140 		5-09707-031-1 02 1 1012-1406 ● ●
411 CLIP; FUEL TANK UNIT HARNESS
(A) L=140 		5-09707-031-1 02 1 1407-1407 ●
411 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME-KICK UP<7EW> (A) L=140 		5-09707-031-1 02 1 1407-1407 ●
411 CLIP; FUEL TANK UNIT HARNESS
(A) L=140 		5-09707-031-1 02 1 1408- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
(C) ID=20 		8-94241-972-0 01 1 1012- ● ●
452 BREATHER; FUEL TANK 8-97357-261-0 01 1 1012- ● ●

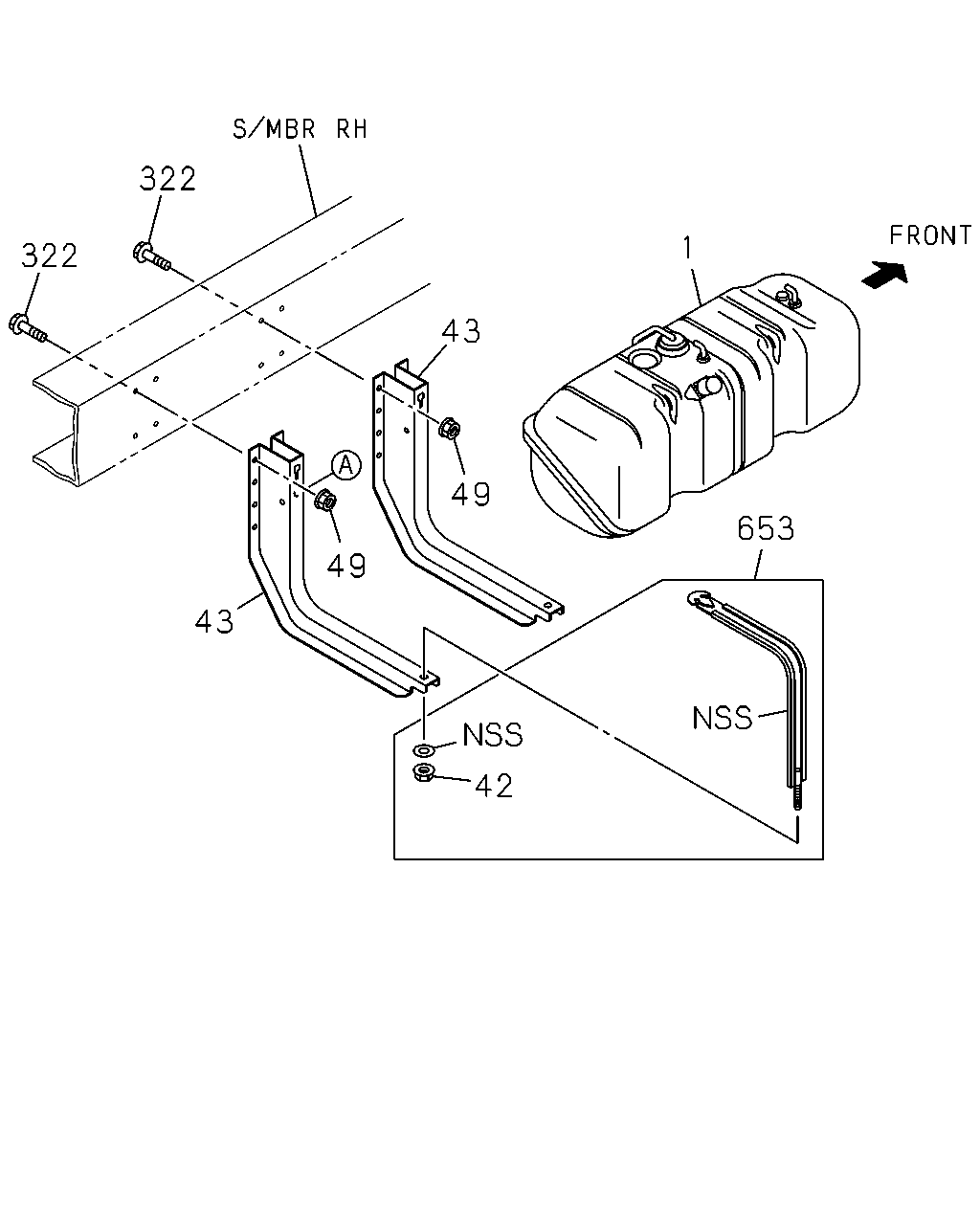

çizim 174908
1 653 42 49 43 49 43 322 322
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
756X375X375 75L 		8-98021-294-5 01 1 1012- ●
1 TANK; FUEL
FUEL TANK 75 LITTER<7GX> 756X375X375 75L 		8-98021-294-5 01 1 1012- ●
1 TANK; FUEL
FUEL TANK 100 LITTER<N02> 1003X375X380 100L 		8-98021-295-6 01 1 1012- ●
42 NUT; SUPPORT BELT
M8 FLANGE 		9-09130-408-0 02 1 1012- ● ●
43 BRACKET; FUEL TANK
FRAME-KICK UP<7EW> FUEL TANK 75 LITTER<7GX> 		8-97308-627-1 02 1 1407-1407 ●
43 BRACKET; FUEL TANK
FRONT 		8-97384-056-1 01 1 1012-1406 ●
43 BRACKET; FUEL TANK
WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> FRONT 		8-97384-056-1 01 1 1012-1406 ●
43 BRACKET; FUEL TANK 8-97384-056-1 01 1 1407-1407 ●
43 BRACKET; FUEL TANK
WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> EXC. FRAME-KICK UP<7EW> 		8-97384-056-1 01 1 1407-1407 ●
43 BRACKET; FUEL TANK 8-97384-056-1 01 1 1408- ●
43 BRACKET; FUEL TANK
WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> 		8-97384-056-1 01 1 1408- ●
43 BRACKET; FUEL TANK
REAR 		8-97384-081-1 01 1 1012-1406 ●
43 BRACKET; FUEL TANK
WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> REAR 		8-97384-081-1 01 1 1012-1406 ●
43 BRACKET; FUEL TANK 8-97384-081-1 01 1 1407-1407 ●
43 BRACKET; FUEL TANK
WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> EXC. FRAME-KICK UP<7EW> 		8-97384-081-1 01 1 1407-1407 ●
43 BRACKET; FUEL TANK 8-97384-081-1 01 1 1408- ●
43 BRACKET; FUEL TANK
WHEEL BASE 2400MM(24W) FUEL TANK 75 LITTER<7GX> 		8-97384-081-1 01 1 1408- ●
43 BRACKET; FUEL TANK
WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> FRONT 		8-98061-738-1 01 1 1012-1406 ●
43 BRACKET; FUEL TANK
WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> EXC. FRAME-KICK UP<7EW> 		8-98061-738-1 01 1 1407-1407 ●
43 BRACKET; FUEL TANK
WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> 		8-98061-738-1 01 1 1408- ●
43 BRACKET; FUEL TANK
WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> REAR 		8-98061-739-1 01 1 1012-1406 ●
43 BRACKET; FUEL TANK
WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> EXC. FRAME-KICK UP<7EW> 		8-98061-739-1 01 1 1407-1407 ●
43 BRACKET; FUEL TANK
WHEEL BASE 3300MM(33W) FUEL TANK 100 LITTER<N02> 		8-98061-739-1 01 1 1408- ●
49 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 1012-1406 ● ●
49 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 1407-1407 ●
49 NUT; BRKT
EXC. FRAME-KICK UP<7EW> M10 FLANGE 		0-91180-210-0 08 1 1407-1407 ●
49 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 1408- ● ●
322 BOLT; BRKT FIX
M10X30 FLANGE 		0-28661-030-0 08 1 1012- ● ●
653 BAND KIT; FUEL TANK 5-87411-970-0 02 1 1012- ● ●

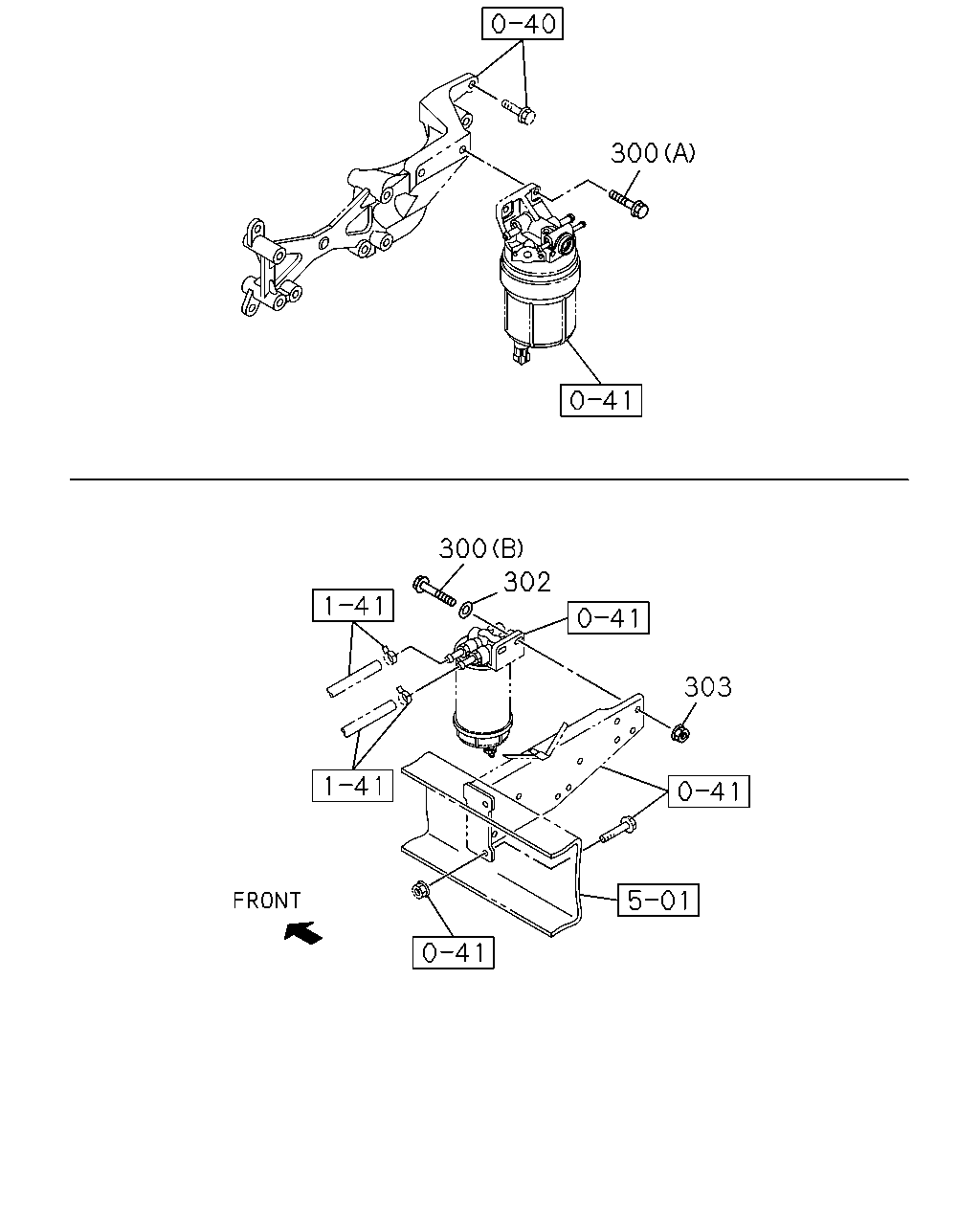

çizim 174909
300 300 302 303
BalonParca AdiParca NoAdetTipApplied Date A B
300 BOLT; BRKT TO BODY
(B) M10X40 FLANGE 		0-28651-040-0 02 1 1012- ● ●
300 BOLT; BRKT TO BODY
EXC. KD PREPARATORY PACK<6HF> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ● ●
302 WASHER; PL,SEDIMENTER
ID=10.5 OD=26 		0-91614-710-0 02 1 1012- ● ●
303 NUT; SEDIMENTER BRKT
M10 FLANGE 		0-91180-110-0 02 1 1012- ● ●
