2 |

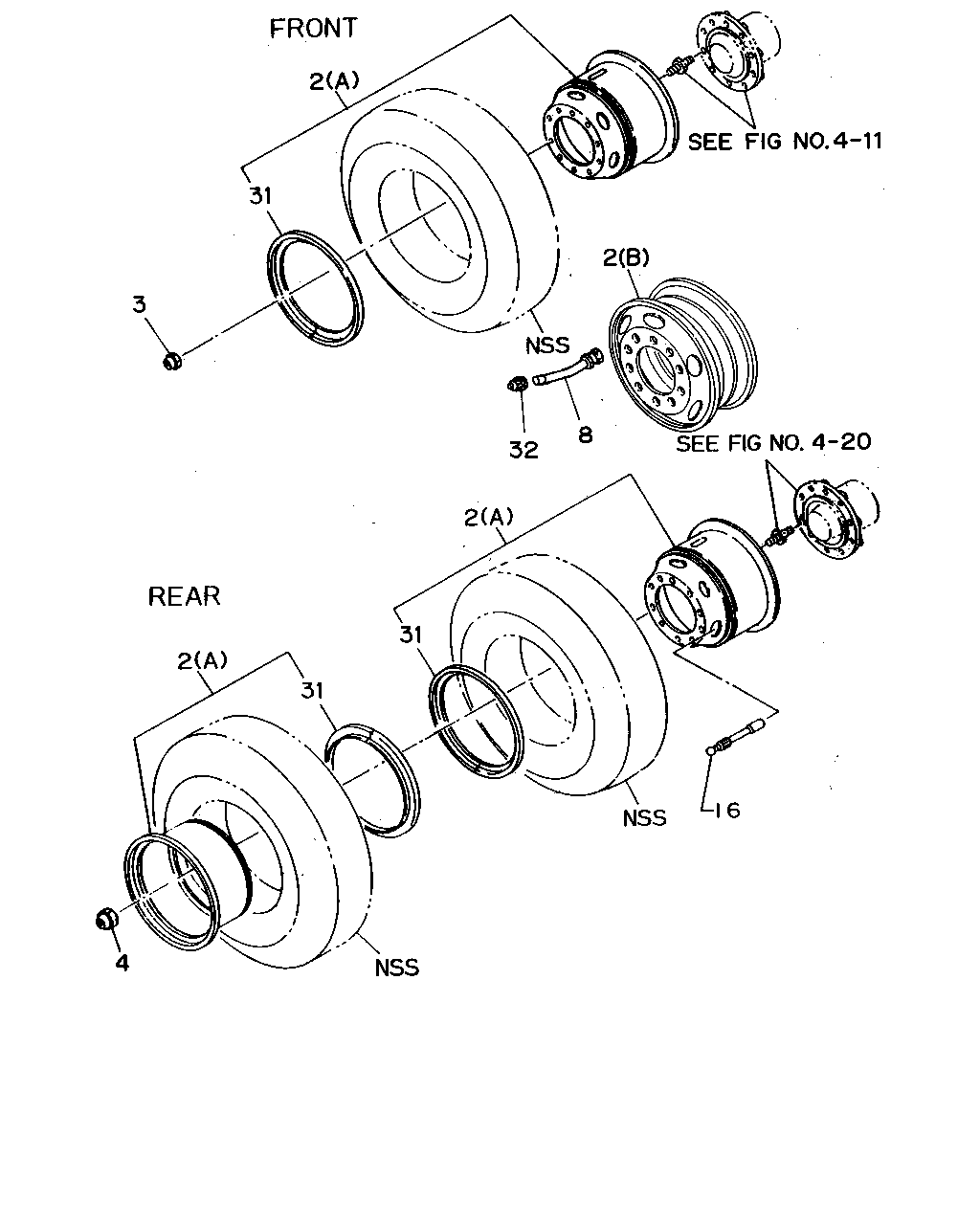

WHEEL; DISC
DISC WHEEL SPARE<N79>
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
(B)
|
1-42350-333-0 |
01 |
1 |
9307-9312 |
| |
2 |
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
SPARE TIRE & DISC WHEEL RR<R46>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC
WHEEL SPARE<N79>
(B)
|
1-42350-333-0 |
01 |
1 |
9307-9312 |
| |
2 |
WHEEL; DISC
DISC WHEEL SPARE<N79>
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
(B)
|
1-42350-471-0 |
01 |
1 |
9401- |
| |
2 |
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
SPARE TIRE & DISC WHEEL RR<R46>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC
WHEEL SPARE<N79>
(B)
|
1-42350-471-0 |
01 |
1 |
9401- |
| |
2 |
WHEEL; DISC
DISC WHEEL SPARE<N79>
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
WHEEL PAINTED LIGHT ARGENT<SKD>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
(B)
|
1-42350-334-0 |
01 |
1 |
9004-9306 |
| |
2 |
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
SPARE TIRE & DISC WHEEL RR<R46>
WHEEL PAINTED LIGHT ARGENT<SKD>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC
WHEEL SPARE<N79>
(B)
|
1-42350-334-0 |
01 |
1 |
9004-9306 |
| |
2 |
WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL
RR<R46>
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
(B)
|
1-42350-333-0 |
01 |
1 |
9002-9003 |
| |
2 |
WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL
RR<R46>
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL
PAINTED LIGHT ARGENT<SKD>
(B)
|
1-42350-333-0 |
01 |
1 |
9004-9306 |
| |
2 |
WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL
RR<R46>
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
(B)
|
1-42350-330-0 |
01 |
1 |
9002-9003 |
| |
2 |
WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL
RR<R46>
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
EXC. WHEEL PAINTED LIGHT ARGENT<SKD>,DISC WHEEL
SPECIAL PAINTED TOPY WHITE<W20>
(B)
|
1-42350-330-0 |
01 |
1 |
9004-9306 |
| |
2 |
WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL
RR<R46>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC
WHEEL 10STUD 8.25X22.5 165-13(QM8)
(A)
|
1-42350-137-1 |
01 |
1 |
9002-9406 |
| |
2 |
WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL
RR<R46>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC
WHEEL 10STUD 8.25X22.5 165-13(QM8)
(A)
|
1-42350-496-0 |
01 |
1 |
9407- |
| |
2 |
WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL
RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC
WHEEL 10STUD 8.25X22.5 165-13(QM8)
(A)
|
1-42350-137-1 |
01 |
1 |
8712-9001 |
| |
2 |
WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL
RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>
INTERNATIONAL STANDARD ISO 10STUD<B3V>
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
(A)
|
1-42350-161-2 |
01 |
1 |
8712-9001 |
| |
2 |
WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL
RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
(B)
|
1-42350-233-0 |
01 |
1 |
8712-8809 |
| |
2 |
WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL
RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
(B)
|
1-42350-237-0 |
01 |
1 |
8712-8809 |
| |
2 |
WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL
RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
(B)
|
1-42350-282-1 |
01 |
1 |
8810-9001 |
| |
2 |
WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL
RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
(B)
|
1-42350-284-1 |
01 |
1 |
8810-9001 |
| |
2 |
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
(B)
|
1-42350-237-0 |
12 |
1 |
8712-8809 |
| |
2 |
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
(B)
|
1-42350-284-1 |
12 |
1 |
8810-9001 |
| |
2 |
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
(B)
|
1-42350-333-0 |
12 |
1 |
9002-9003 |
| |
2 |
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL
PAINTED LIGHT ARGENT<SKD>
(B)
|
1-42350-333-0 |
12 |
1 |
9004-9306 |
| |
2 |
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
(B)
|
1-42350-333-0 |
12 |
1 |
9307-9312 |
| |
2 |
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
(B)
|
1-42350-471-0 |
12 |
1 |
9401- |
| |
2 |
WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
WHEEL PAINTED LIGHT ARGENT<SKD>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
(B)
|
1-42350-334-0 |
12 |
1 |
9004-9306 |
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL SPARE<N79>
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
WHEEL PAINTED LIGHT ARGENT<SKD>
(B)
|
1-42350-331-0 |
01 |
1 |
9004-9004 |
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
SPARE TIRE & DISC WHEEL RR<R46>
WHEEL PAINTED LIGHT ARGENT<SKD>
EXC. DISC WHEEL SPARE<N79>
(B)
|
1-42350-331-0 |
01 |
1 |
9004-9004 |
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL SPARE<N79>
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20>
(B)
|
1-42350-332-0 |
01 |
1 |
9004-9306 |
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC
WHEEL FRONT TIRE ONE<WH2>
DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20>
EXC. DISC WHEEL SPARE<N79>
(B)
|
1-42350-332-0 |
01 |
1 |
9004-9306 |
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL SPARE<N79>
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
(B)
|
1-42350-330-0 |
01 |
1 |
9307-9312 |
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC
WHEEL FRONT TIRE ONE<WH2>
EXC. DISC WHEEL SPARE<N79>
(B)
|
1-42350-330-0 |
01 |
1 |
9307-9312 |
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL SPARE<N79>
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
(B)
|
1-42350-468-0 |
01 |
1 |
9401- |
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC
WHEEL FRONT TIRE ONE<WH2>
EXC. DISC WHEEL SPARE<N79>
(B)
|
1-42350-468-0 |
01 |
1 |
9401- |
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL SPARE<N79>
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
(A)
|
1-42350-161-2 |
01 |
1 |
9002-9301 |
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
SPARE TIRE & DISC WHEEL RR<R46>
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
(A)
|
1-42350-161-2 |
01 |
1 |
9002-9301 |
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL SPARE<N79>
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
(A)
|
1-42350-448-0 |
01 |
1 |
9302-9306 |
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
SPARE TIRE & DISC WHEEL RR<R46>
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
(A)
|
1-42350-448-0 |
01 |
1 |
9302-9306 |
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL
RR<R46>
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
(A)
|
1-42350-448-0 |
01 |
1 |
9307- |
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
(B)
|
1-42350-233-0 |
12 |
1 |
8712-8809 |
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
(B)
|
1-42350-282-1 |
12 |
1 |
8810-9001 |
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
(B)
|
1-42350-330-0 |
12 |
1 |
9002-9003 |
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
EXC. WHEEL PAINTED LIGHT ARGENT<SKD>
(B)
|
1-42350-330-0 |
12 |
1 |
9004-9004 |
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
EXC. WHEEL PAINTED LIGHT ARGENT<SKD>,DISC WHEEL
SPECIAL PAINTED TOPY WHITE<W20>
(B)
|
1-42350-330-0 |
12 |
1 |
9004-9306 |
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
(B)
|
1-42350-330-0 |
12 |
1 |
9307-9312 |
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
(B)
|
1-42350-468-0 |
12 |
1 |
9401- |
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20>
(B)
|
1-42350-332-0 |
12 |
1 |
9004-9306 |
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
WHEEL PAINTED LIGHT ARGENT<SKD>
(B)
|
1-42350-331-0 |
12 |
1 |
9004-9306 |
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
(A)
|
1-42350-161-2 |
12 |
1 |
8712-9301 |
| |
2 |
WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V>
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
(A)
|
1-42350-448-0 |
12 |
1 |
9302- |
| |
2 |
WHEEL; DISC
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC
WHEEL 10STUD 8.25X22.5 165-13(QM8)
(A)
|
1-42350-137-1 |
12 |
1 |
8712-9406 |
| |
2 |
WHEEL; DISC
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC
WHEEL 10STUD 8.25X22.5 165-13(QM8)
(A)
|
1-42350-496-0 |
12 |
1 |
9407- |
| |
3 |
NUT; WHEEL,FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V>
M22
|
1-42333-029-0 |
40 |
1 |
8712-9203 |
| |
3 |
NUT; WHEEL,FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V>
M22 RH THREAD
|
1-42333-042-0 |
40 |
1 |
9204- |
| |
3 |
NUT; WHEEL,FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
M22
|
1-42333-031-0 |
40 |
1 |
8712-9110 |
| |
3 |
NUT; WHEEL,FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
M22
|
1-42333-040-0 |
40 |
1 |
9111- |
| |
4 |
NUT; WHEEL,RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V>
M22
|
1-42333-029-0 |
40 |
1 |
8712-9203 |
| |
4 |
NUT; WHEEL,RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V>
M22 RH THREAD
|
1-42333-042-0 |
40 |
1 |
9204- |
| |
4 |
NUT; WHEEL,RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
M22
|
1-42333-031-0 |
40 |
1 |
8712-9110 |
| |
4 |
NUT; WHEEL,RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
M22
|
1-42333-040-0 |
40 |
1 |
9111- |
| |
8 |
VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
|
1-42370-010-0 |
12 |
1 |
8712-8809 |
| |
8 |
VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
|
1-42370-025-0 |
12 |
1 |
8810-8810 |
| |
8 |
VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL
RR<R46>
|
1-42370-020-3 |
01 |
1 |
8811- |
| |
8 |
VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
|
1-42370-020-3 |
12 |
1 |
8811- |
| |
8 |
VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL
RR<R46>
|
1-42370-010-0 |
01 |
1 |
8712-8809 |
| |
8 |
VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL
RR<R46>
|
1-42370-025-0 |
01 |
1 |
8810-8810 |
| |
16 |
HOLDER; TIRE VALVE,DISC WHEEL
L=115
|
1-42370-015-1 |
04 |
1 |
8805-8810 |
| |
16 |
HOLDER; TIRE VALVE,DISC WHEEL
L=170
|
1-42370-024-0 |
04 |
1 |
8811- |
| |
31 |
RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL
RR<R46>
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC
WHEEL 10STUD 8.25X22.5 165-13(QM8)
|
1-42355-004-1 |
01 |
1 |
8712- |
| |
31 |
RING; SIDE,DISC WHEEL
INTERNATIONAL STANDARD ISO 10STUD<B3V>
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL
RR<R46>
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
|
1-42355-014-0 |
01 |
1 |
8712- |
| |
31 |
RING; SIDE,DISC WHEEL
INTERNATIONAL STANDARD ISO 10STUD<B3V>
EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)
|
1-42355-014-0 |
12 |
1 |
8712- |
| |
31 |
RING; SIDE,DISC WHEEL
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC
WHEEL 10STUD 8.25X22.5 165-13(QM8)
|
1-42355-004-1 |
12 |
1 |
8712- |
| |
32 |
CAP; VALVE
DISC WHEEL SPARE<N79>
|
1-42374-001-0 |
11 |
1 |
9304-9409 |
| |
32 |
CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46>
EXC. DISC WHEEL SPARE<N79>
|
1-42374-001-0 |
11 |
1 |
9304-9409 |
| |
32 |
CAP; VALVE
EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL
RR<R46>
|
1-42374-001-0 |
12 |
1 |
9410- |
| |
32 |
CAP; VALVE
EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL
RR<R46>
|
1-42374-001-0 |
10 |
1 |
9304-9409 |
| |
32 |
CAP; VALVE
DISC WHEEL SPARE<N79>
|
1-42374-001-0 |
13 |
1 |
9410- |
| |
32 |
CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46>
EXC. DISC WHEEL SPARE<N79>
|
1-42374-001-0 |
13 |
1 |
9410- |
