◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51287 - ELF200/300(MEXICO) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#54197) — 31 parça

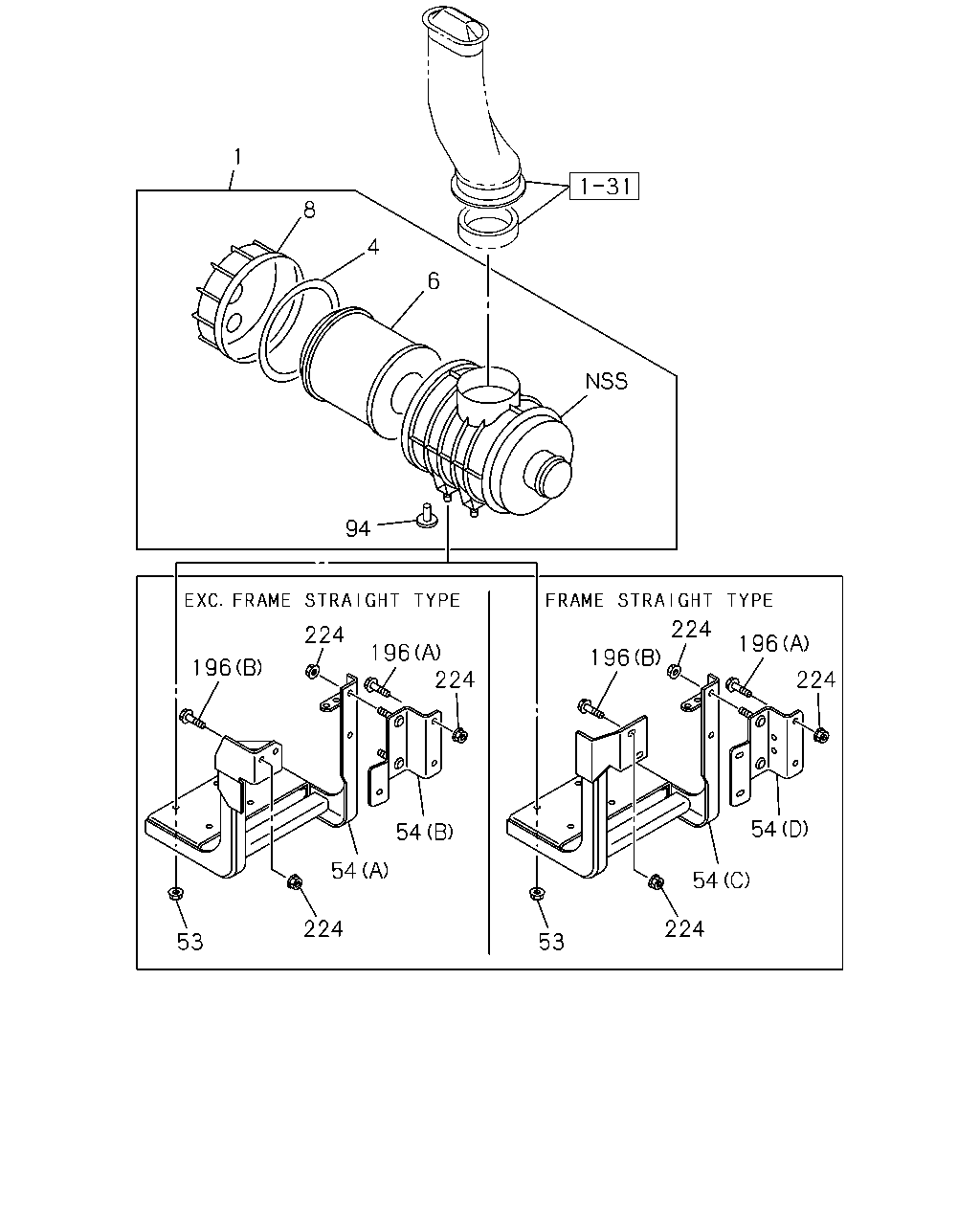

çizim 174902
1 4 8 6 94 196 53 224 224 54 196 224 54 196 53 224 224 54 54 196 224
BalonParca AdiParca NoAdetTipApplied Date A B
1 CLEANER ASM; AIR 8-98050-415-2 01 1 1012- ● ●
4 GASKET; COVER TO BODY 8-97352-113-0 01 1 1012- ● ●
6 FILTER; ACL 8-97062-294-0 01 1 1012- ● ●
6 FILTER; ACL
BEST VALUE PARTS 		5-87610-020-0 01 1 1012- ● ●
8 COVER ASM; ACL 8-98050-434-1 01 1 1012- ● ●
53 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1012- ● ●
54 BRACKET; ACL
FRAME-KICK UP<7EW> (C) 		8-98067-736-1 01 1 1407-1407 ●
54 BRACKET; ACL
FRAME-KICK UP<7EW> (D) 		8-98067-738-1 01 1 1407-1407 ●
54 BRACKET; ACL
FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98067-768-2 01 1 1012-1301 ●
54 BRACKET; ACL
(A) 		8-98067-768-2 01 1 1302-1406 ● ●
54 BRACKET; ACL
(A) 		8-98067-768-2 01 1 1407-1407 ●
54 BRACKET; ACL
EXC. FRAME-KICK UP<7EW> (A) 		8-98067-768-2 01 1 1407-1407 ●
54 BRACKET; ACL
(A) 		8-98067-768-2 01 1 1408- ● ●
54 BRACKET; ACL
(B) 		8-98071-306-1 01 1 1012-1406 ● ●
54 BRACKET; ACL
(B) 		8-98071-306-1 01 1 1407-1407 ●
54 BRACKET; ACL
EXC. FRAME-KICK UP<7EW> (B) 		8-98071-306-1 01 1 1407-1407 ●
54 BRACKET; ACL
(B) 		8-98071-306-1 01 1 1408- ● ●
54 BRACKET; ACL
EXC. FRT INDEPENDENT SUSPENSION(FF0) (A) 		8-98125-606-1 01 1 1012-1301 ●
54 BRACKET; ACL
(A) 		8-98125-606-1 01 1 1012-1301 ●
94 VALVE; VACUATOR 8-97093-694-0 01 1 1012- ● ●
196 BOLT; BRKT,ACL
FRAME-KICK UP<7EW> (A) M10X30 FLANGE 		0-28651-030-0 04 1 1407-1407 ●
196 BOLT; BRKT,ACL
(A) M10X30 FLANGE 		0-28651-030-0 03 1 1012-1406 ● ●
196 BOLT; BRKT,ACL
(A) M10X30 FLANGE 		0-28651-030-0 03 1 1407-1407 ●
196 BOLT; BRKT,ACL
EXC. FRAME-KICK UP<7EW> (A) M10X30 FLANGE 		0-28651-030-0 03 1 1407-1407 ●
196 BOLT; BRKT,ACL
(A) M10X30 FLANGE 		0-28651-030-0 03 1 1408- ● ●
196 BOLT; BRKT,ACL
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1012- ● ●
224 NUT; BRKT
FRAME-KICK UP<7EW> M10 FLANGE 		0-91180-110-0 02 1 1407-1407 ●
224 NUT; BRKT
M10 FLANGE 		0-91180-110-0 05 1 1012-1406 ● ●
224 NUT; BRKT
M10 FLANGE 		0-91180-110-0 05 1 1407-1407 ●
224 NUT; BRKT
EXC. FRAME-KICK UP<7EW> M10 FLANGE 		0-91180-110-0 05 1 1407-1407 ●
224 NUT; BRKT
M10 FLANGE 		0-91180-110-0 05 1 1408- ● ●
