Isuzu WW
▶
TRUCKS
▶
ELF
▶
51287 - ELF200/300(MEXICO)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#54195) — 50 parça
Tümü
A - NMR6SE
B - NMR6SN
◀

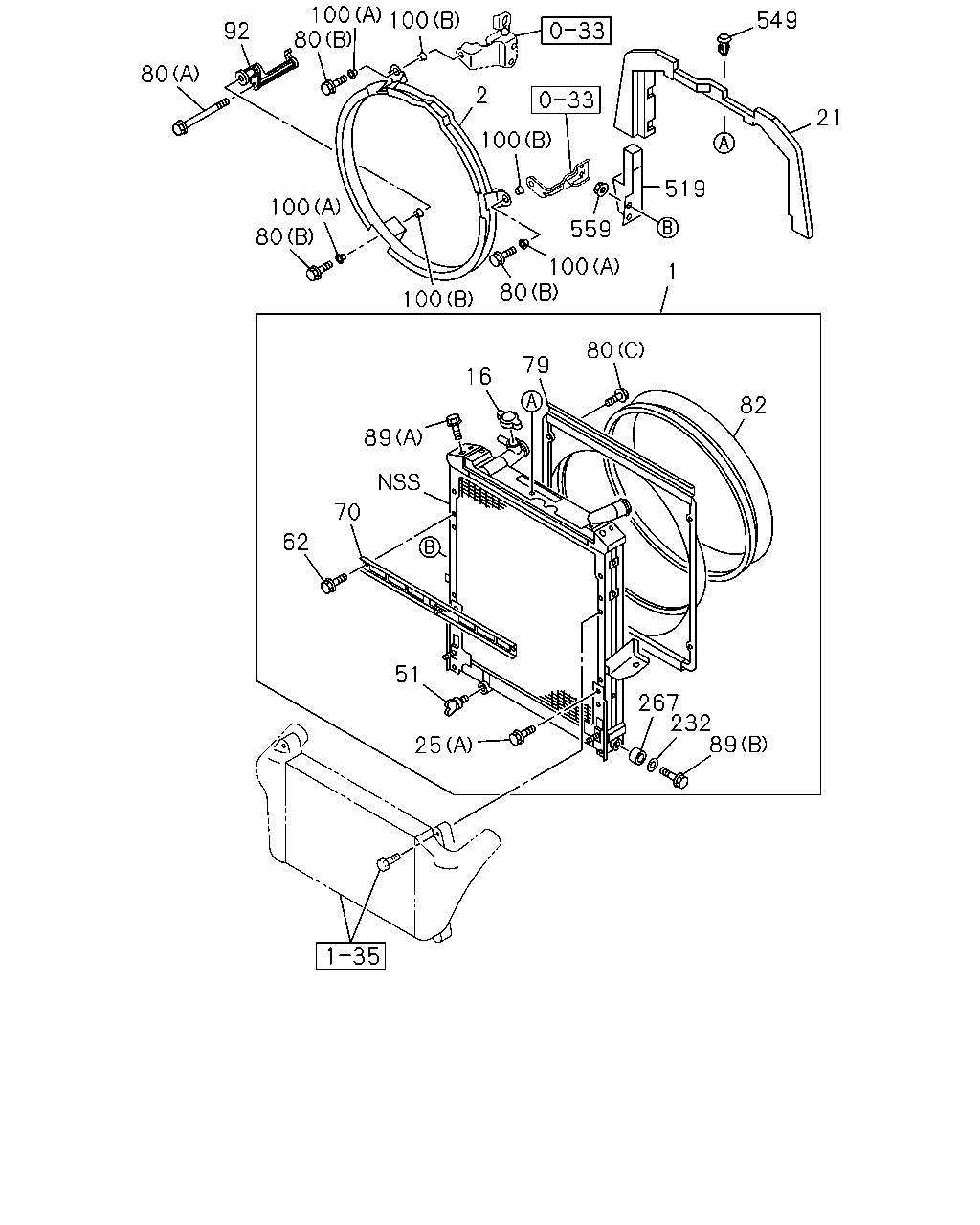

[110A] NO.2 (30 parça)

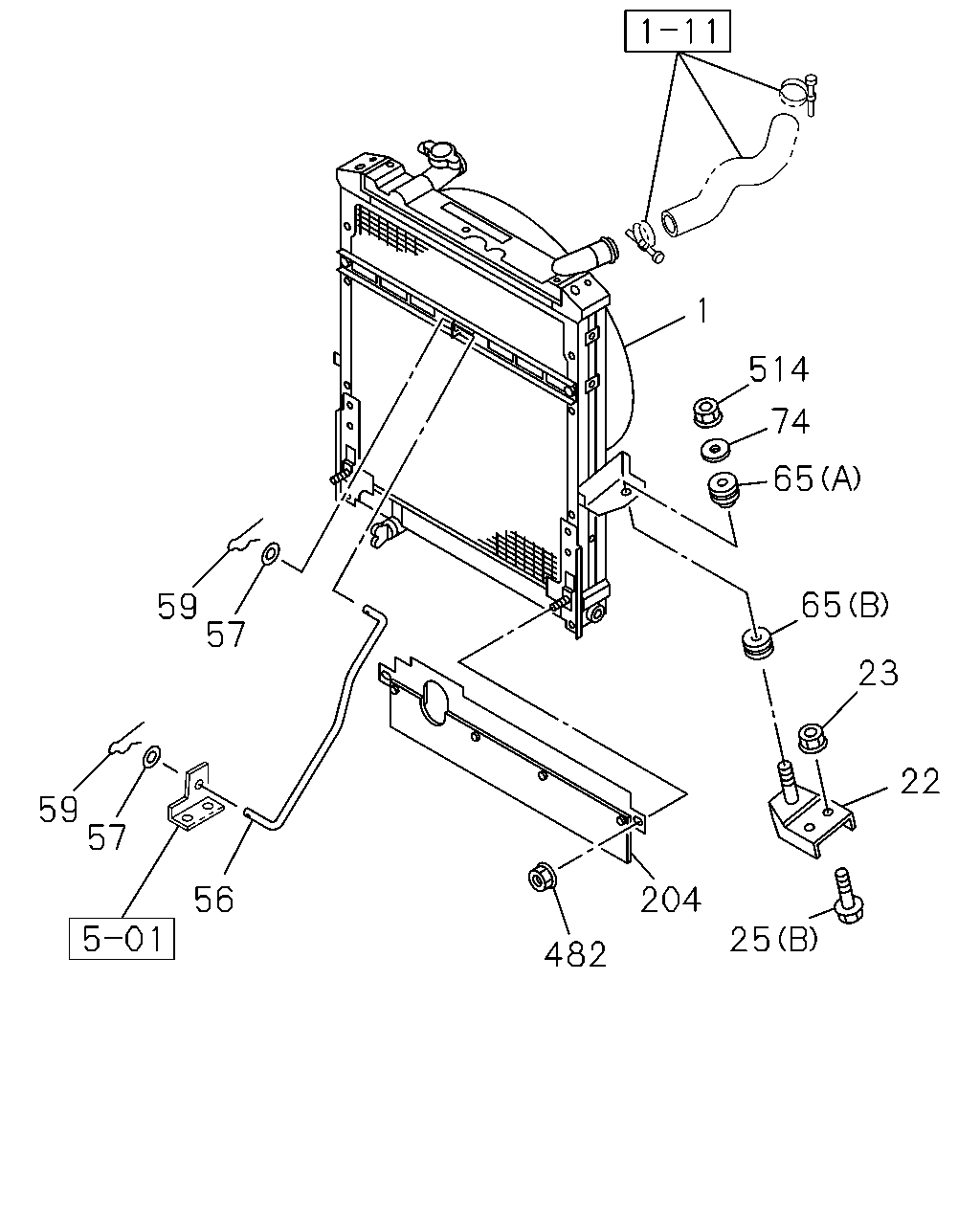

[110A] NO.1 (20 parça)
▶
100
80
100
549
92
80
2
21
100
519
100
559
80
100
80
1
100
80
79
16
82
89
70
62
51
267
232
89
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RADIATOR ASM
8-97387-466-1
01
1
1012-1410
●
●
1
RADIATOR ASM
8-98259-933-0
01
1
1411-
●
●
2
GUIDE; FAN
8-98054-659-0
01
1
1012-
●
●
16
CAP; RAD
8-97239-187-0
01
1
1012-
●
●
21
SEAL; RAD
8-98000-816-0
01
1
1012-
●
●
25
BOLT; BRKT
(A) M6X12 FLANGE
0-28050-612-0
04
1
1012-
●
●
25
BOLT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) M10X30 FLANGE
0-28651-030-0
04
1
1012-
●
25
BOLT; BRKT
(B) M10X30 FLANGE
0-28651-030-0
04
1
1012-
●
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1012-
●
●
62
BOLT; STAY
M8X12 FLANGE
0-28050-812-0
02
1
1012-
●
●
70
STAY; RAD
8-98018-940-0
01
1
1012-
●
●
79
GUIDE; FAN,RAD
8-97387-081-1
01
1
1012-1410
●
●
79
GUIDE; FAN,RAD
8-98234-712-0
01
1
1411-
●
●
80
BOLT; FAN GUIDE
(A) M8X130 FLANGE
0-28055-813-0
01
1
1012-
●
●
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1012-
●
●
80
BOLT; FAN GUIDE
(C) M6X12
8-98039-672-0
02
1
1012-1410
●
●
80
BOLT; FAN GUIDE
(C) M6X12
8-98039-672-0
04
1
1411-
●
●
82
COVER; FAN,RAD
8-97387-085-1
01
1
1012-
●
●
89
BOLT
(A) M8X12 FLANGE
0-28050-812-0
02
1
1012-
●
●
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
02
1
1012-
●
●
92
BRACKET; FAN GUIDE
8-97381-550-1
01
1
1012-1303
●
●
92
BRACKET; FAN GUIDE
8-98237-770-0
01
1
1304-
●
●
100
RUBBER; MTG
(B) OD=32
8-94395-766-0
03
1
1012-
●
●
100
RUBBER; MTG
(A) OD=32
8-98058-502-1
03
1
1012-
●
●
232
COLLAR; DIST,CUSHION RUBBER
1-87410-723-0
02
1
1012-1410
●
●
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
02
1
1411-
●
●
267
RUBBER; CUSHION
1-21467-023-0
02
1
1012-
●
●
519
SEAL; RAD SIDE
8-98038-591-0
01
1
1012-
●
●
549
CLIP; SEAL,RAD
8-97228-568-0
05
1
1012-
●
●
559
NUT; RAD SIDE
M6 FLANGE
0-91180-106-0
02
1
1012-
●
●
1
514
74
65
65
59
57
23
22
59
57
56
204
25
482
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RADIATOR ASM
8-97387-466-1
01
1
1012-1410
●
●
1
RADIATOR ASM
8-98259-933-0
01
1
1411-
●
●
22
BRACKET; RAD MTG
EXC. FRT INDEPENDENT SUSPENSION(FF0)
8-97383-951-0
01
1
1012-
●
22
BRACKET; RAD MTG
8-97383-951-0
01
1
1012-
●
22
BRACKET; RAD MTG
EXC. FRT INDEPENDENT SUSPENSION(FF0)
8-97383-952-0
01
1
1012-
●
22
BRACKET; RAD MTG
8-97383-952-0
01
1
1012-
●
23
NUT; RAD MTG
EXC. FRT INDEPENDENT SUSPENSION(FF0) M10 FLANGE
0-91180-110-0
04
1
1012-
●
23
NUT; RAD MTG
M10 FLANGE
0-91180-110-0
04
1
1012-
●
25
BOLT; BRKT
(A) M6X12 FLANGE
0-28050-612-0
04
1
1012-
●
●
25
BOLT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) M10X30 FLANGE
0-28651-030-0
04
1
1012-
●
25
BOLT; BRKT
(B) M10X30 FLANGE
0-28651-030-0
04
1
1012-
●
56
STAY; RAD
8-97383-947-1
01
1
1012-
●
●
57
WASHER; PL,STAY
ID=10.5
0-91610-510-0
02
1
1012-
●
●
59
PIN; SNAP,STAY
L=32.6
8-97359-052-0
02
1
1012-
●
●
65
INSULATOR; RAD
(A)
8-94249-346-0
02
1
1012-
●
●
65
INSULATOR; RAD
(B)
8-94249-347-0
02
1
1012-
●
●
74
WASHER; PL,CUSHION RUBBER
ID=8.5 OD=36
8-97359-049-1
02
1
1012-
●
●
204
GUIDE ASM; AIR
8-97383-928-1
01
1
1012-
●
●
482
NUT; AIR GUIDE
M8 FLANGE
0-91180-108-0
02
1
1012-
●
●
514
NUT; RAD
M8 FLANGE
0-91180-108-0
02
1
1012-
●
●
