0-52 — OIL AND VACUUM PIPING; ENGINE
(#54188) — 44 parça
◀

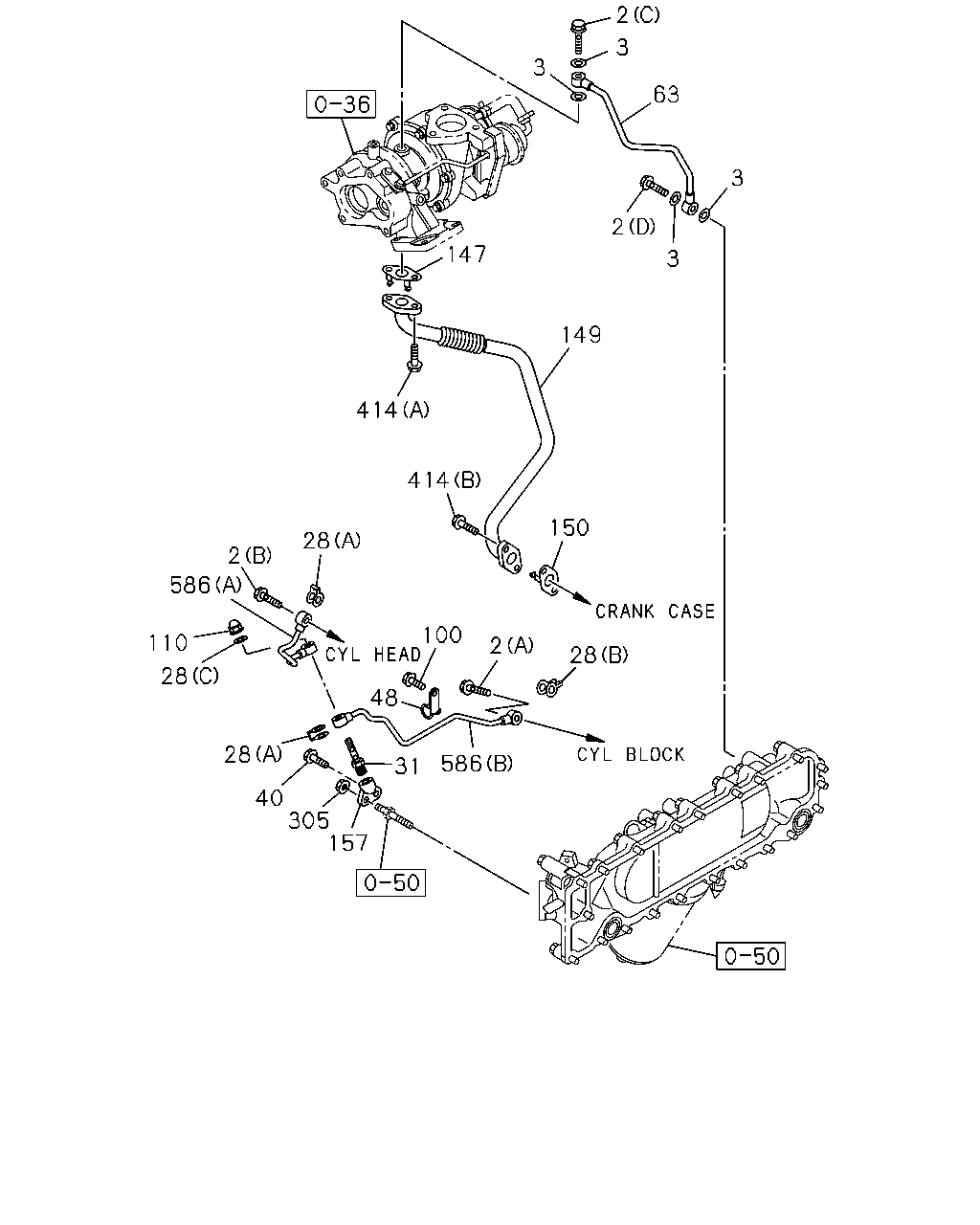

[052A] NO.1 (25 parça)
[052A] NO.2 (19 parça)
▶
2
3
3
63
3
2
147
3
149
414
414
150
28
2
586
100
110
2
28
28
48
28
586
31
40
305
157
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BOLT; EYE,OIL PIPE
(A) M14X27 FLANGE
1-09675-086-0
01
1
1012-
2
BOLT; EYE,OIL PIPE
(B) M8X20 EYE-BOLT
5-09675-018-1
01
1
1012-
2
BOLT; EYE,OIL PIPE
(C) M10X27 FLANGE
8-94443-535-0
01
1
1012-
2
BOLT; EYE,OIL PIPE
(D) M10X24
9-09906-205-1
01
1
1012-
3
GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=16.0
9-09571-410-0
04
1
1012-
28
GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=8.2 OD=13.2
1-09630-082-0
01
1
1012-
28
GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=8.2
8-97251-046-0
02
1
1012-
28
GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0
8-98113-762-0
01
1
1012-
31
NIPPLE; OIL PIPE
8-98044-067-1
01
1
1012-
40
BOLT; OIL PIPE
M6X12 FLANGE
0-28050-612-0
01
1
1012-
48
CLIP; OIL PIPE
ID=7 L=28
8-98121-233-0
01
1
1012-
63
PIPE; OIL,TURBOCHARGER FEED
8-97381-488-0
01
1
1012-
100
BOLT; CLIP
M8X12 FLANGE
0-28050-812-0
01
1
1012-
110
NUT; CAP OIL PIPE
M8 CAP NUT FLANGE
8-97372-242-0
01
1
1012-1309
110
NUT; CAP OIL PIPE
M8 CAP NUT FLANGE
8-98251-964-0
01
1
1310-
147
GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=16
8-98029-475-0
01
1
1012-
149
PIPE; OIL RETURN,TURBOCHARGER
8-97381-489-2
01
1
1012-
150
GASKET; OIL PIPE TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-98029-476-0
01
1
1012-
157
BRACKET; OIL PIPE
8-98043-093-0
01
1
1012-
305
NUT; BRKT,OIL PIPE
M6 FLANGE
0-91180-106-0
01
1
1012-
414
BOLT; OIL PIPE
(A) M6X18 HEX SOCKET
0-58330-618-0
02
1
1012-1107
414
BOLT; OIL PIPE
(A) M6X16 HEX SOCKET
0-58330-616-0
02
1
1108-
414
BOLT; OIL PIPE
(B) M8X20 HEX SOCKET
0-58330-820-0
02
1
1012-
586
PIPE; OIL,TENSIONER
(A)
8-98039-566-0
01
1
1012-
586
PIPE; OIL,TENSIONER
(B)
8-98039-567-0
01
1
1012-

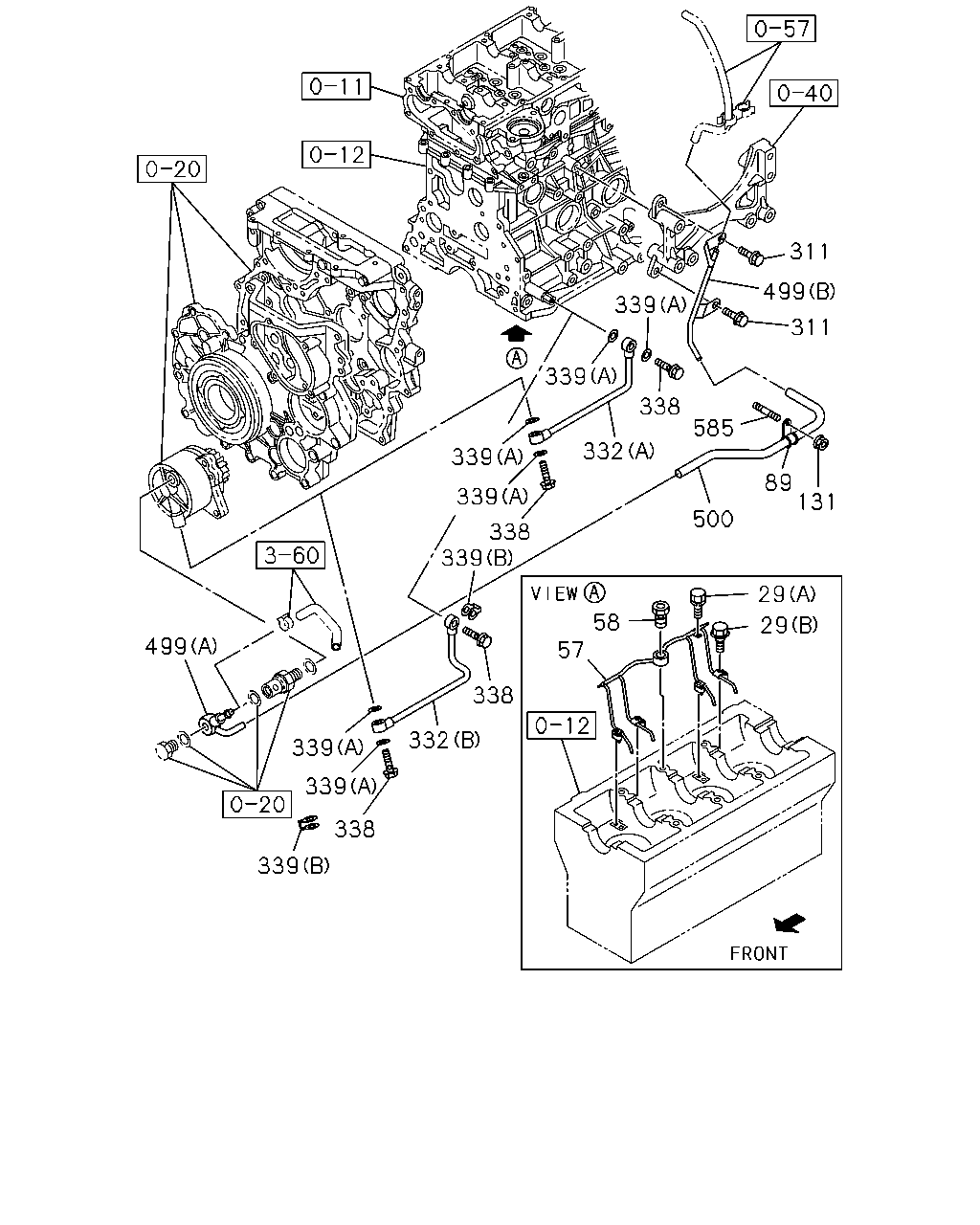

499
339
338
339
339
332
338
339
339
338
339
311
499
339
311
339
338
332
500
131
89
29
29
58
57
585
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
BOLT; OIL PIPE,OIL JET
(A) M8X10 FLANGE
0-28050-810-0
01
1
1012-
29
BOLT; OIL PIPE,OIL JET
(B) M6X20
8-97117-298-1
04
1
1012-
57
PIPE; OIL,OIL JET
8-97312-132-3
01
1
1012-
58
VALVE; RELIEF,OIL JET,PISTON COOLING
8-97239-048-1
01
1
1012-1407
58
VALVE; RELIEF,OIL JET,PISTON COOLING
8-98285-334-0
01
1
1408-
89
CLIP; VAC HOSE
9-09520-835-0
01
1
1012-
131
NUT; UNION
M8 FLANGE
5-09440-010-0
01
1
1012-
311
BOLT; PIPE FIX
M6X12 FLANGE
0-28050-612-0
02
1
1012-
332
PIPE; OIL,C/BL TO VAC PUMP
(A)
8-98038-929-0
01
1
1012-1212
332
PIPE; OIL,C/BL TO VAC PUMP
(B)
8-98201-785-0
01
1
1301-
338
BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT
5-09675-018-1
02
1
1012-
339
GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=8.3 OD=15.0
8-98065-992-0
01
1
1301-1302
339
GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=8.3 OD=15.0
8-98065-992-0
02
1
1303-
339
GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=8.2 OD=14.0 T=1.0
9-09571-408-0
04
1
1012-1212
339
GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=8.2 OD=14.0 T=1.0
9-09571-408-0
02
1
1301-1302
499
PIPE; VACUUM
(A)
8-97381-661-3
01
1
1012-
499
PIPE; VACUUM
(B)
8-97385-434-1
01
1
1012-
500
HOSE; VACUUM
8-97369-587-1
01
1
1012-
585
STUD; CLIP
M8X18 L=30
0-41010-818-0
01
1
1012-
