◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51287 - ELF200/300(MEXICO) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#54184) — 76 parça

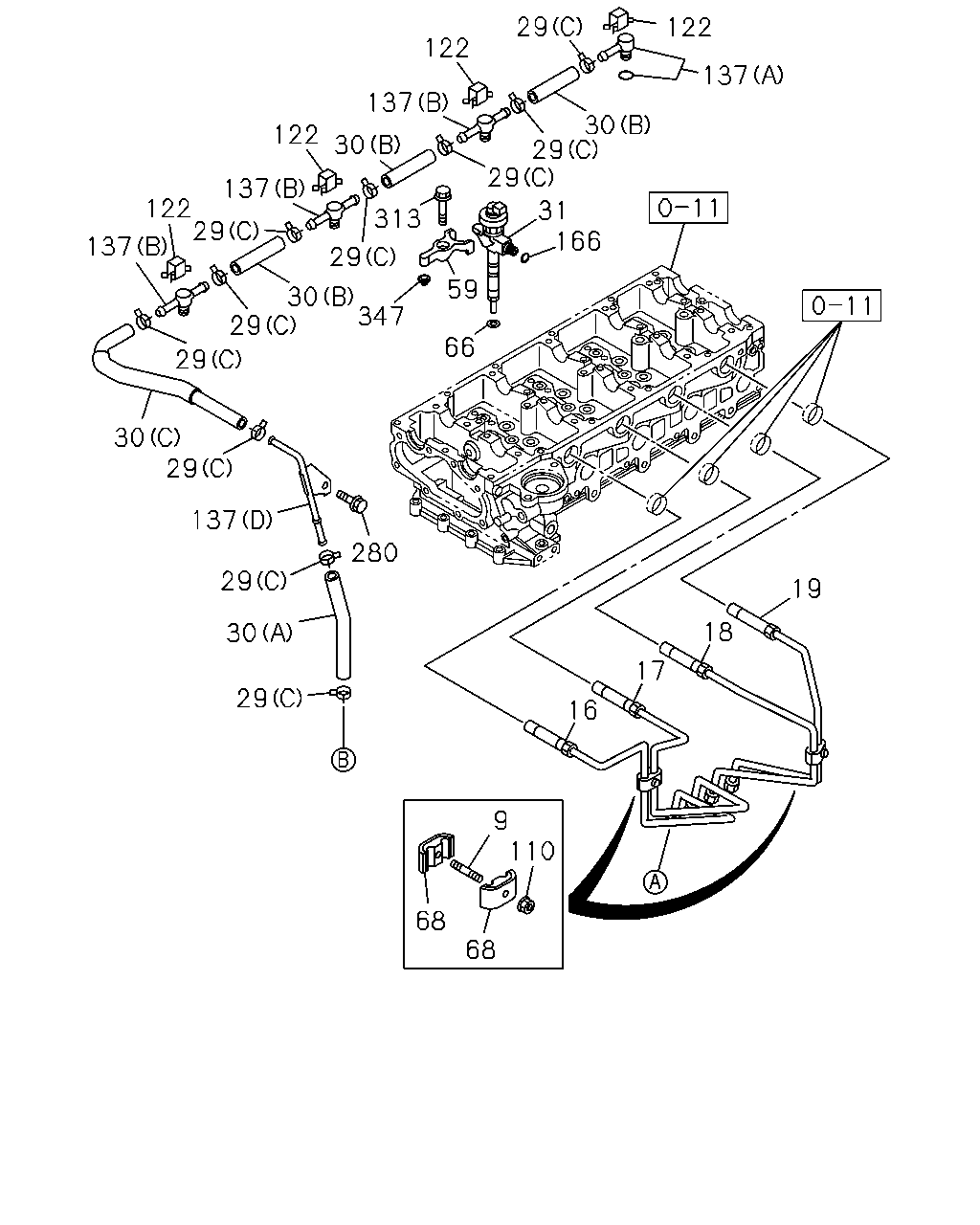

çizim 174874
122 29 122 137 30 122 137 29 122 137 30 137 29 30 29 313 29 31 59 166 66 347 30 29 29 29 280 137 29 30 29 9 110 68 68 16 18 17 19
BalonParca AdiParca NoAdetTipApplied Date
9 STUD; CLIP
M6X25 L=36 		8-97214-234-1 02 1 1012-1201
9 STUD; CLIP
M6X30 L=38 		0-41010-630-0 02 1 1202-
16 PIPE; INJ NO.1 8-98011-606-0 01 1 1012-1201
16 PIPE; INJ NO.1 8-98203-719-0 01 1 1202-
17 PIPE; INJ NO.2 8-98043-684-0 01 1 1012-1201
17 PIPE; INJ NO.2 8-98203-720-0 01 1 1202-
18 PIPE; INJ NO.3 8-98011-608-0 01 1 1012-1201
18 PIPE; INJ NO.3 8-98203-721-0 01 1 1202-
19 PIPE; INJ NO.4 8-98011-609-0 01 1 1012-1201
19 PIPE; INJ NO.4 8-98203-722-0 01 1 1202-
29 CLIP; HOSE
(A) ID=12 WO/PVC COATING 		8-94123-526-1 02 1 1012-
29 CLIP; HOSE
(B) ID=16 		8-94392-924-0 02 1 1012-
29 CLIP; HOSE
(C) ID=10.5 		8-97019-473-0 10 1 1012-
30 HOSE; RUBBER,FUEL LEAK
(A) L=130 		0-01804-130-0 01 1 1012-
30 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 1012-
30 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 1012-
30 HOSE; RUBBER,FUEL LEAK
(D) L=110 		8-97377-894-0 01 1 1012-
30 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98009-700-2 01 1 1012-1101
30 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1102-
31 NOZZLE ASM; INJ 8-98011-604-5 04 1 1012-
59 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 1012-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98077-165-0 04 1 1012-1103
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-540-0 04 1 1104-
68 CLIP; INJ PIPE 8-97213-481-0 04 1 1012-1201
68 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98039-293-0 04 1 1202-1405
68 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98148-996-2 04 1 1406-
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 02 1 1012-
122 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 1012-
137 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 1012-1101
137 PIPE ASM; LEAK OFF
(A) 		8-98161-062-0 01 1 1102-
137 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 1012-1101
137 PIPE ASM; LEAK OFF
(B) 		8-98161-061-0 03 1 1102-
137 PIPE ASM; LEAK OFF
(C) 		8-98009-699-0 01 1 1012-
137 PIPE ASM; LEAK OFF
(D) 		8-98036-510-0 01 1 1012-
166 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11 OD=14.8 		9-09566-111-0 04 1 1012-
280 BOLT; CLIP,FUEL HOSE
M8X12 FLANGE 		0-28050-812-0 01 1 1012-
313 BOLT; BRKT,INJ NOZZLE
M8X50 W/WASHER 		8-97372-144-0 04 1 1012-
347 PIN 8-97383-286-0 04 1 1012-1012
347 PIN 8-98165-035-0 04 1 1012-

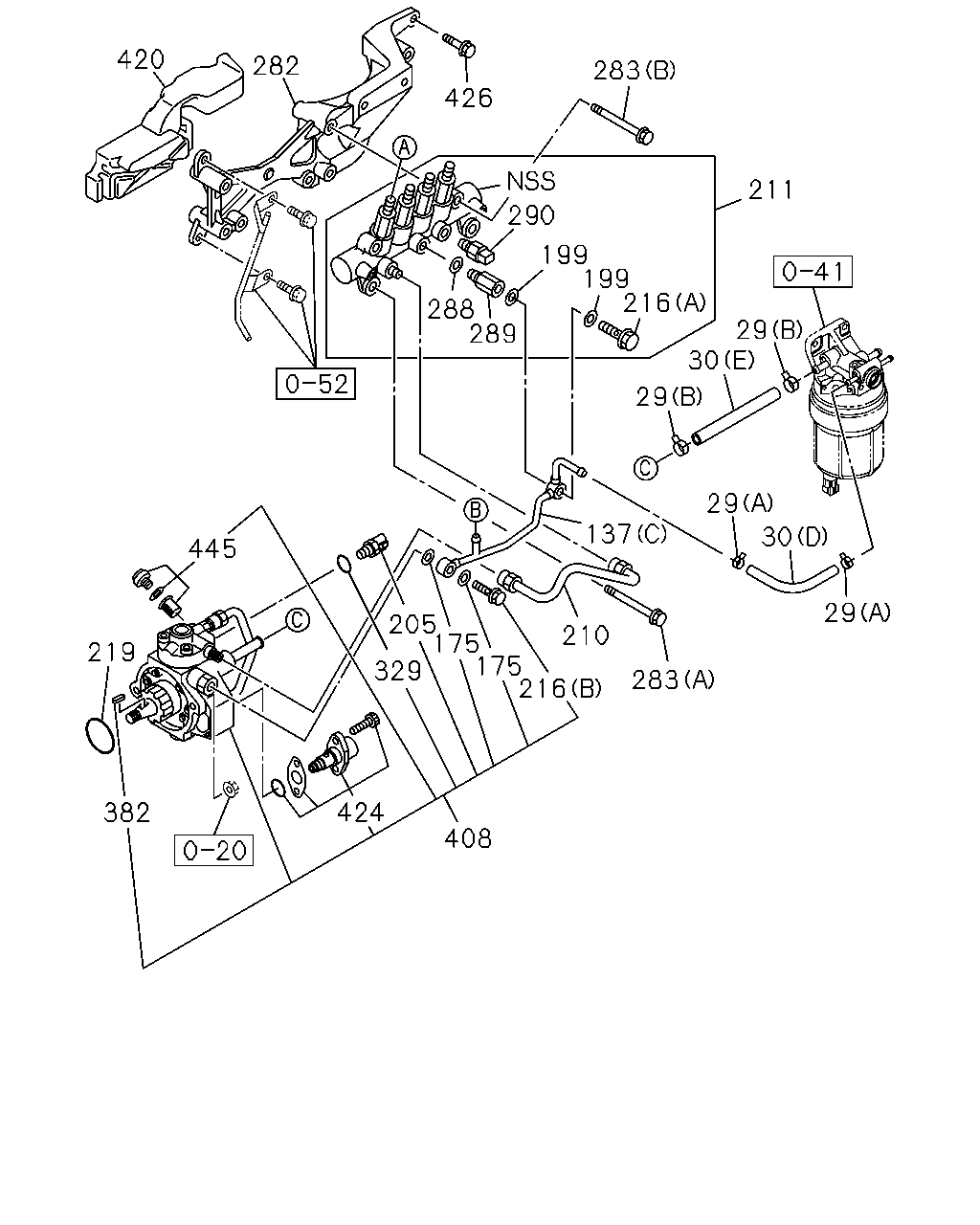

çizim 174875
382 424 408 219 445 205 329 175 216 283 29 30 29 29 289 288 420 282 426 283 211 29 30 216 199 199 290 137 210 175
BalonParca AdiParca NoAdetTipApplied Date
29 CLIP; HOSE
(A) ID=12 WO/PVC COATING 		8-94123-526-1 02 1 1012-
29 CLIP; HOSE
(B) ID=16 		8-94392-924-0 02 1 1012-
29 CLIP; HOSE
(C) ID=10.5 		8-97019-473-0 10 1 1012-
30 HOSE; RUBBER,FUEL LEAK
(A) L=130 		0-01804-130-0 01 1 1012-
30 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 1012-
30 HOSE; RUBBER,FUEL LEAK
(C) L=150 		8-97362-306-2 01 1 1012-
30 HOSE; RUBBER,FUEL LEAK
(D) L=110 		8-97377-894-0 01 1 1012-
30 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98009-700-2 01 1 1012-1101
30 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1102-
137 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 1012-1101
137 PIPE ASM; LEAK OFF
(A) 		8-98161-062-0 01 1 1102-
137 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 1012-1101
137 PIPE ASM; LEAK OFF
(B) 		8-98161-061-0 03 1 1102-
137 PIPE ASM; LEAK OFF
(C) 		8-98009-699-0 01 1 1012-
137 PIPE ASM; LEAK OFF
(D) 		8-98036-510-0 01 1 1012-
175 GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
ID=10.2 OD=15.2 		1-09630-083-0 02 1 1012-
199 GASKET; EYE BOLT 8-97602-218-0 02 1 1012-
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1012-
210 PIPE; INJ,C/R 8-97388-902-0 01 1 1012-
211 RAIL ASM; COMMON 8-98011-888-2 01 1 1012-
216 BOLT; EYE
(A) 		8-98043-033-0 01 1 1012-
216 BOLT; EYE
(B) 		9-88130-088-0 01 1 1012-
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 1012-
282 BRACKET; COMMON RAIL 8-98147-694-0 01 1 1012-
283 BOLT; COMMON RAIL
(A) M8X70 FLANGE 		0-28050-870-0 02 1 1012-
283 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 1012-
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 1012-
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 1012-
290 SENSOR; PRESS 8-98119-790-0 01 1 1012-
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 		9-09566-110-0 01 1 1012-1104
382 KEY; DRIVE SHAFT 8-97375-384-0 01 1 1012-1104
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1105-
408 PUMP ASM; FUEL,SUPPLY 8-97381-555-5 01 1 1012-
420 RUBBER; SPACE,COMMON RAIL 8-98037-444-1 01 1 1012-
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1012-
426 BOLT; BRACKET
M8X60 FLANGE 		0-28050-860-0 01 1 1012-
445 SCREW; FILTER,INLET 8-98204-986-0 01 1 1012-
