◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51287 - ELF200/300(MEXICO) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#54180) — 10 parça

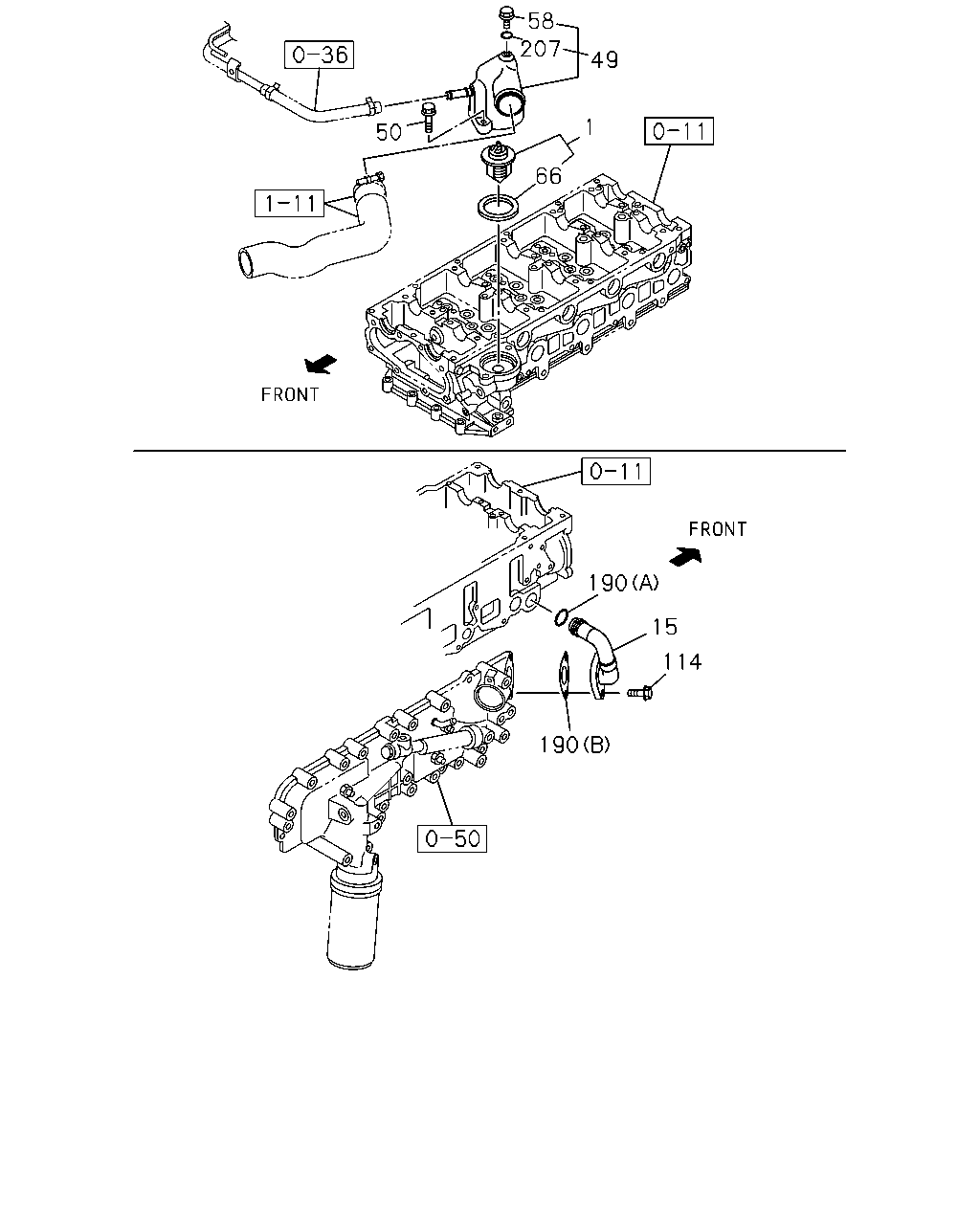

çizim 174883
58 207 49 1 50 66 190 15 114 190
BalonParca AdiParca NoAdetTipApplied Date
1 THERMOSTAT
85 CELSIUS 		8-98017-027-2 01 1 1012-
15 PIPE; BYPASS 8-97318-732-2 01 1 1012-
49 PIPE; WATER OUTLET 8-98028-252-1 01 1 1012-
50 BOLT; OUTLET PIPE
M8X30 FLANGE 		0-28650-830-0 02 1 1012-
58 PLUG; WATER OUTLET PIPE
M8X12 FLANGE 		0-28050-812-0 01 1 1012-
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98114-587-0 01 1 1012-
114 BOLT; BYPASS PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 1012-
190 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		0-95690-226-0 01 1 1012-
190 GASKET; BYPASS PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) 		8-98009-322-0 01 1 1012-
207 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=8.2 OD=13.2 		1-09630-082-0 01 1 1012-
