◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51287 - ELF200/300(MEXICO) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#54168) — 48 parça

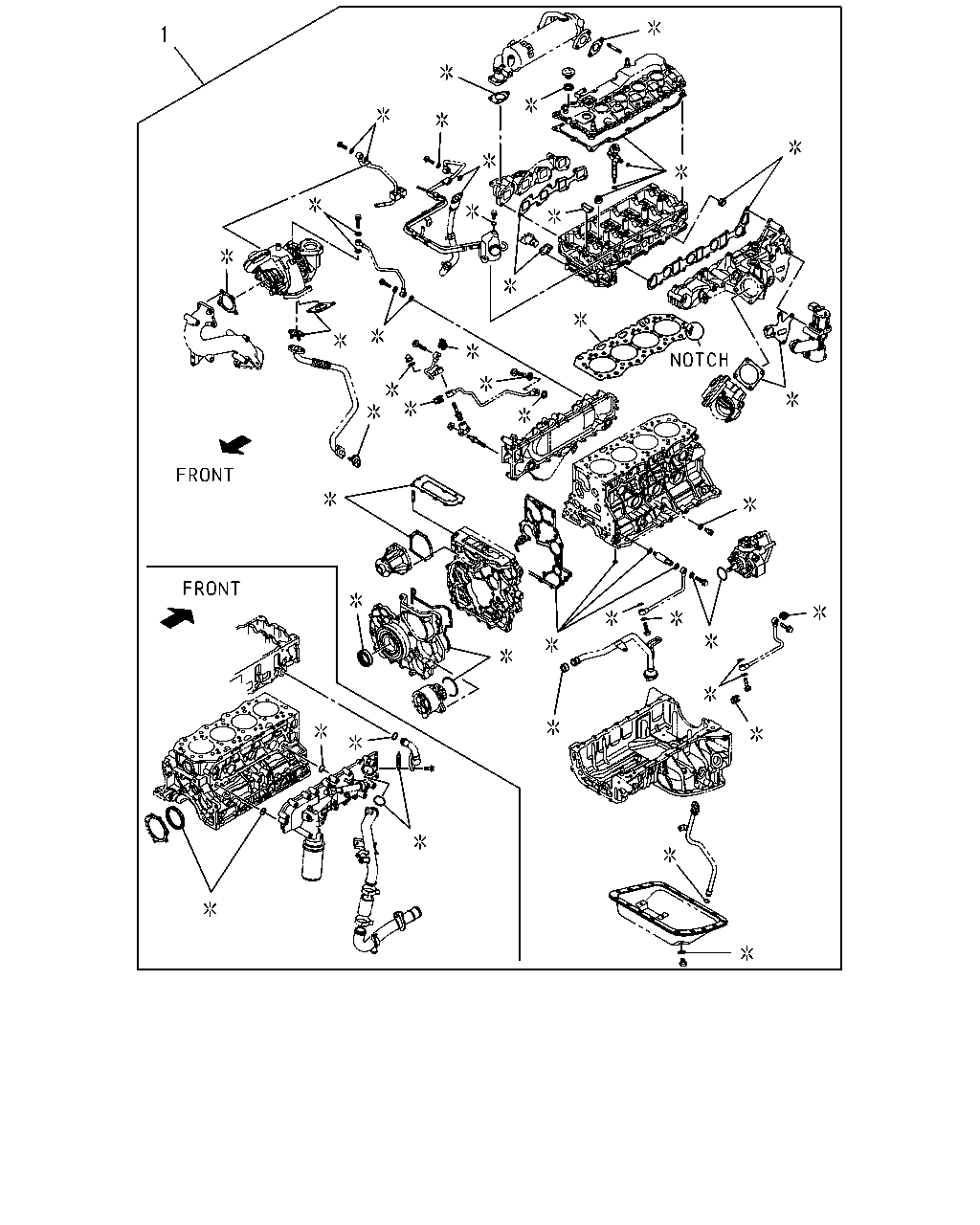

çizim 174865
1
BalonParca AdiParca NoAdetTipApplied Date
1 GASKET SET; ENG OVERHAUL
GRADE A T=1.05 1-NOTCH 		5-87815-779-1 01 1 1012-1012
1 GASKET SET; ENG OVERHAUL
GRADE A T=1.05 1-NOTCH 		5-87815-924-1 01 1 1101-1108
1 GASKET SET; ENG OVERHAUL
GRADE A T=1.05 1-NOTCH 		5-87816-114-0 01 1 1109-1204
1 GASKET SET; ENG OVERHAUL
GRADE A T=1.05 1-NOTCH 		5-87816-358-0 01 1 1205-1211
1 GASKET SET; ENG OVERHAUL
GRADE A T=1.05 1-NOTCH 		5-87816-540-0 01 1 1212-1212
1 GASKET SET; ENG OVERHAUL
GRADE A T=1.05 1-NOTCH 		5-87816-580-0 01 1 1301-1302
1 GASKET SET; ENG OVERHAUL
GRADE A T=1.05 1-NOTCH 		5-87816-785-0 01 1 1303-1304
1 GASKET SET; ENG OVERHAUL
GRADE A T=1.05 1-NOTCH 		5-87816-883-1 01 1 1305-1411
1 GASKET SET; ENG OVERHAUL
GRADE A T=1.05 1-NOTCH 		5-87817-680-0 01 1 1412-
1 GASKET SET; ENG OVERHAUL
GRADE B T=1.10 2-NOTCH 		5-87815-780-1 01 1 1012-1012
1 GASKET SET; ENG OVERHAUL
GRADE B T=1.10 2-NOTCH 		5-87815-925-1 01 1 1101-1108
1 GASKET SET; ENG OVERHAUL
GRADE B T=1.10 2-NOTCH 		5-87816-115-0 01 1 1109-1204
1 GASKET SET; ENG OVERHAUL
GRADE B T=1.10 2-NOTCH 		5-87816-359-0 01 1 1205-1211
1 GASKET SET; ENG OVERHAUL
GRADE B T=1.10 2-NOTCH 		5-87816-541-0 01 1 1212-1212
1 GASKET SET; ENG OVERHAUL
GRADE B T=1.10 2-NOTCH 		5-87816-581-0 01 1 1301-1302
1 GASKET SET; ENG OVERHAUL
GRADE B T=1.10 2-NOTCH 		5-87816-786-0 01 1 1303-1304
1 GASKET SET; ENG OVERHAUL
GRADE B T=1.10 2-NOTCH 		5-87816-884-1 01 1 1305-1411
1 GASKET SET; ENG OVERHAUL
GRADE B T=1.10 2-NOTCH 		5-87817-681-0 01 1 1412-
1 GASKET SET; ENG OVERHAUL
GRADE C T=1.15 3-NOTCH 		5-87815-781-1 01 1 1012-1012
1 GASKET SET; ENG OVERHAUL
GRADE C T=1.15 3-NOTCH 		5-87815-926-1 01 1 1101-1108
1 GASKET SET; ENG OVERHAUL
GRADE C T=1.15 3-NOTCH 		5-87816-116-0 01 1 1109-1204
1 GASKET SET; ENG OVERHAUL
GRADE C T=1.15 3-NOTCH 		5-87816-360-0 01 1 1205-1211
1 GASKET SET; ENG OVERHAUL
GRADE C T=1.15 3-NOTCH 		5-87816-542-0 01 1 1212-1212
1 GASKET SET; ENG OVERHAUL
GRADE C T=1.15 3-NOTCH 		5-87816-582-0 01 1 1301-1302
1 GASKET SET; ENG OVERHAUL
GRADE C T=1.15 3-NOTCH 		5-87816-787-0 01 1 1303-1304
1 GASKET SET; ENG OVERHAUL
GRADE C T=1.15 3-NOTCH 		5-87816-885-1 01 1 1305-1411
1 GASKET SET; ENG OVERHAUL
GRADE C T=1.15 3-NOTCH 		5-87817-682-0 01 1 1412-

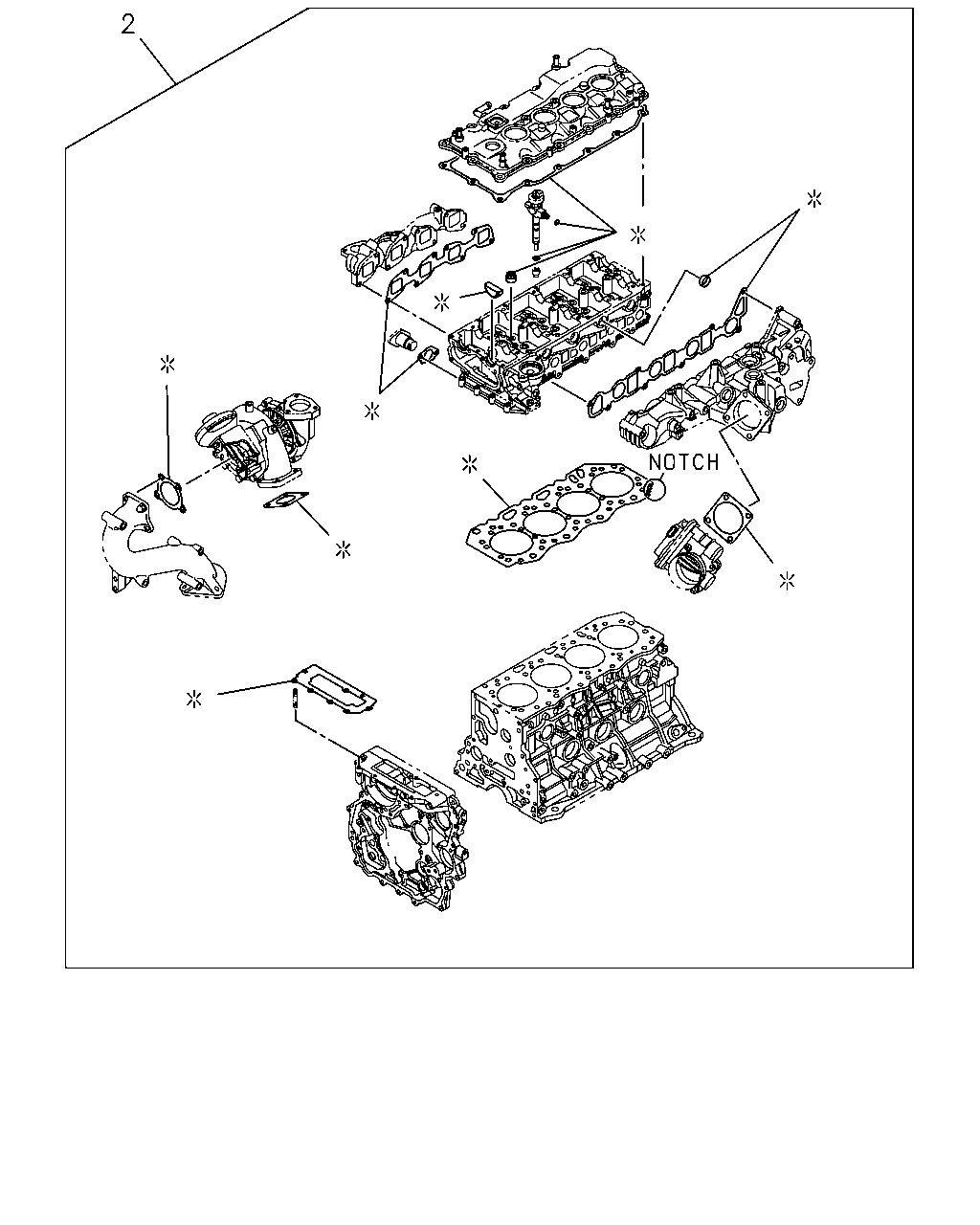

çizim 174869
2
BalonParca AdiParca NoAdetTipApplied Date
2 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-370-1 01 1 1012-1012
2 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-888-0 01 1 1101-1108
2 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87816-120-0 01 1 1109-1204
2 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87816-340-0 01 1 1205-1211
2 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87816-507-0 01 1 1212-1304
2 GASKET SET; ENG HD OVERHAUL
GRADE A T=1.05 1-NOTCH 		5-87816-826-1 01 1 1305-1411
2 GASKET SET; ENG HD OVERHAUL
GRADE A T=1.14 1-NOTCH 		5-87817-647-0 01 1 1412-
2 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-371-1 01 1 1012-1012
2 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-889-0 01 1 1101-1108
2 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87816-121-0 01 1 1109-1204
2 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87816-341-0 01 1 1205-1211
2 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87816-508-0 01 1 1212-1304
2 GASKET SET; ENG HD OVERHAUL
GRADE B T=1.10 2-NOTCH 		5-87816-827-1 01 1 1305-1411
2 GASKET SET; ENG HD OVERHAUL
GRADE B T=1.19 2-NOTCH 		5-87817-648-0 01 1 1412-
2 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-372-1 01 1 1012-1012
2 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-890-0 01 1 1101-1108
2 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87816-122-0 01 1 1109-1204
2 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87816-342-0 01 1 1205-1211
2 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87816-509-0 01 1 1212-1304
2 GASKET SET; ENG HD OVERHAUL
GRADE C T=1.15 3-NOTCH 		5-87816-828-1 01 1 1305-1411
2 GASKET SET; ENG HD OVERHAUL
GRADE C T=1.24 3-NOTCH 		5-87817-649-0 01 1 1412-
