6-31 — FRONT DOOR GLASS AND REGULATOR (#5416) — 363 parça

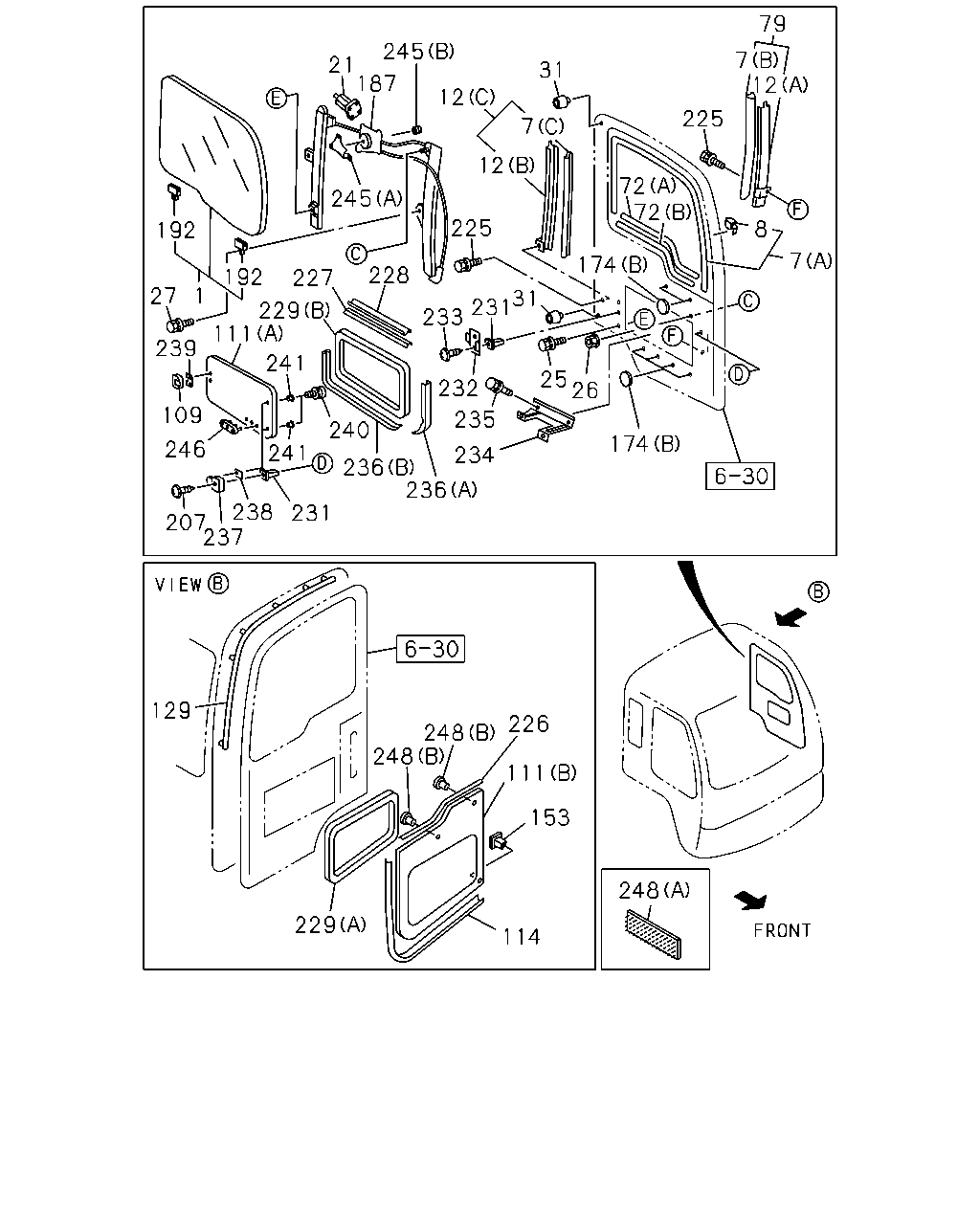

çizim 10716
79 245 7 12 21 187 31 12 225 7 12 72 72 245 225 8 192 174 228 7 192 227 31 231 233 27 1 229 111 239 241 25 26 232 109 235 241 240 174 246 234 236 236 238 207 237 231 129 226 248 248 111 153 248 229 114
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-060-1 01 1 9601-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-153-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-172-0 01 1 9802-9905
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-177-1 01 1 9906-
1 GLASS; FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-061-1 01 1 9601-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76167-154-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76167-173-1 01 1 9802-
1 GLASS; FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-071-0 01 1 9601-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-083-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-095-1 01 1 9802-
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-069-1 01 1 9601-9611
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-079-0 01 1 9612-9801
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-094-1 01 1 9802-
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-068-1 01 1 9601-9611
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76167-159-0 01 1 9612-9801
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76167-174-1 01 1 9802-
7 GLASS RUN; FRT DOOR
(A) 		1-74318-022-7 01 1 9601-
7 GLASS RUN; FRT DOOR
(C) 		1-74318-041-0 01 1 9601-9901
7 GLASS RUN; FRT DOOR
(A) 		1-74318-021-7 01 1 9601-
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 01 1 9601-9705
7 GLASS RUN; FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-038-0 01 1 9706-9901
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 01 1 9706-9901
7 GLASS RUN; FRT DOOR
(C) 		1-74318-040-0 01 1 9601-9901
7 GLASS RUN; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-039-0 01 1 9601-9901
7 GLASS RUN; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-039-0 01 1 9905-
7 GLASS RUN; FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-043-0 01 1 9601-9705
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 9601-
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-049-1 01 1 9601-9901
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-071-2 01 1 9902-
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-046-1 01 1 9601-9901
12 CHANNEL; GLASS RUN,FRT
(D) 		1-74338-070-2 01 1 9902-
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-048-1 01 1 9601-9901
12 CHANNEL; GLASS RUN,FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74338-047-0 01 1 9601-9904
12 CHANNEL; GLASS RUN,FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74338-047-0 01 1 9905-
12 CHANNEL; GLASS RUN,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74338-037-1 01 1 9601-9901
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-153-1 01 1 9601-9608
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-161-0 01 1 9609-0003
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-176-0 01 1 0004-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-128-8 01 1 9601-9608
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-162-0 01 1 9609-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-139-2 01 1 9601-9608
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-164-0 01 1 9609-0003
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-177-0 01 1 0004-
25 BOLT; WINDOW REG
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 9601-
25 BOLT; WINDOW REG
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9601-
25 BOLT; WINDOW REG
EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 9601-9606
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE 		1-09984-141-0 08 1 9601-
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE 		1-09984-141-0 06 1 9601-
26 NUT; FLANGE,WINDOW REG
EXC. POWER WINDOW<A30> M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 9601-9606
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9601-
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 9601-
72 SEAL; WAIST,FRT DOOR
(A) 		1-76738-089-7 01 1 9601-
72 SEAL; WAIST,FRT DOOR
(B) 		1-76738-092-5 01 1 9601-
72 SEAL; WAIST,FRT DOOR
(A) 		1-76738-088-7 01 1 9601-
72 SEAL; WAIST,FRT DOOR
(B) 		1-76738-091-5 01 1 9601-
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-2 01 1 9902-
79 CHANNEL; DOOR GLASS,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74338-069-2 01 1 9902-
109 LOCK ASM; DOOR WINDOW GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-052-0 01 1 9601-
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-76167-054-2 01 1 9601-9910
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-76167-176-0 01 1 9911-
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-76168-033-0 01 1 9601-9611
111 GLASS; FRT DOOR,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-76167-155-0 01 1 9612-
114 MOLDING; OK WINDOW,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-71538-025-4 01 1 9601-0009
114 MOLDING; OK WINDOW,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-71538-038-0 01 1 0010-
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 9601-
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 9601-
153 GROMMET; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 01 1 9601-
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK 		1-76798-019-0 11 1 9601-
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK 		1-76798-019-0 14 1 9601-
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> (A) OD=25 BLACK 		1-76798-019-0 20 1 9601-
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> (B) OD=52 BLACK 		1-76798-041-0 02 1 9601-
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-152-0 01 1 9601-9608
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-165-1 01 1 9609-0003
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-178-2 01 1 0004-
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-127-7 01 1 9601-9608
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-166-3 01 1 9609-
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-138-2 01 1 9601-9608
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-167-1 01 1 9609-0003
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-179-2 01 1 0004-
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74428-013-0 02 1 9601-9801
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74428-013-0 02 1 9601-9801
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 9802-
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 9802-
192 HOLDER; DOOR GLASS
EXC. POWER WINDOW<A30> 		1-74428-013-0 04 1 9601-9801
192 HOLDER; DOOR GLASS
EXC. POWER WINDOW<A30> 		1-74427-170-0 04 1 9802-
207 SCREW; DOOR GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9601-
225 BOLT; FRT CHANNEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9601-0003
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0004-
226 FINISHER; OK WINDOW,LWR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76738-093-5 01 1 9601-
227 RUBBER; SHUTTER
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76738-094-1 01 1 9601-9709
228 RAIL; DRIP,FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76738-095-4 01 1 9601-9709
229 SEAL; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-76738-096-3 01 1 9601-
229 SEAL; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-76738-097-4 01 1 9601-
231 GROMMET; SCREW
DOOR WITH UNDER VIEW WINDOW<YD8> D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 04 1 9601-
232 STRIKER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-055-1 01 1 9601-
233 SCREW; STRIKER
DOOR WITH UNDER VIEW WINDOW<YD8> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9601-
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 9601-
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 9601-
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9601-
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9601-
236 COVER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-73338-363-5 01 1 9601-
236 COVER; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-73338-364-5 01 1 9601-
237 HINGE; DOOR WINDOW GLASS
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-050-1 02 1 9601-
238 SHEET; HINGE
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-051-0 02 1 9601-
239 SHEET; LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-053-0 01 1 9601-
240 SCREW; HINGE & LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> M6X12 		8-94279-346-0 04 1 9601-
241 GASKET; HINGE & LOCK
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74998-054-0 04 1 9601-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74417-074-0 01 1 0106-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (B) 		1-74417-074-0 01 1 0106-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74418-147-1 01 1 9905-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74418-146-0 01 1 9905-0003
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (A) 		1-74418-146-0 01 1 9905-0003
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (A) 		1-74418-180-0 01 1 0004-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74418-181-0 01 1 0004-
246 GRILLE; OK WINDOW
DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74298-002-1 01 1 9601-
248 FASTENER
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74998-072-0 01 1 9601-
248 FASTENER
DOOR WITH UNDER VIEW WINDOW<YD8> (B) ID=5.4 OD=6.8 		1-09989-019-0 02 1 9601-

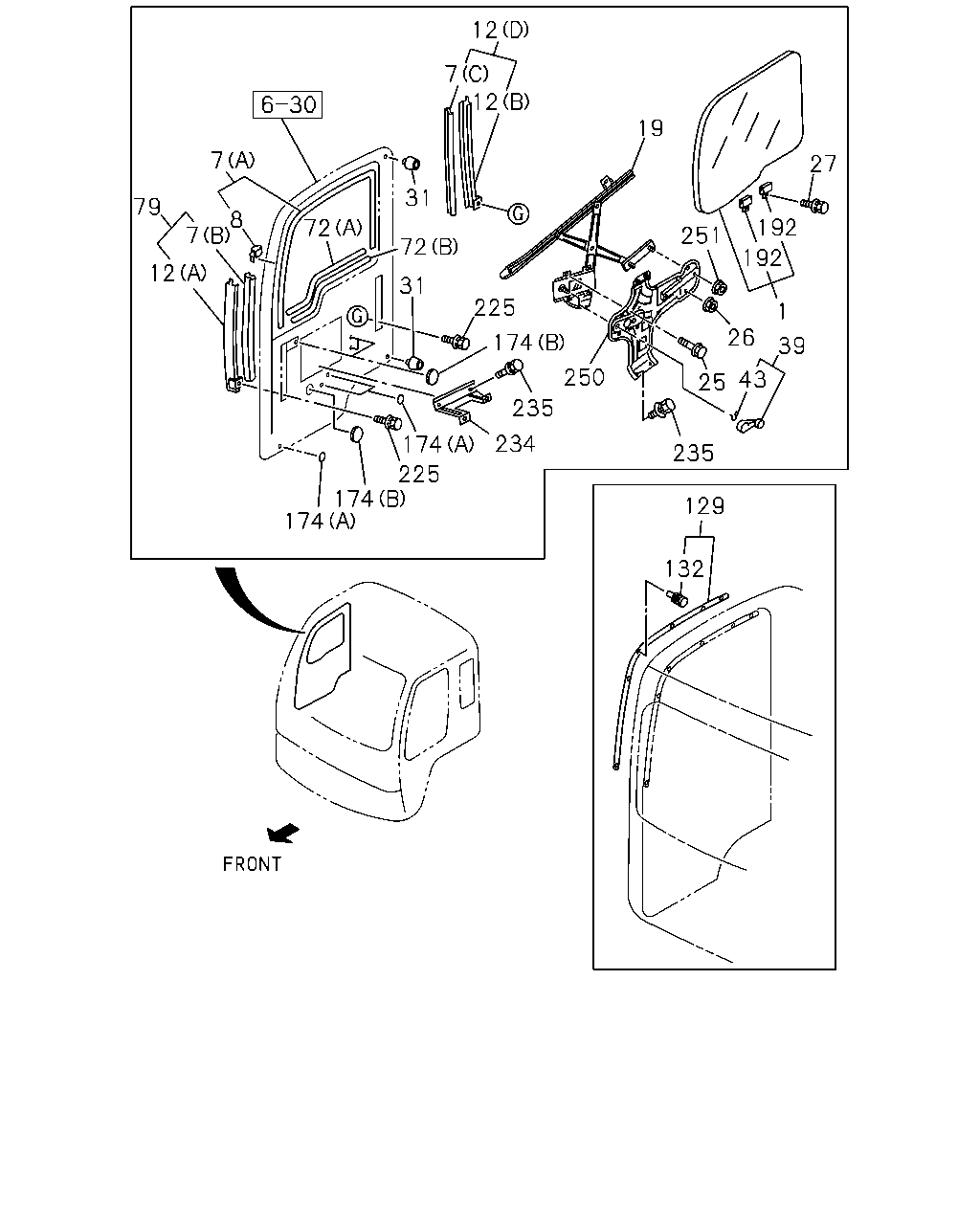

çizim 11044
12 7 12 19 7 27 31 79 8 7 192 72 251 72 192 12 31 225 1 26 174 39 250 43 25 235 234 174 235 225 174 174 129 132
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-060-1 01 1 9601-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-153-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-172-0 01 1 9802-9905
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-177-1 01 1 9906-
1 GLASS; FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-061-1 01 1 9601-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76167-154-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76167-173-1 01 1 9802-
1 GLASS; FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-071-0 01 1 9601-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-083-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-095-1 01 1 9802-
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-069-1 01 1 9601-9611
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-079-0 01 1 9612-9801
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-094-1 01 1 9802-
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-068-1 01 1 9601-9611
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76167-159-0 01 1 9612-9801
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76167-174-1 01 1 9802-
7 GLASS RUN; FRT DOOR
(A) 		1-74318-022-7 01 1 9601-
7 GLASS RUN; FRT DOOR
(C) 		1-74318-041-0 01 1 9601-9901
7 GLASS RUN; FRT DOOR
(A) 		1-74318-021-7 01 1 9601-
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 01 1 9601-9705
7 GLASS RUN; FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-038-0 01 1 9706-9901
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 01 1 9706-9901
7 GLASS RUN; FRT DOOR
(C) 		1-74318-040-0 01 1 9601-9901
7 GLASS RUN; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-039-0 01 1 9601-9901
7 GLASS RUN; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-039-0 01 1 9905-
7 GLASS RUN; FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-043-0 01 1 9601-9705
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 9601-
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-049-1 01 1 9601-9901
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-071-2 01 1 9902-
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-046-1 01 1 9601-9901
12 CHANNEL; GLASS RUN,FRT
(D) 		1-74338-070-2 01 1 9902-
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-048-1 01 1 9601-9901
12 CHANNEL; GLASS RUN,FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74338-047-0 01 1 9601-9904
12 CHANNEL; GLASS RUN,FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74338-047-0 01 1 9905-
12 CHANNEL; GLASS RUN,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74338-037-1 01 1 9601-9901
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-134-4 01 1 9601-
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-144-4 01 1 9601-
25 BOLT; WINDOW REG
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 9601-
25 BOLT; WINDOW REG
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9601-
25 BOLT; WINDOW REG
EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 9601-9606
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE 		1-09984-141-0 08 1 9601-
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE 		1-09984-141-0 06 1 9601-
26 NUT; FLANGE,WINDOW REG
EXC. POWER WINDOW<A30> M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 9601-9606
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9601-
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 9601-
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> BLACK 		8-94371-427-0 02 1 9601-
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW<A30> 		8-94220-591-0 02 1 9601-
72 SEAL; WAIST,FRT DOOR
(A) 		1-76738-089-7 01 1 9601-
72 SEAL; WAIST,FRT DOOR
(B) 		1-76738-092-5 01 1 9601-
72 SEAL; WAIST,FRT DOOR
(A) 		1-76738-088-7 01 1 9601-
72 SEAL; WAIST,FRT DOOR
(B) 		1-76738-091-5 01 1 9601-
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-2 01 1 9902-
79 CHANNEL; DOOR GLASS,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74338-069-2 01 1 9902-
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 9601-
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 9601-
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 9911-
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 9911-
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK 		1-76798-019-0 11 1 9601-
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK 		1-76798-019-0 14 1 9601-
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> (A) OD=25 BLACK 		1-76798-019-0 20 1 9601-
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> (B) OD=52 BLACK 		1-76798-041-0 02 1 9601-
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74428-013-0 02 1 9601-9801
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74428-013-0 02 1 9601-9801
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 9802-
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 9802-
192 HOLDER; DOOR GLASS
EXC. POWER WINDOW<A30> 		1-74428-013-0 04 1 9601-9801
192 HOLDER; DOOR GLASS
EXC. POWER WINDOW<A30> 		1-74427-170-0 04 1 9802-
225 BOLT; FRT CHANNEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9601-0003
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0004-
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 9601-
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 9601-
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9601-
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9601-
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-148-0 02 1 9905-
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-149-0 02 1 9905-
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-149-0 01 1 9601-9904
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-148-0 01 1 9601-9904
251 NUT; BRKT
EXC. POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 04 1 9601-

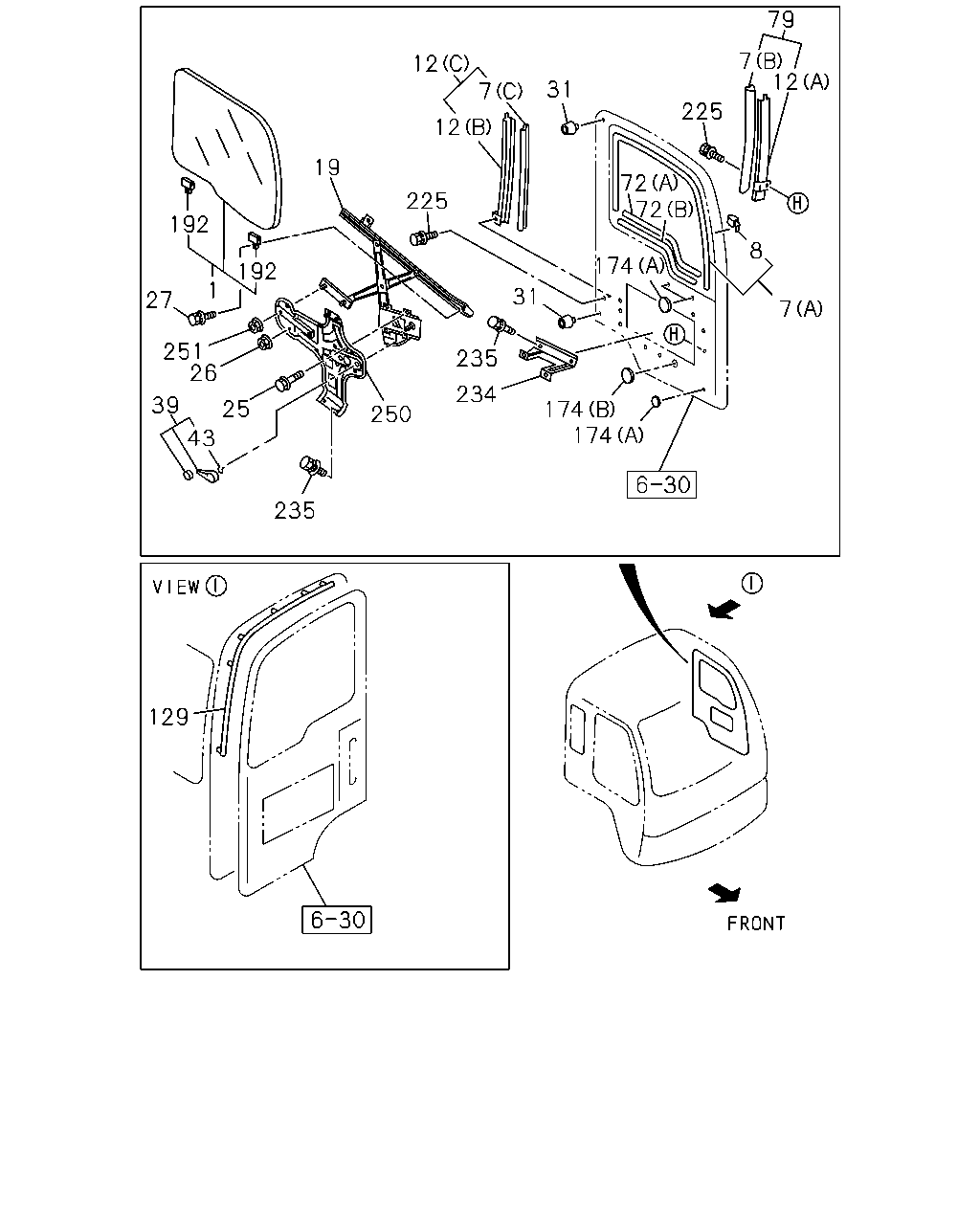

çizim 41500
79 7 12 12 7 31 225 12 19 72 72 225 192 8 192 174 31 1 27 7 251 26 235 234 39 25 174 174 250 43 235 129
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-060-1 01 1 9601-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-153-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-172-0 01 1 9802-9905
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-177-1 01 1 9906-
1 GLASS; FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-061-1 01 1 9601-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76167-154-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76167-173-1 01 1 9802-
1 GLASS; FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-071-0 01 1 9601-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-083-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-095-1 01 1 9802-
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-069-1 01 1 9601-9611
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-079-0 01 1 9612-9801
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-094-1 01 1 9802-
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-068-1 01 1 9601-9611
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76167-159-0 01 1 9612-9801
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76167-174-1 01 1 9802-
7 GLASS RUN; FRT DOOR
(A) 		1-74318-022-7 01 1 9601-
7 GLASS RUN; FRT DOOR
(C) 		1-74318-041-0 01 1 9601-9901
7 GLASS RUN; FRT DOOR
(A) 		1-74318-021-7 01 1 9601-
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 01 1 9601-9705
7 GLASS RUN; FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-038-0 01 1 9706-9901
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 01 1 9706-9901
7 GLASS RUN; FRT DOOR
(C) 		1-74318-040-0 01 1 9601-9901
7 GLASS RUN; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-039-0 01 1 9601-9901
7 GLASS RUN; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-039-0 01 1 9905-
7 GLASS RUN; FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-043-0 01 1 9601-9705
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 9601-
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-049-1 01 1 9601-9901
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-071-2 01 1 9902-
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-046-1 01 1 9601-9901
12 CHANNEL; GLASS RUN,FRT
(D) 		1-74338-070-2 01 1 9902-
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-048-1 01 1 9601-9901
12 CHANNEL; GLASS RUN,FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74338-047-0 01 1 9601-9904
12 CHANNEL; GLASS RUN,FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74338-047-0 01 1 9905-
12 CHANNEL; GLASS RUN,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74338-037-1 01 1 9601-9901
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-134-4 01 1 9601-
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW<A30> 		1-74418-144-4 01 1 9601-
25 BOLT; WINDOW REG
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 9601-
25 BOLT; WINDOW REG
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9601-
25 BOLT; WINDOW REG
EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 9601-9606
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE 		1-09984-141-0 08 1 9601-
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE 		1-09984-141-0 06 1 9601-
26 NUT; FLANGE,WINDOW REG
EXC. POWER WINDOW<A30> M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 9601-9606
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9601-
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 9601-
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW<A30> BLACK 		8-94371-427-0 02 1 9601-
43 CLIP; REG HANDLE,FRT DOOR
EXC. POWER WINDOW<A30> 		8-94220-591-0 02 1 9601-
72 SEAL; WAIST,FRT DOOR
(A) 		1-76738-089-7 01 1 9601-
72 SEAL; WAIST,FRT DOOR
(B) 		1-76738-092-5 01 1 9601-
72 SEAL; WAIST,FRT DOOR
(A) 		1-76738-088-7 01 1 9601-
72 SEAL; WAIST,FRT DOOR
(B) 		1-76738-091-5 01 1 9601-
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-2 01 1 9902-
79 CHANNEL; DOOR GLASS,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74338-069-2 01 1 9902-
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 9601-
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 9601-
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK 		1-76798-019-0 11 1 9601-
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK 		1-76798-019-0 14 1 9601-
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> (A) OD=25 BLACK 		1-76798-019-0 20 1 9601-
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> (B) OD=52 BLACK 		1-76798-041-0 02 1 9601-
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74428-013-0 02 1 9601-9801
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74428-013-0 02 1 9601-9801
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 9802-
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 9802-
192 HOLDER; DOOR GLASS
EXC. POWER WINDOW<A30> 		1-74428-013-0 04 1 9601-9801
192 HOLDER; DOOR GLASS
EXC. POWER WINDOW<A30> 		1-74427-170-0 04 1 9802-
225 BOLT; FRT CHANNEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9601-0003
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0004-
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 9601-
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 9601-
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9601-
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9601-
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-148-0 02 1 9905-
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-149-0 02 1 9905-
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-149-0 01 1 9601-9904
250 BRACKET; REGULATOR
EXC. POWER WINDOW<A30> 		1-74418-148-0 01 1 9601-9904
251 NUT; BRKT
EXC. POWER WINDOW<A30> M6 FLANGE 		1-09984-141-0 04 1 9601-

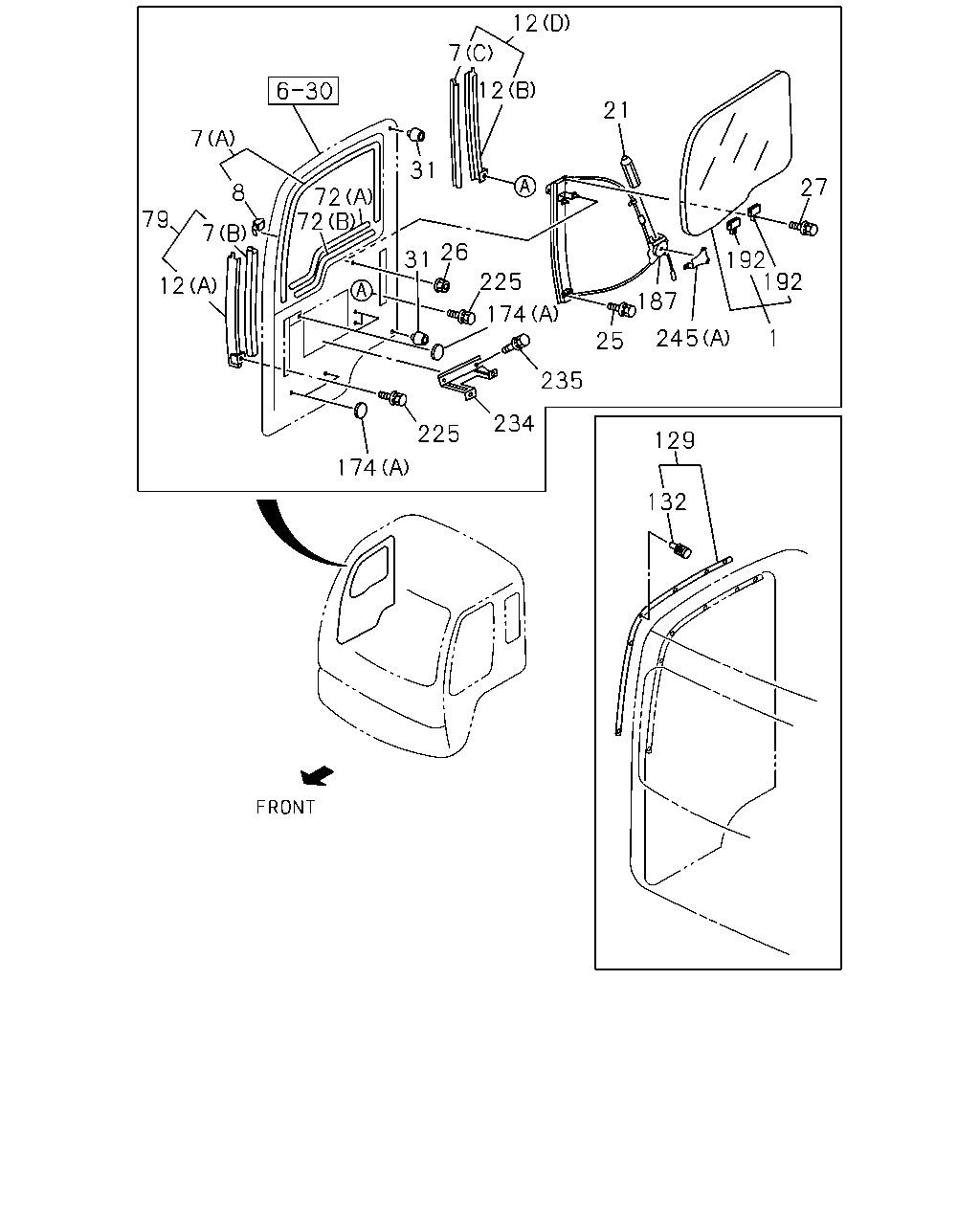

çizim 41566
12 7 12 21 7 31 27 8 72 72 79 7 26 31 192 192 225 12 187 174 245 1 25 235 234 225 129 174 132
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76148-060-1 01 1 9601-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-153-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-172-0 01 1 9802-9905
1 GLASS; FRT DOOR
POWER WINDOW<A30> 		1-76167-177-1 01 1 9906-
1 GLASS; FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-061-1 01 1 9601-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76167-154-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76167-173-1 01 1 9802-
1 GLASS; FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-071-0 01 1 9601-9611
1 GLASS; FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-083-0 01 1 9612-9801
1 GLASS; FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-76148-095-1 01 1 9802-
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-069-1 01 1 9601-9611
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-079-0 01 1 9612-9801
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-094-1 01 1 9802-
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76148-068-1 01 1 9601-9611
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76167-159-0 01 1 9612-9801
1 GLASS; FRT DOOR
EXC. POWER WINDOW<A30> 		1-76167-174-1 01 1 9802-
7 GLASS RUN; FRT DOOR
(A) 		1-74318-022-7 01 1 9601-
7 GLASS RUN; FRT DOOR
(C) 		1-74318-041-0 01 1 9601-9901
7 GLASS RUN; FRT DOOR
(A) 		1-74318-021-7 01 1 9601-
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 01 1 9601-9705
7 GLASS RUN; FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-038-0 01 1 9706-9901
7 GLASS RUN; FRT DOOR
(B) 		1-74318-038-0 01 1 9706-9901
7 GLASS RUN; FRT DOOR
(C) 		1-74318-040-0 01 1 9601-9901
7 GLASS RUN; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-039-0 01 1 9601-9901
7 GLASS RUN; FRT DOOR
DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-039-0 01 1 9905-
7 GLASS RUN; FRT DOOR
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74318-043-0 01 1 9601-9705
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 9601-
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-049-1 01 1 9601-9901
12 CHANNEL; GLASS RUN,FRT
(C) 		1-74338-071-2 01 1 9902-
12 CHANNEL; GLASS RUN,FRT
(A) 		1-74338-046-1 01 1 9601-9901
12 CHANNEL; GLASS RUN,FRT
(D) 		1-74338-070-2 01 1 9902-
12 CHANNEL; GLASS RUN,FRT
(B) 		1-74338-048-1 01 1 9601-9901
12 CHANNEL; GLASS RUN,FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74338-047-0 01 1 9601-9904
12 CHANNEL; GLASS RUN,FRT
DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74338-047-0 01 1 9905-
12 CHANNEL; GLASS RUN,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74338-037-1 01 1 9601-9901
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-153-1 01 1 9601-9608
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-161-0 01 1 9609-0003
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> 		1-74418-176-0 01 1 0004-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-128-8 01 1 9601-9608
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-162-0 01 1 9609-
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-139-2 01 1 9601-9608
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-164-0 01 1 9609-0003
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-177-0 01 1 0004-
25 BOLT; WINDOW REG
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 9601-
25 BOLT; WINDOW REG
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9601-
25 BOLT; WINDOW REG
EXC. POWER WINDOW<A30> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 9601-9606
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE 		1-09984-141-0 08 1 9601-
26 NUT; FLANGE,WINDOW REG
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> M6 FLANGE 		1-09984-141-0 06 1 9601-
26 NUT; FLANGE,WINDOW REG
EXC. POWER WINDOW<A30> M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 9601-9606
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9601-
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 9601-
72 SEAL; WAIST,FRT DOOR
(A) 		1-76738-089-7 01 1 9601-
72 SEAL; WAIST,FRT DOOR
(B) 		1-76738-092-5 01 1 9601-
72 SEAL; WAIST,FRT DOOR
(A) 		1-76738-088-7 01 1 9601-
72 SEAL; WAIST,FRT DOOR
(B) 		1-76738-091-5 01 1 9601-
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-2 01 1 9902-
79 CHANNEL; DOOR GLASS,FRT
EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74338-069-2 01 1 9902-
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 9601-
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 9601-
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 9911-
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 9911-
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK 		1-76798-019-0 11 1 9601-
174 SEAL; LOCATION HOLE
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) OD=25 BLACK 		1-76798-019-0 14 1 9601-
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> (A) OD=25 BLACK 		1-76798-019-0 20 1 9601-
174 SEAL; LOCATION HOLE
EXC. POWER WINDOW<A30> (B) OD=52 BLACK 		1-76798-041-0 02 1 9601-
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-152-0 01 1 9601-9608
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-165-1 01 1 9609-0003
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> 		1-74418-178-2 01 1 0004-
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-127-7 01 1 9601-9608
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-166-3 01 1 9609-
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-138-2 01 1 9601-9608
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-167-1 01 1 9609-0003
187 REGULATOR ASM; DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 		1-74418-179-2 01 1 0004-
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74428-013-0 02 1 9601-9801
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74428-013-0 02 1 9601-9801
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 9802-
192 HOLDER; DOOR GLASS
POWER WINDOW<A30> 		1-74427-170-0 02 1 9802-
192 HOLDER; DOOR GLASS
EXC. POWER WINDOW<A30> 		1-74428-013-0 04 1 9601-9801
192 HOLDER; DOOR GLASS
EXC. POWER WINDOW<A30> 		1-74427-170-0 04 1 9802-
225 BOLT; FRT CHANNEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9601-0003
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0004-
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 9601-
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 9601-
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9601-
235 BOLT; BRKT
EXC. POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9601-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (B) 		1-74417-074-0 01 1 0106-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (B) 		1-74417-074-0 01 1 0106-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74418-147-1 01 1 9905-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74418-146-0 01 1 9905-0003
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (A) 		1-74418-146-0 01 1 9905-0003
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> (A) 		1-74418-180-0 01 1 0004-
245 DAMPER; WINDOW REGULATOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (A) 		1-74418-181-0 01 1 0004-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
