◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51403 - NPS INDONESIA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#54157) — 27 parça

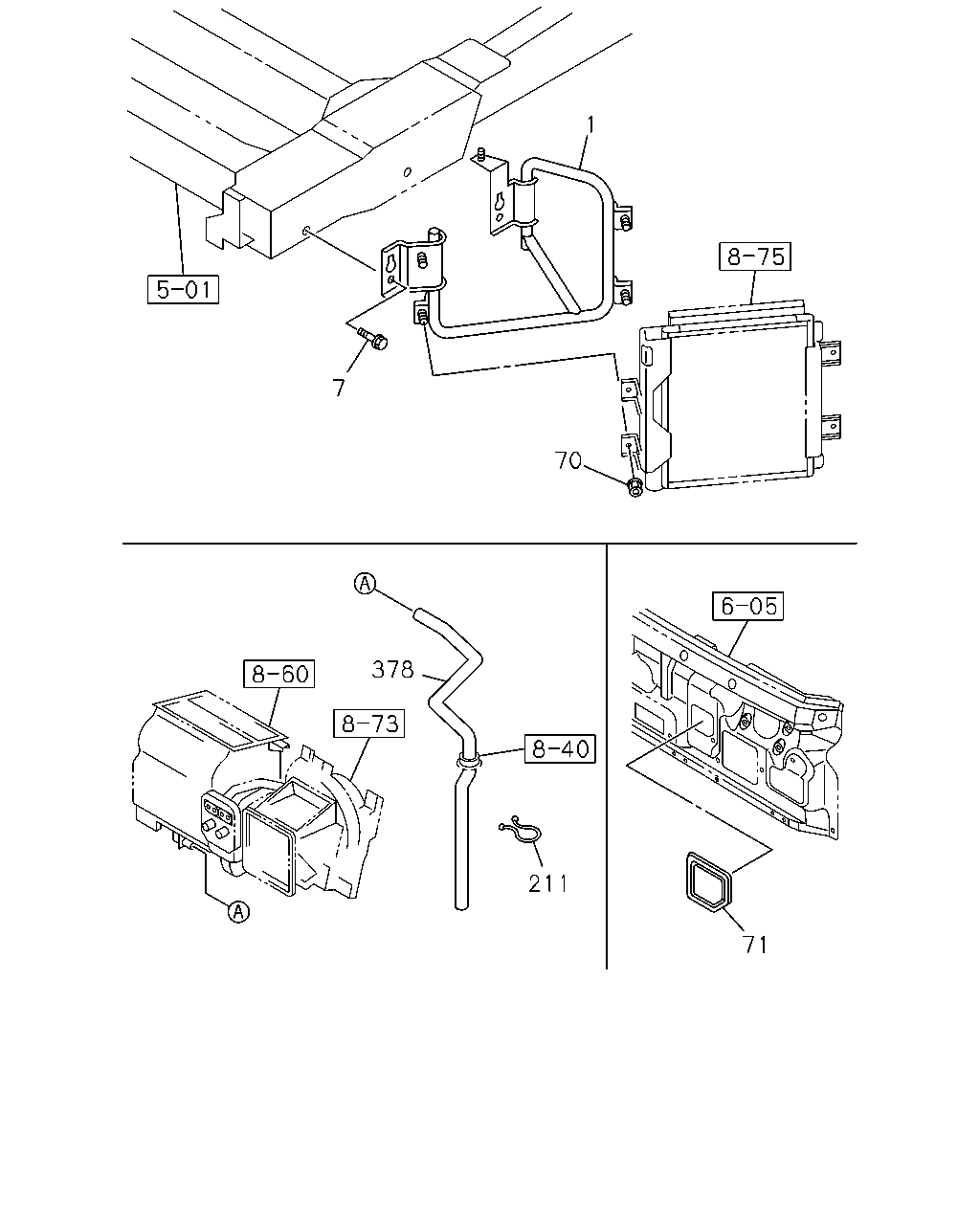

çizim 150077
1 7 70 378 211 71
BalonParca AdiParca NoAdetTipApplied Date
1 09.242 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97387-182-0 01 1 0804-1303
1 09.242 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98214-411-0 01 1 1304-
7 09.242 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 07.395 M12X30 FLANGE 		0-28651-230-0 04 1 0804-
70 09.190 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.062 M8 FLANGE IDN 		0-91180-108-0 04 1 0804-
71 09.190 COVER; EVAP,A/C
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) IDN 		8-98017-234-1 01 1 0804-1301
71 09.190 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) IDN 		8-98017-234-1 01 1 1302-
211 09.190 CLIP; HOSE
AIR CONDITIONER MANUAL CONT(C60) 03.278 ID=44 		8-94463-508-0 01 1 0804-0804
211 09.190 CLIP; HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 ID=44 		8-94463-508-0 01 1 0804-
378 09.211 HOSE; DRAIN,EVAPORATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-97387-174-2 01 1 0804-

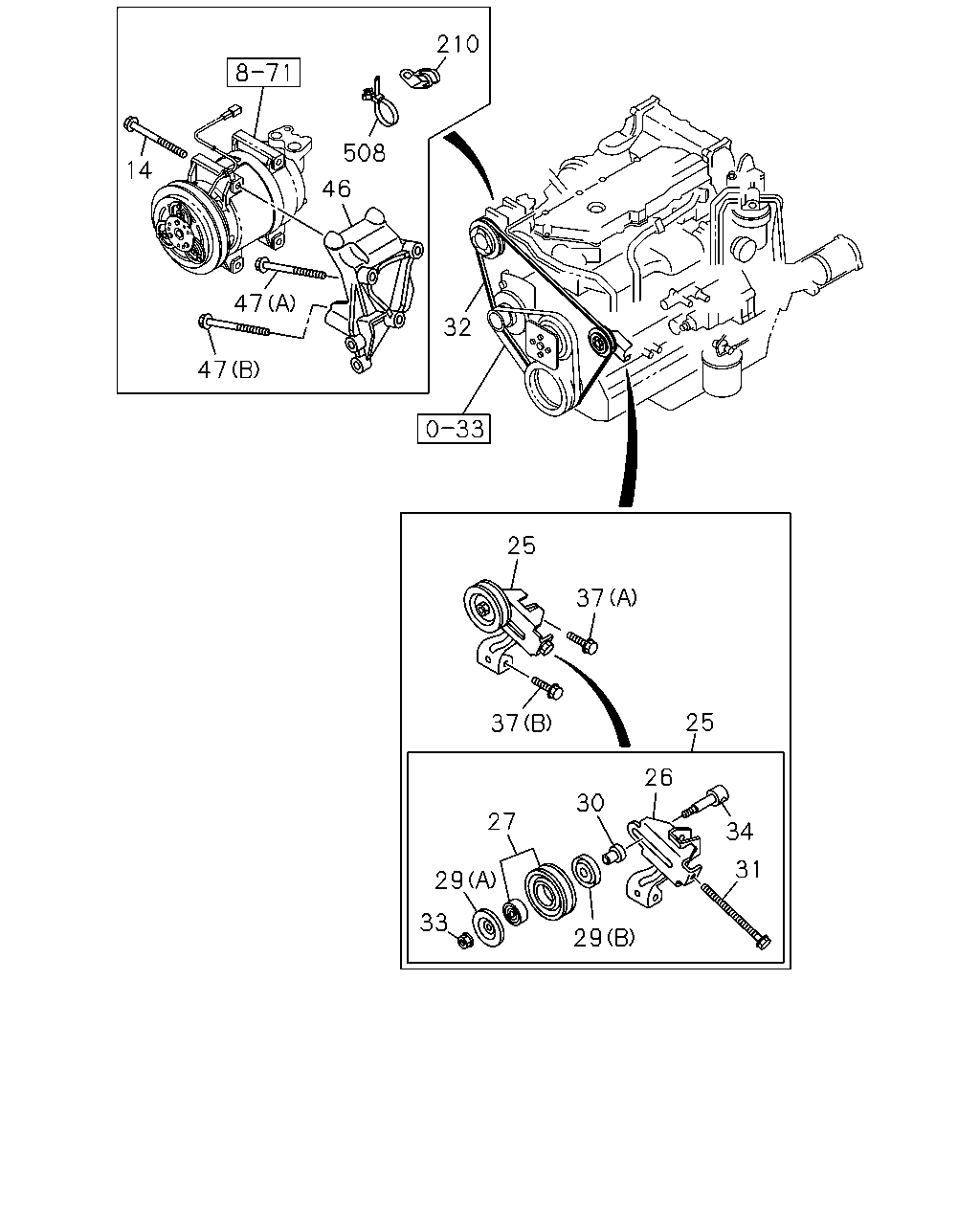

çizim 150088
210 508 14 46 47 32 47 25 37 25 37 26 30 27 34 31 29 33 29
BalonParca AdiParca NoAdetTipApplied Date
14 09.171 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.100 M8X90 FLANGE 		0-28050-890-0 04 1 0804-
25 09.180 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 1-GROOVE 		8-97161-198-1 01 1 0804-
26 09.180 BRACKET; IDLE PULLEY,A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97161-031-1 01 1 0804-
27 09.180 PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97386-869-0 01 1 0804-
29 09.181 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-97384-114-0 01 1 0804-
29 09.181 COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-97384-115-0 01 1 0804-
30 09.181 COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97384-117-0 01 1 0804-
31 09.181 BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97384-113-0 01 1 0804-
32 01.066 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=1674 		8-98010-841-1 01 1 0804-
33 09.181 NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97384-118-0 01 1 0804-
34 09.181 SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-97384-116-0 01 1 0804-
37 09.173 BOLT; PULLEY BRKT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 00.386 (A) M8X50 FLANGE 		0-28050-850-0 01 1 0804-
37 09.173 BOLT; PULLEY BRKT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 04.510 (B) M10X65 FLANGE 		8-94344-540-1 01 1 0804-
46 09.171 BRACKET; CMPR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.242 		8-98006-515-3 01 1 0804-
47 09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 01.062 (A) M10X90 FLANGE 		0-28151-090-0 02 1 0804-
47 09.173 BOLT; BRKT TO BODY
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.171 (B) M10X120 FLANGE 		0-28156-012-0 01 1 0804-
210 09.242 CLIP; HARNESS
03.671 ID=12 VINYL CHLORIDE IDN 		8-97367-984-1 01 1 0907-
508 09.181 CLIP; HARNESS
02.559 L=170.3 		1-09987-182-0 01 1 0804-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
