Isuzu WW
▶
TRUCKS
▶
NPS
▶
51403 - NPS INDONESIA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#54152) — 73 parça
◀
[825A] RELAY;FRAME HARNESS (3 parça)
[825A] SWITCH(NO.2) (21 parça)
[825A] -'12/4 RELAY;CAB HARNESS (6 parça)
[825A] SWITCH(NO.3) (19 parça)
[825A] '12/5- RELAY;CAB HARNESS (7 parça)
[825A] SWITCH(NO.1) (16 parça)
[825A] SWITCH(NO.4) (1 parça)
▶
151
315
154
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
151
09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.510 24V 12.5A PANASONIC
8-97262-933-0
01
1
0804-
154
09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 08.852 24V 10A PANASONIC IDN
8-97173-035-1
01
1
0804-
315
09.277 RELAY; EXH BRAKE CONT
08.852 24V 10A PANASONIC IDN
8-97173-035-1
01
1
0804-

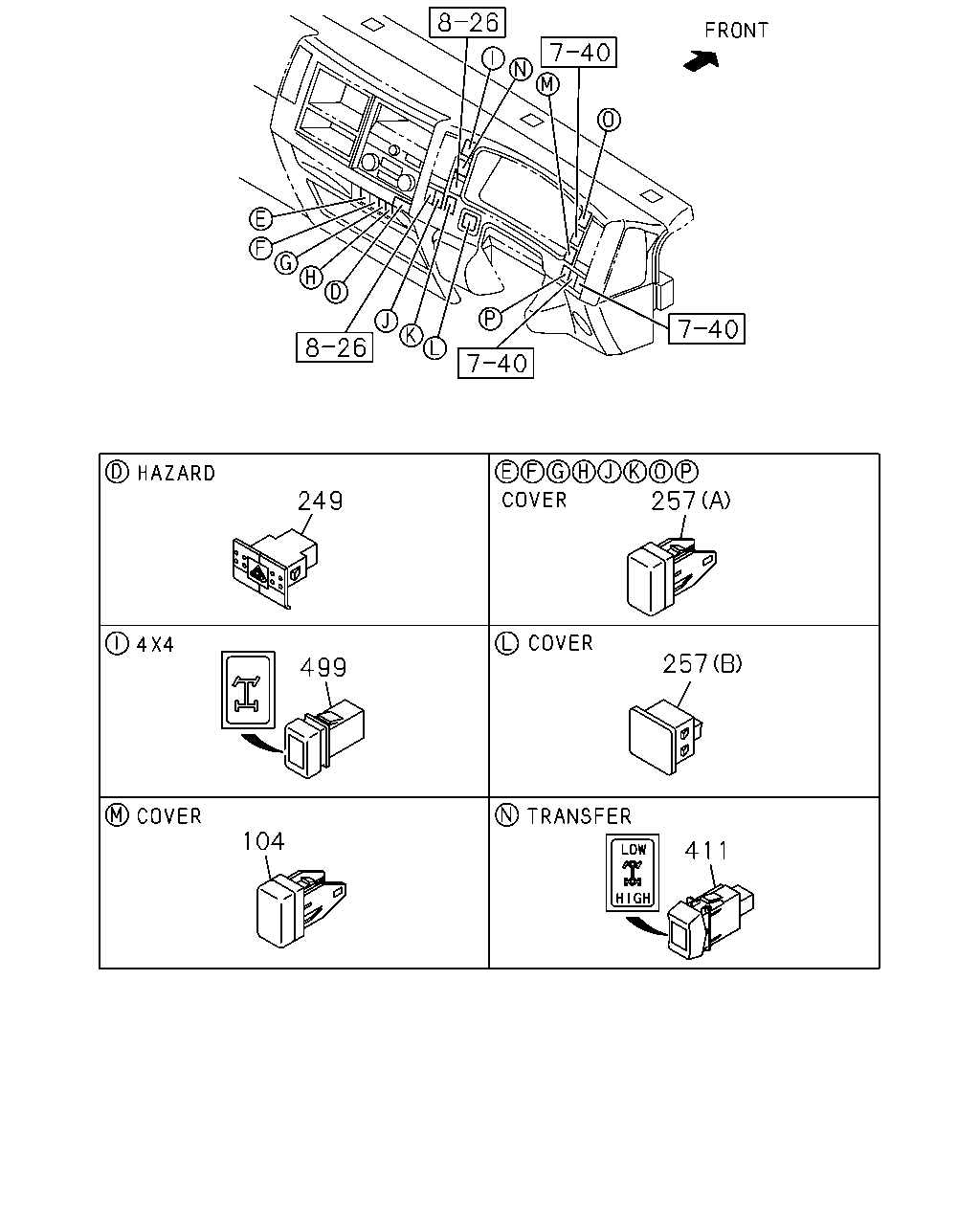

257
249
257
499
104
411
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
104
09.778 COVER; SW HOLE,FOG LAMP
16.081
8-98025-954-1
01
1
0804-
249
02.485 SWITCH; HAZARD
8-97386-922-1
01
1
0804-
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0804-0906
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0804-0906
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0804-0906
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0804-0906
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0804-0906
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0804-0906
257
16.081 COVER; HOLE,SW
(B) IDN
8-98029-914-1
01
1
0804-
257
16.081 COVER; HOLE,SW
(C) IDN
8-98029-917-0
01
1
0804-
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
02
1
0804-0906
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
411
09.755 SWITCH; TRANSFER
8-97613-967-1
01
1
0804-
499
09.755 SWITCH; 4X4
8-97386-914-3
01
1
0804-

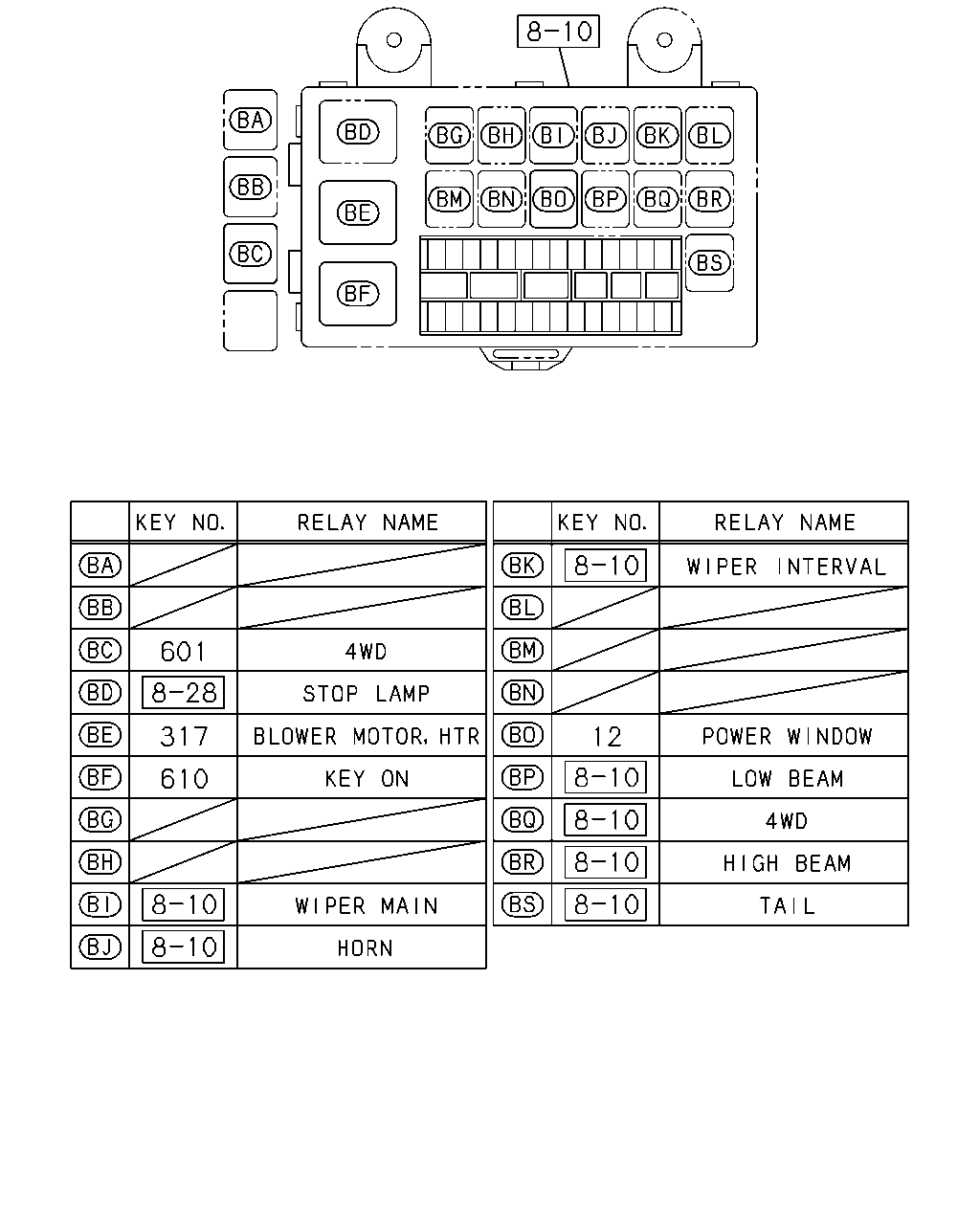

601
317
12
610
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC IDN
8-97173-035-1
01
1
0804-
317
02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 24V 12.5A PANASONIC
8-97262-933-0
01
1
0804-
601
02.510 RELAY; 4WD
08.852 24V 10A PANASONIC IDN
8-97173-035-1
01
1
0804-
610
02.510 RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
0804-1204
610
02.510 RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
1205-
610
02.510 RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
1205-
30
29
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
16.263 SWITCH; DOOR
BLACK IDN
8-98022-211-0
01
1
0804-
30
16.263 SCREW; DOOR SW
M5X18 IDN
8-98047-201-0
01
1
0804-
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0804-0906
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0804-0906
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0804-0906
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0804-0906
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0804-0906
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0804-0906
257
16.081 COVER; HOLE,SW
(B) IDN
8-98029-914-1
01
1
0804-
257
16.081 COVER; HOLE,SW
(C) IDN
8-98029-917-0
01
1
0804-
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
02
1
0804-0906
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
257
16.081 COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-

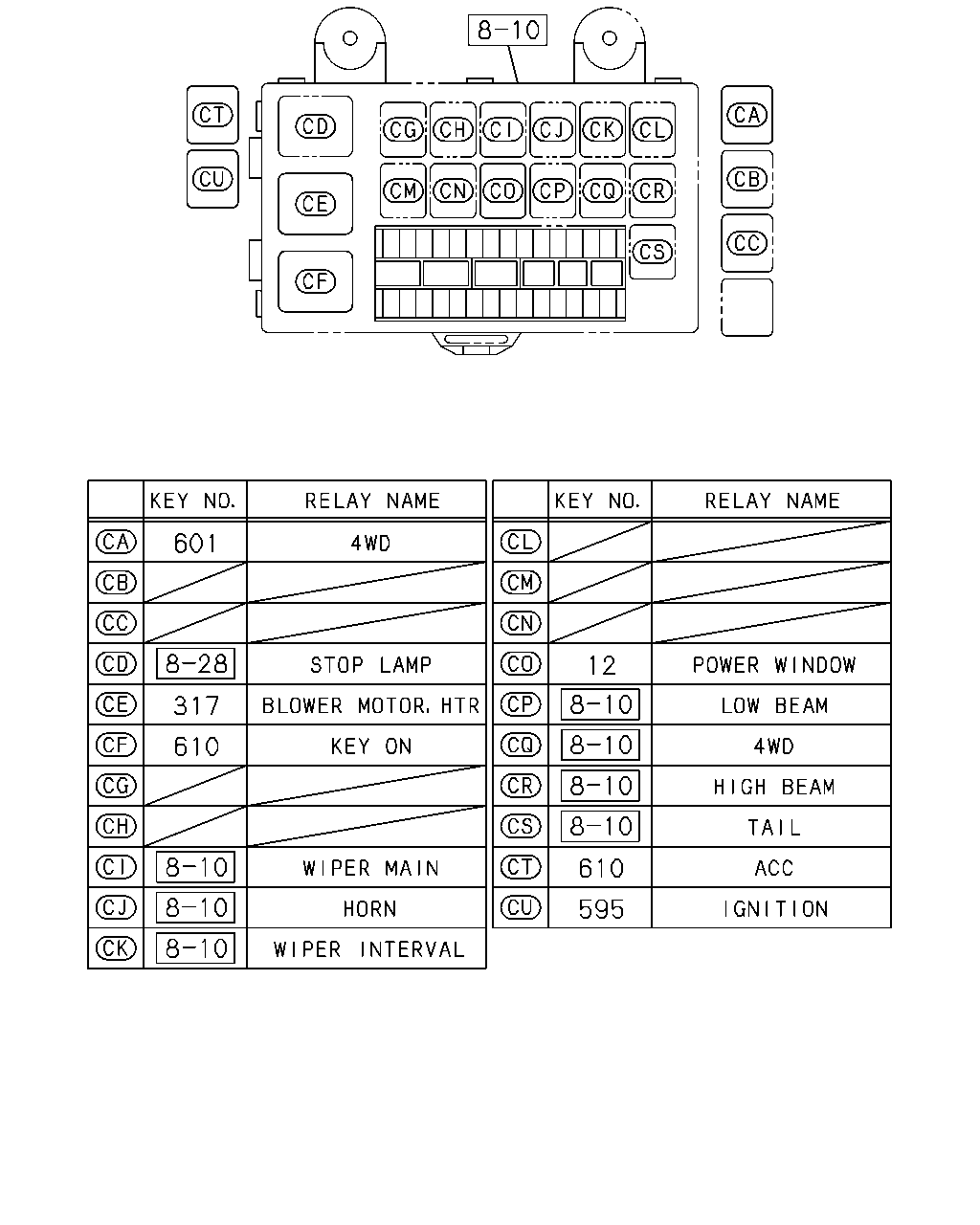

601
12
317
610
610
595
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC IDN
8-97173-035-1
01
1
0804-
317
02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 24V 12.5A PANASONIC
8-97262-933-0
01
1
0804-
595
02.510 RELAY; IGNITION
24V 12.5A PANASONIC
8-97262-933-0
01
1
1205-
601
02.510 RELAY; 4WD
08.852 24V 10A PANASONIC IDN
8-97173-035-1
01
1
0804-
610
02.510 RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
0804-1204
610
02.510 RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
1205-
610
02.510 RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
1205-

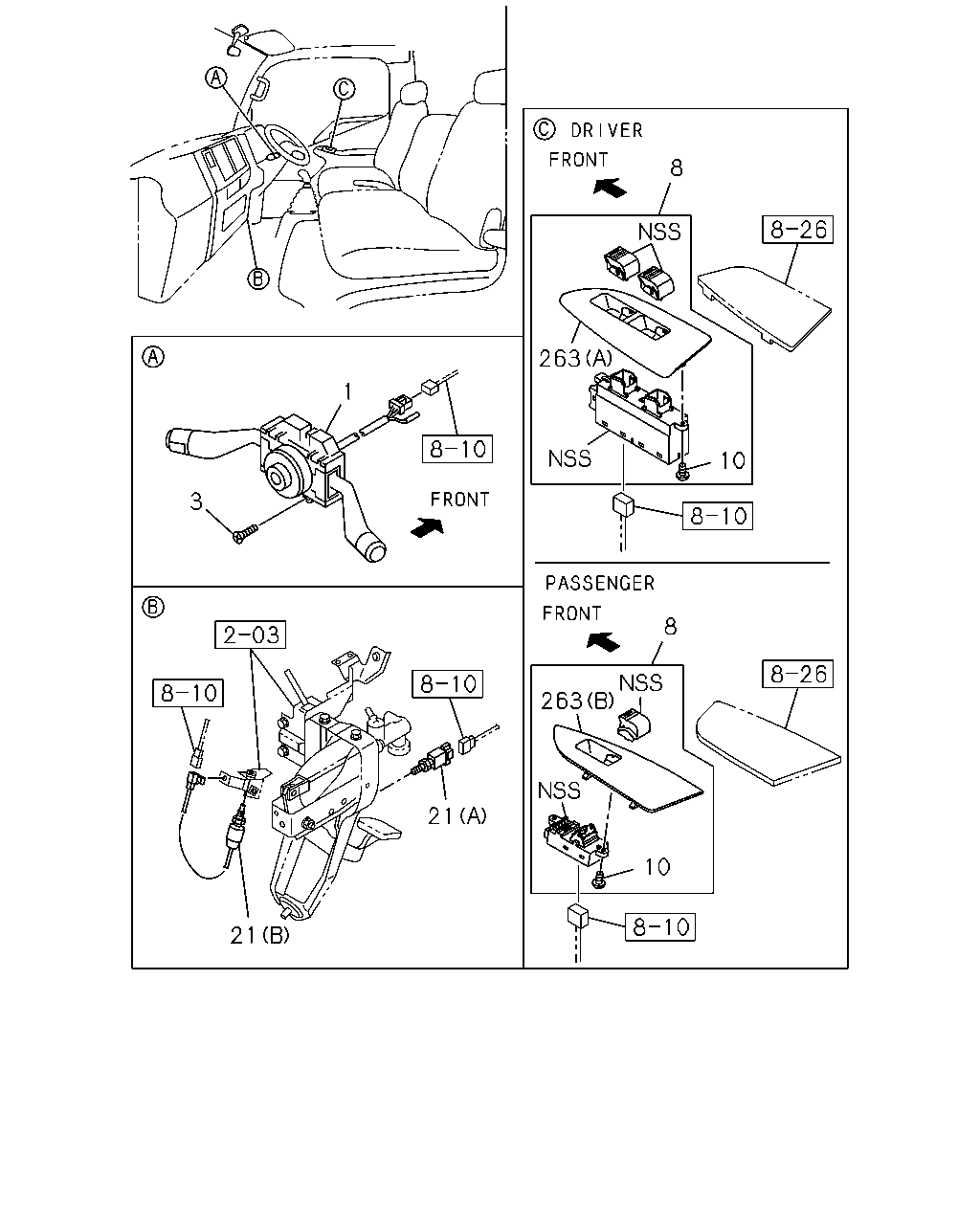

8
263
1
10
3
8
263
21
10
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.895 SWITCH; COMB
INTERMITTENT WIPER<C13>
8-98069-995-1
01
1
0804-1310
1
02.895 SWITCH; COMB
INTERMITTENT WIPER<C13>
8-98243-729-0
01
1
1311-
1
02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>
8-98069-993-2
01
1
0804-1310
1
02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>
8-98243-728-0
01
1
1311-
3
02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
02
1
0804-
8
16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE
8-97387-034-2
01
1
0804-1509
8
16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE
8-98316-415-0
01
1
1510-
8
16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE
8-98003-785-1
01
1
0804-0809
8
16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE
8-98129-844-0
01
1
0810-1001
8
16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE
8-98159-543-0
01
1
1002-1509
8
16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE
8-98298-750-0
01
1
1510-
10
03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32>
8-98153-865-0
03
1
0804-
21
02.575 SWITCH; CLU
(A)
8-97358-248-0
01
1
0804-
21
02.575 SWITCH; CLU
(B)
8-97620-841-0
01
1
0804-
263
16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (A)
8-98153-836-0
01
1
0804-
263
16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (B)
8-98153-841-0
01
1
0804-

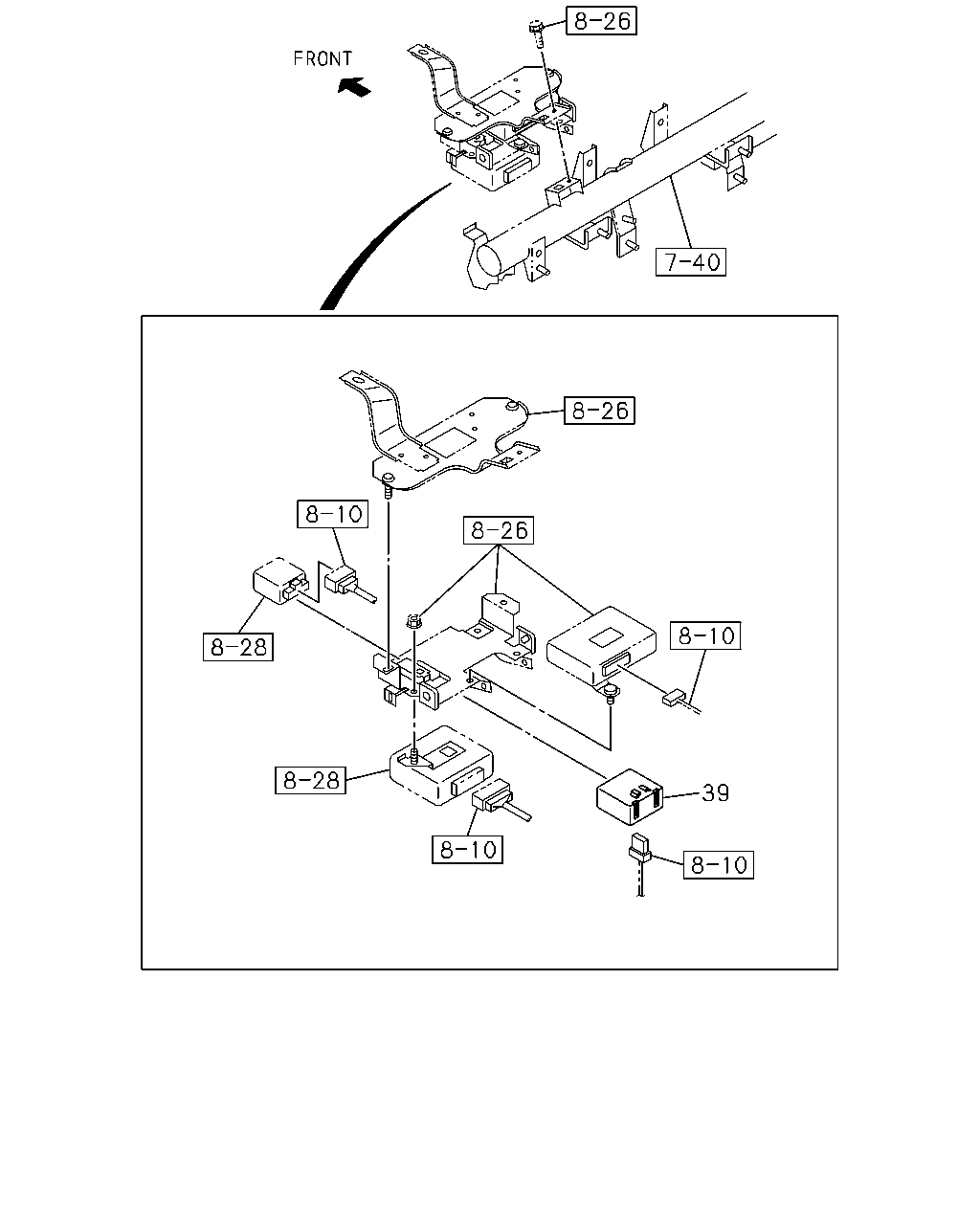

39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
39
16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4>
8-98060-789-0
01
1
0804-
